Snowmobile Polaris 600 RUSH (2010 year). Instruction - part 67





8.34

Steering and Suspensions

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

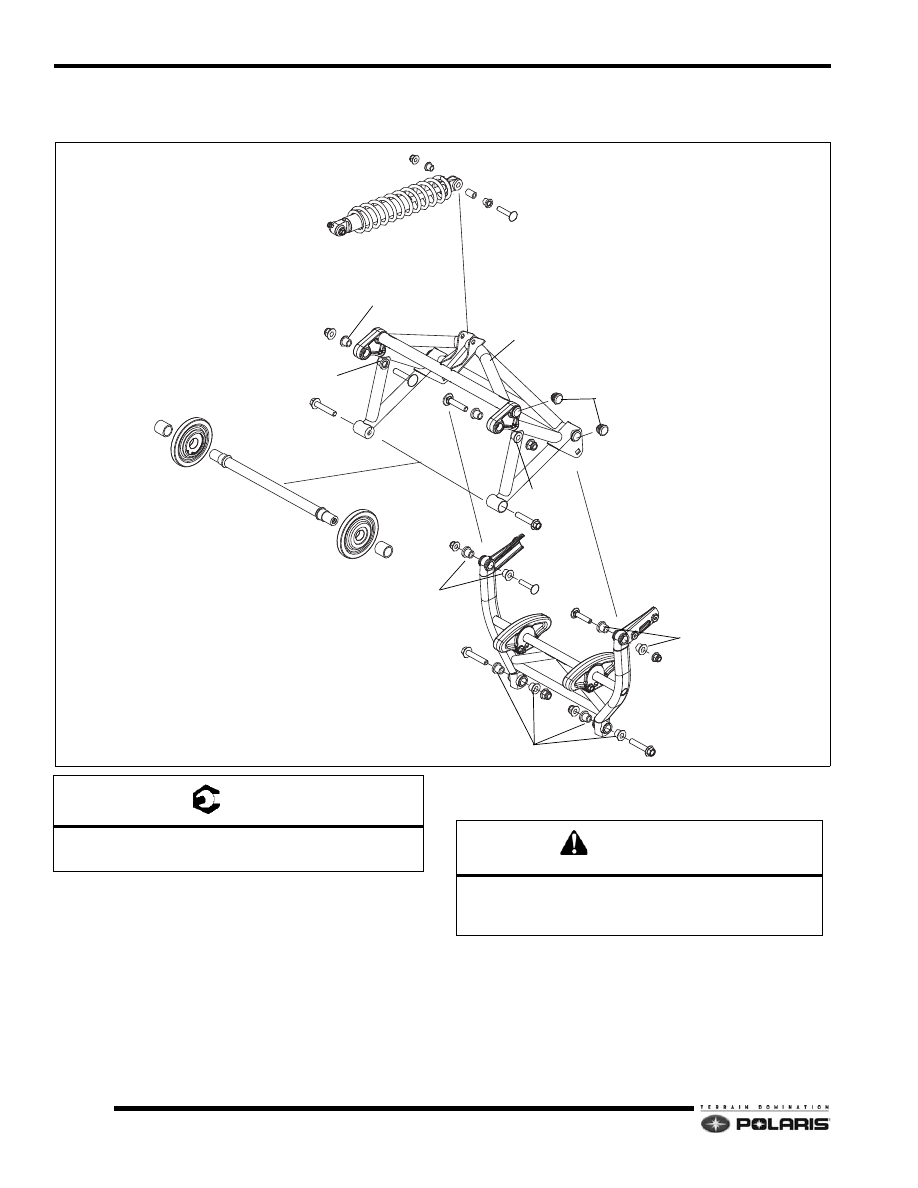

2010 Progressive 120 Rear Crank/Rear

Scissor Assembly

Assembly Notes

• Never re-use lock nuts. Always replace with new

parts.

• All pivots must rotate freely after tightening

fasteners.

REAR TRACK SHOCK

REAR CRANK

UPPER CARRIER WHEEL ASM.

REAR PIVOT

PLUGS

BUSHING

BUSHINGS

BUSHINGS

BUSHINGS

A

A

BUSHING

BUSHING

B

B

A

A

B

B

METRIC FASTENERS

T

A: 33 ft-lb (45 Nm)

B: 60 ft-lb (80 Nm)

CAUTION

Some rail shaft fasteners are pre-coated with locking

agent. Never re-use these fasteners once removed.

Always use new pre-coated fasteners.

8.35

Steering and Suspensions

8

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

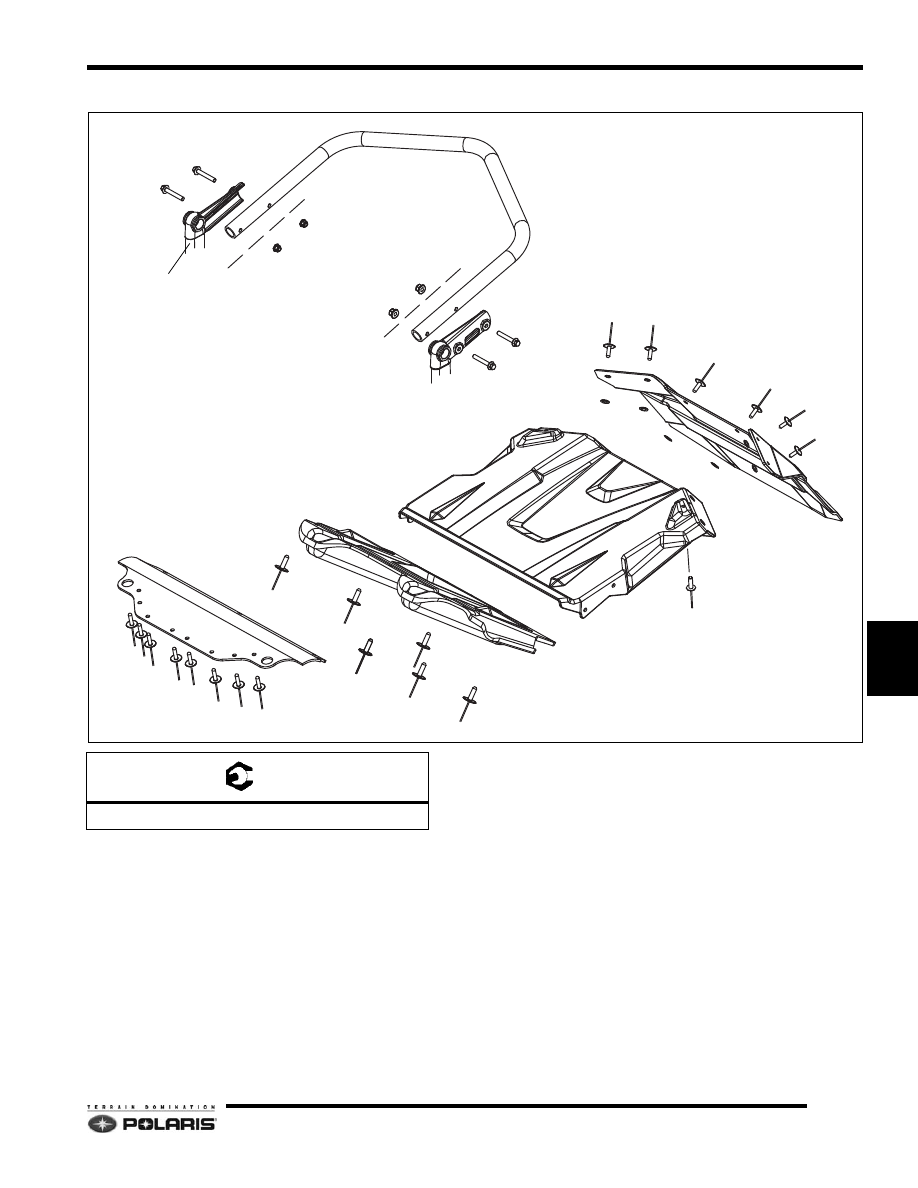

2010 Progressive 120 Rear Bumper/Closeoff Assembly

Assembly Notes

• Never re-use lock nuts. Always replace with new

parts.

• All pivots must rotate freely after tightening

fasteners.

T

A: 7 ft-lb (9.5 Nm)

REAR BUMPER

REAR PIVOT

CLOSEOFF FLAP

UPPER FLAP

MID FLAP

REAR FLAP

A

A

METRIC FASTENERS

8.36

Steering and Suspensions

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

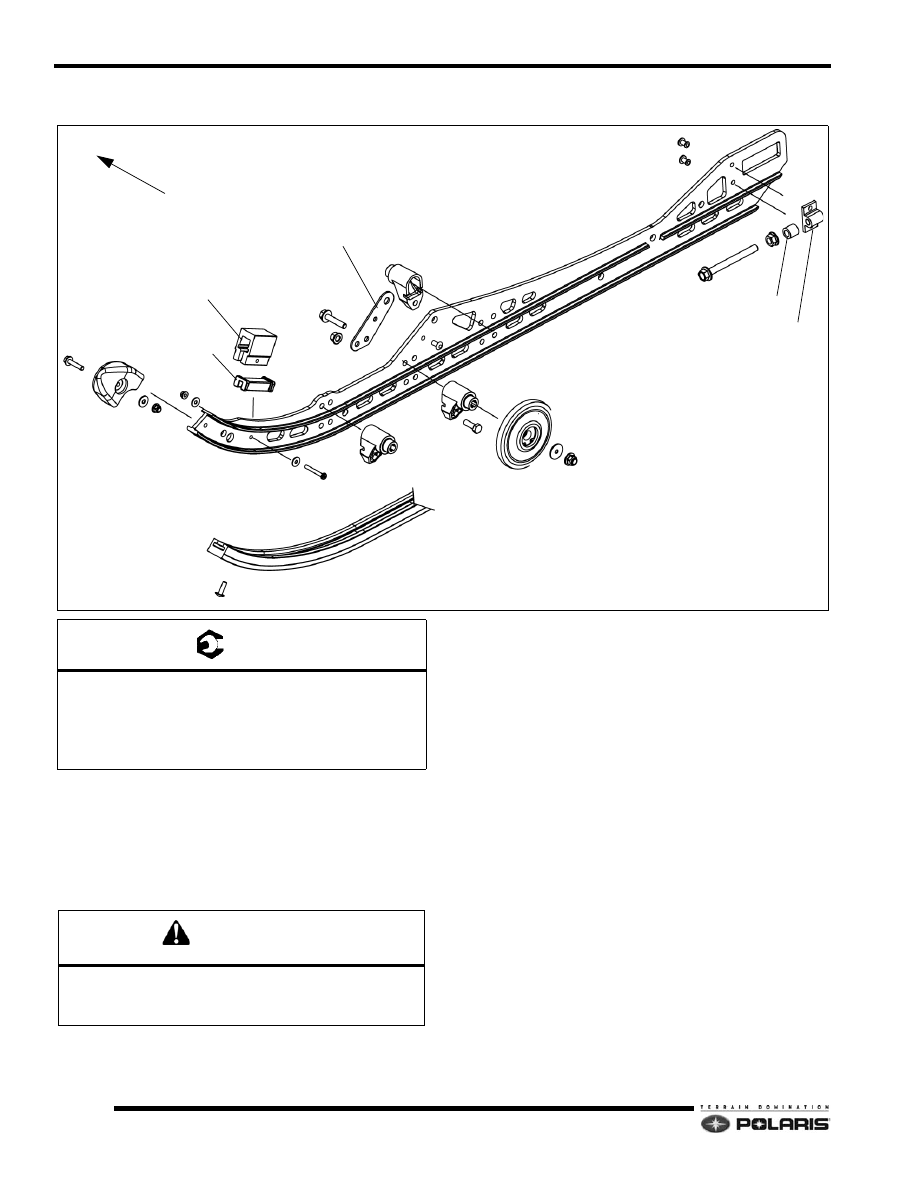

Progressive 121 Rail Assembly

Assembly Notes

• Never re-use lock nuts. Always replace with new

parts.

• All pivots must rotate freely after tightening

fasteners.

RAIL SLIDER

TRACK TENSIONER BLOCK

RAIL TIP

BOGIE WHEEL ASM.

RAIL BUMPER

INSIDE OF RAIL

A

B

C

D

D

E

SPACER

BOGIE WHEEL MOUNT

SUPPORT PLATE

BUMPER LINER

METRIC FASTENERS

T

A: 7.4 ft-lb (10 Nm)

B: 4 ft-lb (5.4 Nm)

C: Torque nut until screw protrudes 5mm

D: 17 ft-lb (23 Nm)

E: 33 ft-lb (45 Nm)

CAUTION

Some rail shaft fasteners are pre-coated with locking

agent. Never re-use these fasteners once removed.

Always use new pre-coated fasteners.

8.37

Steering and Suspensions

8

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

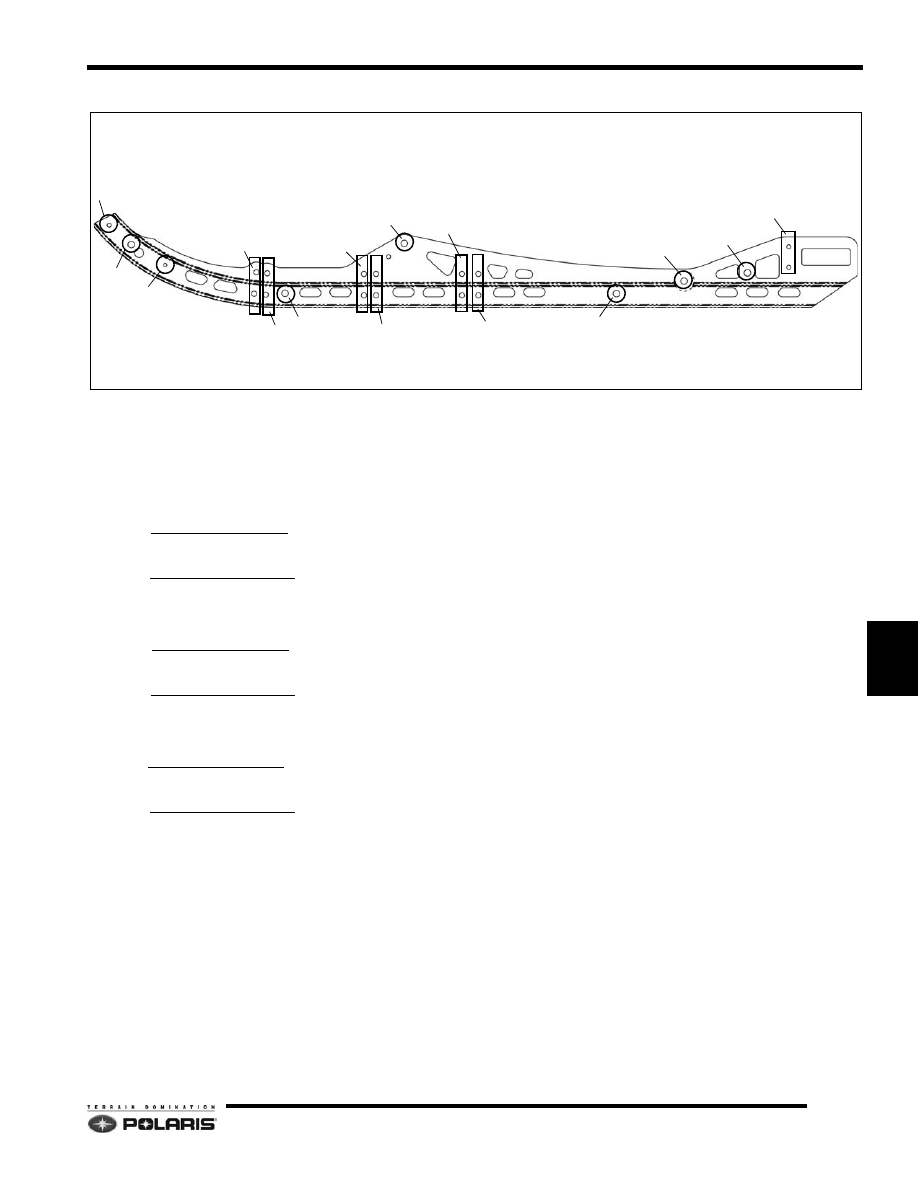

Progressive 121 Rail Fastener Locations

Components/Fasteners:

• A - Rail Tip

• B - Limiter Strap Shaft

• C - Rail Bumper

• D  -  Left Rail Front Holes - Bogie Wheel Asm.

(Mount to outside of rail).

• E  -  Right Rail Rear Holes - Bogie Wheel Asm.

(Mount to outside of rail).

• F - Front Shock Shaft

• G  -  Left Rail Front Holes - Bogie Wheel Asm.

(Mount to outside of rail).

• H  -  Right Rail Rear Holes - Bogie Wheel Asm.

(Mount to outside of rail).

• I - Front Torque Arm Shaft

• J  -  Left Rail Front Holes - Bogie Wheel Asm.

(Mount to inside of rail).

• K  -  Right Rail Rear Holes - Bogie Wheel Asm.

(Mount to inside of rail).

• L - Rail Brace Shaft

• M - Rear Pivot Shaft

• N - Rail Brace Shaft

• O - Rear Idler Adjuster Block

A

B

C

D

E

F

G

H

K

M

J

L

I

N

O

LEFT RAIL SHOWN
