Snowmobile Polaris RMK Shift / RMK / Dragon RMK (2008 year). Instruction - part 8

FEATURES

Instrumentation

MFD Digital Display Programs

Press and release the MODE button to cycle through the three MFD pro-
grams: Performance, Engine and History. Each program remains active
until you cycle to the next program. While any program is active, press
and release the SET button to cycle through the program’s screens.
Performance Program
Press and release the MODE button until the performance program
screen is active. The default display for this screen includes electrical
system voltage, fuel level (if equipped) and either speed or tachometer,
whichever is selected (see page 32).

Press and release the SET button to cycle through the following screens:
odometer, trip 1 odometer, trip 2 odometer, fuel trip odometer (if fuel is
low) and clock (if equipped). Use the following procedures to make
changes to these screens.

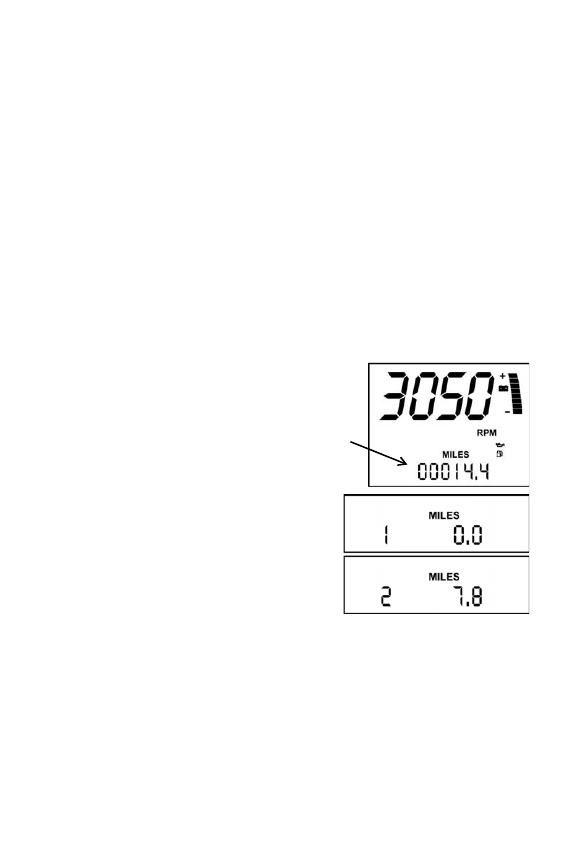

Odometer Setting

The odometer records the vehicle's total
distance traveled since manufacture. The
odometer cannot be reset.

Trip Settings

Trip 1 and Trip 2 are odometers used to
check fuel mileage or to keep track of
distance traveled. Both odometers can be
reset to zero.

1. Enter the Performance Program.

2. Press and release the SET button

until the desired trip screen is active.

3. Press and hold the SET button for two seconds to reset the trip

odometer to zero.

4. Press and release the SET button to view another trip screen if

desired.

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program
Trip Settings

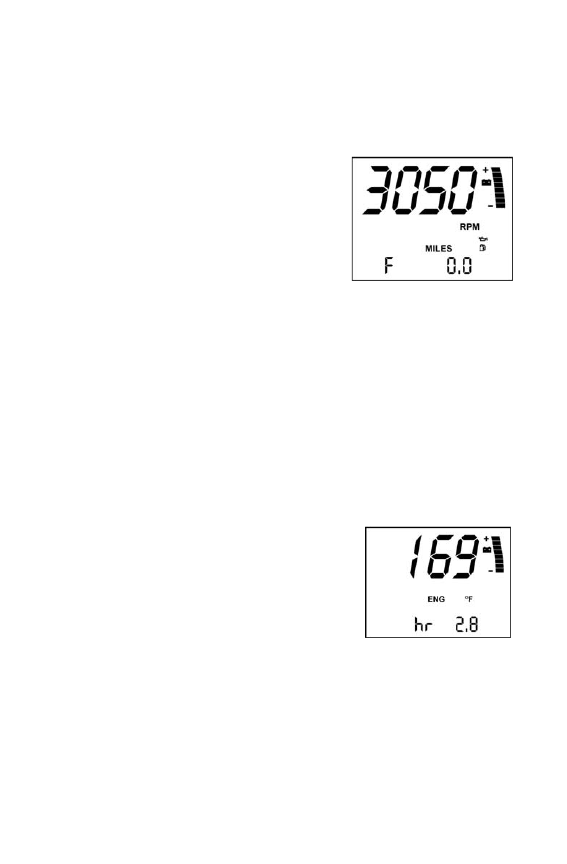

Trip F automatically displays when the
fuel level is low if the snowmobile is
equipped with an electronic fuel gauge.
The fuel symbol and the last fuel bar on
the MFD gauge (if equipped) will blink
when the fuel level reaches 1/8 of a tank.

The Trip F odometer records distance
traveled, and the fuel symbol continues
to blink, until enough fuel is added to
raise the level above 1/4 of a tank. The
Trip F odometer will automatically reset
to zero after refueling.
Engine Program
Press and release the MODE button until the engine program screen is
active. The default display for this screen includes engine hours, electri-
cal system voltage level, fuel level (if equipped) and either engine cool-
ant temperature, air temperature (accessory) or altimeter (accessory).

Press and release the SET button to cycle through the following screens:
hour meter, engine temperature, air temperature (available as an acces-
sory) and altimeter (available as an accessory).

Hour Meter

The hour meter records the total hours of
engine operation since manufacture. This
meter cannot be reset.

Engine Temperature

A thermometer measures water temperature,
giving an indication of engine temperature.

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program

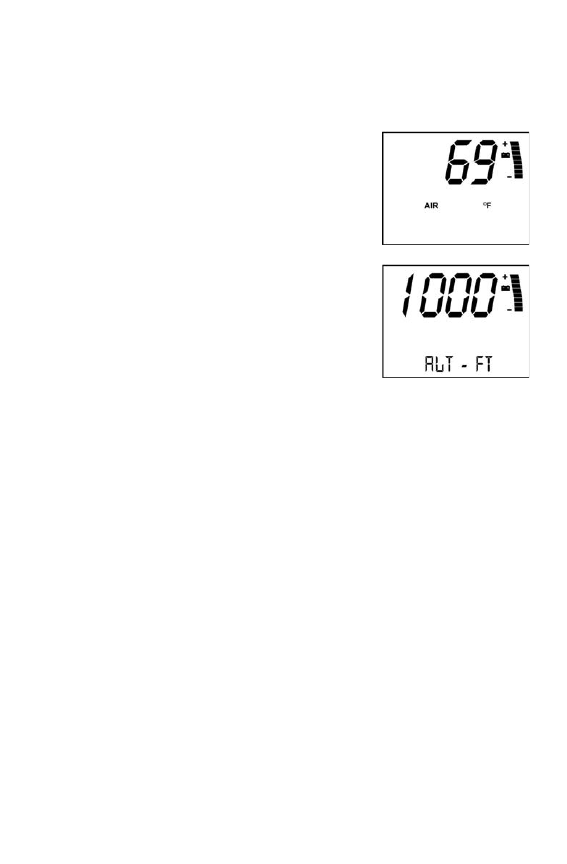

Air Temperature (accessory)

The MFD displays actual air temperature.
Press and hold the MODE switch for ten sec-
onds to switch between standard and metric
units of measurement.

Altimeter (accessory)

The rider can calibrate the altimeter for cur-
rent atmospheric conditions. Altimeter accu-
racy will be +/-300 ft. (91 m) after adjustment.

NOTE:

When “ALt-FT” displays, the program is in

the standard mode. If only "ALt" displays,

the program is in the metric mode.

1. Enter the Engine Program.

2. Press and release the SET button until the

altimeter screen is active.

3. Press and hold the SET button for five seconds.

4. When the digits begin to flash, release the SET button.

5. Press and release the SET button to advance the reading in 50-foot

(15 m) increments, or press and hold the button to advance quickly.
Adjust the altitude display to within 50 ft. (15 m) of the current alti-
tude.

NOTE:

The gauge reads barometric pressure and allows the rider to compen-

sate for daily fluctuations in air pressure. The gauge can adjust the

displayed altitude to +/- 1300 ft. (396 m) from the preset value. It will

adjust up to +1300 ft. (396 m) above the calibrated altitude. Once the

+1300 ft. (396 m) offset has been reached, the next adjustment is -

1300 ft. (396 m) from the calibrated altitude, and 50 ft. (15 m) will be

added to the altitude each time the SET button is pressed.

6. Press the MODE button to hold the reading at the adjusted value. If

the MODE button is not pressed within five seconds, the gauge will
automatically save the new setting.

FEATURES

Instrumentation

MFD Digital Display Programs

History Program
Press and release the MODE button until the history program screen is
active. This screen will always display electrical system voltage level
and fuel level (if equipped).

Press and release the SET button to cycle through the following screens:
maximum vehicle speed, maximum engine RPM and service interval
reminder.

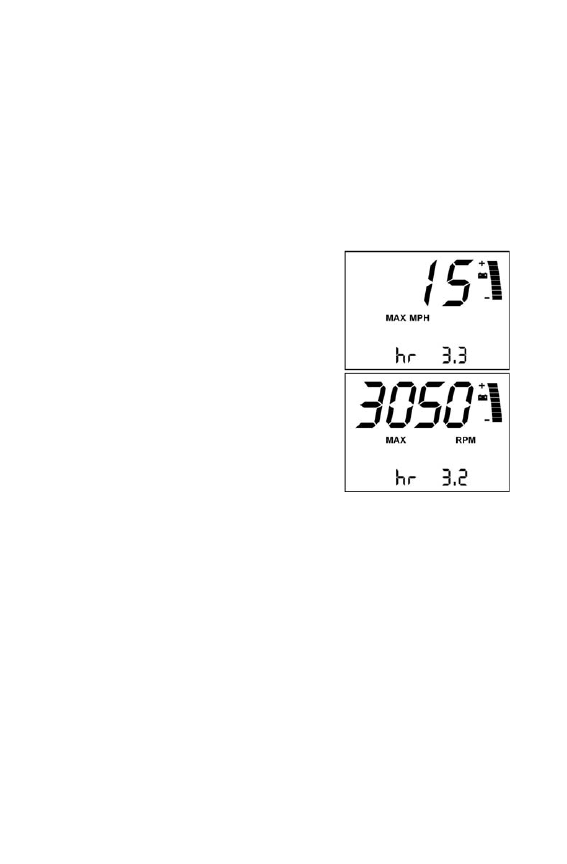

Maximum Speed/Maximum RPM

The gauge automatically logs the maximum
speed and engine RPM even if the history
program is not active in the display.

1. Enter the History Program.

2. Press and release the SET button until

one of the two screens is active.

NOTE:

The MPH and RPM values are both

reset at the same time. Reset the val-

ues before each run to obtain accurate

readings.

3. Press and hold the SET button for three

seconds to reset the recorded maximum
values for both MPH and RPM.

NOTE:

Due to electrical noise, the MFD may occasionally display MAX MPH/

RPM values that are not representative of actual values.
