FEATURES

Detonation Elimination Technology (DET)

A detonation sensor monitors the engine and responds to detonation by
automatically reducing the engine timing and adding fuel. This results in
decreased engine RPM and performance.

Effect of DET

The DET system prevents damage to the engine from detonation while
developing the maximum power of the engine safely. If the system
senses detonation beyond a preset limit, it retards ignition timing and
adds fuel to reduce the detonation and prevent engine damage.

When the detonation returns to a permissible level, the system will
return spark and fuel to normal, allowing the engine to run at rated
power levels.

Sensor Fail-Safe

The DET includes a sensor fail-safe system to prevent the engine from
damage if the sensor fails, becomes disconnected or is unable to detect
detonation. The rider will experience a loss in power. The sensor must
be reconnected or repaired to regain full power.

NOTE:

The check engine light will flash six times if the sensor fails or

becomes disconnected.

DET Troubleshooting (Carbureted Models)

Use this chart to determine causes and solutions for detonation. If none
of these conditions exists and the sensor remains activated, see your
Polaris dealer for diagnosis.

Possible Cause

Solution

Poor quality fuel

Replace with higher quality fuel

Improper engine modifications

Do not modify the engine

30

FEATURES

Instrumentation

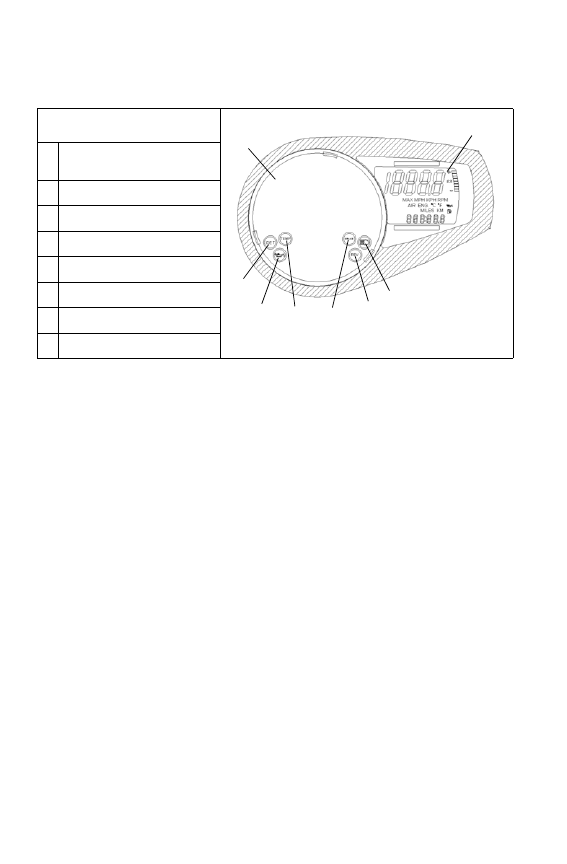

MFD Component Identification

Item

1 Analog Gauge (if

equipped)

2 Digital Gauge

3 Check Engine Indicator

4 Low Oil Indicator

5 High Temp Indicator

6 Brake Indicator

7 Reverse Indicator

8 High Beam Indicator

1

2

3

5

6

7

8

4

31

FEATURES

Instrumentation

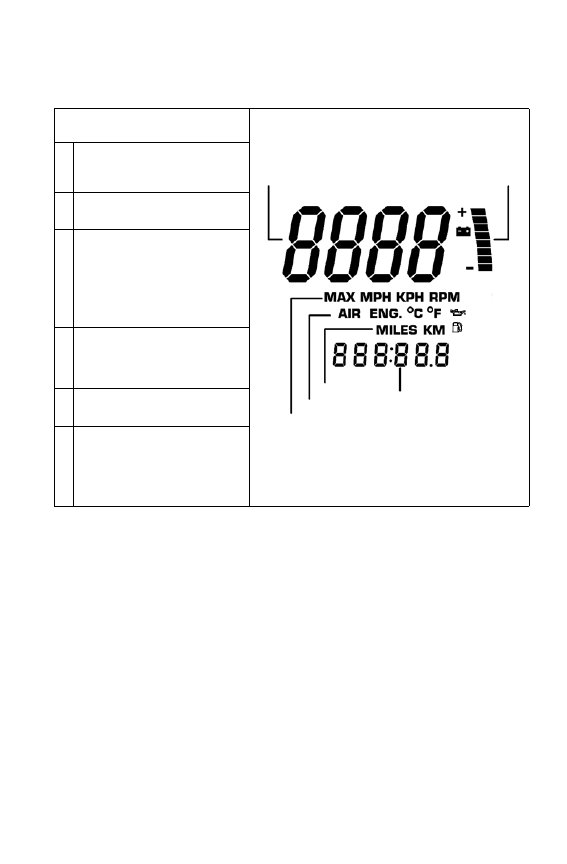

Digital Display Identification

Item

1 RPM or Speed

Altitude (if equipped)

Service Interval

2 Electrical System

Voltage Level

3 MAX - Maximum MPH/

KPH or RPM

MPH -Miles per hour

KPH - Kilometers per hour

RPM -Engine crankshaft

revolutions per

minute

4 Air Temp (if equipped)

Engine Temp

Degrees Celsius

Degrees Fahrenheit

5 Miles

Kilometers

6 Hours

Trip 1/Trip 2/Trip F

Service Label

Altitude Label

1

2

3

4

5

6

32

FEATURES

Instrumentation

MFD Settings

The MFD Control Switch
allows you to set the MFD
display to your preferences.
The rocker switch has a
MODE button (top) and a
SET button (bottom). Specific
instructions are outlined on
the following pages.

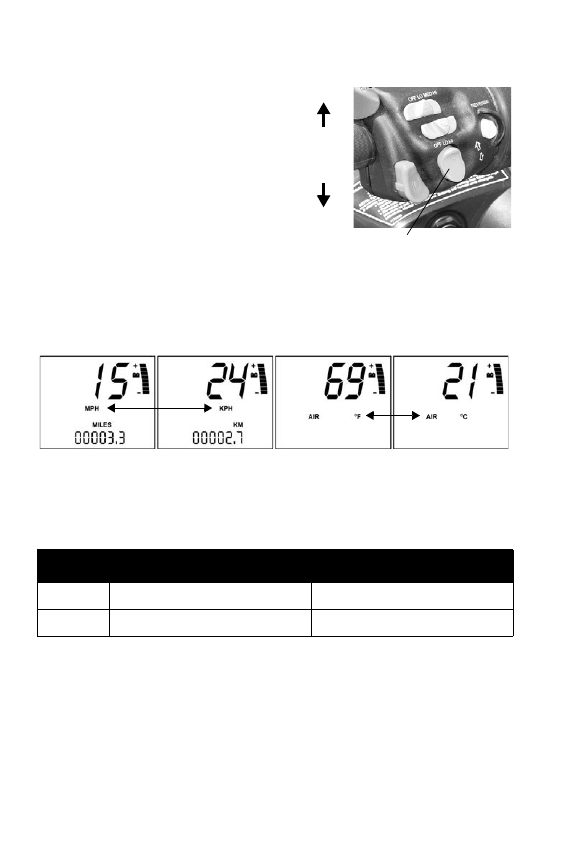

Standard vs. Metric
The MFD will display either standard or metric units of measurement.
While viewing a screen that displays measurements (MPH, km/h or
temperatures), press and hold the MODE switch until the unit of mea-
surement changes (about 10 seconds).

Speedometer/Tachometer
To change viewing preferences, press and hold the MODE button for
three seconds. When the button is released, the new setting becomes
active and screen colors change.



Option

Digital Display

Screen Backlight

1

RPM

Blue

2

Speed

Red

MFD Control Switch

SET

MODE
