Snowmobile Polaris Trail RMK (2010 year). Instruction - part 26





105

MAINTENANCE

Daily Storage

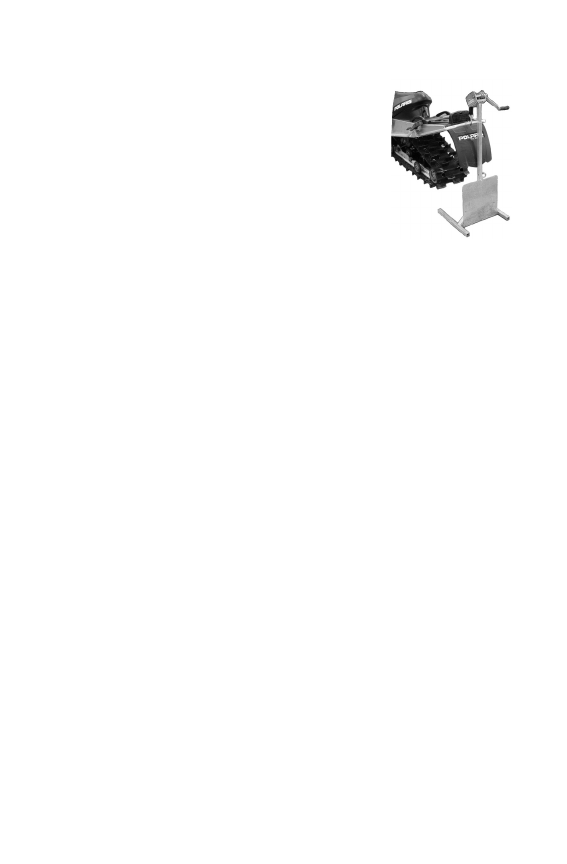

At the end of each ride, park the snowmobile

on a level surface and support it at the rear

with an appropriate track stand. The track

should be suspended approximately 4 inches

(10 cm) off the ground.
Remove the key and cover the machine.

Tip: Polaris has accessory covers and track stands

available to fit all models. See your dealer for

more information.

106

MAINTENANCE

Extended Storage

Off-season or extended storage of your snowmobile requires preventive

measures to aid against deterioration and to prolong the useful life of

many components.

Cleaning and Preservation

Proper storage starts with cleaning, washing, and waxing the hood,

chassis, and plastic parts. Wipe down remaining surfaces with a damp

cloth. Clean and touch up with paint any rusted or previously painted

surfaces. Be sure that corrosive salt and acids are removed from surfaces

before beginning preservation with waxes and rust inhibitors (grease, oil

or paint).
The machine should be stored in a dry garage or shed, out of direct sun-

light, and covered with a fabric snowmobile cover. Plastic tarp may

cause condensation to form and damage snowmobile components.

Engine and Carburetor Protection

Proper preparation of the engine and fuel system is vital to the preven-

tion of rust and corrosion on precision engine parts during storage.

Whenever the machine is stored for a period of more than 60 days, the

engine must be fogged with fogging oil. Follow the engine fogging

instructions provided on the can. See page 107.
Always add Premium Carbon Clean or a fuel conditioner/stabilizer to

the fuel tank. Follow the instructions on the can, running the engine for

five minutes to get additives through the entire fuel system. Top off with

fresh fuel.

Tip: For easier starting after extended storage, add lubricant to the fuel in the

tank at a 40:1 ratio and run the engine for three to five minutes before stor-

age. This will lubricate the fuel pump diaphragm to keep it flexible and help

prevent loss of prime.

If stabilizer is not used, drain the carburetors by removing the water trap

drain plugs (see page 77). Catch fuel in a container or shop cloth. Rein-

stall plugs securely. Observe all fire safety rules when draining carbure-

tors. See gasoline warnings on page 53.

Tip: Jet restriction caused by improper storage can cause lean conditions and

very poor slow speed driving quality.

107

MAINTENANCE

Extended Storage

Engine and Carburetor Protection

Using a fuel stabilizer and topping off the fuel tank eliminates the need

to drain the fuel system. If you prefer to drain the fuel tank, use the fol-

lowing procedure:
1. Transfer unused fuel from the fuel tank to an approved fuel con-

tainer using a siphon pump. Do not re-use fuel after storage.

2. Securely support the front of the snowmobile with a jack stand so

the machine is elevated and the engine is tilted rearward.

3. Remove the spark plug(s).
4. Rotate the engine slowly, watching the piston until it’s at bottom

dead center (BDC), the lowest position in the cylinder. On twin cyl-

inder models, the opposite piston will be up.

5. Pour approximately two ounces of



Polaris injector oil into the spark

plug hole.

6. Wait one to two minutes and perform steps 3 to 5 on remaining cyl-

inders.

7. Replace the spark plugs and lower the machine to the floor.

Controls and Linkage

All bushings, spindle shafts, tie rod ends, and cables should receive a

light coat of oil or grease.

Bearings

Grease the drive shaft clutch side bearing with Polaris Premium All-

Season Grease or a similar high quality grease to prevent corrosion. See

page 109 for part numbers.

Clutch and Drive System

Remove the drive belt and store in a cool dry location. Lubricate the

sheave faces of the drive and driven clutches with a light coat of oil or

Polaris Cable Lubricant. See page 109 for the part numbers of Polaris

products. Do not lubricate clutch components, except the driven clutch

shaft bushing as outlined in the Master Repair Manual. See your dealer.

108

MAINTENANCE

Extended Storage

Electrical Connections

Separate electrical connector blocks and clean corrosive build-up from

connectors. Lubricate or pack connector blocks with dielectric grease

and re-connect. See page 109 for the part numbers of Polaris products.
Replace worn or frayed electrical wire and connectors. Be sure wiring

harness is properly secured away from sharp edges, steering linkage,

moving parts, and hot exhaust parts.

Battery

Always prepare and maintain the battery as outlined on page 101.

Track and Suspension

Moderate track tension should be maintained during summer storage.

The machine should be supported off the ground to allow the track to

hang freely.

Transporting the Snowmobile

Whenever the snowmobile is transported:
1. Turn the fuel valve off.
2. Be sure the fuel cap and oil cap are installed correctly.
3. Always tie the snowmobile to the transporting unit securely using

suitable straps.

4. Remove the ignition key to prevent loss.
