Polaris TRACTOR Sportsman 570 6X6 (2018 year). Instruction - part 29





119

MAINTENANCE

Fuse Replacement

If the engine stops or will not

start, or if you experience other

electrical failures, a fuse may

need replacement. Locate and

correct any short circuits that

may have caused the blown fuse,

then replace the fuse. Spare fuses

are provided in a compartment on

the top of the access door.
1. Open the front box cover.
2. Remove the access panel.

See page 101.

3. Remove fuse box cover.
4. Remove the suspect fuse

from the fuse panel. If the

fuse is blown, install a new

fuse with the same amperage.

5. Secure the fuse box cover

and access panel.

6. Secure the front box cover.

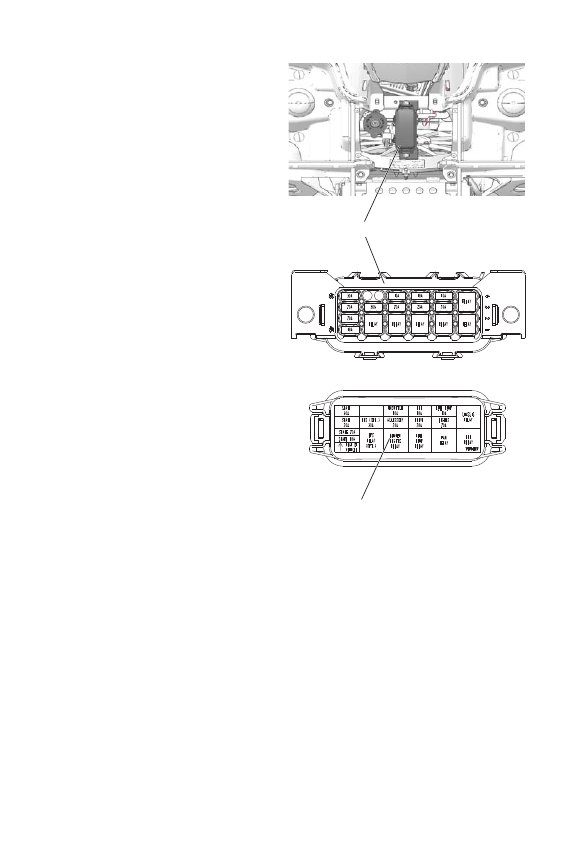

Fuse Box

Label Inside Fuse Box Cover

120

MAINTENANCE

Spark Plugs

Spark Plug Recommendations

Refer to the specifications section beginning on page 140 for the

recommended spark plug type and gap for your vehicle. Torque spark

plugs to specification.

Spark Plug Inspection

Spark plug condition is indicative of engine operation. Check the spark

plug firing end condition after the engine has been warmed up and the

vehicle has been driven at higher speeds. Immediately check the spark

plug for correct color.
Normal Spark Plug
The normal insulator tip is tan or brown. There will be few combustion

deposits. The electrodes are not burned or eroded. This indicates the

proper type and heat range for the engine and the service.
The tip should not be white. A white insulator tip indicates overheating,

caused by use of an improper spark plug or incorrect throttle body

adjustments.
Wet Fouled Spark Plug
The wet fouled insulator tip is black. A damp oil film covers the firing

end. There may be a carbon layer over the entire nose. Generally, the

electrodes are not worn. General causes of fouling are excessive oil

consumption, use of non-recommended oil or incorrect throttle body

adjustments.

Plug Condition

Torque Specification

New Spark Plug

12 N-m

Previously Installed Spark Plug

12 N-m

121

MAINTENANCE

Spark Plugs

Spark Plug Removal

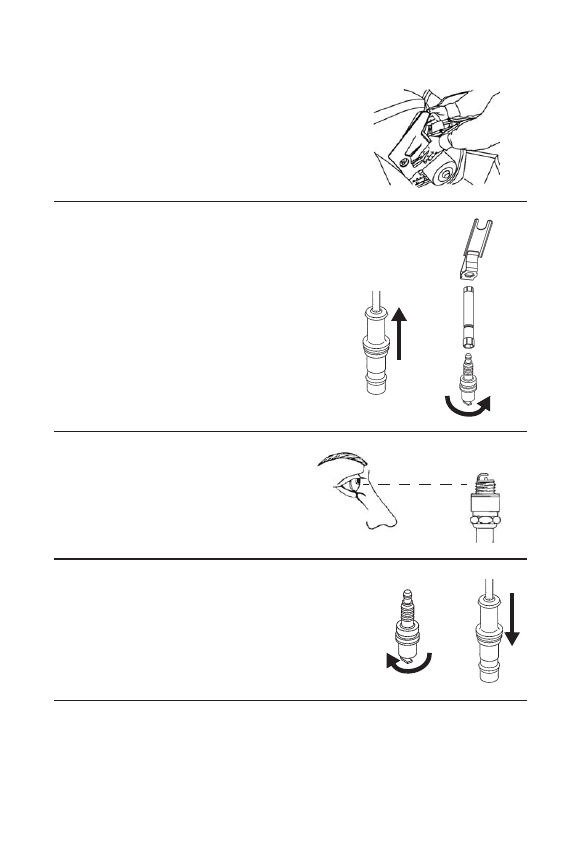

1. Remove the left side panel.

See page 109.

2. Remove the spark plug cap.
3. Use the spark plug wrench

to remove the spark plug.

Turn the plug counter-

clockwise to remove it.

4. Inspect the electrodes for

wear and carbon buildup.

Replace worn or fouled

plugs. Verify that the gap is

at specification before

installation.

5. Reinstall the spark plug.

Torque to specification. See

page 120.

6. Reinstall the spark plug cap.

122

MAINTENANCE

Vehicle Immersion

If your vehicle has been totally submerged in water and it's impossible

to have it serviced before further operation, perform the following

procedure.

NOTICE: If the vehicle stops while fully submerged, major engine damage can

result if the machine is not thoroughly inspected. Service is required

before starting the engine. Your POLARIS dealer can assist.

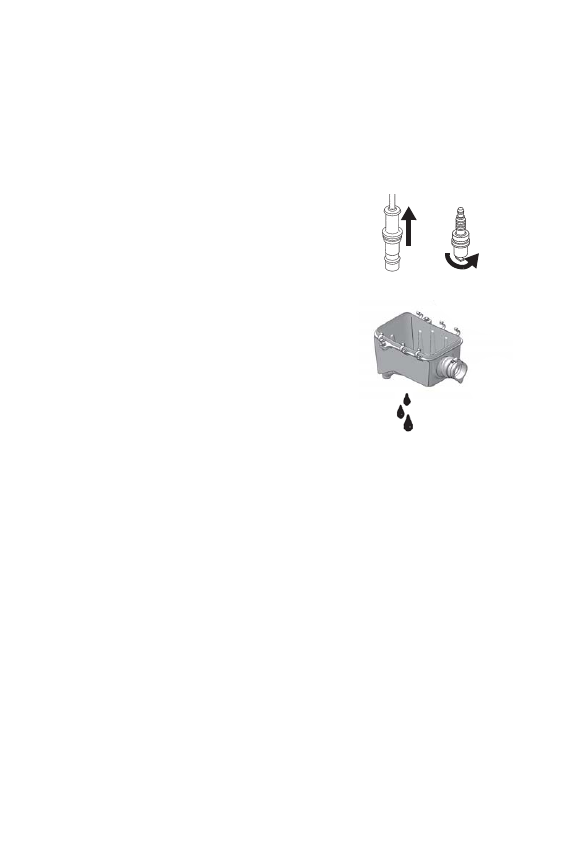

1. Move the vehicle out of the water.
2. Remove the spark plug.
3. Drain any water found in the air box.
