Polaris TRACTOR Sportsman 570 6X6 (2018 year). Instruction - part 28





115

MAINTENANCE

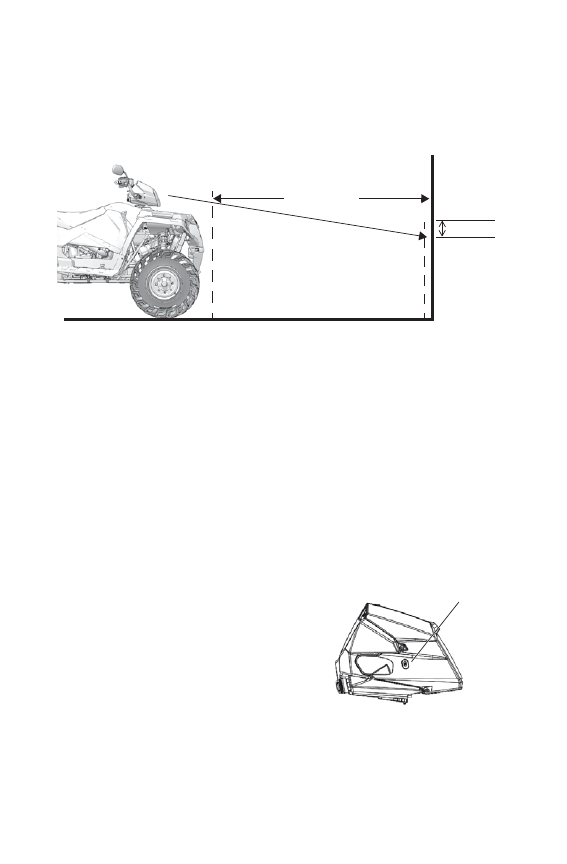

Lights

High Beam Adjustment

The headlight beam can be adjusted slightly.

1. Position the vehicle on a level surface. The headlight should be

approximately 7.6 m from a wall.

2. Place the transmission in PARK.
3. Measure the distance from the floor to the center of the headlight

and make a mark on the wall at the same height. Include rider

weight on the seat when measuring.

High Beam Adjustment

1. Start the engine.Turn the headlight switch to high beam.
2. Observe the headlight aim on the wall. The most intense part of the

headlight beam should be 5 cm below the mark on the wall.

3. The adjustment screw is

located on the right side of the

headlight pod. To adjust the

beam, loosen the screw.

Adjust the headlamp to the

desired position, then tighten

the screw.

7.6 m

5 cm

X

X

Models with pod headlight

Adjustment

Screw

116

MAINTENANCE

Lights

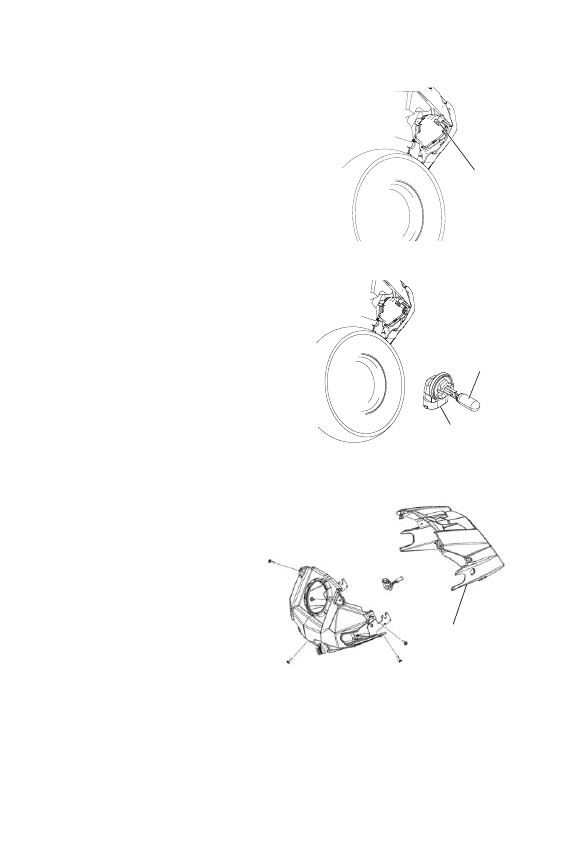

Low Beam Adjustment

The low beam can be adjusted slightly

upward or downward.
1. Loosen the Phillips screw located at

the rear of the headlamp.

2. Tilt the headlamp upward or

downward.

3. Tighten the screw.

Lower Headlamp Replacement

1. Turn the back of the headlight

harness counter-clockwise and pull

the harness assembly away from the

headlight assembly.

2. Remove the headlamp and install

the new headlamp.

3. Reinstall the harness assembly into

the headlight assembly.

4. Turn the headlight harness

clockwise to secure the headlamp.

Headlight Housing Replacement

1. Remove the seven (7)

headlight pod screws.

2. Pull the pod cover forward.
3. Unplug the headlamp from

the wiring harness.

4. Use a small screwdriver to

remove the o-rings from the

headlight mounting tabs.

5. Pull the headlight housing

up from the bracket for

removal.

6. Reverse the steps to install the new housing and reassemble the pod.

Phillips

Screw

Harness

Lamp

Headlight

Housing

117

MAINTENANCE

Lights

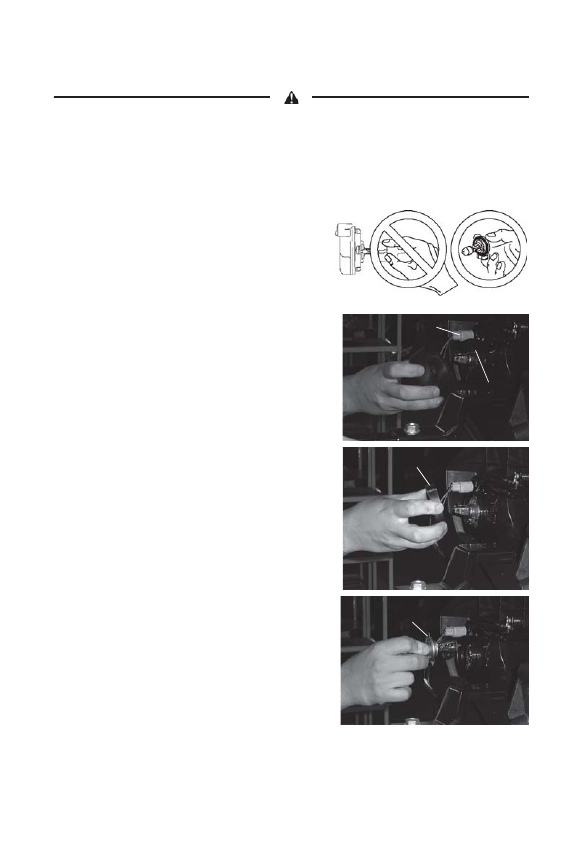

Poor lighting can result in loss of control or an accident. Lights become dirty

during normal operation. Wash the headlights and taillights frequently.
Hot components can cause serious burns to skin. Do not service the headlamps

until they've cooled.

Headlight/Parking Light Lamp Replacement

When servicing a halogen lamp, do

not touch the lamp with bare fingers.

Oil from your skin leaves a residue,

causing a hot spot that will shorten

the life of the lamp. Hold the plastic

part of the lamp.
1. Place the transmission in PARK.
2. Reach under the front bumper area

to locate the lighting connectors.

3. Parking Light Lamp: Disconnect

the harness connector. Turn the

socket counter-clockwise 1/8 turn

and remove the lamp assembly.

Pull the lamp straight out to

remove it from the socket.

4. Headlight Lamp: Disconnect the

harness connector. Remove the

rubber cover from the back of the

headlight. Press and turn the

locking collar counter-clockwise

(left headlight) or clockwise (right

headlight) to release the lamp

assembly.

5. Install the new lamp. Apply a

small amount of dielectric grease

to the lamp socket or terminals.

6. Reverse all steps to reassemble

components.

Parking Light

Collar

Socket

Headlamp

118

MAINTENANCE

Lights

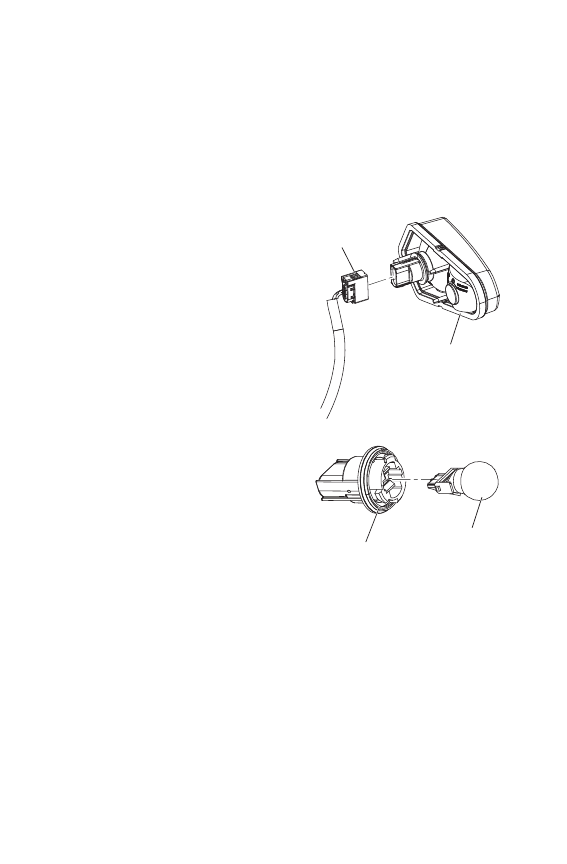

Front Turn Signal Lamp Replacement

If a front turn signal light becomes inoperable, use a Phillips screw-

driver to remove the lens cover screws. Remove the lens cover and

replace the spent lamp with a new lamp. Always use a P21W (21 watt)

lamp.

Taillight/Brake Light/Signal Light Lamp Replacement

1. Remove the harness connector

from the back of the light

assembly.

2. Turn the lamp counter-clockwise

to remove it.

3. Apply dielectric grease to the

socket and install the new lamp.

4. Reinstall the harness connector.
5. Test the light for proper opera-

tion.

Lamp

Harness

Connector

Taillight

Socket
