Polaris TRACTOR Sportsman 570 6X6 (2018 year). Instruction - part 23





95

MAINTENANCE

Transmission Oil

Transmission Oil Level

1. Position the vehicle on a level

surface.

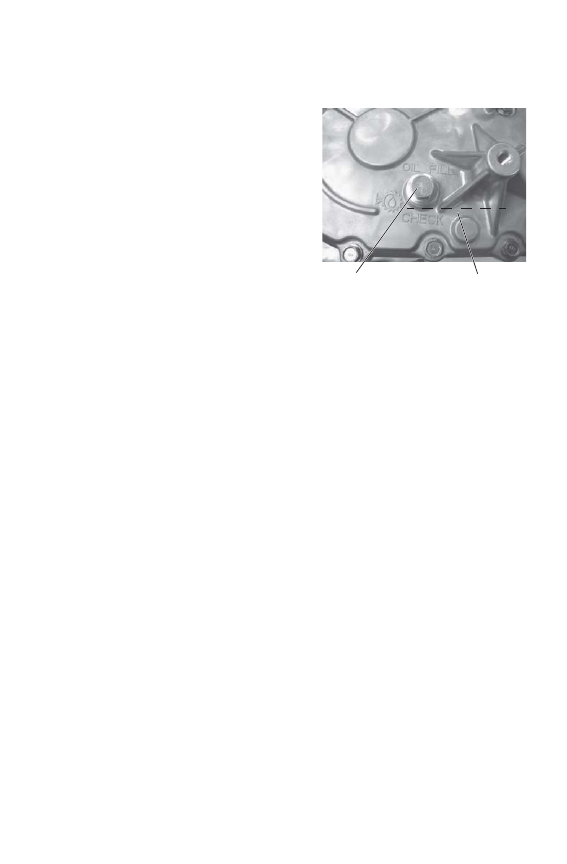

2. Remove the fill plug. Check

the oil level.

3. Add the recommended fluid as

needed to bring the level to

the bottom of the fill hole

threads.

4. Reinstall the fill plug. Torque

to specification.

Transmission Oil Change

1. Remove the fill plug.
2. Place a drain pan under the gearcase. Remove the drain plug. Allow

the oil to drain completely.

3. Clean and reinstall the drain plug. Torque to specification.
4. Add the proper amount of the recommended oil.
5. Reinstall the fill plug. Torque to specification.
6. Check for leaks.
7. Dispose of used oil properly.

Fill Level

Fill Plug

96

MAINTENANCE

Front Gearcase (Demand Drive) Fluid

Always check and change the demand drive fluid at the intervals

outlined in the Periodic Maintenance Chart beginning on page 85.

Maintain the fluid level at the bottom of the fill hole threads. See page

139 for the part numbers of POLARIS products.
Change the front gearcase fluid every 25 hours if the ADC unit is

exposed to extreme use. Extreme use includes any of the following:
• operation in ADC mode for prolonged periods

• constant ADC operation on hilly or mountainous terrain

• ADC is the primary mode of all-wheel-drive operation

TIP: If the front gearcase makes excessive noise during ADC operation, change

the demand drive fluid. If the noise continues, service is required. Your

POLARIS dealer can assist.

Fluid Recommendations

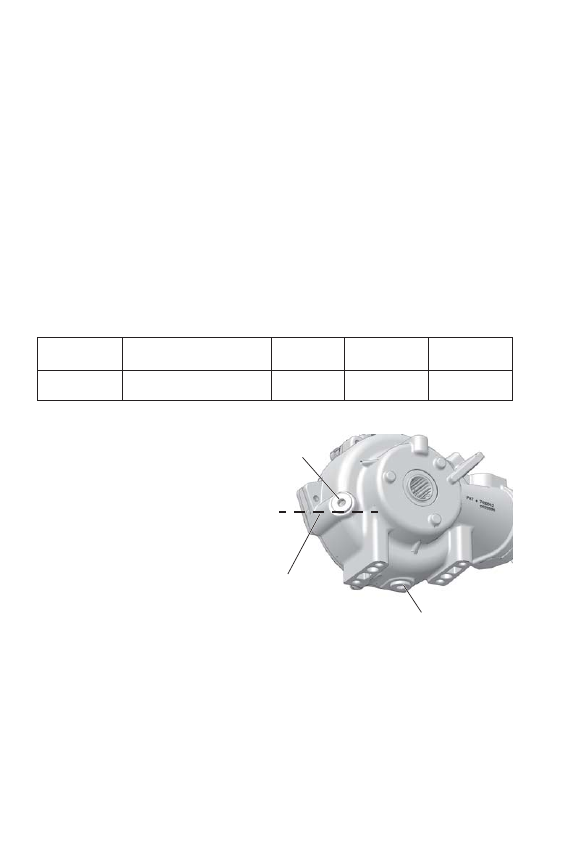

The fill plug is located on the

right side of the demand drive

unit. The drain plug is located

on the bottom right side of the

unit.

Fluid Level

1. Position the vehicle on a

level surface.

2. Place the transmission in

PARK.

3. Remove the fill plug.
4. Add the recommended

demand drive fluid as

needed to bring the level to the bottom of the fill hole threads.

5. Reinstall the fill plug. Torque to specification.

Gearcase

Lubricant

Capacity

Fill Plug

Torque

Drain Plug

Torque

Demand Drive

Unit

Demand Drive Fluid

275-300 ml

11-14 N-m

15 N-m

Drain Plug

Fill

Plug

Fill Level

97

MAINTENANCE

Front Gearcase (Demand Drive) Fluid

Fluid Change

1. Position the vehicle on a level surface. Remove the fill plug. Place a

drain pan under the demand drive unit.

2. Remove the drain plug. Allow the fluid to drain completely.
3. Clean and reinstall the drain plug. Torque to specification.
4. Add the recommended fluid.
5. Reinstall the fill plug. Torque to specification.
6. Check for leaks. Discard used oil properly.

98

MAINTENANCE

Rear Gearcase Oil

Always check and change the

rear gearcase oil at the intervals

outlined in the Periodic

Maintenance Chart beginning

on page 85.
Maintain the fluid level at the

bottom of the fill hole threads.

Do not overfill.

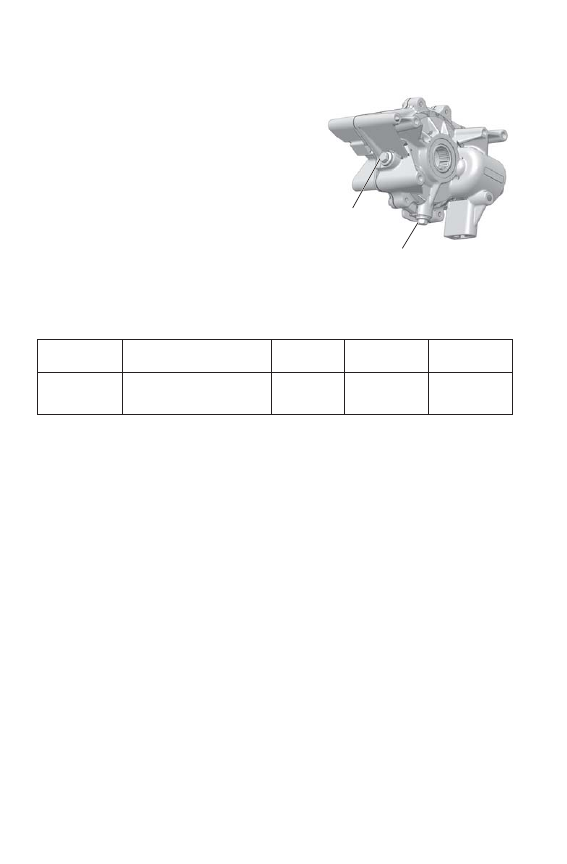

The fill plug is located on the

rear of the gearcase. The drain

plug is located on the bottom of

the gearcase.

Rear Gearcase Fluid Recommendations

Oil Check

1. Position the vehicle on a level surface.
2. Remove the fill plug. Check the oil level.
3. Add the recommended oil as needed to bring the level to the bottom

of the fill hole threads. Do not overfill.

4. Reinstall the fill plug. Torque to specification.

Gearcase

Lubricant

Capacity

Fill Plug

Torque

Drain Plug

Torque

Rear

Gearcase

POLARIS ATV Angle Drive

Fluid (or GL5 80-90 weight

gear lube)

150 ml

19 N-m

19 N-m

Drain Plug

Fill Plug
