91

MAINTENANCE

Engine Oil

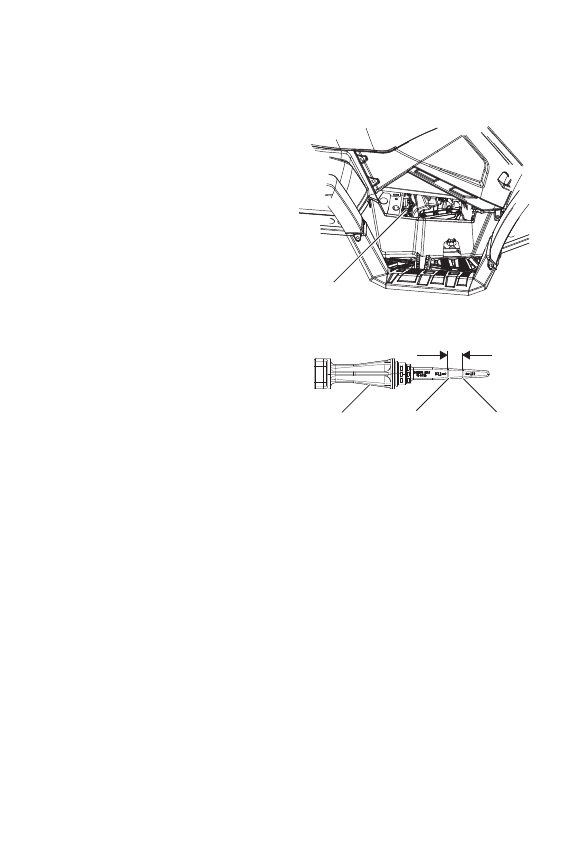

Oil Level

Access the oil dipstick XQGHUWKH

RLOFKHFNIODSand fill tube from

the right side of the Tractor.
A rising oil level between checks in

cool weather driving can indicate

contaminants such as gas or

moisture collecting in the

crankcase. If the oil level is over the

full/safe mark, change the oil

immediately.
1. Position the vehicle on a level

surface.

2. Remove the dipstick. Wipe it

dry with a clean cloth.

3. Reinstall the dipstick

completely.

4. Remove the dipstick and check

the oil level. Maintain the oil

level in the safe range. Do not

overfill.

Safe

Add Oil

Safe Range

Dipstick

Dipstick

92

MAINTENANCE

Engine Oil

Oil and Filter Change

Always change the oil and filter at the intervals outlined in the Periodic

Maintenance Chart beginning on page 85. Always change the oil filter

whenever changing oil.
1. Position the vehicle on a level surface.
2. Start the engine. Allow it to warm up at idle for two to three

minutes.

3. Stop the engine.
4. Clean the area around the drain plug.

5. Place a drain pan under the crank case.
6. Remove the drain plug. Allow the oil to drain completely.

CAUTION! Hot oil can cause burns to skin. Do not allow hot oil to contact skin.

7. Install a new sealing washer on the drain plug. The sealing surfaces

on drain plug and crankcase should be clean and free of burrs, nicks

or scratches.

8. Reinstall the drain plug. Torque to 19-24 N-m.

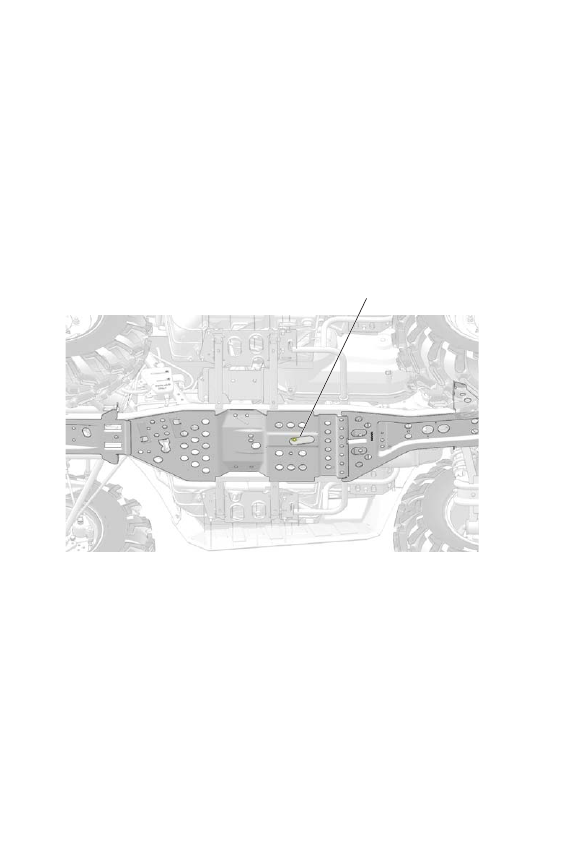

Engine Oil Drain Plug

93

MAINTENANCE

Engine Oil

Oil and Filter Change

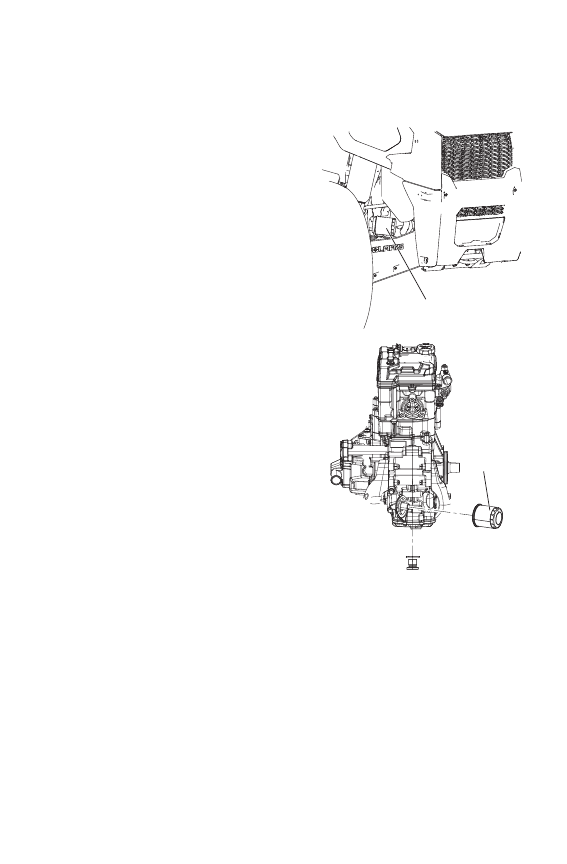

9. Place shop towels beneath the oil

filter. Using an oil filter wrench

(available from your POLARIS

dealer), turn the filter counter-

clockwise to remove it.

10. Using a clean dry cloth, clean the

filter sealing surface on the crank-

case.

11. Lubricate the o-ring on the new

filter with a film of fresh engine

oil. Check to make sure the o-ring

is in good condition.

12. Install the new filter and rotate it

clockwise by hand until the filter

gasket contacts the sealing sur-

face, then turn it an additional 1/2

turn.

13. Remove the dipstick.
14. Add 1.9 liters of recommended

oil.

15. Place the transmission in PARK.
16. Lock the parking brake.
17. Start the engine. Allow it to idle

for one to two minutes.

18. Stop the engine.
19. Check for leaks.
20. Check the oil level. Add oil as

needed to bring the level to the upper mark on the dipstick.

21. Dispose of used filter and oil properly.

Oil

Filter

Drain Plug

Front View of the Engine

Oil Filter

94

MAINTENANCE

Transmission Oil

Always check and change the transmission oil at the intervals outlined

in the Periodic Maintenance Chart beginning on page 85. Maintain the

oil level at the bottom of the fill plug hole threads. See page 139 for the

part numbers of POLARIS products.

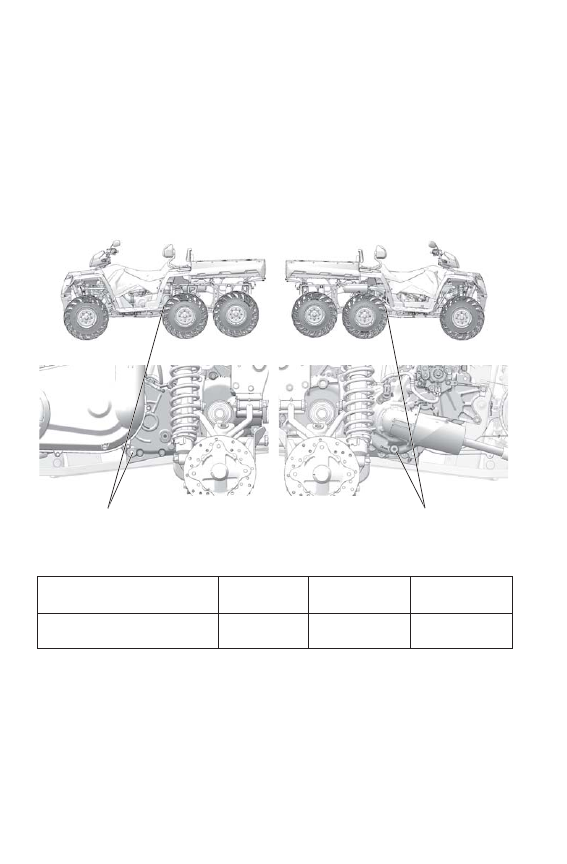

The fill plug is located on the left side of the Tractor, under the rear

fender, behind the wheel. The drain plug is located on the right side of

the gearcase, on the right side of the Tractor, behind the wheel well.

Transmission Oil Recommendations

Lubricant

Oil Change

Capacity

Fill Plug

Torque

Drain Plug

Torque

AGL Gearcase Lubricant &

Transmission Fluid

1000 ml

27-34 N-m

27-34 N-m

Drain Plug

Check/Fill Plug
