Polaris TRACTOR Sportsman 570 6X6 (2018 year). Instruction - part 13





55

OPERATION

Turning the Vehicle

1. Before turning, activate a turn

signal to alert others of your

intentions. Activate the left

signal before a left turn.

Activate the right signal before

a right turn.

2. Steer in the direction of the

turn, leaning your upper body

to the inside of the turn while

supporting your weight on the

outer footrest. Use the same

leaning technique for turning

in reverse.

3. Never turn quickly when

carrying a passenger or cargo.

4. Practice making turns at slow

speeds before attempting to

turn at faster speeds.

Always follow the procedures outlined in this manual for turning. Never turn

sharply at excessive speeds, which can lead to vehicle rollover.

56

OPERATION

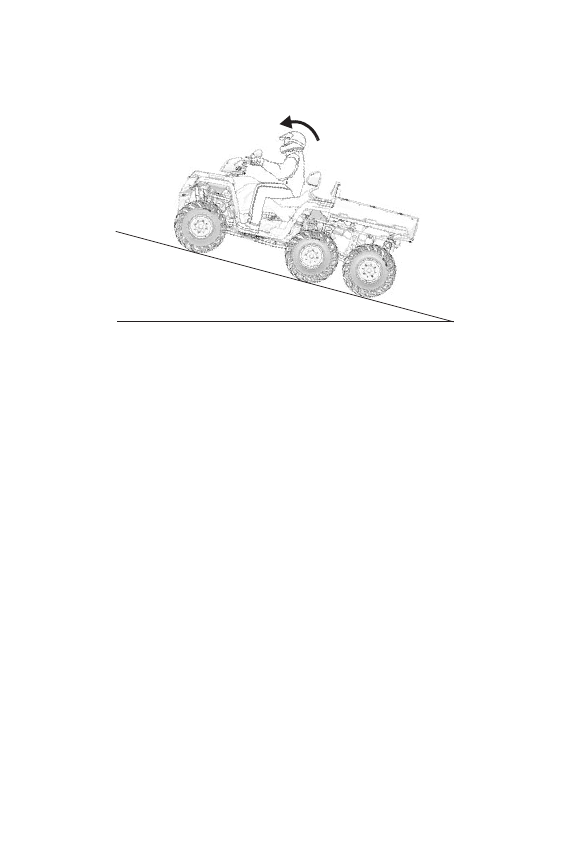

Driving Uphill

Whenever traveling uphill, follow these precautions:
1. Always move the AWD switch to ADC AWD before ascending or

descending a hill. See page 33.

2. Avoid steep hills. Maximum incline is 15°.
3. Avoid hills with slippery or loose surfaces.
4. Keep both feet on the footrests.
5. Shift body weight uphill. A passenger should also shift body weight

uphill.

6. Drive straight uphill.
7. Proceed at a steady rate of speed to avoid stalling.
8. Be alert. Be prepared to take emergency action. This may include

dismounting quickly.

9. Never open the throttle suddenly or make sudden gear changes.
10. Never go over the top of a hill at high speed.

15° Maximum

57

OPERATION

Driving Uphill

If all forward speed is lost:
1. Lean forward to keep body weight uphill. A passenger should also

lean uphill.

2. Apply the brakes.
3. When fully stopped, lock the hydraulic parking brake.
4. Dismount on the uphill side of the vehicle, or on the left if the

vehicle is pointing straight uphill. Have a passenger dismount first,

then the operator may dismount.

If the vehicle begins rolling downhill, never apply engine power. Never

apply the brakes aggressively while rolling backwards.
1. Lean forward to keep body weight uphill. A passenger should also

lean uphill.

2. Apply the brakes gradually.
3. When fully stopped, lock the hydraulic parking brake.
4. Dismount on the uphill side of the vehicle, or on the left if the

vehicle is pointing straight uphill. Have a passenger dismount first,

then the operator may dismount.

5. Use the K-turn to turn around. See page 60.

Always follow the procedures outlined in this manual for braking if you stall or

roll backwards while climbing a hill. Never back down a hill.

58

OPERATION

Driving on a Sidehill (Sidehilling)

Avoid crossing the side of a hill (sidehilling) if possible. If sidehilling is

necessary, follow these precautions:
1. Slow down.
2. Avoid hills with slippery or loose surfaces.
3. Avoid crossing the sides of steep hills.
4. Do not cross a hillside with a passenger on board. Ask the passenger

to dismount and walk across the hillside before reboarding the

vehicle.

5. Shift body weight uphill.
6. Keep your feet on the footrests.
7. If the vehicle begins to tip, quickly turn the front wheel downhill, if

possible, or dismount on the uphill side immediately!

Always follow the procedures outlined in this manual for crossing the side of a

hill.
Never attempt to turn the Tractor around on any hill until you've mastered (on

level ground) the turning technique outlined in this manual.
