Polaris Sportsman 570 (2018 year). Instruction - part 37





CLEAN THE EXTERIOR

Make any necessary repairs and clean the vehicle as recommended. See the
Washing the Vehicle section.

STABILIZE THE FUEL

1. Fill the fuel tank.

2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel Stabilizer or

equivalent fuel treatments or stabilizers. Follow the instructions on the
container for the recommended amount. Carbon Clean removes water from
fuel systems, stabilizes fuel and removes carbon deposits from pistons,
rings, valves and exhaust systems.

3. Allow the engine to run for 15-20 minutes to allow the stabilizer to disperse

through the entire fuel delivery system.

OIL AND FILTER

Change the oil and filter. See the Engine Oil section.

AIR FILTER / AIR BOX

1. Inspect and clean (or replace) the pre-cleaner and air filter. See the Air Filter

section.

2. Clean the air box.

FLUID LEVELS

Inspect the fluid levels. Add or change fluids as recommended in the Periodic
Maintenance Chart.

• Demand drive fluid (front gearcase)
• Rear gearcase fluid (if equipped)
• Transmission fluid
• Brake fluid (change every two years and any time the fluid looks dark or

contaminated)

• Coolant (test strength/fill)

FOG THE ENGINE

1. Treat the fuel system with POLARIS Carbon Clean or other equivalent fuel

treatment. Follow the instructions on the container. Start the engine. Allow it
to idle for several minutes so the Carbon Clean reaches the injectors. Stop
the engine.

2. Remove the spark plugs and add 2-3 tablespoons of engine oil. To access

the plug holes, use a section of clear 1/4” hose and a small plastic squeeze
bottle filled with the pre-measured amount of oil. Do this carefully! If you miss
the plug holes, oil will drain from the spark plug cavities into the hole at the
front of the cylinder head, and appear to be an oil leak.

3. Reinstall the spark plugs. Torque to specification.

150

MAINTENANCE

4. Apply dielectric grease to the inside of each spark plug cap. Do not reinstall

the cap onto the plug at this step.

5. Turn the engine over several times. Oil will be forced in and around the

piston rings and ring lands, coating the cylinder with a protective film of fresh
oil.

6. Reinstall the spark plug caps.

7. If POLARIS fuel system additive is not used, fuel tank, fuel lines, and

injectors should be completely drained of gasoline.

INSPECT AND LUBRICATE

Inspect all cables and lubricate all areas of the vehicle as recommended in the
Periodic Maintenance Chart.

BATTERY MAINTENANCE

Remove the battery and recharge it as outlined in the Battery Charging section.
Store the battery in a cool, dry place.

STORAGE AREA / COVERS

Set the tire pressure and safely support the vehicle with the tires slightly off the
ground. Be sure the storage area is well ventilated. Cover the vehicle with a
genuine POLARIS cover. Do not use plastic or coated materials. They do not
allow enough ventilation to prevent condensation, and may promote corrosion
and oxidation.

ACCESSORIES

Auxiliary power outlets provide 12-volt power for operating accessories.
Accessory outlets are available for all models. POLARIS also has a wide range
of additional accessories available for your ATV. Always install accessories that
are approved for ATV use. Your dealer can assist.

151

MAINTENANCE

TRANSPORTING THE ATV

Follow these procedures when transporting the vehicle.

1. Stop the engine.

2. Place the transmission in PARK.

3. Lock the parking brake.

4. Secure the fuel cap, oil cap and seats.

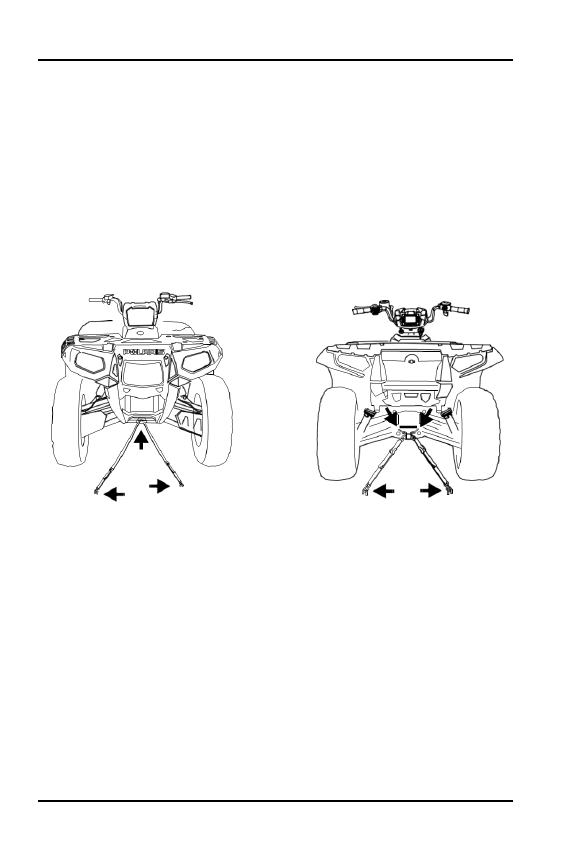

5. Always tie the frame of the ATV to the transporting unit securely with suitable

straps or rope. Do not attach tie straps to the front A-arm bolt pockets, racks
or handlebars.

6. Remove the key to prevent loss during transporting.

152

MAINTENANCE

SPECIFICATIONS

SPORTSMAN 570 / 570 EPS / 570 SP

Maximum Weight Capacity

220 kg (operator, cargo, accessories)

Dry Weight

318.4 kg (570)
323.4 kg (570 EPS)
331 kg (570 SP)

Fuel Capacity

17 L

Engine Oil Capacity

1.9 L

Transmission Oil Capacity

948 ml

Demand Drive Fluid Capacity

265 ml

Coolant Capacity

2.5 l

Front Rack/Box Capacity

41 kg

Rear Rack/Box Capacity

82 kg

Receiver Hitch Tongue Capacity

55 kg* (570/570 EPS)
68 kg* (570 SP)
*Rear rack capacity and tongue weight not to
exceed 82 kg

Hitch Towing Rating

557 kg (570/570 EPS)
680 kg (570 SP)

Unbraked Trailer Towing Capacity

810 kg
(Based on EU Directive 76 / 432 / EC)

Overall Length/Width/Height

211 cm / 122 cm / 122 cm

Wheelbase

128.3 cm

Ground Clearance

28 cm (570/570 EPS)
30.5 cm (570 SP)

Minimum Turning Radius

165 cm unloaded

Engine

Dual overhead cam, 4 valve 4 stroke single
cylinder

Displacement

567 cc

Bore x Stroke

99mm x 73.6mm

Alternator Output

660 W @ 7000 RPM

Compression Ratio

10:1

153
