FLUID CHECK

1. Position the vehicle on a level surface. Remove the fill plug. Check the fluid

level.

2. Add the recommended fluid as needed to bring the level to the bottom of the

fill hole threads.

3. Reinstall the fill plug. Torque to specification.

FLUID CHANGE

1. Position the vehicle on a level surface. Remove the fill plug.

2. Place a drain pan under the demand drive unit. Remove the drain plug. Allow

the fluid to drain completely.

3. Clean and reinstall the drain plug. Torque to specification.

4. Add the proper amount of the recommended fluid.

5. Reinstall the fill plug. Torque to specification.

6. Check for leaks. Dispose of used fluid properly.

118

MAINTENANCE

COOLING SYSTEM

The engine coolant level is controlled, or maintained, by the recovery system.
The recovery system components are the recovery bottle, the radiator filler neck,
the radiator pressure cap and the connecting hose.

As coolant operating temperature increases, the expanding (heated) excess
coolant is forced out of the engine, past the pressure cap, and into the recovery
bottle. As engine coolant temperature decreases the contracting (cooled)
coolant is drawn back up from the bottle, past the pressure cap, and into the
radiator.

Some coolant level drop on new vehicles is normal as the system is purging
itself of trapped air. Check the coolant level and maintain as recommended by
adding coolant to the recovery bottle.

POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix. This
antifreeze is already premixed and ready to use. Do not dilute with water. See
the Polaris Products section for the part numbers.

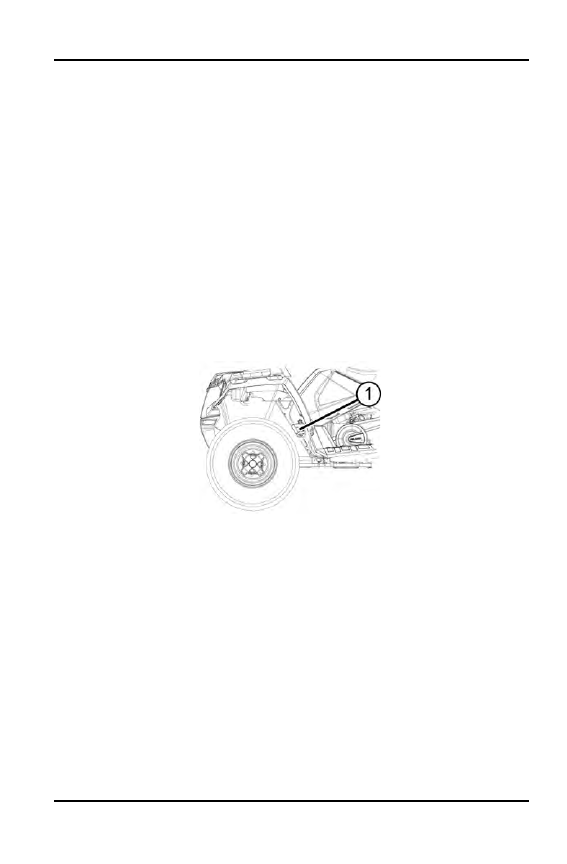

RECOVERY BOTTLE COOLANT

The recovery bottle

q

is located on the left side of the vehicle.

1. Remove the left side panel. See the Side Panel Removal section.

2. Maintain the coolant level between the minimum and maximum marks on the

bottle (when the fluid is cool).

3. Add coolant as needed.

119

MAINTENANCE

RADIATOR COOLANT

To ensure that the coolant maintains its ability to protect the engine, we
recommend that the system be completely drained every five (5) years and fresh
Antifreeze 50/50 Premix added.

Any time the cooling system has been drained for maintenance or repair,
replace the coolant with fresh Antifreeze 50/50 Premix. If the recovery bottle has
run dry, check the level in the radiator. Add coolant as needed.

CAUTION

Escaping steam can cause burns. Never remove the pressure cap while the

engine is warm or hot. Always allow the engine to cool before removing the

pressure cap.

1. Open the front box cover.

2. Remove the access panel screws. Squeeze the outer edges of the panel

inward to remove the panel.

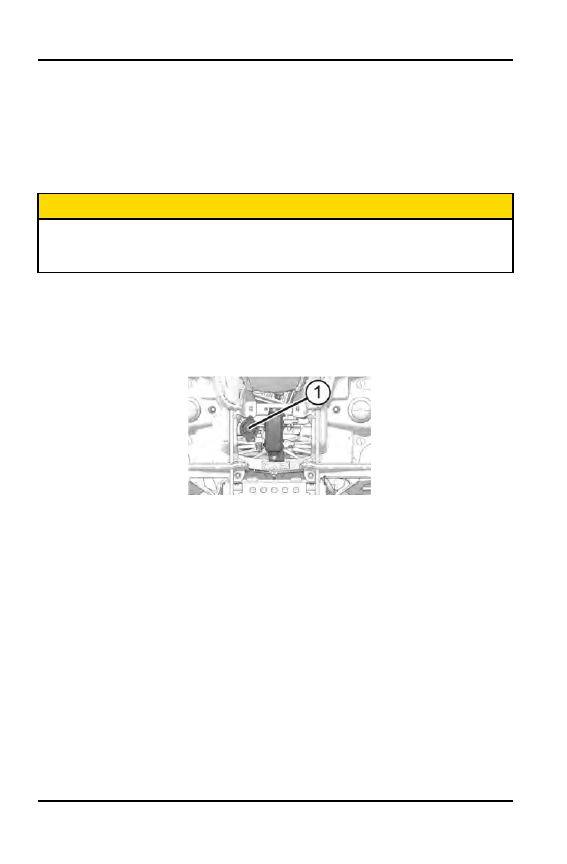

3. Remove the pressure cap

q

.

4. Using a funnel, slowly add coolant through the radiator filler neck.

5. Reinstall the pressure cap. Use of a non-standard pressure cap will not allow

the recovery system to function properly. Contact your dealer for the correct
replacement part.

6. Reinstall the access panel and secure the front box cover.

120

MAINTENANCE

BRAKES

HAND BRAKE

The front and rear brakes are hydraulic disc brakes, activated by moving the
single brake lever toward the handlebar. These brakes are self-adjusting.

Under normal operation, the diaphragm extends into the reservoir as fluid level
drops. If the fluid level is low and the diaphragm is not extended, a leak is likely
and the diaphragm should be replaced. To ensure proper diaphragm operation,
always fill the reservoir as needed whenever the cover is loosened or removed.
Do not overfill.

WARNING

An over-full master cylinder may cause brake drag or brake lock-up, which

could result in serious injury or death. Maintain brake fluid at the recommended

level. Do not overfill.

AUXILIARY FOOT BRAKE ADJUSTMENT

The hydraulic auxiliary brake system requires no adjustment. Check the brake
fluid level frequently for the auxiliary brake system. See the Auxiliary Foot Brake
section for details.

121

MAINTENANCE
