Polaris Sportsman 570 (2018 year). Instruction - part 28





WARNING

Hot oil can cause burns to skin. Do not allow hot oil to contact skin.

7. Install a new sealing washer on the drain plug. The sealing surfaces on drain

plug and crankcase should be clean and free of burrs, nicks or scratches.

8. Reinstall the drain plug. Torque to 19-24 Nm (14-18 ft-lbs)

9. Place shop towels beneath the oil filter. Using an oil filter wrench (available

from your dealer), turn the filter counter-clockwise to remove it.

10. Using a clean, dry cloth, clean the filter sealing surface on the crankcase.

11. Lubricate the o-ring on the new filter with a film of fresh engine oil. Check to

make sure the o-ring is in good condition.

12. Install a new filter and rotate it clockwise by hand until the filter gasket

contacts the sealing surface, then turn it an additional 3/4 turn.

13. Remove the dipstick.

14. Add 1.9 l (2 qt.) of recommended oil.

15. Place the transmission in PARK.

16. Lock the parking brake.

17. Start the engine. Allow it to idle for one to two minutes.

18. Stop the engine.

19. Check for leaks.

20. Check the oil level. Add oil as needed to bring the level to the upper mark on

the dipstick.

21. Dispose of used filter and oil properly.

114

MAINTENANCE

TRANSMISSION OIL

Always check and change the transmission oil at the intervals outlined in the
Periodic Maintenance Chart. Maintain the oil level at the bottom of the fill plug
hole threads. See the POLARIS products section for the part numbers.

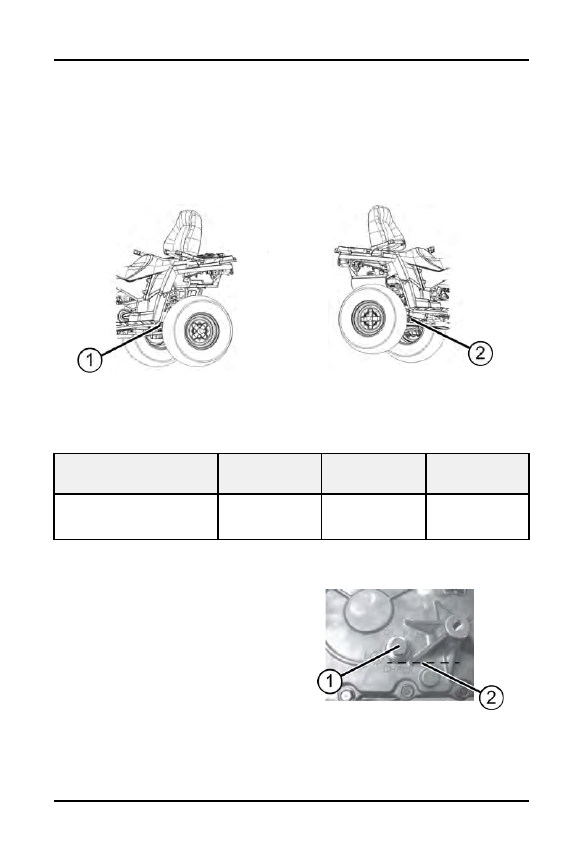

The fill plug is located on the left side of the ATV, under the rear fender, behind
the wheel. The drain plug is located on the right side of the gearcase, on the
right side of the ATV, behind the wheel well.

q

Check / Fill Plug

w

Drain Plug

TRANSMISSION OIL RECOMMENDATIONS

LUBRICANT

CAPACITY

FILL PLUG

TORQUE

DRAIN PLUG

TORQUE

AGL Gearcase Lubricant

& Transmission Fluid

940 ml

(32 oz.)

27-34 Nm

(20-25 ft. lbs.)

27-34 Nm

(20-25 ft. lbs.)

TRANSMISSION OIL CHECK

1. Position the vehicle on a level

surface.

2. Remove the fill plug

q

. Check the

oil level.

3. Add the recommended fluid as

needed to bring the level to the
bottom of the fill hole threads

w

.

4. Reinstall the fill plug. Torque to

specification.

115

MAINTENANCE

TRANSMISSION OIL CHANGE

1. Remove the fill plug.

2. Place a drain pan under the gearcase. Remove the drain plug. Allow the oil

to drain completely.

3. Clean and reinstall the drain plug. Torque to specification.

4. Add the proper amount of the recommended oil.

5. Reinstall the fill plug. Torque to specification.

6. Check for leaks.

7. Dispose of used oil properly.

116

MAINTENANCE

FRONT GEARCASE (DEMAND DRIVE) FLUID

Always check and change the demand drive fluid at the intervals outlined in the
Periodic Maintenance Chart. Maintain the fluid level at the bottom of the fill hole
threads. See the POLARIS Products section for part numbers.

Change the front gearcase fluid every 25 hours if the 4WDC unit is exposed to
extreme use. Extreme use includes any of the following:

• operation in 4WDC mode for prolonged periods
• constant 4WDC operation on hilly or mountainous terrain
• 4WDC is the primary mode of all-wheel-drive operation

TIP

If the front gearcase is makes excessive noise during 4WDC operation,

change the demand drive fluid. If the noise continues, please see your

POLARIS dealer for service.

FLUID RECOMMENDATIONS

GEARCASE

LUBRICANT

CAPACITY

FILL

PLUG

TORQUE

DRAIN

PLUG

TORQUE

Front Gearcase

Demand Drive

Fluid

265 ml

(9 oz.)

11-14 Nm

(8-10 ft-lbs)

15 Nm

(11 ft-lbs)

Use the recommended fluid. Use of other fluids may result in improper operation
of components. Maintain the fluid level at the bottom of the fill hole threads.

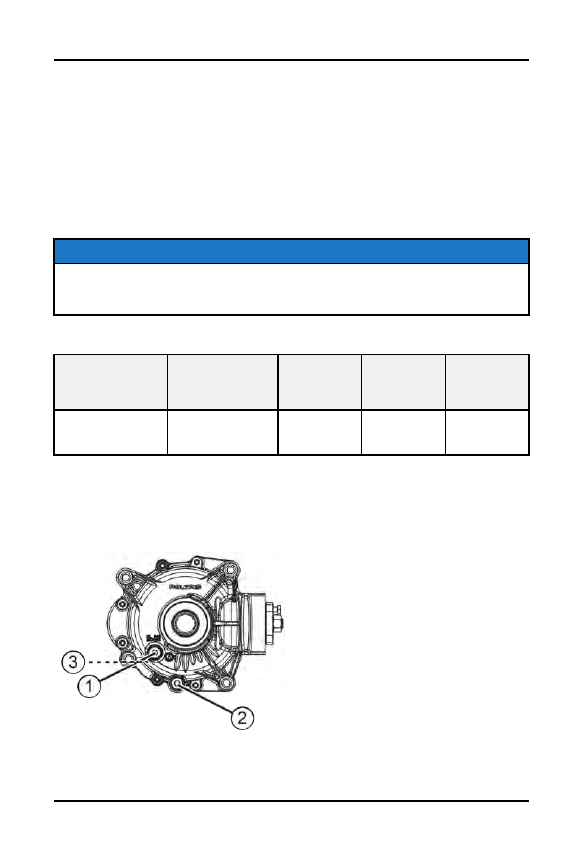

The fill plug is located on the right side of the demand drive unit. The drain plug
is located on the bottom right side of the unit.

q

Fill Plug

w

Drain Plug

e

Fill Level

117

MAINTENANCE
