Snowmobile Polaris PRO X (2003 year). Instruction - part 61





REAR SUSPENSION/TRACK/TRACTION

7.6

Shock Valving

To check high speed rebound, drive over a series of fairly large moguls. Gradually increase the speed until you
reach 70% to 80% of maximum vehicle speed or the maximum safe speed for the vehicle over those bumps.
(The reason for limiting speed is that it is difficult to feel what the shocks are doing when you are driving at full
speed.)

Ideal high speed rebound is achieved when your suspension keeps returning fast enough to have full travel as
you hit the next bump. If the first bump feels good, but each bump after that gets worse until the machine starts
bouncing around, you need less high speed rebound damping in the shocks that are bouncing.

After you’ve determined your high speed rebound valving needs, drive over one large rounded bump to make sure
you have enough rebound control to keep the sled from kicking up after you hit the bump.

To check the high speed compression damping, you will need to find a hard, square edged bump. Again, try to
hit the bump at less than full speed so you can feel what each shock is doing. The ideal compression valving
prevents bottoming, but is not too harsh. When you hit the bump, if your suspension falls through and bottoms,
you need more damping. If the sled bounces when you first contact the bump, you need less damping.

Valving

After you have determined what adjustments are
needed you can revalve the shocks to work best for
you. Always remember to record where you start (and
what you change) on a shock valving data sheet.
Keep notes on conditions so you can reference the
sheets throughout the season. Make copies of the
sheets and include them in this manual.

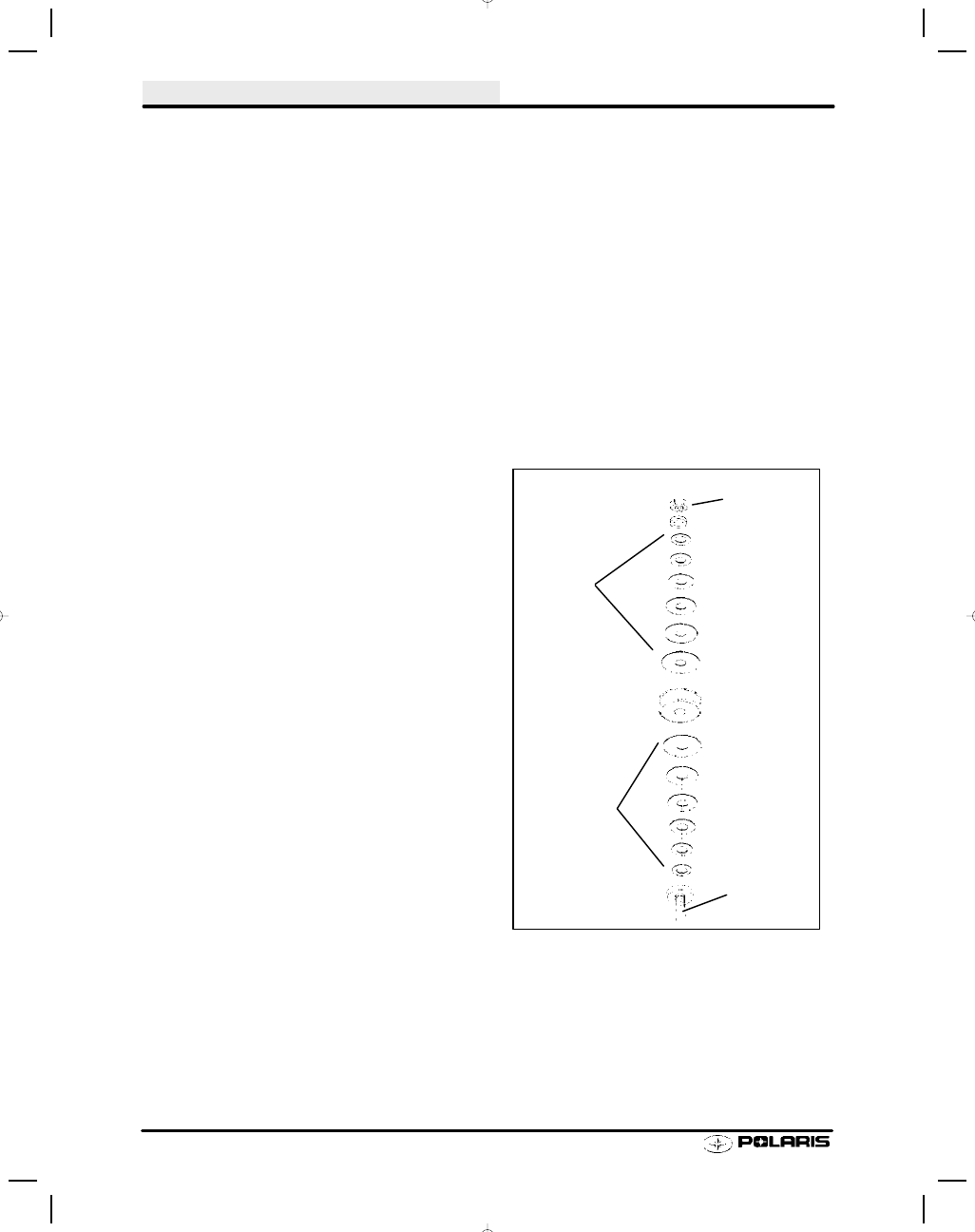

The shocks operate by having oil flow through the
valving piston and bend the washers to get on the oth-
er side of the piston. The washers on the shaft side
of the piston are compression valves. The washers on
the nut side control rebound.

Compression
Stack

Rebound
Stack

Piston

Lock nut

Shock rod

REAR SUSPENSION/TRACK/TRACTION

7.7

Shock Valving

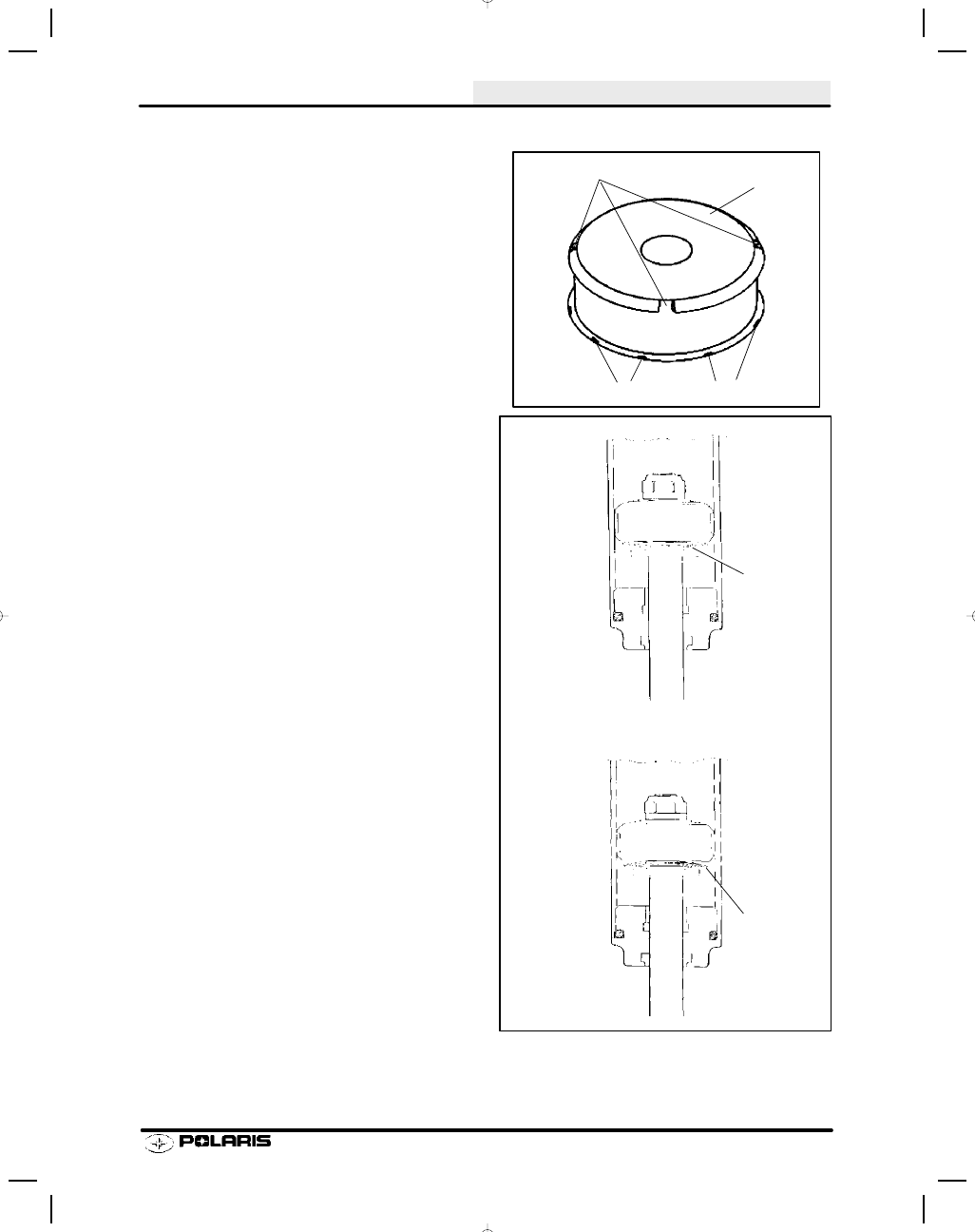

The valving piston has six large compression holes
and three smaller rebound holes. The smallest hole,
called the low speed hole, controls low speed rebound
damping. It also has about a 25% effect on low speed
compression. This hole is usually between .050

s and

.100

s in diameter. You can drill the piston with num-

bered drill bits to get any size you want. Blank pistons
are also available.

The rest of the valving is controlled by the valving
washers.

These washers are available in various

thicknesses and diameters to achieve the proper
amount of stiffness.

Following is an example of available valving washer
sizes.

Washer Diameters
.700

s

.800

s

.900

s

1.000

s

1.100

s

1.250

s

1.300

s

1.450

s

1.600

s

Washer Thicknesses
.006

s

.008

s

.010

s

.012

s

.015

s

Use thicker, larger diameter washers to make the
shock stiffer. The rebound stack must start out with
a washer that is at least 1.250

s in diameter. The

compression stack must start out with a washer that
is 1.300

s in diameter. At slower shaft speeds, only

the washers closest to the piston will bend and allow
oil through.

At fast shaft speeds the washers bend further, so
the washers further from the piston are helping con-
trol the oil flow.

In summary, the washers closest to the piston con-
trol low speed valving, and the washers furthest
away affect high speed valving. In the rebound
stack, the washer next to the piston is more a me-
dium speed valve because of the oil flowing through
the low speed hole.

It takes a lot of time and practice to see which valves
control the way your suspension feels. Sometimes
it’s good to make a big change to see how the shock
will react, and then end up somewhere in between.

NOTE: For every 1

s of travel limiter spacers added to the shock, decrease the IFP depth by .115s.

NOTE: For every .25

s of travel limiter spacers added to the shock, decrease the IFP depth by .029s.

Compression holes

Rebound holes

Piston

Slow
Shaft
Speeds

High
Shaft
Speeds

Washers
bent
less

Washers
bent
more

Shaft End

Nut End

1.300 x .012

1.300 x .010

1.100 x .010

1.00 x .010

.700 x .010

.800 x .010

1.250 x .010

.900 x .010

Typical Valving

1.000 x .010

.800 x .010

.900 x .010

1.100 x .010

Orifice

Rebound Stack

Compression Stack

Piston Orientation

Side with greater # of

slots must face nut end

Piston*

(Toward Nut & IFP)

Toward Shaft
(Fewer slots)

Slots

REAR SUSPENSION/TRACK/TRACTION

7.8

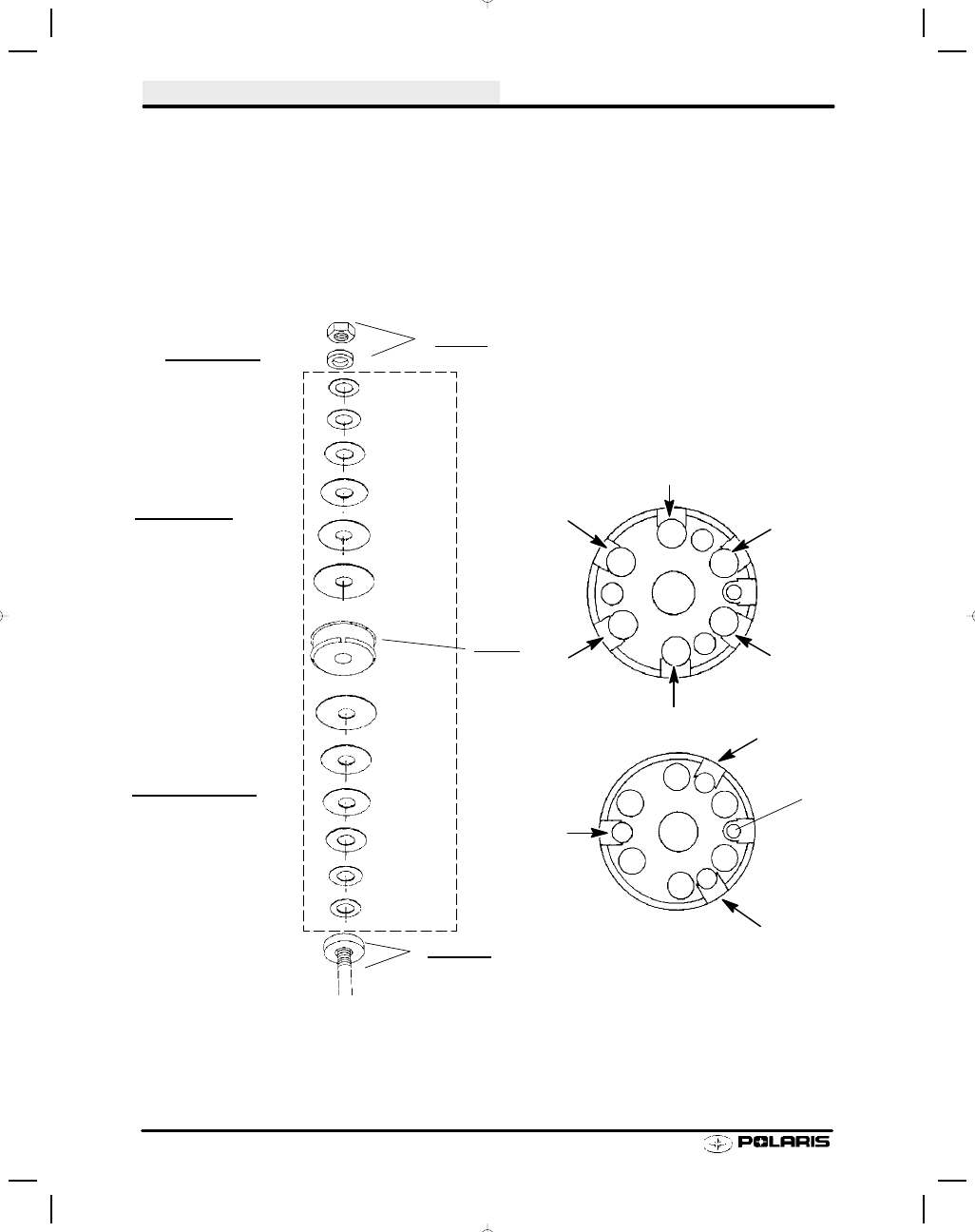

Shock Valving Arrangement

Shown below is an example of how valving stacks are arranged. The following diagrams will have the compression
and rebound stacks listed as if the shock rod is in a vise and the nut end is facing upward.

Parts in box are an example of standard valving.

* Note direction of valve piston before disassembly. The side with the greater number of slots should face the
IFP (nut end of the shaft).

Changing oil on Shocks is recommended annually and should be included when performing end of season storage
preparation. This oil change is necessary to avoid any chance of corrosion which could be caused by moisture
contamination. For competition use, shocks should be disassembled, inspected and serviced more frequently.

REAR SUSPENSION/TRACK/TRACTION

7.9

REAR SUSPENSION SHOCKS Front Shock Specifications

Ryde FX

t

FRONT TRACK SHOCKs

Shock PN

Extended

Length (in)

Collapsed

Length (in)

Travel (in)

IFP Depth

(in)

Shaft Part # (in)

PSI

7042205

11.98

8.24

3.74

Emulsion

1700214

300

7042214

11.99

8.24

3.75

1.50

N/A

200

Walker Evans Racing Shocks FRONT TRACK SHOCKS

Shock PN

Extended

Length (in)

Collapsed

Length (in)

Travel (in)

IFP Depth

(in)

Shaft Part # (in)

PSI

7042178

12.00

8.23

3.76

2.00

1800015

200

REAR SUSPENSION SHOCKS Rear Track Shock Specifications

Ryde FX

t

REAR TRACK SHOCKS

Shock PN

Extended

Length (in)

Collapsed

Length (in)

Travel (in)

IFP Depth

(in)

Shaft Part # (in)

PSI

7042184

14.943

9.593

5.35

2.10

1700183

200

7042213

14.943

9.593

5.35

1.50

1700014

200

Walker Evans Racing Shocks REAR TRACK SHOCKS

Shock PN

Extended

Length (in))

Collapsed

Length (in)

Travel (in)

IFP Depth

(in)

Shaft Part # (in)

PSI

7042179

15.00

9.65

5.35

2.00

1800010

200
