CARBURETION

3.14

Function

The function of a carburetor is to produce a com-
bustible air/fuel mixture by breaking fuel into tiny
particles in the form of vapor, to mix the fuel with
air in a proper ratio, and to deliver the mixture to
the engine. A proper ratio means an ideal air/fuel
mixture which can burn without leaving an excess
of fuel or air. Whether the proper mixture ratio is
maintained or not is the key to efficient engine op-
eration.

The engine of a vehicle is operated under a wide
range of conditions, from idling with the throttle
valve remaining almost closed, to full load or
maximum output with the throttle valve fully
opened. In order to meet the requirements for the
proper mixture ratio under these varying condi-
tions, a low speed fuel system, or pilot system,
and a main fuel system are provided in Mikuni VM
type carburetors.

The Mikuni carburetor has varying operations de-
pending upon varying driving conditions. It is
constructed of a float system, pilot system, main
system, and starter system or initial starting de-
vice.

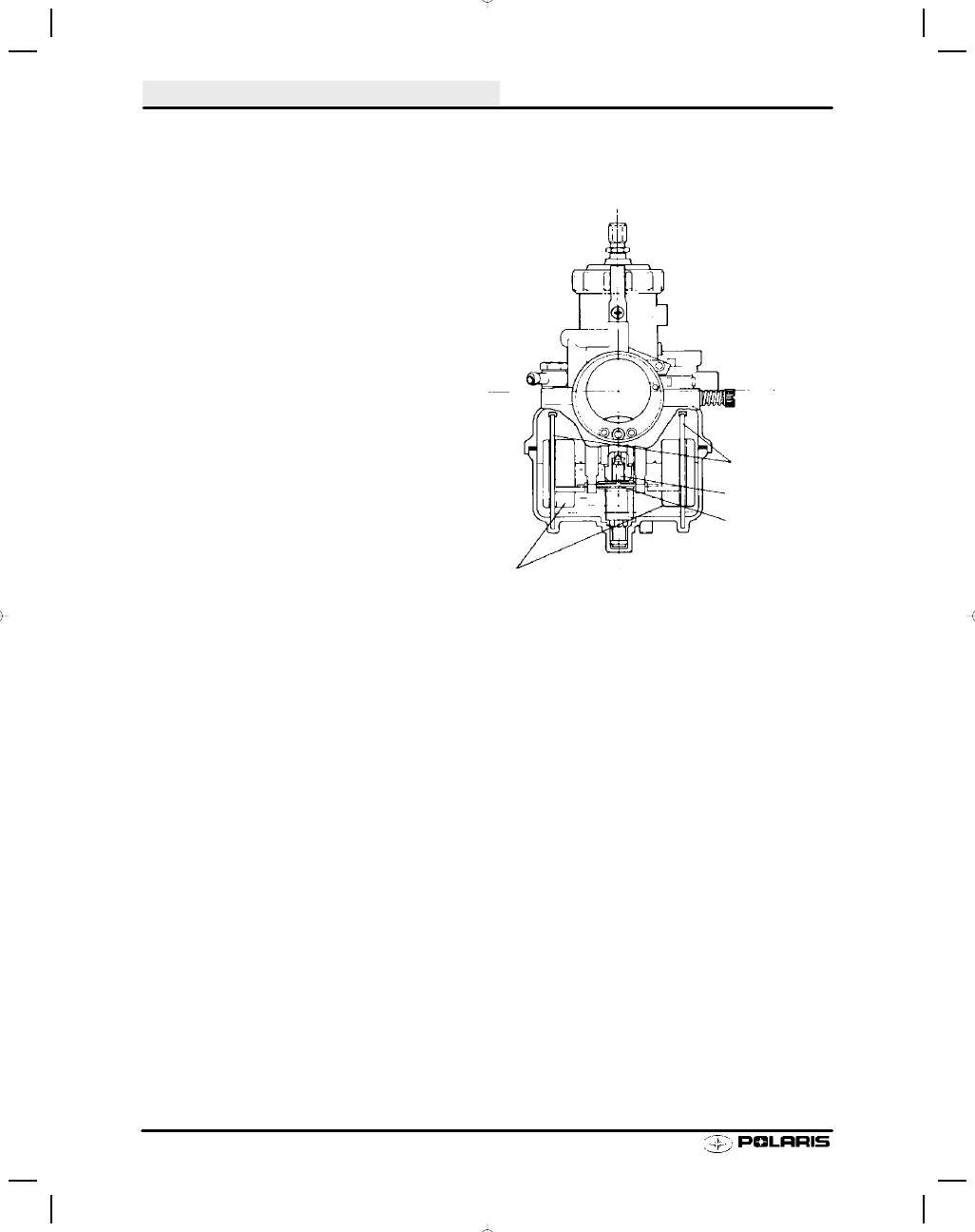

Float System

The float system is designed to maintain a
constant height of gasoline during operation.
When the fuel flowing from the fuel pump into the
float chamber through the needle valve reaches
the constant fuel level, the floats rise. When the
buoyancy of the float and the fuel pressure of the
fuel pump balance, the needle valve sticks fast to
the needle seat, preventing further delivery of
gasoline, thereby holding the standard level of
gasoline.

The fuel level in the bowl assists in controlling the
amount of fuel in the fuel mixture. Too high a level
allows more fuel than necessary to leave the
nozzle, enriching the mixture. Too low a level re-
sults in a leaner mixture, since not enough fuel
leaves the nozzle. Therefore, the predetermined
fuel level should not be changed arbitrarily.

Float Guide Pin

Needle Valve

Float Arm

Float

CARBURETION

3.15

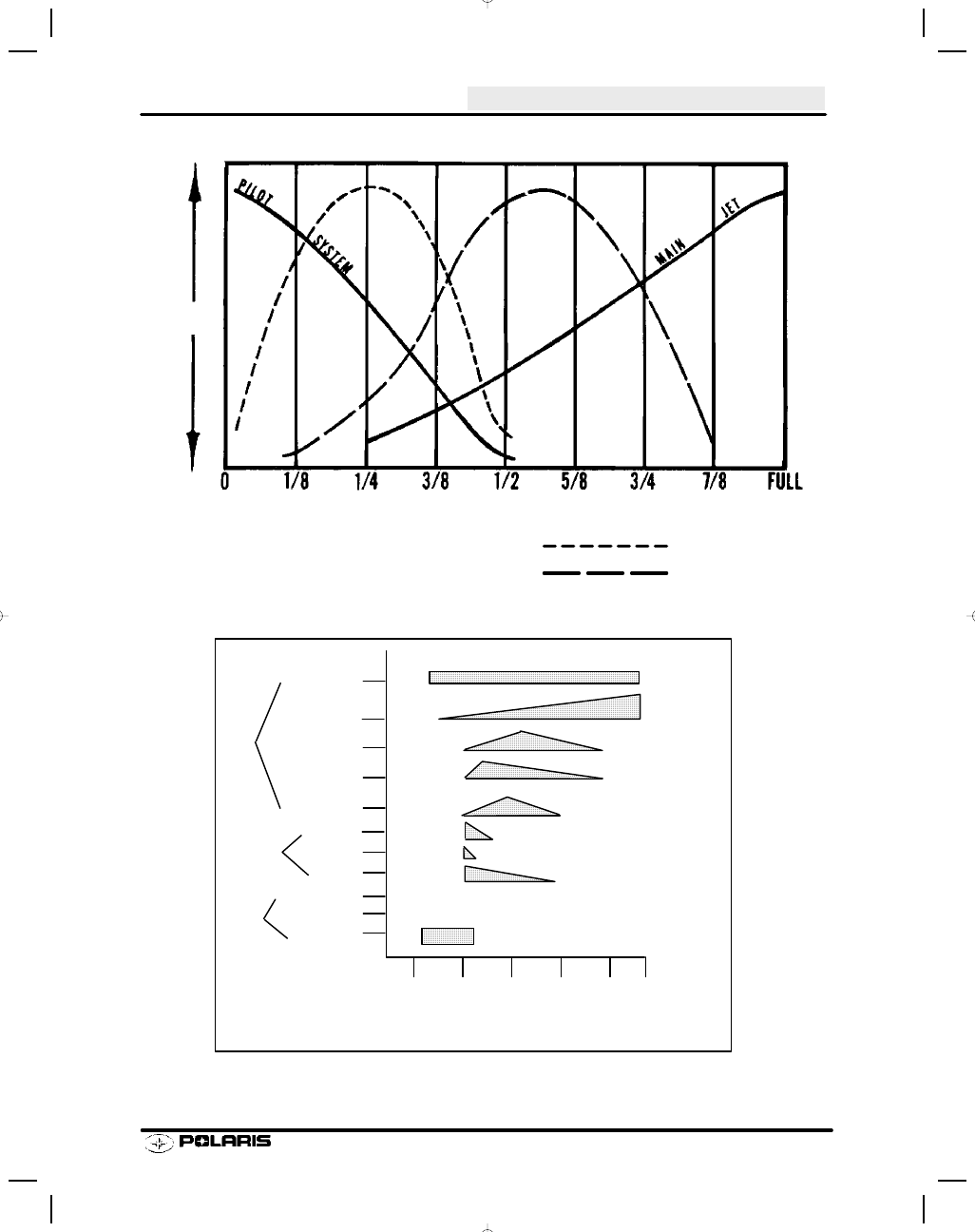

Component Effect vs Throttle Opening

INCRE

AS

IN

G

DE

CRE

AS

IN

G

EFFECT

THROTTLE OPENING - TYPICAL MIKUNI

Throttle Valve Cut-Away

Jet Needle/Needle Jet

Throttle Position

0 start

idle

1/4

1/2

3/4

Full

starter jet

choke plunger

air jet

pilot outlet

bypass

throttle valve

needle jet

jet needle

main jet

needle valve

fuel screw

100 %

100 %

Main

Slow

Start

Polaris TM-38/TM-40 Mikuni component effect versus throttle opening chart.

CARBURETION

3.16

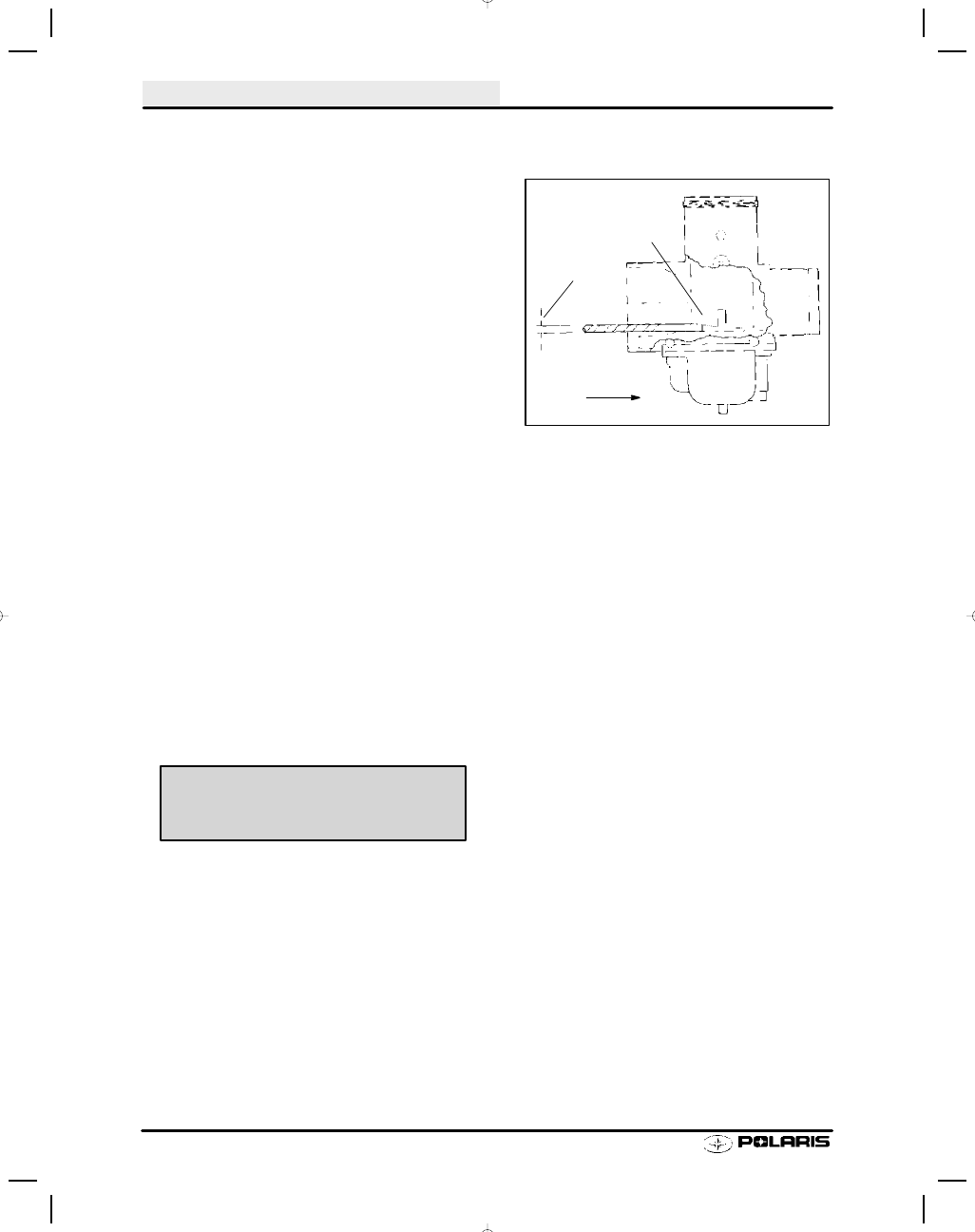

Throttle Synchronization Procedure

1.

Remove air box, noting position of throttle cable
junction block. Reposition throttle cable and junction
block in same position when air box is reinstalled.

Throttle Cable Synchronization (Throttle Gap)

2.

Referring to specification section in chapter 1, select
correct diameter Throttle Gap synchronization drill
gauge for your engine.

3.

Back out idle screws about three turns.

4.

Slightly lift throttle slides with throttle lever and insert
tool or drill gauge under throttle slide. Allow throttle
slides to return.

5.

Loosen lock nut and turn throttle cable adjuster (on
top

of

carburetor)

in

(clockwise)

or

out

(counterclockwise) as required until a slight drag can
be felt on the gauge or tool.

6.

Securely tighten throttle cable synchronization lock
nut.

7.

Repeat steps 3 through 5 on remaining carburetor.

Idle Gap Synchronization

8.

Referring to chart in the Specifications section,
chapter 1,

select correct diameter Idle Gap drill

gauge for the engine.

9.

Slightly lift throttle slides with throttle lever and insert
idle gap drill gauge under throttle slide. Allow throttle
slides to return.

10. Turn idle adjustment screw in as required until only a

slight drag can be felt on the gauge.

11. Repeat steps 8 through 10 for remaining cylinders.

12. Verify proper throttle lever free play and adjust if

necessary, by loosening cable adjuster locknuts and
turning adjusters out equally until throttle lever
freeplay is correct.

See chart
for size

MIKUNI

Ill. 4

Forward

Center of slide
under cutaway

Throttle Free Play -
0.010 - 0.030

(.25-.76mm)

CARBURETION

3.17

Mikuni TM-38 / TM-40 Carburetor Service

CAUTION:

Wear eye protection when using compressed air or cleaning
solvents. Review all fuel system warnings found on page
3.1 before proceeding.

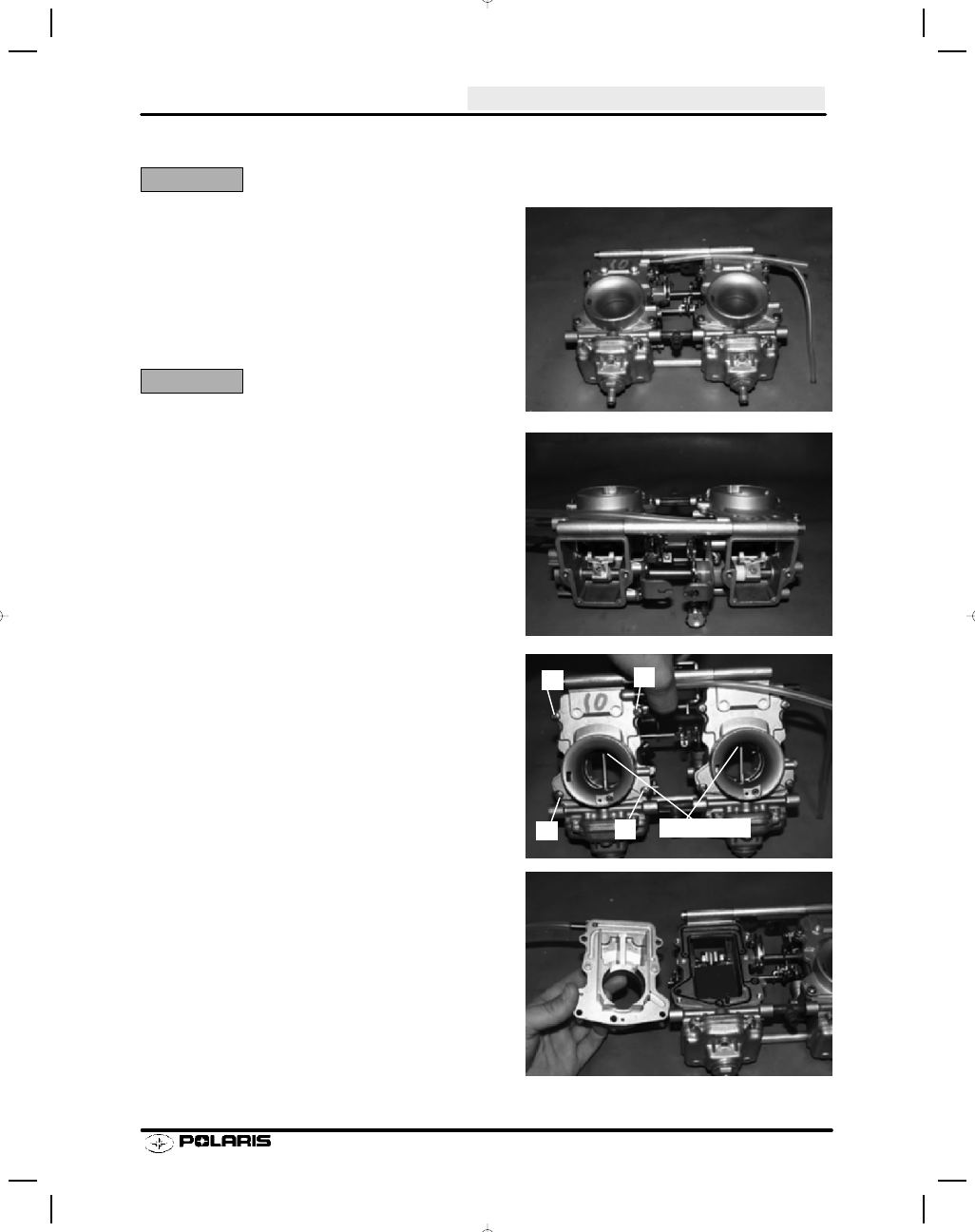

Carburetor Removal, Disassembly, and Inspection

1.

Remove carburetor rack from engine.

Before

disassembling, clean outside of carburetor thoroughly
with solvent.

CAUTION:

Do not use compressed air to dry at this time. The float
chamber could become pressurized resulting in damage to
the floats or inlet needle and seat. Do not soak carburetors
in carb cleaner. Clean only with aerosol cleaner.

2.

Remove top caps.

3.

Remove four screws on funnel.

4.

Turn throttle shaft so slide opens all the way.

NOTE: You may have to turn out slide stop screw for slide
to move farther up body.

5.

With slide fully open, pull funnel out bottom first.

Open Slides

1

2

3

4
