Snowmobile Polaris PRO X (2003 year). Instruction - part 17





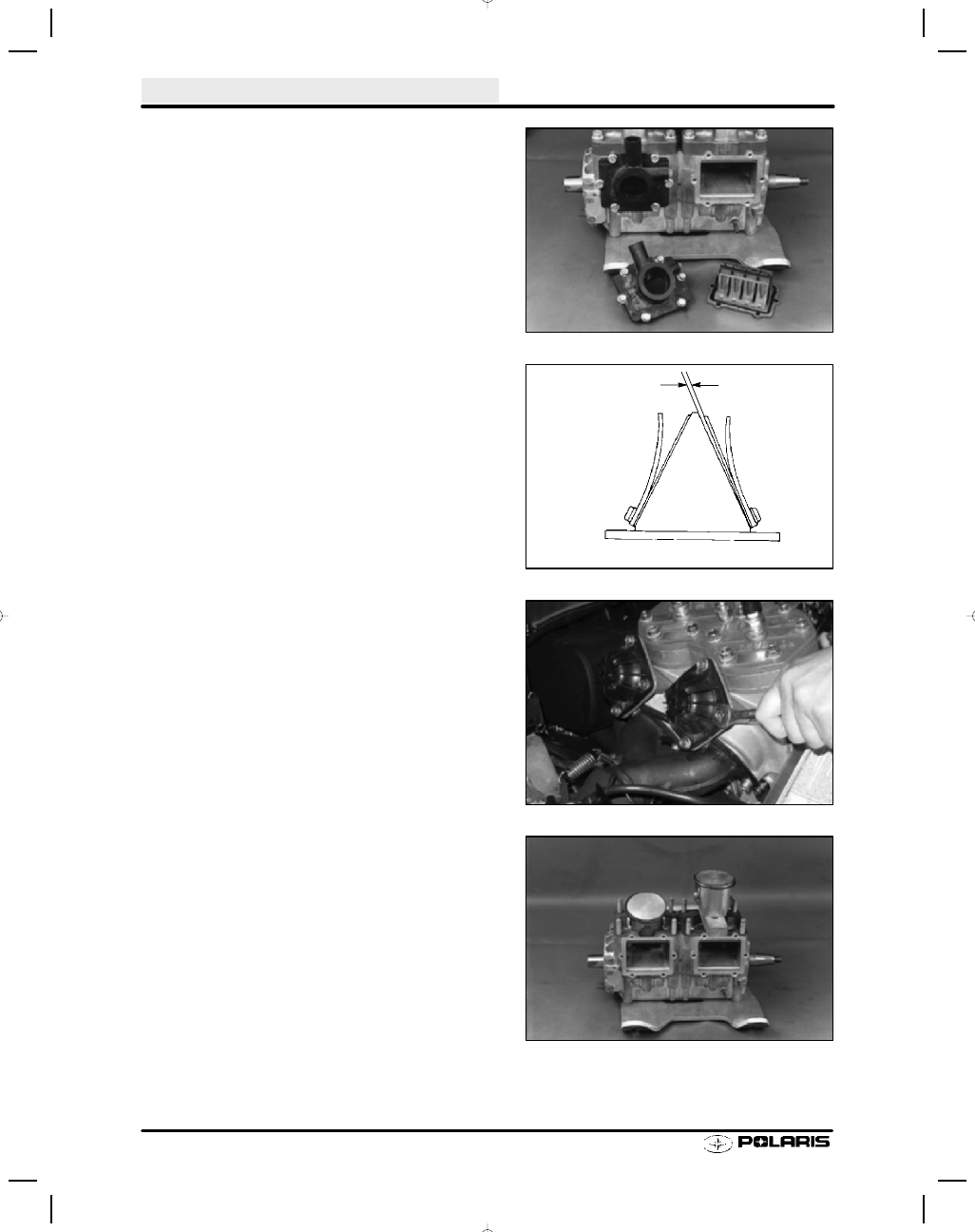

ENGINE

2.36

Disassembly, Cont.

13. Remove reed cover, reed stuffers, and reeds.

Reed Valve Inspection

14. Measure air gap between fiber reed and reed

block as shown. The air gap should not exceed
.015

s (.4 mm). If clearance is excessive DO NOT

attempt to reverse the reeds to reduce the air
gap.

Always replace them if damaged. Check

each fiber reed for white stress marks or missing
material. Replace if necessary.

15. Remove V.E.S. assembly. Clean valves as

outlined later in this chapter.

16. Remove cylinder head.

Note condition and

placement of cylinder head O-rings.

17. Loosen cylinder base nuts and remove cylinders.

Max Reed Pedal
Clearance .015

s

(.38 mm).

Exaggerated
for illustration

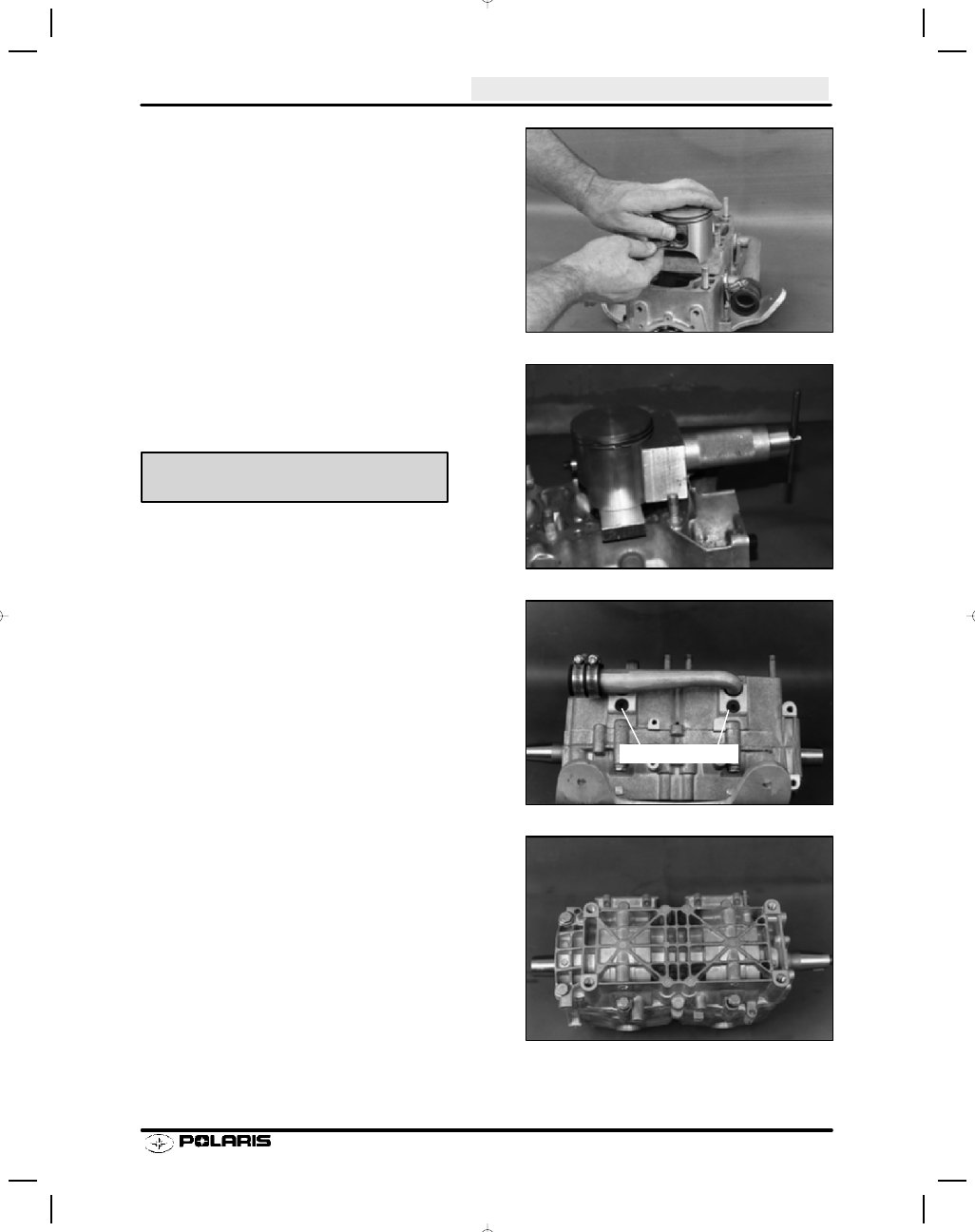

ENGINE

2.37

Disassembly, Cont.

18. Carefully remove C-clip holding piston pin in place.

19. Remove piston pin using piston pin puller and

adaptor.

20. Remove water manifold by removing both retainer

brackets.

21. Remove bottom crankcase bolts and separate

crankcase halves.

Piston Pin Puller PN 2870386

Adaptor PN 5130971

Remove Clamps

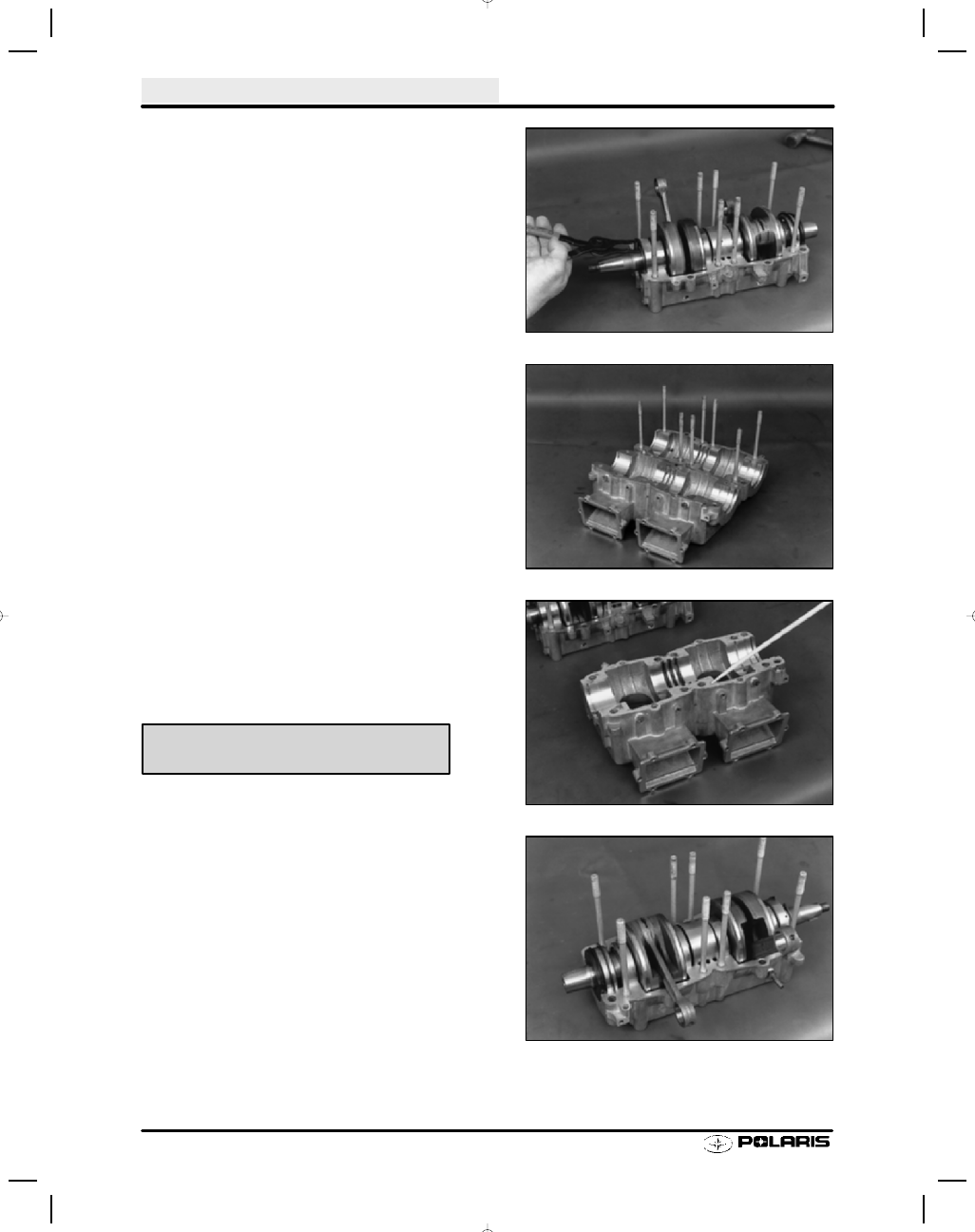

ENGINE

2.38

Disassembly, Cont.

22. Remove snap rings and crankshaft seals.

23. Clean thoroughly to remove all grease, oil, dirt, and

old sealant.

Assembly

1.

Clean

all

parts

with

solvent

and

dry

with

compressed air.

2.

Apply 3-Bond

¥ 1215 sealant to upper crankcase

half.

NOTE: Use only 3-Bond

¥ 1215 sealant. Curing time

and film thickness are critical for proper bearing clear-
ance.

3.

Set crankshaft in lower crankcase. Lubricate seal
lips with Premium All Season Grease. Make sure
seals are positioned properly with lip and spring
facing inward toward crankshaft. Install snap rings
with gap facing upward toward upper case half.

3-Bond

¥ 1215

PN 2871557

120 Gram Tube

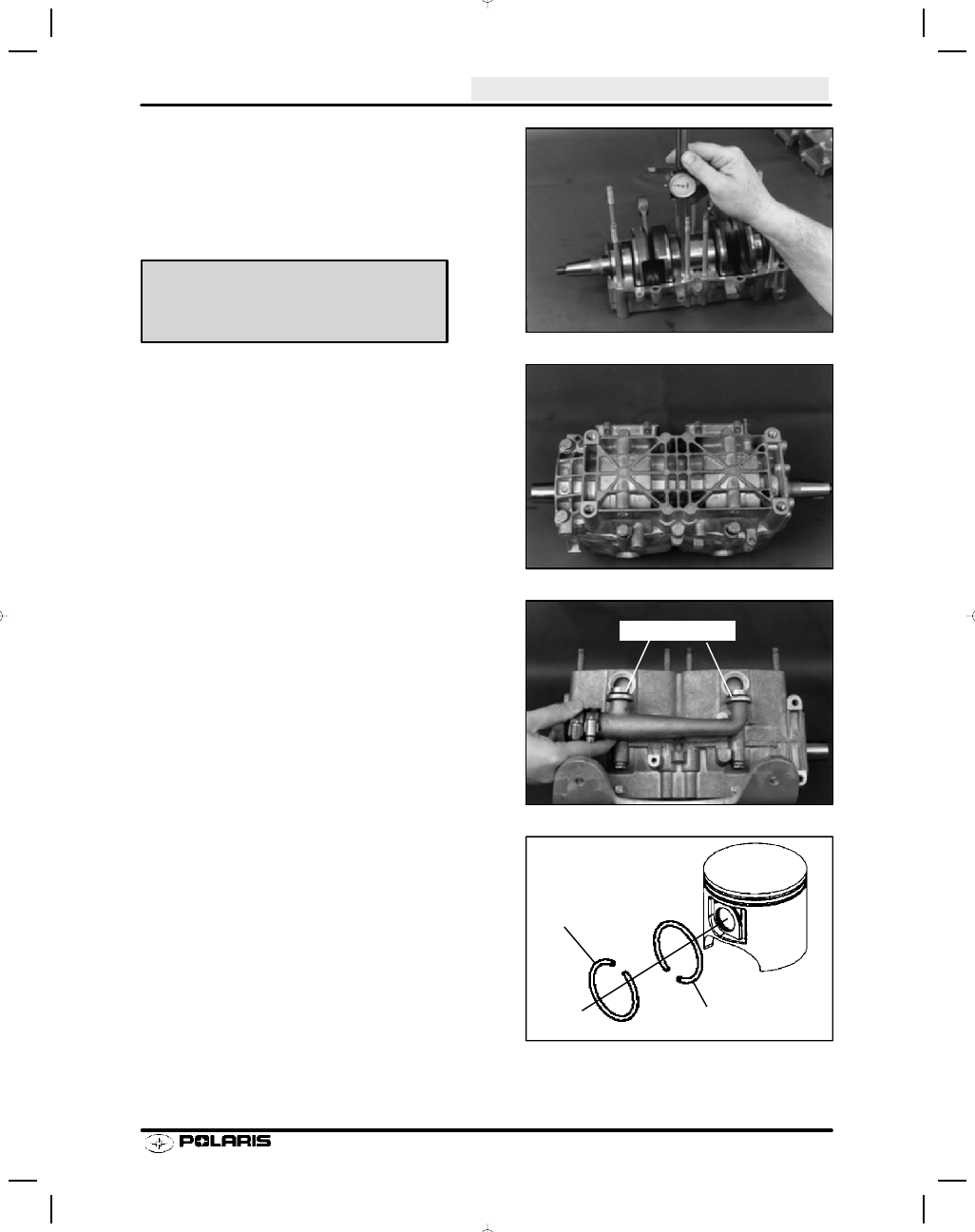

ENGINE

2.39

Assembly, Cont.

4.

If studs were removed or new crankcase installed,
apply Loctite

¥ 242 to threads of studs and screw in

until bottomed. Tighten securely.

5.

Measure installed length of stud bolt. This is the
length necessary to allow cylinder installation.

6.

Install crankcase halves together. Torque bottom
crankcase bolt to specification in the proper
sequence found in the beginning of this chapter.

7.

Install new O-rings on water manifold.

Grease

O-rings and install manifold.

8.

Lubricate main bearing oil holes with Polaris
Premium 2 Cycle or Premium Gold engine oil
and rotate crankshaft to distribute oil evenly.

9.

Install a new C-clip in both pistons (inside) with
gap facing up or down. Be sure clip is fully
seated in the piston groove.

Lower Crankcase Stud Height

121-124 mm (4.76-4.88

s) from crankshaft

parting line.

Replace O-rings

Gap Up

Gap Down
