Snowmobile Polaris PRO X (2003 year). Instruction - part 8





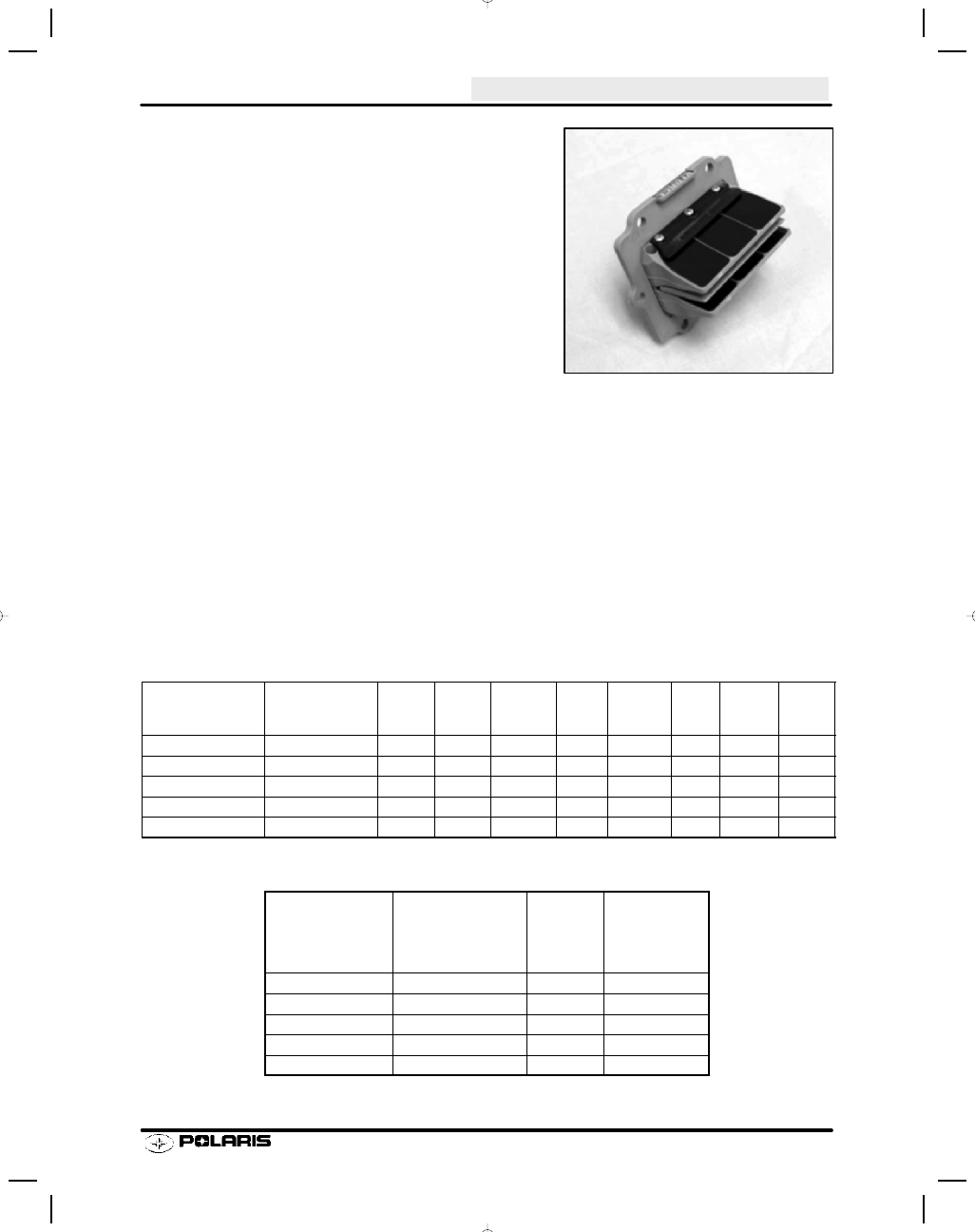

ENGINE

2.1

Improvements for 2003 440 Pro X

1.

V--Forcet Reeds

2.

Revised carburetion calibration

3.

“Dragon” ignition system

Pro X Model Specifications

Machine Model

Engine Model

Cyl.

Disp.

CC’s

Bore

MM

Bore

Inches

Stroke

MM

Stroke
Inches

No. of

Cyl.

Type of
Cooling

Fuel

Octane

(Min.)

440 Pro X Fan

EC45PM040

438

65.5

2.579

65

2.559

2

Fan

87*

440 Pro X

S2423--4460PA4C

438

66

2.598

64

2.520

2

Liquid

110**

600 Pro X

S2392--6044PA6E

593

77.25

3.041

64

2.520

2

Liquid

87*

700 Pro X

S2378--7070PA7C

701

81

3.189

68

2.677

2

Liquid

87*

800 Pro X

S2398--8070P8C

794

85

3.346

70

2.756

2

Liquid

87*

* Non-oxygenated. Use minimum 89 octane when using oxygenated fuel.
** 110 Octane minimum.

Model

Piston/Cylinder
Bore Clearance

+.05 mm

--.00 mm

(MM / Inch )

Engine

Operating

RPM

¦200

Recommended

Idle RPM

440 Pro X Fan

.07-.105 (.0028-.0041

s)

7750

1600

440 Pro X

.11--.15 (.0044--.0058)

8400

1500

600 Pro X

.11-.14 (.0045-.0055

s)

8000

1500

700 Pro X

.11 (0.0044”)

8100

1400

800 Pro X

.15 (0.006”)

8000

1400

V FORCEt REEDS

ENGINE

2.2

When tightening bolts, nuts, or screws, a torque pattern should be followed to insure uniform equal tension is
applied to all fasteners. Proper torque application prevents fasteners from loosening or breaking in critical service.
It also minimizes wear and eliminates premature or needless repair costs. Following uniform torque application
sequence patterns assures optimum performance from precision machined, close tolerance assemblies. On vital
engine parts, torquing negligence could be costly.

Torque is a force which tends to produce rotation. The measurement of this force is expressed in units of force and
length. There are at present two basic systems of units used to express torque, English and Metric. In the English
system, the units of force are the pound or ounce, and the length is the foot or inch.

In the Metric system, the unit of force is expressed in grams (gm) or Newton meters (Nm), and length as
centimeters (cm.) or meters (m). The most common units of torque in the English system are ft. lb. and in. lb. In
the Metric system, torque is commonly expressed in units of Nm. Multiply foot pounds by 1.382 to obtain Nm.

See page 2.3 for engine torque sequences

Engine

Cylinder Head*

Cylinder

Base Nuts

Crankcase

8 mm

Crankcase

10 mm

Flywheel

EC-45

18-19 ft. lbs.
(25-26.5 Nm)

24-28 ft. lbs.
(33-39 Nm)

17-18 ft. lbs.
(22-23 Nm)

23-25 ft. lbs.
(32-35 Nm)

60-65 ft. lbs.
(83-90 Nm)

S44**

SN60-44**

SN50**

20-24 ft. lbs.
(28 - 33 Nm)

30-34 ft.lbs
(42-47 Nm)

20-24 ft.lbs.
(28 - 33 Nm)

N/A

90 ft. lbs.
(124 Nm)

SN60-70**
SN70**
SN80**

18-22 ft. lbs.
(25 - 30 Nm)

30-34 ft.lbs
(42-47 Nm)

20-24 ft.lbs.
(28 - 33 Nm)

26-30 Ft lbs
(36-42 Nm)

90 ft. lbs.
(124 Nm)

**Torque head bolts prior to torquing cylinder base nuts. Apply loctitet 242.

All 6mm Crankcase Bolts

108 in. lbs. (12.4 Nm)

. . . . .

All 7/16-14 Engine Mount Strap Bolts

44-48 ft. lbs. (60-66 Nm)

. . . . .

Spark Plugs

Polaris Part

Number

Spark Plug

3070156

NGK BR8ES

3070157

NGK BR7ES

3070160

NGK B7ES

3070161

NGK B8ES

3070162

NGK B9ES

3070163

NGK BR9ES

3070165

Champion RN2C

3070166

Champion RN3C

3070184

Champion RN57YC

3070190

Champion RN57YCC

3070198

NGK BR8EV

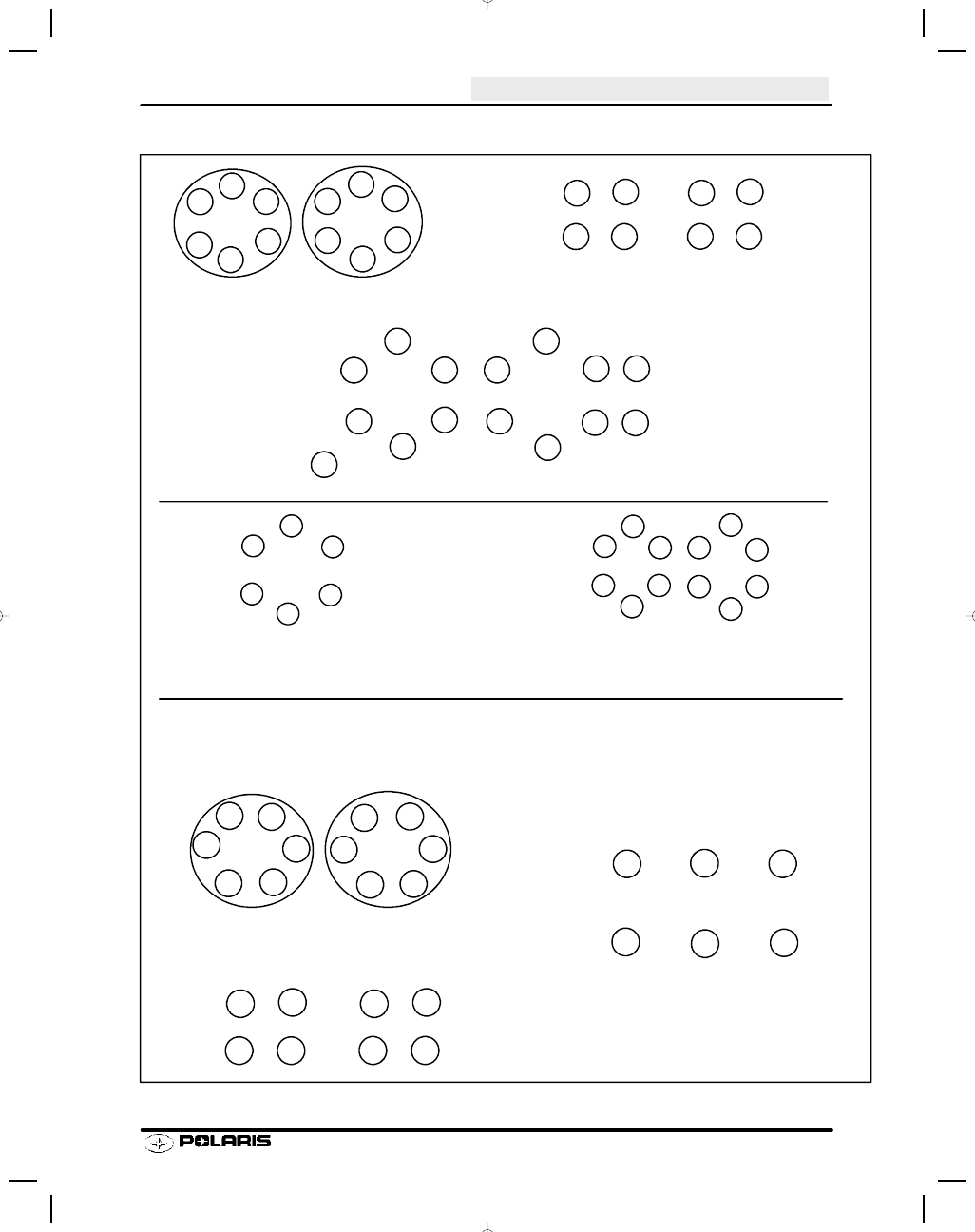

ENGINE

2.3

1

2

3

4

5

6

7

8

9

10

11

12

CYLINDER HEAD

440/600 Pro X

3

2

4

1

5

6

7

8

9

5

1

4

8

12

10

6

2

3

7

11

CRANKCASE - 440/600 Pro X

15

14

13

CYLINDER BASE

440/600 Pro X

3

1

6

4

2

5

CYLINDER HEAD - Pro X Fan

9

5

1

3

7

11

10

6

2

4

8

12

CRANKCASE - Pro X

Fan

5

1

7

3

9

2

11

4

10

6

12

8

CYLINDER HEAD

Liberty700 / 800

3

2

4

1

5

6

7

8

CYLINDER BASE
Liberty
700/800

LibertyCrankcase - 700 / 800

5

4

2

1

3

6
