42

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program

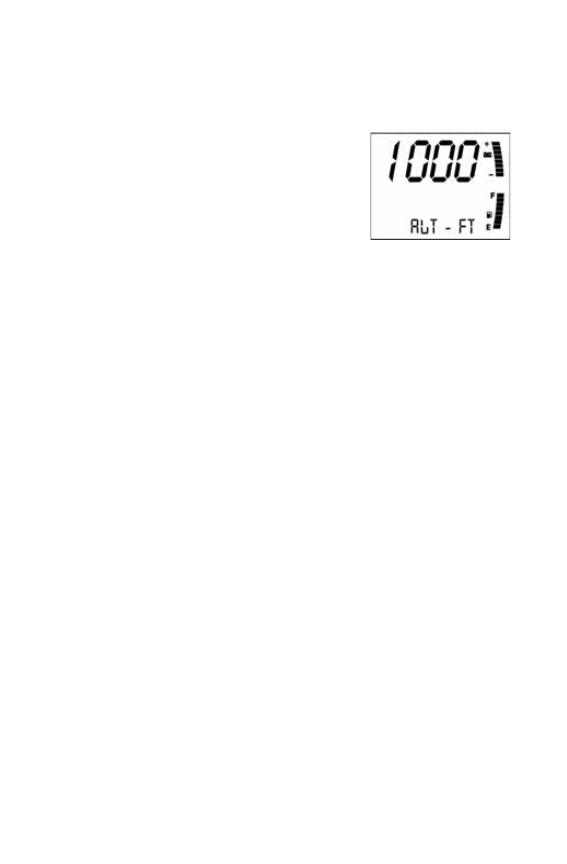

Altitude (if equipped)

The rider can calibrate the altimeter for current
atmospheric conditions. Altimeter accuracy
will be +/-300 ft. (91 m) after adjustment.

1. Enter the Engine Program.

Tip: Press and hold the MODE switch for ten sec-

onds to switch between standard and metric
units of measurement. When "ALt" displays,
the program is in the metric mode.

2. Press and release the SET button until the altimeter screen is active.

3. Press and hold the SET button for five seconds. When the digits

begin to flash, release the button.

4. Press and release the SET button once to advance 50 feet (15 m).

Tip: Press and hold the SET button to advance quickly by 100-foot (30 m) incre-

ments.

5. Adjust the altitude display to within 50 ft. (15 m) of current altitude.

Tip: The gauge reads barometric pressure and allows the rider to compensate

for daily fluctuations in air pressure. The gauge can adjust the displayed
altitude to +/- 1300 ft. (396 m) from the preset value. It will adjust up to
+1300 ft. (396 m) above the calibrated altitude. Once the +1300 ft. (396 m)
offset has been reached, the next adjustment is -1300 ft. (396 m) from the
calibrated altitude, and 50 ft. (15 m) will be added to the altitude each time
the SET button is pressed.

6. Press and release the MODE button to set the reading at the adjusted

value. If the MODE button is not pressed within ten seconds, the
gauge will automatically save the new entry.

43

FEATURES

Instrumentation

MFD Digital Display Programs

History Program

Press and release the MODE button until the history program screen is
active. This screen will always display electrical system voltage level
and fuel level (if equipped).

Press and release the SET button to cycle through the Maximum Vehicle
Speed, Maximum Engine RPM and Service Interval Reminder screens.

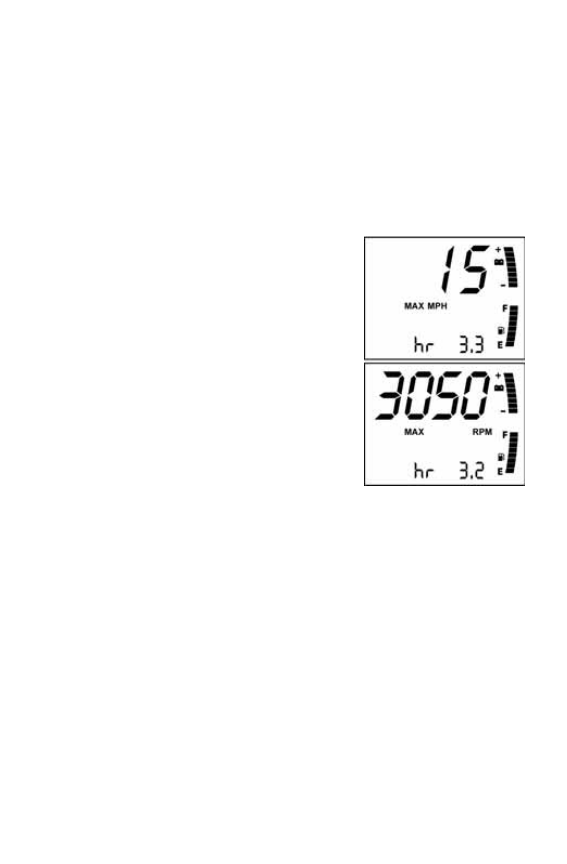

Maximum Speed/Maximum RPM

The gauge automatically logs the maximum
speed and engine RPM even if the history
program is not active in the display.

1. Enter the History Program.

2. Press and release the SET button until

one of the two screens is active.

Tip: The MPH and RPM values are both reset at

the same time. Reset the values before each
run to obtain accurate readings.

3. Press and hold the SET button for three

seconds to reset the recorded maximum
values for both MPH and RPM.

Tip: Due to electrical noise, the MFD may occa-

sionally display MAX MPH/RPM values that
are not representative of actual values.

44

FEATURES

Instrumentation

MFD Digital Display Programs

History Program

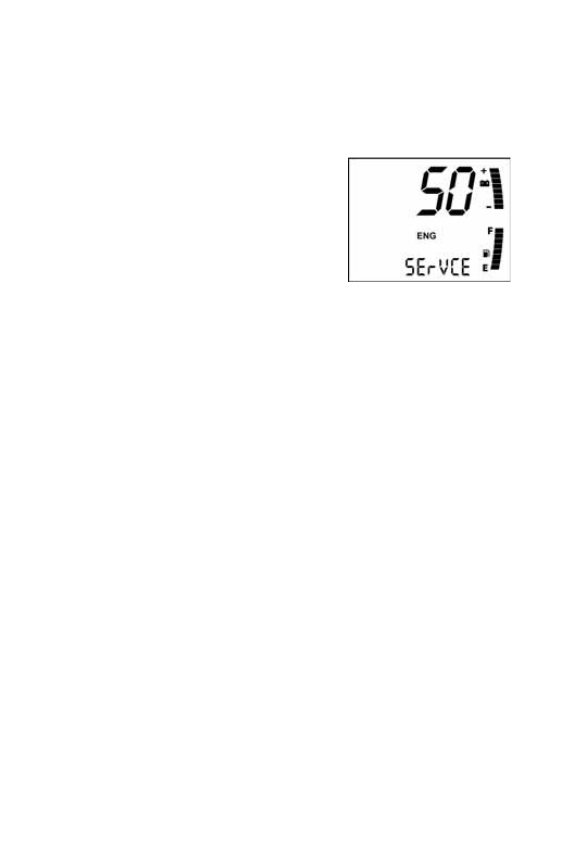

Service Interval Reminder

The gauge logs the number of engine
hours accumulated between service
reminders. When the logged hours
reaches the designated service interval
(set by the user), the gauge provides a
reminder that service is due. "SErVCE"
will flash in the odometer area and
"ENG" will flash in the icon area for five
seconds each time the engine is started
(until the service reminder is reset.) Use
the following procedures to reset the
reminder.

To reset the reminder at the existing interval:

1. Enter the History Program.

2. Press and release the SET button until the service interval screen is

active.

3. Press and hold the SET button for ten seconds, continuing to hold

even after the display begins to flash.

4. When the display stops flashing, release the button. The service

interval has been reset.

45

FEATURES

Instrumentation

MFD Digital Display Programs

History Program
Service Interval Reminder

To reset the reminder at a new interval:

1. Enter the History Program.

2. Press and release the SET button until the service interval screen is

active.

3. Press and hold the SET button for five seconds, until the hours begin

to flash. Immediately release the button.

4. Press the button again, up to five times, to advance the reminder in

50-hour increments.

Tip: The maximum interval is 250 hours.

5. Press and release the MODE button to save the new settings.
To disable the service interval reminder:

1. Press the SET button once after reaching 250 hours on the display.

The gauge will display "OFF".
