FEATURES

Engine Management System

The engine management system is programmed to alert the rider when
coolant temperatures reach higher-than-normal levels. The system
responds by taking the following sequential steps to alert the rider.

1.

The High Temperature Indicator on the MFD will flash.

To cool the engine, drive the snowmobile into soft snow so that it comes
into contact with the heat exchangers on the snowmobile. Alternately,
you can stop the snowmobile and pack snow or ice onto the heat
exchangers to bring the temperature of the engine down.

2.

The High Temperature Indicator on the MFD will flash and the
engine will misfire or "stutter".

If you do not notice the flashing indicator on the MFD or do not suffi-
ciently cool the snowmobile, the engine will misfire to alert you to look
at the MFD and take action. Again, driving the snowmobile into soft
snow or packing snow onto the heat exchangers should cool the engine.

3.

The engine will stop.

If the engine reaches an extreme temperature where damage becomes
possible, the system will stop the engine. This condition will occur only
after the system has taken both previous steps to alert the rider to the
extreme engine temperature. If the engine stops and you attempt to
restart it while before it has cooled sufficiently, the engine will restart
and run for two seconds but will immediately stop again.

Tip: The engine management system will also turn the engine off if the engine

reaches an extreme temperature while idling.

35

FEATURES

Instrumentation

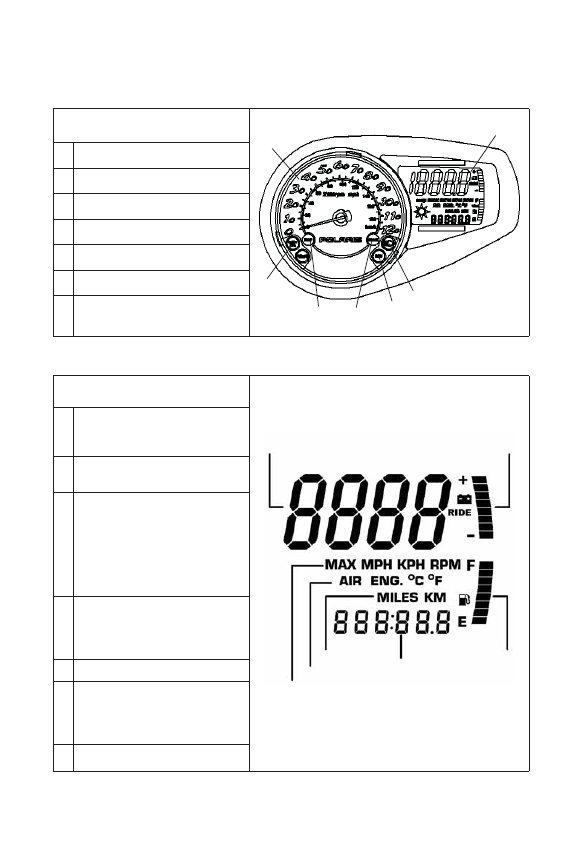

MFD Component Identification

Digital Display Identification

Item

1 Analog Gauge (if equipped)

2 Digital Gauge

3 Check Engine Indicator

4 High Temp Indicator

5 Brake Indicator

6 Reverse Indicator

7 High Beam Indicator

Item

1 RPM or Speed

Altitude (if equipped)
Service Interval

2 Electrical System Voltage

Level

3 MAX - Maximum MPH/

KPH or RPM

MPH - Miles per hour
KPH - Kilometers per hour
RPM - Engine crankshaft

revolutions per
minute

4 Air Temp (if equipped)

Engine Temp
Degrees Celsius
Degrees Fahrenheit

5 Miles/Kilometers

6 Hours

Trip 1/Trip 2/Trip F
Service Label
Altitude Label

7 Fuel Level

1

2

3

4

5

6

7

1

2

3

4

5

6

7

36

FEATURES

Instrumentation

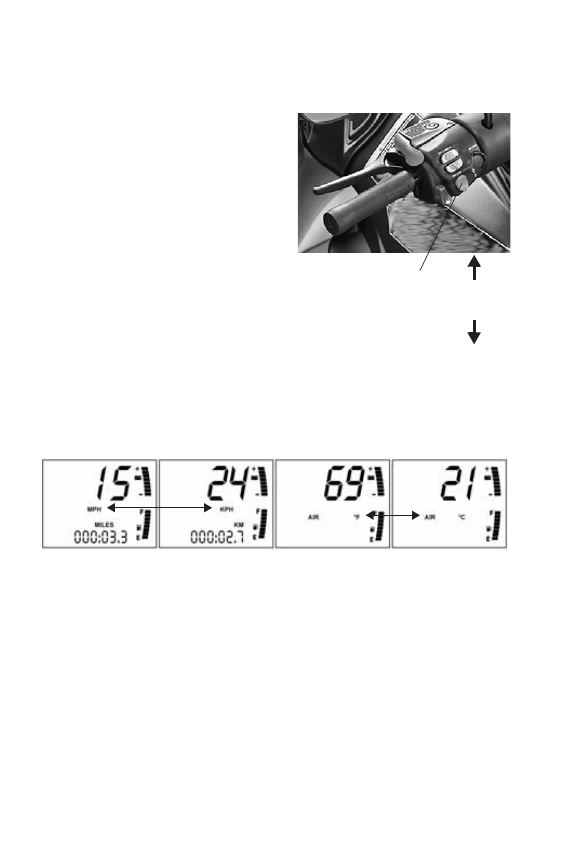

MFD Settings

The MFD control switch allows you
to set the MFD display to your pref-
erences. The rocker switch has a
MODE button (top) and a SET but-
ton (bottom). Specific instructions
are outlined on the following pages.

MFD settings can be made with the
engine running or with the engine
off. If the engine is off, make sure
the stop switch is pressed down, and
turn the ignition key to the START
position briefly to activate the
gauge. The gauge will illuminate for
about 90 seconds.

Standard vs. Metric

The MFD will display either standard or metric units of measurement.
While viewing a screen that displays measurements (MPH, km/h or
temperatures), press and hold the MODE switch until the unit of mea-
surement changes (about 10 seconds).

MFD

Control

Switch

SET

MODE

37

FEATURES

Instrumentation

MFD Settings

Speedometer/Tachometer

If your model is equipped with both analog and digital displays, the
speedometer and tachometer can be viewed in either display. If the ana-
log display is set to show speedometer readings, the digital screen will
automatically display the tachometer (option 1). If the analog is set to
show the tachometer, the digital screen will show the speedometer
(option 2).

To change viewing preferences, press and hold the MODE button for
three seconds. When the button is released, the new setting becomes
active and screen colors change. See table below.

Option

Analog

Display

Digital

Display

Analog

Screen

Digital

Screen

1

Speed

RPM

Blue “MPH”

Blue

Backlight

2

RPM

Speed

Red

“X100RPM”

Red

Backlight
