Snowmobile Polaris FRONTIER TOURING S04NT7DS (2004 year). Instruction - part 6





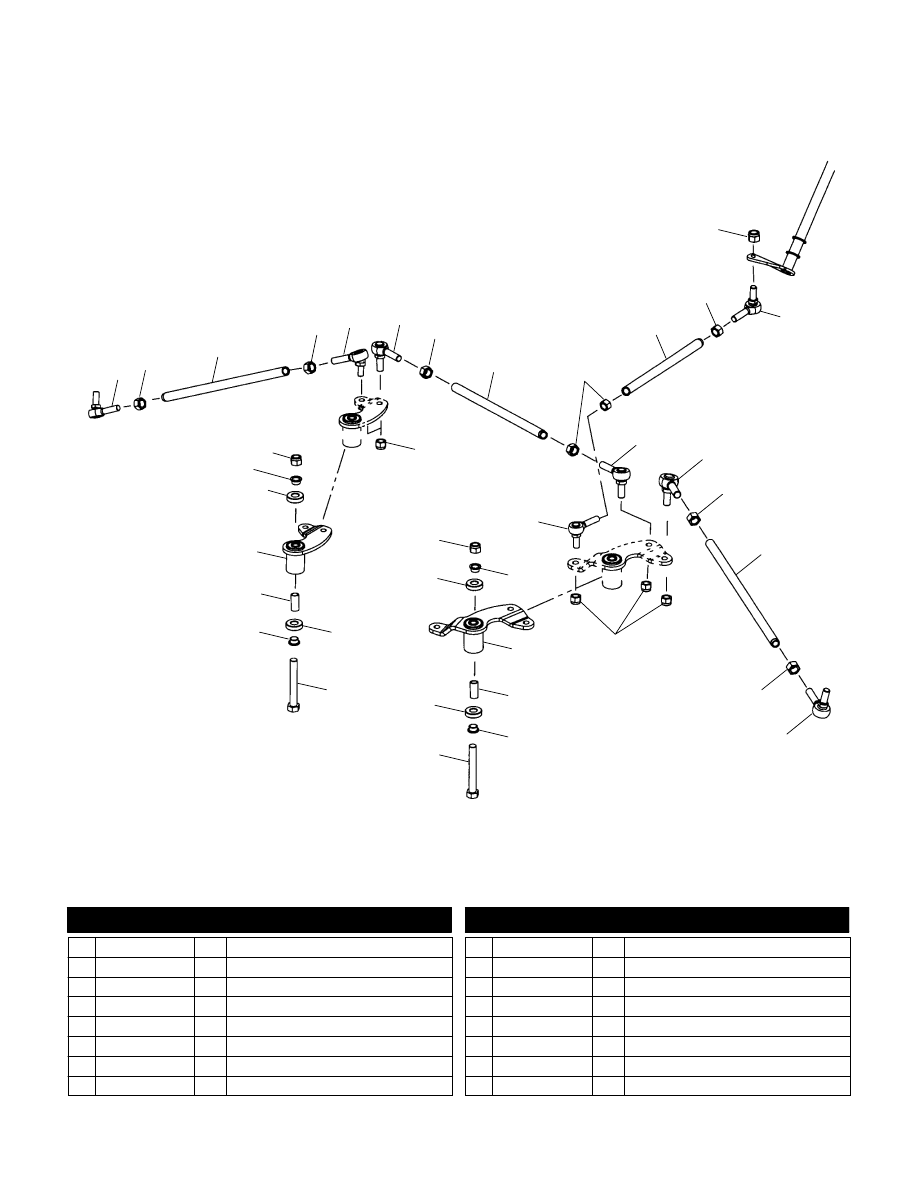

B7

STEERING

FRONTIER TOURING S04NT7DS

9

2

8

4

5

3

1

14

11

15

12

13

16

7

1

2

2

2

9

9

9

4

4

5

10

3

13

15

15

11

11

11

14

15

9

6

6

10

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7061057

2 Rod End, RH

2 7542401

4 Nut

3 5333949

2 Tie Rod

4 7542424

4 Nut, LH

5 7061055

2 Rod End, LH

6 7061076

2 Rod End, RH

7 5333772

1 Rod, Steering Rack

8 5333773-067

1 Rod, Draglink

9 7542439

8 Nut, Nylok

10 7061075

2 Rod End, LH

11 5132106

4 Bushing, Reducer

12 1820957

1 Asm., Pitman Arm (Incl. 11,13,15)

13 5133423

2 Spacer, Tube Pitman/Idler Arms

14 7512435

2 Screw

15 3514320

4 Bearing, Ball

16 1820959

1 Asm., Idler Arm (Incl. 11,13,15)

11/01

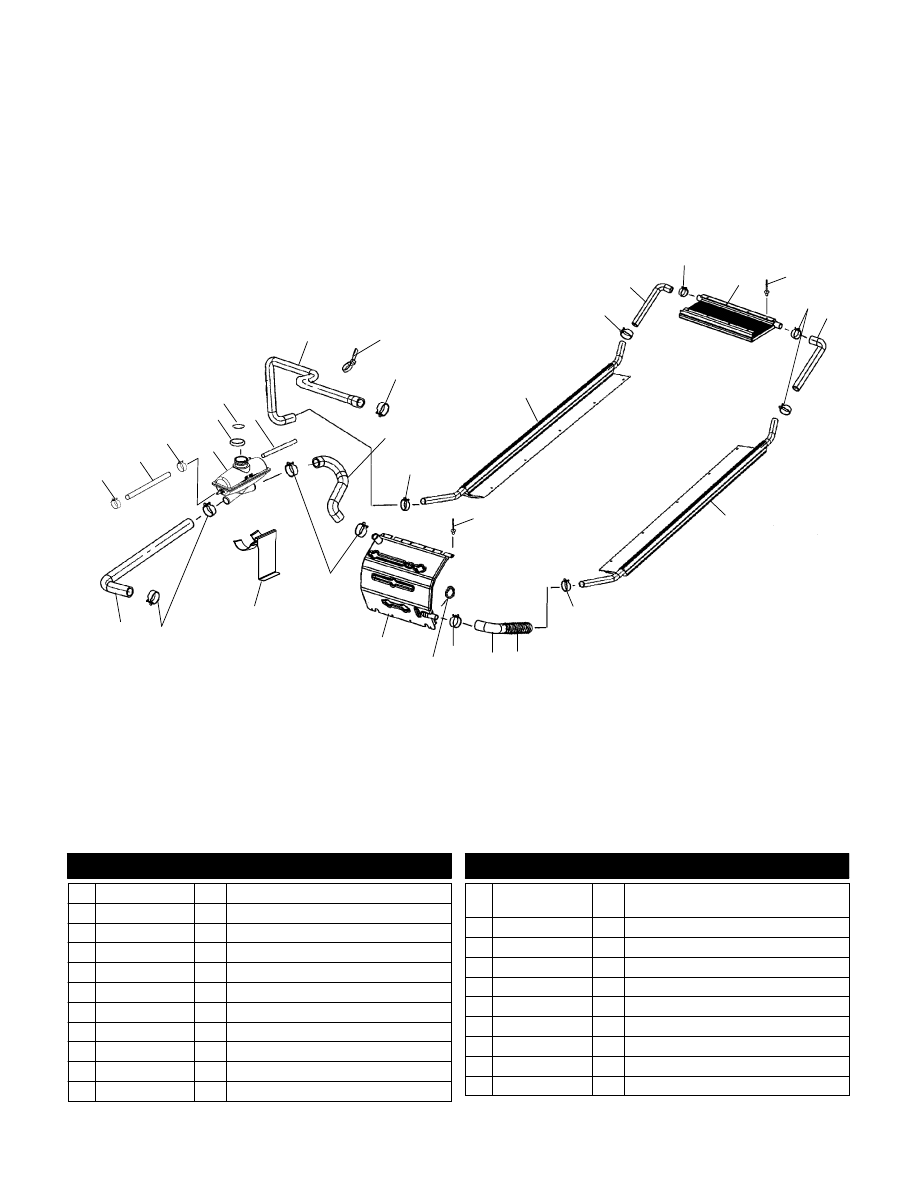

B8

COOLING SYSTEM

FRONTIER TOURING S04NT7DS

12

14

19

12

11

11

11

11

7

13

13

15

17

21

10

11

11

9

6

3

4

5

18

8

16

20

15

2

1

1

9

9

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7080003

2 Clamp, Hose

2 8450040

AR Line

3 2520319

1 Bottle, Coolant

4 2511270

1 Cap, Pressure

5 7170063

1 Decal, Water Bottle Cap

6 8450003-1525

1 Line, Fuel

7 5412327

1 Hose, Engine Out/Side Cooler, RH

8 7080138

1 Cable Tie

9 7080844

5 Clamp, Springband

10 5412198

1 Hose, Center Cooler/Bottle

11 7080841

7 Clamp, Springband

12 1240133

1240134

1

1

Cooler, Running Board, LH

Cooler, Running Board, RH

13 5412255

2 Hose, Side Cooler/Rear Cooler

14 1240150

1 Exchanger, Close-Off, Rear

15 7661637

27 Rivet

16 5521602

1 Tubing, Convoluted

17 5412083

1 Hose, Gripper/Center Cooler

18 5810291

1 Spacer, Rubber

19 1240128

1 Center Cooler, 2 Outlet

20 5246194

1 Bracket, Coolant Bottle

21 5412183

1 Hose, Bottle/Engine In

4/03

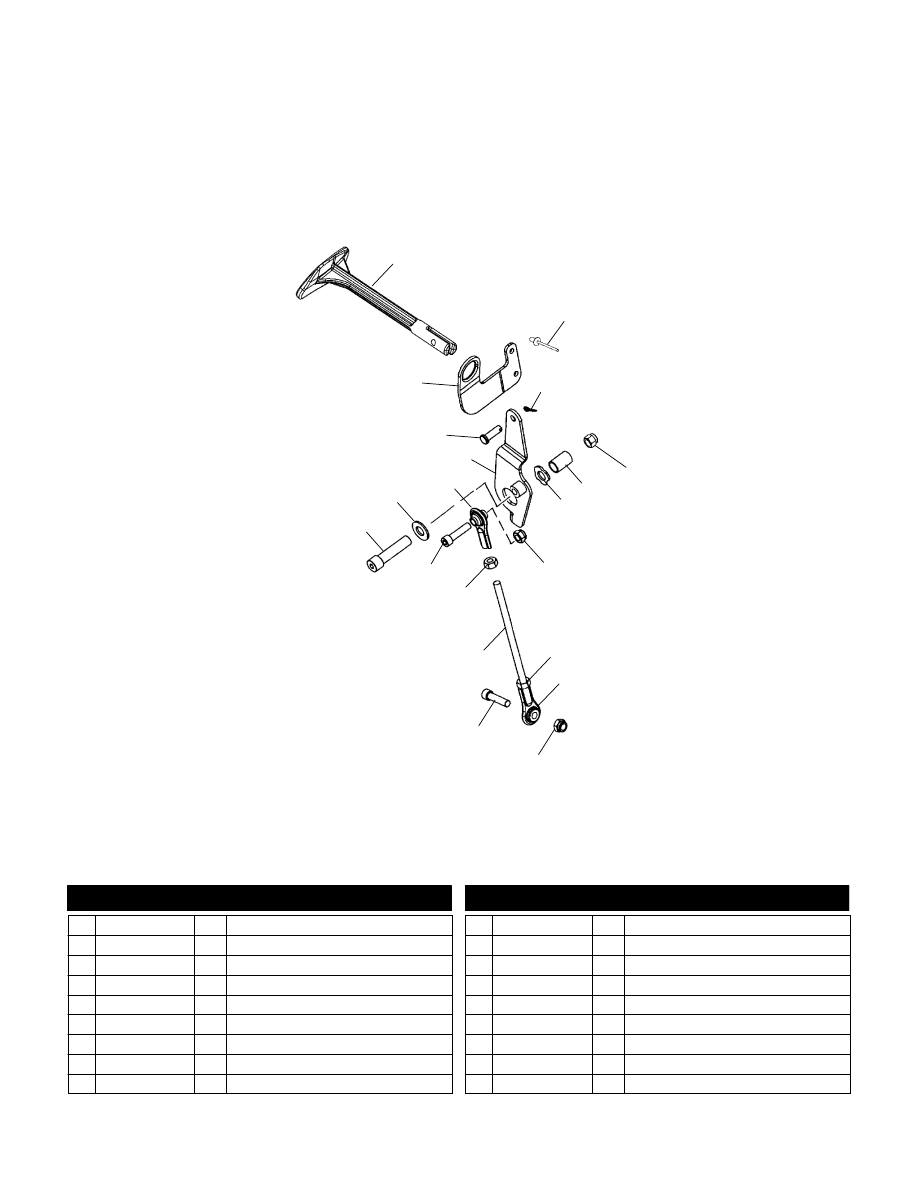

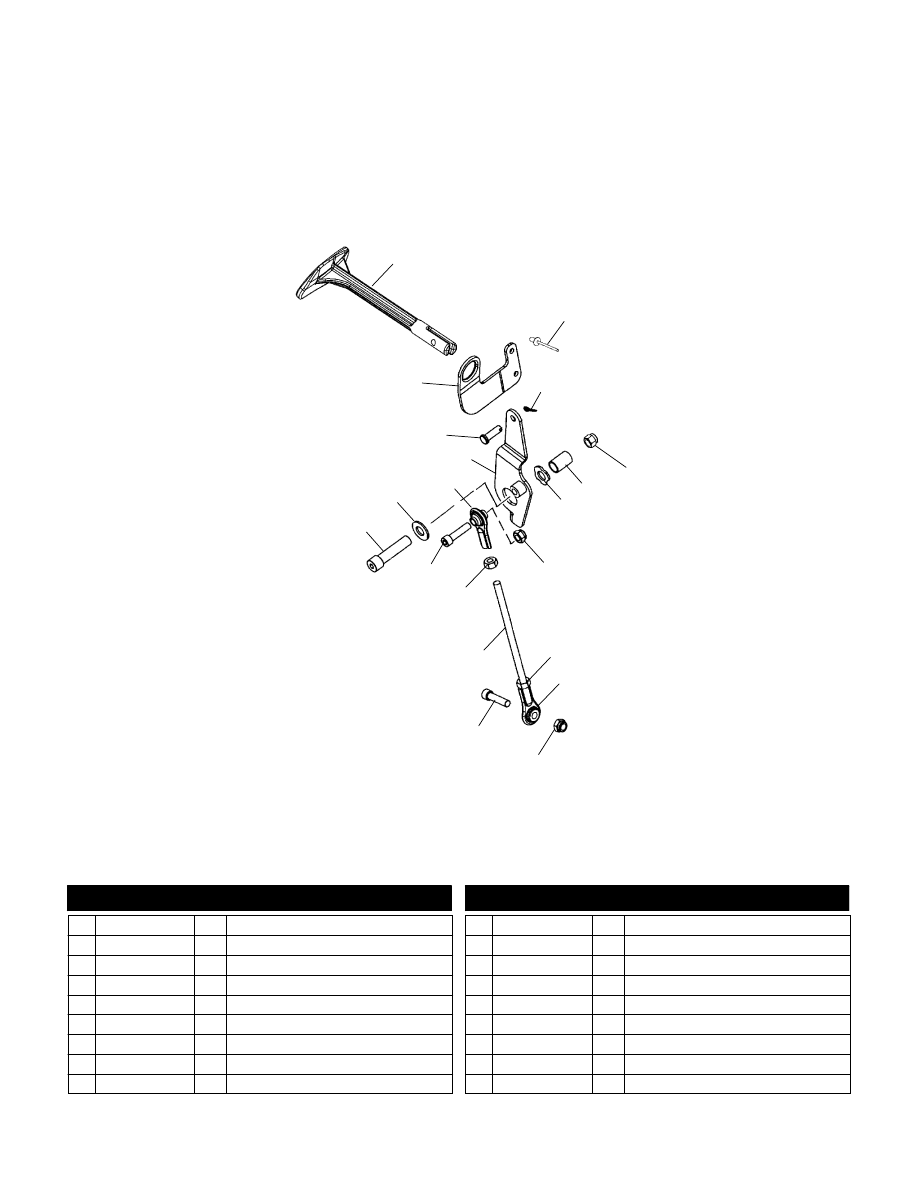

B9

SHIFT

FRONTIER TOURING S04NT7DS

16

18

1

3

4

13

17

10

8

15

5

11

7

9

12

2

7

10

14

6

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 5435115

1 Handle, Reverse

2 7661637

2 Rivet

3 7661010

1 Pin, Cotter

4 7542439

1 Nut, Nylok

5 5334131

1 Bushing

6 7555933

1 Washer, Wave

7 7542122

2 Nut, Nylok

8 7542129

1 Nut

9 7061097

1 Rod End, RH

10 7512163

2 Bolt

11 5132361

1 Rod, Threaded

12 7547088

1 Nut, Jam

13 7515415

1 Screw

14 7555806

1 Washer, Flat

15 7061030

1 Rod End, LH

16 1341429

1 Actuator, Shift

17 7661843

1 Pin, Clevis

18 5245707

1 Bracket, Shift Lever Guide

4/03

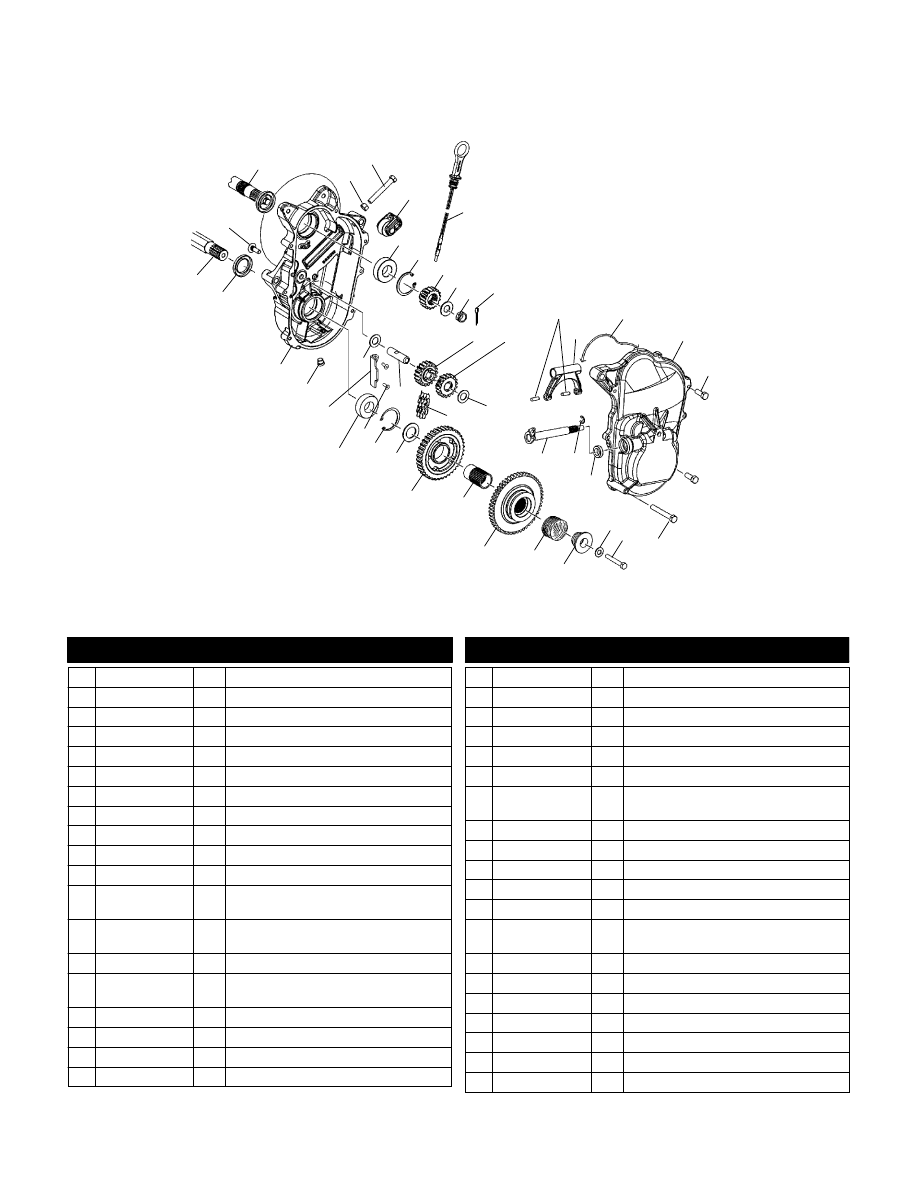

B10

CHAINCASE

FRONTIER TOURING S04NT7DS

27

1

26

3

2

5

6

8

9

10

11

4

16

17

18

19

21

20

14

38

37

36

35

34

33

23

13

12

32

31

29

22

5

6

24

28

25

7

1

15

39

22

30

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3610030

2 Seal, Oil

2 7542404

1 Nut

3 7515459

1 Screw

4 1341437

1 Asm., Tightener, Chain, Quiet

5 3514309

2 Bearing, Ball

6 7718406

2 Ring, Retaining

7 1332143

1 Asm., Dipstick

8 3221096

1 Sprocket, 20T, 3/4W

9 7571620

1 Washer, Spring

10 7547202

1 Nut, Nylok

11 7661203

1 Pin, Cotter

12 1341241

3554508

1

1

Asm., Sprocket, Pinion, 18T, 3/4W

Bearing, Needle

13 1341075

3554508

1

1

Asm., Pinion Gear, Spur

Bearing, Needle

14 7661826

2 Pin, Dowel

15 2200363

5130805

1

1

Kit, Shift Fork/Shaft (Incl. 14,21)

Fork, Shift

16 5411497

1 Gasket, Chaincase O-Ring

17 5133615

1 Cover, Chaincase

18 7512242

4 Screw

19 3610029

1 Seal, Oil

20 7710415

1 Ring, Retaining

21 1341388-067

1 Shaft, Shift

22 7555877

2 Washer, Thrust

23 3221109

1 Chain, 74P, 3/4W

24 5131770

1 Shaft, Pinion, w/Wrench Flats

25 7515477

1 Screw

26 --------------

1 Asm., Jackshaft

(See Drive Train Pg. B11, Ref. 18)

27 5133579

1 Chaincase

28 7052115

1 Plug

29 5246421

1 Bracket, Chain Retention

30 7512019

2 Screw

31 7555871

1 Washer

32 1341228

3555104

1

1

Asm., Sprocket, 41T, 3/4W

Bearing, Needle

33 5130720

1 Coupler, Drive

34 1341410

1 Asm., Gear, Reverse

35 7041887

1 Spring, Compression

36 5130727

1 Retainer, Drive Coupler

37 7552901

1 Washer, Spring Lock

38 7517581

1 Screw

39 7518052

1 Screw

4/03
