Snowmobile Polaris FRONTIER TOURING S04NT7DS (2004 year). Instruction - part 5





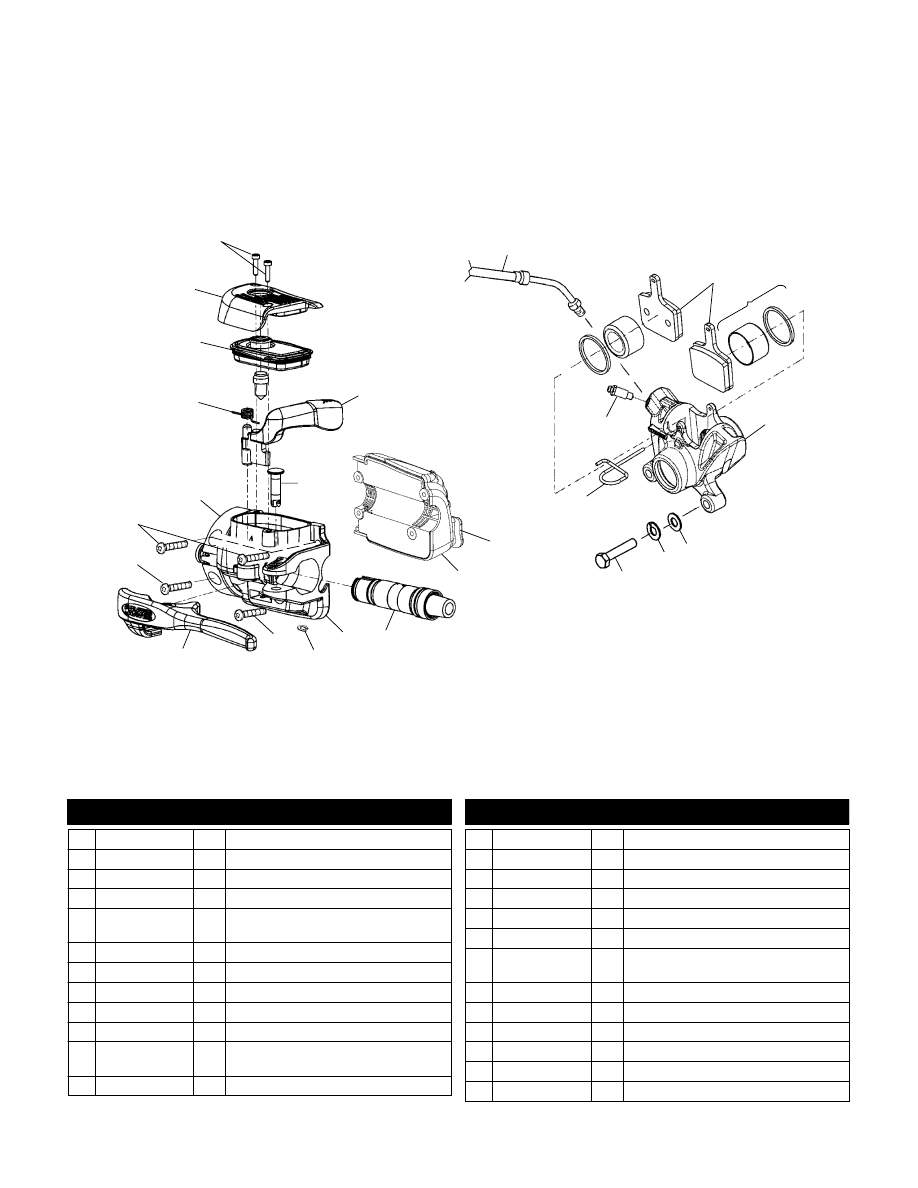

B3

BRAKE

FRONTIER TOURING S04NT7DS

21

22

23

19

18

20

17

1

2

3

16

15

13

6

12

11

8

4

5

9

14

10

7

24

25

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 2201254

1 Kit, Cover Screw

2 2201255

1 Kit, Cover Assembly (Incl. 1,3)

3 --------------

1 Gasket

4 2201250

1 Kit, Park Lever Spring

5 2010219

1 Asm., Master Cylinder

(Incl. 1-4,8,11,12,15,16)

6 7517441

2 Screw

7 7512078

1 Screw

8 2201943

1 Kit, Lever

9 7517566

1 Screw

10 2201945

1 Kit, Snap Ring

11 2202146

4010157

1

1

Kit, Asm., Master Cylinder

Switch, Brake Light

12 2201944

1 Kit, Cartridge Subassembly

13 2010167

1 Asm., Control, LH

14 5433291

1 Button, Switch, HI/LO, LH Control

15 2201946

1 Kit, Pivot Pin

16 2201251

1 Kit, Park Lever and Spring (Incl. 4)

17 1910607

1 Line, Brake

18 2202202

1 Kit, Brake Pad, Type 81

19 2202207

2202204

1

1

Kit, Piston/Seal

Kit, Seal

20 2202198

1 Kit, Asm., Brake Caliper (Incl. 18,19)

21 7556160

2 Washer

22 7552603

2 Washer, Spring Lock

23 7515534

2 Screw

24 2202206

1 Kit, Pin Retaining

25 2202205

1 Kit, Bleeder Fitting

9/02

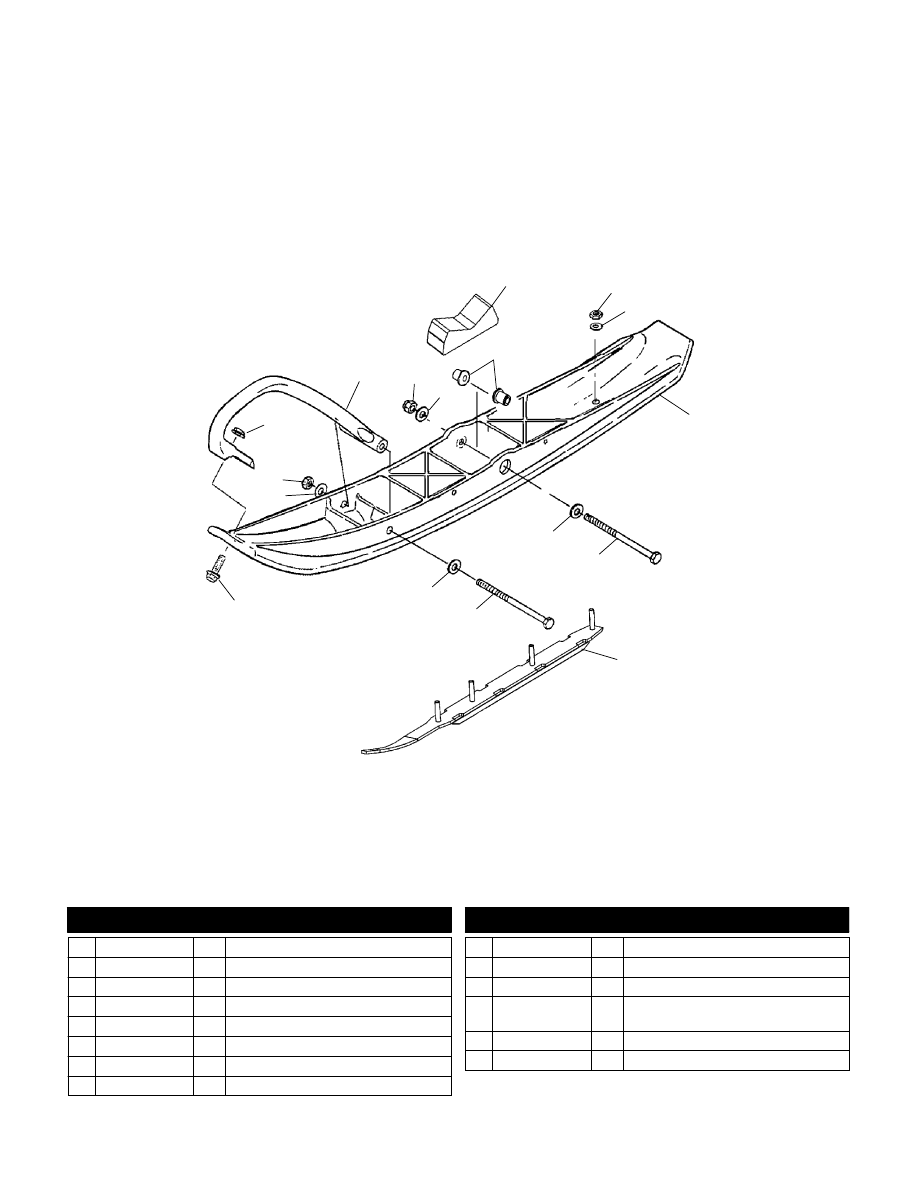

B4

SKI

FRONTIER TOURING S04NT7DS

12

6

9

10

11

13

14

3

8

5

2

1

7

4

5

2

3

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7542321

2 Nut, Flange

2 7542439

4 Nut, Nylok

3 7555832

4 Washer

4 5434165-070

2 Toe, Ski, Plastic

5 7556130

4 Washer, Belle

6 5132637

4 Bushing, Plastic Ski

7 5412018

2 Stop, Ski Rubber

8 7542324

8 Nut, Nylok

9 7556175

8 Washer, Flat

10 1820929-070

2 Asm., Comp. Ski

11 7517968

2 Screw

12 2874752

2 Kit, Skag, Anti, Dart, Dual, 4 Inch, 60

Degree

13 7515514

2 Bolt

14 7515307

2 Screw

4/03

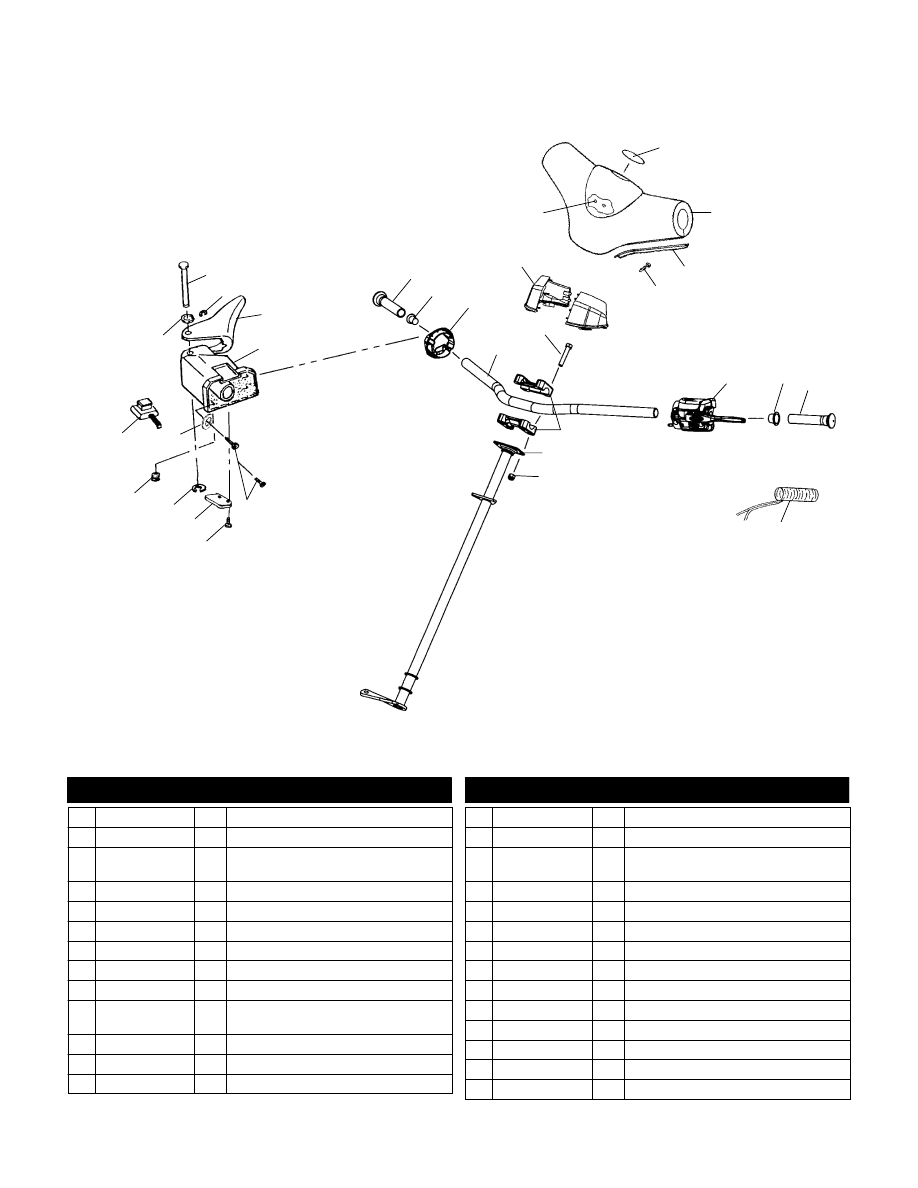

B5

STEERING

FRONTIER TOURING S04NT7DS

5

27

1

2

3

4

7

9

13

17

8

16

6

20

19

18

21

22

23

24

26

5

6

25

14

15

11

12

21

10

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7661624

1 Pin, Retaining

2 7710503

1 Ring, Retaining

3 5432970

2010171

1

1

Lever, Throttle

Asm., Lever w/Heater, HI/LO

4 5431592

1 Block, Throttle/Brake

5 5432634

2 Grip, Handlebar

6 5431096

2 Plug, Overflow

7 5433345

1 Adaptor, Block, Throttle

8 5243355-067

1 Handlebar

9 7517238

4 Screw

10 5434487

5434488

1

1

Collar, Console, LH

Collar, Console, RH

11 7670106

2 Nut, Push-On

12 5434179

1 Emblem, Star

13 5433159-070

1 Cover, Handlebar

14 5433160-070

2 Slide, Handlebar Cover

15 4010287

2 Clip, Dart, Nylon

16 --------------

1 Asm., Control, LH

(See Brake Pg. B3, Ref. 13)

17 5630187-067

2 Block, Handlebar

18 1821155-067

1 Post, Steering

19 7542122

4 Nut, Nylok

20 2460677

2 Heater, Grip, Lo/Med/Hi

21 7511848

8 Screw

22 5432261

1 Holder, Wire

23 7710401

1 Ring, Retaining

24 7512465

1 Screw, Set

25 7555727

1 Washer

26 4110106

1 Switch, Auxiliary Shut-Off

27 7555730

2 Washer

4/03

B6

HANDLEBAR

FRONTIER TOURING S04NT7DS

1

2

3

4

6

6

6

6

5

7

8

9

10

11

12

13

14

15

16

17

18

13

1

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7517579

4 Bolt, Carriage

2 1013558-067

1 Hoop, Steering

3 5243185

1 Retainer, Clip, Tool Pouch

4 7542343

4 Nut

5 7661637

2 Rivet

6 4020139

4 Clip, Rosebud

7 7512377

4 Bolt, Carriage

8 7621433

6 Rivet

9 5244470

2 Plate, Tie Rod Boot

10 5433532

5433533

1

1

Boot, Tie Rod, LH

Boot, Tie Rod, RH

11 7547030

2 Nut, Pal

12 7558402

2 Washer, Flat

13 7542324

4 Nut, Nylok

14 5132967

7080510

1

1

Bracket, Steering, .75W

Fitting, Zerk

15 5434775

2 Bushing, Steering Post

16 5432785

2 Bushing, Steering Post

17 5131841

7080510

1

1

Bracket, Steering Post

Fitting, Zerk

18 5245354

1 Bracket, Console, Front Neck

4/03
