FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

Clock Mode

Tip: The clock must be reset any time the battery has been disconnected or

discharged.

1. Turn the key to the ON position. Use the MODE button to toggle to

the odometer display.

2. Press and hold the MODE button until the hour segment flashes.

Release the button.

3. With the segment flashing, tap the MODE button to advance to the

desired setting.

4. Press and hold the MODE button until the next segment flashes.

Release the button.

5. Repeat steps 3-4 twice to set the 10-minute and 1-minute segments.

After completing the 1-minute segment, step 4 will save the new
settings and exit the clock mode.

6. Turn the key to the OFF position.

Odometer Mode

The odometer records and displays the distance traveled by the vehicle.

Trip Meter Mode

The trip meter records the distance traveled by the vehicle if reset before
each trip. To reset, select the trip meter mode. Press and hold the MODE
button until the meter resets to zero. In the Rider Information Center, the
trip meter display contains a decimal point, but the odometer displays
without a decimal point.

Hour Meter Mode

This mode logs the total hours the engine has been in operation.

Engine Temperature Mode

This mode displays current temperature of the coolant.

Tachometer Mode

The engine RPM is displayed digitally.

Tip: Small fluctuations in the RPM from day to day may be normal because of

changes in humidity, temperature and elevation.

50

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

Programmable Service Interval

When the hours of engine operation equal the programmed service
interval setting, the wrench icon will flash for 5 seconds each time the
engine is started. When this feature is enabled, it provides a convenient
reminder to perform routine maintenance. The service interval is
programmed at 50 hours at the factory. Use the following procedure to
change the service interval.

1. Press the MODE button until remaining service hours display.

2. Press and hold the MODE button.

3. When the service hours flash, press and release the MODE button to

advance the hours to the desired setting (including OFF). Press and
hold the MODE button to set the new service hour interval.

Diagnostic Display Mode

The EFI diagnostic display mode is for informational purposes only.
Your POLARIS dealer can provide for all major repairs.

The diagnostic mode is accessible only when the check engine warning
indicator activates after the key has been turned on. Leave the key on if
you want to view the active code (failure code).

The diagnostic mode becomes inaccessible if the key is turned off and
on and the warning indicator is no longer active. This allows the
determination of persistent as well as intermittent faults.

Inactive codes are stored in the history of the unit.

51

FEATURES AND CONTROLS

Instrument Cluster

Rider Information Center

Engine Error Codes

The error screen displays
only when the CHECK
ENGINE light is on or
when it goes on and off
during one ignition cycle.
Error codes are not stored.
When the key is turned
OFF, the code and
message is lost, but will
reappear if the fault
reoccurs after restarting
the engine.

If the CHECK ENGINE
light illuminates, retrieve
the error codes from the
display.

1. If the error codes are not displayed, use the MODE button to toggle

until “Ck ENG” displays on the main line of the display.

2. Press and hold the MODE button to enter the diagnostics code

menu.

3. Record the three numbers displayed in the gear position, clock and

odometer displays.

4. Press the MODE button to advance to the next error code.

5. Press and hold the MODE button to exit the diagnostics code menu.

6. Your authorized POLARIS dealer can provide code details and

diagnosis.

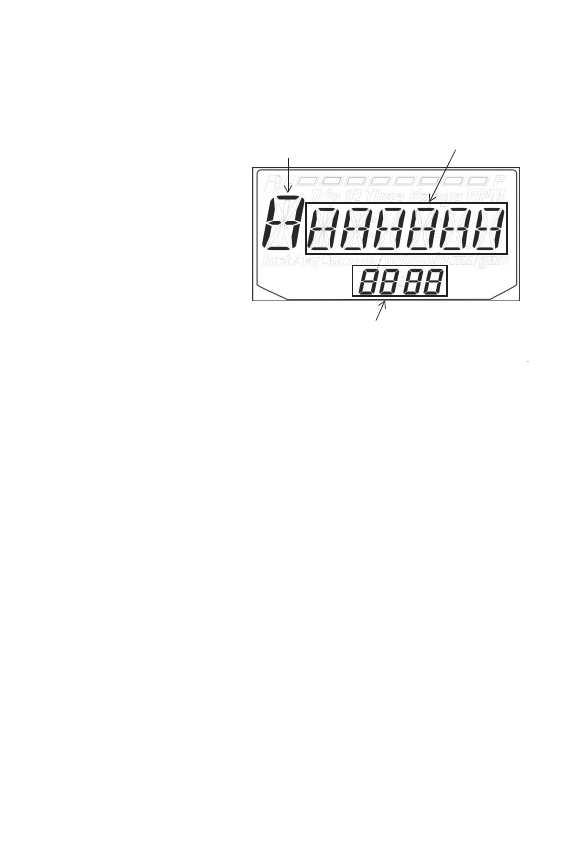

Suspect Parameter

Number (SPN)

Error Code

Number (0-9)

Failure Mode Indicator (FMI)

52

OPERATION

Failure to operate the vehicle properly can result in a collision, loss of control,
accident or rollover, which may result in serious injury or death. Read and
understand all safety warnings outlined in the safety section of this owner’s
manual.

Vehicle Break-in Period

The break-in period for your new POLARIS vehicle is the first 25 hours
of operation, or the time it takes to use the first two tanks full of
gasoline. No single action on your part is as important as a proper break-
in period. Careful treatment of a new engine and drive components will
result in more efficient performance and longer life for these
components. Perform the following procedures carefully.

NOTICE: Excessive heat build-up during the first three hours of operation will

damage close-fitted engine parts and drive components. Do not
operate at full throttle or high speeds during the first three hours of
use.

Use of any improper oils may cause serious engine damage.
POLARIS Premium 4 Synthetic Oil is specifically formulated for your
4-cycle engine.

Engine and Drivetrain Break-in

1. Fill the fuel tank with gasoline. See page 28. Always exercise

extreme caution whenever handling gasoline.

2. Check the oil level. See page 91. Add the recommended oil as

needed to maintain the oil level in the safe operating range.

3. Complete the New Operator Driving Procedures outlined on pages

58-59.

4. Avoid aggressive use of the brakes. See Brake System Break-in on

page 53.

5. Vary throttle positions. Do not operate at sustained idle.

6. Pull only light loads.

WARNING
