Polaris Ace RZR 570, RZR 570 EPS (2018 year). Instruction - part 10





41

FEATURES AND CONTROLS

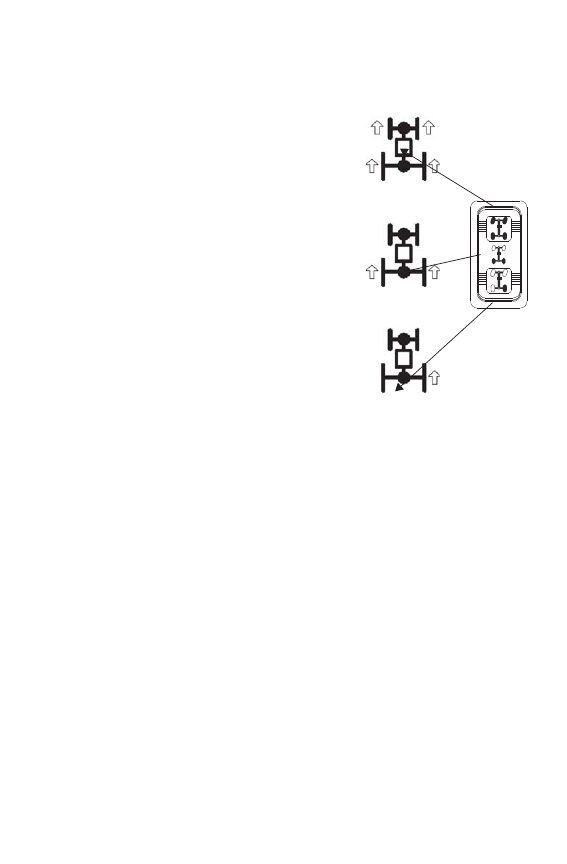

All Wheel Drive/Rear Differential System

Engaging AWD

Press the top of the switch to
engage All Wheel Drive (AWD).
The 4X4 indicator illuminates in
the rider information center to
indicate that the vehicle is in
AWD. See page 47

.

When the AWD switch is on, the
front wheels will automatically
engage any time the rear wheels
lose traction. When the rear
wheels regain traction, the front wheels will automatically disengage.
There is no limit to the length of time the vehicle may remain in AWD.

Tip: The AWD switch may be turned on or off while the vehicle is moving.

Engage the AWD before getting into conditions where front wheel drive
may be needed. If the rear wheels are spinning, release the throttle
before switching to AWD.

NOTICE: Switching to AWD while the rear wheels are spinning may cause

severe drive shaft and clutch damage. Always switch to AWD while
the rear wheels have traction or are at rest.

AWD

Differential Lock

Differential Unlock

42

FEATURES AND CONTROLS

All Wheel Drive/Rear Differential System

Disengaging AWD

Move the AWD switch to the center or bottom position to disengage
AWD. If the switch is turned off while the front hubs are driving, they
will not release until the rear wheels regain traction.

In some situations, the front gearcase may remain locked after turning
the AWD switch off. If this occurs, you may notice increased steering
effort and some vehicle speed restriction. Perform the following
procedure to unlock the front gearcase.

1. Stop the vehicle.

2. Operate in reverse for at least 10 feet (3 m).

3. Stop completely.

4. Shift into low gear and drive forward.

5. If the front gearcase remains locked after following these

instructions, see your dealer for service.

Locking the Differential

NOTICE: Damage to the differential can occur if it is engaged while the vehicle

is traveling at high speeds or while the rear wheels are spinning.
Slow the vehicle to nearly stopped before engaging the differential.

Locking the differential in slippery or low traction conditions helps
improve traction. Move the rocker switch to the center position (2WD)
to lock the differential and operate in rear wheel drive. See illustration
below.

43

FEATURES AND CONTROLS

All Wheel Drive/Rear Differential System

Unlocking the Differential/TURF Mode (LE Models Only)

When operating in TURF mode, the
inside rear wheel will rotate
independently from the outside wheel
during turns. Operate in TURF mode
only as needed
 to protect smooth, level
surfaces from tire damage. DO NOT
operate in TURF mode when climbing
or descending hills, when sidehilling, or
when operating on uneven, loose, or
slippery terrain such as sand, gravel, ice,
snow, obstacles, and water crossings.
Always operate in AWD on these types
of terrain.

WARNING! Operating in TURF mode (if
equipped) when on sloped, uneven, or loose
terrain could cause loss of control and result
in serious injury or death. One rear wheel
may slip and lose traction or may lift up and
grab when it touches the ground again.

Press the bottom of the switch to unlock the differential and allow the
rear drive wheels to operate independently. This mode of operation is
well suited to turf driving or whenever aggressive traction is not
required.

Extreme Use Battery

An optional extreme use battery may be available for your model. If the
performance of the factory-installed battery is inadequate due to
operation in extreme cold or due to extended use of multiple electrical
accessories, your POLARIS dealer can assist. Ask your dealer to
provide any installation procedures that may differ for an extreme use
battery.

44

FEATURES AND CONTROLS

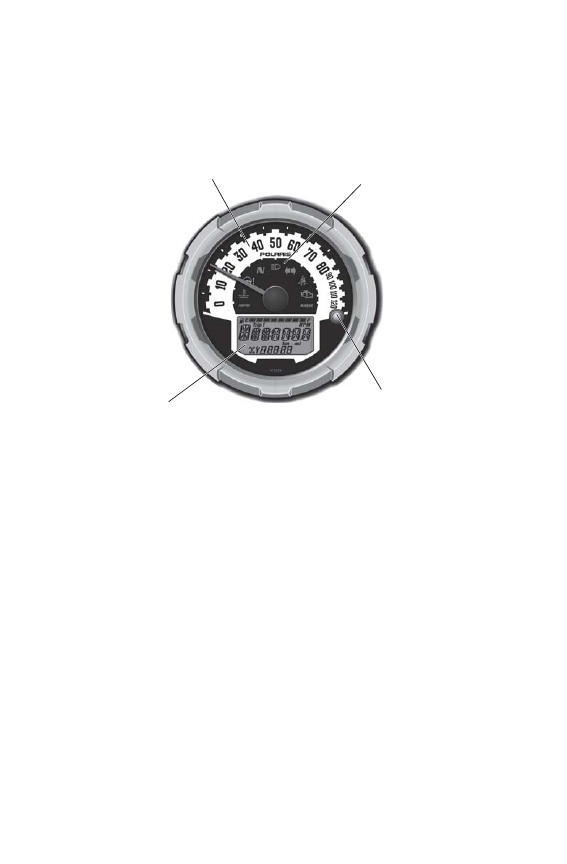

Instrument Cluster

High water pressure may damage components. Wash the vehicle by
hand or with a garden hose using mild soap. Do not use alcohol to clean
the instrument cluster. Do not allow insect sprays to contact the lens.

Speedometer

The speedometer displays vehicle speed in either miles per hour (MPH)
or kilometers per hour (km/h). See page 48.

Mode Button

Use the MODE button to toggle through mode options. See page 48 for
operation of the modes.

Rider Information

Center

Speedometer

Indicator Lamps

MODE

Button
