Snowmobile Polaris 800 XC SP Model S01NP8BS(A)(B) (2001 year). Instruction - part 2





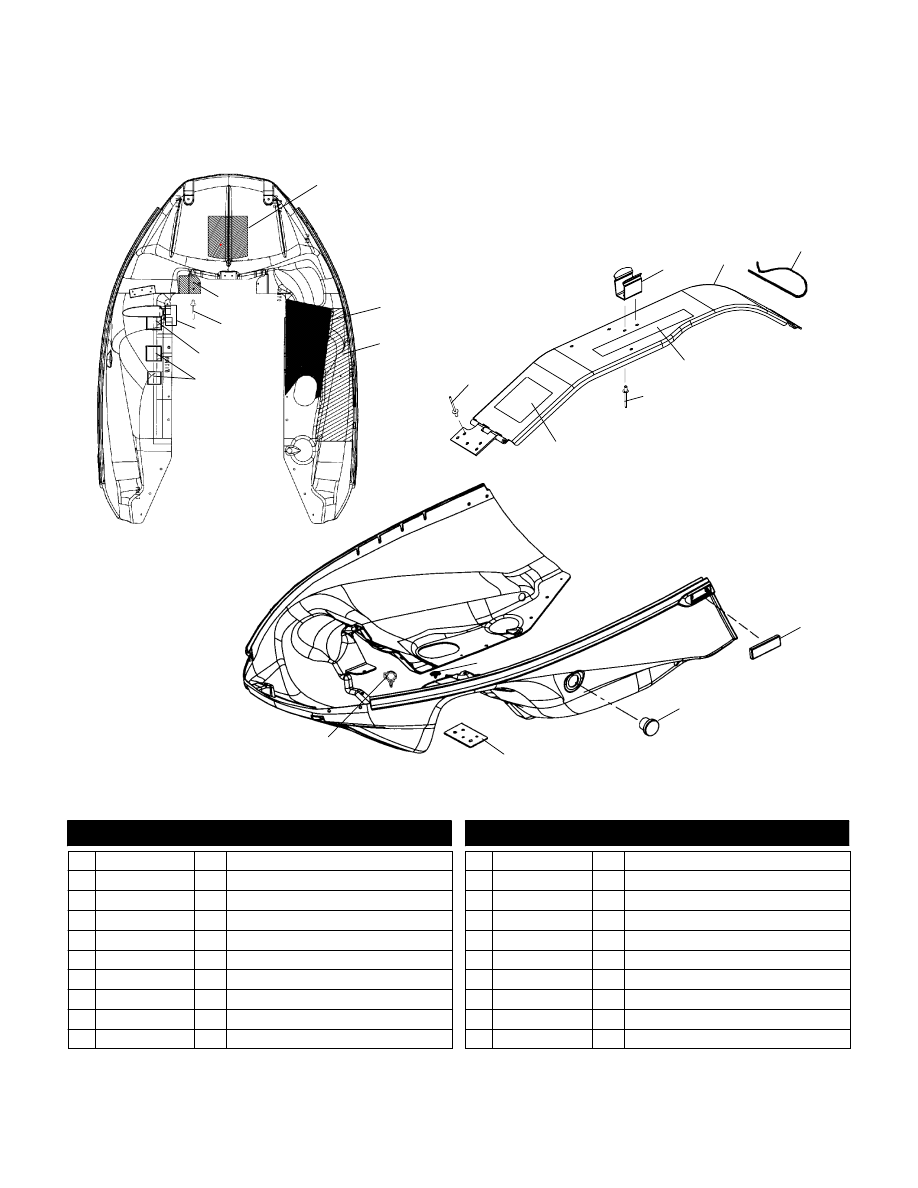

A6

NOSEPAN

800 XC SP S01NP8BS and 800 XC SP S01NP8BSA and 800 XC SP S01NP8BSB

8

5

7

9

10

14

11

12

13

16

17

18

3 4

2

1

15

19

20

6

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7670130

3 Clip, Speed, U-Type

2 7080963

1 J-Clip

3 5811948

1 Foil

4 7621462

1 Rivet

5 5812020

1 Tape, Foil

6 5812036

1 Foil, Nosepan

7 5812019

1 Tape, Foil

8 5812018

1 Tape, Foil

9 7621402

5 Rivet

10 5222769

1 Clip, Belt Retainer

11 1013069

1 Guard, Clutch

12 7080698

1 Pin, Clutch Cover

13 7075350

1 Decal - Engine and Clutch

14 7621429

2 Rivet

15 7079198

1 Decal - Suspension Troubleshooting

16 2670134

2 Reflector, Amber

17 5433926

1 Plug, Hole, Oblong

18 5211722

1 Plate, Backer

19 4020139

1 Clip, Rosebud

20 7670131

2 Plug

7/00

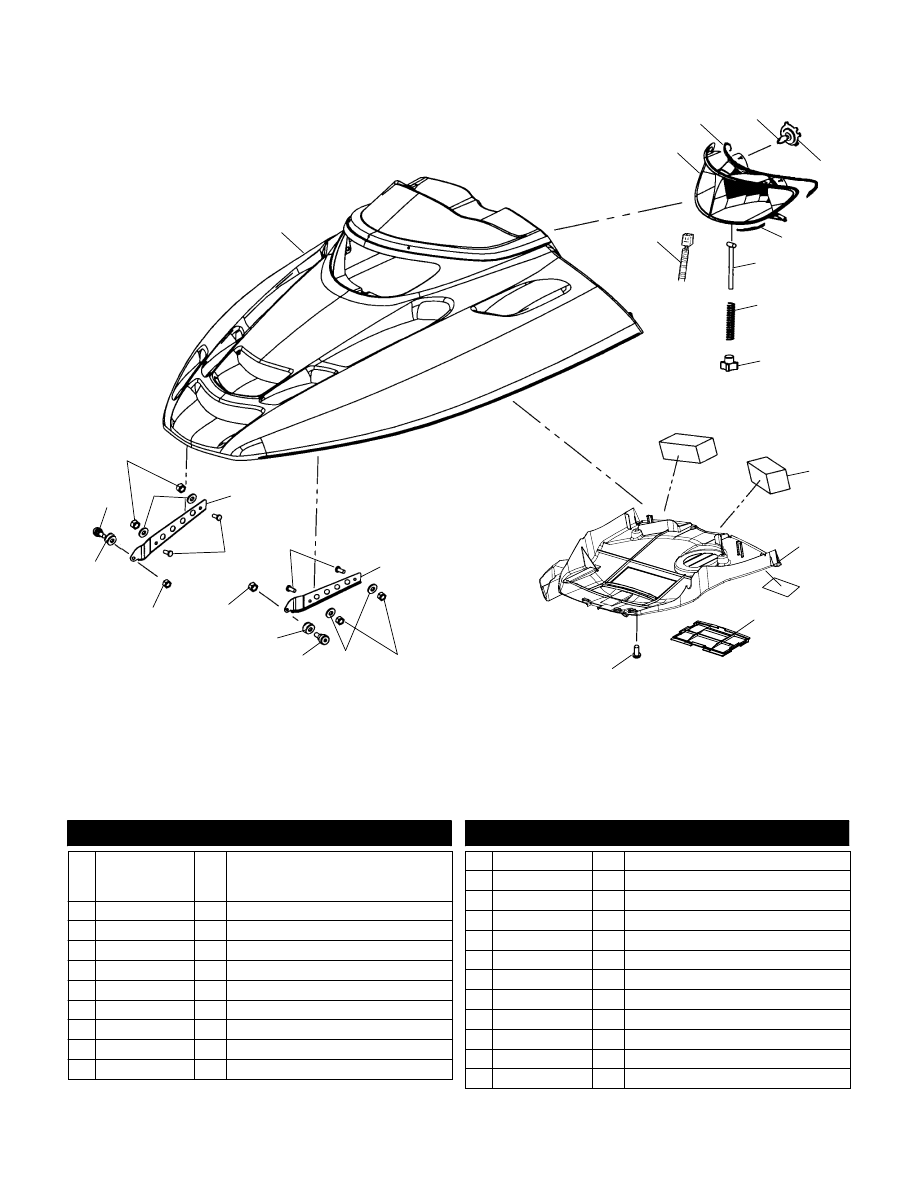

A7

HOOD

800 XC SP S01NP8BS and 800 XC SP S01NP8BSA and 800 XC SP S01NP8BSB

1

3

5

6

8

9

10

11

12

16

19

20

22

19

20

18

17

21

17

18

21

17

15

4

17

14

2

7

13

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 2632212-293

2632212-177

2632212-246

1

1

1

Asm., Hood, Red

Asm., Hood, Black (A)

Asm., Hood, Blue (B)

2 2460791

1 Harness, Headlight

3 2410132

1 Asm. Headlamp (Incl. Bulbs)

4 5812175

1 Foam, Seal, Headlight, Top

5 2870448

2 Bulb, Headlight

6 4032063

2 Retainer, Headlamp Bulb

7 5812174

1 Foam, Seal, Headlight, Bottom

8 7517872

1 Bolt, Tee, Adjuster

9 7041954

1 Spring, Headlight Adjust

10 7080887

1 Knob, Headlight Adjust

11 5811793

2 Foam, Prefilter

12 5433516

1 Plenum, Intake, Hood

13 7079197

1 Decal - Suspension Set-Up

14 5433660

1 Cover, Access, Headlight

15 7512068

10 Screw

16 5243567-067

1 Hinge, Upper, LH

17 7542122

6 Nut, Nylok

18 7558301

4 Washer, Flat

19 7512113

2 Bolt

20 5332403

2 Spacer

21 7512240

4 Bolt

22 5243568-067

1 Hinge, Upper, RH

7/00

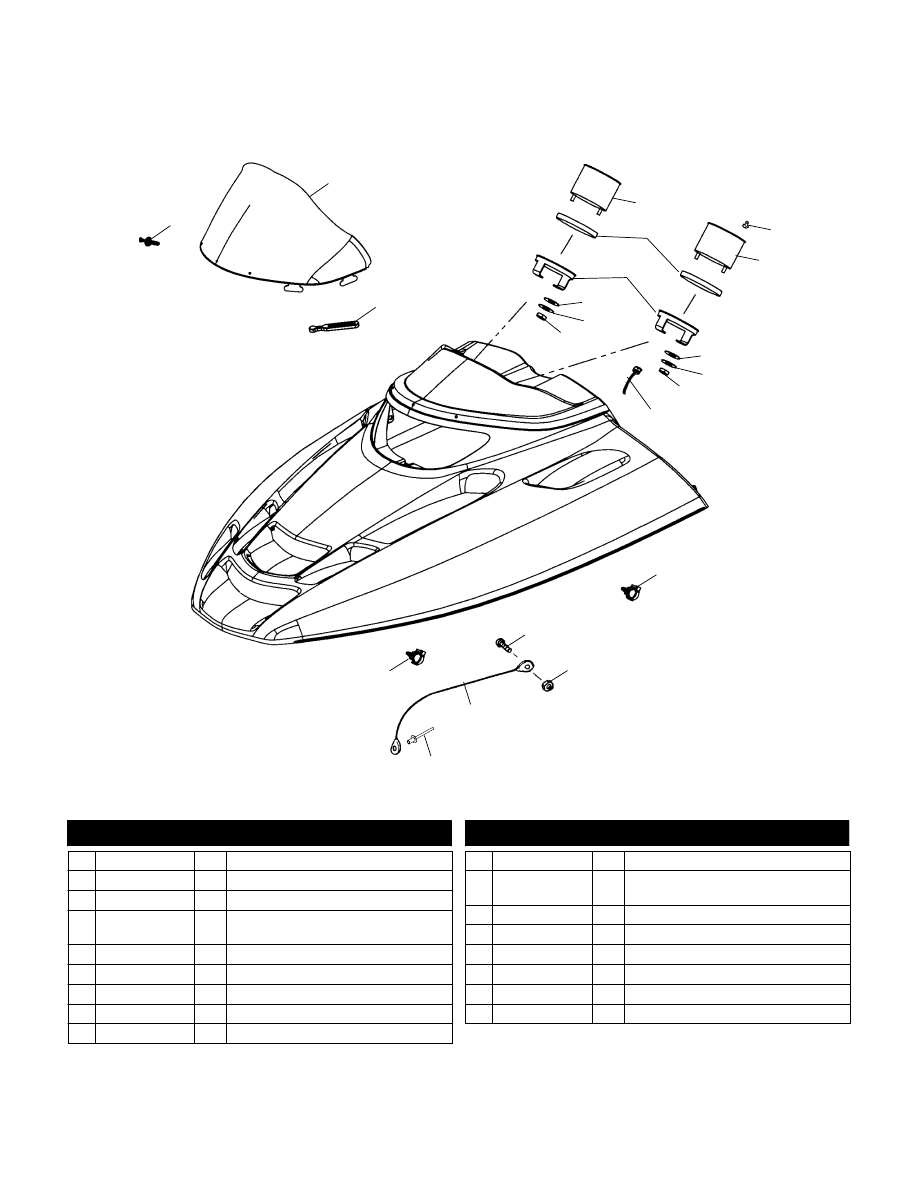

A8

HOOD

800 XC SP S01NP8BS and 800 XC SP S01NP8BSA and 800 XC SP S01NP8BSB

1

2

3

4

5

6

7

8

9

10

11

7

8

9

16

17

14

15

13

12

13

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7621509

3 Rivet

2 5433517

1 Windshield, Smoke, Flared

3 5410970

4 Retainer, Windshield

4 3280329

4030015

1

3

Asm., Tachometer

Bulb, Replacement

5 3280209

2 Cushion, Rubber

6 3280210

2 Bracket, Speedometer/Tachometer

7 3280157

4 Washer, Flat

8 3280156

4 Washer, Split Lock

9 3280158

4 Nut

10 3280186

1 Knob, Trip Odometer

11 3280348

4030015

1

4

Asm., Speedometer

Bulb, Replacement

12 3280139

1 Cable, Speedometer

13 4020139

3 Clip, Rosebud

14 7512018

2 Screw

15 7541925

2 Nut, Nylok

16 7080521

2 Cable, Hood Retainer

17 7661637

2 Rivet

7/00

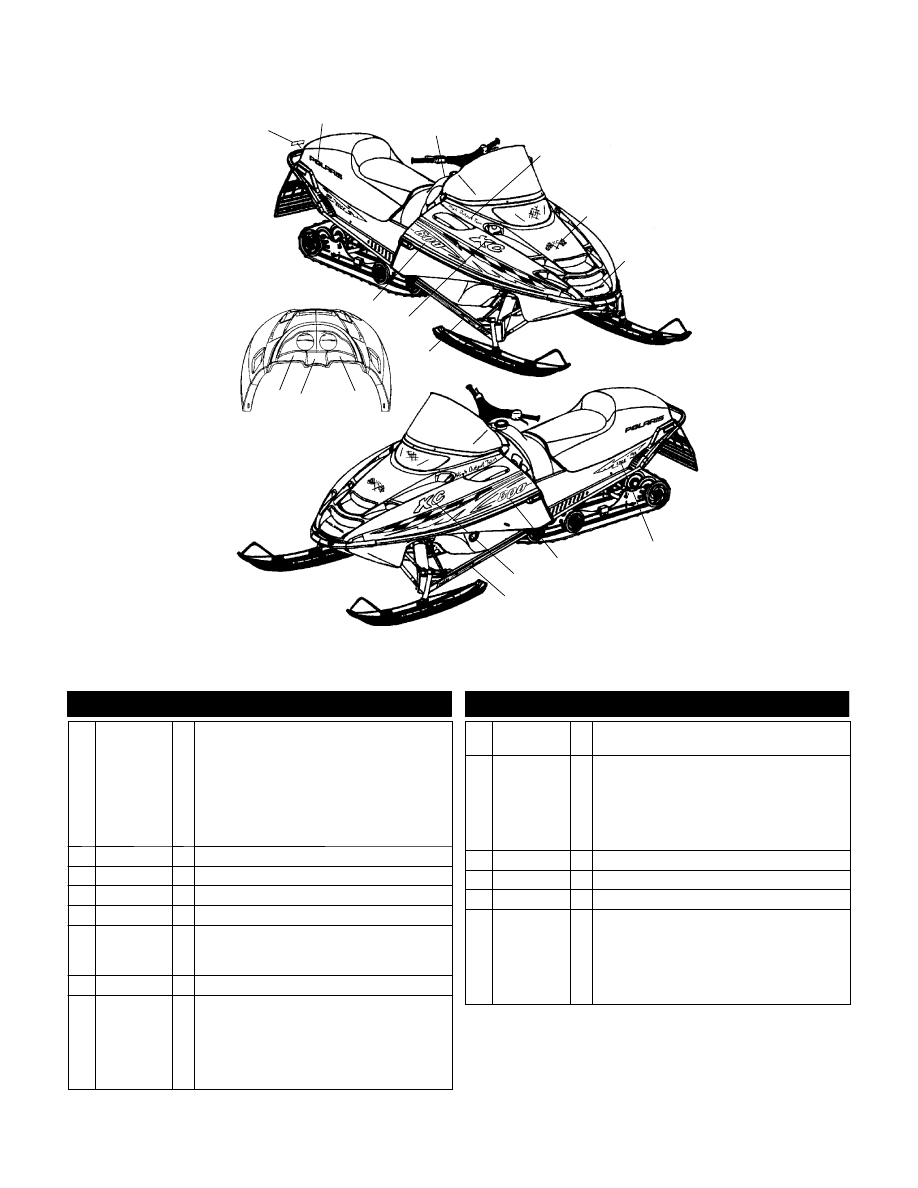

A9

DECALS

800 XC SP S01NP8BS and 800 XC SP S01NP8BSA and 800 XC SP S01NP8BSB

1

2

4

5

6

9

10 11

12

8

7

3

13

8

9

7

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to the Electronic Catalog, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

2201757

2201775

2201776

2200891

1

1

1

1

Kit - Hood Decal, ’01 800 XC SP

(Incl. 4-6,8-12)

Kit - Hood Decal, ’01 800 XC SP (A)

(Incl. 4-6,8-12)

Kit - Hood Decal, ’01 800 XC SP (B)

(Incl. 4-6,8-12)

Kit - Decal Application Solution

(For Seat Decals)

1 7076360

1 Decal - Track/Seat, English/French, LH/RH

2 7078402

2 Decal - Seat, “POLARIS”

3 7075438

1 Decal - “NO PASSENGER”, Warning

4 7078609

2 Decal - “HIGH OUTPUT TWIN”

5 7078607

7078645

7078857

1

1

1

Decal - Hood Center, Flags, “SP”

Decal - Hood Center, Flags, “SP” (A)

Decal - Hood Center, Flags, “SP” (B)

6 7078608

1 Decal - Hood Center, “POLARIS”

7 7078615

7078616

7078631

7078632

7078845

7078846

1

1

1

1

1

1

Decal - Trailing Arm, “INDY”, LH

Decal - Trailing Arm, “INDY”, RH

Decal - Trailing Arm, “INDY”, LH (A)

Decal - Trailing Arm, “INDY”, RH (A)

Decal - Trailing Arm, “INDY”, LH (B)

Decal - Trailing Arm, “INDY”, RH (B)

8 7078611

7078635

2

2

Decal - Hood Top, “XC”

Decal - Hood Top, “XC” (A)

9 7078613

7078614

7078643

7078644

7078855

7078856

1

1

1

1

1

1

Decal - Hood Side, “800”, LH

Decal - Hood Side, “800”, RH

Decal - Hood Side, “800”, LH (A)

Decal - Hood Side, “800”, RH (A)

Decal - Hood Side, “800”, LH (B)

Decal - Hood Side, “800”, RH (B)

10 7078056

1 Decal - Warning, English

11 7078363

1 Decal - Caution, English/French

12 7078057

1 Decal - Warning, French

13 7078617

7078618

7078633

7078634

7078847

7078848

1

1

1

1

1

1

Decal - Tunnel, “EDGE”, LH

Decal - Tunnel, “EDGE”, RH

Decal - Tunnel, “EDGE”, LH (A)

Decal - Tunnel, “EDGE”, RH (A)

Decal - Tunnel, “EDGE”, LH (B)

Decal - Tunnel, “EDGE”, RH (B)

7/00
