Snowmobile Polaris 800 RMK / 800 Pro-RMK / 800 RMK (2010 year). Instruction - part 18





73

MAINTENANCE

Hood/Side Panel

The hood and side panels of the
snowmobile protect the operator
from moving parts. Never oper-
ate a snowmobile with the hood
or side panels open or removed.
Always ensure that the hood
and side panels are securely in
place before starting the engine.

To open a side panel, rotate the
two 1/4-turn fasteners at the
upper edges of the side panel.
Release the side panel strap at
the lower edge of the panel.

To remove an open side panel,
pull the panel outward to release
the tabs at the lower edge of the
panel.

Removing the hood is not recommended. Any service requiring the
removal of the hood should be performed by an authorized POLARIS
dealer.

Strap

1/4-Turn Fasteners

74

MAINTENANCE

Lubrication

Rear Suspension

Lubricate the suspension pivot shafts with POLARIS Premium All Sea-
son Grease at the intervals outlined in the Periodic Maintenance Table
beginning on page 70 and before seasonal storage. When operating in
heavy, wet snow conditions, lubricate every 500 miles (800 km).

Lack of lubrication will adversely affect your ride and the life of the sus-
pension. For more information about suspension lubrication and adjust-
ments, see your POLARIS dealer.

H

H

H

75

MAINTENANCE

Lubrication

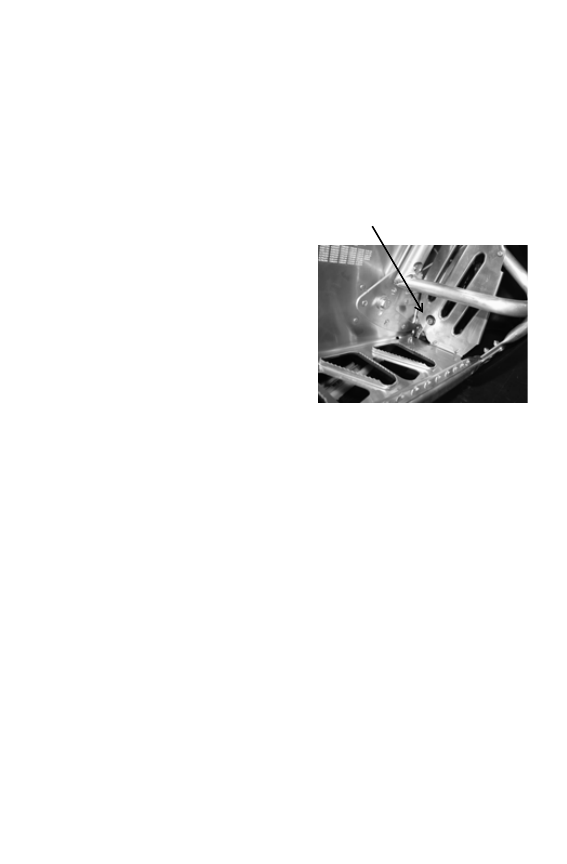

Chaincase Oil

Check and change the chaincase oil at the intervals outlined in the main-
tenance charts beginning on page 69. Maintain the oil level at the top of
the fill plug hole. POLARIS recommends the use of POLARIS Syn-
thetic Chaincase Lube. See page 104 for the part numbers of POLARIS
products.

Oil Level

1. Position the vehicle on a level

surface.

2. Remove the fill plug.

3. Using a funnel, slowly add the

recommended oil until the fluid
begins to overflow.

4. Wipe the fill area with a clean

cloth.

5. Reinstall the fill plug. Torque to

6-10 ft. lbs. (8-13 Nm).

Oil Change

1. Position the vehicle on a level surface.

2. Place a drain pan under the drain plug. Remove the drain plug.

Allow the oil to drain completely.

3. Clean off all metal shavings from the plug.

TIP: The sealing surfaces on the drain plug and the oil tank should be clean and

free of burrs, nicks or scratches.

4. Reinstall the drain plug. Torque to 6-10 ft. lbs. (8-13 Nm).

5. Remove the fill plug. Clean off all metal shavings from the plug.

6. Using a funnel, slowly add the recommended oil until the fluid

begins to overflow. Fluid capacity is 9 oz. (266 ml).

7. Wipe the fill area with a clean cloth.

8. Reinstall the fill plug. Torque to 6-10 ft. lbs. (8-13 Nm).

Fill Plug

76

MAINTENANCE

Lubrication

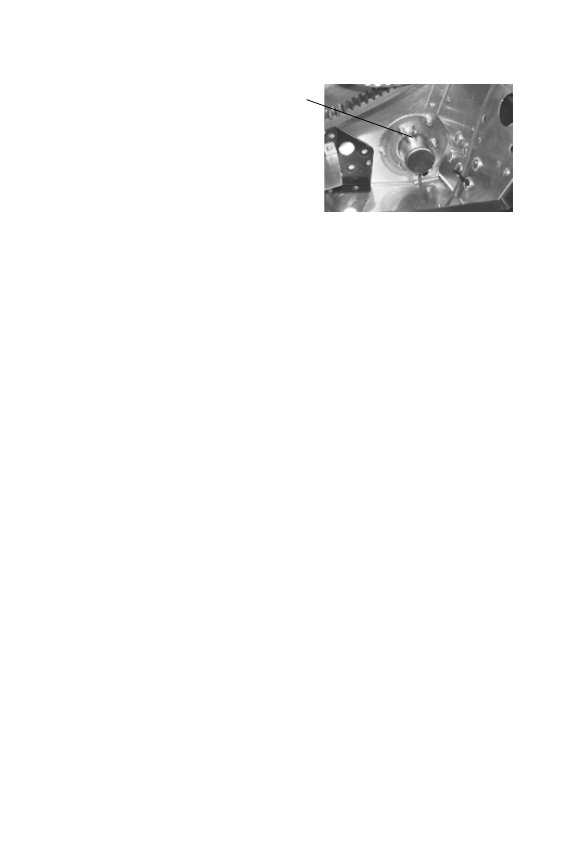

Driveshaft Bearing

Inject grease into the fitting on the
speedometer sensor housing until
grease purges from the seal on the
inside of the tunnel. This should
take approximately two pumps. Do
not use more than four pumps.
