Snowmobile Polaris 700 CLASSIC, 800 CLASSIC (2004 year). Instruction - part 12





D4

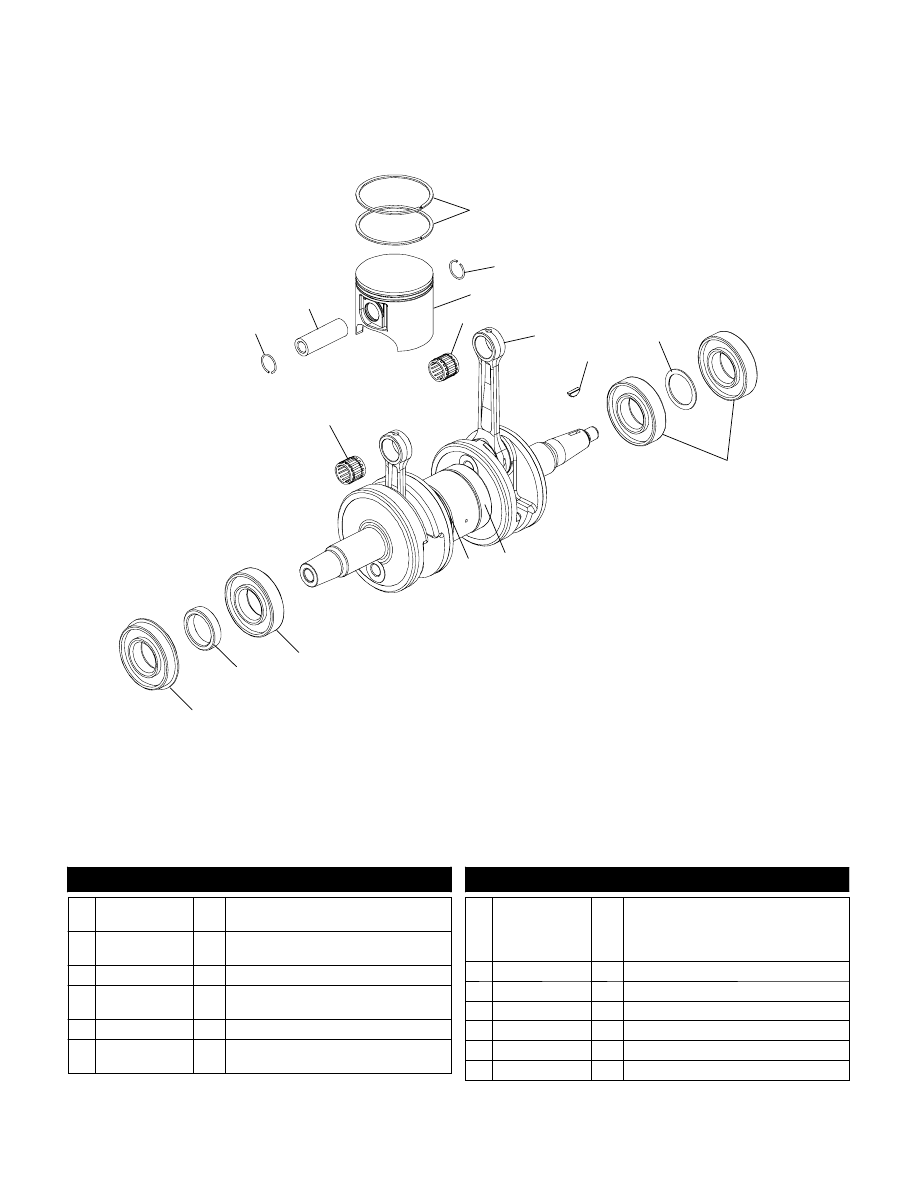

PISTON and CRANKSHAFT

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA and 800 CLASSIC F/O S04ND8CS and 800 CLASSIC

STOCK A S04ND8CSA and 800 CLASSIC STOCK B S04ND8CSB

1

2

3

4

5

9

7

8

11

12

1

9

5

6

10

9

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

2201848

2201842

1

1

Kit, Crankshaft (Incl. 8-12)(700)

Kit, Crankshaft (Incl. 8-12)(800)

1 3022950

3021179

4

4

Circlip, Piston (700)

Circlip, Piston (800)

2 --------------

2 Pin, Piston

3 2200895

2201631

2

2

Kit, Piston Rings (700)

Kit, Piston Rings (800)

4 2202237

2 Kit, Piston (Incl. 1,2,3)

5 3584001

3514357

2

2

Bearing (700)

Bearing (800)

6 2201953

2201557

2

2

Kit, Connecting Rod

(Incl. Rod, Pin, Bearing, Washers)(700)

Kit, Connecting Rod

(Incl. Rod, Pin, Bearing, Washers)(800)

7 7721117

1 Key, Woodruff

8 7555905

1 Bushing

9 3585503

4 Bearing, Ball

10 3514318

1 Bearing, Ball

11 5131899

1 Spacer

12 3514310

1 Bearing, Ball

8/03

D5

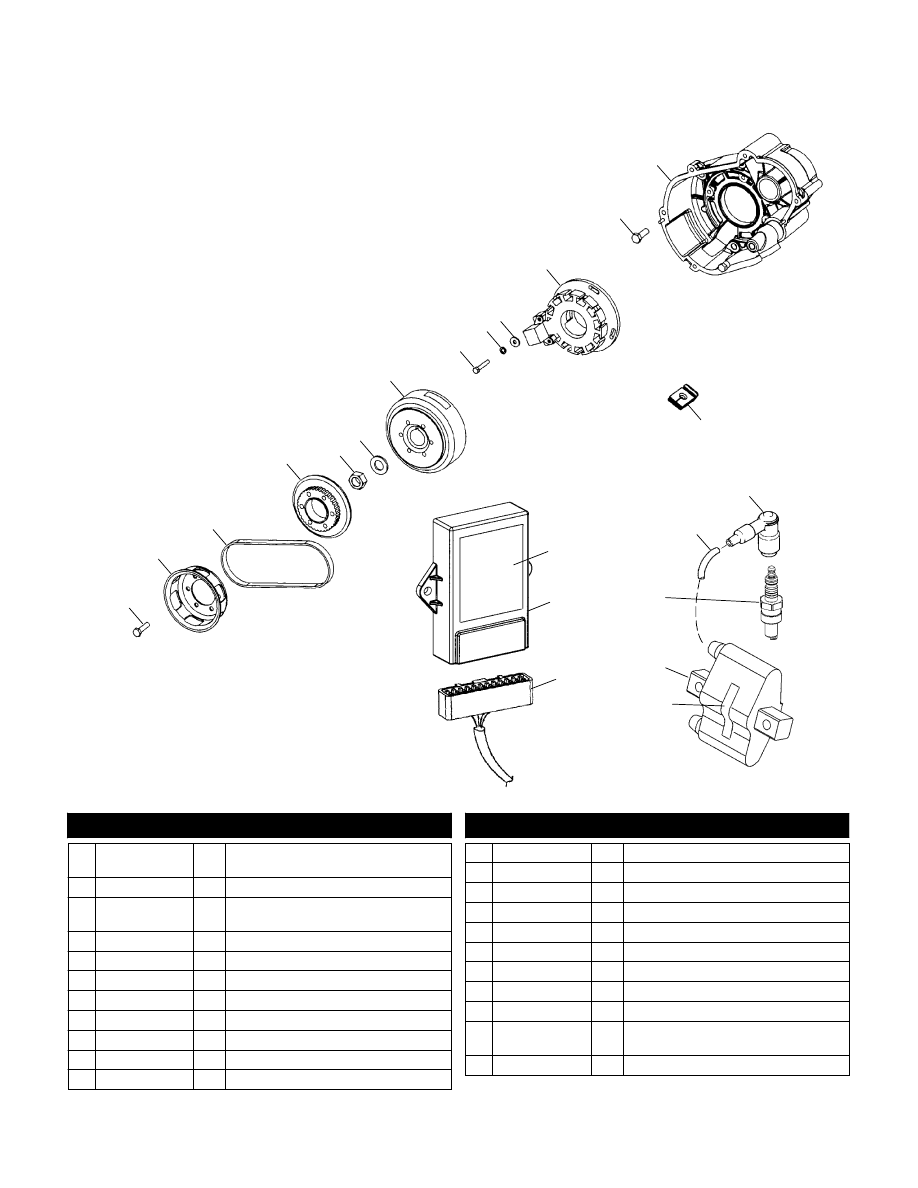

MAGNETO

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA and 800 CLASSIC F/O S04ND8CS and 800 CLASSIC

STOCK A S04ND8CSA and 800 CLASSIC STOCK B S04ND8CSB

1

2

3

4

5

7

8

9

6

11

12

14

21

10

13

15

16

18

20

22

E

2003 Polaris Sales Inc.

17

19

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7516823

7517998

6

6

Screw (700)

Screw (800)

2 3021144

1 Pulley, Starting

3 2201821

5411998

1

1

Kit, Waterpump Belt (700)

Belt, Toothed (800)

4 5630824

1 Pulley, Water Pump Drive

5 7546909

1 Nut, Hex

6 7555907

1 Washer

7 4010677

1 Flywheel

8 7517246

3 Screw

9 7555969

3 Washer, Lock

10 7555970

3 Washer, Flat

11 4010297

1 Stator

12 7516734

4 Screw

13 1202161

1 Housing, Ignition

14 5411178

1 Grommet

15 4020155

2 Cap, Spark Plug

16 4010124-305

AR Wire, Ignition

17 3070190

2 Plug, Spark RN57YCC, Champion

18 4060229

1 Coil, Ignition

19 7077026

1 Decal, Spark Plug

20 4010872

1 Harness, Ignition

21 2202524

2202523

1

1

Kit, CDI (Incl. 21, Nyogel & Decal)(700)

Kit, CDI (Incl. 21, Nyogel & Decal)(800)

22 7170413

1 Decal, DET

8/03

D6

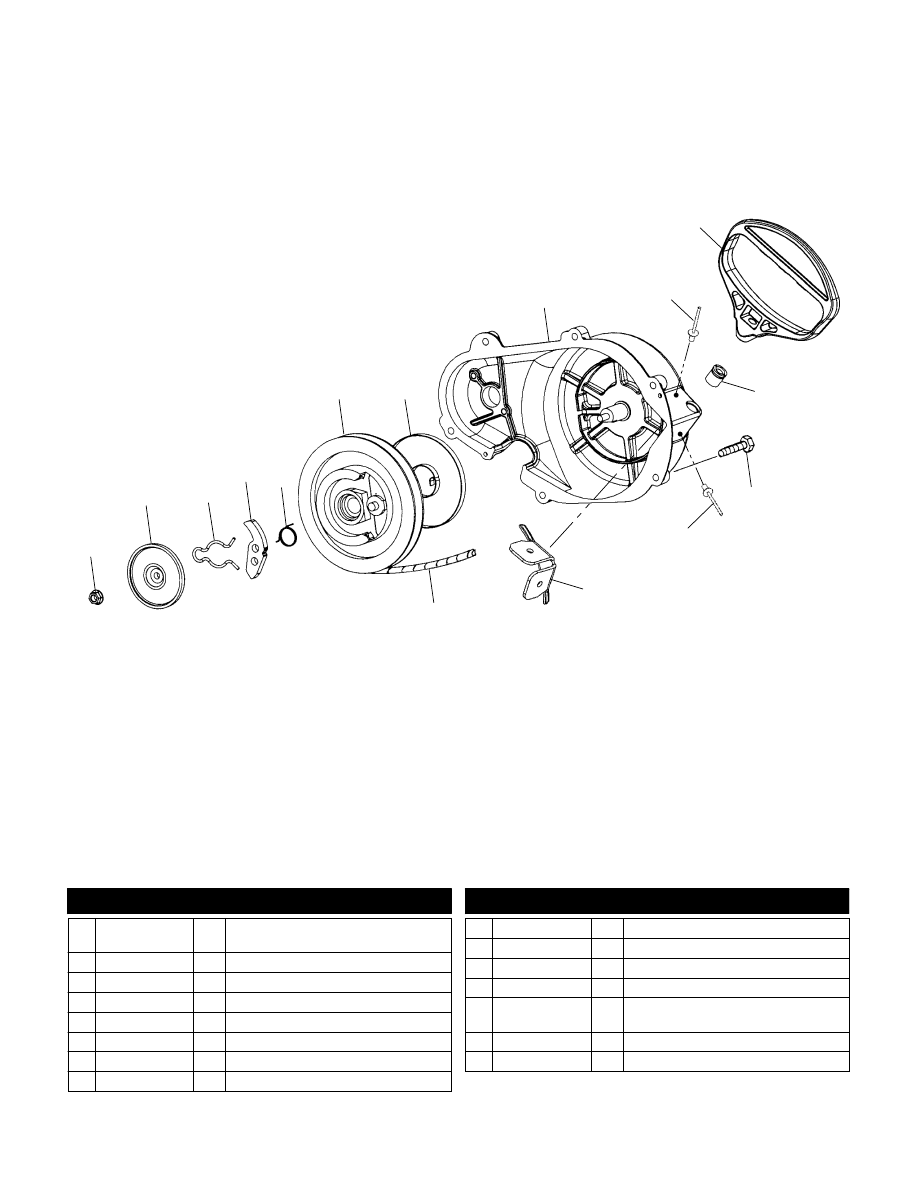

RECOIL STARTER

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA and 800 CLASSIC F/O S04ND8CS and 800 CLASSIC

STOCK A S04ND8CSA and 800 CLASSIC STOCK B S04ND8CSB

1

2

3

4

11

12

8

7

14

6

5

9

9

13

E

2003 Polaris Sales Inc.

10

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1202408

1 Asm., Recoil

(Incl. 1-11,14 & Starting Pulley)

1 3040163

1 Nut

2 3040164

1 Plate, Friction

3 3040167

1 Spring, Friction

4 5246108

1 Ratchet

5 3040166

1 Spring, Return

6 3040168

1 Reel

7 3040170

1 Spring, Spiral

8 3040160

1 Housing, Recoil

9 7661148

2 Rivet

10 5431499-070

1 Handle, Recoil

11 3040171

1 Bushing, Rope Slide

12 7516823

7517998

6

6

Screw (700)

Screw (800)

13 5246218

1 Shield, Recoil Rope

14 3040169

1 Rope

8/03

D7

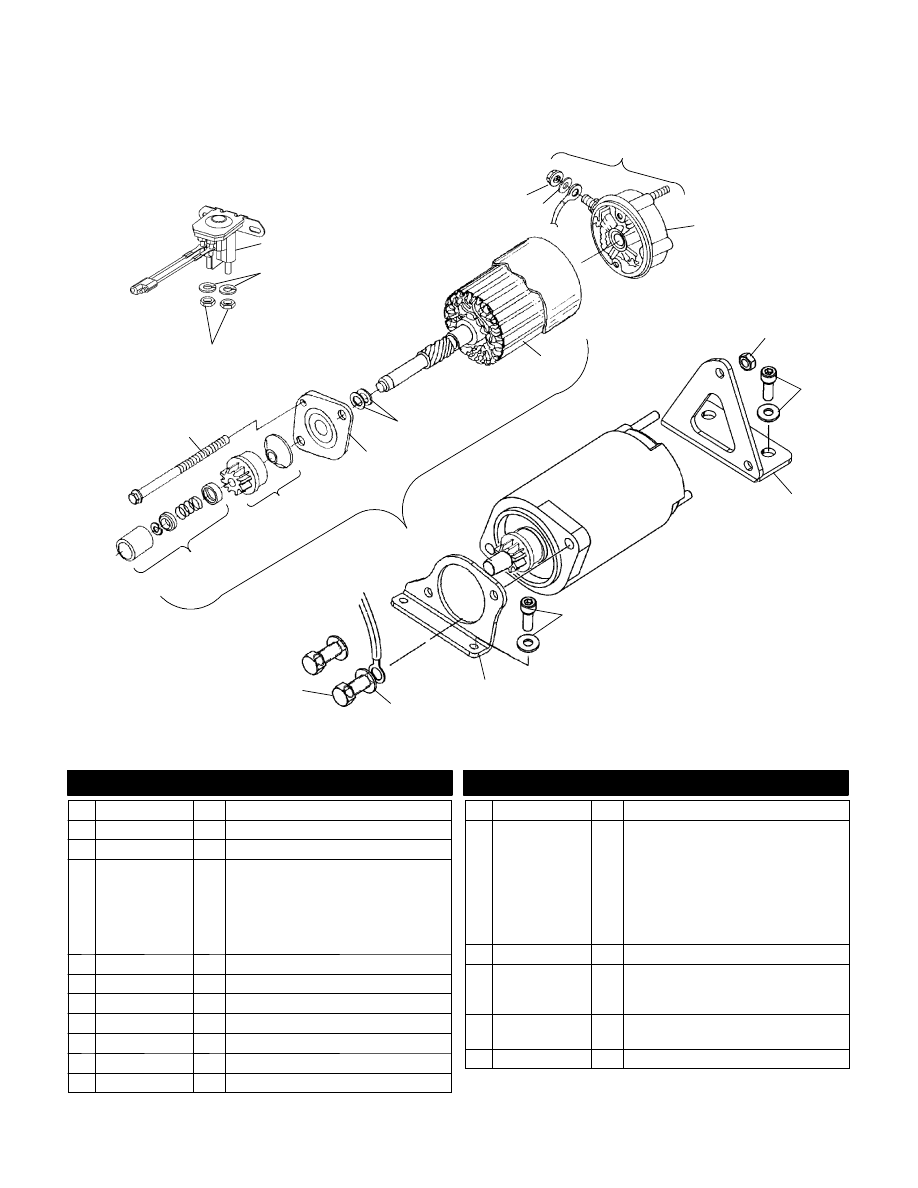

STARTING MOTOR

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA and 800 CLASSIC F/O S04ND8CS and 800 CLASSIC STOCK A S04ND8CSA and 800 CLASSIC

STOCK B S04ND8CSB

5

10

6

8

7

4

14

12

15

13

16

17

13

11

3

1

9

6

E

2003 Polaris Sales Inc.

2

1

2

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7542105

5 Nut

2 7552801

5 Washer, Spring Lock

3 2200758

1 Kit, Commutator Cap (Incl. 4)

4 2200759

--------------

--------------

--------------

--------------

--------------

1

1

2

1

1

1

Kit, Brush & Spring

Asm., Brush & Screw

Asm., Brush

Bushing, Insulation

Washer, Insulation

Nut

5 7542153

2 Nut

6 7517957

4 Screw

7 5245780

1 Bracket, Starter, Rear

8 5245781

1 Bracket, Starter, Front

9 7552603

2 Washer, Spring Lock

10 7512492

2 Screw

11 4170006

1 Motor, Starter, Domestic

12 2200756

1 Kit, Armature

13 2200755

--------------

--------------

--------------

--------------

--------------

--------------

--------------

1

1

1

1

1

1

1

1

Kit, Drive Hardware

Washer, Curved Spring

Washer, Thrust

Spacer

Spring, Antidrift

Pinion, Stop

Ring, Lock

Cover, Dust

14 2200757

1 Kit, Drive Cap

15 2200754

--------------

--------------

1

1

1

Kit, Drive

Plate, Drive

Pinion

16 2200753

--------------

1

2

Kit, Screw

Bolt, Thru

17 4010930

1 Switch, Magnetic (Incl. 1,2)

8/03
