Snowmobile Polaris 700 CLASSIC, 800 CLASSIC (2004 year). Instruction - part 4





A14

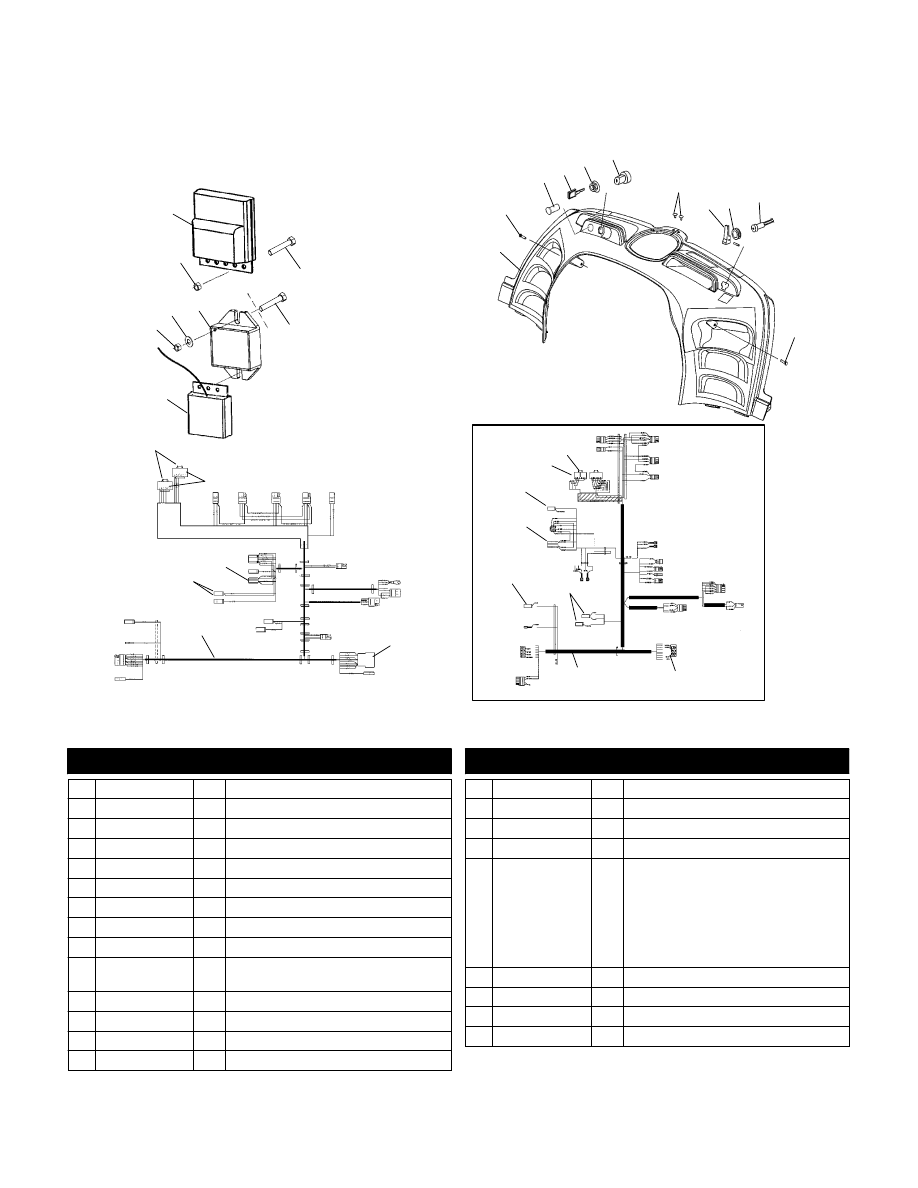

CONSOLE

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA and 800 CLASSIC F/O S04ND8CS and 800 CLASSIC

STOCK A S04ND8CSA and 800 CLASSIC STOCK B S04ND8CSB

5

9

10

18 17

19

14 13

15

8

3

1

4

21

6

7

12

2

16

20

E

2003 Polaris Sales Inc.

(ACE)

2

23

22

11

6

7

9

8

9

9

10

11

12

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 4010597

1 Controller, M-10, ACE, Electric

2 7541925

4 Nut, Nylok

3 4010794

1 Regulator, AC/DC 14.3V

4 7555746

2 Washer

5 4010730

1 Regulator, Rectifier (M-10 ACE)

6 4010193

2 Housing, Connector

7 4010192

7 Socket

8 4020063

1 Housing

9 4020153

AR Housing, 1 Circuit

10 2461146

2461149

1

1

Harness, Main

Harness, Main (M-10 ACE)

11 4020057

1 Housing

12 7515199

2 Screw

13 7080946

1 Cable, Choke (Incl. 15,14)

14 5432944

1 Nut, Choke

15 5432943

1 Lever, Choke (Incl. Pin)

16 7670088

2 Clip

17 2201614

1 Kit, Ignition Switch

18 7547035

1 Nut, Ignition

19 5410611

1 Cap w/Key NOTE: When ordering igni-

tion key PN 5410611 be sure to specify

if for an A,B,C,D, or E switch. Letter

code will be labeled on underside of

switch body behind console. Key dot

code found on key cap (i.e. one dot = A,

two dots= B, etc.).

20 4010638

1 Receptacle, Pod Mount

21 5434483-070

1 Console w/ACC

22 7512050

2 Screw

23 7517263

2 Screw

8/03

B1

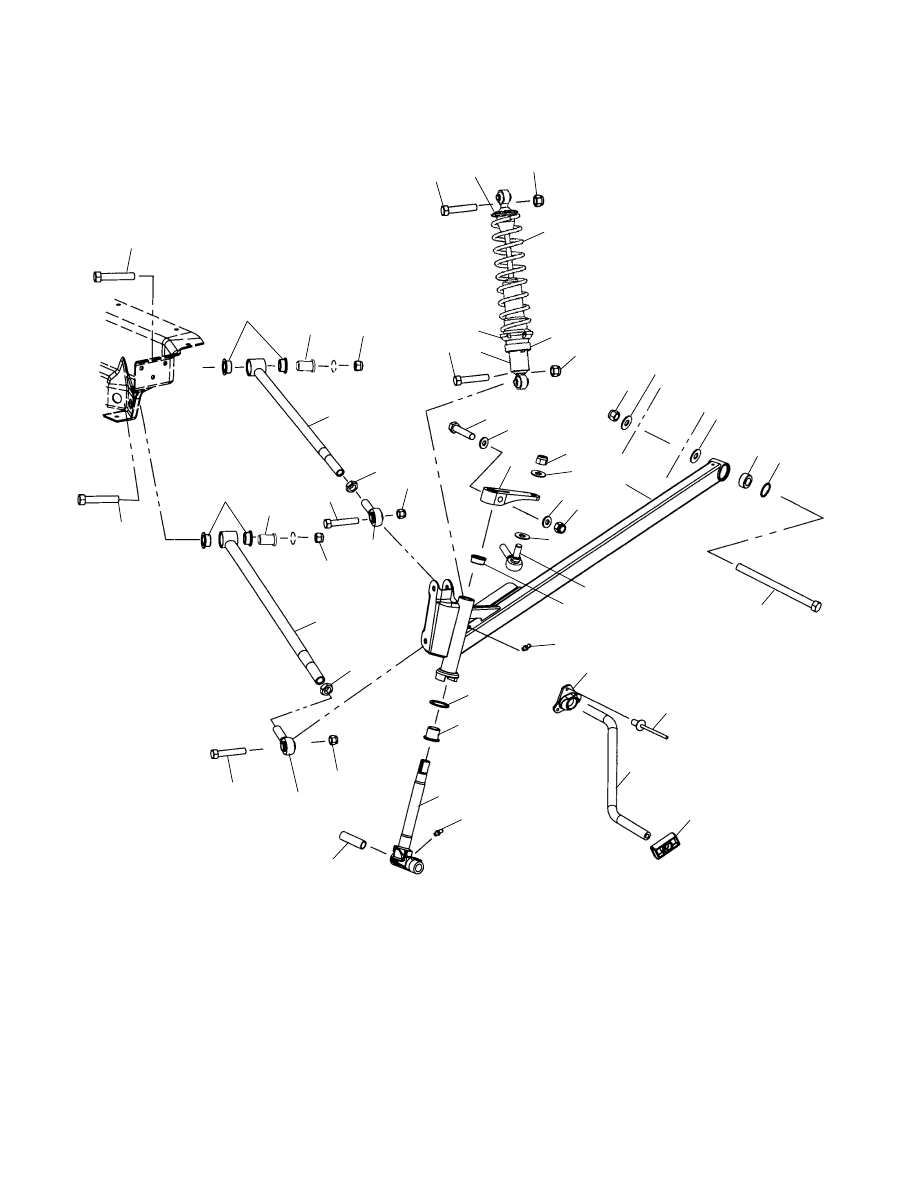

FRONT SUSPENSION

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA and 800 CLASSIC F/O S04ND8CS and 800 CLASSIC

STOCK A S04ND8CSA and 800 CLASSIC STOCK B S04ND8CSB

7

12

9

15

16

4

21 22

19

23

18

24

25

26

27

28

29

30

31

32

33

34

35

14

36

37

38

39

40

2

41

42

5

3

1

6

7

7

15

8

8

7

7

7

2

14

17

11

17

20

4

14

13

10

E

2003 Polaris Sales Inc.

B2

FRONT SUSPENSION

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA and 800 CLASSIC F/O S04ND8CS and 800 CLASSIC

STOCK A S04ND8CSA and 800 CLASSIC STOCK B S04ND8CSB

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7517980

2 Bolt

2 5434036

8 Bushing, Radius Rod, Pivot, Inner

3 5132779

2 Bushing, Shoulder

4 7547066

4 Nut, Nylon

5 1820679-385

2 Rod, Radius, Upper, Cloud Silver

6 7542520

2 Nut, Jam

7 7542439

12 Nut, Nylok

8 7515433

4 Screw

9 7041918

2 Shock, Gas

10 5431734

2 Ring, Spring Preload, Adjust

11 5630580

2 Retainer, Spring Slotted

12 7042074-385

2 Spring, Compression, Cloud Silver

13 1500063

2 Retainer, Spring, Body, Threaded

14 7517583

6 Screw

15 7555832

4 Washer

16 5132728

2 Arm, Steering

17 7555797

4 Washer, Flat

18 1821165-385

1821166-385

1

1

Asm., Trailing Arm, Cloud Silver, LH

(Incl. 21,22)

Asm., Trailing Arm, Cloud Silver, RH

(Incl. 21,22)

19 7555820

2 Washer, Flat

20 5132364

2 Cup, Mount, Trailing Arm

21 7061042

2 Bearing, Spherical

22 7710437

2 Ring, Retainer

23 7512099

2 Screw

24 7061057

2 Rod End, RH

25 3573909

2 Bushing, Flange

26 7080433

2 Fitting, Lubrication

27 5433234

2 Bushing, Torsion Bar

28 7621452

6 Rivet

29 5244415-067

1 Bar, Torsion

30 5434369

2 Slide, Torsion Bar

31 7556509

2 Bushing

32 3574208

2 Bushing, Flanged

33 6230225-067

2 Shaft, Spindle, w/Steer Stop

34 7080306

2 Fitting, Lubrication, w/Ball

35 5010158

2 Bushing

36 7061060

2 Rod End, Radius

37 7542711

2 Nut, Jam

38 1820677-385

2 Rod, Radius, Lower, Cloud Silver

39 7547065

2 Nut, Nylon

40 7061061

2 Rod End, Radius

41 5132780

2 Bushing, Shoulder

42 7512684

2 Bolt

4/03

B3

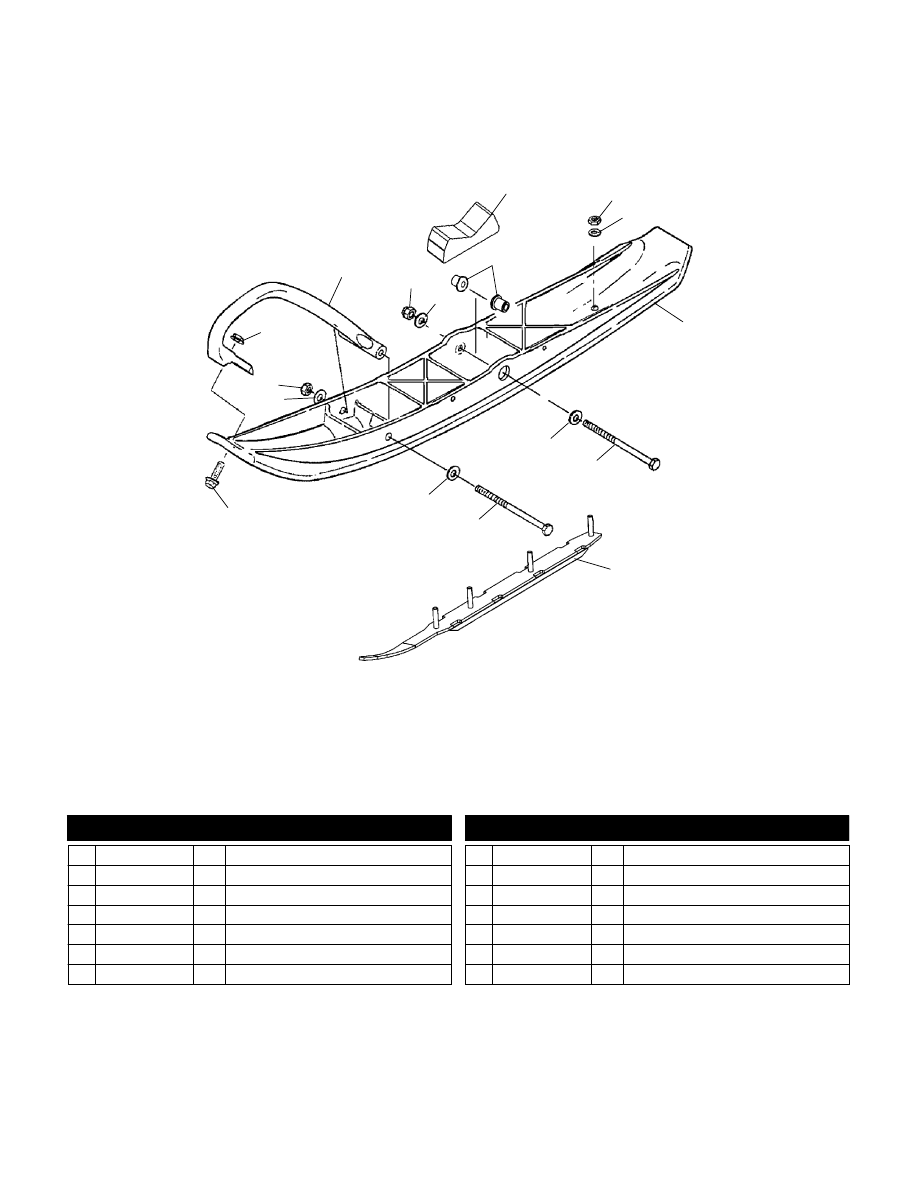

SKI (700)

700 CLASSIC F/O S04ND7CS and 700 CLASSIC STOCK A S04ND7CSA

6

9

10

11

13

14

3

8

5

2

1

7

4

5

2

3

12

E

2002 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7542321

2 Nut, Flange

2 7542439

4 Nut, Nylok

3 7555832

4 Washer

4 5434165-385

2 Toe, Ski, Plastic, Cloud Silver

5 7556130

4 Washer

6 5132637

4 Bushing

7 5412018

2 Stop, Rubber

8 7542324

8 Nut, Nylok

9 7556175

8 Washer, Flat

10 1820929-070

2 Ski

11 7517968

2 Screw

12 2874752

2 Kit, Skag, Dual, 4 Inch, 60 Degree

13 7515514

2 Screw

14 7515307

2 Screw

8/03
