52

THE PERFECT FIT

Front Suspension Adjustments

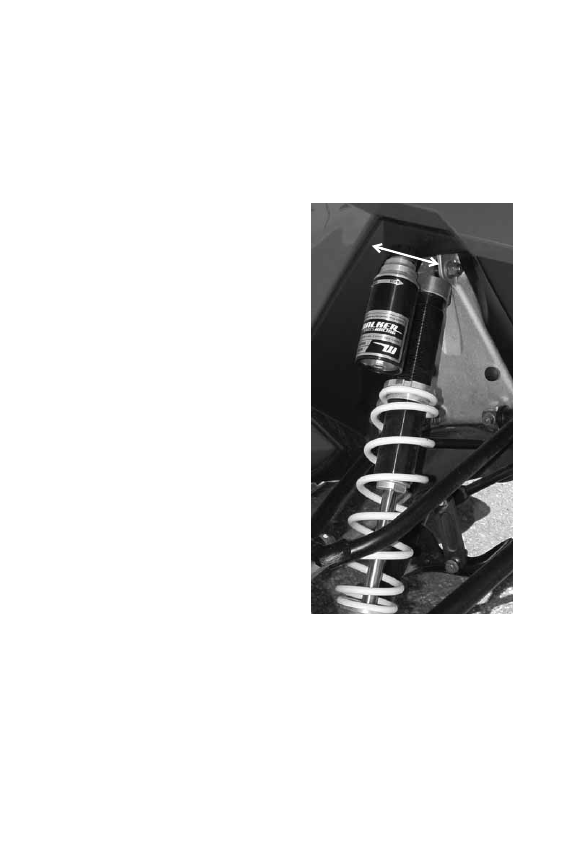

IFS Shock Compression Damping

Make adjustments to the shock clickers to control bottoming. Make the
adjustments in 1-to-2-click increments, then test ride. Repeat the adjust-
ment until the desired result is achieved.

TIP: Initially, heavier riders may want to set the shock clickers 2-4 clicks higher

than lighter riders.

The standard clicker setting is 6 clicks
from the softest position.

• Turn the clicker clockwise for a

stiffer ride (as viewed from the top).

• Turn the clicker counter-clockwise

for a softer ride.

When adjusting, we recommend that
you turn the clicker only one or two
clicks, then test ride. Always adjust
both shocks equally.

Shock Valving

Some shocks can be revalved if spring
preload alone isn't sufficient and fur-
ther adjustment is desired to control
suspension stiffness. Please see your
POLARIS dealer.

WARNING! Changing shock valving
requires special tools and a sound
knowledge of mechanical theory, tool use,
and shop procedures to perform the work
safely and correctly. Shocks contain high-
pressure nitrogen gas. Use extreme
caution when handling high-pressure
service equipment. We recommend that
this work be performed by a POLARIS
dealer.

Softer

Ride

Stiffer

Ride

53

THE PERFECT FIT

Rear Suspension Adjustments

Rider weight, riding style, trail conditions, and vehicle speed all affect
suspension action.

Each rear suspension can be adjusted to suit rider preference and deliver
excellent performance for a given set of conditions. However, all sus-
pension designs and adjustments involve a compromise, or trade-off.
For example, a suspension set up for snowcross racing would provide a
very stiff ride on the trail. A suspension set up for trail riding would bot-
tom out harshly on a snowcross course.

Additional adjustments should be made after initial setup. Make adjust-
ments to one area at a time so you can evaluate the change. For further
assistance, see your dealer.

Suspension Performance Tips

• Rider weight usually determines the position at which the spring pre-

load should be set. However, this may vary with riding style. With a
little experimentation, each rider can find a preferred set-up.

• In deep snow, a new rail slide will offer improved performance over

worn rail slide. It can also improve top speed.

• When riding on ice or hard-packed snow, adding a set of bogie wheels

to the rail may enhance the snowmobile's performance. Bogie wheel
kits are available from your dealer.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-
rect tension and alignment. Refer to the track tension maintenance sec-
tion beginning on page 106.

54

THE PERFECT FIT

Rear Suspension Adjustments

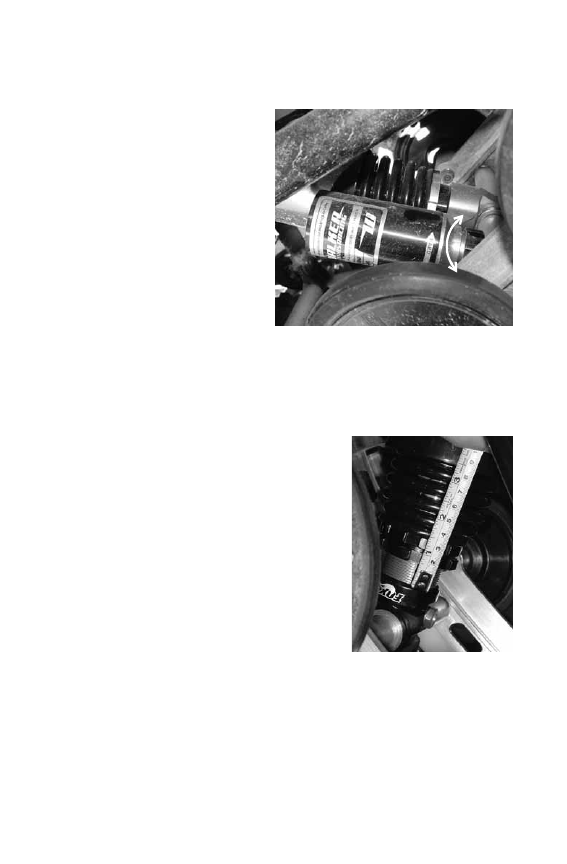

Front Track Shock Compression Damping

Make adjustments to the shock
clicker to control bottoming. Make
the adjustments in 2-click incre-
ments, then test ride. Repeat the
adjustment until the desired result
is achieved.

TIP: Initially, heavier riders may want

to set the shock clickers 2-4 clicks
higher than lighter riders.

The standard clicker setting is 2
clicks from the softest position.

• Turn the clicker clockwise for a

stiffer ride.

• Turn the clicker counter-clockwise for a softer ride.

Front Track Shock Spring Preload

Always perform shock spring preload adjustments with the weight of
the vehicle removed from the shock and with the shock at full extension.

Increasing spring preload will decrease ski-to-
ground pressure. Decreasing spring preload
will increase ski-to-ground pressure.

The initial preload setting is 1.375 inches
(3.49 cm) from body end to spring. To change
shock spring preload, grasp the spring retainer
and rotate it.

Increasing the spring preload too much may
adversely affect the handling of the snowmo-
bile and the performance of the suspension.
Never exceed one inch (2.54 cm) of preload
beyond the factory settings.

When decreasing preload, make sure at least two turns of preload are
holding the spring between the retainer on the top of the shock and the
threaded spring preload adjuster nut on the shock body. Failure to do so
could cause the retainer to fall off when the suspension is fully
extended.

TIP: Other spring options are available. Please see your POLARIS dealer.

Stiffer

Softer

55

THE PERFECT FIT

Rear Suspension Adjustments

Rear Shock Spring Preload Settings

Make adjustments to the rear shock spring to tune vehicle balance.
Always perform shock spring preload adjustments with the weight of
the vehicle removed from the shock and with the shock at full extension.

Increasing preload will increase ski pressure and result in less weight
transfer and flatter cornering and more precise steering response.
Decreasing preload will decrease ski pressure and result in more weight
transfer, or less weight on the skis when accelerating.

Turn the spring retainer up to one turn from the initial setting, then test
ride. Repeat the adjustment in one-turn increments until the desired
result is achieved.

Increasing the spring preload too much may adversely affect the han-
dling of the snowmobile and the performance of the suspension. Never
exceed one inch (2.54 cm) of preload beyond the factory settings.

When decreasing preload, make sure at least two turns of preload are
holding the spring between the retainer on the top of the shock and the
threaded spring preload adjuster nut on the shock body. Failure to do so
could cause the retainer to fall off when the suspension is fully
extended.

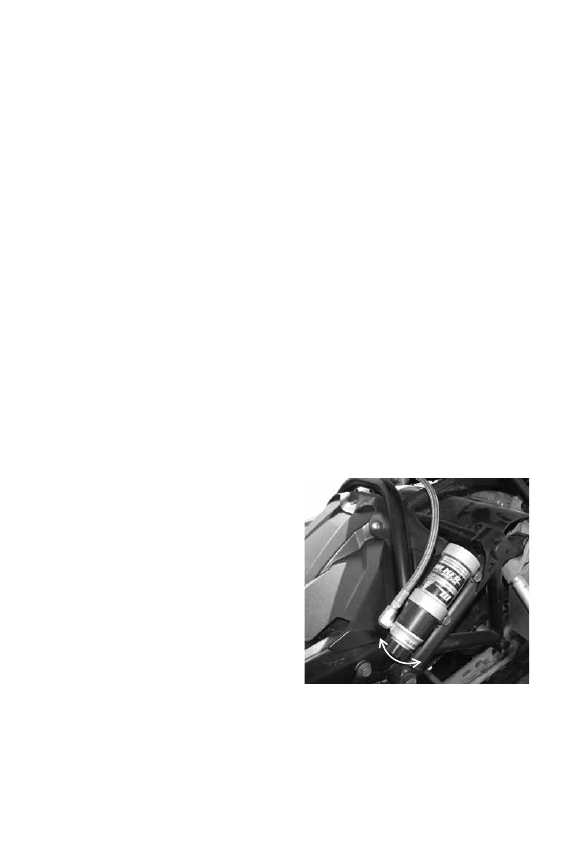

Rear Shock Clicker

Make adjustments to the shock
clicker to control bottoming, chatter
and general riding comfort. Make
the adjustments in 2-click incre-
ments, then test ride. Repeat the
adjustment until the desired result is
achieved.

TIP: Initially, heavier riders may want to

set the shock clickers 2-4 clicks
higher than lighter riders.

The standard clicker setting is 4
clicks from the softest position.

• Turn the clicker clockwise for a

stiffer ride.

• Turn the clicker counter-clockwise for a softer ride.

Stiffer

Softer
