Snowmobile Polaris 600 RMK F/O, 700 RMK F/O, 800 RMK F/O (2004 year). Instruction - part 2





A5

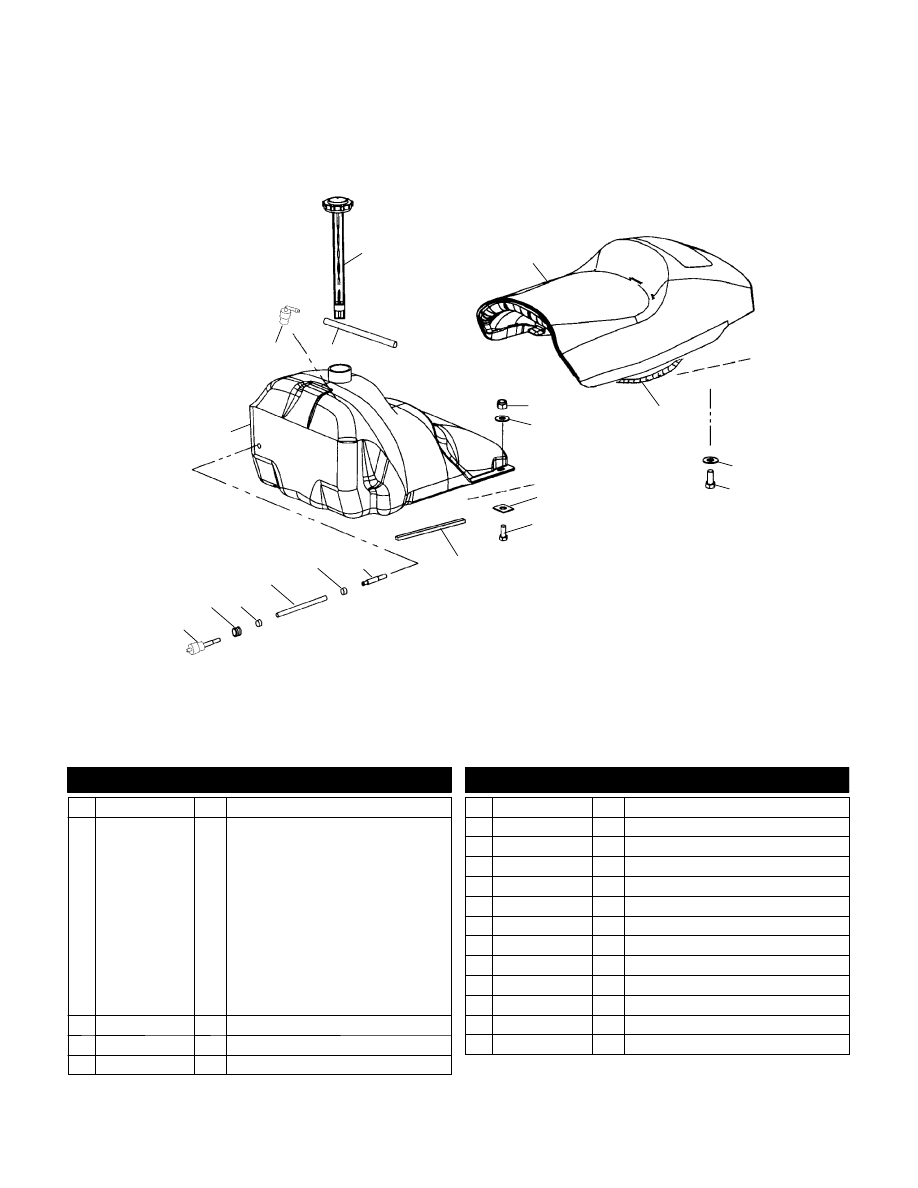

SEAT AND GAS TANK

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

2

5

4

1

16

11

15

13

17

14

12 13

10

6

8

9

3

7

18

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 2520323

1 Cap w/Gauge, Fuel

2 2683272

2683273

2683264

2683265

2683270

2683271

2683274

2683275

1

1

1

1

1

1

1

1

Asm., Seat, Edge, RMK

(Incl. 2,5)(SL/YL)(Std)

Asm., Seat, Cover, Edge RMK

Asm., Seat, Edge, RMK

(Incl. 2,5)(SL/R)(Std)

Asm., Seat Cover, Edge, RMK

Asm., Seat, RMK, Vert. Esc

(Incl. 2,5)(SL/R)

Asm., Seat Cover, RMK, Vert. Esc.

Asm., Seat, RMK, Vert. Esc.

(Incl. 2,5)(SL/YL)

Asm., Seat Cover, RMK, Vert.

Esc.(SL/YL)

3 7558301

2 Washer, Flat

4 7517219

2 Screw

5 2461064

1 Harness, Taillight, Seat

6 7542122

2 Nut, Nylok

7 7555960

2 Washer, Flat

8 7670021

2 Nut, Speed

9 7512193

2 Bolt, Carriage

10 5810947

2 Foam, Seal, Rear Cooler

11 7052269

1 Fitting

12 5432981

1 Grommet

13 7080768

2 Ring, Compression

14 8350020-600

AR Line, Fuel

15 7052215

1 Pickup w/Mesh, Fuel

16 2520262

1 Asm., Fuel Tank

17 7052095

1 Fitting, 90 Degree

18 8450061-600

AR Line, Fuel

3/03

A6

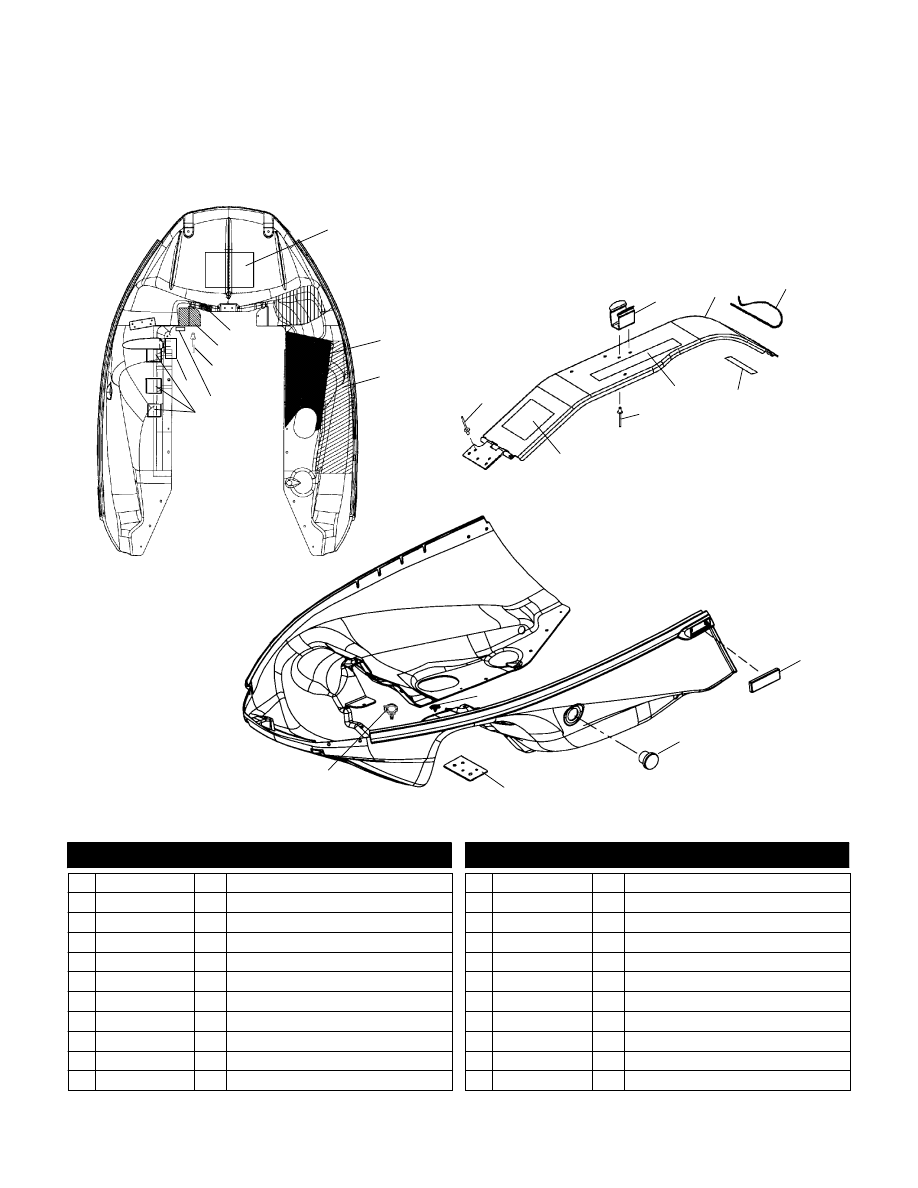

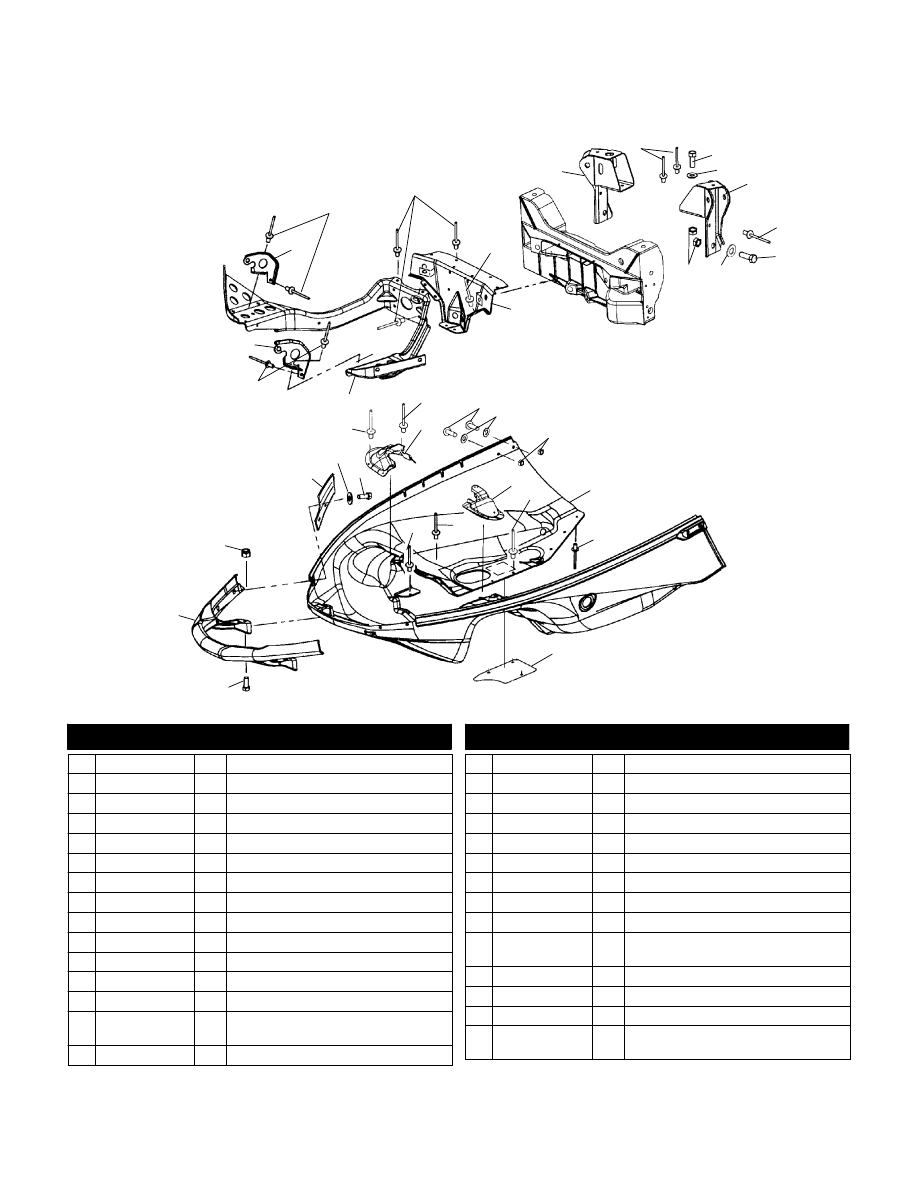

NOSEPAN

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

2

11

10

18

17

15

28

14

27

12

17

13

23

22

21

8

4

6

9

7

6

16

3

3

29

7

5

5

25

20

26

24

19

1

1

1

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7661637

18 Rivet

2 5243992-067

1 Hinge, Pivot, Lower, RH

3 7621431

2 Rivet

4 1821108-067

1 Tower, Shock, RH

5 7661130

6 Rivet

6 7517935

4 Screw

7 7556153

4 Washer

8 1821107-067

1 Tower, Shock, LH

9 7547180

4 Nut, Flanged, Nylon

10 5244049-067

1 Bracket, Support, Radius Rod

11 5244050

1 Brace, Pan, Lower

12 5243991-067

1 Hinge, Pivot, Lower, LH

13 7542153

2 Nut, Flanged, Nylok

14 5433518-293

5433518-216

1

1

Asm., Bumper, Front, Indy Red

Asm., Bumper, Front, Scr. Yellow

15 7512163

2 Bolt

16 5245853

1 Shield, Exhaust, Heat, Extended

17 7621467

20 Rivet

18 5434345-070

1 Nosepan, High Shocks, Black.

19 7621472

3 Rivet

20 5434346

1 Cover, Shock Tower, LH

21 7542122

4 Nut, Nylok

22 7555827

4 Washer

23 7515166

4 Screw

24 7621418

1 Rivet

25 5434347

5812271

1

1

Cover, Shock Tower, RH

Foil, Shock Tower Cover

26 7621485

8 Rivet

27 7517312

4 Screw

28 7552801

4 Washer, Spring Lock

29 5244888

5244889

1

1

Guide, Hood, LH

Guide, Hood, RH

3/03

A7

NOSEPAN

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

9

5

8

10

11

16

12

13

15

18

19

20

2

4

3

1

21

22

6

7

17

14

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 7670130

3 Clip, Speed, U-Type

2 5811948

1 Foil

3 7080963

1 Retainer, J-Clip

4 7621435

1 Rivet

5 5812020

1 Foil, Tape, Nosepan

6 5810949

1 Foil, Tape

7 5812036

1 Foil, Nosepan

8 5812019

1 Foil, Tape, Nosepan, Lower

9 5812018

1 Foil, Tape, Nosepan, Upper

10 7621402

5 Rivet

11 5222769

1 Clip, Belt Retainer

12 1013069

1 Asm., Guard, Clutch

13 7080698

1 Pin, Clutch Guard

14 5812352

1 Pad, Clutch Guard

15 7075350

1 Decal, Engine and Clutch

16 7621429

2 Rivet

17 7170043

1 Decal, Troubleshooting

18 2670134

2 Asm., Reflector, Amber

19 5433926

1 Plug, Nosepan, Oblong

20 5211722

1 Plate, Backer, Clutch Guard

21 4020139

1 Clip, Rosebud

22 7670131

2 Plug, Nylon (Manual Start)

3/03

A8

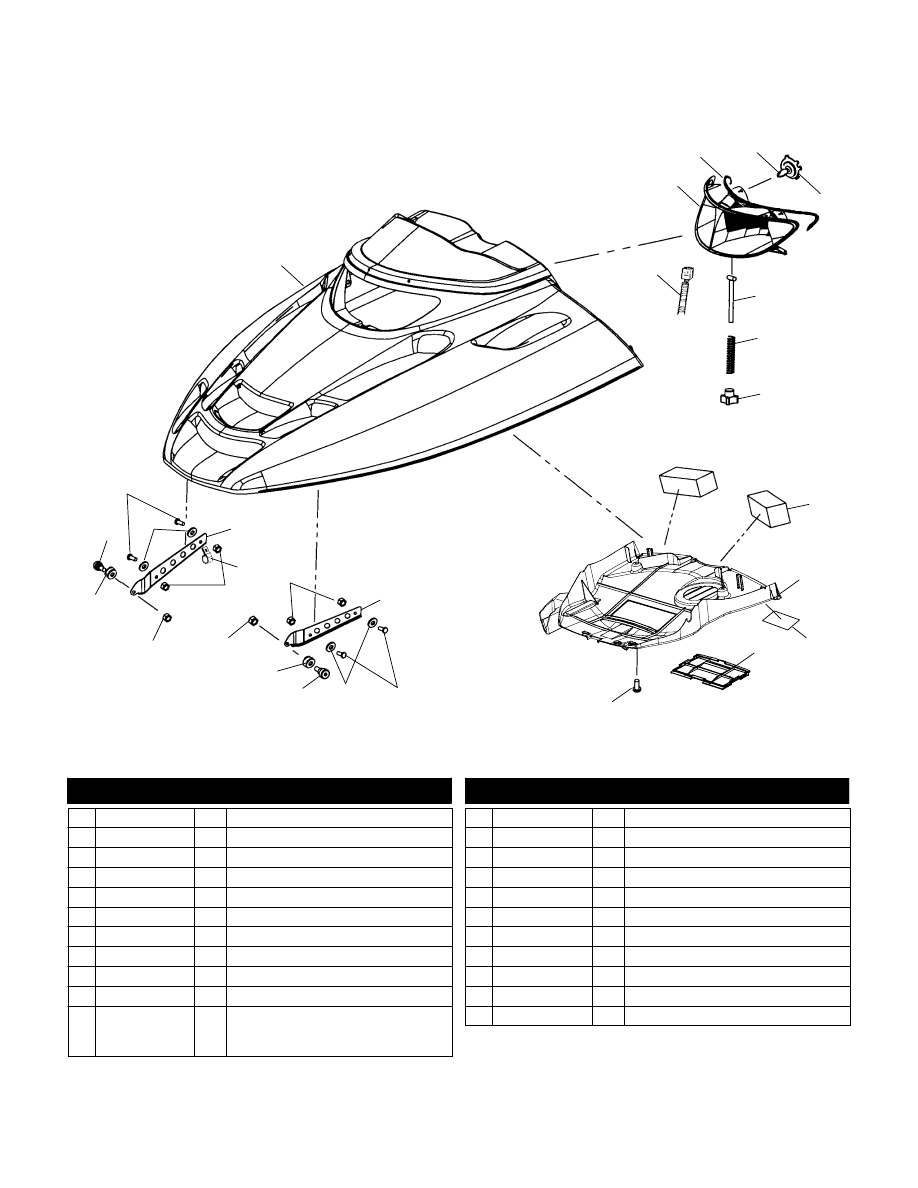

HOOD

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

1

3

5

6

7

8

9

10

11

15

18

19

22

18

19

17

20

16

20

17

16

20

14

4

20

13

2

12

21

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 2632521-382

1 Asm., Hood, Slv.

2 2461015

1 Harness, Headlight

3 2410132

1 Asm., Headlamp (Incl. Bulbs)

4 5812450

1 Seal, Headlight, One Piece

5 2870448

2 Bulb, Headlight

6 4032063

2 Retainer, Headlamp Bulb

7 7517872

1 Bolt, Tee Adjuster

8 7041954

1 Spring, Headlight Adjust

9 7080887

1 Knob, Headlight Adjust

10 5811793

2 Foam, Prefilter

11 2632491

5812324

5811948

1

1

1

Asm., Plenum w/Foil

Foil, Plenum

Foil

12 7170040

1 Decal, Suspension Set-Up

13 5433660

1 Cover, Access, Headlight

14 7512068

10 Screw

15 5243567-067

1 Hinge, Upper, LH

16 7512240

4 Bolt

17 7558301

4 Washer, Flat

18 7512113

2 Bolt

19 5332403

2 Spacer

20 7542122

6 Nut, Nylok

21 7080367

1 Clamp, Cable

22 5243568-067

1 Hinge, Upper, RH

3/03
