Snowmobile Polaris 600 RMK F/O, 700 RMK F/O, 800 RMK F/O (2004 year). Instruction - part 1





600 RMK F/O

Model #S04NK6ES

Model #S04NK6ESA

Model #S04NK6ESB

Model #S04NK6ESC

E

2003 Polaris Sales Inc.

PARTS MANUAL PN 9918839 and MICROFICHE PN 9918840 3/03

700 RMK F/O

Model #S04NK7CS

Model #S04NK7CSA

Model #S04NK7CSB

Model #S04NK7CSC

Model #S04NL7CS

Model #S04NL7CSA

Model #S04NL7CSB

Model #S04NL7CSC

800 RMK F/O

Model #S04NK8CS

Model #S04NK8CSA

Model #S04NK8CSB

Model #S04NK8CSC

Model #S04NL8CS

Model #S04NL8CSA

Model #S04NL8CSB

Model #S04NL8CSC

Model #S04NM8CS

Model #S04NM8CSA

Model #S04NM8CSB

Model #S04NM8CSC

TABLE OF CONTENTS

600RMK 144F/O S04NK6ES and 600RMK 144STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600RMK 144STOCK C S04NK6ESC and 700 RMK 144 F/OS04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B

S04NL7CSB and 700 RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C

S04NK8CSC and 800 RMK 151 F/O S04NL8CS and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and

800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159 STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

Parts Manual

A

AIRBOX

C5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

B

BATTERY BOX

C1

. . . . . . . . . . . . . . . . . . . . . . .

BRAKE

A14

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

C

CARBURETOR (600)

D1-2

. . . . . . . . . . . . . . . . . .

CARBURETOR (700/800)

D10-11

. . . . . . . . . . . . . . .

CHAINCASE

B13

. . . . . . . . . . . . . . . . . . . . . . . .

CHASSIS

A3-4

. . . . . . . . . . . . . . . . . . . . . . . . . . .

CONSOLE

A13

. . . . . . . . . . . . . . . . . . . . . . . . . .

COOLING SYSTEM

B2

. . . . . . . . . . . . . . . . . . .

CRANKCASE (600)

C12

. . . . . . . . . . . . . . . . . . . .

CRANKCASE (700/800)

D6

. . . . . . . . . . . . . . . .

CRANKSHAFT

D9

. . . . . . . . . . . . . . . . . . . . . . .

CYLINDER (600)

C13

. . . . . . . . . . . . . . . . . . . . .

CYLINDER (700/800)

D7

. . . . . . . . . . . . . . . . . .

D

DECALS

A11-12

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DRIVE CLUTCH (Electric Start Models)

C3

. . . . .

DRIVE CLUTCH (Manual Start Models)

C2

. . . . .

DRIVE TRAIN

B14

. . . . . . . . . . . . . . . . . . . . . . . .

DRIVEN CLUTCH

C4

. . . . . . . . . . . . . . . . . . . . .

E

ENGINE MOUNTING (600)

C7

. . . . . . . . . . . . . .

ENGINE MOUNTING (700)(800)

C8

. . . . . . . . . .

EXHAUST SYSTEM

C6

. . . . . . . . . . . . . . . . . . .

G

GAS TANK

A5

. . . . . . . . . . . . . . . . . . . . . . . . . .

H

HOOD

A8-9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOOD FOAM/FOIL

A10

. . . . . . . . . . . . . . . . . . . .

M

MAGNETO (600)

D4

. . . . . . . . . . . . . . . . . . . . .

MAGNETO (700/800)

D13

. . . . . . . . . . . . . . . . . .

N

NOSEPAN

A6-7

. . . . . . . . . . . . . . . . . . . . . . . . . .

O

OIL PUMP (700/800)

D12

. . . . . . . . . . . . . . . . . . .

OIL TANK

C5

. . . . . . . . . . . . . . . . . . . . . . . . . . .

P

PISTON and CRANKSHAFT (600)

D3

. . . . . . . . .

PISTON and CRANKSHAFT (700/800)

D9

. . . . . .

R

RAIL MOUNTING SUSPENSION

B10

. . . . . . . . .

RECOIL STARTER (600)

D5

. . . . . . . . . . . . . . . .

RECOIL STARTER (700/800)

D14

. . . . . . . . . . . .

S

SEAT

A5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SHOCK (FRONT TRACK)

C10

. . . . . . . . . . . . . . .

SHOCK (REAR TRACK)

C11

. . . . . . . . . . . . . . . .

SHOCK -- IFS

C9

. . . . . . . . . . . . . . . . . . . . . . . .

SKI

B1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STARTING MOTOR (600)

E1

. . . . . . . . . . . . . . .

STARTING MOTOR (700)(800)

E2

. . . . . . . . . . .

STEERING--HANDLEBAR

B5-8

. . . . . . . . . . . . . . .

SUSPENSION

B9

. . . . . . . . . . . . . . . . . . . . . . .

SUSPENSION, FRONT

B3-4

. . . . . . . . . . . . . . . .

T

TOOL KIT

E3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

TORQUE ARM, FRONT

B11

. . . . . . . . . . . . . . . .

TORQUE ARM, REAR

B12

. . . . . . . . . . . . . . . . .

W

WATER PUMP (700/800)

D8

. . . . . . . . . . . . . . . .

WATER PUMP/OIL PUMP (600)

C14

. . . . . . . . . .

The illustrations used in this Parts Manual are for reference to replacement parts only. This manual is not to be used for assembly.

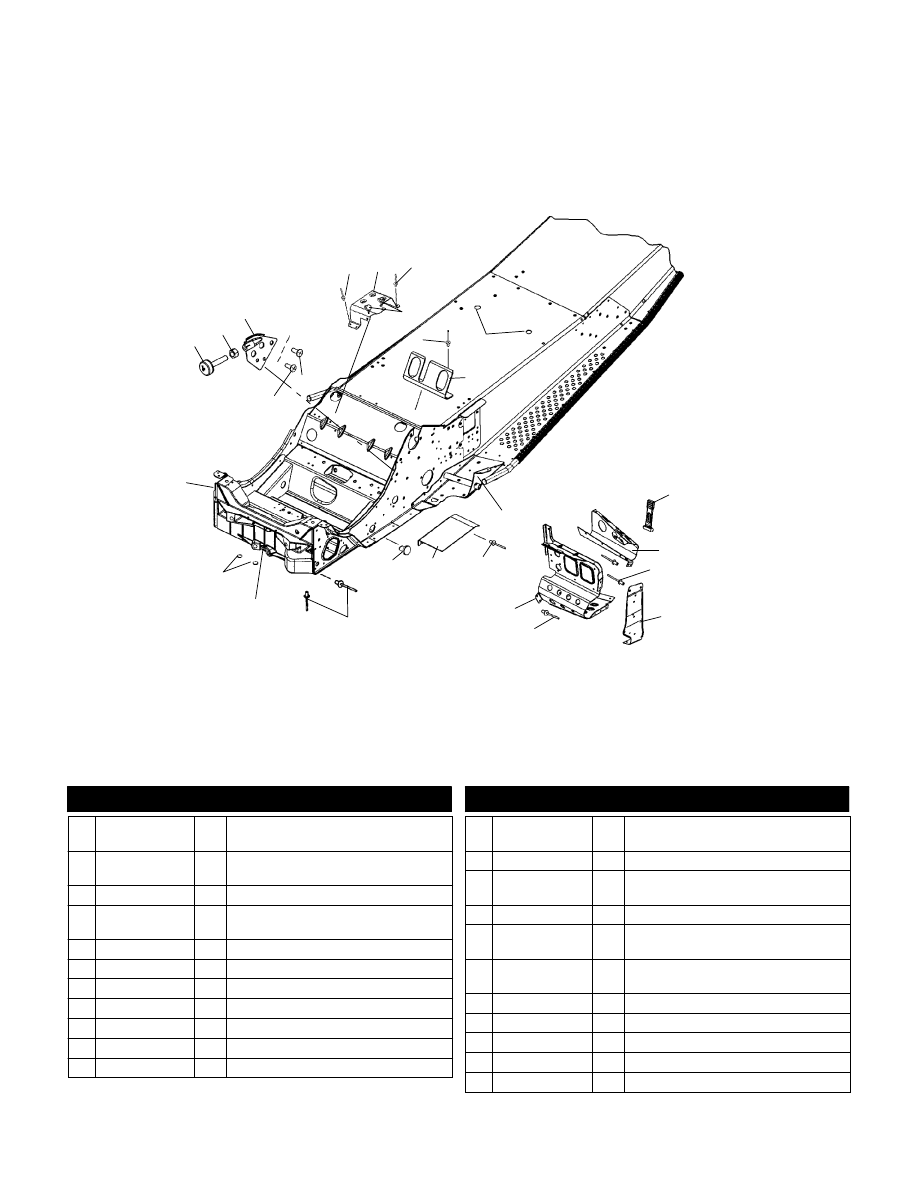

A3

CHASSIS

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

2

3

4

16

17

19

14

15

15

13

15

18

5

6

E

2003 Polaris Sales Inc.

11

7

7

8

12

7

1

9

10

20

21

22

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 1014245--309

1014160-309

1

1

Asm., Chassis, 151 Inch/159 Inch

Asm., Chassis 136 Inch/144 Inch

2 3021104

3110078

1

1

Stop, Torque (600)

Stop, Torque (700)(800)

3 7542404

1 Nut

4 1013379

1013377

1

1

Stop, Torque (600)

Stop, Torque (700)(800)

5 7517854

2 Screw

6 7517632

1 Screw

7 7621432

8 Rivet

8 5245202

1 Bracket, Oil Bottle

9 4020139

2 Clip, Rosebud

10 7080592

2 Plug, Cap

11 5246177

1 Bracket, Air Box

12 2202059

2202598

1

1

Kit, Trailing Arm Mount, LH

Kit, Trailing Arm Mount, RH

13 5433150

2 Strap, Air Box, Top

14 5245457

5245458

1

1

Mount, Console, Toe Clip, LH

Mount, Console, Toe Clip, RH

15 7661637

80 Rivet

16 5246310

5246311

1

1

Support, Footrest, LH

Support, Footrest, RH

17 5245288

5242740

1

1

Footrest, LH

Footrest, RH

18 5221583

1 Guard, Adapter Drive

19 7080416

2 Plug, Hole

20 7661130

15 Rivet

21 5132292

1 Bulkhead, Front

22 7081076

2 Plug, Hole

3/03

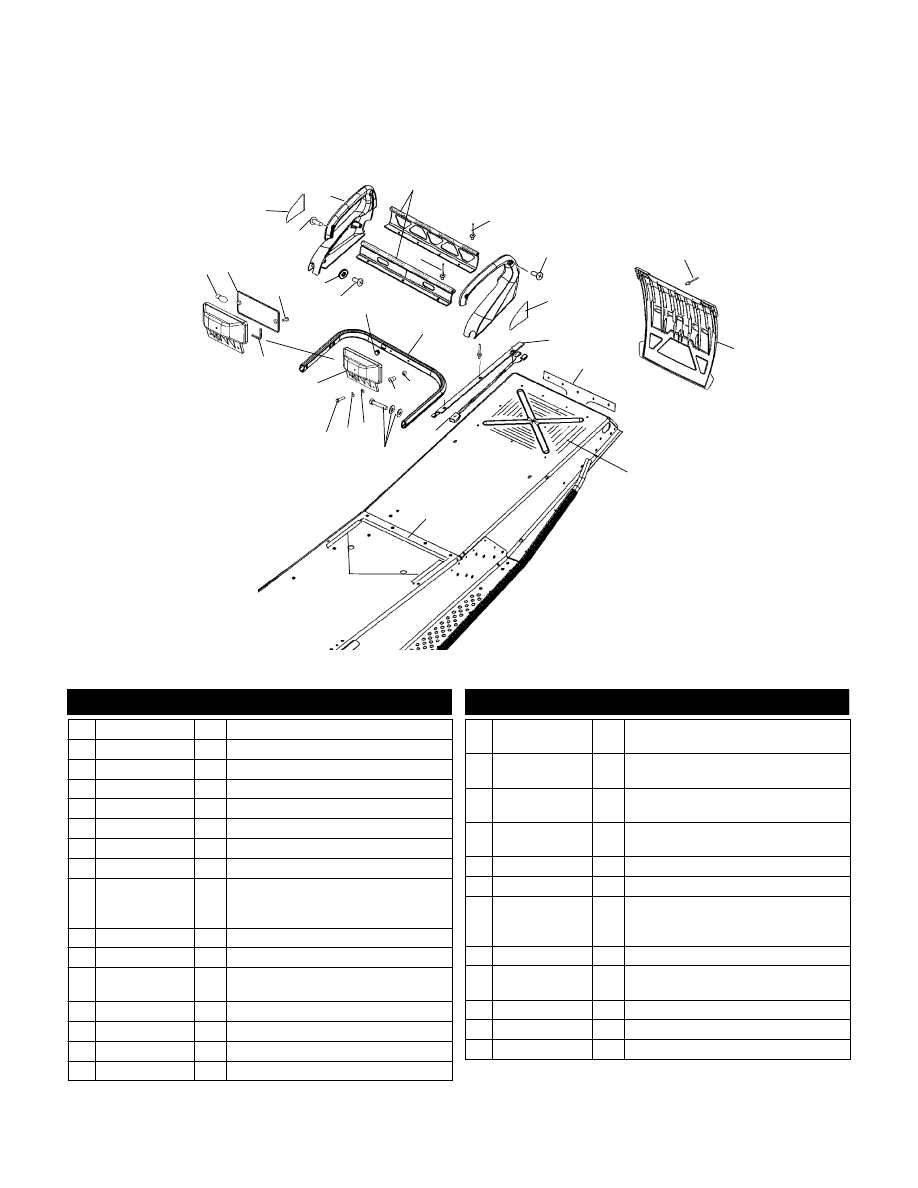

A4

CHASSIS

600 RMK 144 F/O S04NK6ES and 600 RMK 144 STOCK A S04NK6ESA and 600 RMK 144 STOCK B S04NK6ESB and 600 RMK 144 STOCK C S04NK6ESC and 700 RMK 144 F/O S04NK7CS and 700 RMK 144 STOCK A

S04NK7CSA and 700 RMK 144 STOCK B S04NK7CSB and 700 RMK 144 STOCK C S04NK7CSC and 700 RMK 151 F/O S04NL7CS and 700 RMK 151 STOCK A S04NL7CSA and 700 RMK 151 STOCK B S04NL7CSB and 700

RMK 151 STOCK C S04NL7CSC and 800 RMK 144 F/O S04NK8CS and 800 RMK 144 STOCK A S04NK8CSA and 800 RMK 144 STOCK B S04NK8CSB and 800 RMK 144 STOCK C S04NK8CSC and 800 RMK 151 F/O S04NL8CS

and 800 RMK 151 STOCK A S04NL8CSA and 800 RMK 151 STOCK B S04NL8CSB and 800 RMK 151 STOCK C S04NL8CSC and 800 RMK 159 F/O S08NM8CS and 800 RMK 159 STOCK A S08NM8CSA and 800 RMK 159

STOCK B S08NM8CSB and 800 RMK 159 STOCK C S08NM8CSC

12

22

17

18

19

21

16

5

25

23

13

9

16

17

15

14

1 2

3

4

6 7

8

10 11

20

24

20

28

26

27

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 4030043

1 Bulb, Taillight

2 4032014

1 Lens

3 7518019

2 Screw

4 4032015

1 Gasket, Lens

5 2410307

1 Asm., Taillight (Incl. 1-4)

6 7515140

2 Screw

7 7552801

2 Washer, Spring Lock

8 7556033

2 Washer

9 7512113

7552801

7558301

4

4

4

Bolt (Qty 6 for 151/156)

Washer, Spring Lock (Qty 6 for 151/156)

Washer, Flat (Qty 6 for 151/156)

10 3021186

2 Mount, Rubber

11 7555916

2 Washer, Nylon

12 2632461-309

2632460--309

1

1

Asm., Bumper, Rear, 151/156

Asm., Bumper, Rear, 136/144

13 7081039

1 Bushing, Snap

14 7512094

4 Screw

15 7558301

4 Washer, Flat

16 7517686

4 Screw

17 7079667

7079668

1

1

Decal, Reflector, Red, LH

Decal, Reflector, Red, RH

18 2873764-216

2873764-293

1

1

Kit, Snow, Skirt, Edge, RMK, Yellow

Kit, Snow Skirt, Edge, RMK, Red

19 5133058

5133059

1

1

Rack, Front

Rack, Rear

20 7661130

7661637

7

7

Rivet (144)

Rivet (151)

21 7621418

5 Rivet

22 5434356-1106

1 Flap, Snow Blk. w/Chrome

23 5412033

5412074

5412134

2

1

1

Protector, Bed, Front/Rear

Protector, Bed, LH

Protector, Bed, RH

24 5812229

1 Support, Snow Flap

25 5245726

7661079

1

3

Guard, Wire, Taillight (Incl. Rivets)

Rivet

26 2461065

1 Jumper, Seat, Taillight

27 5812360

1 Gasket, Seat Base, 1/4 Inch

28 5812290

2 Gasket, Seat Base

3/03
