Snowmobile Polaris 600 IQ Widetrak (2017 year). Instruction - part 25





103

MAINTENANCE

Track Tension

4. Check for specified slack between the wear surface of the track clip

and the plastic rail slide.

If the track needs adjustment:

5. Loosen the rear idler shaft bolt.

6. Loosen the lock nuts.

7. Tighten or loosen the track adjusting screws as necessary to provide

equal adjustment on both sides of the track.

8. Repeat the measurement on the other side of the track.

Tip: Check more frequently when the snowmobile is new.

9. Start the engine and slowly rotate the track at least five revolutions.

Let the track come to a stop (do not apply brakes).

10. Check track alignment (see page 104) and adjust as necessary.

11. Tighten the lock nuts.

12. Tighten the idler shaft bolts. Torque to 35 ft. lbs. (47.5 Nm).

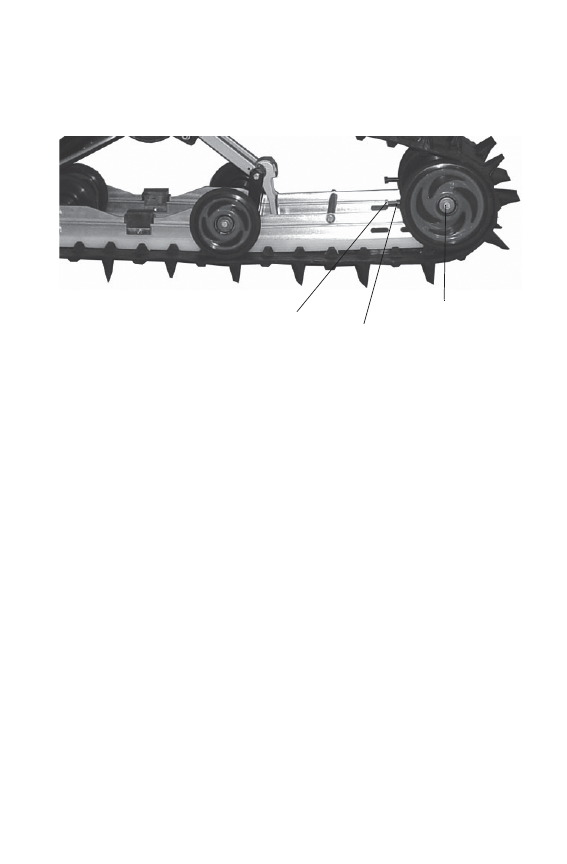

Idler Shaft

Bolt

Adjusting

Screw

Lock

Nut

104

MAINTENANCE

Track Alignment

Periodically check that the track is
centered and running evenly on the
slide rails. Misalignment will cause
excessive wear to the track and slide
rail.

1. Safely support the rear of the

snowmobile with the track off the
ground.

2. Start the engine and apply a small

amount of throttle until the track
turns slowly at least five com-
plete revolutions. Stop the engine
and let the track come to a stop
(do not apply brakes).

3. Inspect track alignment by looking through the track window to

make sure the rails are evenly spaced on each side. If the track runs
to the left, loosen left locknut and tighten the left adjusting bolt. If
the track runs to the right, loosen right locknut and tighten the right
adjusting bolt.

4. After adjustments are complete, tighten locknuts and torque idler

shaft bolts to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

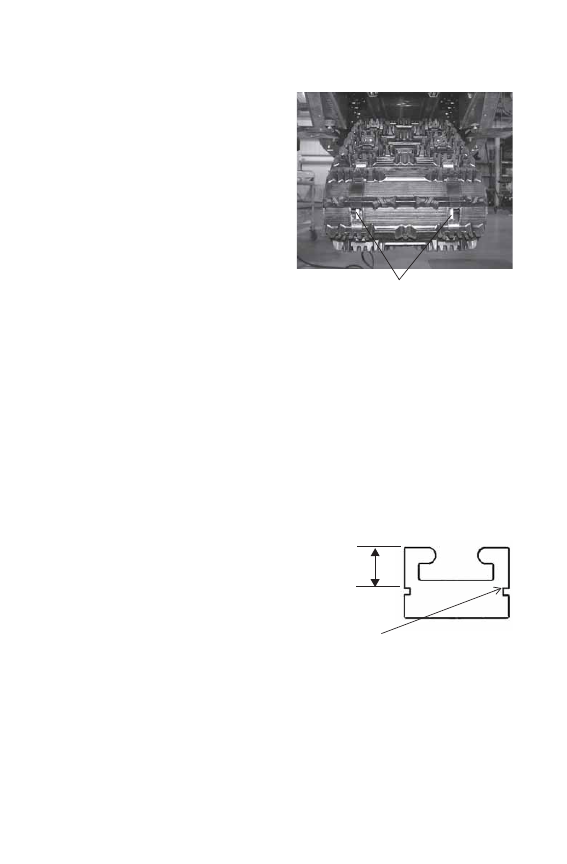

Rail Slide Wear

For ease of inspection, all
POLARIS rail slides have a
wear limit indicator groove to
indicate the minimum permissi-
ble slide thickness. Replace the
rail slides if they are worn to the
top of the groove at any point
along their length.

NOTICE: Failure to replace worn

rail slides may result in
permanent damage to
the track or rails.

Rails

Replace when

worn to top of

groove

Minimum

Thickness

105

MAINTENANCE

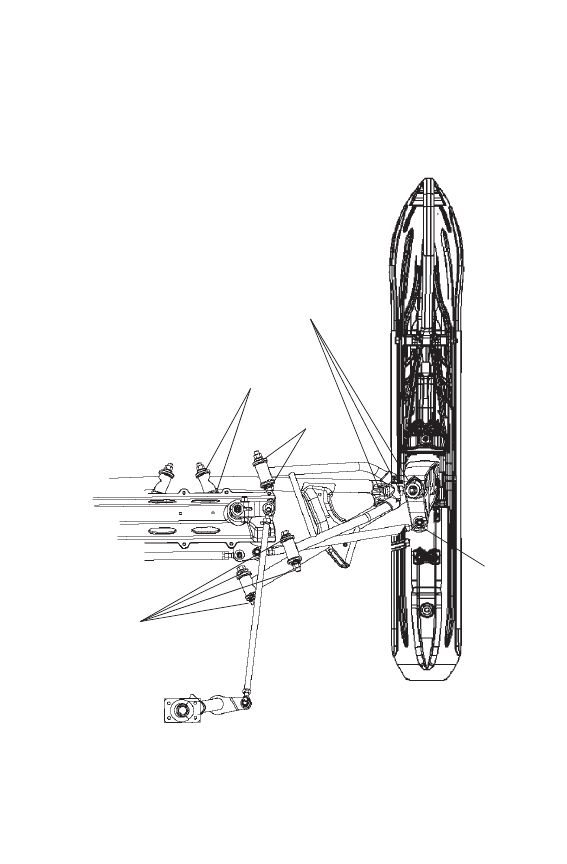

Steering System

Steering Inspection and Adjustment

Check all steering system fasteners weekly and before a long ride.
Tighten any loose fasteners.

X

X

X

X

X

106

MAINTENANCE

Steering System

Ski Alignment

WARNING! Improper ski alignment or adjustment may cause loss of steering
control, resulting in serious injury or death. Do not attempt to change the ski
alignment or toe adjustment. See your POLARIS dealer.

If the steering feels heavy, or if the snowmobile seems to pull or dart to
the side, ski alignment may need adjustment. Refer to the service
manual or see your dealer for this service.

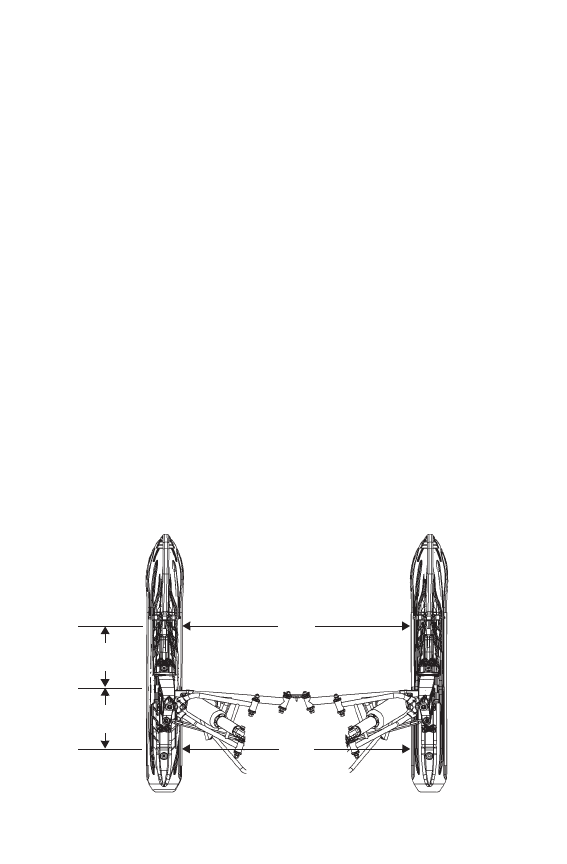

Ski Toe Settings

WARNING! Improper ski toe adjustment may cause loss of steering control,
resulting in serious injury or death. Do not attempt to change toe adjustment.
See your POLARIS dealer.

The skis on your snowmobile are set with a small amount of toe-out at
the factory. You can inspect the toe setting by following the procedure
below. If adjustments are required, refer to the service manual or see
your dealer for this service.
1. Place the handlebars in a straight-ahead position.
2. With only vehicle weight compressing the suspension, measure 10

inches (25.4 cm) forward from the center of the ski mounting bolt.
See illustration. At this point, measure between the skis. This is
measurement X.

3. Perform the same measurement rearward from the center of the ski

mounting bolt. This is measurement Y.

4. The X measurement should be 1/8-1/4 inch (3-6 mm) greater than

the Y measurement. If the skis are misaligned, see your dealer for
alignment correction.

X

Y

10 in.

(25.4 cm)

10 in.

(25.4 cm)
