95

MAINTENANCE

Clutch System

Periodically inspect clutch sheaves for damage, wear or belt residue. To
maintain optimum performance, clean with non-oil based cleaners such
as isopropyl alcohol.

WARNING! If you become aware of higher than normal clutch engagement or
an unusual vibration or shift pattern, see your dealer immediately. Do not
operate the snowmobile until repairs have been made.

WARNING! All clutch maintenance and repairs must be performed by an
authorized POLARIS dealer. Any unauthorized modifications to clutches, such
as adding or removing weights, will void the warranty.

NOTICE: The bushings in the weights and rollers of POLARIS clutches are

made of a material that may be damaged if lubricated. Do not
lubricate clutch bushings.

Clutch Alignment Offset

Clutch alignment offset is important for maintaining optimum
performance. Please see your POLARIS dealer if you experience a
decrease in performance.

96

MAINTENANCE

Clutch System

Drive Belt Condition

Periodically check the condition and tension of the drive belt, and
always carry a spare. Inspect the belt for signs of excessive wear: frayed
edges, missing cogs, cracks and excessive looseness. Replace the belt if
any of these conditions exist. See Drive Belt Troubleshooting on page
121.

For improved drive-away during extremely cold temperatures, remove
the belt and warm it to room temperature. Reinstall it before starting the
snowmobile.

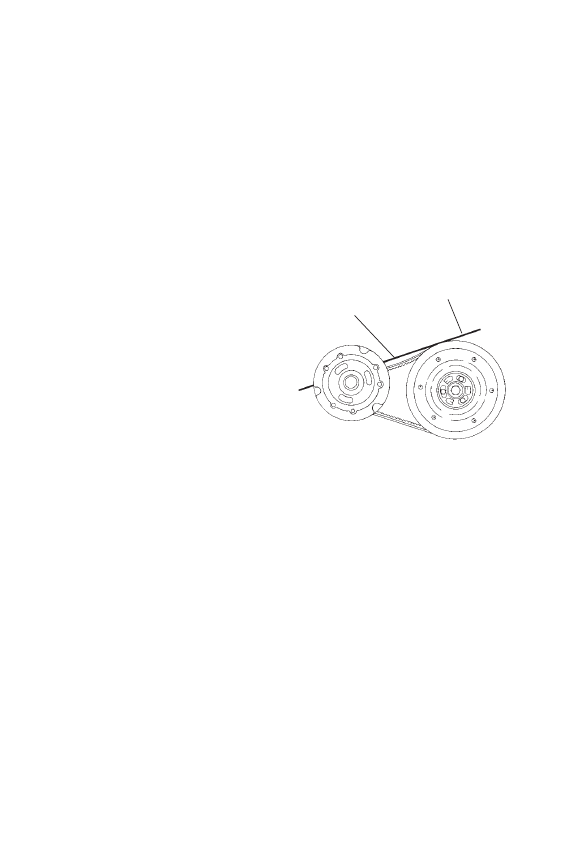

Drive Belt Deflection

Measure belt deflection with both
clutches at rest and in their full
neutral position.

Place a straight edge on the belt
and apply downward pressure
while measuring at point A. This
measurement should be 1 1/4”
(3.2 cm).

Straight

Edge

Measure

A

97

MAINTENANCE

Clutch System

Drive Belt Adjustment

1. Install the L-wrench into the open threaded hole in the outer sheave

of the clutch (see page 98). Turn the wrench clockwise slightly to
remove pressure from the sheaves.

2. Loosen the 7/16-inch jam nut.

3. Using a 1/8-inch Allen wrench, aturn the set screw inward

(clockwise) to increase the distance between the sheaves or outward
(counterclockwise) to decrease the distance.

4. Tighten the jam nut. Remove the L-wrench and store it in the tool

kit.

98

MAINTENANCE

Clutch System

Drive Belt Removal

NOTICE: Do not attempt to remove the drive belt after operating in reverse. The

snowmobile must be stopped after forward motion to prevent damage
to components during belt removal. Rotate the driven clutch
counterclockwise 1/4 turn by hand to ensure forward engagement
before attempting to remove the belt.

1. Stop the engine after operating in a forward motion.

2. Turn the ignition key off. Wait for the engine to come to a complete

stop.

3. Lock the parking brake.

4. Open the hood and remove the left side panel.

5. Rotate the driven clutch counterclockwise 1/4 turn by hand to

ensure forward engagement.

6. Locate the L-wrench in the tool kit. Install the wrench into the open

threaded hole in the outer sheave of the clutch.

7. Turn the wrench clockwise until the sheaves open far enough to

remove the belt. If the wrench does not turn readily, rotate the
driven clutch counterclockwise an additional 1/4 turn by hand and
try again.

8. Grasp the belt at the lower edge and remove it.
