Snowmobile Polaris 600 IQ Touring (2010 year). Instruction - part 24





97

MAINTENANCE

Cooling System

Coolant High Temperature Indicator Light

The high temperature indicator light will illuminate when engine cool-

ant temperature becomes too hot for safe continued operation of the

engine. If you must drive your machine after the high temperature indi-

cator light has come on, drive slowly and stop frequently to allow the

engine to cool down. Driving in deep snow will also help cool the

engine. See your dealer for service.
Add coolant if the level is low. Engine performance will be reduced if

you continue operating when the high temperature light is on.

Flushing the Cooling System

To ensure that the coolant maintains its ability to protect the engine,

drain the system completely every two years and add a fresh mixture of

antifreeze and distilled water. This service must be performed when the

engine is cold. Ask your Polaris dealer to check the coolant when he

performs the fall tune-up on your snowmobile.

98

MAINTENANCE

Cooling System

Bleeding the Cooling System

CAUTION! Steam and hot liquids will cause burns to your skin. Never bleed the

cooling system or remove the pressure cap when the engine is warm or hot.

Use of a non-standard pressure cap will not allow the recovery system to

function properly. If the pressure cap needs replacement, contact your

dealer for the correct part.

NOTICE: If coolant flow becomes restricted or plugged, coolant loss, air lock or

engine damage may result. Most cooling systems are equipped with a

filter that should be periodically inspected or replaced.

Perform the bleeding procedure when the engine is cold.
1. Position the vehicle so that the top of the tunnel is level. Elevate the

front of the vehicle slightly if necessary.

2. Remove the pressure cap and fill the coolant bottle with properly

mixed coolant to the maximum mark.

3. Remove the bleed screw from the water outlet manifold and/or the

thermostat housing. Allow the coolant to bleed through the system

until it runs out the bleed holes. Reinstall the bleed screw into the

manifold.

4. Add coolant to the coolant bottle to the maximum mark.
5. Start the engine and run at a fast idle for two to three minutes.

Loosen the bleed screw occasionally to purge any trapped air.

6. Stop the engine and check the coolant bottle level. Fill as required.
7. Feel the heat exchangers under the running boards. If the system is

bled properly, they'll be warm to the touch. If they're not, repeat step

5. Lift the front of the machine slightly to assist in the bleeding.

8. Replace the pressure cap and carefully lower the front end of the

machine.

99

MAINTENANCE

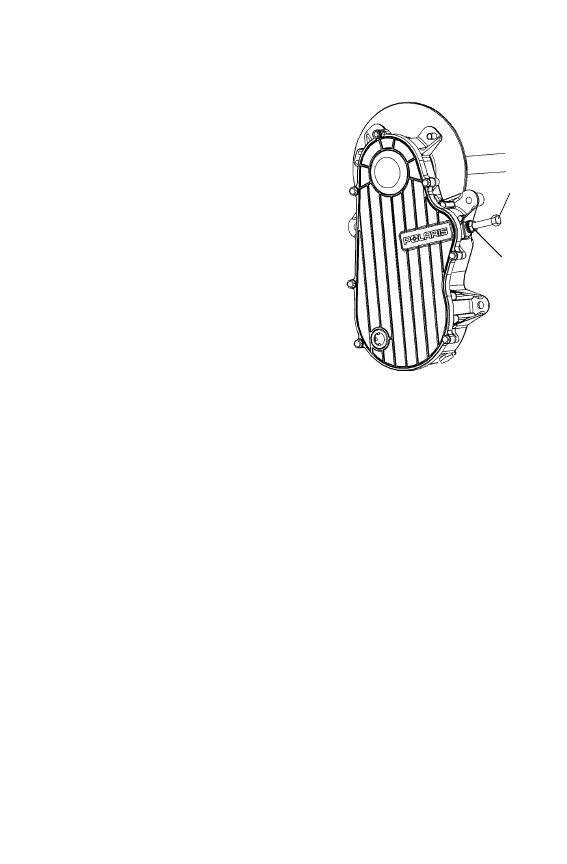

Drive Chain Tension

Check drive chain tension weekly and

before each long trip. To obtain correct

chain tension:

1. Rotate the driven clutch counter-

clockwise to move all chain slack to

the tensioner side. Lock the brake

lever lock, or have an assistant hold

the brake lever firmly.

2. Loosen the adjuster bolt jam nut (1).
3. Finger tighten the adjuster bolt (2)

until it can no longer be adjusted by

hand, then back off 1/4 turn.

4. Tighten the jam nut while holding

the adjuster bolt. Torque to 21 ft.

lbs. (28 Nm).

5. Release the brake lever lock.

11

2

100

MAINTENANCE

Brakes

n

Hydraulic Brake Inspection

Inspect the brake lever reserve before each use of the snowmobile. See

page 67.
Brake pads must be replaced when the brake pad material becomes thin-

ner than the backing plate, approximately 1/16" (1.5 mm). A kit is avail-

able for replacing brake pads. See your dealer.

WARNING! Brake failure during operation can result in serious injury or death.

Properly functioning brakes are vital to your safety. Be sure the brake pads do

not drag on the disc and that brake lever travel is not excessive. Always replace

brake pads when the brake pad material becomes thinner than the backing

plate, approximately 1/16" (1.5mm).

Brake Components

1. Brake Caliper
2. Brake Disc
3. Brake Pad Material

(Replace when thickness is

less than 1/16I/1.5 mm).

Excessive Lever Travel

Hydraulic brakes are self-

adjusting, but if excessive

brake pad clearance develops

bring the snowmobile to an

authorized Polaris dealer for

inspection and adjustment.

2

1

3
