30

THE PERFECT FIT

Front Suspension Adjustments

For the best ride, the suspension should be adjusted to use the full travel

of the shocks with occasional light bottoming. To determine if your

machine is using full travel, push the jounce bumper down on the shock

rod until it contacts the body and test ride the machine. The bumper will

move up on the rod in relation to the amount of travel that was used dur-

ing the ride. If the travel is full, the bumper will be seated at the top of

the rod.

Shock Components

The front springs can be

changed if spring preload

alone isn't sufficient and

further adjustment is

desired to control suspen-

sion stiffness. See your

Polaris dealer for more

information.

1. Retainer
2. Shock Rod
3. Jounce Bumper
4. Body
5. Threaded Spring Pre-

load Adjuster Nut

WARNING

Always verify ski alignment before making adjustments to the IFS. See page

102 to check alignment. If the skis are misaligned, see your dealer, as the

camber adjustment may also be affected.

2

3

4

5

1

31

THE PERFECT FIT

Front Suspension Adjustments

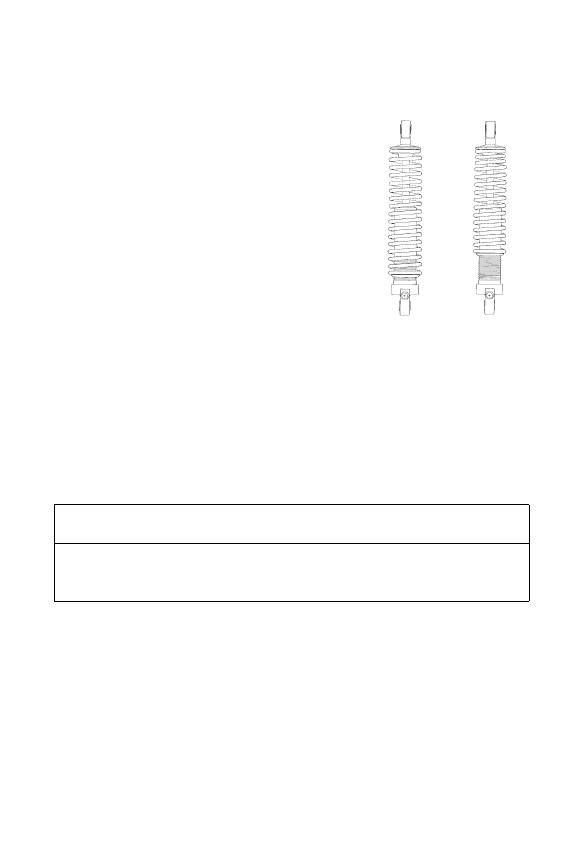

Spring Preload

Increasing spring preload will increase

ski-to-ground pressure. Decreasing

spring preload will decrease ski-to-

ground pressure. When adjusting, be

sure the springs on both the left and right

sides of the machine are at the same

adjustment.

To increase front shock spring preload,

grasp the spring and turn it to the right.

Turn it to the left to decrease preload.

Increasing the spring preload too much

may adversely affect the handling of the

snowmobile and the performance of the

suspension. Never exceed one inch of

preload beyond the factory settings, and

ensure that both sides are adjusted the

same. When decreasing preload, make sure at least two turns of preload

are holding the spring between the retainer on top of the shock and the

threaded spring preload adjuster nut on the shock body.

NOTE: Not all models have shocks with thread adjustable spring pre-

load. See your dealer for more information.

Front Springs

For models without externally adjustable or revalvable shocks, the front

springs can be changed if spring preload alone isn't sufficient and fur-

ther adjustment is desired to control suspension stiffness. See your

Polaris dealer for more information.

CAUTION

Always leave one thread showing above the adjuster nut. On models

equipped with a plastic adjuster nut, if the nut is unscrewed from the

threaded body, the nut will break.

Low

Preload

High

Preload

32

THE PERFECT FIT

Rear Suspension Adjustments

Rider weight, riding style, trail conditions, and vehicle speed all affect

suspension action.

Each rear suspension can be adjusted to suit rider preference and deliver

excellent performance for a given set of conditions. However, all sus-

pension designs and adjustments involve a compromise, or trade-off.

For example, a suspension set up for snowcross racing would provide a

very stiff ride on the trail. A suspension set up for trail riding would bot-

tom out harshly on a snowcross course.

See your Polaris dealer for initial suspension setup information. Addi-

tional adjustments can be made after initial setup. Make adjustments to

one area at a time so you can evaluate the change. For further assistance,

see your dealer.

33

THE PERFECT FIT

Rear Suspension Adjustments

Suspension Performance Tips

• Rider weight usually determines the position at which the spring pre-

load should be set. However, this may vary with riding style. With a

little experimentation, each rider can find a preferred setup. These

adjustments are easy to make, involve very little time or effort, and

greatly affect the ride.

• In deep snow, a new rail slide will offer improved performance over

worn rail slide. It can also improve top speed.

• When riding on ice or hard-packed snow, adding a set of bogie wheels

to the rail may enhance the machine's performance. Bogie wheel kits

are available from your dealer.

• Polaris offers track kits for improved flotation in deep snow. See your

dealer for assistance.

NOTE: Keep the suspension pivot points lubricated. This will reduce

moisture and rust build-up and ensure proper function of the

suspension components. Grease rear suspension pivots before

adjusting the rear suspension. See page 76.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment. Refer to the track tension maintenance sec-

tion beginning on page 98.
