96

MAINTENANCE

Chain Tension

Maintain the proper chain tension as outlined on page 85.

Fall Tune-Up

For maximum performance, arrange for a fall service tune-up with your

Polaris dealer. His experienced and trained service technician will keep

your machine in peak operating condition.

Tool Kit

A tool kit is included with each machine for emergency and routine

maintenance. Always keep the tool kit with the snowmobile.

97

MAINTENANCE

Track

Track Inspection

1. Using a hoist, safely lift and

support the rear of the snow-

mobile off the ground.

2. Rotate the track by hand to

check for damage.

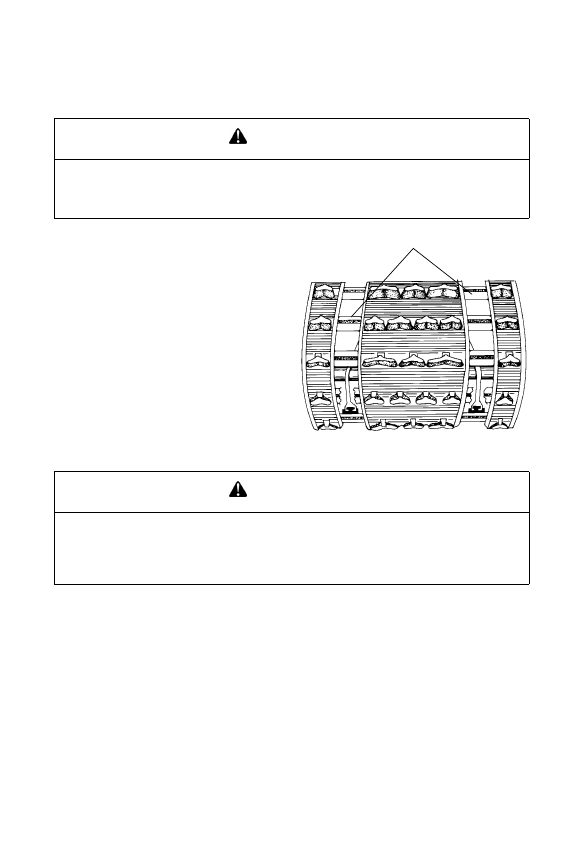

3. Carefully examine the track

along the entire length of each

rod (+). Bend the track to

check for breakage.

4. Replace the track if any rod

damage is found.

Track Lubrication

The slide rail needs snow for lubrication. Excessive wear indicates

insufficient lubrication. A new rail slide can cause faster heat build-up

in limited lubrication, resulting in excessive wear.

NOTE: If excessive rail slide wear occurs due to poor snow conditions,

additional wheel kits are available. See your dealer for more

information.

NOTE: Track damage or failure caused by operation on ice or under

other poor lubrication conditions will void the track warranty.

WARNING

Broken track rods can cause a rotating track to come off the machine, which

could cause serious injury or death. Never operate with a damaged track.

Never rotate a damaged track under power.

WARNING

Operating with insufficient lubrication between the rail slide and track guide

clips can cause track failure, loss of vehicle control and loss of braking ability,

which can result in serious injury or death. Avoid operating for extended peri-

ods on ice and other surfaces that have little or no snow for lubrication.

+

98

MAINTENANCE

Track



Track Tension

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment.

NOTE: Tension adjustments should be made only after the track is

warmed up and limber.

1. Turn the engine off.
2. Lift the rear of the machine and safely support it off the ground.
3. Place the recommended weight or downward pressure on the track

at the specified distance (see chart) ahead of the center of the rear

idler wheel.

NOTE: Measure at the point where the weight is hanging.

WARNING

Moving parts can cut and crush body parts. When performing the checks and

adjustments recommended on the following pages, stay clear of all moving

parts. Never perform track measurement or adjustments with the engine run-

ning.

TRACK TENSION DATA CHART

Suspension

Weight

Measurement

Location

Slack

Measurement

EDGE 136

10 lbs. (4.54 kg)

16

I

 ahead of

rear idler shaft

1 1/8

I

-1 3/8

I

(2.9-3.5 cm)

99

MAINTENANCE

Track

Track Tension

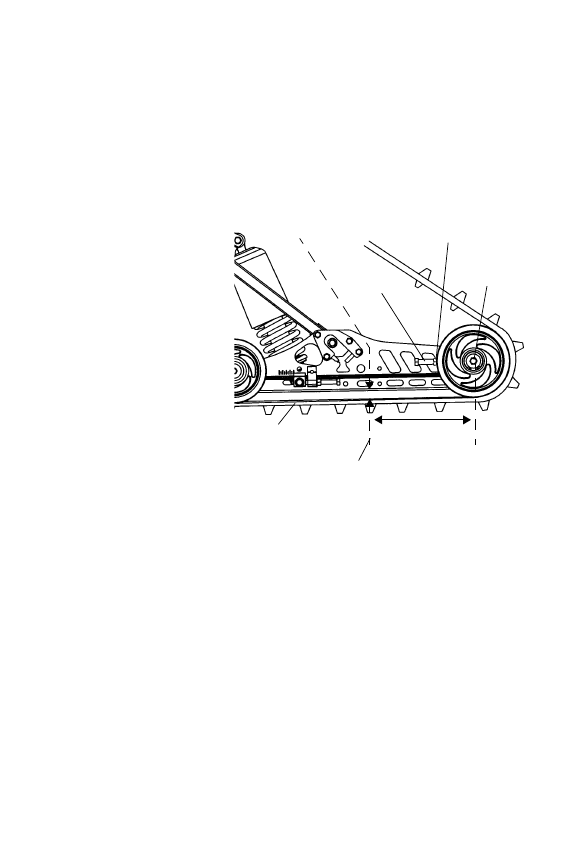

4. Check for specified slack between the wear surface of the track clip

and the plastic slider. Refer to the Track Tension Data Chart on page

98.

If the track needs adjustment:

5. Loosen the rear idler

shaft bolts.

6. Loosen the locknuts.
7. Tighten or loosen the

track adjusting

screws to provide

equal adjustment on

both sides of the

track.

8. Repeat the measure-

ment on the other

side of the track.

NOTE: Check more fre-

quently when

the machine is

new.

9. Start the machine and slowly rotate the track at least five revolu-

tions. Let the track come to a stop (do not apply brakes).

10. Check track alignment (see page 100) and adjust as necessary.
11. Tighten the locknuts.
12. Tighten the idler shaft bolts.
13. (

n

) Torque idler shaft bolts to 35 ft. lbs. (47.5 Nm).

S

Slack

Measurement

Adjusting

Screw

Locknut

Shaft Bolt

Track

10 lbs. (4.54 kg)

16

I

 (40 cm)
