92

MAINTENANCE

Clutch System

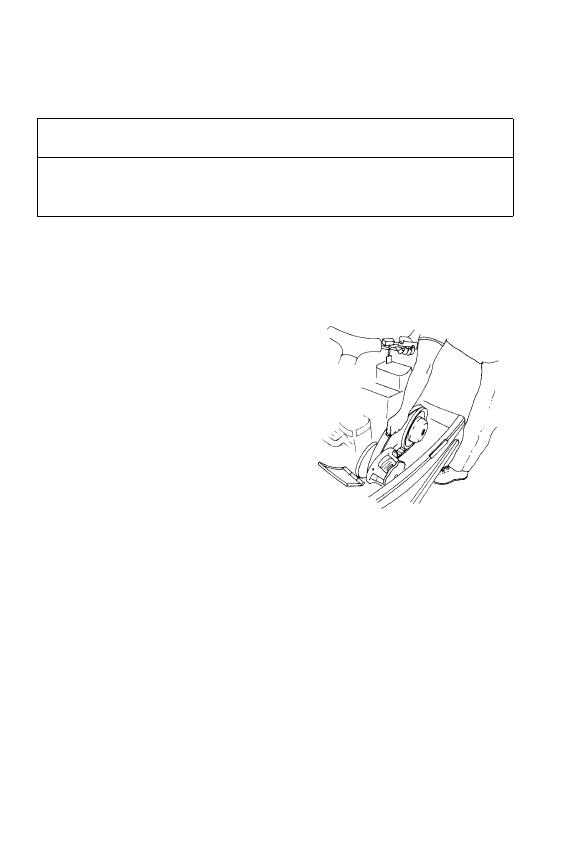

Drive Belt Removal

1. Stop the engine after operating in a forward motion.
2. Turn the ignition key off. Wait for the engine to stop completely.
3. Lock the parking brake (if equipped).
4. Open the hood.
5. Remove the clutch guard retain-

ing pin and open the clutch

guard.

6. Locate the L-wrench in the tool

kit and install it into the open

threaded hole in the outer sheave

of the clutch. Rotate the wrench

until the sheaves open far enough

to remove the belt.

7. Firmly grasp the belt midway

between the clutches and pull

upward and rearward to remove.

See illustration.

CAUTION

Do not attempt to remove the drive belt after operating in reverse. The snow-

mobile must be stopped after forward motion to prevent damage to compo-

nents during belt removal.

93

MAINTENANCE

Clutch System

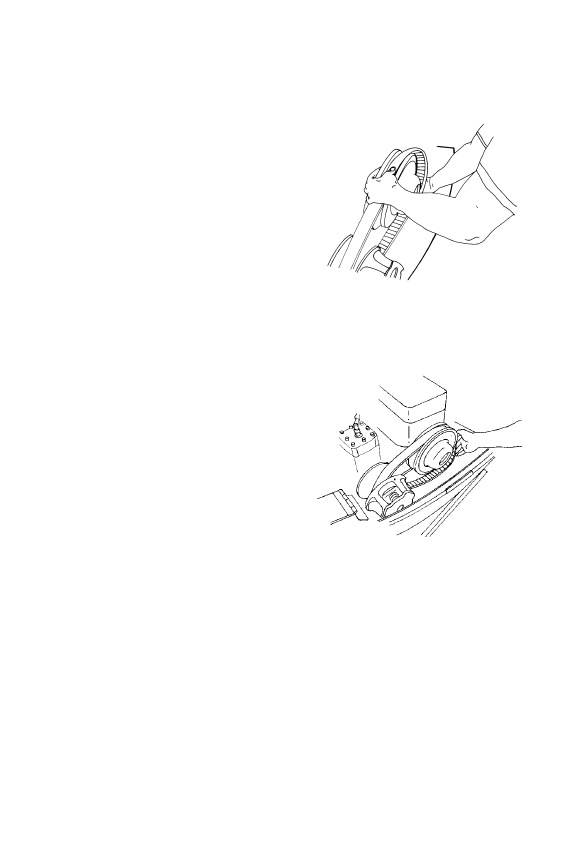

Drive Belt Installation

1. Drop the drive belt over the

drive clutch and pull back

the slack.

NOTE: To ensure satisfactory

belt life, install belts so

they operate in the

same direction of rota-

tion by positioning the

identification numbers

so that you can read

them. If required, sepa-

rate the sheaves as

outlined in the belt removal procedures.

2. Turn the driven clutch moveable sheave clockwise while pushing

inward and forcing the belt down between the sheaves.

3. Hold the belt down between

the sheaves and roll the bot-

tom portion over the outer

clutch sheave. Work the belt

to the outer edge of the

sheave.

4. Rotate the L-wrench to

tighten the sheaves. Remove

the wrench and store in the

tool kit.

5. Close the clutch guard and

reinstall the retaining pin.

6. Close and secure the hood and release the parking brake.

94

MAINTENANCE

Clutch System

n

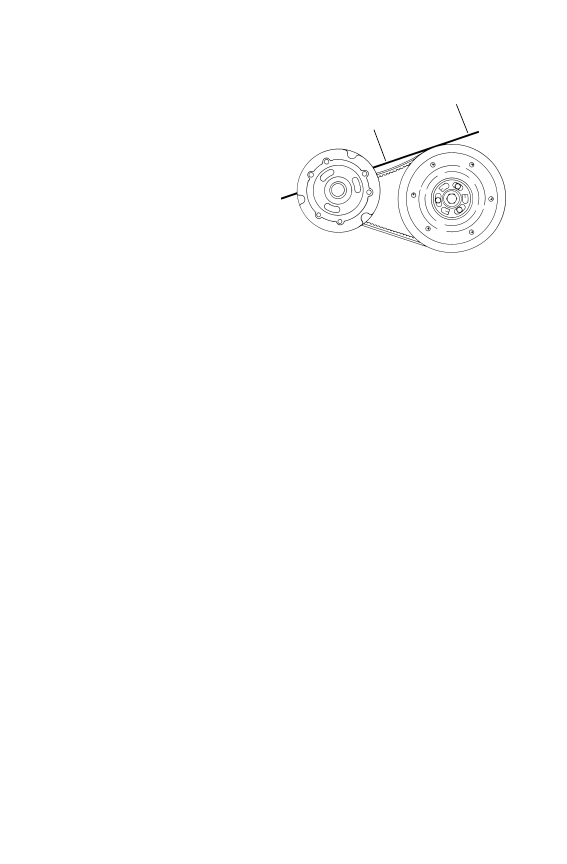

Drive Belt Deflection

Measure belt deflection with both

clutches at rest and in their full

neutral position.

Place a straight edge (1) on the

belt and apply downward pressure

while measuring at point 2. This

measurement should be 1 1/4

inches (3.2 cm).

Drive Belt Adjustment

Belt deflection can be adjusted without removing the clutch from the

jackshaft.

1. Loosen the 7/16-inch jam nut on the belt width adjuster.
2. Using a 1/8-inch Allen wrench, adjust the threaded set screw as

needed.

NOTE: Turn the set screw in (clockwise) to increase the distance

between the sheaves and out (counterclockwise) to decrease

the distance.

3. Tighten the jam nut.

1

2

95

MAINTENANCE

Clutch System

Torque Stop

If your snowmobile is equipped

with an engine torque stop, periodi-

cally check torque stop clearance.

With clutches in proper alignment,

the torque stop clearance should be

.010I-.030I (.25-.75 mm) from the

engine case.

Adjust if necessary, and lock the

jam nut.

Reverse Maintenance

If your snowmobile is equipped

with reverse, or if you have a

reverse kit installed, it's especially important to maintain track tension

as specified on page 98.

Allow the engine to reach idle speed before attempting to shift into or

out of reverse.

WARNING

Improper track tension can cause serious damage to the snowmobile, which

can result in loss of vehicle control and serious injury or death. Always main-

tain the track tension as specified.

CAUTION

Damage will occur to chaincase or transmission if shifting is attempted before

the machine has come to a complete stop. Make sure the snowmobile has

completely stopped and the engine has returned to idle speed before shifting

gears.

.010-.030

I

(.25-.75 mm)
