Snowmobile Polaris SPORT TOURING/INT’L (2004 year). Instruction - part 10





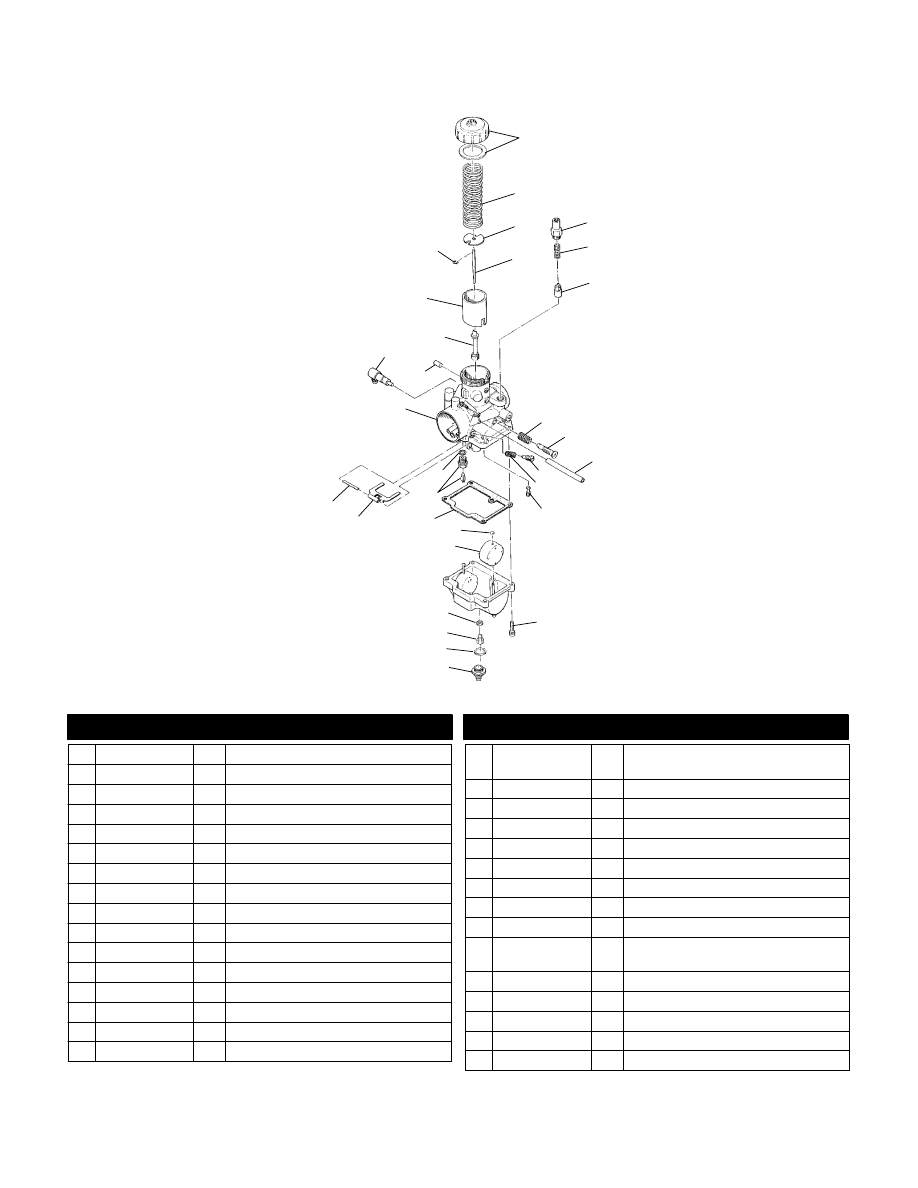

C9

CARBURETOR

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

26

1

2

3

31

4

30

29

5

6

7

9

8

11

12

13

22

23

24

25

21

19

20

16

15

17

14

18

28

27

10

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3130877

1 Asm., Mixing Chamber Top

2 3130439

1 Spring, Throttle

3 3130879

1 Plate, Throttle

4 3131416

1 Needle, Jet (6BGY16-3)

5 3130199

1 Cap, Plunger

6 3130884

1 Spring, Plunger

7 3130328

1 Asm., Plunger

8 3130010

1 Spring, Throttle Adjuster

9 3130437

1 Screw, Throttle Stop

10 3131288

1 Hose

11 3130011

1 Screw, Air

12 3130012

1 Spring, Screw, Throttle Stop

13 3130067

1 Jet, Pilot (#40)

14 3130025

4 Asm., Screw and Washer

15 5020476

1 Fitting, Sediment

16 3130239

1 O-Ring

17 3130130

3130131

1

1

Jet, Main (#270)(Mag)

Jet, Main (#280)(PTO)

18 3130014

1 Washer

19 3130430

2 Asm., Float

20 3130237

2 Cap

21 3130020

1 Gasket, Float Chamber

22 3131146

1 Valve, Needle (1.5)

23 3130017

1 Packing, Needle Valve

24 3130018

1 Arm, Float

25 3130361

1 Pin, Float

26 3131520

3131521

1

1

Asm., Carburetor (Incl. All)(Mag)

Asm., Carburetor (Incl. All)(PTO)

27 3083337

1 Valve, Check, Complete

28 3130479

1 Cap

29 3130894

1 Jet, Needle, Q-2 (480)

30 3130372

1 Valve, Throttle (3.0)

31 3130508

1 E-Ring

4/03

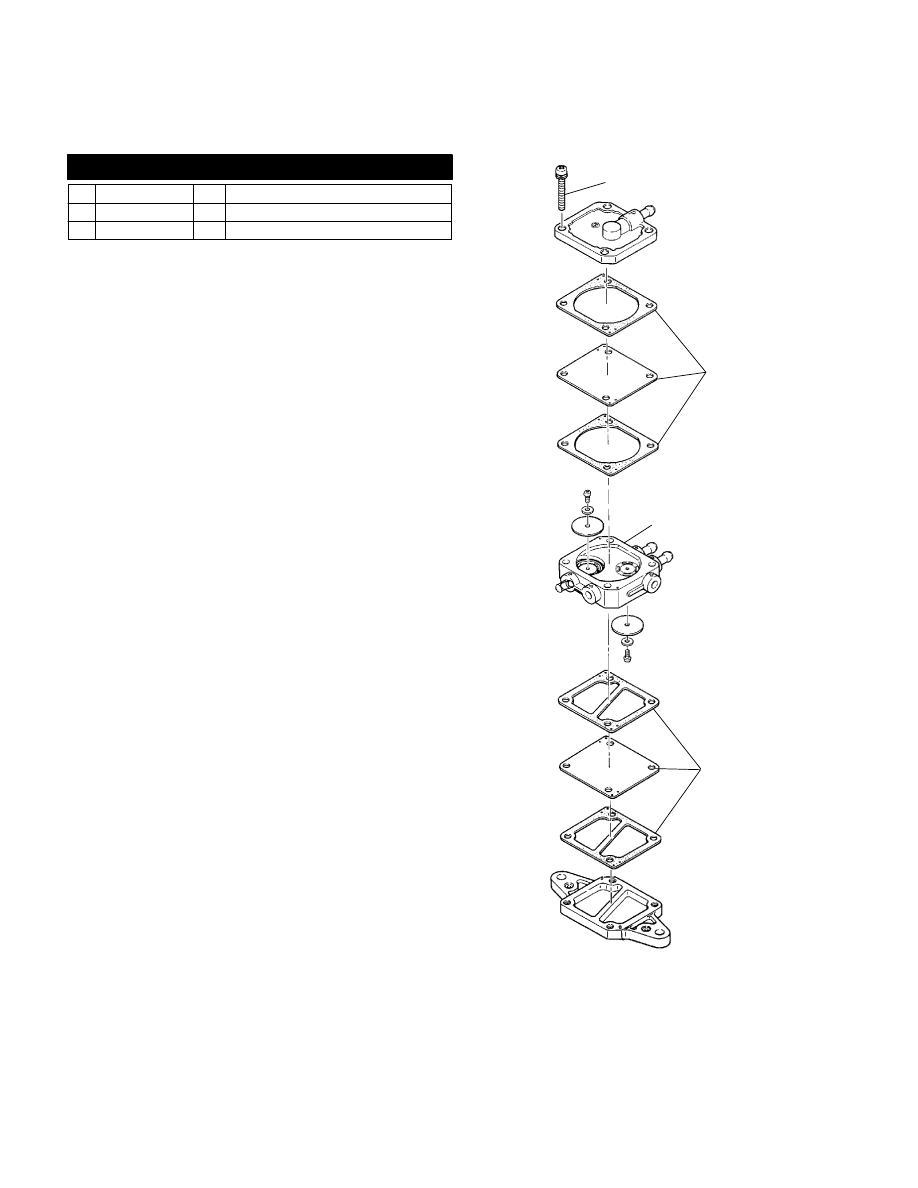

C10

FUEL PUMP

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

1 3084591

4 Screw

2 3084590

1 Diaphragm, Gasket Set

3 3085490

1 Asm., Fuel Pump (Incl. All)

4/03

1

3

2

2

E

2003 Polaris Sales Inc.

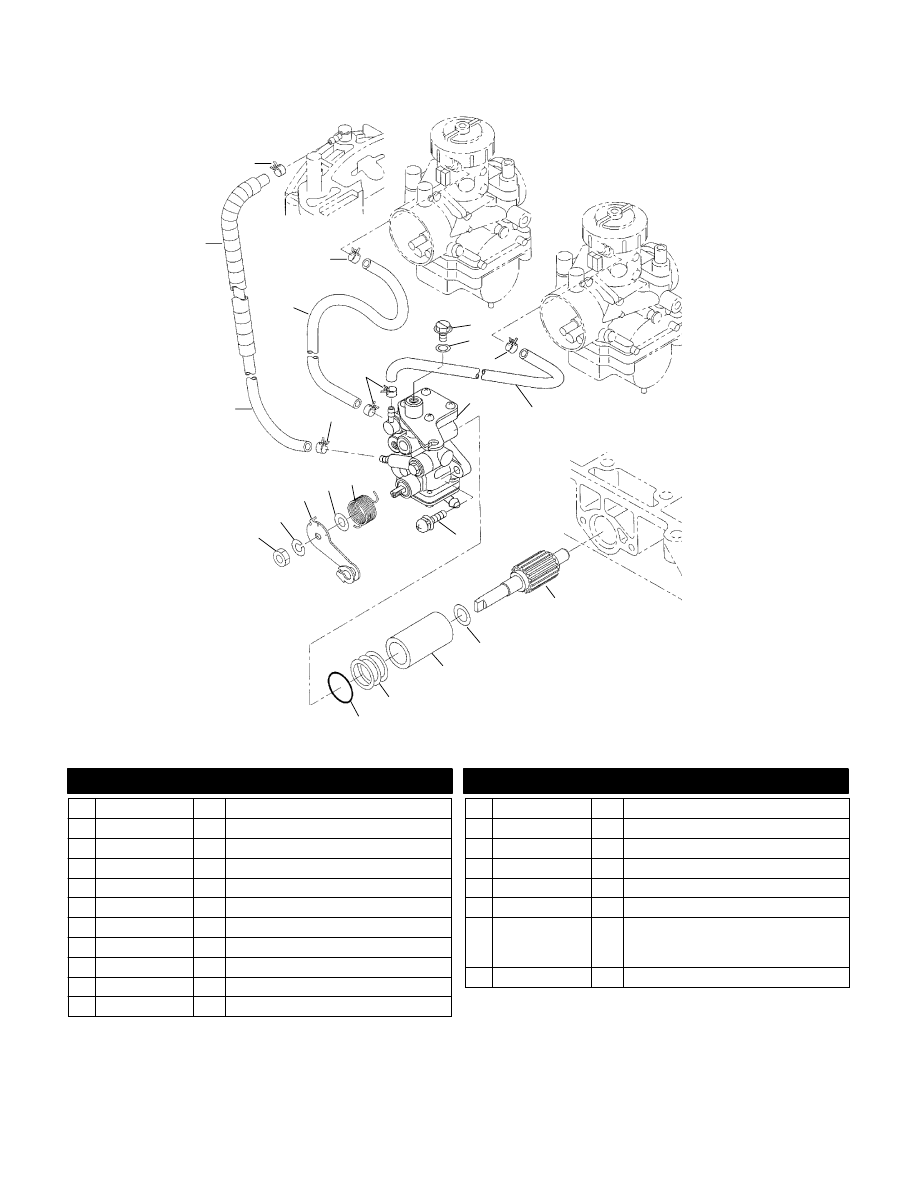

C11

OIL PUMP

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

4

1

1

1

1

5

6

8

9

10

11

12

13

14

15

17

18

19

16

E

2003 Polaris Sales Inc.

1

2

3

7

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3083141

6 Clamp, Hose

2 3087114

1 Tube

3 3087113

1 Pipe, Rubber

4 3085157

1 Pipe, Vinyl, 1

5 3083125

1 Screw, Air Vent

6 3083126

1 Packing

7 3087185

1 Pipe, Vinyl

8 3089223

1 Asm., Oil Pump (Incl. 3-13,19)

9 3089228

1 Spring, Return

10 3083445

1 Collar, Cam Shaft

11 3089227

1 Lever, Control

12 3083121

1 Washer, Spring

13 3083120

1 Nut

14 3083783

2 Asm., Screw and Washer

15 3083131

1 Gear, Small

16 3083130

1 Spacer

17 3083353

1 Bushing, Oil Pump

18 3083671

3083672

3083673

AR

AR

AR

Spacer 1 (.15)

Spacer 2 (.3)

Spacer 3 (.6)

19 3083127

1 O-Ring

4/03

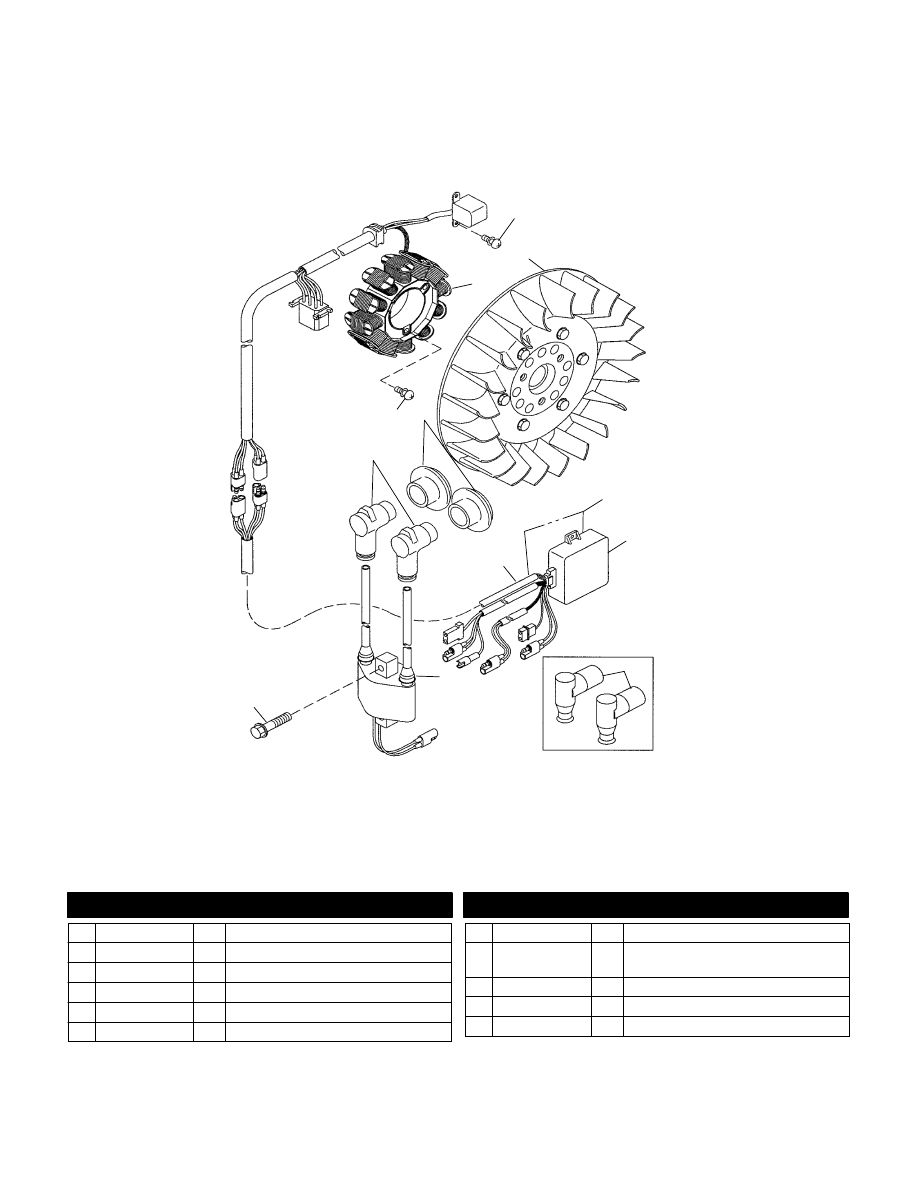

C12

MAGNETO

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

4

5

7

11

6

8

3

2

1

6

9

10

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3085698

2 Asm., Screw and Washer

2 3087213

1 Asm., Flywheel

3 3087212

1 Asm., Stator

4 3085697

3 Asm., Screw and Washer

5 3085935

2 Cap, Spark Plug

6 3086976

2 Cap, Spark Plug

7 3084177

2 Bolt, Flange

8 3087216

3087214

1

1

Coil, Ignition

Asm., Coil, Ignition (Incl. 6)

9 3087219

1 Unit, Harness

10 3089229

1 System, CDI (Includes 9,11)

11 3089230

1 System, CDI Unit

4/03
