Snowmobile Polaris SPORT TOURING/INT’L (2004 year). Instruction - part 9





C5

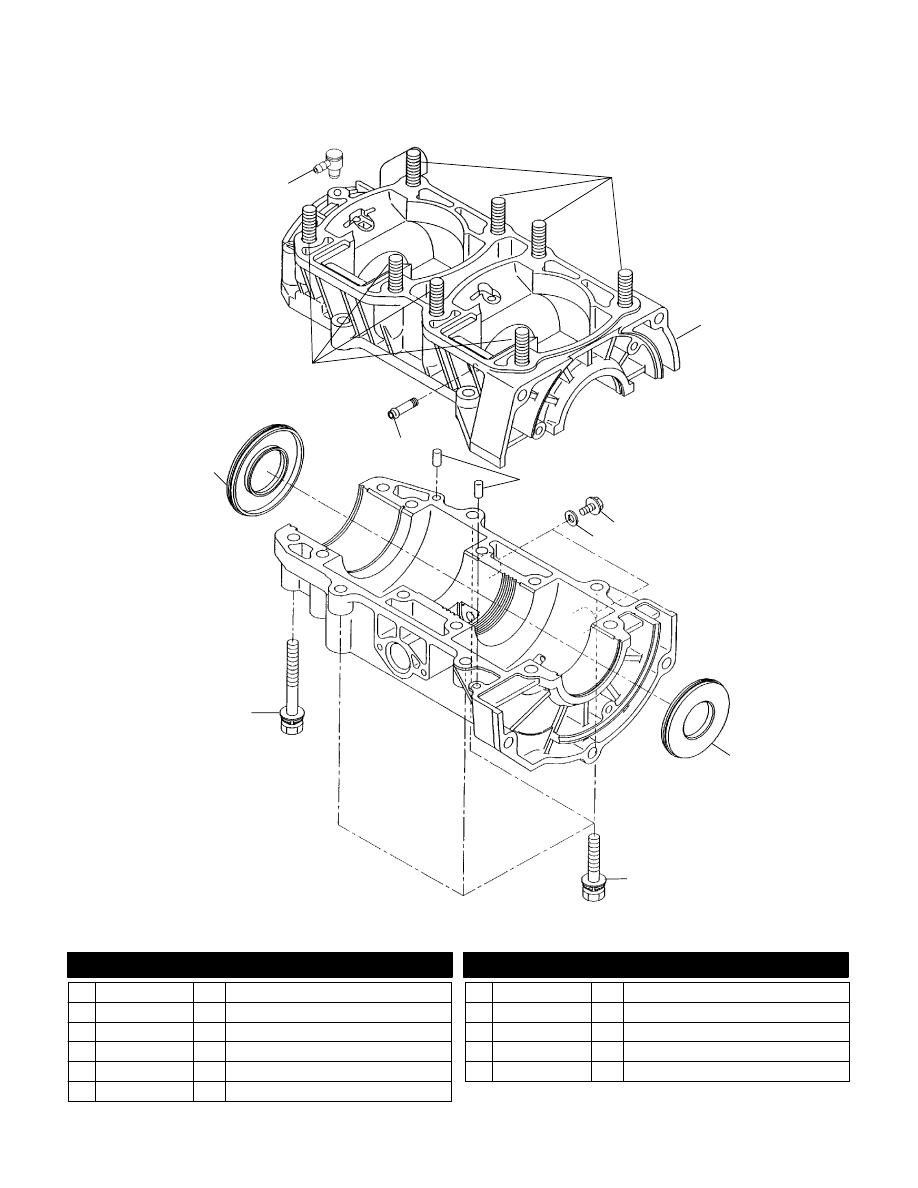

CRANKCASE

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

3

4

11

9

8

10

5

7

6

2

2

E

2003 Polaris Sales Inc.

1

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3085462

1 Nipple

2 3085713

8 Stud

3 3089225

1 Asm., Crankcase (Incl. 2-5,9,10)

4 3083798

1 Pipe, Pulse

5 3080103

2 Pin, Dowel

6 3083568

2 Bolt, Flange

7 3082758

2 Gasket, Aluminum

8 3085664

1 Seal, Oil

9 3084225

4 Asm., Bolt and Washer

10 3084670

10 Asm., Bolt and Washer

11 3085241

1 Seal, Oil

4/03

C6

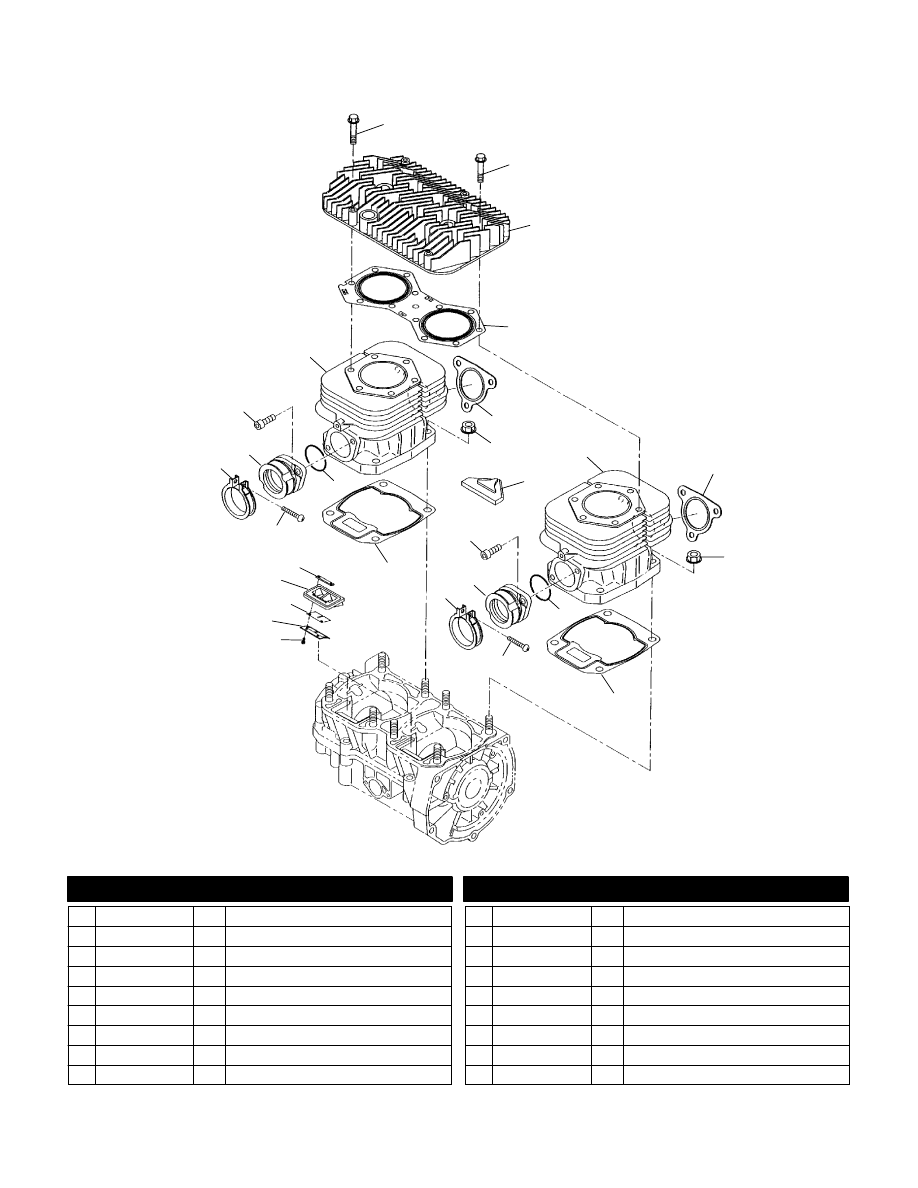

CYLINDER

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

6

14

15

2

3

18

16

7

8

17

5

4

11

12

9

13

10

1

1

4

5

8

11

12

13

9

10

7

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3084271

12 Bolt, Flange

2 3088215

1 Head, Cylinder

3 3085704

1 Gasket, Head

4 3085714

2 Gasket, Exhaust

5 3082911

8 Nut, Flange

6 3085692

1 Cover, Cylinder Baffle

7 3089226

2 Unit, Cylinder

8 3085666

2 Gasket, Cylinder

9 3081497

2 Screw

10 3085619

2 O-Ring

11 3081330

4 Bolt, Allen

12 3085670

2 Adaptor (Incl. 10)

13 3083166

2 Asm., Band, Adaptor (Incl. 9)

14 3085717

4 Asm., Screw and Washer

15 3086387

2 Stopper

16 3085715

2 Valve

17 3086386

2 Asm., Reed Valve (Incl. 6,14-16,18)

18 3086388

2 Plate

4/03

C7

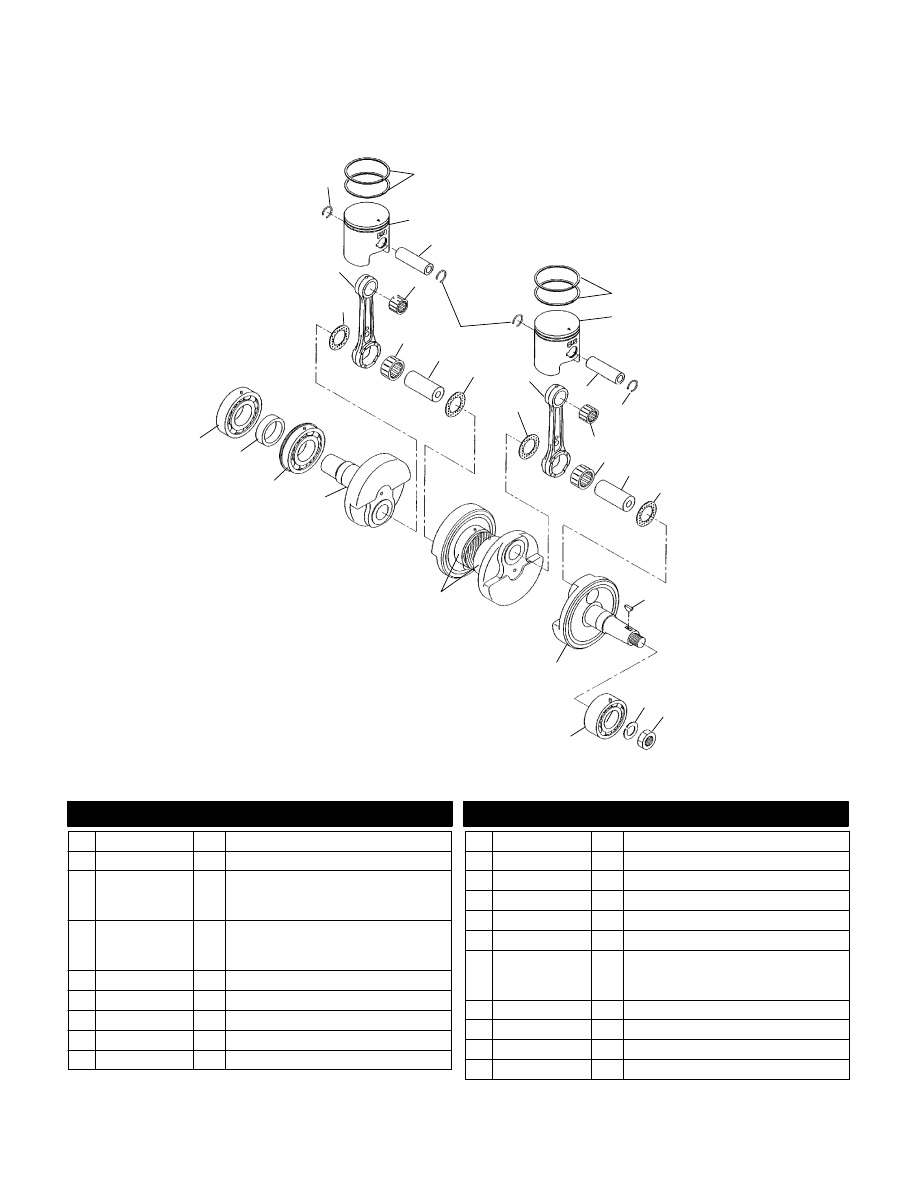

PISTON and CRANKSHAFT

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

1

1

1

2

3

3

4

4

7

7

7

7

6

5

5

8

8

11

12

13

19

18

17

15

2

10

9

14

9

6

16

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

3085674

1 Crankshaft 2 (Incl. 9)

1 3084167

4 Clip, Piston Pin

2 3086988

3086989

3086990

4

4

4

Ring, Piston (Standard)

Ring, Piston (0.25 O/S)

Ring, Piston (0.50 O/S)

3 3088216

3088217

3088218

2

2

2

Piston Set (Standard)(Incl. 1)

Piston Set (0.25 O/S)(Incl. 1)

Piston Set (0.50 O/S)(Incl. 1)

4 3083838

2 Pin, Piston

5 3083216

2 Bearing, End, Small

6 3240083

2 Rod, Connecting

7 3083277

4 Spacer, Crank Pin

8 3086390

2 Bearing, End, Large

9 3083456

2 Pin, Crank, 2

10 3085754

1 Bearing, Ball

11 3085677

1 Spacer

12 3085753

1 Bearing, Ball

13 3088199

1 Crankshaft 3 (PTO Side)

14 3084586

2 Bearing, Ball

15 3088198

3087177

1

1

Asm., Crankshaft

(Incl. 7-16)

Crankshaft 1 (MAG Side)

16 3084681

1 Bearing, Ball

17 3083093

1 Nut

18 3083094

1 Washer, Spring

19 3080130

1 Key, Woodruff

4/03

C8

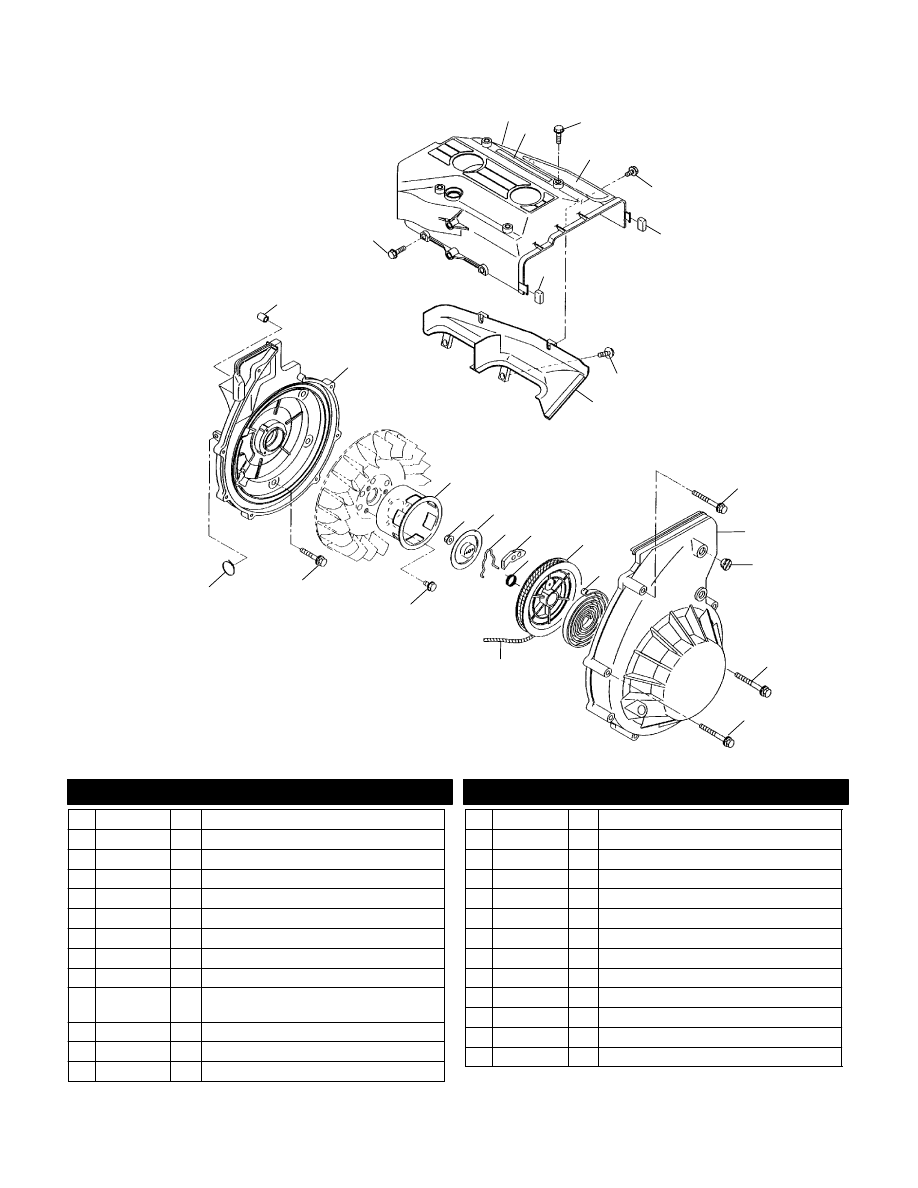

BLOWER HOUSING & RECOIL STARTER

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

1

8

23

7

11

25

21

20

9

6

10

24

13

26

14

15

16

17

18

19

3

5

6

7

9

22

2

4

12

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3086991

1 Baffle, Cylinder, 1

2 7079511

1 Decal, “POLARIS”, Engine Shroud

3 3084566

4 Bolt, Flange

4 7079510

1 Decal, “550”, Engine Shroud

5 3085693

2 Bolt, Flange

6 3085690

2 Cap, Cylinder Baffle

7 3085694

4 Bolt, Flange

8 3085691

1 Baffle, Cylinder, 2

9 3083550

5 Asm., Bolt and Washer

10 3087206

3087180

1

1

Starter, Recoil (Incl. 10,13-19,26)

Case, Starter

11 3086792

1 Plug, Rubber

12 3082030

1 Bolt and Washer

13 3083376

1 Spring, Spiral

14 3083377

1 Reel, Complete

15 3083463

1 Spring, Return

16 3087207

1 Ratchet

17 3083379

1 Spring, Friction

18 3083464

1 Plate, Friction

19 3083381

1 Nut, Flange

20 3087181

1 Pulley, Starter

21 3087020

1 Housing, Blower

22 3084857

2 Pin, Straight

23 3084823

1 Band, Wire

24 3084225

5 Asm., Bolt and Washer

25 3085688

3 Asm., Bolt and Washer

26 3085723

AR Rope, Starter

4/02
