Snowmobile Polaris SPORT TOURING/INT’L (2004 year). Instruction - part 2





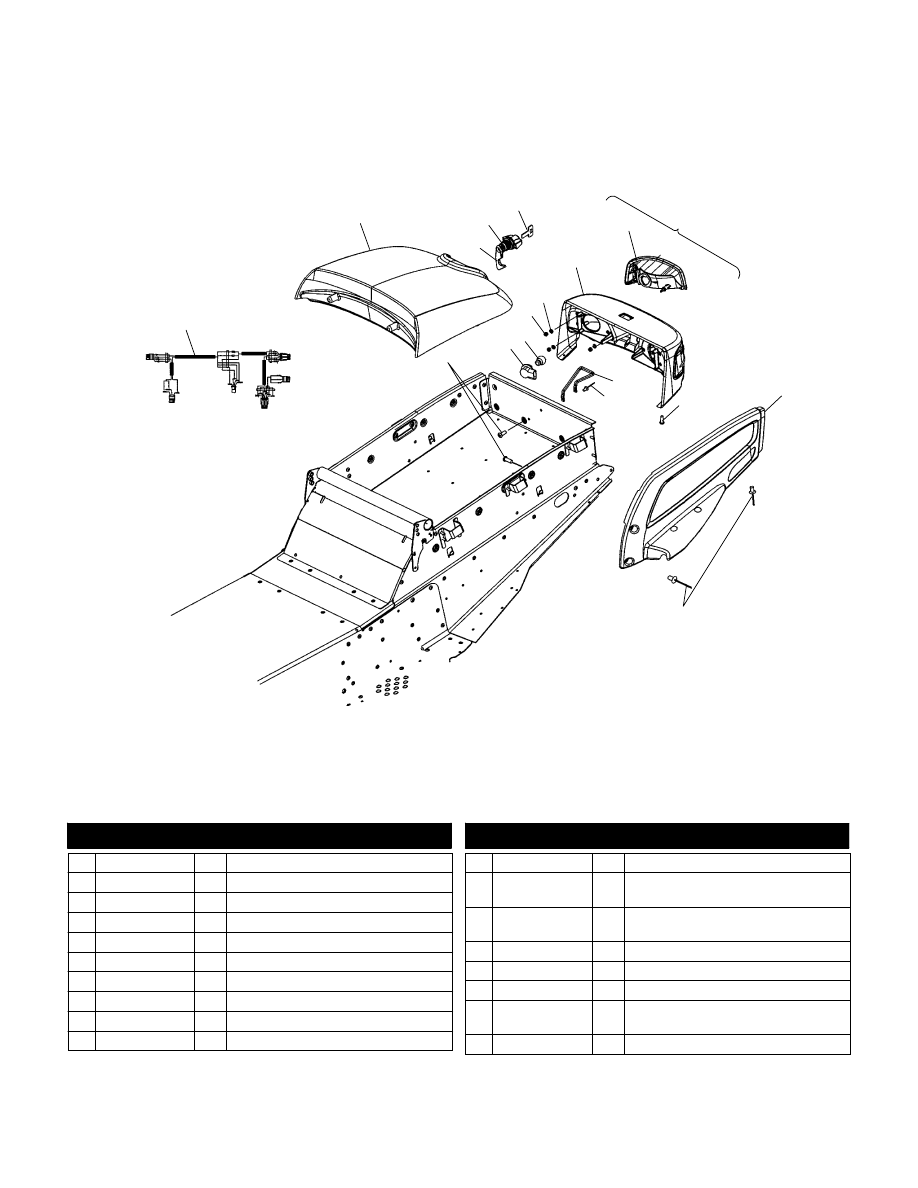

A5

CARGO BOX/TAILLIGHT ASM.

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

2

4

5

7 8

9

10

12

11

14

15

16

17

18

1

3

6

13

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 2461166

1 Harness, Taillight

2 2632641

1 Asm., Cover, Trunk (Incl. 3)

3 5246525

1 Pawl, Trunk Lock

4 7081093

1 Lock, Trunk (Incl. 5)

5 4010873

1 Asm., Ring w/Key

6 7512076

14 Screw

7 4010767

2 Socket, Bulb

8 4010764

2 Bulb, Taillight

9 7546703

6 Nut, Nylok

10 7556088

6 Washer, Flat

11 --------------

1 Housing, Taillight

12 2410327

2410328

1

1

Asm., Reflector, LH

Asm., Reflector, RH

13 2410324-341

1 Asm., Taillight, Edge Touring, Sonic

Blue (Incl. 9-12)

14 7517560

2 Screw

15 5246523

1 Bail, Trunk Lock

16 7661637

2 Rivet

17 5434583-341

5434584-341

1

1

Skirt, Snow, Edge, Sonic Blue, LH

Skirt, Snow, Edge, Sonic Blue, RH

18 7621467

12 Rivet

4/03

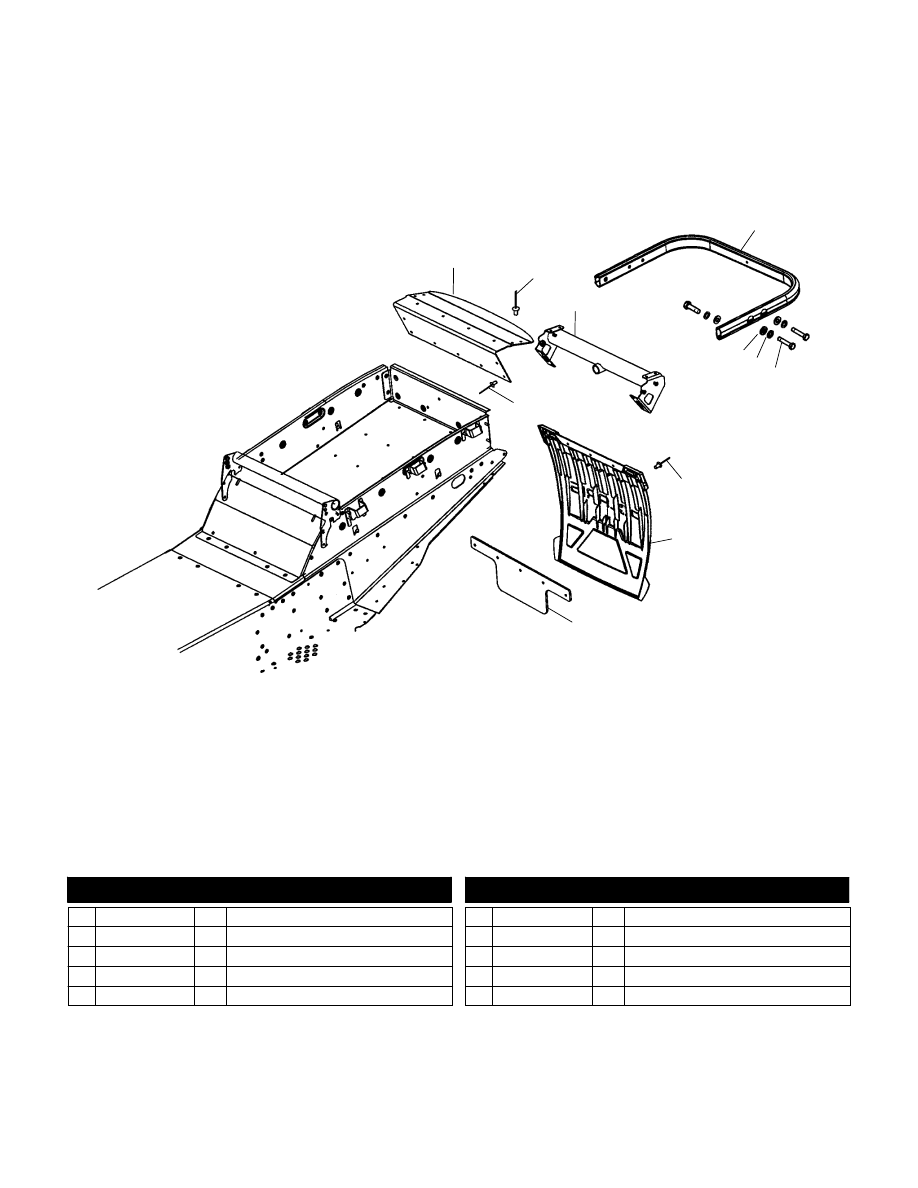

A6

BUMPER/HITCH/FLAP

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

1

2

3

4

5

6

7

8

9

2

10

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 5246282

1 Bracket, Hitch/Flap

2 7661637

10 Rivet

3 1013859-067

1 Hitch

4 2632576-309

1 Asm., Rear Bumper, Touring, Natural

5 7512240

6 Bolt

6 7552801

6 Washer, Spring Lock

7 7558301

6 Washer, Flat

8 7621418

5 Rivet

9 5434356-1106

1 Flap, Snow, RMK, Black w/Chrome

10 5812229

1 Support, Snow Flap

4/03

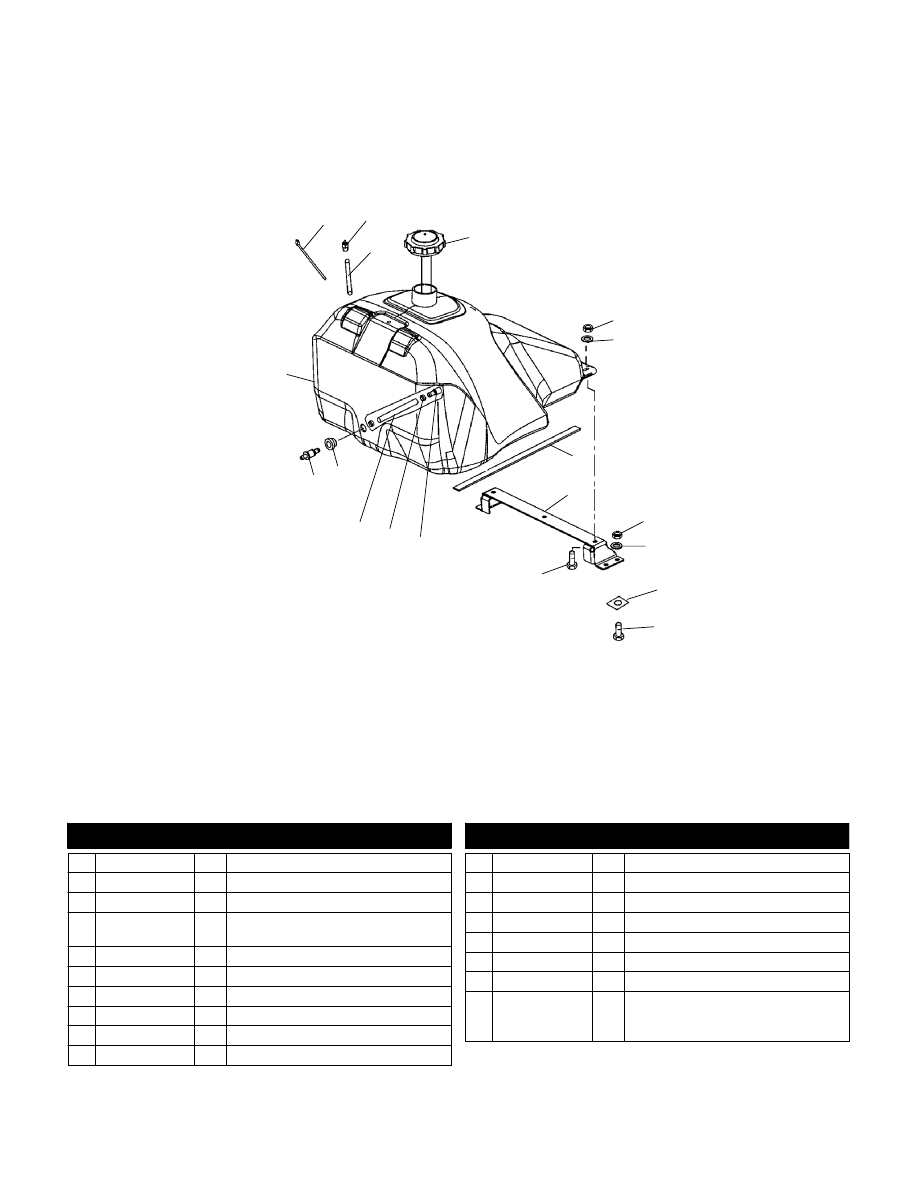

A7

GAS TANK

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

8

4

18

17

13

2

6

14

15

7

5

10

11

16

3

1

12

9

5

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7080804

2 Cable Tie, Releasable

2 7052095

1 Fitting, 90 Degree

3 8450061-600

AR Line, Fuel

4 2520323

5810512

1

1

Asm., Cap, Fuel

Gasket, Fuel Cap

5 7542122

4 Nut, Nylok

6 7555960

2 Washer, Flat

7 5810947

2 Foam, Seal, Rear, Cooler

8 5246436-067

1 Bracket, Gas Tank

9 7555843

2 Washer, Flat

10 7670021

2 Nut, Speed

11 7512193

2 Bolt, Carriage

12 7512247

2 Bolt

13 7052301

1 Pickup Fuel, w/Filter

14 7080402

2 Ring, Compression

15 8350020-160

AR Line, Fuel

16 5432981

1 Grommet

17 7052321

1 Fitting

18 2520340

5434981-070

1

1

Asm., Fuel Tank, Edge, Touring

(Incl. 2, 13-18)

Tank, Fuel

4/03

A8

NOSEPAN

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

1

2

12

11

19

8

16

24

15

23

13

8

14

22

21

20

7

3

6

5

6

18

17

17

25

1

9

10

4

4

8

1

1

1

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7661637

14 Rivet

2 5243992-067

1 Hinge, Lower, Pivot, RH

3 5243978

1 Mount, Upper, Shock, RH

4 5810947

1 Foam, Seal, Rear Cooler

5 7547180

4 Nut, Flanged, Nylon

6 7517935

4 Screw

7 5243977

1 Mount, Upper, Shock, LH

8 7621467

21 Rivet

9 7621431

2 Rivet

10 7661136

6 Rivet

11 5244049-067

1 Bracket, Radius Rod Support

12 5244050

1 Brace, Pan, Lower

13 5243991-067

1 Hinge, Lower, Pivot, LH

14 7542153

2 Nut, Nylok, Flanged

15 5433518-070

1 Asm., Bumper, Front Edge, Black

16 7512163

2 Bolt

17 7621472

3 Rivet

18 5245853

1 Shield, Exhaust, Heat, Extended

19 5434343-397

1 Nosepan

20 7542122

4 Nut, Nylok

21 7555827

4 Washer

22 7515166

4 Screw

23 7517312

4 Screw

24 7552801

4 Washer, Spring Lock

25 5244888

5244889

1

1

Guide, Hood, Edge, LH

Guide, Hood, Edge, RH

4/03
