Snowmobile Polaris SPORT TOURING/INT’L (2004 year). Instruction - part 1





E

2003 Polaris Sales Inc.

PARTS MANUAL PN 9918853 and MICROFICHE PN 9918854 5/03

SPORT TOURING/INT’L

Model #S04NU5BS

Model #S04NU5BE

Rev. 01

TABLE OF CONTENTS

SPORT TOURING S04NU5BS

and

SPORT TOURING INT’L S04NU5BSE

Parts Manual

A

AIRBOX

C1

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

B

BLOWER HOUSING

C8

. . . . . . . . . . . . . . . . . . .

BRAKE

B5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

BUMPER

A6

. . . . . . . . . . . . . . . . . . . . . . . . . . .

C

CARBURETOR

C9

. . . . . . . . . . . . . . . . . . . . . . .

CARGO BOX

A5

. . . . . . . . . . . . . . . . . . . . . . . .

CHAINCASE

B6

. . . . . . . . . . . . . . . . . . . . . . . .

CHASSIS

A3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

CONSOLE

B14

. . . . . . . . . . . . . . . . . . . . . . . . . .

CRANKCASE

C5

. . . . . . . . . . . . . . . . . . . . . . . .

CRANKSHAFT

C7

. . . . . . . . . . . . . . . . . . . . . . .

CYLINDER

C6

. . . . . . . . . . . . . . . . . . . . . . . . . .

D

DECALS

B1

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DRIVE CLUTCH

B12

. . . . . . . . . . . . . . . . . . . . . .

DRIVE TRAIN

C2

. . . . . . . . . . . . . . . . . . . . . . . .

DRIVEN CLUTCH

B13

. . . . . . . . . . . . . . . . . . . . .

E

ENGINE MOUNTING

C4

. . . . . . . . . . . . . . . . . .

EXHAUST SYSTEM

C3

. . . . . . . . . . . . . . . . . . .

F

FLAP

A6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FRONT TORQUE ARM

B9

. . . . . . . . . . . . . . . . .

FUEL PUMP

C10

. . . . . . . . . . . . . . . . . . . . . . . . .

G

GAS TANK

A7

. . . . . . . . . . . . . . . . . . . . . . . . . .

H

HANDLEBAR

B4

. . . . . . . . . . . . . . . . . . . . . . . .

HITCH

A6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOOD

A10-11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOOD FOAM/FOIL/SCREENS

A12

. . . . . . . . . . .

M

MAGNETO

C12

. . . . . . . . . . . . . . . . . . . . . . . . . .

N

NOSEPAN

A8-9

. . . . . . . . . . . . . . . . . . . . . . . . . .

O

OIL PUMP

C11

. . . . . . . . . . . . . . . . . . . . . . . . . .

OIL TANK

C1

. . . . . . . . . . . . . . . . . . . . . . . . . . .

P

PISTON

C7

. . . . . . . . . . . . . . . . . . . . . . . . . . .

R

RAIL MOUNTING (SUSPENSION)

B7

. . . . . . . . .

REAR TORQUE ARM

B10

. . . . . . . . . . . . . . . . . .

REAR TRACK SHOCK

B11

. . . . . . . . . . . . . . . . .

RECOIL STARTER

C8

. . . . . . . . . . . . . . . . . . . .

S

SEAT

A4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SKI

A13-14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STEERING

B2-3

. . . . . . . . . . . . . . . . . . . . . . . . . .

SUSPENSION

B8

. . . . . . . . . . . . . . . . . . . . . . .

SUSPENSION, FRONT

A13-14

. . . . . . . . . . . . . . . .

T

TAILLIGHT ASM.

A5

. . . . . . . . . . . . . . . . . . . . .

TOOL KIT

C13

. . . . . . . . . . . . . . . . . . . . . . . . . . .

The illustrations used in this Parts Manual are for reference to replacement parts only. This manual is not to be used for assembly.

A3

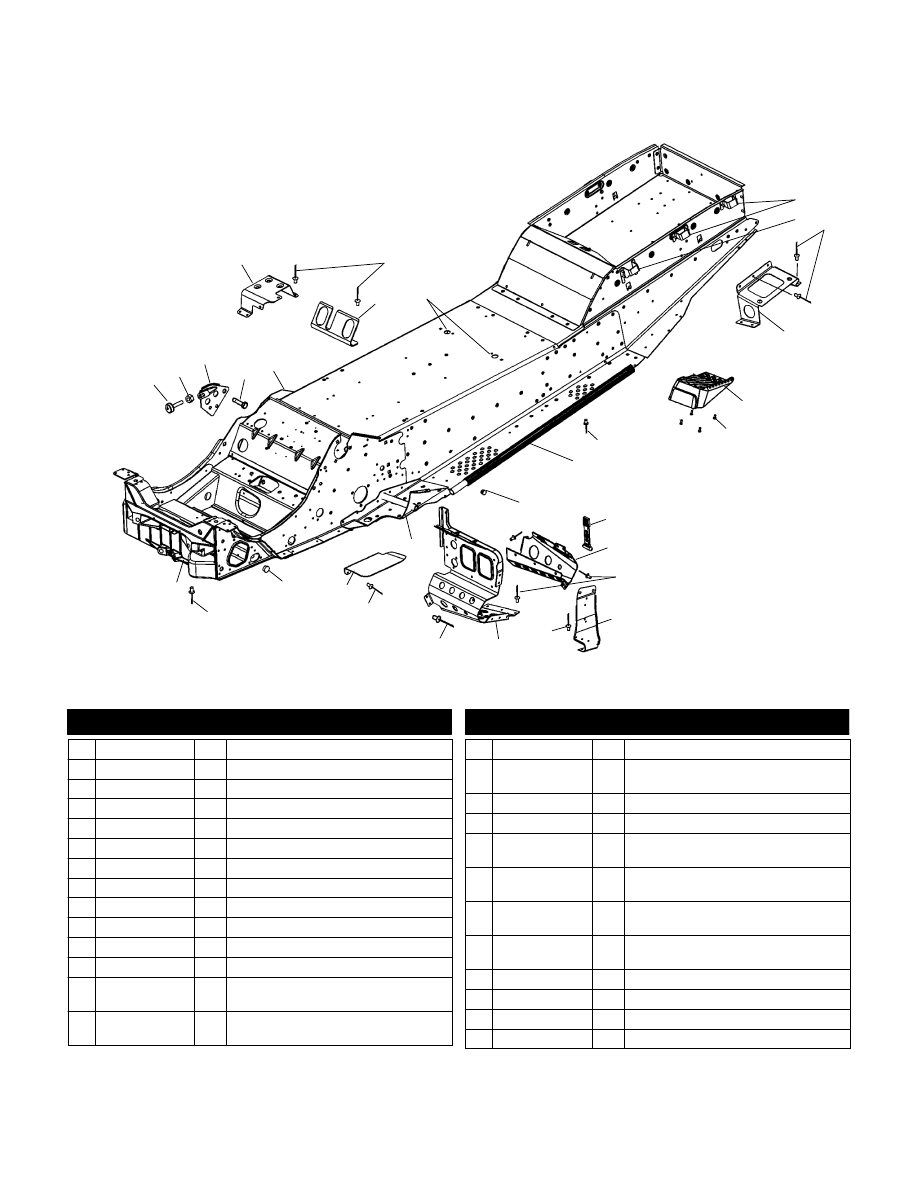

CHASSIS

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

4

3

5

14

15

18

20

23

17

24

1

21

26

25

9

E

2003 Polaris Sales Inc.

2

10

11

13

19

12

12

12

12

12

12

6

8

22

16

7

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3021104

1 Stop, Torque

2 7542404

1 Nut

3 1013399

1 Stop, Torque

4 7517632

1 Screw

5 1014471-309

1 Chassis, Touring, Natural

6 5245202

1 Bracket, Oil Bottle

7 7621432

8 Rivet

8 5246177

1 Bracket, Airbox

9 7081076

2 Plug, Hole

10 5247225-067

4 Hook, Cargo

11 5246439-067

2 Hook, Cargo, Front

12 7661637

62 Rivet

13 5246275-067

5246276-067

1

1

Bracket, Lower, Acc., Attach, LH

Bracket, Lower, Acc., Attach, RH

14 5434644

5434645

1

1

Asm., Footrest, Pssngr., LH (Incl. 15)

Asm., Footrest, Pssngr., RH (Incl. 15)

15 7512076

8 Screw

16 1240166

1240167

1

1

Roll, Tunnel Touring, LH

Roll, Tunnel Touring, RH

17 7081085

1 Plug, Barbed

18 5433150

2 Strap, Airbox Top

19 5245457

5245458

1

1

Mount, Console, Toe Clip, LH

Mount, Console, Toe Clip, RH

20 5246310

5246311

1

1

Support, Footrest, LH

Support, Footrest, RH

21 5245288

5247205

1

1

Footrest, LH

Footrest, RH

22 2202059

2202598

1

1

Kit, Mount, Trailing Arm, LH

Kit, Mount, Trailing Arm, RH

23 5246066

1 Guard, Belt

24 7080416

2 Plug, Hole

25 7661130

15 Rivet

26 5132292

1 Bulkhead, Front

4/03

A4

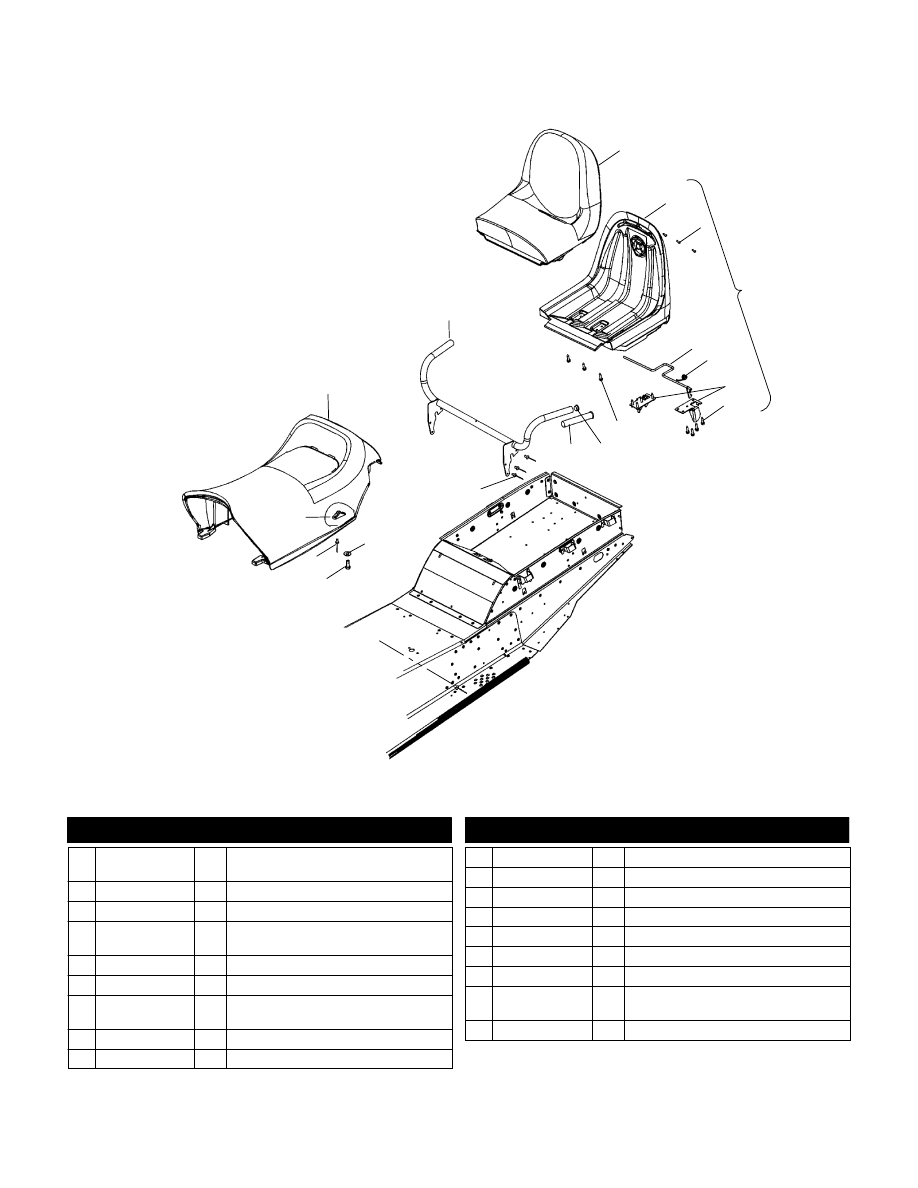

SEAT

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

17

2

4

1

3

5

6

7

8

9

18

11

10

12

16

15

13

14

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 2683384

2683385

1

1

Asm., Base, Seat, Pssngr. Secondary

Asm., Seat Cover, Passenger

2 2683383

1 Asm., Seat, Passenger (Incl. 1-9)

3 7512026

3 Screw

4 2683071

1 Asm., Base, Seat, Passenger, Primary

(Incl. 2-9)

5 1013935

1 Latch, Seat

6 7042246

1 Spring, Seat Latch, Torsion

7 5247090

5247091

1

1

Plate, Latch, Mount, LH

Plate, Latch, Mount, RH

8 7621485

6 Rivet

9 7512098

3 Screw

10 5431096

2 Plug, Overflow

11 5412306

2 Grip, Handlebar, Passenger

12 7661637

6 Rivet

13 7558301

2 Washer, Flat

14 7517219

2 Screw

15 7621319

4 Rivet

16 5631194

2 Nut, Seat

17 2683267

2683268

1

1

Asm., Seat, Edge, Touring

Asm., Seat Cover, Touring

18 1014241-067

1 Handle, Grab

4/03
