Driving and operating

starting attempt is prevented by

the system.
Additionally, the control indicator

will illuminate accompanied

by a warning chime.
Seek the assistance of a

workshop.

Refilling AdBlue

Caution

Only use AdBlue that complies

with European standards

DIN 70 070 and ISO 22241-1.
Do not use additives.
Do not dilute AdBlue.
Otherwise the selective catalytic

reduction system could be

damaged.

Notice

Whenever a filling pump with a

nozzle for passenger cars is not

available at a filling station, use only

AdBlue bottles or canisters with a

sealed refill adapter for refilling, to

prevent splashback and overspill,

and in order to ensure that the fumes

from the AdBlue tank are captured

and do not emerge.
Since AdBlue has a limited

durability, check the date of expiry

before refilling.
Notice

Refill the AdBlue tank to a level of at

least 4 l to ensure that the new

AdBlue level is being detected.
In case AdBlue refill is not

successfully detected:

1. Continuously drive the vehicle

for ten minutes making sure that

vehicle speed is always higher

than 12 mph.

2. If AdBlue refill is detected

successfully, AdBlue supply-

driven warnings or limitations will

disappear.

If AdBlue refill is still not detected,

seek the assistance of a workshop.
If AdBlue must be refilled at

temperatures below -11 °C, the

refilling of AdBlue may not be

detected by the system. In this

event, park the vehicle in a space

with a higher ambient temperature

until AdBlue is liquified.
Notice

When unscrewing the protective cap

from the filler neck, ammonia fumes

may emerge. Do not inhale as the

fumes have a pungent smell. The

fumes are not harmful by inhalation.

The AdBlue tank should be filled

completely. This must be done if the

warning message regarding

prevention of an engine restart is

already displayed.
The vehicle must be parked on a level

surface.

1. Remove key from ignition switch.

Driving and operating

2. Open the fuel filler flap.

3. Turn the protective cap of the

AdBlue tank a 6th of a turn anti-

clockwise and remove it.

4. Open AdBlue canister.
5. Mount one end of the hose on the

canister and screw the other end

on the filler neck.

6. Lift the canister until it is empty, or

until the flow from the canister has

stopped. This can take up to five

minutes.

7. Place the canister on the ground

to empty the hose, wait 15

seconds.

8. Unscrew the hose from the filler

neck.

9. Mount the protective cap and turn

it clockwise until it engages.

Notice

Dispose of AdBlue canister

according to environmental

requirements. Hose can be reused

after flushing with clear water before

AdBlue dries out.

Electric drive unit

The vehicle is equipped with an

electric drive unit that contains a 1-

gear transmission.

Caution

Spinning the tyres or holding the

vehicle in one place on a hill using

only the accelerator pedal may

damage the electric drive unit. If

you are stuck, do not spin the

tyres. When stopping on a hill, use

the brakes to hold the vehicle in

place.

100

Driving and operating

Modes

D : drive mode

N : neutral

R : reverse mode
Press the respective button. The

selected button is illuminated.

The selected mode is also indicated

in rear view mirror display.
Neutral N

In this mode, the propulsion system

does not transfer torque to the

wheels. When the ignition has been

switched on, the electric drive unit is

always in mode N.

N is automatically selected if the

driver's door is opened.
A message is displayed in the Driver

Information Centre accompanied by a

warning chime.

Warning

It is dangerous to get out of the

vehicle if the parking brake is not

firmly applied. The vehicle can roll.
Do not leave the vehicle when the

propulsion system is running, the

vehicle may move suddenly. You

or others can be injured. To be

sure the vehicle will not move,

even if the vehicle is on a level

surface, always apply the parking

brake and select N.

Reverse mode R

This mode is for reversing.

1. Bring the vehicle to a complete

stop.

2. Depress the brake pedal and

press R.

Caution

Shifting into R while the vehicle is

moving forward could damage the

electric drive unit. Only shift into

R after the vehicle has been

stopped.

Drive mode D

This mode is for forward driving.

1. Bring the vehicle to a complete

stop.

2. Depress the brake pedal and

press D.

Caution

If the vehicle seems to accelerate

slowly or not respond when trying

to go faster, do not continue the

journey. The electric drive unit

could be damaged. Consult a

workshop as soon as possible.

Driving and operating

101

Manual transmission

To engage reverse, depress the

clutch pedal, pull the ring under the

selector lever and move the selector

lever quite to the left and front.
If the gear does not engage, set the

selector lever to neutral, release the

clutch pedal and depress again. Then

repeat gear selection.
Do not slip the clutch unnecessarily.
When operating, depress the clutch

pedal completely. Do not use the

pedal as a foot rest.

Caution

It is not advisable to drive with the

hand resting on the selector lever.

Gear shift indication

56.

Stop-start system

91.

Brakes

The brake system comprises two

independent brake circuits.
If a brake circuit fails, the vehicle can

still be braked using the other brake

circuit. However, braking effect is

achieved only when the brake pedal

is depressed firmly. Considerably

more force is needed for this. The

braking distance is extended. Seek

the assistance of a workshop before

continuing the journey.
When the engine is not running, the

support of the brake servo unit

disappears once the brake pedal has

been depressed once or twice.

Braking effect is not reduced, but

braking requires significantly greater

force. It is especially important to bear

this in mind when being towed.

Antilock brake system

Antilock brake system (ABS)

prevents the wheels from locking.

102

Driving and operating

ABS starts to regulate brake pressure

as soon as a wheel shows a tendency

to lock. The vehicle remains

steerable, even during hard braking.
ABS control is made apparent

through a pulse in the brake pedal

and the noise of the regulation

process.
For optimum braking, keep the brake

pedal fully depressed throughout the

braking process, despite the fact that

the pedal is pulsating. Do not reduce

the pressure on the pedal.

Control indicator

56.

Fault

Warning

If there is a fault in the ABS, the

wheels may be liable to lock due

to braking that is heavier than

normal. The advantages of ABS

are no longer available. During

hard braking, the vehicle can no

longer be steered and may

swerve.

Have the cause of the fault remedied

by a workshop.

Parking brake

Warning

Before leaving the vehicle, make

sure the parking brake is applied.

Control indicator

illuminates

constantly when parking brake is

applied.

Warning

Always apply parking brake firmly

without operating the release

button, and apply as firmly as

possible on a downhill or uphill

slope.
To release the parking brake, pull

the lever up slightly, press the

release button and fully lower the

lever.
To reduce the operating forces of

the parking brake, depress the

foot brake at the same time.

Driving and operating

103

Brake assist

If brake pedal is depressed quickly

and forcefully, maximum brake force

is automatically applied.
Operation of brake assist might

become apparent by a pulse in the

brake pedal and a greater resistance

when depressing the brake pedal.
Maintain steady pressure on the

brake pedal as long as full braking is

required. Maximum brake force is

automatically reduced when brake

pedal is released.

Hill start assist

The system helps prevent unintended

movement when driving away on

inclines.
When releasing the brake pedal after

stopping on an incline, brakes remain

on for further two seconds.
The brakes release automatically

when:

● the clutch pedal is released.
● the parking brake is applied.

● the engine is switched off.
● the engine stalls.

System limits

● The vehicle must be stationary,

the engine running and the brake

pedal depressed.

● The incline of the road must be

steeper than 5%.

● The selector lever must be set to

neutral or another than reverse

when standing uphill.

● The selector lever must be set to

reverse when standing downhill.

Fault

In the event of a fault,

illuminates

and a warning message is displayed

in the Driver Information Centre

accompanied by a warning chime.
Seek the assistance of a workshop.

Regenerative braking

Warning

In the case of extreme

temperatures or if the high voltage

battery is almost fully charged, the

brake force of the engine braking

may be temporarily reduced. If the

braking force is not sufficient, the

driver has to be prepared to use

the brake pedal.

Warning

Depending on the engine braking

force the brake lights are

illuminated.

Regenerative braking generates

electrical energy resulting from

engine braking to charge the high

voltage battery.
Electric drive unit

99.

104

Driving and operating

Ride control systems

Electronic Stability Control

and Traction Control system

Warning

Do not let this special safety

feature tempt you into taking risks

when driving.
Adapt speed to the road

conditions.

Electronic Stability Control (ESC)

improves driving stability when

necessary, regardless of the type of

road surface or tyre grip.
As soon as the vehicle start to swerve

(understeer / oversteer), engine

output is reduced and the wheels are

braked individually.
Electronic Stability Control consists of

several subsystems:

● Antilock brake system (ABS)

101

● Brake assist

103

● Traction Control system

● Intelligent grip system
● Dynamic stability control
● Load inertia control

Traction Control system

The Traction Control system prevents

the driven wheels from spinning.
The Traction Control system

improves driving stability when

necessary, regardless of the type of

road surface or tyre grip, by

preventing the driven wheels from

spinning.
As soon as the driven wheels starts to

spin, engine output is reduced and

the wheel spinning the most is braked

individually. This considerably

improves the driving stability of the

vehicle on slippery road surfaces.
Electronic Stability Control and the

Traction Control system are

operational after each engine start as

soon as the control indicator

extinguishes.
When Electronic Stability Control or

the Traction Control system operates,

flashes.

When Electronic Stability Control or

the Traction Control system is not

operational,

illuminates

accompanied by a message in the

Driver Information Centre.
After reconnecting the vehicle

battery, the system needs a

recalibration by driving a short

distance.

Warning

Do not let this special safety

feature tempt you into taking risks

when driving.
Adapt speed to the road

conditions.

Control indicator

57.

Driving and operating

105

Deactivation

Traction Control system can be

deactivated, everytime it is required:

press ASR OFF.
The LED in the button ASR OFF

illuminates. A status message

appears in the Driver Information

Centre.
Traction Control system is reactivated

by pressing the ASR OFF button

again.
The LED in the button ASR OFF

extinguishes.
Traction Control system is also

reactivated the next time the ignition

is switched on.

Reactive the system as soon as the

level of grip permits.

Intelligent grip system

The system operates when one drive

wheel has less grip than the other on

inhomogeneous driving surfaces

(e.g. snow, ice, mud) by braking this

wheel and bringing the driving force

to the other one. Traction Control

system is then inactive.
For a better traction activate

intelligent grip system when driving

on snow with tyre chains.
The system works up to a speed of

31 mph.
Intelligent grip system is deactivated

after each engine start.

Activation / deactivation

To activate the system, press

The LED in the button

illuminated.
To deactivate the system, press

again. The LED in the button

extinguishes.

Dynamic stability control

Dynamic stability control monitors

each wheel and automatically acts on

the brake of one or more wheels and

on the engine to return the vehicle to

the required path, within the limits of

the laws of physics, when it detects a

106

Driving and operating

difference between the path followed

by the vehicle and that required by the

driver.
Dynamic stability control is

operational after each engine start as

soon as the control indicator

extinguishes.
When dynamic stability control

operates, the control indicator

flashes.

Load inertia control

The actual total weight of a

commercial vehicle can vary

considerably depending on its load.

The centre of gravity of the vehicle

can therefore move in the longitudinal

direction and even in height.
Each of these variations has

repercussions on braking, traction,

cornering behaviour and overturning.
The load inertia control estimates the

actual total weight of the vehicle by

analysing its behaviour, during

acceleration and braking phases.
This system then adapts the

intervention of the dynamic stability

control and Traction Control system

according to the weight distribution of

the vehicle. In critical situations, the

vehicle therefore remains more safely

on its trajectory.

Fault

If there is a fault in the Electronic

Stability Control or in the respective

subsystems, the control indicator

illuminates and a message is

displayed in the Driver Information

Centre accompanied by a warning

chime. The system is not operational.
Seek the assistance of a workshop.

Descent control system

The descent control system allows

the vehicle to travel at a low speed

without depressed brake pedal. The

vehicle will automatically decelerate

to a low speed and remain at that

speed when the system is activated.

Some noise or vibration from the

brake system may be apparent when

the system is active.
Do not use the system with the

selector lever set to neutral.

Engage an appropriate gear for the

corresponding speed, in order to

prevent engine stalling.

Caution

Use only when descending steep

grades while driving off-road. Do

not use when driving on normal

road surfaces. Unnecessary

usage of the dynamic stability

function, such as while driving on

normal roads, may damage the

brake system and the ESC

function.

Caution

The function may be unavailable if

the vehicle brakes overheat. Wait

a few minutes.

Activation

The system is only available for

slopes greater than 8%.

Driving and operating

107

At speeds below approx. 15 mph,

press

. The system can also be

activated when the vehicle is

stationary with the engine running.

The LED in the button

illuminated and a message in the

Driver Information Centre is displayed

to confirm the activation of the

system.
When the vehicles starts its descent,

the system controls the speed of the

vehicle; accelerator and brake pedals

can be released. The LED in the

button

flashes.

However, accelerator and brake

pedal maintain operational if an

increase or decrease of the vehicle's

speed is desired.
If the system is operating, the brake

lights automatically come on.
If the speed exceeds 15 mph,

regulation is paused. The LED of the

button is still illuminated.

Regulation is automatically resumed

if the speed falls below 15 mph and

the slope is greater than 8%.

Deactivation

Press

again until the LED in the

button extinguishes.
If the speed exceeds 31 mph, the

system is automatically deactivated.

The LED in the button extinguishes.

Fault

In the event of a fault,

illuminates

in the Driver Information Centre.
Seek the assistance of a workshop.

Driver assistance

systems

Warning

Driver assistance systems are

developed to support the driver

and not to replace the driver's

attention.
The driver accepts full

responsibility when driving the

vehicle.
When using driver assistance

systems, always take care

regarding the current traffic

situation.

Cruise control

The cruise control can store and

maintain speeds above 19 mph.
Deviations from the stored speeds

may occur when driving uphill or

downhill.
The system maintains the vehicle

speed at the preset speed by the

driver, without any action on the

accelerator pedal.

108

Driving and operating

The preset speed can be exceeded

temporarily by pressing the

accelerator pedal firmly.
The status and preset speed is

displayed in the Driver Information

Centre.
Do not use the cruise control if it is not

advisable to maintain a constant

speed.
Control indicator

59.

Depending on version, there are two

differnt levers to use the system.

Switching on the system

Lever type A

Turn the adjuster wheel to

The control indicator

is illuminated

and a message is displayed in the

Driver Information Centre. The

system is still not active.

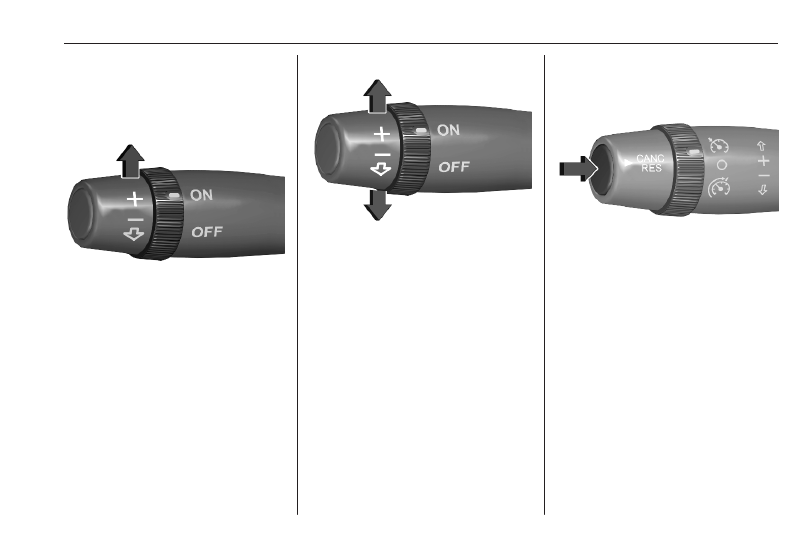

Lever type B

Turn the adjuster wheel to ON.
The control indicator

is illuminated

and a message is displayed in the

Driver Information Centre. The

system is still not active.

Activation of the functionality

Lever type A

Accelerate to the desired speed and

move the control lever upwards + for

about one second. The current speed

is stored and maintained. Accelerator

pedal can be released.
The preset speed can then be

changed by moving the control lever

upwards + to increase or downwards

- to decrease the speed.
Briefly press increases or decreases

the speed by 1 mph, a long press by

5 mph.

Driving and operating

109

Speed value is indicated in the Driver

Information Centre.

Lever type B

Accelerate to the desired speed and

move the control lever upwards + for

about one second. The current speed

is stored and maintained. Accelerator

pedal can be released.

The preset speed can then be

changed by moving the control lever

upwards + to increase or downwards

- to decrease the speed.
Briefly press increases or decreases

the speed by 1 mph, a long press by

5 mph.
Speed value is indicated in the Driver

Information Centre.

Exceeding the set speed

Vehicle speed can be increased by

depressing the accelerator pedal.

When the accelerator pedal is

released, the previously stored speed

is resumed.

Deactivation of the functionality

Depress the brake, the clutch pedal or

press button at the lever end. The

cruise control is in pause mode. The

vehicle is driven without cruise

control.
Cruise control is deactivated, but not

switched off. The last stored speed

remains in memory for later speed

resume.
When the dynamic stability control

system is active, the cruise control is

temporarily deactivated.
Electronic Stability Control and

Traction Control system

104.

110

Driving and operating

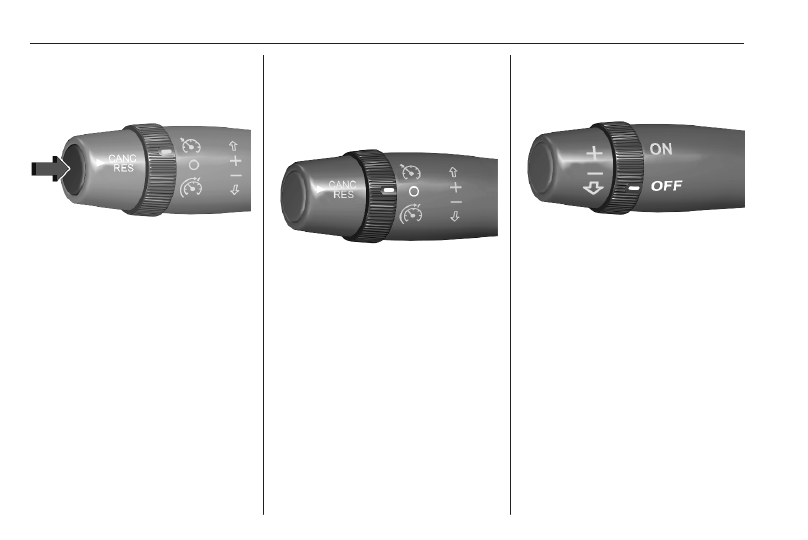

Resume stored speed

Press the button at the lever end to

return to the stored speed.
A message is displayed in the Driver

Information Centre.

Switching off the system

Lever type A

Turn adjuster wheel to 0 to switch off

the system.

Lever type B

Turn adjuster wheel to OFF to switch

off the system.

Fault

In the event of a cruise control fault,

the system is switched off and the

indicator light

extinguishes.

Seek the assistance of a workshop.

Speed limiter

The speed limiter prevents the

vehicle exceeding a preset maximum

speed.

Driving and operating

111

The maximum speed can be set at

speeds above 18 mph.
The driver can accelerate the vehicle

up to the preset speed. Deviations

from the limited speed may occur

when driving downhill.
The status and preset speed limit are

displayed in the Driver Information

Centre.

Switching on the system

Turn the adjuster wheel to

, the

last programmed speed and a

message are displayed in the Driver

Information Centre.
The system is still not active.

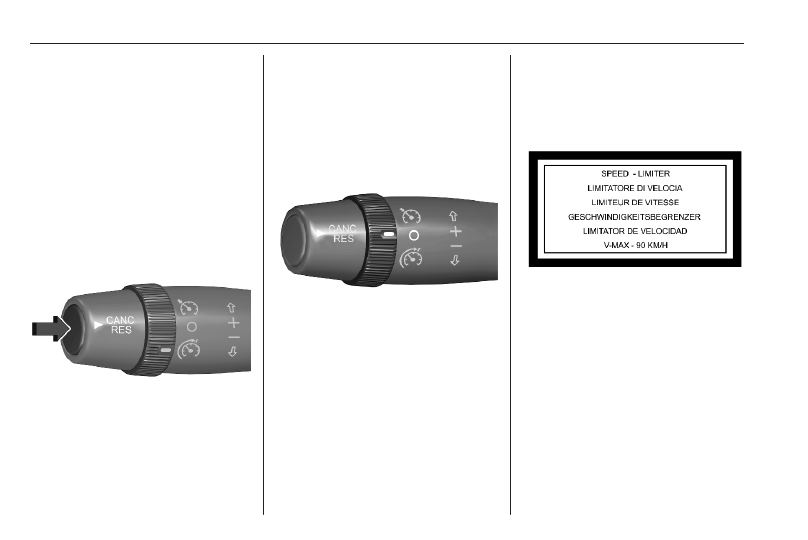

Activation of the functionality

Press the button at the lever end to

activate the system.

Setting speed

To set the speed, the system does not

have to be activated.

Move the control lever upwards + or

downwards -. The chosen speed is

set.
The preset speed can then be

changed by moving the control lever

upwards + to increase or downwards

- to decrease the speed.
Briefly press increases or decreases

the speed by 1 mph, a long press by

5 mph.
The speed value is indicated in the

Driver Information Centre.

112

Driving and operating

Exceeding the speed limit

In the event of an emergency, it is

possible to exceed the speed limit by

depressing the accelerator pedal

firmly nearly to the final point.
Release the accelerator pedal and

the speed limiter function is

reactivated once a speed lower than

the limit speed is obtained.

Deactivation of the functionality

Press the button at the lever end to

deactivate the functionality. The

speed limiter is in pause mode and a

message is displayed.

The speed limiter is deactivated, but

not switched off. The last stored

speed remains in memory for later

speed resume.

Switching off the system

Turn ajuster wheel to 0 to switch off

the system.
The last set speed remains in the

memory.

Fault

In the event of a speed limiter fault,

the speed is cleared resulting in

flashing of the dashes.

Fixed speed limiter

Depending on version and country,

the maximum speed is set by default.

A label located in the passenger

compartment indicates the maximum

speed.
The fixed speed limiter can not be

activated or deactivated by the driver.

Forward collision alert

The forward collision alert may help to

avoid or reduce the harm caused by

front-end crashes.

Driving and operating

113

The forward collision alert uses the

front camera in the windscreen to

detect a preceding vehicle directly

ahead, in the vehicle's path.
If a vehicle directly ahead is

approached too quickly, a warning

chime and alert in the Driver

Information Centre is provided.

Warning

Forward collision alert is just a

warning system and does not

apply the brakes. When

approaching a vehicle ahead too

rapidly, there may not be enough

time to avoid a collision.
The driver accepts full

responsibility for the appropriate

following distance based on traffic,

weather and visibility conditions.
The complete attention of the

driver is always required while

driving. The driver must always be

ready to take action and apply the

brakes.

Activation

Forward collision alert detects

vehicles and operates automatically

at all speeds above 3 mph and

53 mph. The system detects

stationary vehicles if the speed does

not exceed 50 mph.

Alerting the driver

Depending on the degree of collision

risk detected by the system and the

chosen alert sensitivity by the driver,

several alert levels may be triggered

and displayed in the Driver

Information Centre.

The driver is warned by following

alerts:

● Symbol

illuminates yellow and

a warning message is displayed

in the Driver Information Centre

when the distance to the vehicle

ahead gets to small.

● Symbol

illuminates red, a

warning message is displayed in

the Driver Information Centre and

a warning chime sounds, when a

collision is imminent and

immediate driver's action is

required.

● A haptic alert in the form of micro-

braking can be given, in order to

confirm the risk of collision. This

is the last possible alert.

Caution

The colour lighting of this control

indicator does not correspond to

local traffic laws on following

distance. The driver bears full

responsibility for maintaining safe

following distance according to

114

Driving and operating

applicable traffic rules, weather

and road conditions etc. at all

times.

Selecting the alert sensitivity

The alert sensitivity has to be set to

close, normal or distant in the vehicle

personalisation menu

65.

The chosen setting will remain until it

is changed. The alert timing will vary

based on vehicle speed. The faster

the vehicle speed, the farther away

the alert will occur. Consider traffic

and weather conditions when

selecting the alert timing.

Deactivation

The system can only be deactivated

by deactivating the active emergency

braking in the vehicle personalisation

65.

System limitations

Forward collision alert is designed to

warn on vehicles only, but may react

also to other objects.

In the following cases, forward

collision alert may not detect a vehicle

ahead or sensor performance is

limited:

● driving on winding or hilly roads
● driving during nighttime
● weather limits visibility, such as

fog, rain, or snow

● the sensor in the windscreen is

blocked by snow, ice, slush, mud,

dirt etc.

● the windscreen is damaged or

affected by foreign objects, e.g.

stickers

Active emergency braking

Active emergency braking can help to

reduce the damage and injury from

crashes with vehicles and obstacles

directly ahead, when a collision can

no longer be avoided either by

manual braking or by steering.
Active emergency braking consists of

several subsystems:

● Forward collision alert

112

● Emergency automatic braking
● Smart brake assist

Before the active emergency braking

applies, the driver is warned by the

forward collision alert.
The system uses various inputs, such

as a front camera located at the top of

the windscreen, but also brake

pressure or vehicle speed, to

calculate the probability of a frontal

collision.

Warning

This system is not intended to

replace the driver responsibility for

driving the vehicle and looking

ahead. Its function is limited to

Driving and operating

115

supplemental use only to reduce

the vehicle speed before a

collision.
The system may not react to

animals. After a sudden lane

change, the system needs a

certain time to detect the next

preceding vehicle.
The driver must always be ready

to take action and apply the brakes

and steer to avoid collisions.

Active emergency braking can be

deactivated in the vehicle

personalisation

65. If deactivated,

illuminates and a message is

displayed the Driver Information

Centre.
When ignition is switched on next

time, system is activated by default.

Functionality

Active emergency braking operates in

forward gear above 3 mph up to

53 mph when a moving vehicle is

detected. The system detects

stationary vehicles only if the speed

does not exceed 50 mph.

A precondition is that active

emergency braking is not deactivated

in the vehicle personalisation menu.

Smart brake assist

If the driver brakes, but not sufficiently

to avoid a collision, this system will

supplement the braking. This

assistance will only be provided if the

driver presses the brake pedal.
Smart brake assist will automatically

disengage when the brake pedal is

released.

Emergency automatic braking

Just before the imminent collision,

this function automatically applies

limited braking to reduce the impact

speed of the collision or prohibit a

crash.
If active emergency braking is

applied,

flashes in the Driver

Information Centre.
Depending on the situation, the

vehicle may automatically brake

moderately or hard.

Emergency automatic braking may

slow the vehicle to a complete stop

trying to avoid a potential crash. If the

vehicle comes to a complete stop,

automatic braking is maintained for

up to two seconds.
If the vehicle comes to a complete

stop, the engine may stall.
Operation of the function may be felt

by a slight vibration in the brake

pedal.

Warning

Emergency automatic braking is

an emergency crash preparation

feature and is not designed to

avoid crashes. Do not rely on the

system to brake the vehicle.

Emergency automatic braking will

not brake outside of its operating

speed range and only responds to

detected vehicles and

pedestrians.

116

Driving and operating

Operation conditions and system

limitations

In some cases, the active emergency

braking system may provide an

automatic braking in situations that

seem to be unnecessary, for instance

in parking garages, due to traffic signs

in a curve or due to vehicles in

another lane. This is a normal

operation, the vehicle does not need

service. Firmly apply the accelerator

pedal to override the automatic

braking if the situation and the

surroundings permit.
The system is only operational when

the Electronic Stability Control is not

faulty, Traction Control system is

activated and all passenger seat belts

are fastened.
Electronic Stability Control and

Traction Control system

104.

Driving at a steady speed on roads

with few bends is required.

Cases of non-detection by the

system:

● Pedestrians, cyclists, animals,

objects on the road.

● Vehicles crossing the lane.
● Vehicles driving in the opposite

direction.

Pay particular attention when narrow

vehicles (e.g. motorcycles) are

present, there are vehicles staggered

across the traffic lane and / or when

entering a tunnel or crossing a bridge.
Suspend the system when:

● there are vehicles in a tight bend.
● approaching a roundabout.
● a vehicle cuts in sharply between

your vehicle and the one in front.

In the following cases, active

emergency braking performance is

limited:

● Driving on winding or hilly roads.
● Detecting all vehicles, especially

vehicles with a trailer, tractors,

muddy vehicles, etc.

● Detecting a vehicle when

weather limits visibility, such as in

fog, rain, or snow.

● Driving during nighttime.
● The windscreen is damaged or

stickered.

Complete attention is always required

while driving, and the driver should be

ready to take action and apply the

brakes and / or steer the vehicle to

avoid crashes.
We recommend to deactivate the

system in the vehicle personalisation

in the following cases:

● when towing a trailer or caravan
● when carrying long objects on

roof bars or a roof rack

● when the vehicle is being towed

with the engine running

● when tyre chains are fitted
● when a spare wheel is fitted that

is smaller than the other wheels

● before using an automatic car

wash with the engine running

● before placing the vehicle on a

rolling road in a workshop

● if the windscreen has been

damaged close to the camera

● if the brake lamps are not working

Driving and operating

117

Fault

If there is a fault,

illuminates and

a message is displayed in the Driver

Information Centre accompanied by a

warning chime.
If the system does not work properly,

vehicle messages are displayed in

the Driver Information Centre.
Vehicle messages

63.

Seek the assitance of a workshop.

Parking assist

General information

The parking assist is deactivated

when a plug is connected to the

power outlet of the trailer hitch.

Warning

The driver bears full responsibility

for the parking manoeuvre.
Always check the surrounding

area when driving backwards or

forwards while using parking

assist system.

The system warns the driver with

acoustic signals against potentially

hazardous obstacles behind the

vehicle while reverse gear is

engaged.
The system operates with ultrasonic

parking assist sensors in the rear

bumper.
The system warns people outside the

vehicle with an acoustic signal.

Activation

Rear parking assist is activated when

reverse gear is engaged and ignition

is switched on.

Indication

The interval between the sounds

becomes shorter as the vehicle gets

closer to that obstacle. When the

distance is less than approx. 30 cm,

the sound is continuous.

Deactivation

Disengage reverse gear and shift to

neutral.

System limitations

In the event of a fault or if the system

does not work temporarily, e.g.

because of high external noise level

or other interference factors,

illuminates in the instrument cluster.

A message is displayed in the Driver

Information Centre.
In the case of a permanent fault, seek

the assistance of a workshop.

Warning

Under certain circumstances,

various reflective surfaces on

objects or clothing as well as

118

Driving and operating

external noise sources may cause

the system to fail to detect

obstacles.
Special attention must be paid to

low obstacles which can damage

the lower part of the bumper.

Caution

In the case of a severe failure of

the vehicle with the need to stop

the vehicle, the system is

deactivated.
In the case of a gearbox failure,

the parking assist system is not

active, when reverse gear is

engaged.
In the case of a loudspeaker

failure, the audible signals may not

be given.
Performance of the system can be

reduced when sensors are

covered, e.g. by ice or snow.
If a sensor is covered, a message

is displayed indicating that the

sensors have to be cleaned.

Performance of the parking assist

system may be limited or the

functionality may not be available

at all if the image shown on the Info

Display is frozen or if the screen is

black.
Performance of the parking assist

system can be reduced due to

heavy loading.
Special conditions apply if there

are taller vehicles in the vicinity

(e.g. off-road vehicles, mini vans,

vans). Object identification and

correct distance indication in the

upper part of these vehicles

cannot be guaranteed.
Objects with a very small reflection

cross-section, e.g. objects of

narrow size or soft materials, may

not be detected by the system.
Parking assist systems do not

detect objects outside the

detection range, e.g. below the

bumper or underneath the vehicle.

During a reverse parking

manoeuvre, the system does not

consider a mounted coupling ball

bar. The driver has to consider this

additional length.

Notice

It is possible that the sensor detects

a non-existing object caused by

echo disturbance from external

acoustic noise or mechanical

misalignments (sporadic false

warnings may occur).
Low curbs and surface irregularities,

e.g. on construction zones, are not

detected by the system. The driver

accepts responsibility.

Side blind spot alert

The side blind spot alert system

detects and reports objects on either

side of the vehicle, within a specified

blind spot zone. The system displays

a visual alert in each exterior mirror,

when detecting objects that may not

be visible in the interior and exterior

mirrors. Additionally, a warning chime

Driving and operating

119

may sound whenever the lane is

changed and an object is detected in

the blind spot zone.
Side blind spot alert uses two radar

sensors which are located in the rear

bumper on each side of the vehicle.
When the vehicle is started, both

LEDs on the exterior mirrors will

briefly come on to indicate that the

system is operating.

Warning

Side blind spot alert does not

replace driver vision.
The system does not detect:

● vehicles outside the side blind

zones which may be rapidly

approaching

● pedestrians, cyclists or animals

Before changing a lane, always

check all mirrors, look over the

shoulder and use the turn signal.

Activation

Activate the function in the vehicle

personalisation.

Two different modes are available:

● Visual mode
● Visual and audible mode

Vehicle personalisation

65.

Functionality

The system provides different

warning signals, depending on which

mode has been selected.
Either the system warns the driver by

giving only a visual alert or a warning

chime sounds additional to that.

● When the visual mode has been

selected, a LED will illuminate in

the relevant exterior mirror, as

soon as the system detects a

vehicle in the side blind zone

while driving forwards.

● When the visual and audible

mode has been selected, a LED

will illuminate in the relevant

exterior mirror, as soon as the

system detects a vehicle in the

side blind zone while driving

forwards. In addition, a warning

chime sounds, as soon as the

indicator lever has been set for

the side in which the system has

detected a vehicle in the side

blind zone while driving forwards.

Notice

If rear cross traffic alert is activated,

the system still provides visual and

audible warning signals, even if the

side blind spot alert is deactivated or

only in visual mode.
Rear cross traffic alert

122.

Lane change alert

Additional to the side blind spot alert,

lane change alert recognises rapidly

approaching vehicles from behind on

parallel lanes next to your vehicle.

120

Driving and operating

The system alerts visually in each

exterior mirror when detecting rapidly

approaching vehicles from behind.

Trailer detection

If a trailer is hitched to the vehicle, the

detection area is enlarged by the

length of the trailer.

Two different length settings can be

set in the vehicle personalisation

65:

● Maximum length: for trailers with

a length of more than 9 metres.

● Automatic length detection: the

system detects the trailer length

automatically (3 metres, 6 metres

and 9 metres).

When automatic detection has been

set, the respective length icon is

displayed in the Driver Information

Centre.
In order to enable the automatic

length detection, it may be necessary

to make a 90° turn.
The rear cross traffic alert is

deactivated, as soon as the trailer

detection has been activated.
Rear cross traffic alert

122.

Operation conditions

The following conditions must be

fulfilled for proper operation:

● all vehicles are moving in the

same direction and in adjacent

lanes

● the speed of your vehicle is

higher than approx. 6 mph.

● passing a vehicle with a speed

difference of less than 16 mph

● another vehicle is passing with a

speed difference of less than

30 mph

● the traffic flow is normal
● driving on a straight or slightly

curved road

● the sensors are not covered by

mud, ice or snow

● the warning zones in the exterior

mirrors or the detection zones on

the rear bumper are not covered

Driving and operating

121

No alert will be given in the following

situations:

● in the presence of non-moving

objects, e.g. parked vehicles,

barriers, street lamps, road signs

● in very dense traffic, when

moving vehicles might be

confused with a stationary object

● with vehicles moving in the

opposite direction

● driving on a winding road or a

sharp corner

● when passing or being passed by

a very long vehicle, e.g. lorry,

coach, which is at the same time

detected at the rear in the blind

spot angle and present in the

driver's forward field of vision

● when passing too quickly

Deactivation

The system can be deactivated in the

vehicle personalisation.
Vehicle personalisation

65.

The state of the system is stored

when switching off the ignition.

Due to adverse weather conditions

such as heavy rain, false detections

may occur.

Fault

In the event of a fault, the LEDs in the

exterior mirrors are either illuminated

continously or extinguished.

Additionally, a warning message is

displayed in the Driver Information

Centre and a warning chime may

sound.
Seek the assistance of a workshop.

Rear view camera

The rear view camera assists the

driver when reversing by displaying a

view of the area behind the vehicle.

Warning

The rear view camera does not

replace driver vision. Note that

objects that are outside the

camera's field of view, e.g. below

the bumper or underneath the

vehicle, are not displayed.

Do not reverse the vehicle by only

looking at the display and check

the surrounding area behind and

around the vehicle before and

during reversing.

The view of the camera is displayed

in the Info Display

62.

The area displayed by the camera is

limited. The distance of the image that

appears on the display differs from

the actual distance.

122

Driving and operating

Switching on

The rear view camera is automatically

activated when reverse gear is

engaged and it remains active up to

approx. 9 mph.
The rear view camera will also be

activated with the vehicle stationary,

when the rear doors are opened.

Switching off

The camera is switched off when a

forward gear is engaged.

Guidelines

The area behind the vehicle is

displayed in the screen. The vertical

lines represent the width of the

vehicle with mirrors unfolded.

The first horizontal line represents a

distance of about 30 cm beyond the

edge of vehicle's rear bumper. The

upper horizontal line represents a

distance of about 1 m beyond the

edge of the vehicle's rear bumper.
The guidelines can be deactivated in

the vehicle personalisation

65.

System limitations

The rear view camera may not

operate properly when:

● the surrounding is dark
● the beam of headlights is shining

directly into the camera lenses

● weather limits visibility such as

fog, rain or snow

● the camera lenses are blocked

by snow, ice, slush, mud, dirt.

Clean the lense, rinse with water,

and wipe with a soft cloth

● the vehicle had a rear end

accident

● there are extreme temperature

changes

Rear cross traffic alert

Additional to the side blind spot alert

118, rear cross traffic alert warns of

cross traffic from left or right side

when driving rearwards.
The radar distance sensors used to

monitor the area left and right behind

the vehicle are located in the rear

bumper.

Warning

The rear cross traffic alert does not

replace driver vision. Note that

objects that are outside sensor's

Driving and operating

123

range, e.g. below the bumper or

underneath the vehicle, are not

detected.
Pedestrians, children or animals

may not be detected.
Do not reverse the vehicle by only

looking at the Info Display and

check the surrounding behind and

around the vehicle before

reversing.

Activation

Rear cross traffic alert is

automatically activated when reverse

gear is engaged.

Detection zone

The system detects vehicles moving

towards both sides behind the vehicle

at speeds from 1 mph to approx.

22 mph.

Functionality

A LED will illuminate in the relevant

exterior mirror accompanied by a

warning chime, as soon as the

system detects a vehicle in the

detection zone.

Deactivation

Rear cross traffic alert is deactivated

when a certain forward speed is

exceeded or if reverse gear is not

engaged.
The system is deactivated if the

vehicle is towing a trailer.
Side blind spot alert

118.

124

Driving and operating

System limitations

The system may not operate properly

when:

● ice, snow, mud, stickers,

magnets, metal plates, or

anything else covers the sensors

● driving in heavy rainstorms
● the vehicle had an accident or if

the area surrounding the

detection sensor is damaged or

not properly repaired

In the event of a fault, seek the

assistance of a workshop.

Traffic sign assistant

The traffic sign assistant uses the

camera at the top of the windscreen

to detect the speed limits, overtaking

prohibitions and their end. The

detected signs are displayed in the

Info Display first and then in the Driver

Information Centre. Signs are

displayed as a pop-up for 40 seconds.
The system can display two road

signs simultaneously, e.g. speed limit

and no overtaking.

If an additional road sign is detected,

such as a reduced speed limit for wet

roads, an empty sign below the

corresponding sign is displayed.
Additional signs are filtered as

follows:

● Signs for snow or ice only appear

if the outside temperature is

below 3 °C.

● Signs for rain only appear if the

windscreen wiper is active.

● Signs concerning heavy goods

vehicles are displayed

depending on the permissible

gross vehicle weight.

Warning

The actual traffic sign always

takes priority over the traffic sign

displayed in the Driver Information

Centre.

Info Display

Driver Information Centre

Activation / Deactivation

The system can be activated or

deactivated in the vehicle

personalisation.
Vehicle personalisation

65.

System limitations

Traffic sign assistant may not operate

properly when:

● Driving on winding or hilly roads.
● Driving during nighttime.
● Driving with tyre chains.
● Driving with a trailer.
● The area of the windscreen,

where the front camera is

located, is not clean or affected

by foreign items, e.g. stickers.

● The visibility is limited because of

the weather, such as fog, rain, or

snow.

● The sun is shining directly into

the camera lens.

● Traffic signs are completely or

partially covered or difficult to

discern.

Driving and operating

125

● Traffic signs are incorrectly

mounted or damaged.

● Traffic signs do not comply with

the Vienna Convention on Road

Signs and Signals.

Caution

The system is intended to help the

driver within a defined speed

range to recognise certain traffic

signs. Do not ignore traffic signs

which are not displayed by the

system.
Do not let this special feature

tempt you into taking risks when

driving.
Always adapt speed regarding

road, traffic and weather

conditions.
The driver assistance systems do

not relieve the driver from full

responsibility for vehicle

operation.

When driving abroad make sure

the vehicle uses the speed unit of

the respective country. If

necessary, select the correct units

in the Info Display.

Lane departure warning

The lane departure warning system

supports the driver to avoid

unintended leaving of the lane. The

front camera observes road edges,

as well as the lane markings between

which the vehicle is driving. If the

vehicle approaches a road edge or a

lane marking, the system warns the

driver.
Unintended lane departure is not

assumed by the system when the turn

lights are operated and during few

seconds after turn lights have been

switched off.

Warning

This system is a driving aid that

cannot, in any circumstances,

replace the need for vigilance on

the part of the driver.

Functionality

The system is only operable at

vehicle speeds above 37 mph and if

lane markings are available.
The system starts automatically when

moving off.
The operating conditions are checked

by the system. Therefore, both

control indicators

are illuminated

first in the Driver Information Centre.

When these conditions are met, both

control indicators

extinguish. The

system is activated.
If the operating conditions are not

met, both control indicators

remain

illuminated. The system is activated,

but is no longer effective.

126

Driving and operating

Deactivation / Reactivation

Press

to deactivate / reactivate the

system.
The LED in the button

is illuminated

and a message in the Driver

Information Centre is displayed to

confirm the deactivation of the

system.
Upon reactivation, both control

indicators

remain illuminated until

the speed reaches 37 mph.
The state of the system remains in the

memory when switching off the

ignition.

Detection

When the system recognises an

unintended lane change, the control

indicator

)

flashes yellow.

Simultaneously, a chime sounds.
No warning is transmitted while the

turn light is activated and for

approximately 20 seconds after the

turn light is switched off. A warning

may be transmitted if a direction

marking (arrow) or non-standard

marking is crossed.

Operating conditions

Once engaged, the system is only

active when the following operating

conditions are met:

● The vehicle is moving forwards.
● No malfunction of the vehicle is

detected.

● The trajectory is in a straight line

(or in the case of bends, they are

wide).

● The trajectory of the vehicle is

consistent with the road layout.

Fault

The control indicator

flashes and a

message is displayed in the Driver

Information Centre accompanied by a

warning chime.
Seek the assistance of a workshop.
The system cannot operate when no

lane marking is detected.

System limitations

The system performance may be

affected by:

● covered camera by snow, ice,

slush, mud, dirt, or affected by

windscreen damage or foreign

items, e.g. stickers

● close vehicles ahead
● banked roads
● winding or hilly roads
● poor lighting conditions
● sudden lighting changes
● shining sun directly into the

camera lens

● adverse environmental

conditions, e.g. heavy rain, fog,

or snow

Driving and operating

127

● vehicle modifications, e.g. tyres
● roads with poor lane markings

Charging

General information

Warning

Persons with a pacemaker should

consult a doctor for possible

precautions.

Charging the vehicle's high voltage

battery depends upon several factors:

● high voltage battery of the vehicle
● internal onboard charger (OBC)
● charging cable
● external charging device

The charging cable connects the

vehicle with an external charging

device providing electric power. This

may be a domestic electrical outlet, a

wall box or a public charging station.

The high voltage battery is charged

with direct current (DC) only. When

charging the vehicle with alternating

current (AC), AC has to be converted

into DC. This is done by the vehicle's

onboard charger.
If the vehicle is charged at a public DC

charging station, no DC conversion is

required. The high voltage battery

can be directly charged with DC

provided by the DC charging station.
The speed of charging the vehicle's

high voltage battery depends upon

the weakest element of the charging

chain. To achieve the maximum

charging speed, charging cable and

charging device have to be attuned to

each other.

Notice

Make sure that the charging cable

used fits to the vehicle's onboard

charger.

Charging types

128.

Charging cable

134.

128

Driving and operating

Charging types

There are different types of charging

the vehicle's high voltage battery.

Charging at wallboxes

A wallbox is a charging unit for private

households. It provides a charging

cable which has to be connected to

the vehicle's charging port. Some

wallboxes do not provide a charging

cable. In this case, a separate

charging cable is required which has

to be connected to both the wallbox

and the charging port of the vehicle.

Charging at charging stations

Charging stations may provide

alternating current (AC) or direct

current (DC).

Charging time may vary depending

on the charging station, DC charging

stations provide the fastest charging.

To charge the vehicle's battery, the

charging cable of the charging station

has to be connected to the charging

port of the vehicle.

Charging at domestic electrical

outlets

The vehicle's high voltage battery can

be charged at a domestic electrical

outlet. Connect the charging cable to

the vehicle's charging port and to the

domestic electrical outlet.
However, this type of charging is not

recommended.

Charging cable

Depending on the charging type,

different charging cables are used.

Warning

Improper use of portable charging

cables may cause a fire, electrical

shock, or burns, and may result in

damage to property, serious

injury, or death.

● Do not use extension cables,

multi-outlet power strips,

splitters, grounding adaptors,

surge protectors, or similar

devices.

● Do not use an electrical socket

that is worn or damaged, or one

that will not hold the plug firmly

in place.

Driving and operating

129

● Do not immerse the charging

cable into any liquid.

● Do not use an electrical socket

that is not properly grounded.

● Do not use an electrical socket

that is on a circuit with other

electrical loads.

Warning

Read all the safety warnings and

instructions before using this

product. Failure to follow the

warnings and the instructions may

result in electric shock, fire, and /

or serious injury.
Never leave children unattended

near the vehicle while the vehicle

is charging and never allow

children to play with the charging

cable.

If the plug provided does not fit the

electrical outlet, do not modify the

plug. Arrange for a qualified

electrician to inspect the electrical

outlet.
Do not put fingers into the electric

vehicle connector.

Danger

There is a risk of electric shock

that may cause personal injury or

death.
Do not use the charging cable if

any part of the charging cable is

damaged.
Do not open or remove the

charging cable cover.
Service by qualified personnel

only. Connect the charging cable

to a properly grounded outlet with

cables that are not damaged.

Basic domestic cable (mode 2) /

enhanced domestic cable (mode

1. Vehicle plug
2. Status indicators
3. Wall plug

Basic domestic cables (mode 2) are

used for charging at domestic

electrical outlets. A basic domestic

cable (mode 2) consists of a vehicle

plug, a control box and a plug for the

domestic electrical outlet. The control

box has an intergrated charge

controller and several LEDs

indicating the charging status.

Vauxhall Movano C (2023 year). Manual in english - page 4
