Vehicle care

Directional tyres

Directional tyres should be mounted

so that they rotate in the correct

direction. The proper rotation

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey. Do not forget the spare

wheel. This also applies to vehicles

with tyre deflation detection system.

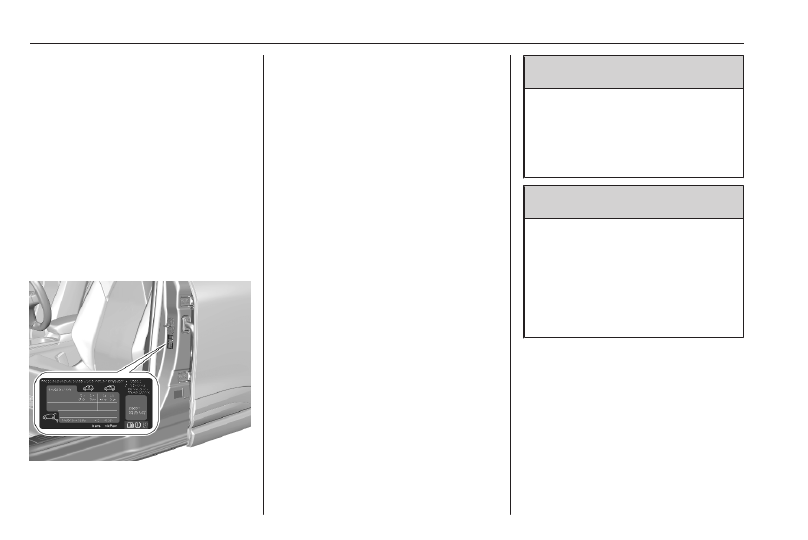

The tyre pressure information label

on the left B-pillar indicates the

original equipment tyres and the

correspondent tyre pressures.
The tyre pressure data refers to cold

tyres. It applies to summer and winter

tyres.
Always inflate the spare tyre to the

pressure specified for full load.
Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

fuel economy and will increase tyre

wear.
The driver is responsible for correct

adjustment of tyre pressure.
The tyre pressure tables show all

possible tyre combinations

291.

For the tyres approved for your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
Tyre pressures differ depending on

various options. For the correct tyre

pressure value, identify the

respective tyre in the tyre pressure

table

291 or on the tyre pressure

information label as described before.

Warning

If the pressure is too low, this can

result in considerable tyre warm-

up and internal damage, leading to

tread separation and even to tyre

blow-out at high speeds.

Warning

For specific tyres the

recommended tyre pressure as

shown in the tyre pressure table

may exceed the maximum tyre

pressure as indicated on the tyre.

Never exceed the maximum tyre

pressure as indicated on the tyre.

Temperature dependency

The tyre pressure depends on the

temperature of the tyre. During

driving, tyre temperature and

pressure increase. Tyre pressure

values provided on the tyre

information label and tyre pressure

chart are valid for cold tyres, which

means at 20 °C.

Vehicle care

263

The pressure increases by nearly

1.5 psi for a 10 °C temperature

increase. This must be considered

when warm tyres are checked.

Tyre deflation detection

system

The tyre deflation detection system

continually checks the rotation speed

of all four wheels and warns on low

tyre pressure condition once vehicle

is driving. This is achieved by

comparing tyre rolling circumference

with reference values and further

signals.
If a tyre loses pressure the control

indicator

illuminates and a warning

message is displayed in the Driver

Information Centre.
Control indicator

74.

In this case reduce speed, avoid

sharp cornering and strong braking.

Stop at next safe opportunity and

check tyre pressure.
After adjusting tyre pressure initialise

system to extinguish the control

indicator and restart system.

If the failure continues to be

displayed, contact a workshop. The

system is inoperable when the ABS or

Electronic Stability Control has a

malfunction or a temporary spare

wheel is used. Once the tyre has been

refitted, check the tyre pressure with

cold tyres and initialise the system.

Caution

Deflation detection system warns

just about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

System initialisation

After tyre pressure correction or

wheel change, the system must be

initialised to learn new circumference

reference values:

1. Always ensure that all four tyres

have correct tyre pressure

291.

2. Apply parking brake.

3. Initialise the system via the Info

Display

78.

4. Reset is confirmed by pop-up

indication.

After initialisation system

automatically calibrates to new tyre

pressures during driving. After longer

drive the system will adopt and

monitor new pressures.
Always check tyre pressure with cold

tyres.
System has to be reinitialised when:

● Tyre pressure has been changed
● Load condition has been

changed

● Wheels have been swapped or

exchanged

The system will not warn

instantaneously on a tyre blow out or

a rapid deflation. This is due to

required calculation time.

Tread depth

Check tread depth at regular

intervals.

264

Vehicle care

For safety reasons, it is

recommended that the tread depth of

the tyres on one axle should not vary

by more than 2 mm.

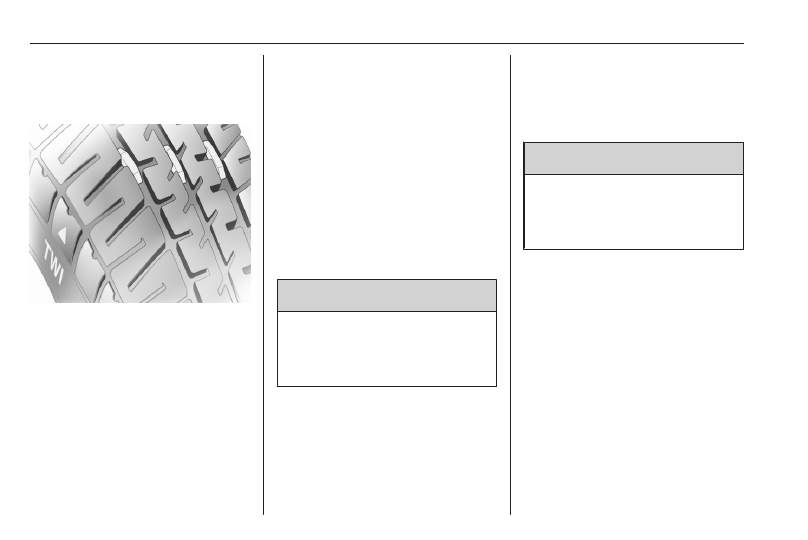

The legally permissible minimum

tread depth (1.6 mm) has been

reached when the tread has worn

down as far as one of the tread wear

indicators (TWI). Their position is

indicated by markings on the

sidewall.
If there is more wear at the front than

the rear, swap round front wheels and

rear wheels periodically. Ensure that

the direction of rotation of the wheels

remains the same.

Tyres age, even if they are not used.

We recommend tyre replacement

every 6 years.

Changing tyre and wheel

size

If tyres of a different size than those

fitted at the factory are used, it may be

necessary to reprogramme the tyre

deflation detection system and make

other vehicle modifications.
Have the label with tyre pressures

replaced.

Warning

The use of unsuitable tyres or

wheels may lead to accidents and

will invalidate the vehicle

operating permit.

Wheel covers

Wheel covers and tyres that are

factory approved for the respective

vehicle and comply with all of the

relevant wheel and tyre combination

requirements must be used.

If the wheel covers and tyres used are

not factory approved, the tyres must

not have a rim protection ridge.
Wheel covers must not impair brake

cooling.

Warning

Use of unsuitable tyres or wheel

covers could lead to sudden

pressure loss and thereby

accidents.

Vehicles with steel wheels: When

using locking wheel nuts, do not

attach wheel covers.
Spare wheels: Do not use wheel

covers.

Vehicle care

265

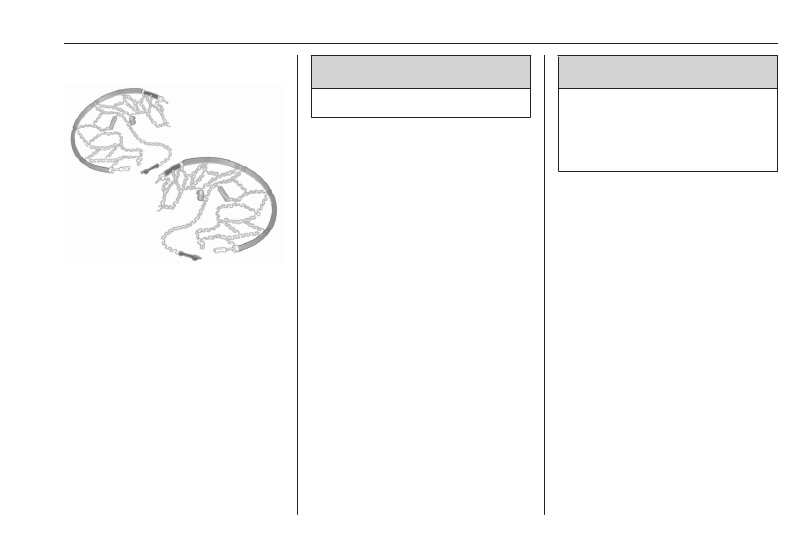

Tyre chains

Tyre chains are only permitted on the

front wheels.
Only use tryre chains designed to be

used with tyre type of the vehicle:

● For 16 inch and 17 inch tyres,

only use Polaire XP9 120 (9mm)

tyre chains.

● For 18 inch tyres, only use

Polaire 0112 PSSD tyre chains.

Notice

The use of tyre chains and the

maximum allowed speed is

regulated by country-specific

legislation.

Warning

Damage may lead to tyre blowout.

When fitting the tyre chains follow the

instructions provided by the

manufacturer of the tyre chains.
After having fitted the tyre chains,

stop the vehicle after having driven a

short distance and make sure that the

tyre chains are correctly tightened.

Temporary spare wheel

The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.
Do not remove foreign bodies from

the tyres.
Tyre damage exceeding 4 mm or that

is at tyre's sidewall cannot be repaired

with the tyre repair kit.
Depending on version, there are two

different tyre repair kits (Type A and

Type B).

Warning

Do not drive faster than 50 mph.
Do not use for a lengthy period.
Steering and handling may be

affected.

In the case of a flat tyre:
Apply the parking brake and engage

first gear, reverse gear or P.
The tyre repair kit is in the load

compartment below the floor cover.

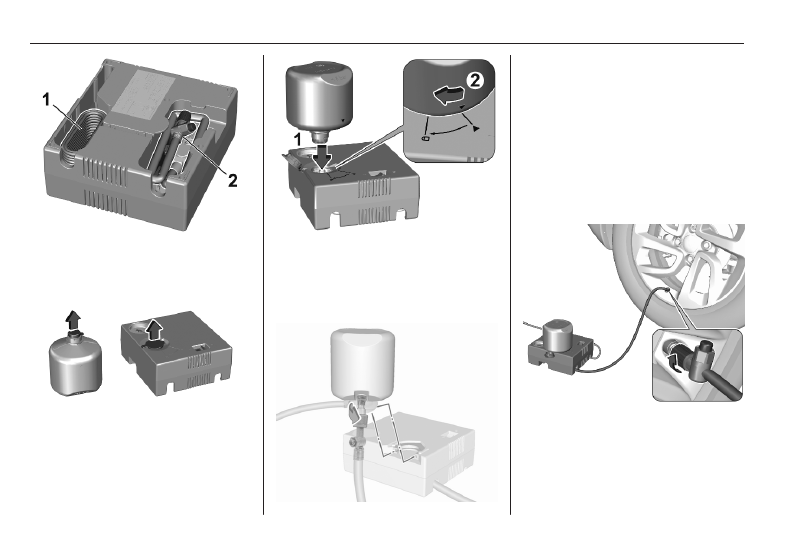

1. Remove the sealant bottle and the

compressor.

2. Pull speed limit label from sealant

bottle and place it in driver's

visible area.

266

Vehicle care

3. Remove the electrical connection

cable (1) and air hose (2) from the

stowage compartments on the

underside of the compressor.

4. Type A: Open sealant bottle and

lift the lid.

5. Type A: First, insert sealant bottle

into the compresor and align the

triangle symbols. Then, push

down sealant bottle and turn it to

the lock position.

Type B: Screw the compressor air

hose to the connection on the

sealant bottle.

6. Type B: Fit the sealant bottle into

the bracket on the compressor.

7. Set the compressor near the tyre

in such a way that the sealant

bottle is upright.

8. Unscrew valve cap from defective

tyre.

9. Screw the filler hose to the tyre

valve.

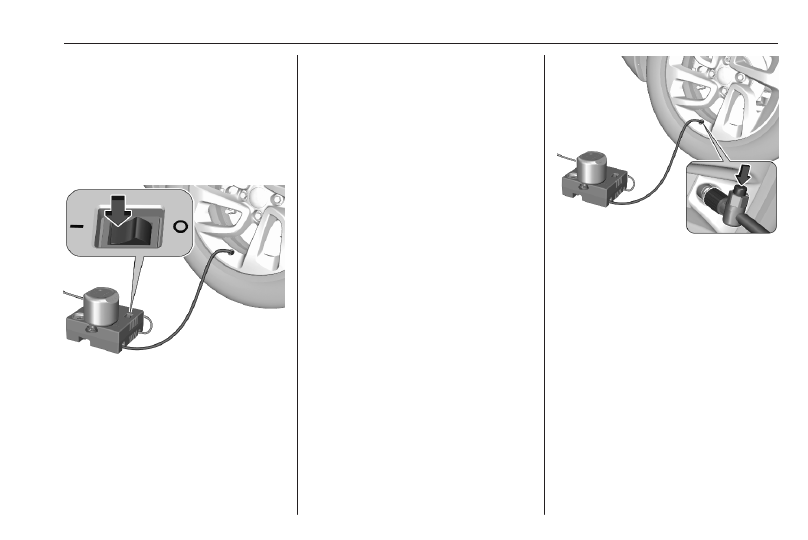

10. The switch on the compressor

must be set to

Vehicle care

267

11. Connect the compressor plug to

the 12 V power outlet or cigarette

lighter socket

61.

To avoid discharging the vehicle

battery, we recommend to use the

tyre repair kit only when the

combustion engine is running or

when the electric engine is ready.

12. Set the rocker switch on the

compressor to I. The tyre is filled

with sealant.

13. The compressor pressure gauge

briefly indicates up to

600 kPa (6 bar) whilst the sealant

bottle is emptying (approx.

30 seconds). Then the pressure

starts to drop.

14. All of the sealant is pumped into

the tyre. Then the tyre is being

inflated.

15. The prescribed tyre pressure

should be obtained within ten

minutes.
Tyre pressure

291.

When the correct pressure is

obtained, switch off the

compressor.
If the prescribed tyre pressure is

not obtained within ten minutes,

remove the tyre repair kit. Move

the vehicle one tyre rotation.

Reattach the tyre repair kit and

continue the filling procedure for

10 minutes. If the prescribed tyre

pressure is still not obtained, the

tyre is too badly damaged. Seek

the assistance of a workshop.

Drain excess tyre pressure with

the button on the air hose.
Do not run the compressor longer

than ten minutes.

16. Detach the tyre repair kit. Remove

sealant bottle from compressor.

Screw the filler hose to the free

connection of the sealant bottle.

This prevents sealant from

escaping. Stow tyre repair kit in

load compartment.

17. Remove any excess sealant

using a cloth.

18. Continue driving immediately so

that sealant is evenly distributed

in the tyre. Drive between

13 mph and 37 mph. After driving

268

Vehicle care

approx. 3 miles but no more than

ten minutes, stop and check tyre

pressure. Screw compressor air

hose directly onto tyre valve when

doing this. Fill tyre as described

before. Drain excess tyre

pressure with the button on the air

hose.
If tyre pressure hasn't decreased

under 200 kPa (2 bar), set it to the

correct value. Otherwise the

vehicle must not be used. Seek

assistance of a workshop.
Repeat the checking procedure

once more after driving further

3 miles but no more than ten

minutes to check that there is no

more loss of pressure.
If the tyre pressure has fallen

below 200 kPa (2 bar), the vehicle

must not be used. Seek the

assistance of a workshop.

19. Stow away tyre repair kit in load

compartment.

Notice

The driving characteristics of the

repaired tyre are severely affected,

therefore have this tyre replaced.

If unusual noise is heard or the

compressor becomes hot, turn

compressor off for at least 30 min.
The built-in safety valve opens at a

pressure of seven bar (102 psi).
Note the expiry date of the kit. After

this date its sealing capability is no

longer guaranteed. Pay attention to

storage information on sealant

bottle.
Replace the used sealant bottle.

Dispose of the bottle as prescribed

by applicable laws.
The compressor and sealant can be

used from approx. -30 °C.

Wheel changing

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● Apply the parking brake and

engage first gear, reverse gear or

● Place a chock under the wheel

diagonally opposite the wheel to

be changed.

● If the ground on which the vehicle

is standing is soft, a solid board

(approx. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Before screwing in the wheel

bolts, clean them.

Warning

Do not grease wheel bolts.

Vehicle care

269

Tightening torques

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel for temporary usage, the

bolts for alloy wheel rims can also

be used.

Depending on the wheel rim material,

two different bolts are available.

Tightening torque for alloy wheel rims

is 115 Nm.

Tightening torque for steel wheel rims

is 115 Nm.
Use the correct wheel bolts for the

respective wheels.

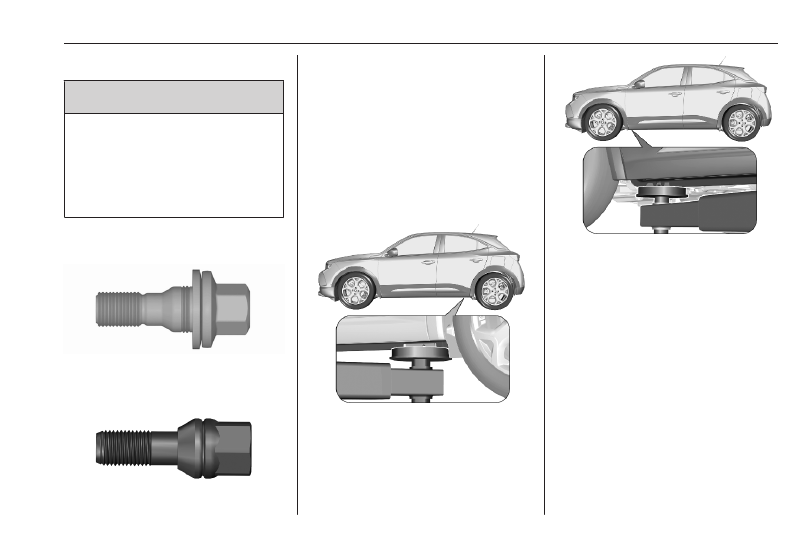

Jacking positions

The jacking positions shown refer to

the use of lifting arms and accessory

jacks used for changing winter /

summer tyres.

The rear arm position of the lifting

platform is centrically under the

relevant vehicle jacking point.

The front arm position of the lifting

platform is centrically under the

relevant vehicle jacking point.

Spare wheel

The spare wheel can be classified as

a temporary spare wheel depending

on the size compared to the other

mounted wheels and country

regulations. In this case, a

permissible maximum speed applies,

even though no label at the spare

wheel indicates this.
If there is a label on the spare wheel,

the permissible speed still depends

on the country regulations.

270

Vehicle care

Only mount one temporary spare

wheel. Take curves slowly. Do not

use for a long period of time.

Caution

The use of a spare wheel that is

smaller than the other wheels or in

combination with winter tyres

could affect driveability. Have the

defective tyre replaced as soon as

possible.

The spare wheel is located in the load

compartment beneath the floor

covering.

To remove:

1. Open the floor cover

49.

2. The temporary spare wheel is

secured with a wing nut. Unscrew

nut and take out the spare wheel.

3. When, after a wheel change, no

wheel is placed in the spare wheel

well, tighten the wing nut and

close floor cover.

4. After wheel change back to full

size wheel, place the temporary

spare wheel in the well and secure

with the wing nut.

Only mount one temporary spare

wheel. The permissible maximum

speed on the label on the temporary

spare wheel is only valid for the

factory-fitted tyre size.

Fitting the spare wheel

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● Apply the parking brake and

engage first gear, reverse gear or

● Place a chock under the wheel

diagonally opposite the wheel to

be changed.

● Remove the spare wheel.
● Never change more than one

wheel at once.

● Use the jack only to change

wheels in case of puncture, not

for seasonal winter or summer

tyre change.

● The jack is maintenance-free.
● If the ground on which the vehicle

is standing is soft, a solid board

(approx. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

Vehicle care

271

● Before screwing in the wheel

bolts, clean them.

Warning

Do not grease wheel bolts.

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel for temporary usage, the

bolts for alloy wheel rims can also

be used.

● Note that the spare wheel is

secured by the conical contact of

each bolt if the wheel bolts for the

alloy wheel rims are used. In this

case, the washers do not come

into contact with the spare wheel.

1. Disengage wheel bolt caps with

the wheel bolt cover remover.
Vehicle tools

260.

Steel wheel rims with cover: Pull

off the wheel cover.

2. Attach the wheel wrench and

loosen each wheel bolt by half a

turn.
The wheels might be protected by

locking wheel nuts. To loosen

these specific nuts first attach the

adapter onto the head of the nut

before installing the wheel

wrench. The adapter is located in

the tool bag.
The wheels might be protected by

locking wheel nuts. To loosen

these specific nuts first attach the

adapter onto the head of the nut

before installing the wheel

wrench. The adapter is located in

the tool bag

260.

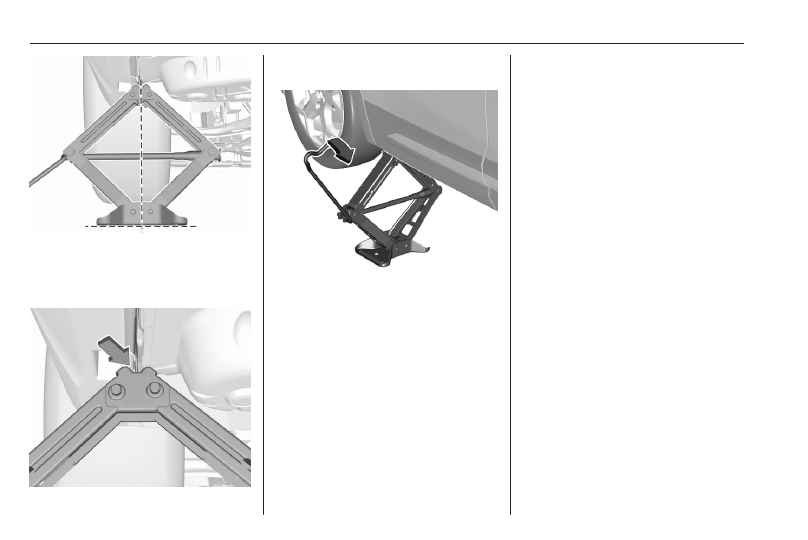

3. Ensure the jack is correctly

positioned under the relevant

vehicle jacking point.

272

Vehicle care

4. Set the jack to the necessary

height. Position it directly below

the jacking point in a manner that

prevents it from slipping.

Ensure that the edge of the body

fits into the notch of the jack.

With the jack correctly aligned,

jack up until wheel is clear of the

ground.

5. Unscrew the wheel nuts.
6. Change the wheel.
7. Screw on the wheel nuts.
8. Lower the vehicle and remove

jack.

9. Install the wheel wrench ensuring

that it is located securely and

tighten each bolt in a crosswise

sequence.
Tightening torque is 115 Nm.

If the vehicle is equipped with

alloy wheel rims, note that the

wheel bolts can also be used for

the spare wheel with steel rims. In

this case, the spare wheel is

secured by the conical contact of

each bolt.

10. Stow the replaced wheel, the

vehicle tools and the adapter for

the locking wheel nuts

260.

11. Check the tyre pressure of the

installed tyre and the wheel nut

torque as soon as possible.

Stowing a damaged full size

wheel in the load compartment

The spare wheel well is not designed

for other tyre sizes than the spare

wheel. A damaged full size wheel

must be stowed in the load

compartment and secured properly.
Loading information

51.

Vehicle care

273

Jump starting

Do not start with quick charger.
A vehicle with a discharged vehicle

battery can be started using jump

leads and the vehicle battery of

another vehicle.

Caution

Never jump start another vehicle

with an electric vehicle.

Warning

Be extremely careful when starting

with jump leads. Any deviation

from the following instructions can

lead to injuries or damage caused

by battery explosion or damage to

the electrical systems of both

vehicles.

Warning

Avoid contact of the battery with

eyes, skin, fabrics and painted

surfaces. The fluid contains

sulphuric acid which can cause

injuries and damage in the event

of direct contact.

● Never expose the vehicle battery

to naked flames or sparks.

● A discharged vehicle battery can

already freeze at a temperature

of 0 °C. Defrost the frozen battery

before connecting jump leads.

● Wear eye protection and

protective clothing when

handling a battery.

● Use a booster battery with the

same voltage (12 V). Its capacity

(Ah) must not be much less than

that of the discharged vehicle

battery.

● Use jump leads with insulated

terminals and a cross section of

at least 16 mm

(25 mm

for

diesel engines).

● Do not disconnect the discharged

vehicle battery from the vehicle.

● Switch off all unnecessary

electrical consumers.

● Do not lean over the vehicle

battery during jump starting.

● Do not allow the terminals of one

lead to touch those of the other

lead.

● The vehicles must not come into

contact with each other during

the jump starting process.

● Apply the parking brake,

transmission in neutral,

automatic transmission in P.

274

Vehicle care

Lead connection order:

1. Connect the red lead to the

positive terminal of the booster

battery.

2. Connect the other end of the red

lead to the positive terminal of the

discharged battery.

3. Connect the black lead to the

negative terminal of the booster

battery.

4. Connect the other end of the black

lead to a vehicle grounding point

of your vehicle in the engine

compartment.

Route the leads so that they cannot

catch on rotating parts in the engine

compartment.
To start the engine:

1. Start the engine of the vehicle

providing the jump.

2. After 5 minutes, start the other

engine. Start attempts should be

made for no longer than

15 seconds at an interval of

1 minute.

3. Allow both engines to idle for

approx. 3 minutes with the leads

connected.

4. Switch on electrical consumers

e.g. headlights, heated rear

window.

5. Reverse above sequence exactly

when removing leads.

Towing

Towing the vehicle

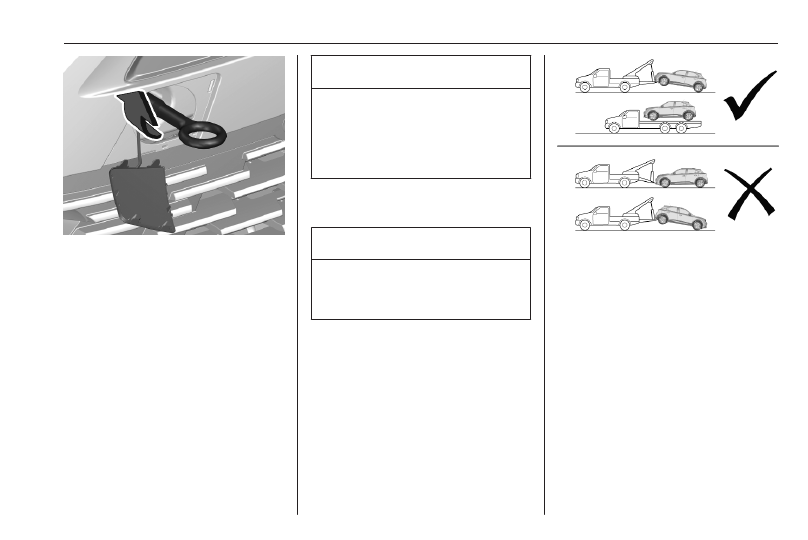

Remove the cap.
The towing eye is stowed with the

vehicle tools

260.

Vehicle care

275

Screw in the towing eye as far as it will

go until it stops in a horizontal

position.
Attach the tow rod to the towing eye.
The towing eye must only be used for

towing and not for recovering the

vehicle.
Switch on ignition to permit operation

of brake lights, horn, windscreen

wiper and, depending on version, to

release the steering wheel lock.

Caution

Deactivate the driver assistance

systems like active emergency

braking

200, otherwise the

vehicle may automatically brake

during towing.

Switch the selector lever to neutral.
Release the parking brake.

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

When the engine is not running,

considerably more force is needed to

brake and steer.
To prevent the entry of exhaust gases

from the towing vehicle, switch on the

air recirculation and close the

windows.

When towing a BEV or a vehicle

equipped with an automatic

transmission, transport the vehicle on

a platform or tow it with the front

wheels lifted.
Seek the assistance of a workshop.
After towing, unscrew the towing eye.
Insert cap with the flange into the

recess and fix cap by pushing.
Propulsion types

276

Vehicle care

Towing another vehicle

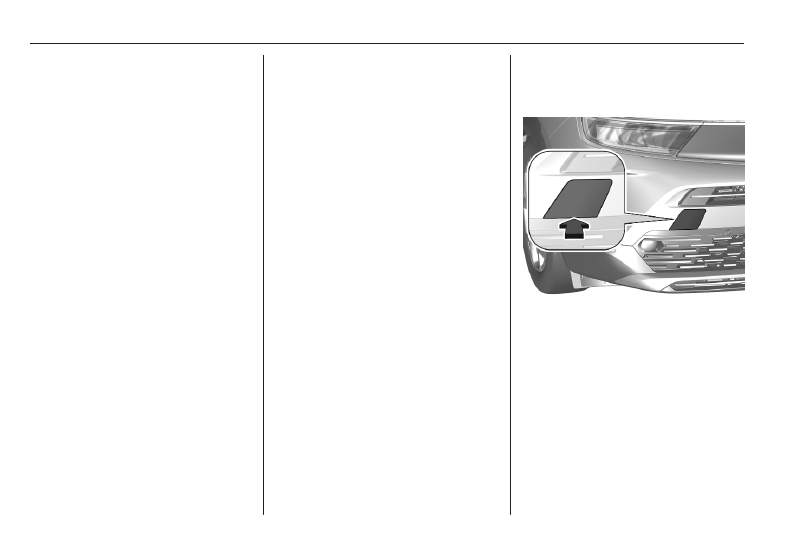

Remove the cap.
The towing eye is stowed with the

vehicle tools

260.

Screw in the towing eye as far as it will

go until it stops in a horizontal

position.
Attach a tow rope – or better still a tow

rod – to the towing eye.
The towing eye must only be used for

towing and not for recovering a

vehicle.

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

After towing, unscrew the towing eye.
Insert cap with the upper flange into

the recess and fix cap by pushing.

Appearance care

Exterior care

Locks

The locks are lubricated at the factory

using a high quality lock cylinder

grease. Use a de-icing agent only

when absolutely necessary, as this

has a degreasing effect and impairs

lock function. After using a de-icing

agent, have the locks regreased by a

workshop.

Washing

The paintwork of your vehicle is

exposed to environmental influences.
Bird droppings, dead insects, resin,

pollen and the like should be cleaned

off immediately, as they contain

aggressive constituents which can

cause paint damage.
If using a vehicle wash, comply with

the vehicle wash manufacturer's

instructions. The windscreen wiper

and rear window wiper must be

Vehicle care

277

switched off. Remove antenna and

external accessories such as roof

racks etc.
If you wash your vehicle by hand,

make sure that the insides of the

wheel housings are also thoroughly

rinsed out.
Clean edges and folds on opened

doors and the bonnet as well as the

areas they cover.
Clean bright metal mouldings with a

cleaning solution approved for

aluminium to avoid damages.

Caution

Always use a cleaning agent with

a pH value of 4 to 9.
Do not use cleaning agents on hot

surfaces.

Do not clean the engine compartment

with a steam-jet or high-pressure jet

cleaner.
Thoroughly rinse and leather-off the

vehicle. Rinse leather frequently. Use

separate leathers for painted and

glass surfaces: remnants of wax on

the windows will impair vision.

Have the door hinges of all doors

greased by a workshop.

Exterior lights

Headlight and other light covers are

made of plastic. Do not use any

abrasive or caustic agents, do not use

an ice scraper, and do not clean them

dry.

Polishing and waxing

Polishing is necessary only if the paint

has become dull or if solid deposits

have become attached to it.
Plastic body parts must not be treated

with wax or polishing agents.

Windows and wiper blades

Switch off wipers before handling in

their areas.
Use a soft lint-free cloth or chamois

leather together with window cleaner

and insect remover.
When cleaning the rear window from

inside, always wipe in parallel to the

heating element to prevent damage.

For mechanical removal of ice, use a

sharp-edged ice scraper. Press the

scraper firmly against the glass so

that no dirt can get under it and

scratch the glass.
Clean smearing wiper blades with a

soft cloth and window cleaner. Also

make sure to remove any residues

such as wax, insect residues and

similar from the window.
Ice residues, pollution and continuous

wiping on dry windows will damage or

even destroy the wiper blades.

Wheels and tyres

Do not use high-pressure jet

cleaners.
Clean rims with a pH-neutral wheel

cleaner.
Rims are painted and can be treated

with the same agents as the body.

Paintwork damage

Rectify minor paintwork damage with

a touch-up pen before rust forms.

Have more extensive damage or rust

areas repaired by a workshop.

278

Vehicle care

Underbody

Some areas of the vehicle underbody

have a PVC undercoating while other

critical areas have a durable

protective wax coating.
After the underbody is washed, check

the underbody and have it waxed if

necessary.
Bitumen / rubber materials could

damage the PVC coating. Have

underbody work carried out by a

workshop.
Before and after winter, wash the

underbody and have the protective

wax coating checked.

Towing equipment

Do not clean the coupling ball bar with

a steam-jet or high-pressure jet

cleaner.

Interior care

Interior and upholstery

Only clean the vehicle interior,

including the instrument panel fascia

and panelling, with a dry cloth or

interior cleaner.
Clean the leather upholstery with

clear water and a soft cloth. In case of

heavy soiling, use leather care.
The Driver Information Centre and

the displays should only be cleaned

using a soft damp cloth. If necessary

use a weak soap solution.
Clean fabric upholstery with a

vacuum cleaner and brush. Remove

stains with an upholstery cleaner.
Clothing fabrics may not be

colourfast. This could cause visible

discolourations, especially on light-

coloured upholstery. Removable

stains and discolourations should be

cleaned as soon as possible.
Clean seat belts with lukewarm water

or interior cleaner.

Caution

Close Velcro fasteners as open

Velcro fasteners on clothing could

damage seat upholstery.
The same applies to clothing with

sharp-edged objects, like zips or

belts or studded jeans.

Plastic and rubber parts

Plastic and rubber parts can be

cleaned with the same cleaner as

used to clean the body. Use interior

cleaner if necessary. Do not use any

other agent. Avoid solvents and petrol

in particular. Do not use high-

pressure jet cleaners.

Floor mats

Warning

If a floor mat has the wrong size or

is not properly installed, it can

interfere with the accelerator pedal

and/or brake pedal, what can

cause unintended acceleration

Vehicle care

279

and/or increased stopping

distance which can cause a crash

and injury.

Use the following guidelines for

proper floor mat usage.

● The original equipment floor mats

were designed for this vehicle. If

the floor mats need to be

replaced, it is recommended to

buy certified floor mats which fit

properly and are fixed by the

retainers on the driver side.

Always check that the floor mats

do not interfere with the pedals.

● Use the floor mat with the correct

side up. Do not turn it over.

● Do not place anything on top of

the driver side floor mat.

● Use only a single floor mat on the

driver side.

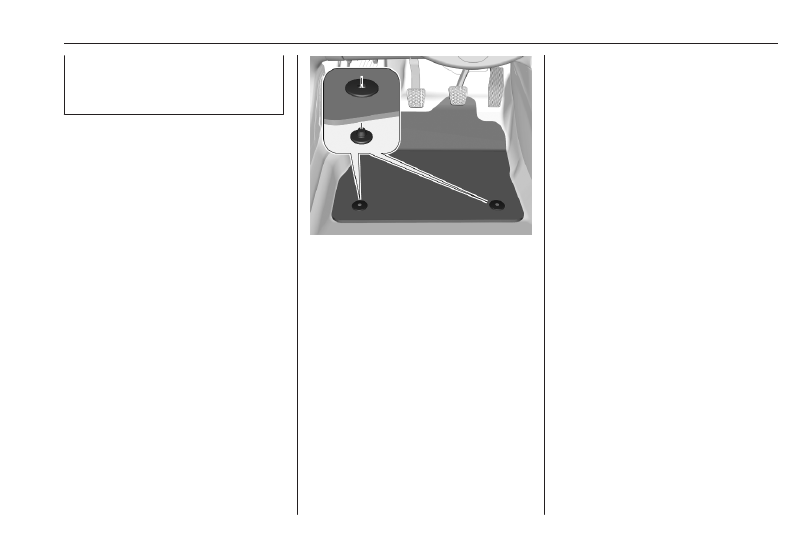

Inserting floor mats

The driver side floor mat is held in

place by two retainers.
To install:

1. Move the seat backwards as far

as possible.

2. Align slots in the mat with the

retainers, as shown.

3. Push the mat to the floor.

Removing floor mats

To remove:

1. Move the seat backwards as far

as possible.

2. Remove the mat.

280

Service and maintenance

Service and

maintenance

General information ................... 280

Service information .................. 280

Recommended fluids, lubricants

and parts .................................... 283

Recommended fluids and

lubricants ................................ 283

General information

Service information

In order to ensure economical and

safe vehicle operation and to

maintain the value of your vehicle, it

is of vital importance that all

maintenance work is carried out at the

proper intervals as specified.
The detailed, up-to-date service

schedule for your vehicle is available

at the workshop.
Severe operating conditions exist if

one or more of the following

circumstances occur frequently: Cold

starting, stop and go operation, e.g.

for taxis and police vehicles, trailer

operation, mountain driving, driving

on poor and sandy road surfaces,

increased air pollution, presence of

airborne sand and high dust content,

driving at high altitude and large

variations of temperature.
Under these severe operating

conditions, certain service work may

be required more frequently than the

regular service interval indicated in

the service display. Contact a

workshop for customised service

schedules.
Service display

66.

Service and maintenance

281

Service intervals

Engine code

EB2LTD,
EB2LTED

EB2ADTD,
EB2ADTS,
EB2ADTSM

DV5RCE

Electric vehicle

Country group 1 16,000 miles / 1 year

12,500 miles / 1 year

20,000 miles / 1 year

16,000 miles / 2 years

Unless otherwise indicated in the service display.

Initial service interval is 8,000 miles / 1 year

Country Group 1:

Andorra, Austria, Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Italy, Liechtenstein,

Luxembourg, Malta, Monaco, Netherlands, Norway, Portugal, Republic of Ireland, San Marino, Spain, Sweden,

Switzerland, United Kingdom.
Country Group 2:

Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Hungary, Latvia, Lithuania, North Macedonia, Poland,

Romania, Slovakia, Slovenia.
Country Group 3:

Albania, Kosovo, Montenegro, New Zealand, Serbia.
Country Group 4:

Israel, Lesotho, South Africa, Swaziland, Turkey.
Country Group 5:

Russia.
Country Group 6:

All other countries which are not listed in the previous country groups.

Service and maintenance

283

Recommended fluids,

lubricants and parts

Recommended fluids and

lubricants

Only use products that meet the

recommended specifications.

Warning

Operating materials are

hazardous and could be

poisonous. Handle with care. Pay

attention to information given on

the containers.

Engine oil

Engine oil is identified by its quality

and its viscosity. Quality is more

important than viscosity when

selecting which engine oil to use. The

oil quality ensures e.g. engine

cleanliness, wear protection and oil

aging control, whereas viscosity

grade gives information on the oil's

thickness over a temperature range.

Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

287.

Topping up engine oil

Caution

In case of any spilled oil, wipe it up

and dispose it properly.

Engine oils of different manufacturers

and brands can be mixed as long as

they comply with the required engine

oil quality and viscosity.
Use of engine oils for all petrol

engines with only ACEA quality is

prohibited, since it can cause engine

damage under certain operating

conditions.
Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

287.

Additional engine oil additives

The use of additional engine oil

additives could cause damage and

invalidate the warranty.

Engine oil viscosity grades

The SAE viscosity grade gives

information of the thickness of the oil.
Multigrade oil is indicated by two

figures, e.g. SAE 5W-30. The first

figure, followed by a W, indicates the

low temperature viscosity and the

second figure the high temperature

viscosity.
Select the appropriate viscosity grade

depending on the minimum ambient

temperature

287.

All of the recommended viscosity

grades are suitable for high ambient

temperatures.

Coolant and antifreeze

Use only antifreeze approved for the

vehicle. Consult a workshop.
The system is factory filled with

coolant designed for excellent

corrosion protection and frost

protection down to approx. -28 °C. In

cold regions with very low

temperatures the factory filled coolant

provides frost protection down to

approx. -37 °C. This concentration

should be maintained all year round.

284

Service and maintenance

The use of additional coolant

additives that intend to give additional

corrosion protection or seal against

minor leaks can cause function

problems. Liability for consequences

resulting from the use of additional

coolant additives will be rejected.

Washer fluid

Use only washer fluid approved for

the vehicle to prevent damage of

wiper blades, paintwork, plastic and

rubber parts. Consult a workshop.

Brake and clutch fluid

Over time, brake fluid absorbs

moisture which will reduce braking

effectiveness. The brake fluid should

therefore be replaced at the specified

interval.
Use only brake fluid approved for the

vehicle. Consult a workshop.

AdBlue

Only use AdBlue to reduce the

nitrogen oxides in the exhaust

emission

172.

Technical data

285

Technical data

Vehicle identification .................. 285

Vehicle identification number . . 285

Identification plate ................... 285

Engine identification ................ 286

Vehicle data ............................... 287

Recommended fluids and

lubricants ................................ 287

Engine data ............................. 288

Vehicle dimensions ................. 289

Capacities ................................ 290

Tyre pressures ........................ 291

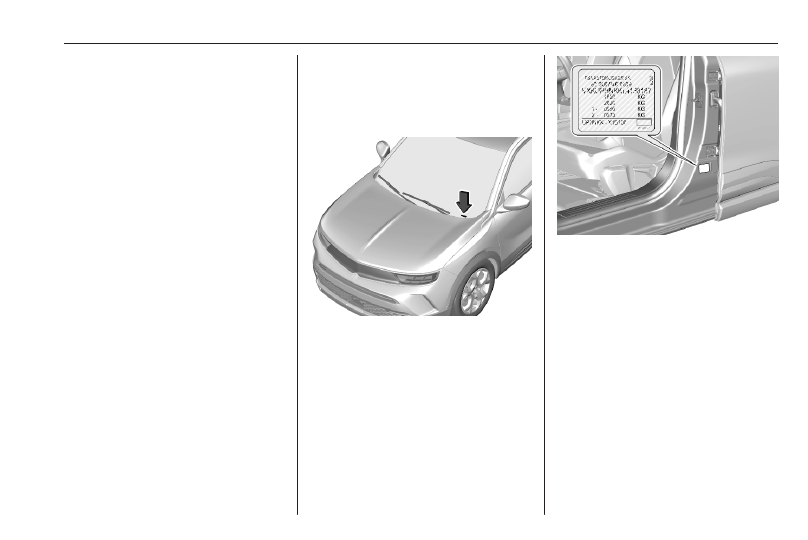

Vehicle identification

number

The Vehicle Identification Number

may be embossed on the instrument

panel, visible through the windscreen,

or in the engine compartment on the

right body panel.

Identification plate

The identification plate is located on

the front left or right door frame. The

layout and position differ for some

export countries.

Information on identification label:
1 : manufacturer

2 : type approval number

3 : vehicle identification number

4 : permissible gross vehicle weight

rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

8 : manufacturer address, vehicle-

specific or country-specific data

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight.

286

Technical data

Vehicle's kerb weight depends on the

specification of the vehicle, e.g.

optional equipment and accessories.

Refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this manual.

Engine identification

The technical data tables show the

engine identifier code.
Engine data

288.

To identify the respective engine,

refer to the engine power in the EEC

Certificate of Conformity provided

with your vehicle or other national

registration documents.

Technical data

287

Vehicle data

Recommended fluids and lubricants

Required engine oil quality

Country groups

280

Countries included in country groups 1 to 3 and 5

all engines

Vauxhall Original engine oil

B71 2010 / B71 2312

Engine EC5F: B71 2290, B71 2296 or B71 300 may also be used.

Engine oil viscosity grades

B71 2010

B71 2312

B71 2302

B71 2297

Engine oil viscosity grade

SAE 0W-20

SAE 0W-30

SAE 5W-30

288

Technical data

Engine data

Engine identifier code

EB2LTD EB2LTED EB2ADTD EB2ADTS EB2ADTSM DV5RCE Electric vehicle

Sales designation

1.2 T

1.5 D

–

Piston displacement [cm

]

1199

1499

–

Engine power [kW]

100

74 / 81

100 / 115

at rpm

6000

5500

3750

–

Torque [Nm]

230

205

230

250

260

at rpm

1750

–

Fuel type

Petrol

Diesel

–

Octane rating RON

1)2)

recommended

–

possible

–

possible

–

Additional fuel type

–

A country specific label at the fuel filler flap can supersede the engine specific requirement.

In certain countries, the use of a particular fuel, e.g. a specific octane rating, may be required to ensure proper engine operation.

Technical data

289

Vehicle dimensions

Length [mm]

4151

Width with two exterior mirrors folded [mm]

1791

Width with two exterior mirrors [mm]

1987

Height (without antenna) [mm]

1531 / 1532

Length of load compartment floor [mm]

667

Length of load compartment with folded second row [mm]

1418

Load compartment width between wheel arches [mm]

1021

Wheelbase [mm]

2557 / 2561

Turning circle diameter [m]

11.08

electric vehicle

290

Technical data

Capacities

Engine oil

Engine

EB2LTD,
EB2LTED

EB2ADTD

EB2ADTS

EB2ADTSM

DV5RCE

including filter [l]

3.5

4.0

between MIN and MAX [l]

1.0

1.5

Not available at time of printing.

Fuel tank

Petrol, refilling quantity [l]

Diesel, refilling quantity [l]

AdBlue tank

AdBlue, refilling quantity [l]

High voltage battery

Battery capacity [kWh]

Technical data

291

Tyre pressures

Vehicle with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

[kPa/bar] ([psi])

ICE

215/65 R16,
215/60 R17,
215/55 R18

220/2.2 (32)

270/2.7 (39)

BEV

215/65 R16,
215/60 R17,
215/55 R18

250/2.5 (36)

300/3.0 (44)

125/85 R16
Temporary spare wheel

420/4.2 (60)

Propulsion types

292

Customer information

Customer

information

Customer information ................ 292

Declaration of conformity ......... 292

REACH .................................... 294

Software update ...................... 294

Registered trademarks ............ 295

Vehicle data recording and pri‐

vacy ........................................... 296

Emergency call data recording

and privacy ............................. 296

Event data recorders ............... 297

Radio Frequency Identification

(RFID) ..................................... 300

Customer information

Declaration of conformity

Radio transmission systems

This vehicle has systems that

transmit and / or receive radio waves

subject to Directive 2014/53/EU and

The Radio Equipment Regulations

2017 by the United Kingdom. The

manufacturers of the systems listed

below declare conformity with

Directive 2014/53/EU and

The Radio Equipment Regulations

2017. The full text of the EU

declaration of conformity for each

system is available at the following

internet address: www.opel.com/

conformity.
Importer is Vauxhall Motors Limited,

MP UK 1-101-135, Chalton House,

Luton Road, Chalton, Luton,

Bedfordshire, LU4 9TT, United

Kingdom.

Infotainment system Multimedia Navi

Pro / Multimedia Navi

Continental Automotive Czech

Republic s.r.o

Prumyslová 1851, 250 01 Brandys

nad Labem, Czech Republic

Operation

frequency

(MHz)

Maximum

output (dBm)

BT 2402.0 -

2480.0

4.1

Wifi 2412.0 -

2462.0

16.7

Infotainment system Multimedia /

Radio

Robert Bosch Car Multimedia GmbH
Robert-Bosch-Strasse 200, 31139

Hildesheim, Germany
Operation frequency:

2400.0 - 2483.5 MHz
Maximum output: 4 dBm

Wireless charger

Continental Automotive GmbH
Siemensstrasse 12, 93055

Regensburg, Germany
Operation frequency:

90.0 - 119.0 kHz

Customer information

293

Maximum output:

39.24dBµA/m at 3m

Antenna module

Hirschmann Car Communication

GmbH
Stuttgarter Strasse 45-51, 72654

Neckartenzlingen, Germany
Operation frequency: N/A
Maximum output: N/A
ASK Industrie SpA
C.P. 110 c/o U.P. RE2, 42121 Reggio

Emilia, Italy
Operation frequency: N/A
Maximum output: N/A
Fiamm France - RCA Spa
12 rue Augustin Fresnel, 78420

Aubergenville, France
Operation frequency: N/A
Maximum output: N/A

Electronic key transmitter

Valeo Comfort and Driving

Assistance
76, rue Auguste Perret 94046 Créteil

- CEDEX France

Operation frequency:

433.05 - 434.79 MHz
Maximum output: -6,85 dBm

Electronic key receiver

Valeo Comfort and Driving

Assistance
76, rue Auguste Perret 94046 Créteil

- CEDEX France

Operation

frequency

Maximum

output (dBm)

2402.0 -

2480.0

5.0

Radio 125 kHz

- 7.3

Radio remote control transmitter

Huf Hülsbeck & Fürst GmbH & Co.

KG
Steeger Str. 17, 42551 Velbert,

Germany
Operation frequency:

433.05 - 434.79 MHz
Maximum output: -14 dBm

Radio remote control receiver

Aptiv Services France SAS

22 Avenue des Nations ZAC Paris

Nord II 93420 Villepinte France
Operation frequency: 125 kHz
Maximum output: 66 dBμA/m at 10m

Immobiliser

Kostal Bulgaria Automotive

Pazardzhik
ul. "Sinitevska" 4, 4400 Southern

Industrial Zone, Bulgaria
Operation frequency: 119 - 134 kHz
Maximum output: 72 dBμA/m at 10m

Radar unit

ZF TRW Autocruise SAS
Secteur de la Pointe du Diable,

Avenue du technopôle, 29280

Plouzane, France
Operation frequency:

76.0 - 77.0 GHz
Maximum output: 28 dBm

BTA Module

Marelli S.p.A.
Viale A. Borletti 61/63, 20011

Corbetta, Italy

Vauxhall Mokka B (2023 year). Manual in english - page 9
