Vauxhall Corsa F (2023 year). Manual in english

Instruments and controls

Illuminates

Parking brake is applied

193.

Flashes

Electric parking brake is not applied

automatically. The application or the

release are faulty.

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Electric parking brake fault

illuminates yellow.

Illuminates

Electric parking brake has a fault

193.

Warning

Have the cause of the fault

remedied immediately by a

workshop.

Automatic operation of

electric parking brake off

illuminates yellow.

Illuminates

Automatic operation is deactivated or

faulty. In the event of a fault,

illuminates together with other control

indicators or it is accompanied by a

corresponding message in the Driver

Information Centre.
Activate automatic operation again or

have the cause remedied by a

workshop in the event of a fault.
Automatic operation

193.

Antilock brake system

(ABS)

illuminates yellow.

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not

extinguish after a few seconds, or if it

illuminates while driving, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
Antilock brake system

193.

Gear shifting

with the number of a higher

or lower gear is indicated, when

upshifting or downshifting is

recommended for fuel saving

reasons.
On vehicles with automatic

transmission, the system is only

active in manual mode.
Manual mode

185.

Lane keep assist

illuminates or flashes yellow.

Illuminates yellow

A fault has been detected.

Flashes yellow

The system is correcting the

unintended lane change.
Lane keep assist

237.

Instruments and controls

Parking assist

flashes yellow as soon as an

obstacle gets closer to the vehicle.
Parking assist

217

Electronic Stability Control

and Traction Control system

illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.
After reconnecting the vehicle

battery, (e.g. after maintenance

work),

is illuminated for several

seconds. After this time period,

extinguishes. This is a normal

procedure, the vehicle does not need

any assistance.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control and

Traction Control system

197.

Engine coolant temperature

illuminates red.

Illuminates when the engine is

running

Stop, switch off engine.

Caution

Coolant temperature too high.

Check coolant level immediately

262.

If there is sufficient coolant, consult a

workshop.

Preheating

illuminates yellow.

Preheating of diesel engine is

activated. Only activates when

outside temperature is low. Start the

engine when control indicator

extinguishes.
Starting the engine

173.

Exhaust filter

illuminates yellow.

The exhaust filter requires cleaning.
Continue driving until the control

indicator extinguishes.

Illuminates temporarily

Start of saturation of the exhaust filter.

Start cleaning process as soon as

possible by driving at a vehicle speed

of at least 40 mph.

Illuminates constantly

Indication of a low additive level. Seek

the assistance of a workshop.
Exhaust filter

177.

AdBlue

flashes or illuminates yellow.

Instruments and controls

Illuminates yellow

The remaining driving range is

between 500 miles and 1500 miles.

Flashes yellow

The remaining driving range is

between 0 and 500 miles.
AdBlue level is low. Refill AdBlue

soon to avoid prevention of the

engine start.
AdBlue

178.

Deflation detection system

illuminates or flashes yellow.

Illuminates

Tyre pressure loss in one or more

wheels. Stop immediately and check

tyre pressure.

Flashes

Fault in system. Consult a workshop.
Deflation detection system

275.

Engine oil pressure

illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and / or

locking of the drive wheels.

1. Select neutral gear.
2. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

3. Switch off ignition.

Warning

When the engine is off,

considerably more force is needed

to brake and steer. During an

Autostop the brake servo unit will

still be operational.

Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could, depending on

version, engage unexpectedly.

Keep engine turned off and let the

vehicle be towed to a workshop.

Low fuel

illuminates yellow.

Level in fuel tank is too low.
Refuelling

251.

Bleeding the diesel fuel system

266.

Charging cable connected

illuminates red.

The vehicle plug of the charging cable

is still connected to the charge port.

The vehicle cannot be started.
Disconnect the vehicle plug from the

charge port and close the charge port

flap.
Charging

242.

Instruments and controls

Vehicle ready

READY illuminates green. The

vehicle is ready to be driven.

Reduced engine power

illuminates yellow.

The charging level of the high voltage

battery is low. Only reduced engine

power is available.

Autostop

illuminates or flashes green.

Illuminates green

Engine is in an Autostop.

Flashes green

Autostop is temporarily unavailable,

or Autostop mode is invoked

automatically.
Stop-start system

174.

Exterior light

illuminates green.

The exterior lights are on

83.

Low beam

illuminates green.

Illuminated when low beam is on.

High beam

illuminates blue.

Illuminates when high beam is on or

during headlight flash

84.

High beam assist

illuminates green.

The high beam assist is activated

84.

Front fog lights

illuminates green.

The front fog lights are on

88.

Rear fog light

illuminates yellow.

The rear fog light is on

89.

Rain sensor

illuminates green.

Illuminated when rain sensor position

on wiper lever is selected.
Windscreen wiper and washer

55.

Pedestrian safety alert fault

illuminates yellow.

The pedestrian safety alert is not

working.

Active emergency braking

illuminates or flashes yellow.

Illuminates

The system has been deactivated or

a fault has been detected.
Additionally, a warning message is

displayed in the Driver Information

Centre.
Check the reason of the deactivation

212 and in case of a system fault,

seek the assistance of a workshop.

Instruments and controls

Notice

also illuminates if the seat belts

of the front passengers are not

fastened. In this case, active

emergency braking is deactivated.

Flashes

The system is actively engaged and

brakes automatically the vehicle.
Active emergency braking

212.

Forward collision alert

210.

Front pedestrian protection

215.

Traffic sign assistant

illuminates for a few seconds or

permanently.

Illuminates for a few seconds

If the vehicle exceeds the speed limit

provided by the traffic sign assistant,

the speed limit displayed in the Driver

Information Centre flashes and an

audible signal is given. If flashing and

audible signal are deactivated,

illuminates for a few seconds.

Illuminates permanently

If the traffic sign assistant has a

failure,

illuminates permanently.

Consult a workshop.
Traffic sign assistant

233.

Door open

illuminates red.

A door or the tailgate is open.

Displays

Driver Information Centre

The Driver Information Centre is

located in the instrument cluster.
Depending on the version, two

instrument clusters are available.
Midlevel instrument cluster

Uplevel instrument cluster

Instruments and controls

Driver Information Centre indicates:

● overall and trip odometer
● digital speed indication
● trip / autonomy information menu
● gear shift indication
● service information
● vehicle and warning messages
● driver assistance systems
● pop-up messages

Selecting menus and functions

The menus and functions can be

selected via the buttons on the

indicator lever.

Turn the adjuster wheel to select a

page.
Press SET / CLR to select, confirm or

reset a function.
Vehicle and service messages are

popped up in the Driver Information

Centre, if required. Scroll messages

by turning the adjuster wheel.

Confirm messages by pressing

SET / CLR.
Vehicle messages

79.

Trip / autonomy information menu

Midlevel instrument cluster

Uplevel instrument cluster

Instruments and controls

Differerent pages with combined

information can be selected.
Turn the adjuster wheel to select a

page.

Information page:

Fuel range
Range is calculated from current fuel

level and current consumption. The

display shows average values.
After refuelling, the range is updated

automatically after a brief delay.
When the fuel level is low, a message

appears on the display and the

control indicator

in the fuel

gauge illuminates

72.

Instantaneous Fuel Consumption
Display of the instantaneous

consumption.
Electric autonomy
The electric autonomy is calculated

from current charging status of the

high voltage battery and and current

consumption. The display shows

average values.
After recharging, the range is updated

automatically after a brief delay.

High voltage battery gauge

72.

High voltage battery charge level
The current charge level of the high

voltage battery is displayed in

percent.
The display shows average values.
After recharging, the high voltage

battery charge level is updated

automatically after a brief delay.

Autostop time counter

A time counter calculates the time

spent in Autostop during a journey. It

resets to zero every time the ignition

is switched on.

Trip 1 / Trip 2 page:

Average speed
Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average fuel consumption.

The measurement can be reset at any

time and starts with a default value.
Average consumption of electric

energy

Display of average consumption of

electric energy. The measurement

can be reset at any time and starts

with a default value.
Distance travelled
Displays the current distance for the

respective trip since the reset.
The values of the respective trip page

can be reset by pressing SET / CLR

for a few seconds.

Personalised view

Personalised views can be selected

by turning the adjuster wheel.
The personalised views can be

adjusted in the settings menu in the

Info Display.

Instruments and controls

Choose the content, e.g. the

navigation map or current trip

information, and confirm the settings.

Info Display

The Info Display can indicate:

● time

● outside temperature

● date

● Infotainment system, see

description in the Infotainment

system section

● indication of rear view camera

232

● indication of panoramic view

system

229

● navigation, see description in the

Infotainment system section

● vehicle and system messages

● settings for vehicle

personalisation

● AdBlue range

178

Radio (Infotainment system)

Press

)

to switch on the display.

Touch

to select system settings

(units, language, time and date).

Touch

to select vehicle settings or

driving functions.
Confirm a required function or

selection by touching.
Touch

on the display to return to

the previous page.

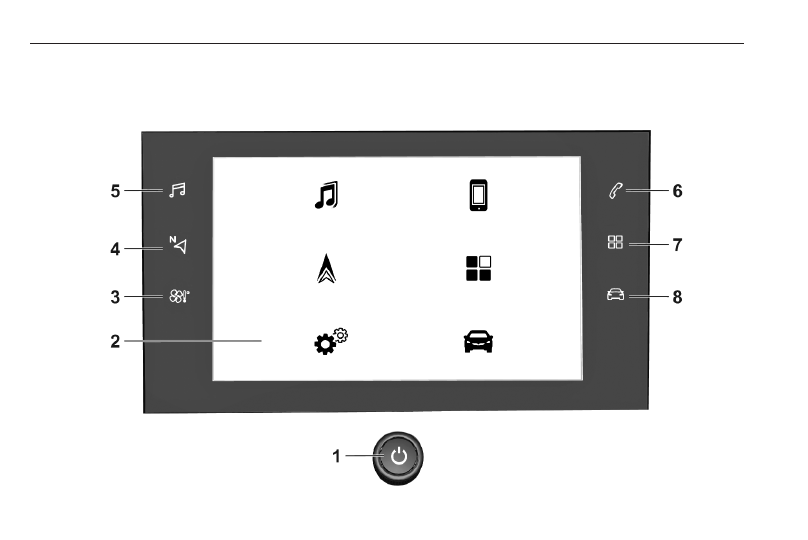

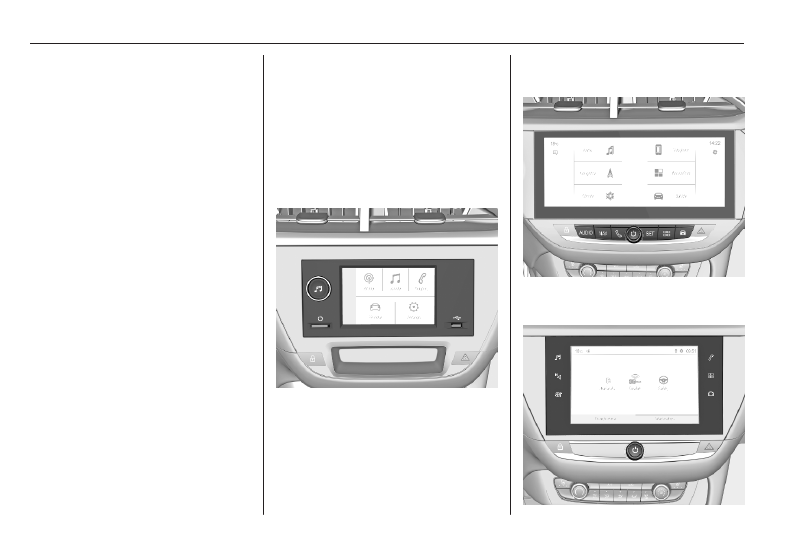

Multimedia / Multimedia Navi /

Multimedia Navi Pro

The illustrations show different

variants of the infotainment system.

Instruments and controls

Selecting menus and settings

There are three options to operate the

display:

● via buttons next to the display
● by touching the touchscreen with

the finger

● via speech recognition

Button and touch operation

Press

)

to switch on the display.

Press

to select system settings

(units, language, time and date).
Press

to select vehicle settings or

driving functions.
Touch required menu display icon or

a function with the finger.

Confirm a required function or

selection by touching.
Touch

on the display to exit

a menu without changing a setting.
For further information, see

Infotainment system section.
Speech recognition

Description see Infotainment system

section.
Flow

Notice

On vehicles equipped with the

Multimedia infotainment system, this

menu can only be used via the

MyVauxhall App.

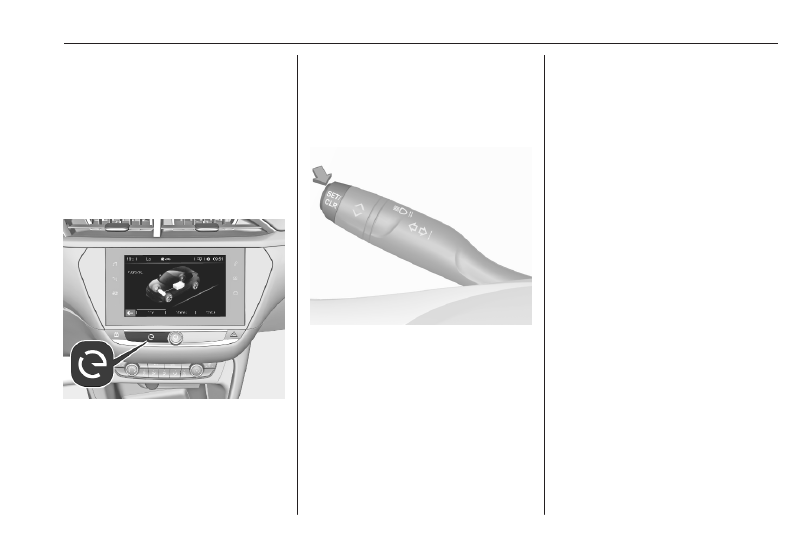

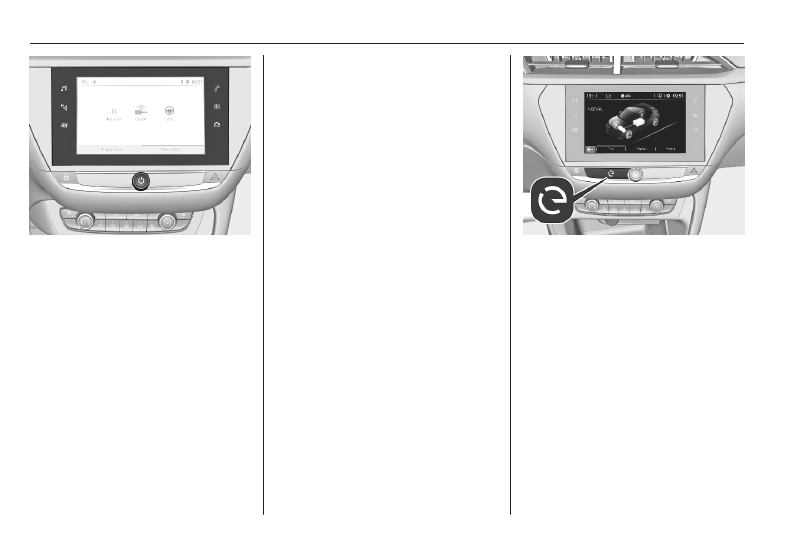

This menu displays the current

energy flow within the electric system.

1. Press

2. Select Flow.

Different colours show the engery

flow.

● green: electric engine operating
● blue: regenerating energy

Average consumption

Notice

On vehicles equipped with the

Multimedia infotainment system, this

menu can only be used via the

MyVauxhall App.

This menu displays the average

power consumption during the

current trip.

Instruments and controls

● green: electric energy consumed
● blue: electric energy generated

from the braking and

deceleration phases of the

vehicle used to recharge the

battery

The current trip is subdivided into time

steps. For each time step, the

average consumption is displayed.

The time steps can be modified.

1. Press

2. Select Statistics.
3. Press + and - to modify the time

steps.

Vehicle personalisation

80.

Vehicle messages

Messages are indicated in the Driver

Information Centre, in some cases

together with a warning chime.

Press SET / CLR to confirm a

message.

Vehicle and service messages

The vehicle messages are displayed

as text. Follow the instructions given

in the messages.

Messages in the Info Display

Some important messages may

appear additionally in the Info

Display. Some messages only pop-

up for a few seconds.

Warning chimes

The warning chime regarding not

fastened seat belts has priority over

any other warning chime.
Whenever a warning chime sounds,

pay attention to the messages

displayed and the warning lights in

the Driver Information Centre.

When starting the engine or whilst

driving

A warning chime will sound when

● a seat belt is not fastened
● a door or the tailgate is not fully

closed

● a certain speed is exceeded with

parking brake applied

● cruise control deactivates

automatically

Instruments and controls

● a programmed speed or speed

limit is exceeded

● a warning message appears in

the Driver Information Centre

● the electronic key is not in the

passenger compartment

● the parking assist detects an

object

● an unintended lane change

occurs

● hands-off driving is recognised
● the exhaust filter has reached the

maximum filling level

If several warnings appear at the

same time, only one warning chime

will sound.

When the vehicle is parked and /

or the driver's door is opened

● With exterior lights on.

During an Autostop

● If the driver's door is opened.
● If any condition for a restart of the

engine is not fulfilled.

Vehicle personalisation

The vehicle's behaviour can be

personalised by changing the settings

in the Info Display.
Some functions are only displayed or

active when the engine is running.

Radio (Infotainment system)

Touch

to display the vehicle

personalisation menu.
Parking, lighting, comfort and safety

settings are adjustable.

Multimedia / Multimedia Navi /

Multimedia Navi Pro

The illustrations show different

variants of the infotainment system.

Instruments and controls

Touch

to display the vehicle

personalisation menu.
Lighting, comfort and safety settings

are adjustable.

Telematics services

Vauxhall Connect

Vauxhall Connect comprises multiple

connected services accessible via

app, online or within the vehicle.

Notice

Full functionality of

Vauxhall Connect is subject to

registration and proper activation.

Connected services may include live

navigation such as online traffic

information and vehicle status and

information such as maintenance

alerts.
Services accessible within the vehicle

also include emergency call and

breakdown call. These functions are

automatically activated. Terms and

conditions apply.
Emergency call

81.

Breakdown call

Pressing the

button in the

overhead console for more than two

seconds connects to a roadside

assistance service provider.

For information about coverage and

scope of services of the roadside

assistance, please refer to the

information provided by the Vauxhall

Retailer with the order form.

Privacy settings

Privacy settings of Vauxhall Connect

can be configured. This will impact

the set of data being sent, e.g., in

case a breakdown call is triggered.

The emergency call function and the

traffic sign assistant will not be

impacted.
Depending on version, the privacy

settings can be changed by

simultaneously pressing

and

SOS in the overhead console or via

the system settings menu in the Info

Display.

Emergency call

Notice

In order to be available and

operational, the system requires

functioning vehicle electrics, mobile

service and GPS or GLONASS

Instruments and controls

satellite link. Depending on

equipment, a backup battery is

used.
Notice

The service is only available for

markets where it is legally required.

Furthermore, it depends on the

availability of the emergency centres

and the infrastructure in the country.

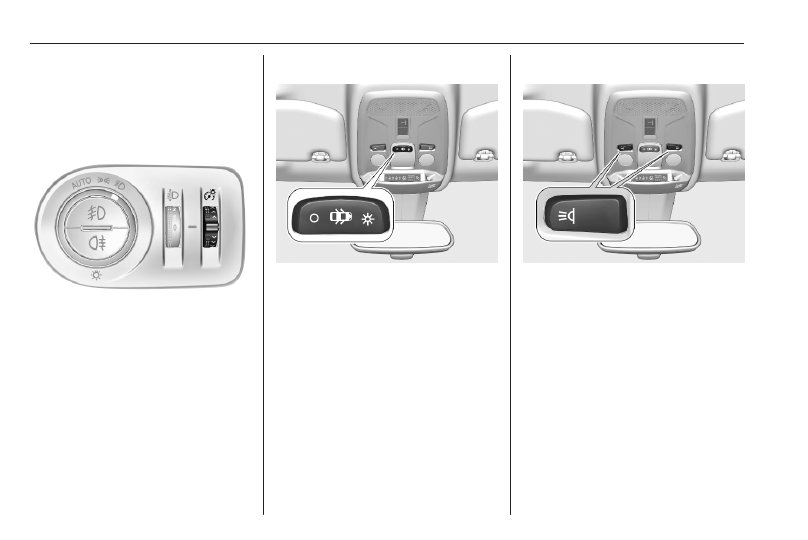

Status LED in the overhead

console

Illuminates green and red and

extinguishes after a short time, when

the ignition is switched on: the system

works properly.
Illuminates red: fault in the system.

Contact a workshop.
Flashes red: backup battery needs

replacement. Contact a workshop.

Emergency call

The emergency call function will

establish a connection to the nearest

public safety answering point (PSAP).

A minimum set of data including

vehicle and location information will

be sent to the PSAP.

In case of an emergency, press the

red SOS button in the overhead

console for more than two seconds.

The LED flashes green to confirm that

a connection to the nearest PSAP is

being established. The LED

illuminates steadily as long as the call

is active.
Pressing the SOS button immediately

a second time will terminate the call.

The LED switches off.

Automatic crash notification

In case of an accident with airbag

deployment and without damage of

needed hardware, an automatic

emergency call is established and an

automatic crash notification will be

transmitted to the next PSAP.

Lighting

Exterior lighting ............................ 83

Light switch ................................ 83

Automatic light control ............... 84

High beam ................................. 84

High beam assist ....................... 84

Headlight flash ........................... 85

Headlight range adjustment ...... 85

Headlights when driving

abroad ...................................... 86

Daytime running lights ............... 86

Matrix-LED headlights ............... 86

Hazard warning flashers ............ 88

Turn lights .................................. 88

Front fog lights ........................... 88

Rear fog light ............................. 89

Parking lights ............................. 89

Reversing lights ......................... 89

Misted light covers ..................... 89

Interior lighting ............................. 90

Instrument panel illumination

control ....................................... 90

Interior lights .............................. 90

Reading lights ............................ 90

Lighting features .......................... 91

Entry lighting .............................. 91

Exit lighting ................................ 91

Vehicle locator lighting .............. 91

Battery discharge protection ...... 91

Exterior lighting

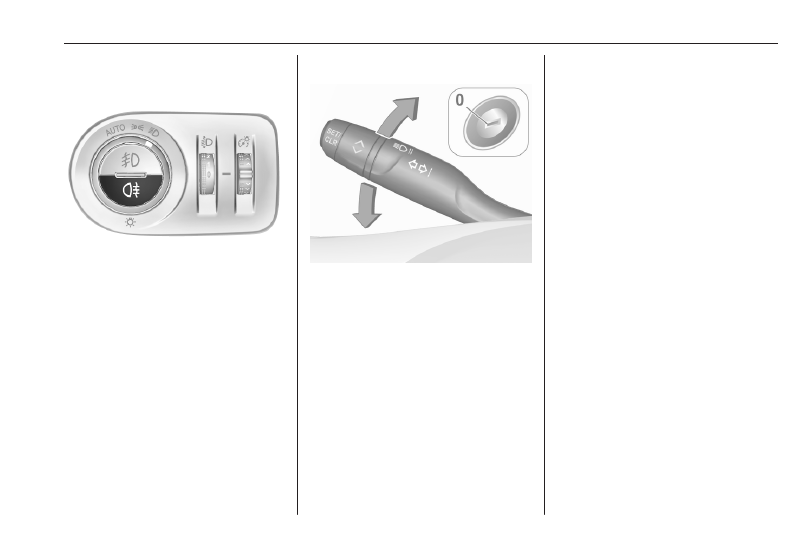

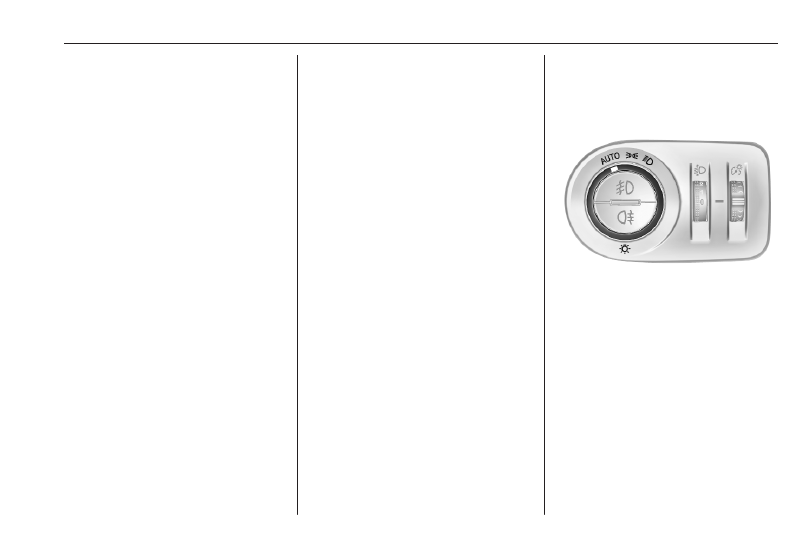

Light switch

Turn light switch:
AUTO : automatic light control

switches automatically

between daytime running

light and headlight

: sidelights

: headlights

Control indicator

73.

Lighting

Automatic light control

When the automatic light control

function is switched on, the system

switches between daytime running

lights and headlights automatically

depending on the external lighting

conditions and information given by

the wiper system.
Daytime running light

86.

Automatic headlight activation

During poor lighting conditions the

headlights are switched on.
Additionally, headlights are switched

on if the windscreen wipers have

been activated for several wipes.

Tunnel detection

When a tunnel is entered, headlights

are switched on immediately.

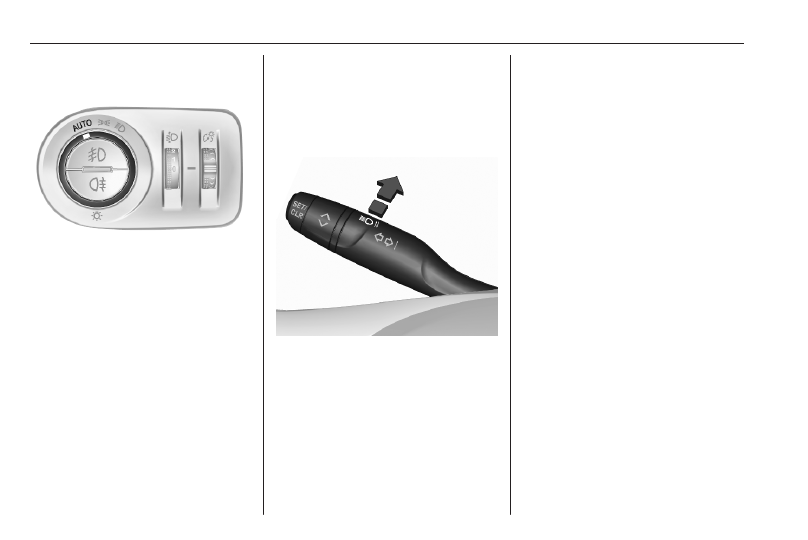

High beam

Push to switch from low to high beam.
Push again to deactivate high beam.

High beam assist

The system switches from low beam

to high beam and vice versa to

prevent glaring. Once activated, high

beam assist remains active and

switches high beam on and off

depending on surrounding

conditions. The latest setting of the

high beam assist will remain after the

ignition is switched on again.

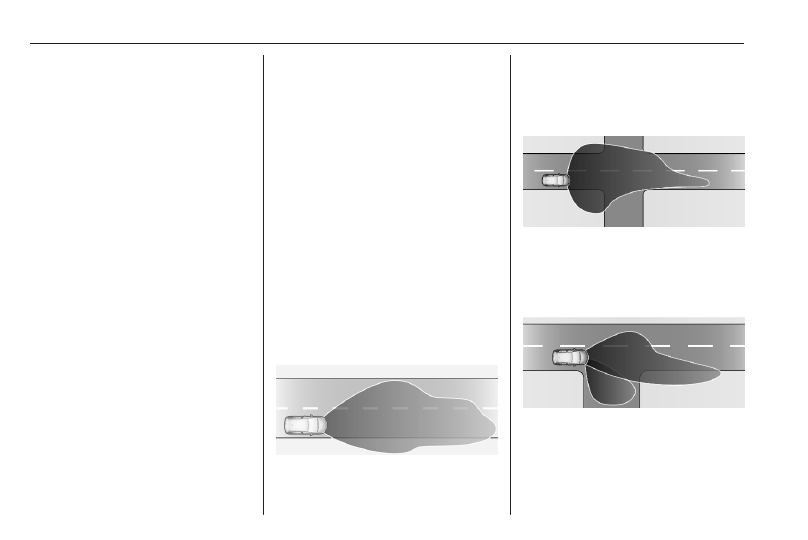

Glare-free high beam for Matrix-LED

headlights

86.

Activation

The high beam assist can be

activated via the vehicle settings

menu in the Info Display.
On vehicles equipped with the Radio

infotainment system, it is not possible

to alterate the high beam assist

settings.
Info Display

77.

High beam is switched on

automatically in dark surroundings at

a speed above 28 mph. High beam is

switched off at a speed below

22 mph, but high beam assist remains

active.
The green control indicator

illuminates continuously when the

high beam assist is activated, the blue

illuminates when high beam is on.

Control indicator

73,

73.

Lighting

High beam assist switches

automatically to low beam when:

● Driving in urban areas.
● Camera detects heavy fog.
● Rear fog light is switched on.
● Oncoming or preceding vehicles

are detected by the camera.

If there are no restrictions detected,

the system switches back to high

beam.

Deactivation

The system can be deactivated via

the vehicle settings menu in the Info

Display.
On vehicles equipped with the Radio

infotainment system, it is not possible

to alterate the high beam assist

settings.
Info Display

77.

Headlight flash

Pull to activate the headlight flash.

Headlight range adjustment

To adapt headlight range to the

vehicle load to prevent dazzling, turn

thumb wheel

to required position.

ICE

0 : front seats occupied

1 : all seats occupied

2 : all seats occupied and load

compartment laden

3 : driver's seat occupied and load

compartment laden

Lighting

BEV

0 : front seats occupied

1 : all seats occupied with or without

load compartment laden

2 : driver's seat occupied and load

compartment laden

3 : not used
Propulsion types

Headlights when driving

abroad

When driving in countries where

traffic drives on the opposite side of

the road, the headlights do not have

to be adjusted.

Daytime running lights

Daytime running lights increase

visibility of the vehicle during daylight.
Automatic light control

84.

Matrix-LED headlights

The Matrix-LED headlight system

contains a variety of particular LEDs

in each headlight which enables the

control of the adaptive forward

lighting functions.

Light distribution and intensity of light

are variably triggered depending on

the lighting conditions, road type and

driving situation. The vehicle adapts

the headlights automatically to the

situation to enable optimal light

performance for the driver.
The adaptive forward lighting and the

Matrix-LED headlights functions can

be deactivated or activated in the

vehicle personalisation menu.
Vehicle personalisation

80.

Info Display

77.

The glare-free high beam function of

the Matrix-LED headlights are only

available with light switch in position

AUTO.

Country light

Activated automatically at a speed

above 30 mph when driving in rural

areas. The illumination of the current

lane and the side of the road is

adapted. Oncoming and preceding

vehicles are not dazzled.

Town light

Activated automatically at a speed up

to approx. 30 mph. The light is wide

and symmetrical.

Cornering light

Activated at a speed of up to 25 mph

when turning off. The light consists of

particular LEDs which illuminate the

direction of travel. These LEDs are

Lighting

triggered depending on the steering

angle or the activation of the turn

lights.

Curve light

Particular LEDs, based on steering

angle and speed, are additionally

triggered to improve lighting in

curves. This function is activated at

speeds from 25 mph to 43 mph.

Glare-free high beam

Warning

The glare-free high beam function

may dazzle other road users when

the vehicle is driven in countries

where traffic moves on the

opposite side of the road. E.g.

when the vehicle was designed for

left hand drive traffic and it is

driven in a country with right hand

drive traffic.
Switch off glare-free high beam

function whenever you are driving

in countries mentioned above!

The system enables a glare-free high

beam when driving in dark

surroundings.

Each LED on right or left side is

triggered or faded out particularly

according to the traffic situation. This

gives the best light distribution

without dazzling other road users.
Glare-free high beam is switched on

automatically at a speed above

31 mph. It is switched off at a speed

below 22 mph, but the system

remains active.

Motorway mode

Activated automatically at a speed

above 65 mph. Illumination is

adapted to the higher speed driven on

motorways. If there is no oncoming

traffic, the visibility on the side of the

vehicle is increased. When following

vehicles ahead or passing, dazzling

for these vehicles is reduced.

Fault in LED headlight system

When the system detects a failure in

the LED headlight system, it selects a

preset position to avoid dazzling of

oncoming traffic. A warning is

displayed in the Driver Information

Centre.
After reconnecting the vehicle

battery, the system needs a

recalibration by driving a short

distance.

Lighting

Hazard warning flashers

Operated by pressing

When braking in an emergency, the

hazard warning flashers are switched

on automatically, depending on the

force of deceleration. They are

switched off automatically, as soon as

the vehicle is accelerated again.

Turn lights

: right turn lights

down : left turn lights
A resistance point can be felt when

moving the indicator lever.
Constant flashing is activated when

the indicator lever is being moved

beyond the resistance point. It is

deactivated when the steering wheel

is moved in the opposite direction or

indicator lever is manually moved

back to its neutral position.
After 20 seconds the volume of the

audible signal will increase if the

speed is above 50 mph.

Activate temporary flashing by

holding the indicator lever just before

the resistance point. Turn lights will

flash until indicator lever is being

released.
To activate three flashes, tap the

indicator lever briefly without passing

the resistance point.

Front fog lights

Operated by pressing

Light switch in position AUTO:

switching on front fog lights will switch

headlights on automatically.

Lighting

Rear fog light

Operated by pressing

Light switch in position AUTO:

switching on rear fog light will switch

headlights on automatically.
Light switch in position

: rear fog

light can only be switched on with

front fog lights.
The vehicle rear fog light is

deactivated when a plug is connected

to the power outlet of the trailer hitch.

Parking lights

When the vehicle is parked, the

parking lights on one side can be

activated:

1. Switch off ignition.
2. Move the lever all the way up

(right parking lights) or down (left

parking lights).

Confirmed by a signal and the

corresponding turn lights control

indicator.

Reversing lights

The reversing light comes on when

reverse gear is selected.

Misted light covers

The inside of the light housing may

mist up briefly in poor, wet and cold

weather conditions, in heavy rain or

after washing. The mist disappears

quickly by itself. To help, switch on the

headlights.

Lighting

Interior lighting

Instrument panel

illumination control

Brightness of the following lights can

be adjusted when the exterior lights

are on:

● instrument panel illumination
● Info Display
● illuminated switches and

operation elements

Turn thumb wheel

and hold until

the desired brightness is obtained.

Interior lights

Operate rocker switch:

;

: automatic switching on

and off

press

: on

press

: off

Notice

In the event of an accident with

airbag deployment the courtesy

lights are turned on automatically.

Reading lights

Operated by pressing

Lighting

Lighting features

Entry lighting

Welcome lighting

Some or all of the following lights are

switched on for a short time by

unlocking the vehicle with the radio

remote control:

● headlights
● interior lights

The number of activated lights

depends on the surrounding light

conditions.
The lighting switches off immediately

when the ignition is switched on.
Starting off

171.

This function can be activated or

deactivated in the vehicle

personalisation.
Vehicle personalisation

80.

The following lights will additionally

switch on when the driver's door is

opened:

● illumination of some switches
● Driver Information Centre
● door pocket lights

Exit lighting

The following lights are switched on

when the ignition is switched off:

● headlights
● interior lights
● centre console lighting

They will switch off automatically after

a delay. This function works only in

the dark.

Vehicle locator lighting

This function allows to locate the

vehicle, e.g., in weak lighting

conditions using the remote control.

The headlights come on and the turn

lights flash for 10 seconds.
Press

on the remote control.

Battery discharge protection

To prevent discharge of the vehicle

battery when the ignition is switched

off, some interior lights are switched

off automatically after some time.

Infotainment system

Multimedia Navi Pro ..................... 92

Audio ....................................... 107

External devices ...................... 110

Navigation ............................... 113

Speech recognition .................. 124

Phone ...................................... 126

Multimedia ................................. 131

Audio ....................................... 140

External devices ...................... 142

Speech recognition .................. 145

Phone ...................................... 147

Radio ......................................... 149

Audio ....................................... 153

Speech recognition .................. 155

Phone ...................................... 155

Multimedia Navi Pro

Introduction

Important information on operation

and traffic safety

Warning

Drive safely at all times. Only

operate the Infotainment system if

the traffic conditions allow a safe

usage.
In the interest of safety, it might be

appropriate to stop the vehicle

before operating the Infotainment

system (e.g. for entries of

addresses).

Warning

The usage of the navigation

system does not release the driver

from the responsibility for a

correct, vigilant attitude in road

traffic. Always follow the

applicable traffic rules.

Warning

In some areas one-way streets

and other roads and entrances

(e.g. pedestrian zones) that you

are not allowed to turn into are not

marked on the map. In such areas

the Infotainment system may

issue a warning that must be

accepted. Here you must pay

particular attention to one-way

streets, roads and entrances that

you are not allowed to drive into.

Radio reception

Radio reception may be disrupted by

static, noise, distortion or loss of

reception due to:

● changes in distance from the

transmitter

● multi-path reception due to

reflection

● shadowing

Theft-deterrent feature

The Infotainment system is equipped

with an electronic security system for

the purpose of theft deterrence.

Infotainment system

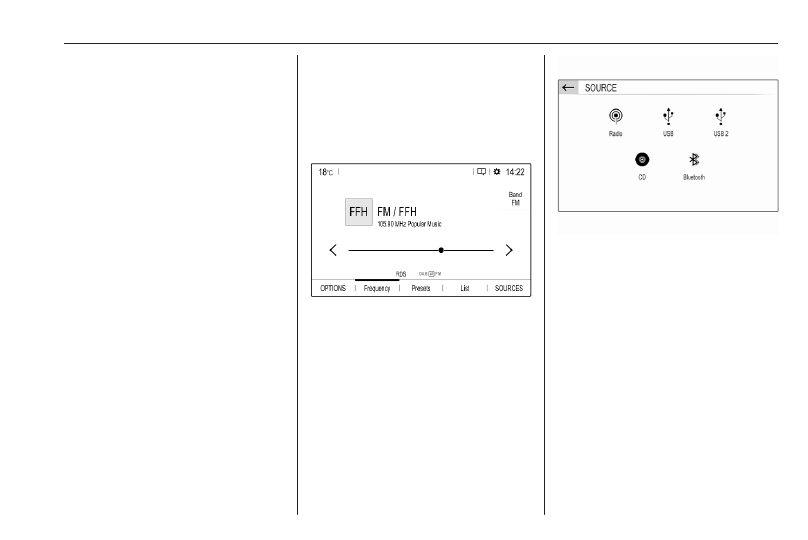

AUDIO
Open audio menu:
Radio ................................... 107
External devices (USB,

Bluetooth) ............................ 110

NAV
Display embedded

navigation map ................... 113

Open phone menu .............. 126
Display phone projection

screen when phone

projection is active .............. 110

)

If switched off: switch

power on / off
If switched on: mute system
Turn: adjust volume

SET /

Open settings menu
or open charging settings

(electric vehicles)

Open apps menu ................ 110

Open vehicle settings menu . 80

Info Display
Home menu will be

displayed by a 3-finger

touch on screen

Infotainment system

)

If switched off: switch

power on / off
If switched on: mute system
Turn: adjust volume

Info Display
Home menu will be

displayed by a 3-finger

touch on screen

Open climate menu if available

Display embedded

navigation map ................... 113

Open audio menu:
Radio ................................... 107
External devices (USB,

Bluetooth) ............................ 110

Open phone menu .............. 126
Display phone projection

screen when phone

projection is active .............. 110

Open apps menu ................ 110

Open vehicle settings menu . 80

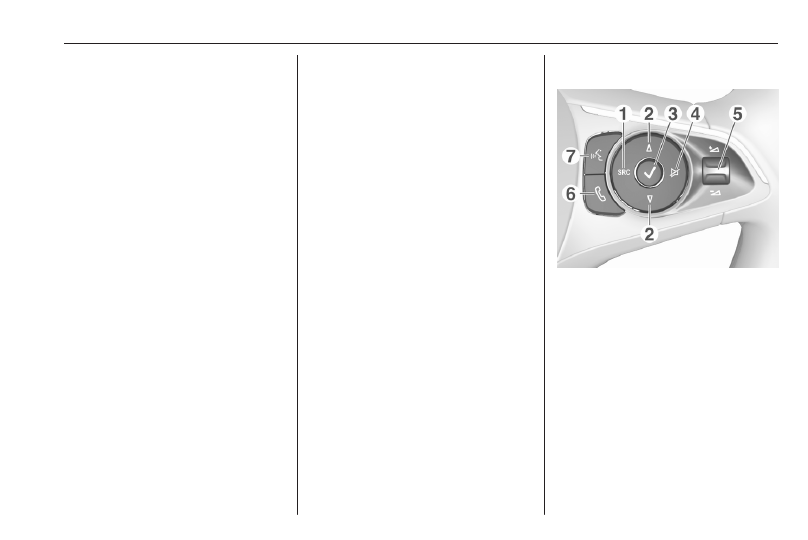

Steering wheel controls

SRC (Source)
Select audio source,

confirm selection with

Long press: mute system

Select next / previous

preset radio station when

radio active .......................... 107
or select next / previous

track / picture when

external devices active ....... 110

Infotainment system

or select next / previous

entry in station list, media

list, call / contacts list when

operation started via

steering wheel controls
Confirm selection with

Confirm selected item
or open station list, media list

Activate / deactivate mute

function

Turn upwards /

downwards: increase /

decrease volume

Short press: accept

incoming call
Long press: reject

incoming call, hang up call .. 126

or open call / contacts list . . . 126
If phone call active: open

call in progress menu

Short press: activate

embedded speech recognition
Long press: activate

speech recognition in

Apple CarPlay™ or

Android™ Auto if phone

connected via USB port ...... 124

Control elements

The Infotainment system is operated

via function buttons, a touch screen

and menus that are shown on the

display.
Inputs are made optionally via:

● the control panel on the

Infotainment system

● the touchscreen
● the steering wheel controls
● the speech recognition

124

Switching the Infotainment

system on or off

Press

)

. After switching on, the last

selected Infotainment source

becomes active.

Notice

Some functions of the Infotainment

system are only available if ignition

is switched on or engine is running.

Infotainment system

Automatic switch-off

If the Infotainment system has been

switched on pressing

)

while the

ignition is switched off, it will switch off

again automatically when the Eco

mode becomes active.

Setting the volume

Turn

)

. The current setting is shown

on the display.
When the Infotainment system is

switched on, the last selected volume

is set.

Speed compensated volume

When the speed compensated

volume is activated, the volume is

adapted automatically to make up for

the road and wind noise as you drive.

Mute

Press

)

to mute the Infotainment

system.
To cancel the mute function,

press

)

again. The last selected

volume is set again.

Modes of operation

Audio-Media

Press AUDIO /

to display the main

menu of the last selected audio mode.

Changing the media source

Select SOURCES to display the

menu for media source selection.

Select the desired media source.
For a detailed description of:

● Radio functions

107

● External devices

110

Navigation

Press NAV /

to display the

navigation map showing the area

around the current location.

100

Infotainment system

For a detailed description of basic

functions of the navigation system

113.

Navigation menu

Select MENU to display the

navigation menu.

The navigation menu serves as

central entry point for:

● Address search and input
● Defining trips with several

waypoints

● Defining criteria for route

guidance

● Cancelling and resuming route

guidance

For a detailed description of basic

functions of the navigation system

113.

Phone

Before the phone function can be

used, a connection has to be

established between the Infotainment

system and the mobile phone.
For a detailed description of

preparing and establishing a

Bluetooth connection between the

Infotainment system and a mobile

phone

126.

If the mobile phone is connected,

press

to display the main menu of

the phone function.

For a detailed description of mobile

phone operation via the Infotainment

system

126.

Infotainment system

101

Network and connected services

Press

and then select OPTIONS

to display the Bluetooth, network and

connected services settings.
To connect the vehicle to a Wi-Fi

network, touch

. A list of all

available Wi-Fi networks is displayed.
It is also possible to share the Wi-Fi

connection for other devices.
To update the service and connection

status, go to the menu for connected

services

and touch

To use the connected services, make

sure that data sharing and the vehicle

position are activated in the privacy

menu in the System settings.

Apps

To show specific apps of your

smartphone on the display of the

Infotainment system, connect your

smartphone.
Press

to display the main menu of

the apps mode.
Touch Apple CarPlay or

Android Auto. A menu with different

selectable apps is displayed.
For a detailed description

110.

Settings

Press SET /

and then select Audio

settings to display the respective

menu.

Press SET /

and then OPTIONS to

display a menu for various system-

related settings.

Vehicle settings

Select

to open a menu for various

vehicle-related settings.
Vehicle personalisation

80.

Menu operation

The display of the Infotainment

system has a touch-sensitive surface

that allows direct interaction with the

displayed menu controls.

Caution

Do not use pointed or hard items

like ballpoint pens, pencils or

similar for touch screen operation.

Vauxhall Corsa F (2023 year). Manual in english - page 3
