Seats, restraints

The settings are memorised when the

ignition is switched off.
The ventilation can also be adjusted

in the seat options app in the Info

Display. Touch

)

to activate or

deactivate the ventilation.
Adjust the ventilation to the desired

intensity by touching the control

indicator on the screen. The driver

seat and the passenger seat can be

adjusted independently.

Massage

A massage can be activated or

deactivated via the seat options app

in the Info Display.
Touch

)

to activate or deactivate a

massage.

Different types of massages can be

selected by swiping on the screen.

The massages for the driver seat and

the passenger seat can be selected

independently.
After selecting the type of massage,

the intensity can be selected:
1 : low

2 : normal

3 : high
The massage function is activated for

a period of one hour. During this time,

the massage is performed in

sequences of six minutes of massage

followed by three minutes at rest.
The settings are memorised when the

ignition is switched off.

Rear seats

Heating

The heating can be adjusted by

turning the thumb wheels in the

centre console.
The heating works only when the

outside temperature is below 20 °C.
Prolonged use of the highest intensity

for people with sensitive skin is not

recommended.
The settings are memorised when the

ignition is switched off.

Seats, restraints

Seat belts

The seat belts are locked during

heavy acceleration or deceleration of

the vehicle, holding the occupants in

the seat position. Therefore the risk of

injury is considerably reduced.

Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger

their fellow occupants and

themselves.

Seat belts are designed to be used by

only one person at a time.
Child restraint system

47.

Periodically check all parts of the belt

system for damage, soiling and

proper functionality.
Have damaged components

replaced. After an accident, have the

seat belts and triggered belt

pretensioners replaced by a

workshop.

Notice

Make sure that the belts are not

damaged by shoes or sharp-edged

objects or are trapped. Prevent dirt

from getting into the belt retractors.
Notice

Use the belt buckle intended for the

respective seat belt when fastening

in order to ensure proper

functionality.

Seat belt reminder

Each seat is equipped with a seat belt

reminder, indicated by a control

indicator

for the respective seat in

the roof console

79.

Belt force limiters

Stress on the body is reduced by the

gradual release of the belt during a

collision.

Belt pretensioners

In the event of a head-on, rear-end or

side-on collision of a certain severity,

the front seat belts and the outer rear

seat belts are tightened.

Warning

Incorrect handling (e.g. removal or

fitting of belts) can trigger the belt

pretensioners.

Deployment of the belt pretensioners

is indicated by continuous illumination

of control indicator

80.

Triggered belt pretensioners must be

replaced by a workshop. Belt

pretensioners can only be triggered

once.

Notice

Do not affix or install accessories or

other objects that may interfere with

the operation of the belt

Seats, restraints

pretensioners. Do not make any

modifications to belt pretensioner

components as this will invalidate

the operating permit of your vehicle.

Three-point seat belt

Fasten

Withdraw the seat belt from the

retractor, guide it untwisted across

the body and insert the latch plate into

the buckle. Make sure the seat belt

lies across the shoulder and fits tightly

to the body while driving.

Loose or bulky clothing prevents the

belt from fitting snugly. Do not place

objects such as handbags or mobile

phones between the belt and your

body.
The seat belt must lie across the

shoulder. It must not lie across the

throat or upper arm.

Warning

The belt must not rest against hard

or fragile objects in the pockets of

your clothing.

Seat belt reminder

79.

Unfasten

To release the seat belt, press red

button on seat belt buckle and guide

the seat belt back.

Seats, restraints

Using seat belts while pregnant

Warning

The lap belt must be positioned as

low as possible across the pelvis

to prevent pressure on the

abdomen.

Airbag system

The airbag system consists of a

number of individual systems.
When triggered, the airbags inflate

within milliseconds. They also deflate

so quickly that it is often unnoticeable

during the collision.

Warning

The airbag system deploys in an

explosive manner, repairs must be

performed by skilled personnel

only.

Warning

Adding accessories that change

the vehicle's frame, bumper

system, height, front end or side

sheet metal, may keep the airbag

system from working properly. The

operation of the airbag system can

also be affected by changing any

parts of the front seats, seat belts,

airbag sensing and diagnostic

module, steering wheel,

instrument panel, inner door seals

including the speakers, any of the

airbag modules, ceiling or pillar

trim, front sensors, side impact

sensors or airbag wiring.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

In the event of an accident with

airbag deployment, the engine is

switched off automatically if the

vehicle comes to a standstill within a

certain time.
Notice

The airbag systems and belt

pretensioner control electronics are

located in the centre console area.

Do not put any magnetic objects in

this area.
Do not affix any objects onto the

airbag covers and do not cover them

with other materials. Have damaged

covers replaced by a workshop.

Seats, restraints

Each airbag is triggered only once.

Have deployed airbags replaced by

a workshop. Furthermore, it may be

necessary to have the steering

wheel, the instrument panel, parts of

the panelling, the door seals,

handles and the seats replaced.
Do not make any modifications to

the airbag system as this will

invalidate the vehicle operating

permit.

Control indicator

for airbag

systems

80.

Child restraint systems on front

passenger seat with airbag

systems

EN: NEVER use a rearward-facing

child restraint on a seat protected by

an ACTIVE AIRBAG in front of it;

DEATH or SERIOUS INJURY to the

CHILD can occur.
DE: Nach hinten gerichtete

Kindersitze NIEMALS auf einem Sitz

verwenden, der durch einen davor

befindlichen AKTIVEN AIRBAG

geschützt ist, da dies den TOD oder

SCHWERE VERLETZUNGEN DES

KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège

d'enfant orienté vers l'arrière sur un

siège protégé par un COUSSIN

GONFLABLE ACTIF placé devant lui,

sous peine d'infliger des

BLESSURES GRAVES, voire

MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de

retención infantil orientado hacia

atrás en un asiento protegido por un

AIRBAG FRONTAL ACTIVO. Peligro

de MUERTE o LESIONES GRAVES

para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ

устанавливать детское

удерживающее устройство лицом

назад на сиденье автомобиля,

оборудованном фронтальной

подушкой безопасности, если

ПОДУШКА НЕ ОТКЛЮЧЕНА! Это

может привести к СМЕРТИ или

СЕРЬЕЗНЫМ ТРАВМАМ

РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts

gericht kinderzitje op een stoel met

een ACTIEVE AIRBAG ervoor, om

DODELIJK of ERNSTIG LETSEL van

het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt

autostol på et forsæde med AKTIV

AIRBAG, BARNET kan komme i

LIVSFARE eller komme ALVORLIGT

TIL SKADE.
SV: Använd ALDRIG en bakåtvänd

barnstol på ett säte som skyddas med

en framförvarande AKTIV AIRBAG.

DÖDSFALL eller ALLVARLIGA

SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin

suunnattua lasten turvaistuinta

istuimelle, jonka edessä on

AKTIIVINEN TURVATYYNY, LAPSI

VOI KUOLLA tai VAMMAUTUA

VAKAVASTI.

Seats, restraints

NO: Bakovervendt

barnesikringsutstyr må ALDRI brukes

på et sete med AKTIV

KOLLISJONSPUTE foran, da det kan

føre til at BARNET utsettes for

LIVSFARE og fare for ALVORLIGE

SKADER.
PT: NUNCA use um sistema de

retenção para crianças voltado para

trás num banco protegido com um

AIRBAG ACTIVO na frente do

mesmo, poderá ocorrer a PERDA DE

VIDA ou FERIMENTOS GRAVES na

CRIANÇA.
IT: Non usare mai un sistema di

sicurezza per bambini rivolto

all'indietro su un sedile protetto da

AIRBAG ATTIVO di fronte ad esso:

pericolo di MORTE o LESIONI

GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό

κάθισμα ασφαλείας με φορά προς τα

πίσω σε κάθισμα που προστατεύεται

από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,

διότι το παιδί μπορεί να υποστεί

ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ

ΤΡΑΥΜΑΤΙΣΜΟ.

PL: NIE WOLNO montować fotelika

dziecięcego zwróconego tyłem do

kierunku jazdy na fotelu, przed

którym znajduje się WŁĄCZONA

PODUSZKA POWIETRZNA.

Niezastosowanie się do tego

zalecenia może być przyczyną

ŚMIERCI lub POWAŻNYCH

OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet

sistemini KESİNLİKLE önünde bir

AKTİF HAVA YASTIĞI ile

korunmakta olan bir koltukta

kullanmayınız. ÇOCUK ÖLEBİLİR

veya AĞIR ŞEKİLDE

YARALANABİLİR.
UK: НІКОЛИ не використовуйте

систему безпеки для дітей, що

встановлюється обличчям назад,

на сидінні з УВІМКНЕНОЮ

ПОДУШКОЮ БЕЗПЕКИ, інакше це

може призвести до СМЕРТІ чи

СЕРЙОЗНОГО ТРАВМУВАННЯ

ДИТИНИ.
HU: SOHA ne használjon hátrafelé

néző biztonsági gyerekülést előlről

AKTÍV LÉGZSÁKKAL védett ülésen,

mert a GYERMEK HALÁLÁT vagy

KOMOLY SÉRÜLÉSÉT okozhatja.

HR: NIKADA nemojte koristiti sustav

zadržavanja za djecu okrenut prema

natrag na sjedalu s AKTIVNIM

ZRAČNIM JASTUKOM ispred njega,

to bi moglo dovesti do SMRTI ili

OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega

varnostnega sedeža, obrnjenega v

nasprotni smeri vožnje, na sedež z

AKTIVNO ČELNO ZRAČNO

BLAZINO, saj pri tem obstaja

nevarnost RESNIH ali SMRTNIH

POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni

sistem za decu u kome su deca

okrenuta unazad na sedištu sa

AKTIVNIM VAZDUŠNIM

JASTUKOM ispred sedišta zato što

DETE može da NASTRADA ili da se

TEŠKO POVREDI.
MK: НИКОГАШ не користете детско

седиште свртено наназад на

седиште заштитено со АКТИВНО

ВОЗДУШНО ПЕРНИЧЕ пред него,

затоа што детето може ДА ЗАГИНЕ

или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте

детска седалка, гледаща назад,

върху седалка, която е защитена

Seats, restraints

чрез АКТИВНА ВЪЗДУШНА

ВЪЗГЛАВНИЦА пред нея - може да

се стигне до СМЪРТ или

СЕРИОЗНО НАРАНЯВАНЕ на

ДЕТЕТО.
RO: Nu utilizaţi NICIODATĂ un scaun

pentru copil îndreptat spre partea din

spate a maşinii pe un scaun protejat

de un AIRBAG ACTIV în faţa sa;

acest lucru poate duce la DECESUL

sau VĂTĂMAREA GRAVĂ a

COPILULUI.
CS: NIKDY nepoužívejte dětský

zádržný systém instalovaný proti

směru jízdy na sedadle, které je

chráněno před sedadlem AKTIVNÍM

AIRBAGEM. Mohlo by dojít k

VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ

DÍTĚTE.
SK: NIKDY nepoužívajte detskú

sedačku otočenú vzad na sedadle

chránenom AKTÍVNYM AIRBAGOM,

pretože môže dôjsť k SMRTI alebo

VÁŽNYM ZRANENIAM DIEŤAŤA.
LT: JOKIU BŪDU nemontuokite atgal

atgręžtos vaiko tvirtinimo sistemos

sėdynėje, prieš kurią įrengta AKTYVI

ORO PAGALVĖ, nes VAIKAS GALI

ŽŪTI arba RIMTAI SUSIŽALOTI.

LV: NEKĀDĀ GADĪJUMĀ

neizmantojiet uz aizmuguri vērstu

bērnu sēdeklīti sēdvietā, kas tiek

aizsargāta ar tās priekšā uzstādītu

AKTĪVU DROŠĪBAS SPILVENU, jo

pretējā gadījumā BĒRNS var gūt

SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole

suunatud lapseturvaistet istmel, mille

ees on AKTIIVSE TURVAPADJAGA

kaitstud iste, sest see võib

põhjustada LAPSE SURMA või

TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li

jħares lejn in-naħa ta’ wara fuq sit

protett b’AIRBAG ATTIV quddiemu;

dan jista’ jikkawża l-MEWT jew

ĠRIEĦI SERJI lit-TFAL.
GA: Ná húsáid srian sábháilteachta

linbh cúil RIAMH ar shuíochán a

bhfuil mála aeir ag feidhmiú os a

chomhair. Tá baol BÁIS nó GORTÚ

DONA don PHÁISTE ag baint leis.
Additionally, for safety reasons a

forward-facing child restraint system

must only be used subject to the

instructions and restrictions in the

table

51.

The airbag label is located on both

sides of the front passenger sun visor.
Airbag deactivation

46.

Front airbag system

The front airbag system consists of

one airbag in the steering wheel and

one in the instrument panel on the

front passenger side. These can be

identified by the word AIRBAG.
The front airbag system is triggered in

the event of a front-end impact of a

certain severity. The ignition must be

switched on.

Seats, restraints

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and head of

the front seat occupants

considerably.

Warning

Optimum protection is only

provided when the seat is in the

proper position.
Seat position

32.

Fasten the seat belt correctly and

engage securely. Only then is the

airbag able to protect.

Side airbag system

The side airbag system consists of an

airbag in each front seat backrest and

in the rear outer seat backrests. This

can be identified by the word

AIRBAG.
The side airbag system is triggered in

the event of a side impact of a certain

severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and pelvis in

the event of a side-on collision

considerably.

Seats, restraints

Notice

Only use protective seat covers that

have been approved for the vehicle.

Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side. This can be identified by the

word AIRBAG on the roof pillars.
The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the head in the event of a

side-on impact considerably.

Warning

The hooks on the handles in the

roof frame are only suitable for

hanging up light articles of

clothing, without coat hangers. Do

not keep any items in these

clothes.

Airbag deactivation

The front passenger airbag system

must be deactivated for child restraint

system on the passenger seat

according to the instructions in the

table

51.

The side airbag and curtain airbag

systems, the belt pretensioners and

all driver airbag systems will remain

active.

The front passenger airbag system

can be deactivated via a key-

operated switch in the glovebox.
Use the ignition key to choose the

position:
OFF

: front passenger airbag is

deactivated and will not

inflate in the event of a

collision, control indicator

OFF

illuminates

continuously in the centre

console.

: front passenger airbag is

active.

Seats, restraints

Notice

After turning the key-operated

switch to position OFF

, keep on

turning towards this position until

key is removed.

Danger

Deactivate passenger airbag only

in combination with the use of a

child restraint system, subject to

the instructions and restrictions in

the table

51.

Otherwise, there is a risk of fatal

injury for a person occupying a

seat with a deactivated front

passenger airbag.

If the control indicator

illuminates

for approx. 60 seconds after the

ignition is switched on, the front

passenger airbag system will inflate

in the event of a collision.
If the control indicator

illuminates

after the ignition is switched on, the

front passenger airbag system is

deactivated. It stays on while the

airbag is deactivated.
If both control indicators are

illuminated at the same time, there is

a system failure. The status of the

system is not discernible, therefore

no person is allowed to occupy the

front passenger seat. Contact a

workshop immediately.
Consult a workshop immediately if

neither of the two control indicators

are illuminated.
Change status only when the vehicle

is stopped with the ignition off.
Status remains until the next change.
Control indicator for airbag

deactivation

80.

Child restraints

Child restraint systems

Danger

Make sure that children below

sufficient size and weight are

protected using a suitable child

restraint system. Never place a

child on the lap.

Danger

If using a rear-facing child restraint

system on the front passenger

seat, the airbag system for the

front passenger seat must be

deactivated. This also applies to

certain forward-facing child

restraint systems as indicated in

the tables

51.

Airbag deactivation

46.

Airbag label

41.

Seats, restraints

We recommend a child restraint

system which is tailored specifically to

the vehicle. For further information,

contact your workshop.
In case of any interference of the child

restraint system with vehicle seat

head restraint, adjust or remove the

corresponding head restraint

31.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions

and also those supplied with the child

restraint system. The given

restrictions in the table refer to a test

body, which is the maximum

envelope of all existing child restraint

systems. Make sure that the front

seats do not interfere with the used

child restraint system.
Always comply with local or national

regulations. In some countries, the

use of child restraint systems is

forbidden on certain seats.
Only drive with the driver seat

correctly adjusted

32.

Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. After fastening the child restraint

system the seat belt has to be

tightened.

ISOFIX brackets

Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

brackets. Specific vehicle ISOFIX

child restraint system positions are

marked in the ISOFIX table

51.

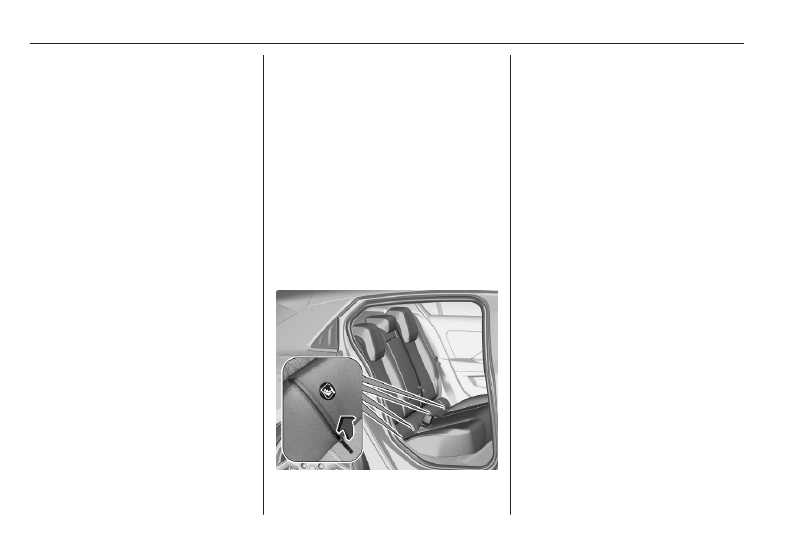

ISOFIX brackets are indicated by a

label on the backrest. To get access

to the ISOFIX brackets, first pull the

zipper.
When fastening ISOFIX child restraint

systems on adjustable passenger

seats, first incline the backrest as far

as necessary backwards in order to

get access to the ISOFIX brackets.

After the proper fastening of the

ISOFIX child restraint system, incline

the backrest forward again.
An i-Size child restraint system is an

universal ISOFIX child restraint

system according UN Regulation No.

129.
All i-Size child restraint systems can

be used on any vehicle seat suitable

for i-Size, i-Size table

51.

Either a Top-tether strap or a support

leg must be used in addition to the

ISOFIX brackets.

Seats, restraints

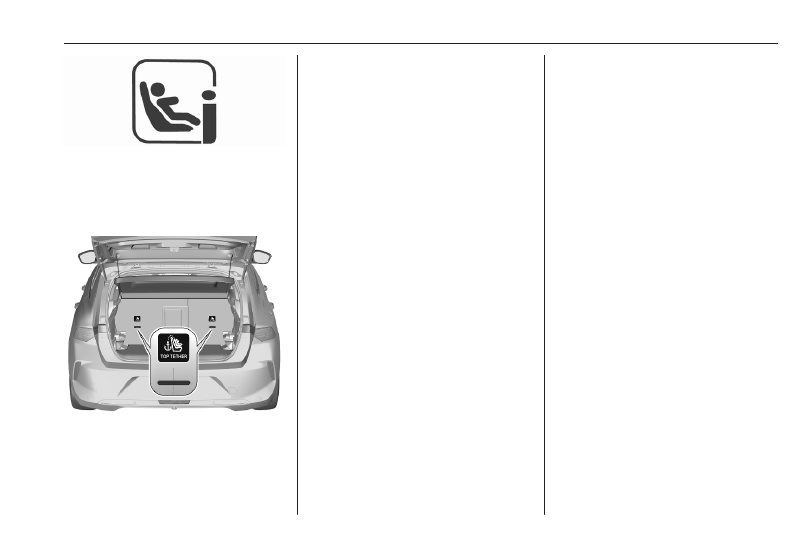

i-Size child seats and vehicle seats

with i-Size approval are marked with

i-Size symbol, see illustration.

Top-tether anchors

Top-tether anchors are marked with

the symbol

for a child seat.

In addition to the ISOFIX brackets,

fasten the Top-tether strap to the

Top-tether anchors.

ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF

51.

Selecting the right system

The rear seats are the most

convenient location to fasten a child

restraint system.
Children should travel facing

rearwards in the vehicle as long as

possible. This makes sure that the

child's backbone, which is still very

weak, is under less strain in the event

of an accident. Do not use forward

facing child restraint system at all

seats when child's weight is below 13

kg.
Suitable are child restraint systems

that comply with valid UN ECE

regulations. Check local laws and

regulations for mandatory use of child

restraint systems.

The following child restraints are

recommended for the following

weight classes:

● Group 0, Group 0+:

Maxi Cosi Cabriofix with or

without ISOFIX base for children

up to 13 kg.

● Group I: Britax Duo Plus with

ISOFIX and Top-tether for

children from 9 kg to 18 kg.

● Group II: Kidfix 2R with or without

ISOFIX for children from 15 kg to

36 kg.
Graco Booster for children from

15 kg to 36 kg.

● Group III: Kidfix 2R with or

without ISOFIX for children from

22 kg to 36 kg.
Graco Booster for children from

22 kg to 36 kg.

Ensure that the child restraint system

to be installed is compatible with the

vehicle type.
Child seat at the front: Adjust the front

passenger seat to the highest and

fully back longitudinal position with

the backrest straightened.

Seats, restraints

Child seat at the rear: Move the

vehicle's front seat forward and

straighten the backrest so that the

legs of the child in the "forward facing”

or the "rearward facing" child seat do

not touch the vehicle's front seat.
In case of any interference of child

restraint system with vehicle seat

head rest, adjust or remove the

corresponding vehicle seat head

restraint.
Do not use forward facing child

restraints system when child's weight

is below 13 kg at all seats.
Please follow child restraint

manufacturers instructions to install

corresponding child restraints in

vehicle.
For semi-universal or vehicle specific

child restraint system (ISOFIX or

belted child restraint system), see the

vehicle list provided in the user

manual of the child restraint system.
Ensure that the mounting location of

the child restraint system within the

vehicle is correct, see following table.

Allow children to enter and exit the

vehicle only on the side facing away

from the traffic.
When the child restraint system is not

in use, secure the seat with a seat belt

or remove it from the vehicle.

Notice

Do not affix anything on the child

restraint systems and do not cover

them with any other materials.
A child restraint system which has

been subjected to stress in an

accident must be replaced.

Seats, restraints

Child restraint installation locations

Installation of universal, ISOFIX and i-Size child seats

As required by European regulations, this table gives the options for installing child seats secured using the seat belt and

universally approved as well as the larger ISOFIX and i-Size child seats on seat positions equipped with ISOFIX mountings

in the vehicle.
Yes : Suitable for fitment of the designated category of the child restraint system.

No : Not suitable for fitment of the designated category of the child restraint system.

Front passenger seat

Rear outer seats

Rear centre seat

Position compatible with a universal child seat

Yes

Position compatible with an i-Size child seat

Yes

Position equipped with a top-tether fixing

Yes

Carrycot type of child seat

Rearward facing ISOFIX child seat

Forward facing ISOFIX child seat

Booster child seat

Universal child seat: chiId seat that can be installed in all vehicles using the seat belt.

To install a rearward facing child seat at this seat position, the front passenger's airbag must be deactivated OFF.

Only a forward facing child seat is authorised at this seat position with the front passenger's airbag activated ON.

For a seat with height adjustment, set it to the highest and fully back longitudinal position.

A child seat with a support leg must never be installed on the centre rear passenger seat.

Depending on position, adjust the driver seat to the maximum height position or adjust the front passenger seat as far forward as

necessary.

Seats not fitted with ISOFIX compliant mountings.

Seats, restraints

If necessary adjust the headrest to maximum height position.

Adjust the passenger seat with integrated headrest to its highest position.

Rules

● A position that is i-Size compatible is also compatible for R1, R2 and F2X, F2, B2.
● A position that is R3 compatible is also compatible for R1, R2 and R2X.
● A position that is R2 compatible is also compatible for R1.
● A position that is F3 compatible is also compatible for F2X and F2.
● A position that is B3 compatible is also compatible for B2.

Size of child restraint fixture (1, 2, 3):

● R1 means rearward facing child restraint fixture for mass group 0 up to 10 kg and mass group 0+ up to 13 kg, age

around 0-1 year.

● R2 means reduced size of rearward facing child restraint fixture for mass group 0+ up to 13 kg and mass group 1

from 9 to 18 kg, age around 2-4 years.

● R3 means full size of rearward facing child restraint fixture for mass group 0+ up to 13 kg and mass group 1 from 9

to 18 kg, age around 2-4 years.

● F2, F2X mean reduced height of forward facing child restraint fixture for mass group 1 from 9 to 18 kg, age around

6-7 years.

● F3 means full height of forward facing child restraint fixture for mass group 1 from 9 to 18 kg, age around 7-10 years.
● B2 means forward facing booster child seat with reduced width for mass group 2 from 15 to 25 kg, age around 3.5-7

years.

● B3 means forward facing booster child seat with full width for mass group 3 from 25 to 36 kg, age around 7-12 years.

Storage

Storage compartments ................ 53

Glovebox ................................... 53

Cupholders ................................ 53

Front storage ............................. 54

Door panel storage .................... 55

Centre console storage ............. 55

Load compartment ....................... 56

Load compartment cover ........... 57

Rear floor storage cover ............ 60

Lashing eyes ............................. 60

Safety net .................................. 61

Warning triangle ........................ 62

First aid kit ................................. 62

Roof rack system ......................... 62

Roof rack ................................... 62

Loading information ..................... 63

Storage compartments

Warning

Do not store heavy or sharp

objects in the storage

compartments.

Glovebox

Pull the lever to open the glovebox.
The glovebox should be closed whilst

driving.

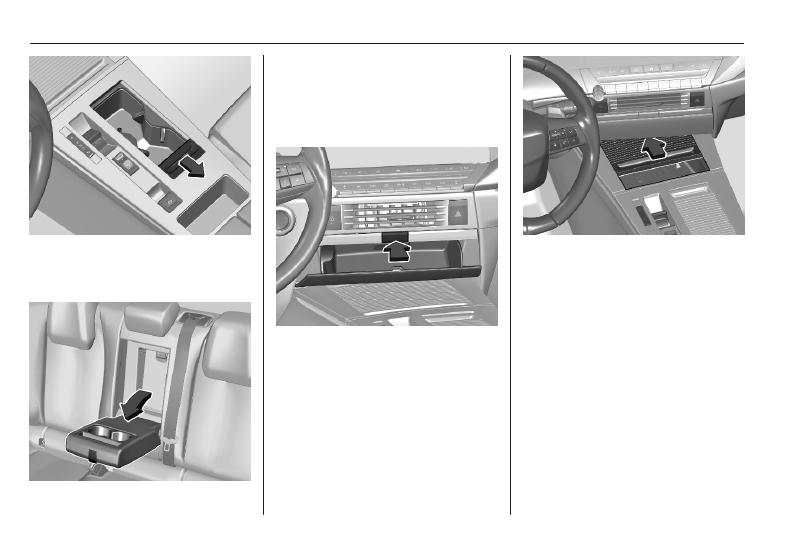

Cupholders

Depending on version, cupholders

are located in the centre console:

● As an open storage compartment

before the front armrest.

Storage

● Within a storage compartment

closed by a sliding cover.
Slide the cover backwards.

A combined storage for cupholders

and mobile device is located in the

rear armrest. Fold down the armrest.

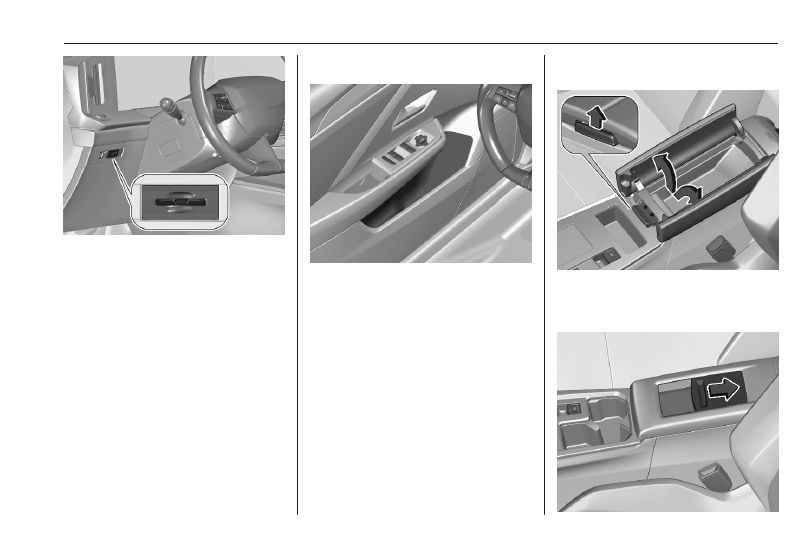

Front storage

A storage compartment is located at

the instrument panel.

A storage compartment for inductive

charging is located beneath the

instrument panel.
Inductive charging

72.

Depending on version, the storage

compartment may have a sliding

cover.
Slide the cover forwards.

Storage

● Open the cover by sliding it

backwards.

Depending on version, an additional

storage compartment may be located

next to the armrest.

Load compartment

Depending on version, the rear seat

backrest is divided into two or three

parts. All parts can be folded down

individually to increase the size of the

load compartment.
Before folding the rear seat

backrests, execute the following if

necessary:

● Move the front seats forwards if

necessary.

● Remove the load compartment

cover

57.

● Press and hold the catch to push

the head restraints down

31.

Folding down / up the rear

backrests from the passenger

compartment

● Check that the seat belts are not

engaged in the seat belt buckles,

so that the backrests can be

moved.

● Pull the release lever and fold

down the backrests onto the seat

cushion.

● To fold up, raise the backrests

and guide them into an upright

position until they engage

audibly. Make sure that the belts

are positioned correctly and stay

clear of the folding area.

Storage

The backrests are properly

engaged when the red marks

near the release levers are no

longer visible.

Warning

When folding up, ensure that

backrests are securely locked in

position before driving. Failure to

do so may result in personal injury

or damage to the load or vehicle in

the event of hard braking or a

collision.

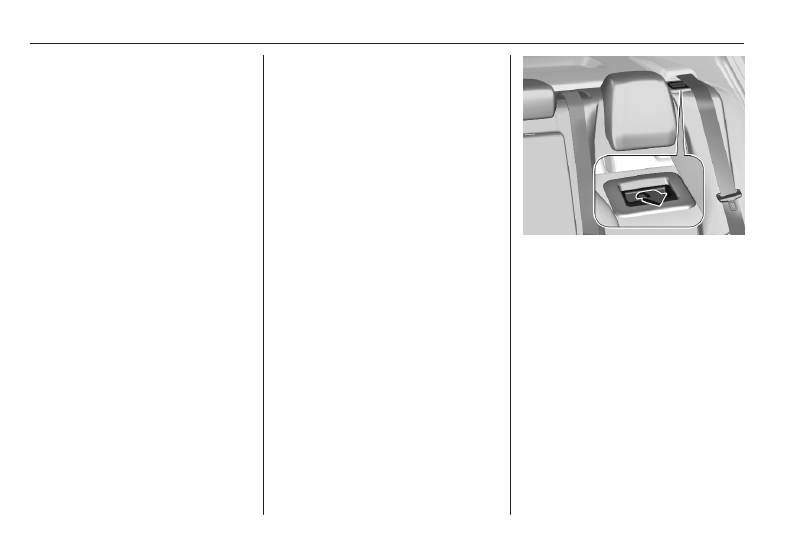

Folding down the rear backrests

from the load compartment

(Sports Tourer)

To fold down the left or right rear

backrests from the load

compartment, pull the release lever in

the corresponding load compartment

side panel.
The centre backrest will be folded

down along with the left backrest.

Opening the pass through in the

centre backrest

Fold down the rear armrest.

Pull the handle and open the cover.
Suitable for loading long, narrow

objects.

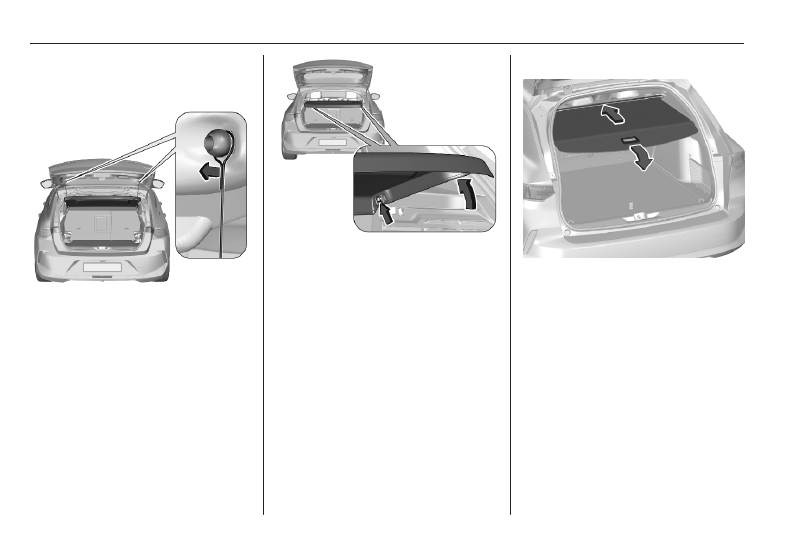

Load compartment cover

Do not place any objects on the cover.

Storage

5-door Hatchback

Removing the cover

Unhook the retaining straps from the

tailgate.

Lift the cover at the front and push it

upwards at the rear.
Remove the cover.

Fitting the cover

Engage the cover in the side guides

and fold downwards. Attach the

retaining straps to the tailgate.

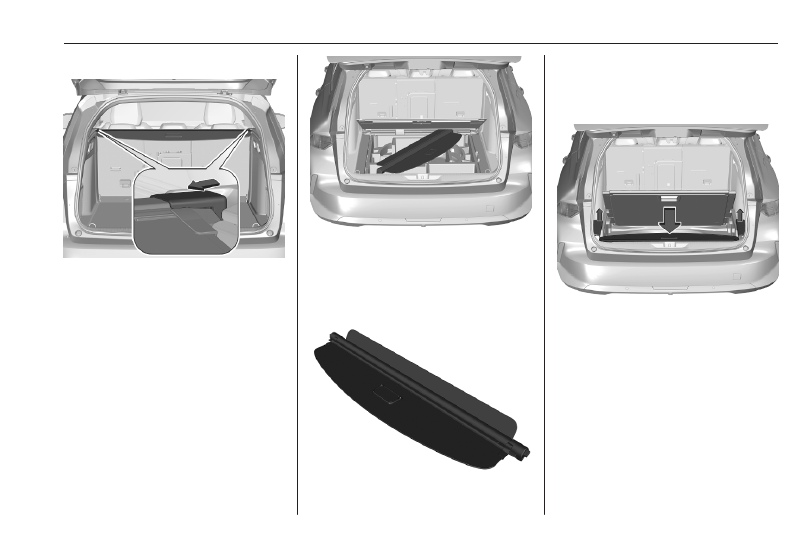

Sports Tourer

Closing roller blind

Pull the roller blind using the handle

towards the rear and upwards until it

engages in the sideward retainers.

Opening roller blind

Pull the roller blind handle to the rear

and downwards. It rolls up

automatically.

Storage

Removing roller blind

Open the roller blind.
Press the lever on the right side and

lift the roller blind first at the right side

and then on the left side. Remove the

roller blind from the recesses.

The removed roller blind can be

stored under the rear floor cover as

shown in the illustration.

Depending on version, the roller blind

needs to be stored upside down and

crosswise from the left to the right

load compartment side.

Lift the rear floor cover and remove

the covers at both load compartment

sides to get access to the recesses.
Place the roller blind so that it fits into

the recesses at both sides and

reattach the covers.
Rear floor storage cover

60.

Storage

Installing roller blind

Insert the left side of the roller blind in

the recess, then press the lever and

insert the right side of the roller blind

in the recess.

Rear floor storage cover

The rear floor cover can be lifted and

removed. Use the loop to raise the

rear floor cover and then remove it.
Depending on version, the rear floor

storage cover may be foldable.

Double load floor

The double load floor can be inserted

in the load compartment in two

positions:

● lower position above the rear

floor storage cover

● upper position interlocked into

the back panel trim

To remove, use the opening to raise

the rear floor cover and lift it up.
If mounted in the upper position, the

space between the load floor and the

spare wheel well cover can be used

as a stowage compartment.

In this position and with rear

backrests folded, an almost

completely flat load bay is created.
5-door Hatchback

The load of the double load floor in the

upper position is limited to a

maximum of 100 kg.
Sports Tourer

The load of the double load floor in the

upper position is limited to a

maximum of 150 kg.

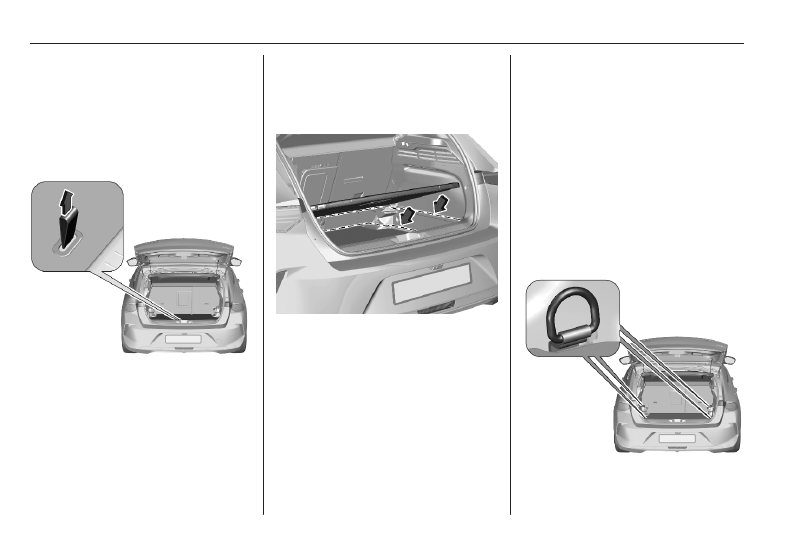

Lashing eyes

The lashing eyes are designed to

secure items against slippage, e.g.

using lashing straps or luggage net.

Storage

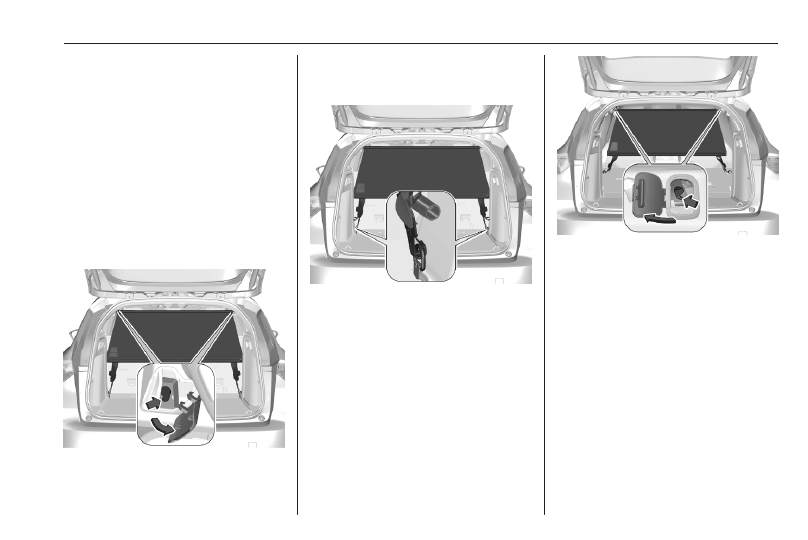

Safety net

The safety net can be installed behind

the rear seats or, if the rear seat

backrests are folded, behind the front

seats.
Passengers must not be transported

behind the safety net.

Installation

Behind the rear seats

● Remove the roller blind.

Load compartment cover

57.

● There are installation openings

on both sides in the roof frame

above the rear seats: suspend

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

● Attach the hooks of the safety net

straps in the lashing eyes behind

the rear seats.

● Tension both straps by pulling at

the loose end.

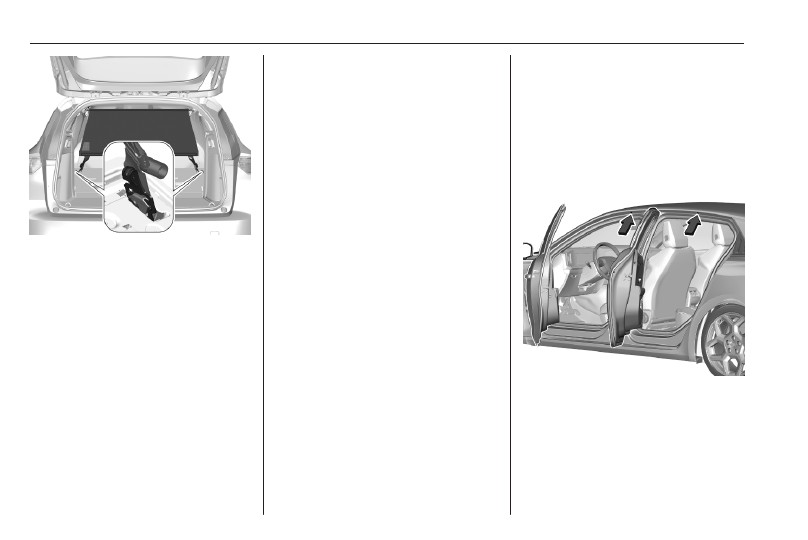

● Rear seat backrests must be

raised up.

Behind the front seats

● Push down head restraints and

fold down the rear backrests.
Load compartment

56.

● There are installation openings

on both sides in the roof frame

above the front seats: suspend

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

Storage

● Insert the hooks of the safety net

straps into the buckles on the

back side of the rear backrests.

● Tension both straps by pulling at

the loose end.

Warning triangle

5-door Hatchback

Store the warning triangle in the

destined space on the right side

under the rear floor storage cover.
Sports Tourer

Store the warning triangle in the

destined compartment on the inner

tailgate panel.

First aid kit

Depending on version, the first aid kit

can be stored in a free space under

the rear floor storage cover.

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, a vehicle

approved roof rack system is

recommended. For further

information, contact your workshop.

Open all doors.
Mounting points are located in each

door frame of the vehicle body.
Fasten the roof rack according to the

installation instructions delivered with

the roof rack.

Storage

Remove the roof rack when not in

use.
Sports Tourer

Markings at the roof rails indicate

where the roof rack is to be installed.

Loading information

Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● Heavy objects in the load

compartment should be placed

against the seat backrests. Make

sure that the backrests are

securely engaged. If objects can

be stacked, heavier objects

should be placed at the bottom.

● Prevent sliding of loose objects

by securing them with straps

attached to the lashing eyes

60.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate

245) and the EC kerb

weight.

Storage

To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than 75 mph.
The roof load is the combined

weight of the roof rack and the

load.

The permissible roof load is

75 kg.
Sports Tourer with roof rails: The

permissible roof load is 85 kg.

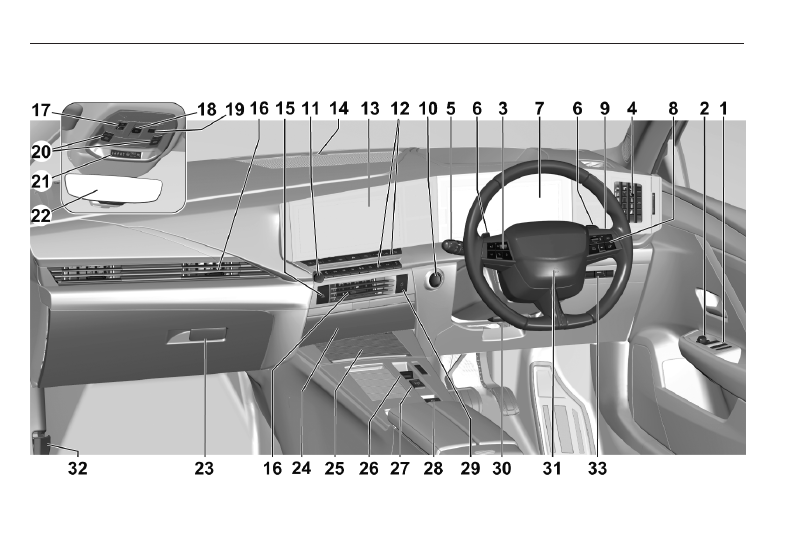

Instruments and controls

Power windows ..................... 27

Exterior mirrors ..................... 24
Head-up display .................... 89

Cruise control ..................... 150
Speed limiter ....................... 152
Adaptive cruise control ....... 154

Side air vents ...................... 119

High beam ............................. 95
Headlight flash ...................... 96
Turn lights ............................ 99
Fog lights ............................ 100
Parking lights ...................... 101

Steering wheel paddles ...... 139

Driver Information Centre ...... 86

Infotainment controls .......... 104

Windscreen wiper and

washer .................................. 69
Rear window wiper and

washer ................................. 71

10 Power button ....................... 124
11 Infotainment on / off and

volume ................................ 104

12 Heated rear window .............. 28

Heated windscreen ............... 29
Heated seats ......................... 37
Ventilated seats .................... 37
Heated steering wheel .......... 68
Vehicle personalisation ......... 91
Electronic climate control

system ................................. 114

13 Info Display ........................... 87
14 Anti-theft alarm system

status LED ............................ 21

15 Hazard warning flashers ....... 99
16 Centre air vents ................... 119
17 Emergency call ..................... 92
18 Sunroof ................................. 29
19 Anti-theft alarm system ......... 21
20 Interior lights ....................... 101
21 Seat belt reminder ................. 79

Airbag deactivation ............... 80

22 Interior mirror ........................ 25
23 Airbag deactivation ............... 46

Glovebox ............................... 53

24 Front storage ......................... 54
25 Front storage ......................... 54

Power outlets ........................ 71
Inductive charging ................. 72

26 Gear selection ..................... 139

Selector lever ...................... 142

27 Drive modes ........................ 143
28 Parking brake ...................... 145
29 Central locking button ........... 10
30 Steering wheel adjustment . . . 68
31 Horn ...................................... 69
32 Bonnet release lever ........... 211
33 Power tailgate ....................... 16

Coin holder ............................ 54
Headlight range adjustment .. 96
Temperature

preconditioning ................... 118
Fuel filler flap ....................... 198

Instruments and controls

Controls

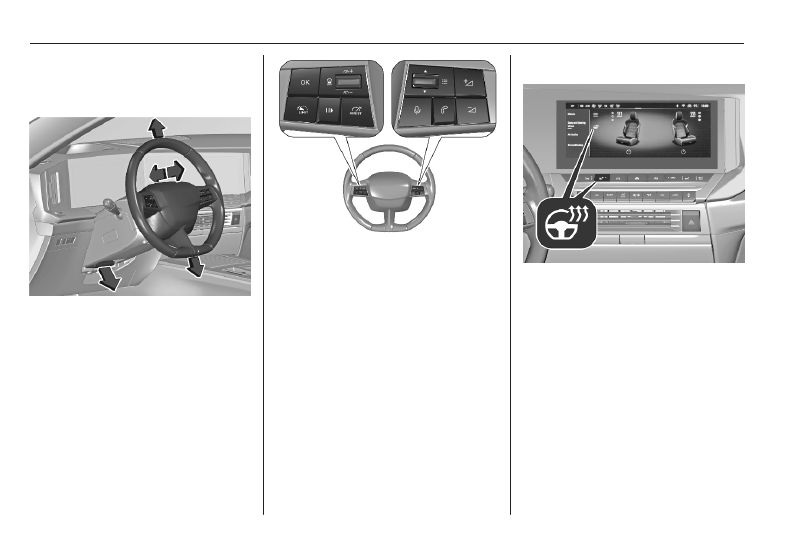

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

Some driver assistance systems, the

Infotainment system and a connected

mobile phone can be operated via the

controls on the steering wheel.

Cruise control

Adaptive cruise control

154.

Heated steering wheel

Activate the heating by pressing

Activation is indicated by the control

indicator in the button.
The heating works only when the

outside temperature is below 20 °C.

Activation via the Info Display

The heating can be activated or

deactivated by touching

in the

climate menu

;

Activation is indicated by

in the

status bar.

Instruments and controls

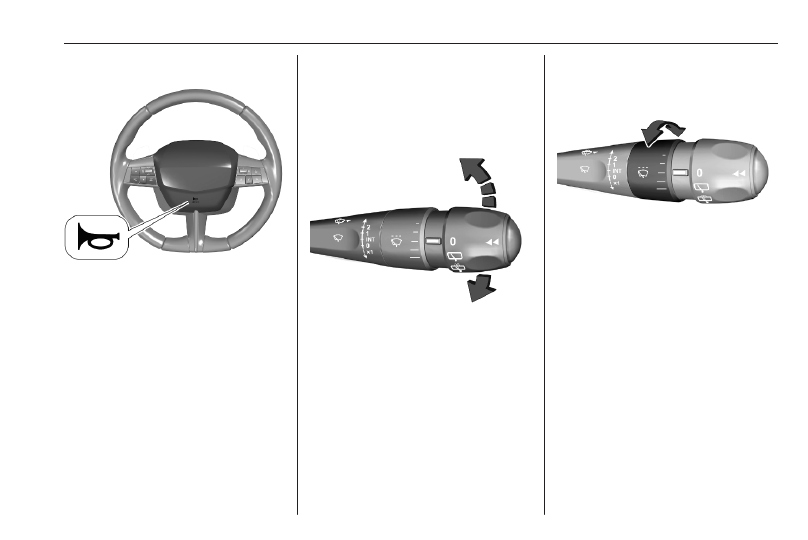

Horn

Press

Pedestrian safety alert

The sound of the pedestrian safety

alert is generated to indicate the

vehicle presence to pedestrians. It is

active up to 19 mph.

Windscreen wiper and

washer

Windscreen wiper with adjustable

wiper frequency

: fast

: normal

INT : intermittent wiping

: off

x1 : single wipe
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper frequency

Wiper lever in position INT, it is

possible to select five frequency

levels by turning the ring.

Vauxhall Astra L (2023 year). Manual in english - page 2
