Airbus A320. AIRCRAFT CHARACTERISTICS AIRPORT AND MAINTENANCE PLANNING (2016-2023)

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-3

Hydraulic System

**ON A/C A320-200 A320neo

Hydraulic Servicing

Access

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

Green System:

19.17 m

1.27 m

1.76 m

Access Door 197CB

(62.89 ft)

(4.17 ft)

(5.77 ft)

Yellow System:

19.17 m

1.27 m

1.76 m

Access Door 198CB

(62.89 ft)

(4.17 ft)

(5.77 ft)

Blue System:

20.22 m

1.27 m

1.76 m

Access Door 197EB

(66.34 ft)

(4.17 ft)

(5.77 ft)

Reservoir Pressurization

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

15.65 m

0.25 m

1.74 m

Access Door 195BB

(51.35 ft)

(0.82 ft)

(5.71 ft)

Accumulator Charging

Four MIL-PRF-6164 connections:

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

Yellow System

15.65 m

0.25 m

1.74 m

Accumulator:

(51.35 ft)

(0.82 ft)

(5.71 ft)

Access Door 196BB

Page 1

Dec 01/20

5-4-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

Green System

16.77 m

0.25 m

3.20 m

Accumulator:

(55.02 ft)

(0.82 ft)

(10.50 ft)

Left MLG Door

Blue System

15.65 m

0.25 m

1.74 m

Accumulator:

(51.35 ft)

(0.82 ft)

(5.71 ft)

Access Door 195BB

Yellow System Braking

15.65 m

0.25 m

1.74 m

Accumulator:

(51.35 ft)

(0.82 ft)

(5.71 ft)

Access Door 196BB

Reservoir Filling

Centralized filling capability on the Green System ground service panel:

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

19.17 m

1.27 m

1.76 m

Access Door 197CB

(62.89 ft)

(4.17 ft)

(5.77 ft)

Filling: Ground pressurized supply or hand pump.

Reservoir Drain

Three 3/8 in. self-sealing connections:

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

Yellow System:

15.65 m

0.25 m

1.74 m

Access Door 196BB

(51.35 ft)

(0.82 ft)

(5.71 ft)

Green System:

16.77 m

0.25 m

3.20 m

Left MLG Door

(55.02 ft)

(0.82 ft)

(10.50 ft)

Page 2

Dec 01/20

5-4-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

Blue System:

20.22 m

1.27 m

1.76 m

Access Door 197EB

(66.34 ft)

(4.17 ft)

(5.77 ft)

NOTE : The drain valve is on the Blue System ground service panel for the reservoir of the Blue

hydraulic system.

The drain valve is on the reservoir for the Green and Yellow Hydraulic Systems.

Ground Test

On each ground service panel:

One self-sealing connector (suction).

One self-sealing connector (delivery).

Page 3

Dec 01/20

5-4-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

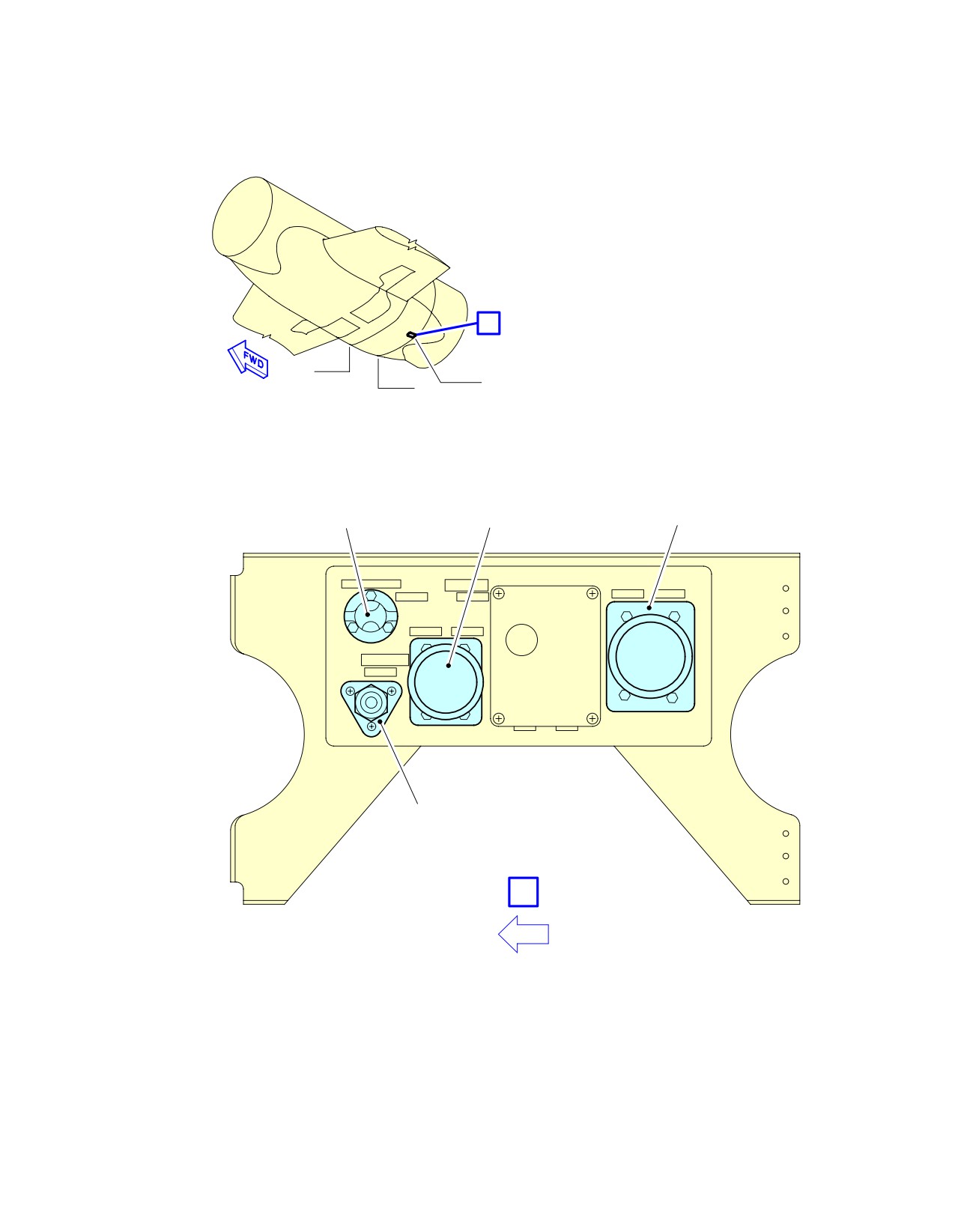

FR47

FR50

197CB

RESERVOIR FILL SYSTEM

QUANTITY

HAND PUMP FILL CONNECTION

SELECTOR VALVE

INDICATOR

RESERVOIR

DEPRESSURIZATION

CONNECTION

GROUND

GROUND SUPPLY

GROUND

DELIVERY

RESERVOIR FILL

SUCTION

CONNECTION

FWD

N_AC_050403_1_0040101_01_01

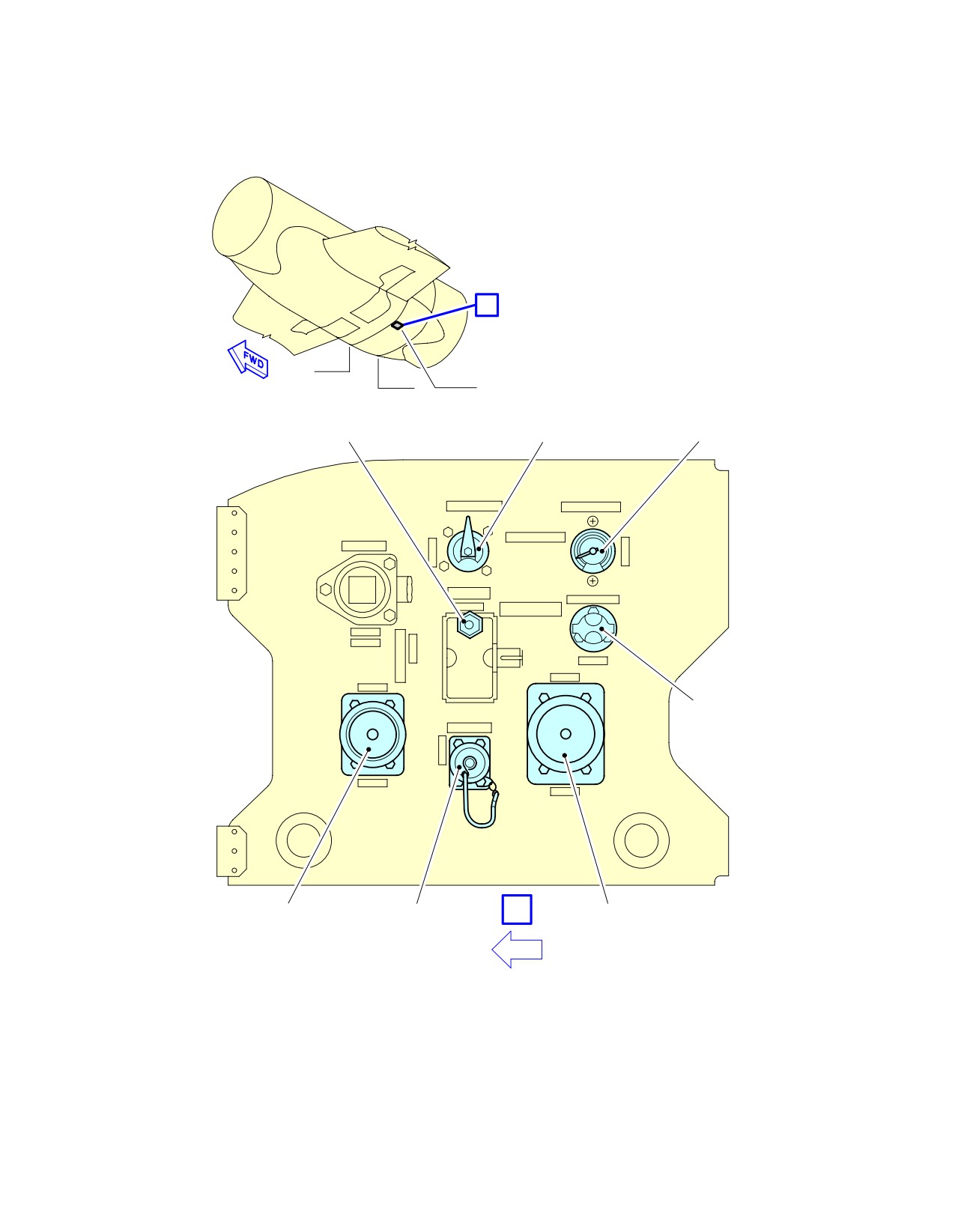

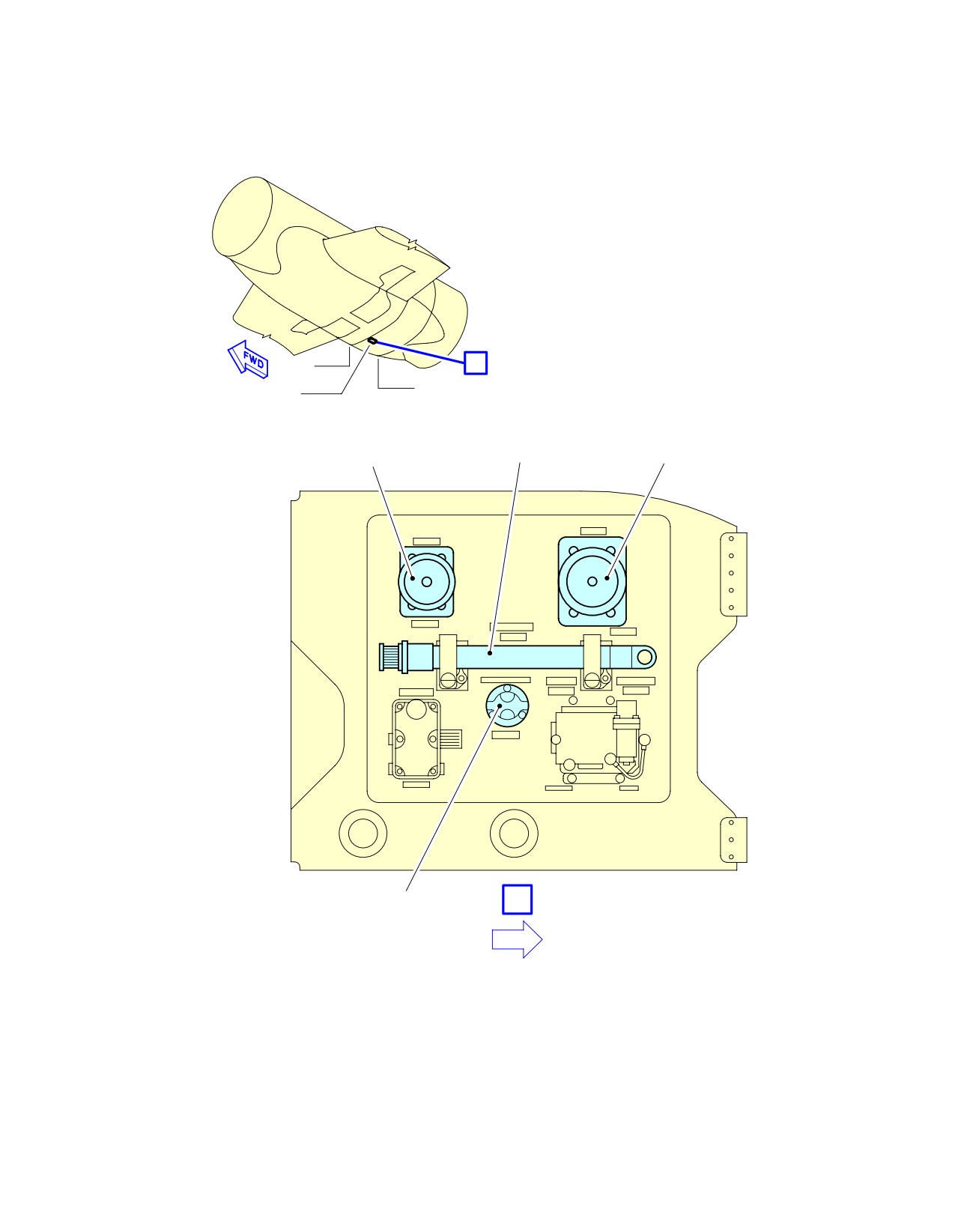

Ground Service Connections

Green System Ground Service Panel

FIGURE-5-4-3-991-004-A01

Page 4

Dec 01/20

5-4-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-4

Electrical System

**ON A/C A320-200 A320neo

Electrical System

This chapter provides data related to the location of the ground service connections.

DISTANCE

ACCESS

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

AFT OF NOSE

LH SIDE

RH SIDE

FROM GROUND

A/C External

2.55 m

2.00 m

Power:

On centerline

(8.37 ft)

(6.56 ft)

Access Door 121AL

NOTE : Distances are approximate.

Technical Specifications

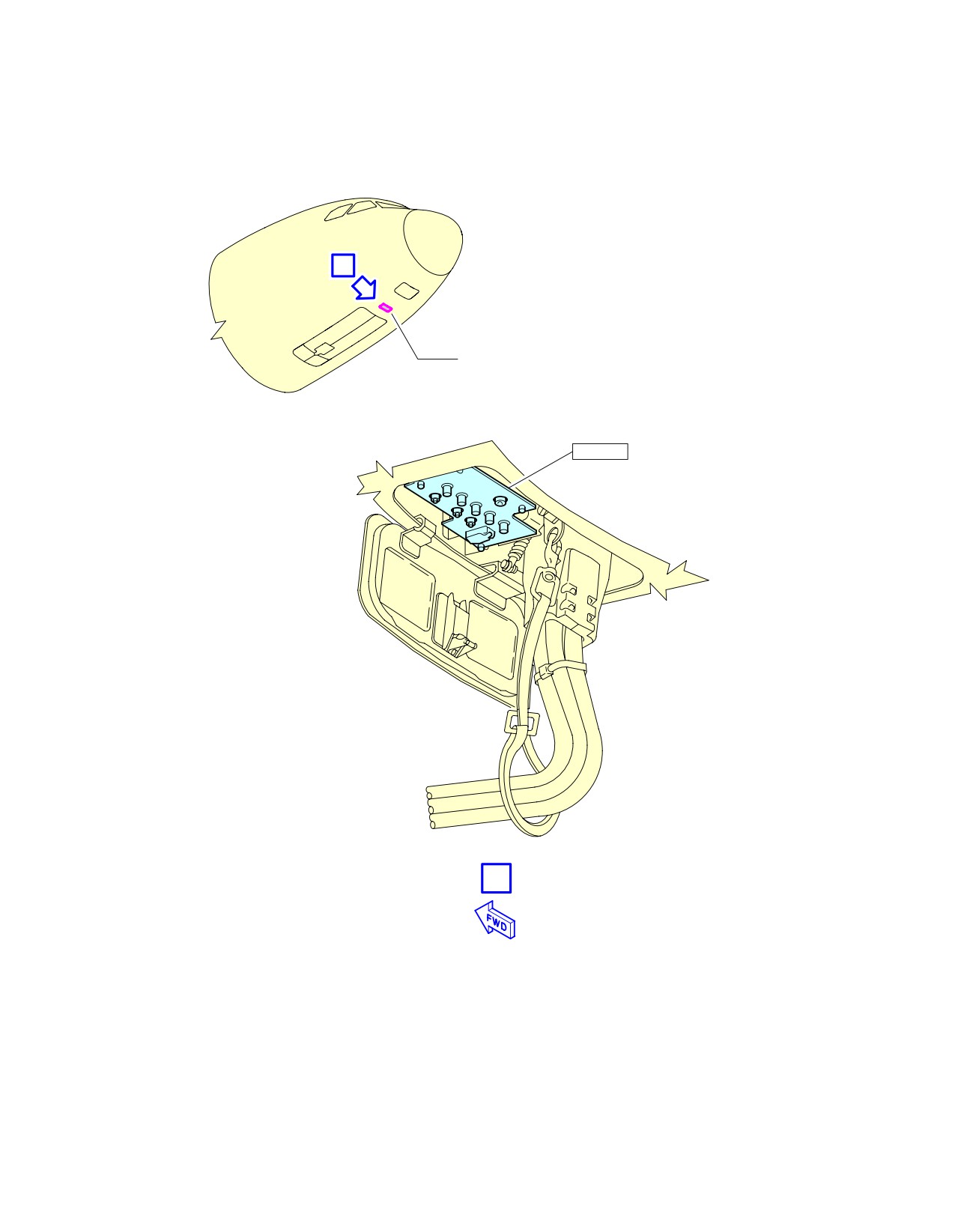

A. External Power Receptacle:

One receptacle according to MS 90362-3 (without shield MS 17845-1) -- 90 kVA.

NOTE : Make sure that for connectors featuring micro switches, the connector is chamfered to

properly engage in the receptacle.

B. Power Supply:

Three-phase, 115/200V, 400 Hz.

C. Electrical Connectors for Servicing:

AC outlets: HUBBELL 5258

DC outlets: HUBBELL 7472.

Page 1

Dec 01/20

5-4-4

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-5

Oxygen System

**ON A/C A320-200 A320neo

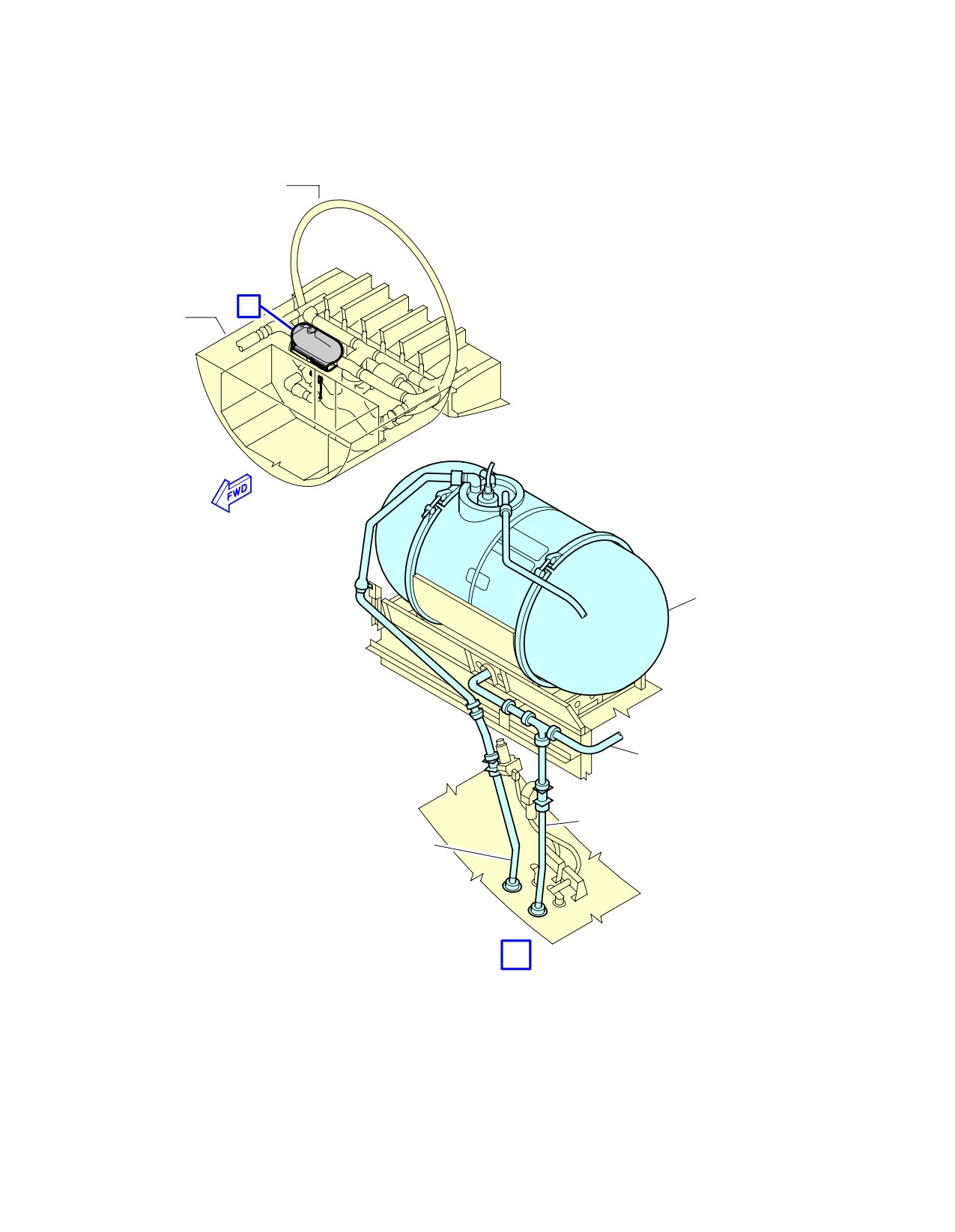

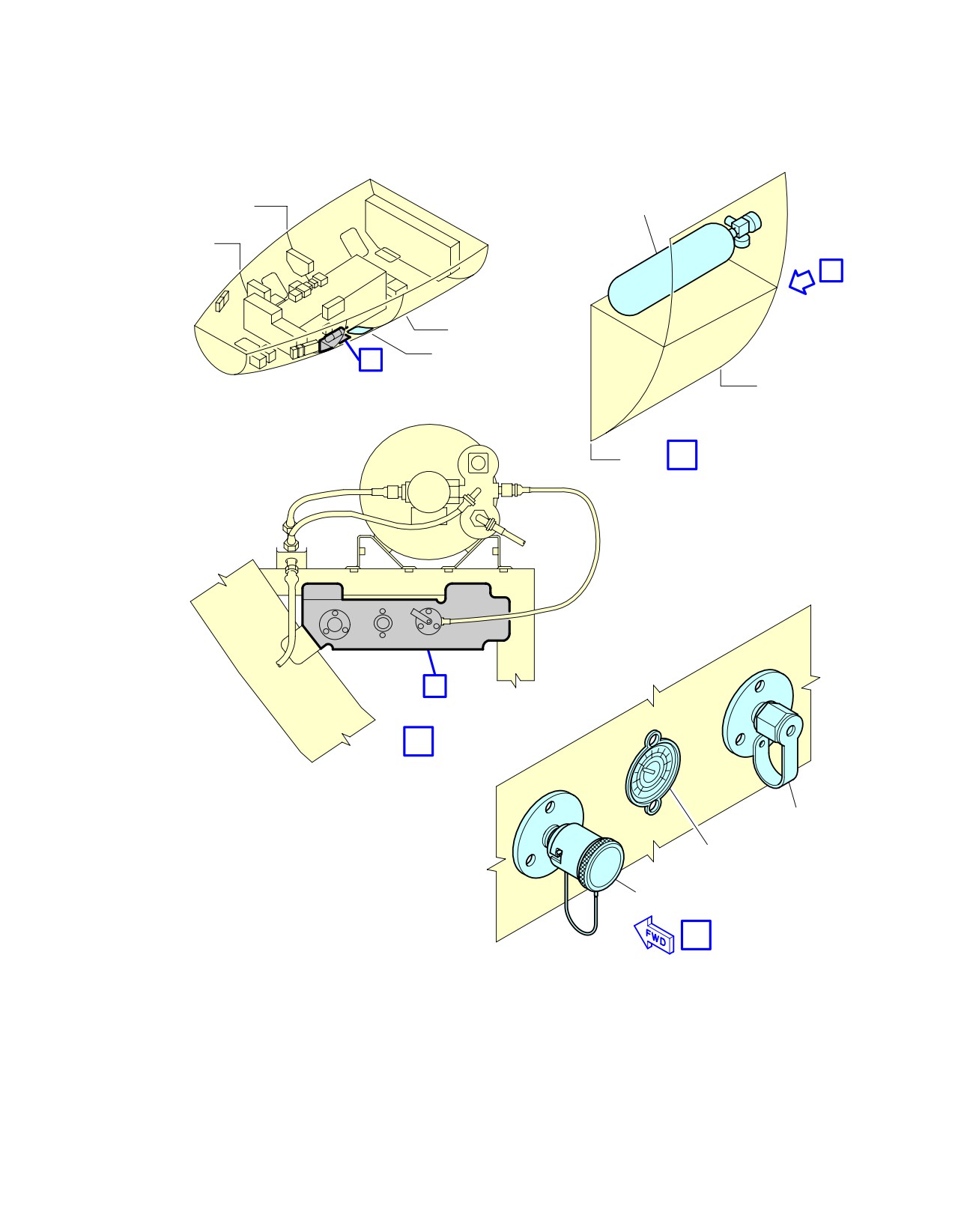

Oxygen System

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN

ACCESS

HEIGHT

AFT OF NOSE

LH SIDE

RH SIDE

FROM

GROUND

Oxygen Replenishment:

3.45 m

1.15 m

2.60 m

Access Door 812

(11.32 ft)

(3.77 ft)

(8.53 ft)

Technical Specifications

One 3/8 in. MIL-DTL 7891 standard service connection.

NOTE : External charging in the avionics compartment.

Page 1

Dec 01/20

5-4-5

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-6

Fuel System

**ON A/C A320-200 A320neo

Fuel System

Refuel/Defuel Control Panel

DISTANCE

POSITION FROM AIRCRAFT

ACCESS

MEAN HEIGHT

AFT OF NOSE

CENTERLINE

FROM GROUND

LH SIDE

RH SIDE

Refuel/Defuel

Integrated Panel:

16.4 m

1.8 m

Access Door

(53.81 ft)

(5.91 ft)

192MB

Refuel/Defuel Connectors

DISTANCE

POSITION FROM AIRCRAFT

ACCESS

MEAN HEIGHT

AFT OF NOSE

CENTERLINE

FROM GROUND

LH SIDE

RH SIDE

Refuel/Defuel

Coupling, Left:

17.59 m

9.83 m

3.65 m

Access Panel

(57.71 ft)

(32.25 ft)

(11.98 ft)

522HB

(Optional)

Refuel/Defuel

Coupling, Right:

17.59 m

9.83 m

3.65 m

Access Panel

(57.71 ft)

(32.25 ft)

(11.98 ft)

622HB

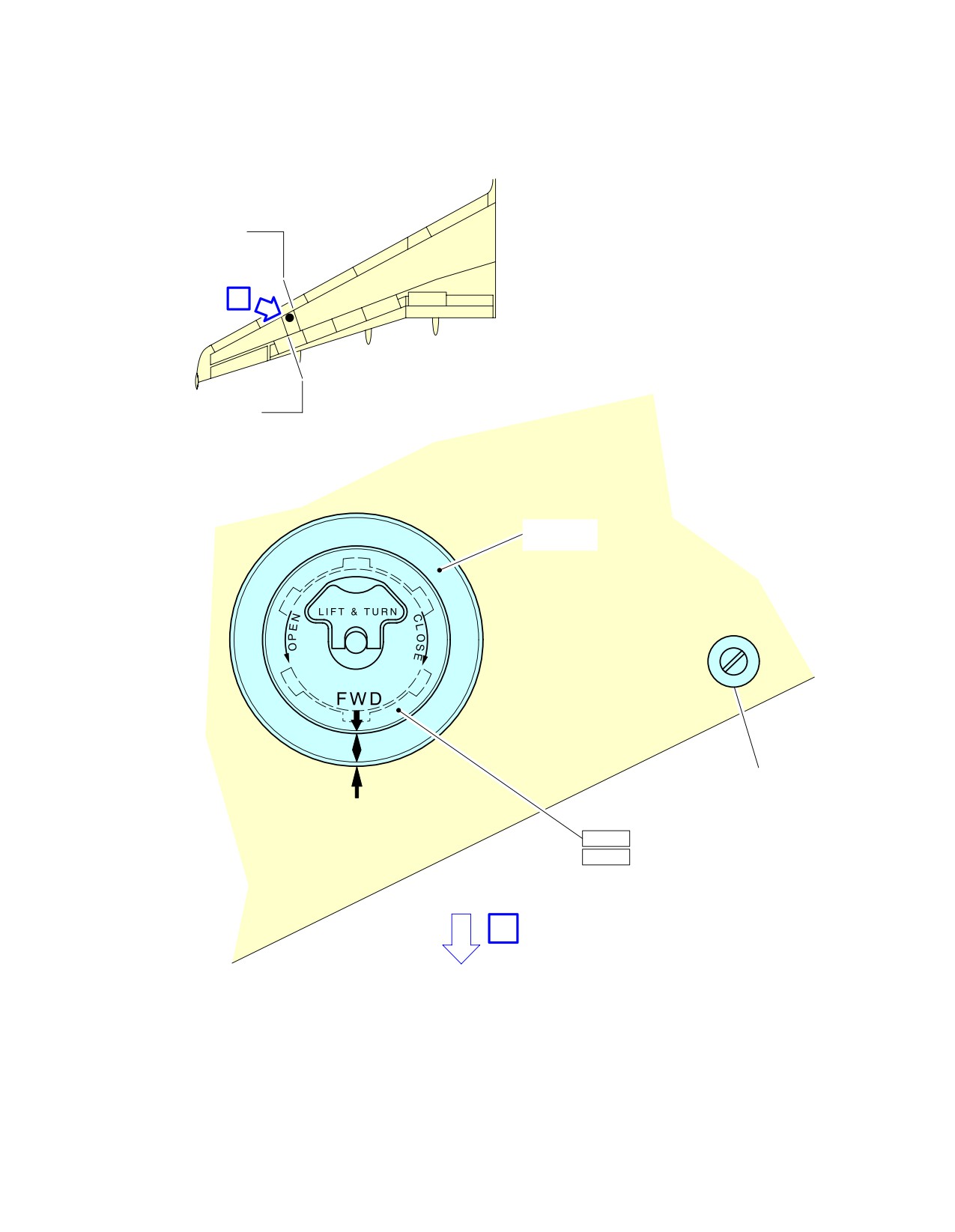

Overwing Gravity-

19.1 m

12.4 m

3.7 m

Refuel Cap

(62.66 ft)

(40.68 ft)

(12.14 ft)

A. Refuel/Defuel Couplings:

Right wing: one standard ISO

45,

2.5 in.

Left wing: one optional standard ISO 45, 2.5

in.

B. Refuel Pressure:

Maximum pressure: 3.45 bar (50 psi).

C. Average Flow Rate:

1250 l/min (330 US gal/min).

Page 1

Dec 01/20

5-4-6

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

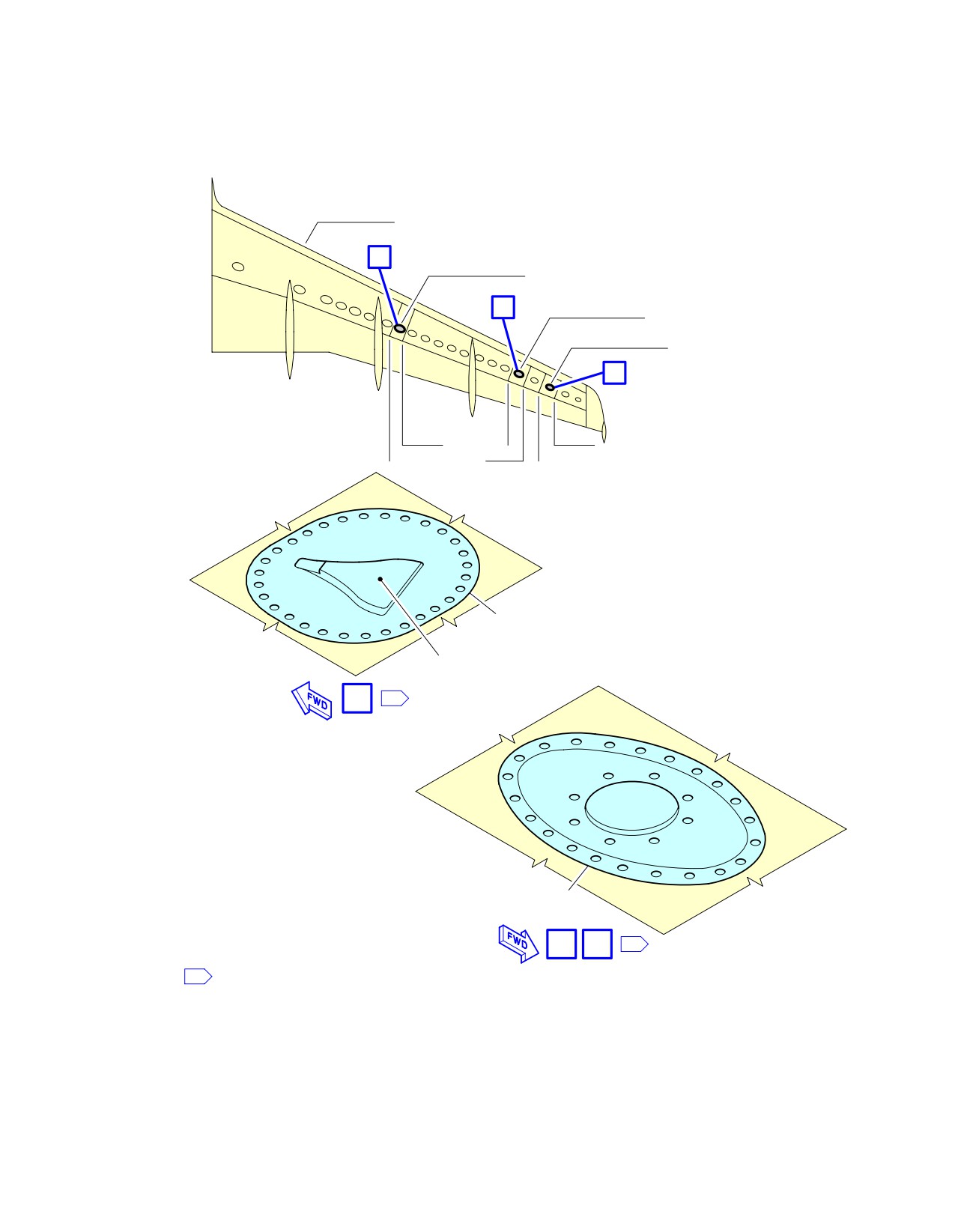

Overpressure Protectors and NACA Vent Intake

DISTANCE

POSITION FROM AIRCRAFT

ACCESS

MEAN HEIGHT

AFT OF NOSE

CENTERLINE

FROM GROUND

LH SIDE

RH SIDE

Surge Tank

Overpressure-

20.36 m

14.9 m

4.32 m

Protector:

(66.80 ft)

(48.88 ft)

(14.17 ft)

Access Panel

550CB (650CB)

Inner Cell

Overpressure-

19.5 m

9.19 m

4.1 m

Protector:

(63.98 ft)

(30.15 ft)

(13.45 ft)

Access Panel

540HB (640HB)

NACA Vent Intake:

19.8 m

13.7 m

4.02 m

Access Panel

(64.96 ft)

(44.95 ft)

(13.19 ft)

550AB (650AB)

NOTE : Distances are approximate.

Page 2

Dec 01/20

5-4-6

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

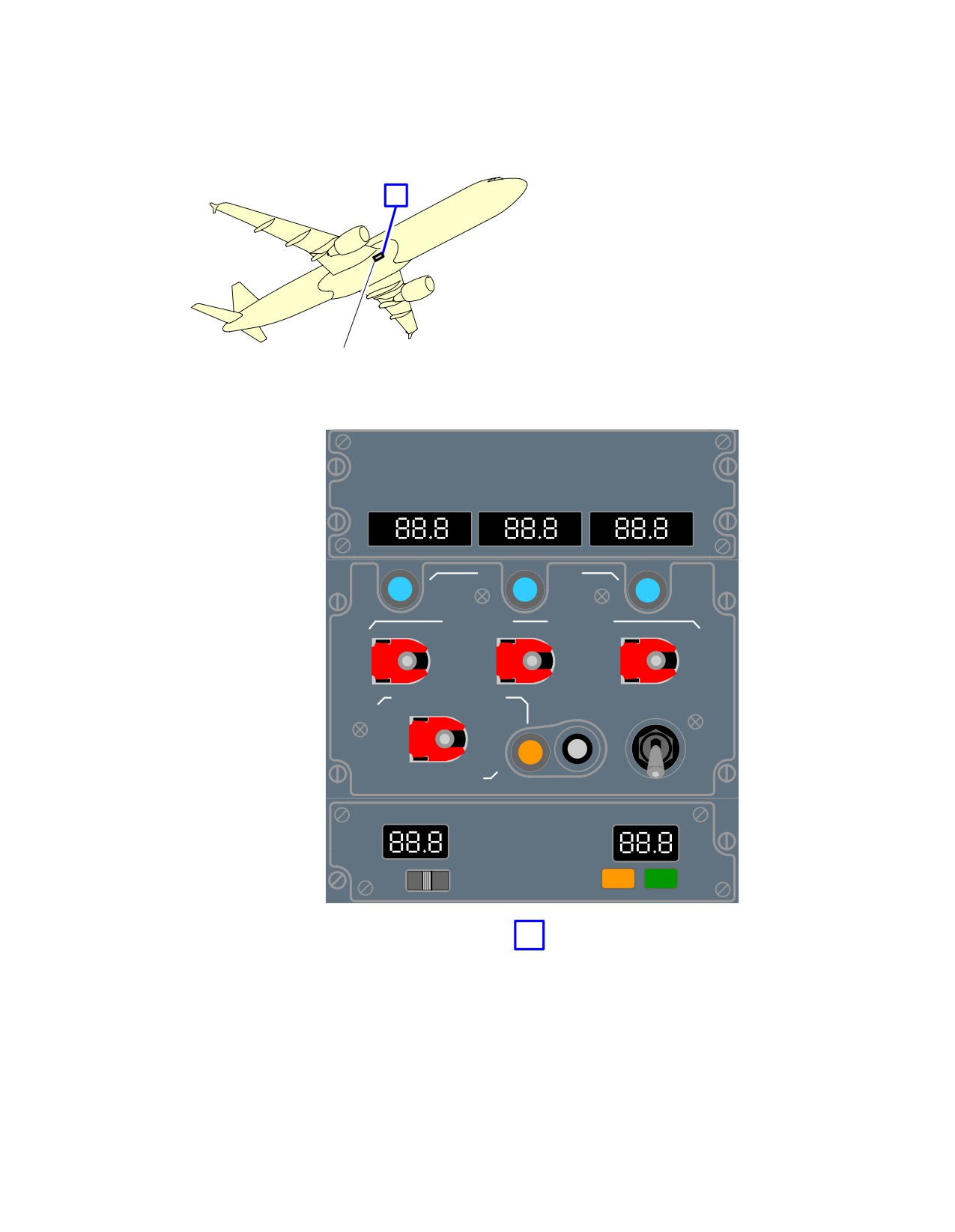

REFUEL/DEFUEL

CONTROL PANEL

FUEL QTY

kg x 1000

LEFT

CTR

RIGHT

LVL

LEFT

CTR

RIGHT

REFUEL

VALVES

OPEN

NORM

SHUT

MODE SELECT

TEST BATT POWER

REFUEL

HI LVL

OFF

DEFUEL / XFR

OPEN

LTS

NORM

PRESELECTED

REFUEL

ACTUAL

kg x 1000

DEC

INC

CKPT END

NOTE: STANDARD CONFIGURATION OF REFUEL/DEFUEL PANEL.

N_AC_050406_1_0010101_01_00

Ground Service Connections

Refuel/Defuel Control Panel

FIGURE-5-4-6-991-001-A01

Page 3

Dec 01/20

5-4-6

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

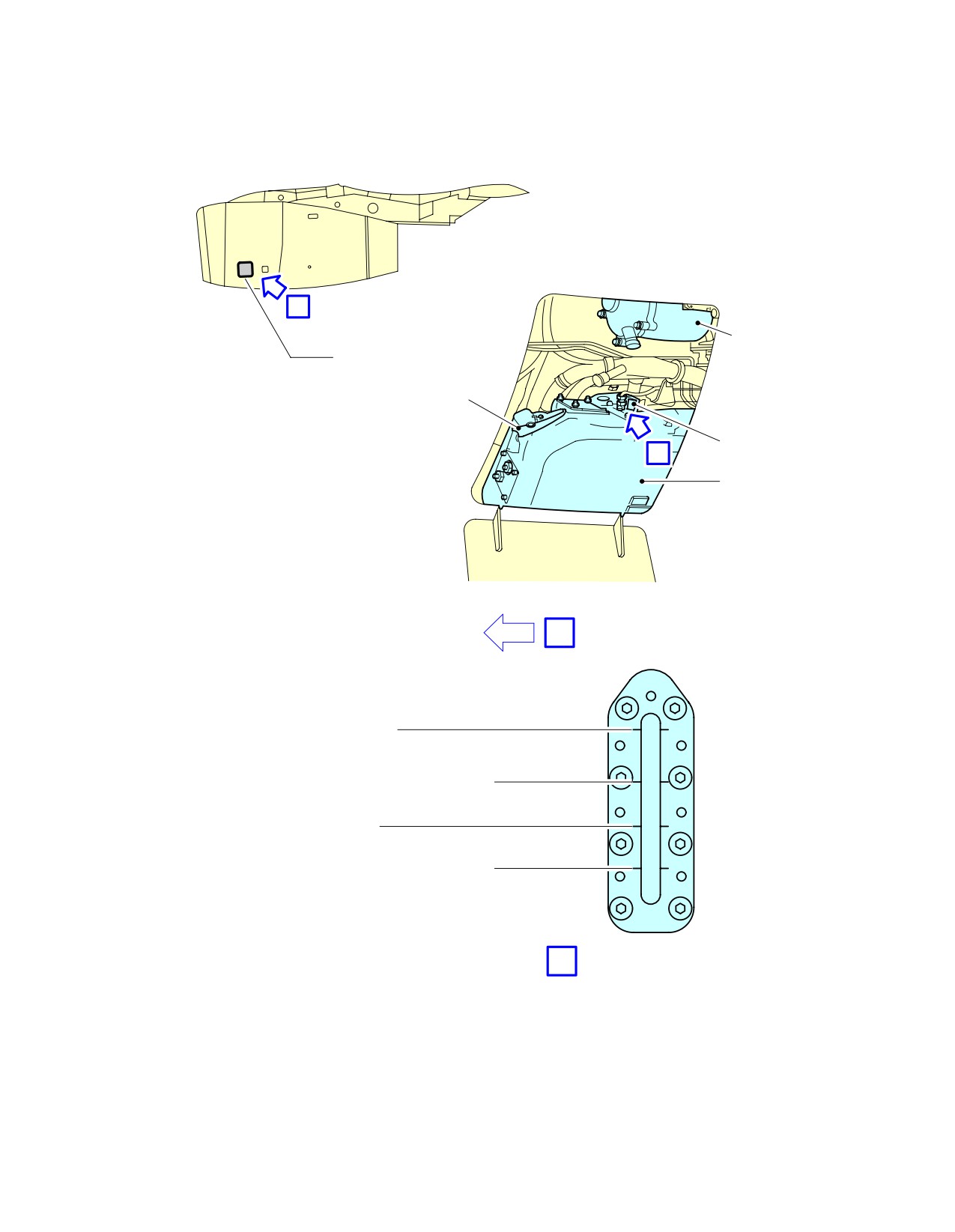

Z500 (Z600)

540HB (640HB)

550AB (650AB)

550CB (650CB)

RIB14

RIB22

RIB25

RIB13

RIB23

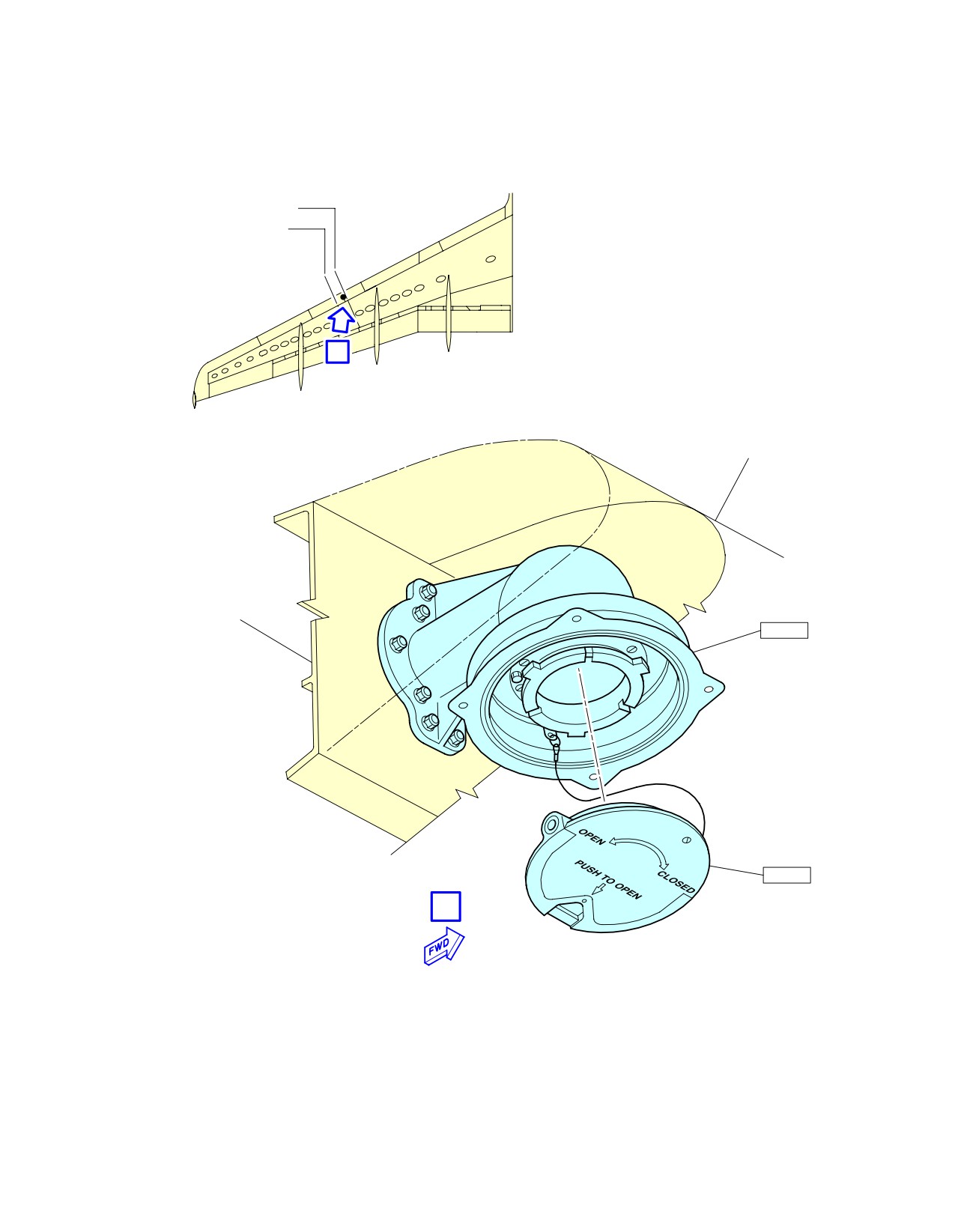

RIB24

NACA VENT

PROTECTOR

NACA VENT INTAKE

OVERPRESSURE

PROTECTOR

NOTE:

LH SHOWN, RH SYMMETRICAL

N_AC_050406_1_0040101_01_01

Ground Service Connections

Overpressure Protectors and NACA Vent Intake

FIGURE-5-4-6-991-004-A01

Page 6

Dec 01/20

5-4-6

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-7

Pneumatic System

**ON A/C A320-200 A320neo

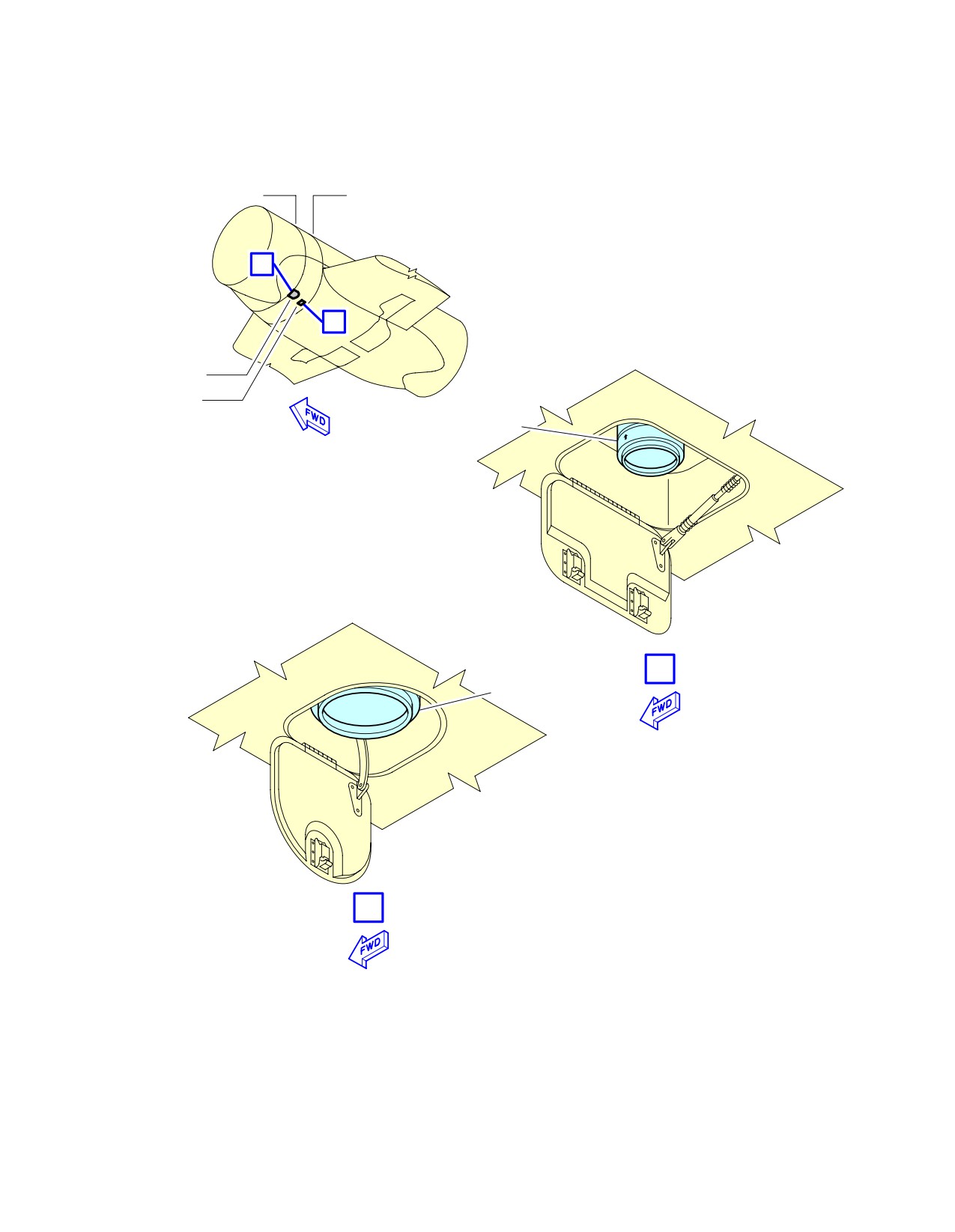

Pneumatic System

High Pressure Air Connector

DISTANCE

ACCESS

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

AFT OF NOSE

LH SIDE

RH SIDE

FROM GROUND

HP Connector:

12.98 m

0.84 m

1.76 m

Access Door 191DB

(42.59 ft)

(2.76 ft)

(5.77 ft)

A. Connector:

One standard 3 in. ISO 2026

connection.

Low Pressure Air Connector

DISTANCE

ACCESS

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

AFT OF NOSE

LH SIDE

RH SIDE

FROM GROUND

LP Connector:

12.45 m

1.11 m

1.73 m

Access Door 191CB

(40.85 ft)

(3.64 ft)

(5.68 ft)

A. Connector:

One standard 8 in. SAE AS4262 connection.

Page 1

Dec 01/20

5-4-7

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-8

Oil System

**ON A/C A320-200 A320neo

Oil System

**ON A/C A320-200

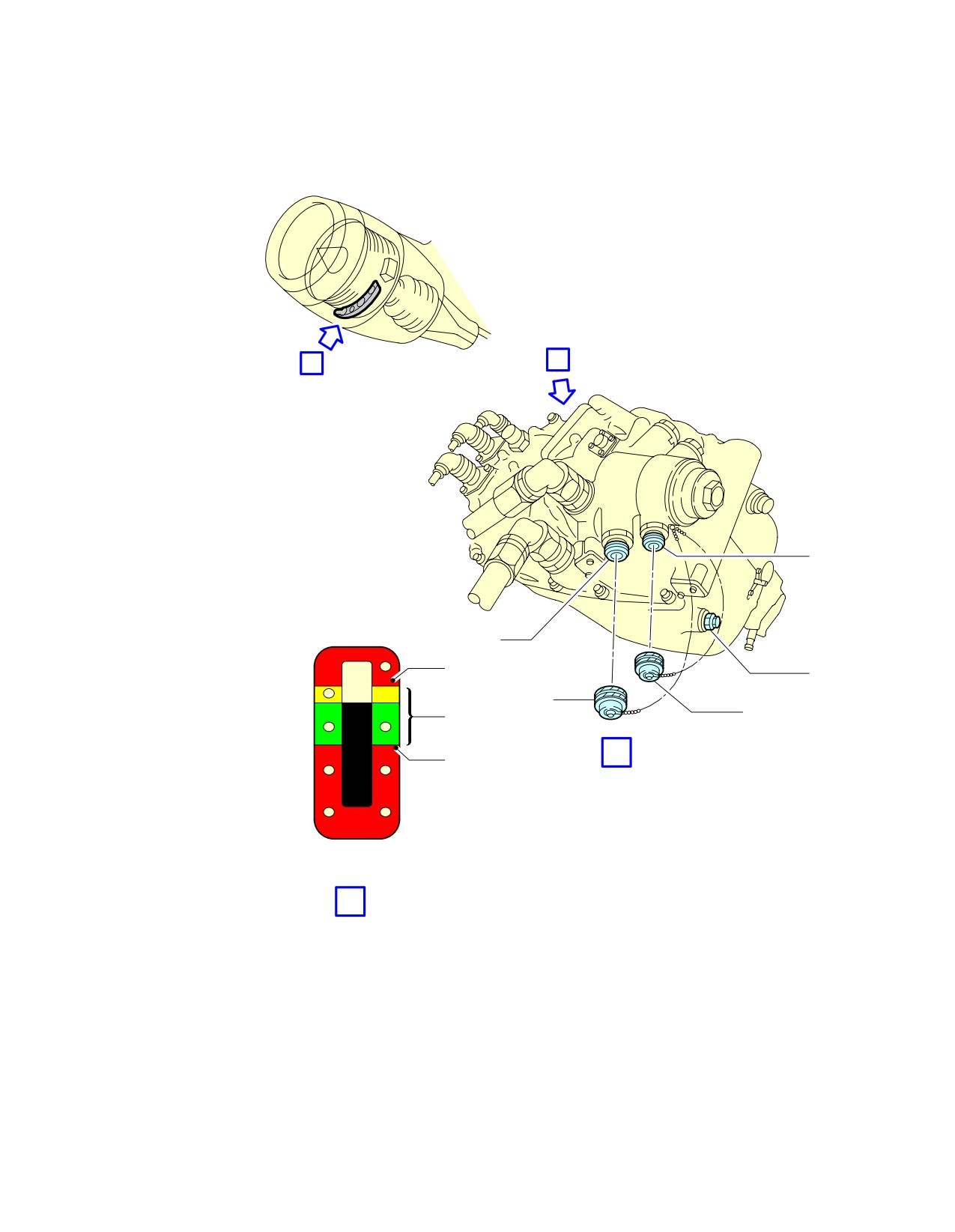

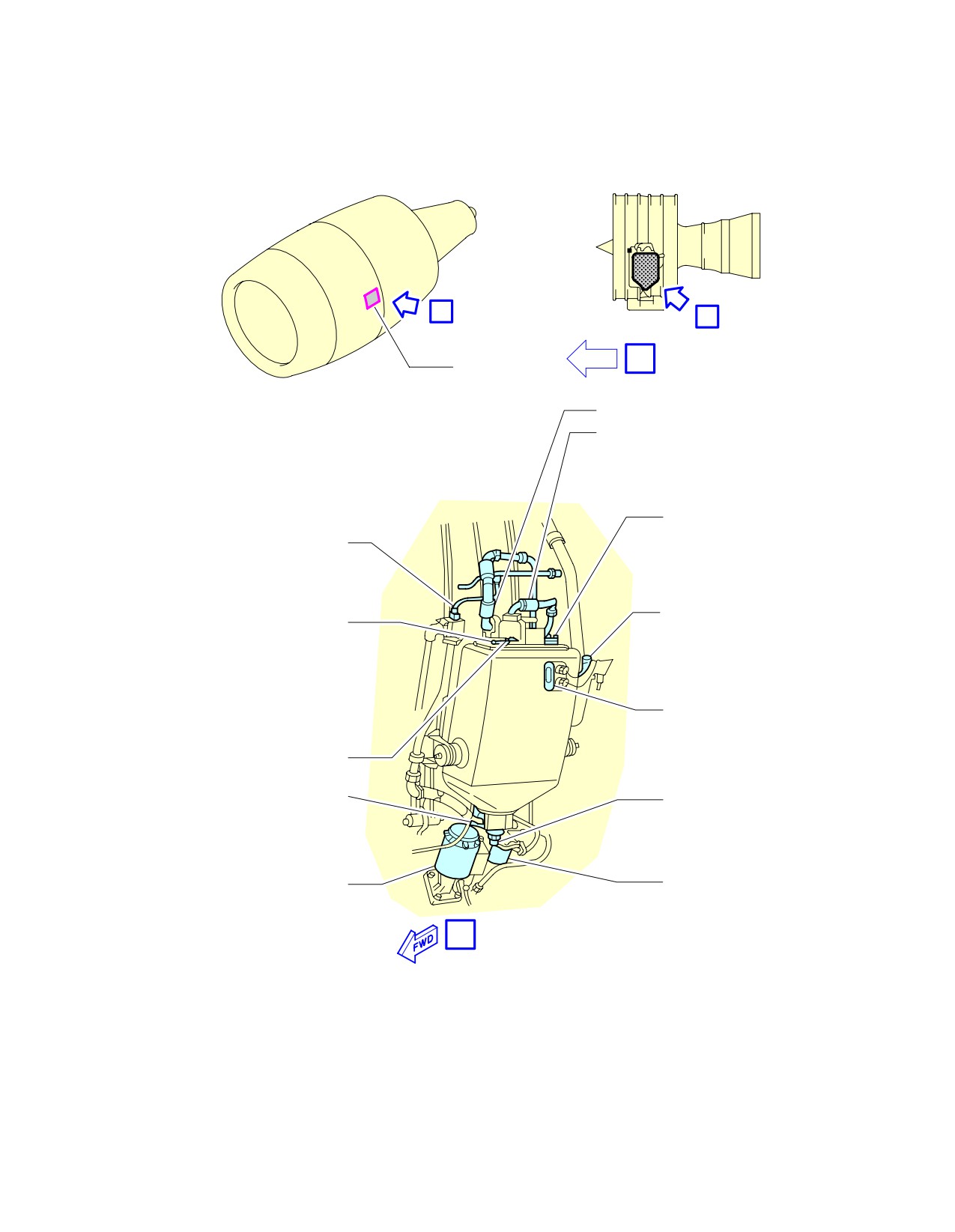

Engine Oil Replenishment for CFM56 Series Engine (See FIGURE 5-4-8-991-003-A):

One gravity filling cap and one pressure filling connection per engine.

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

ENGINE 1 (LH) ENGINE 2 (RH)

GROUND

Engine Oil Gravity Filling

Cap:

13.12 m

6.63 m

4.82 m

1.46 m

Access door: 437BL

(43.04 ft)

(21.75 ft)

(15.81 ft)

(4.79 ft)

(LH),

447BL (RH)

Engine Oil Pressure

13.00 m

6.49 m

4.74 m

1.42 m

Filling Port:

(42.65 ft)

(21.29 ft)

(15.55 ft)

(4.66 ft)

NOTE : Distances are approximate.

A. Tank capacity:

Full level: 19.6 l (5 US gal),

Usable: 9.46 l (3 US gal).

B. Maximum delivery pressure required: 1.72 bar (25 psi).

Maximum delivery flow required: 180 l/h (48 US gal/h).

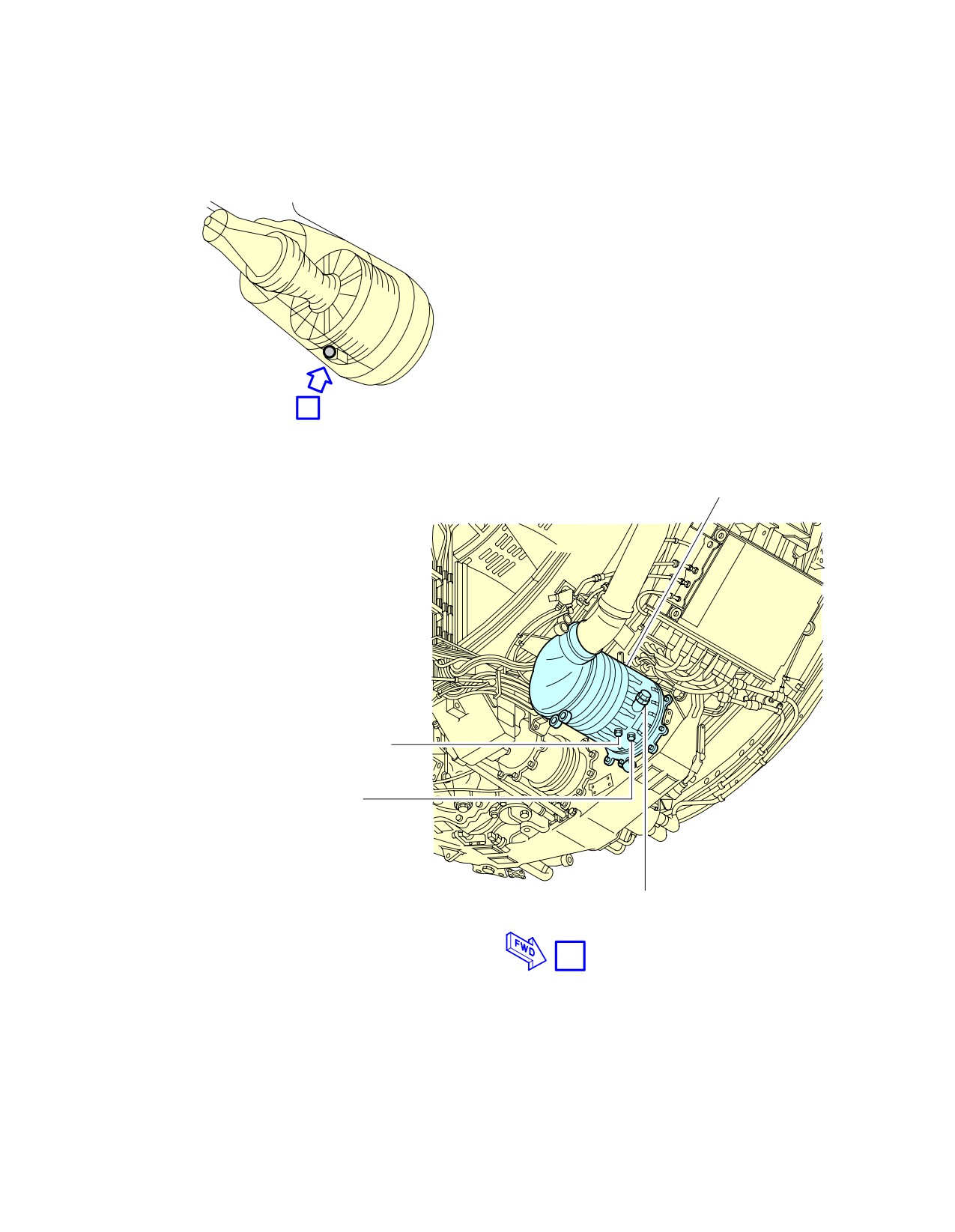

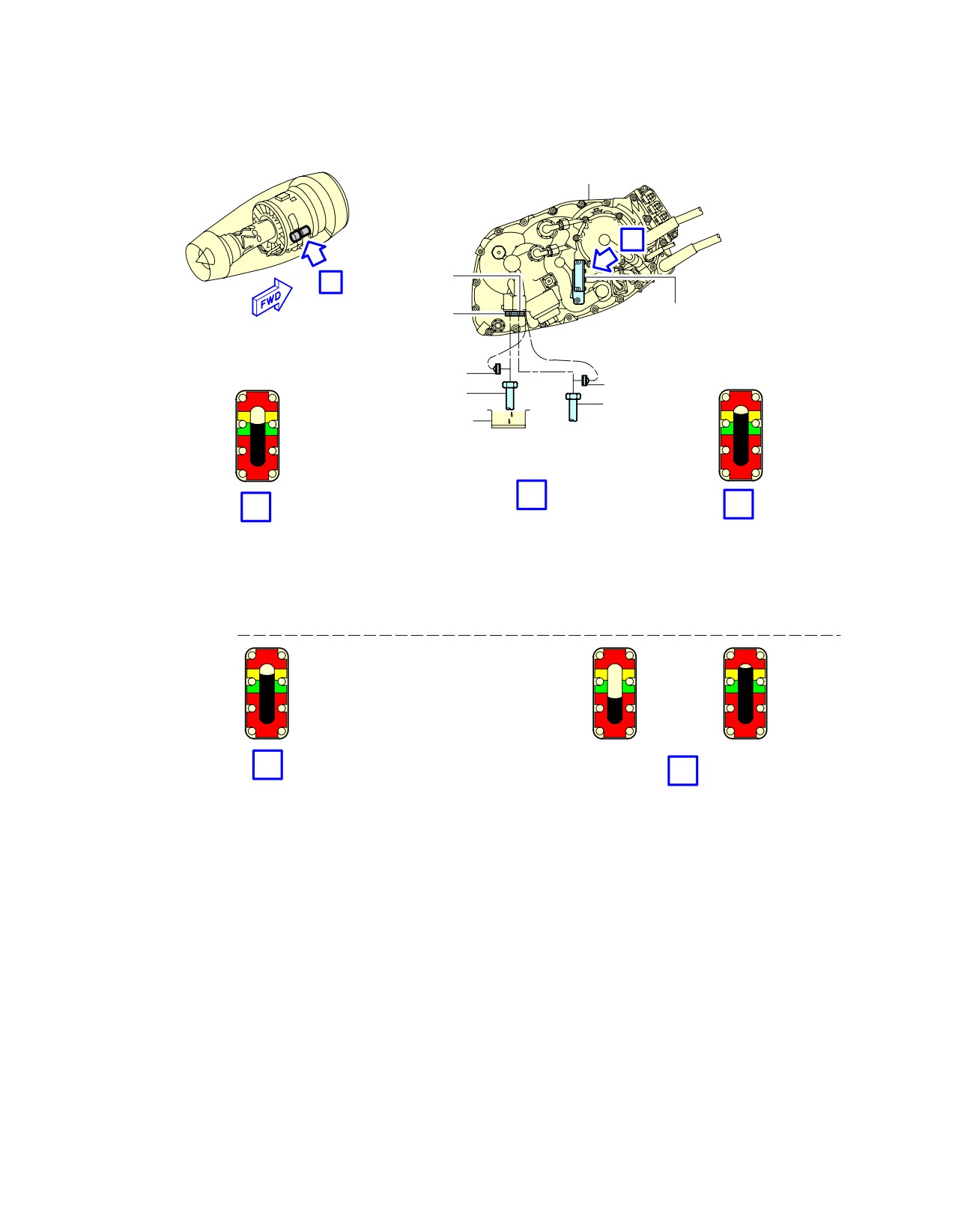

IDG Oil Replenishment for CFM56 Series Engine (See FIGURE 5-4-8-991-004-A):

One pressure filling connection per engine: OMP 2506-18 plus one connection overflow: OMP

2505-18.

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

ENGINE 1 (LH) ENGINE 2 (RH)

GROUND

IDG Oil Pressure Filling

Connection:

12.20 m

6.90 m

5.52 m

0.68 m

Access door: 438AR

(40.03 ft)

(22.64 ft)

(18.11 ft)

(2.23 ft)

(LH),

448AR (RH)

Page 1

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

NOTE : Distances are approximate.

A. Tank capacity: 5 l (1 US gal).

B. Delivery pressure required: 0.34 bar (5 psi) to 2.76 bar (40 psi) at the IDG inlet.

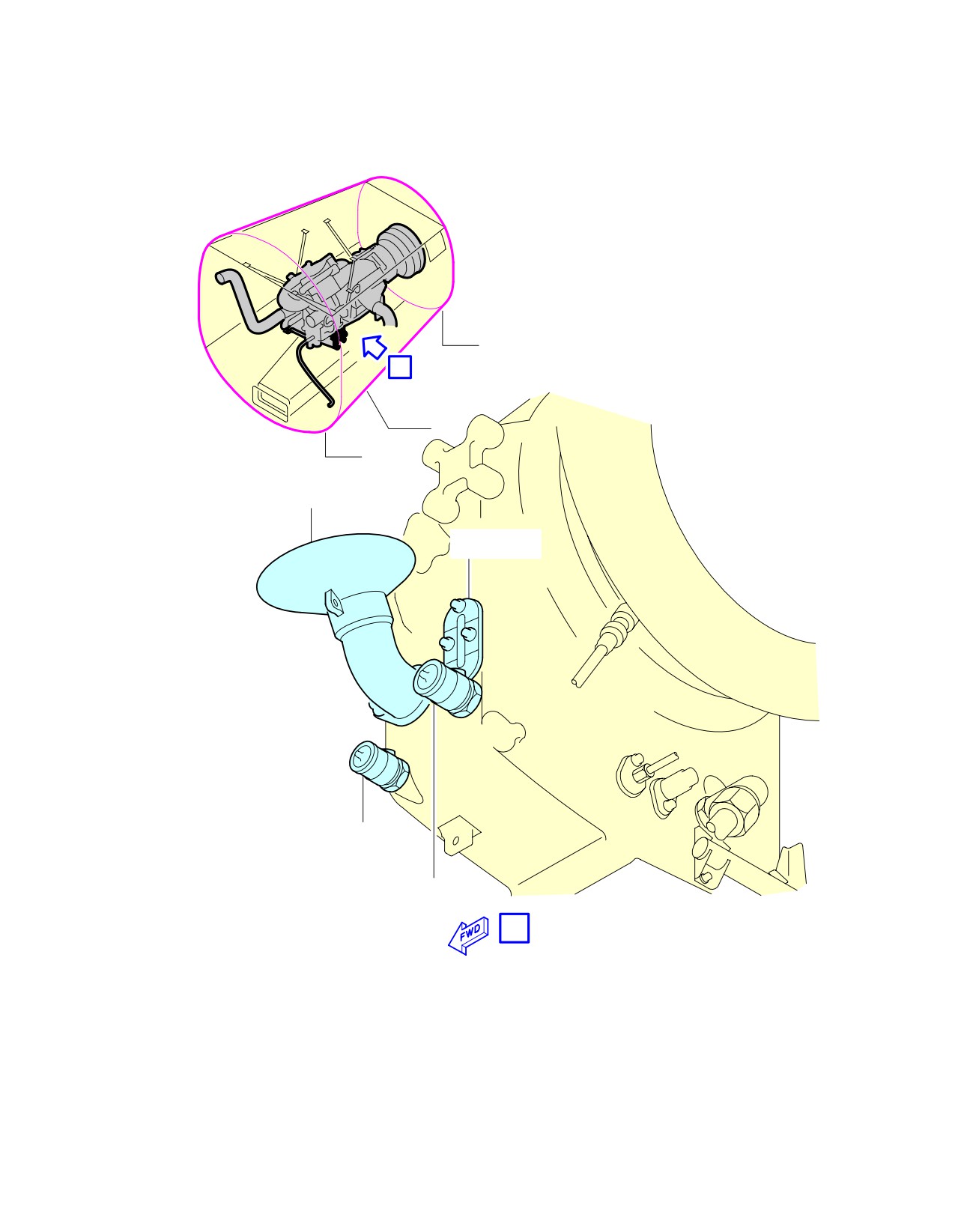

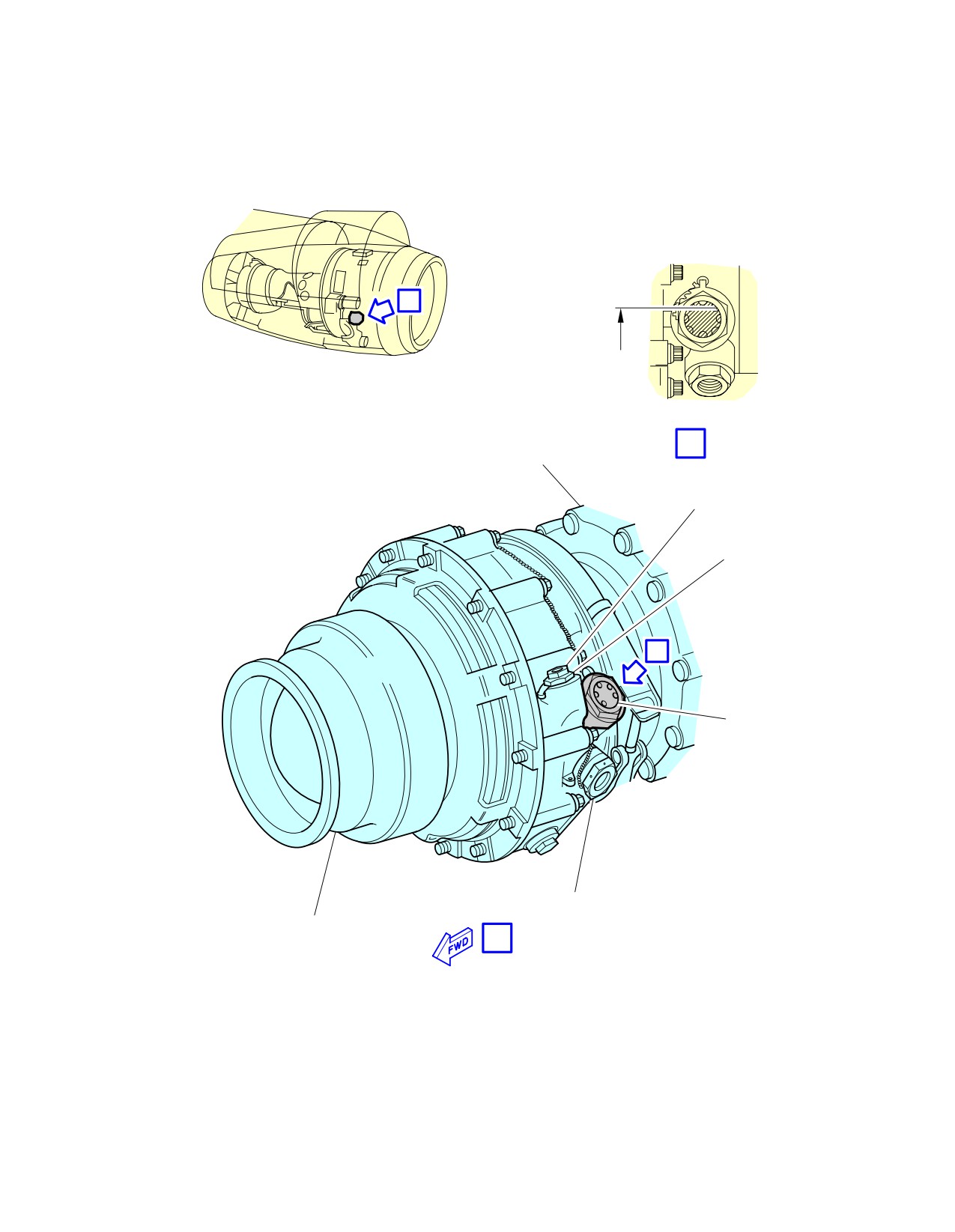

Starter Oil Replenishment for CFM56 Series Engine (See FIGURE 5-4-8-991-005-A):

One gravity filling cap per engine.

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

ENGINE 1 (LH) ENGINE 2 (RH)

GROUND

Starter Oil Filling

12.70 m

5.30 m

6.20 m

0.76 m

Connection:

(41.67 ft)

(17.39 ft)

(20.34 ft)

(2.49 ft)

NOTE : Distances are approximate.

A. Tank capacity: 0.8 l (0.21 US gal).

Engine Oil Replenishment for IAE V2500 Series Engine (See FIGURE 5-4-8-991-006-B):

One gravity filling cap per engine.

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

ENGINE 1 (LH) ENGINE 2 (RH)

GROUND

Engine Oil Gravity Filling

Cap:

12.24 m

6.56 m

4.92 m

1.22 m

Access door: 437BL

(40.16 ft)

(21.52 ft)

(16.14 ft)

(4.00 ft)

(LH),

447BL (RH)

NOTE : Distances are approximate.

A. Tank capacity:

Full level: 28 l (7 US gal),

Usable: 23.50 l (6 US gal).

IDG Oil Replenishment for IAE V2500 Series Engine (See FIGURE 5-4-8-991-007-B):

One pressure filling connection per engine: OMP 2506-2 plus one overflow connection: OMP 2505-2.

Page 2

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

ENGINE 1 (LH) ENGINE 2 (RH)

GROUND

IDG Oil Pressure Filling

12.80 m

5.42 m

6.04 m

0.80 m

Connection:

(41.99 ft)

(17.78 ft)

(19.82 ft)

(2.62 ft)

NOTE : Distances are approximate.

A. Tank capacity: 4.10 l (1 US gal).

Starter Oil Replenishment for IAE V2500 Series Engine (See FIGURE 5-4-8-991-008-B):

One gravity filling cap per engine.

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

ENGINE 1 (LH) ENGINE 2 (RH)

GROUND

Starter Oil Filling

15.40 m

5.30 m

6.14 m

0.75 m

Connection:

(50.52 ft)

(17.39 ft)

(20.14 ft)

(2.46 ft)

NOTE : Distances are approximate.

A. Tank capacity: 0.35 l (0.09 US gal).

**ON A/C A320-200 A320neo

APU Oil System (See FIGURE 5-4-8-991-009-A):

APU oil gravity filling cap.

DISTANCE

FROM AIRCRAFT CENTERLINE

MEAN HEIGHT

ACCESS

AFT OF NOSE

FROM

ENGINE 1 (LH) ENGINE 2 (RH)

GROUND

35.49 m

0.30 m

4.83 m

GTCP 36-300

(116.44 ft)

(0.98 ft)

(15.85 ft)

35.49 m

0.30 m

4.78 m

APS 3200

(116.44 ft)

(0.98 ft)

(15.68 ft)

35.39 m

0.35 m

4.32 m

131-9

(116.11 ft)

(1.15 ft)

(14.17 ft)

NOTE : Distances are approximate.

Page 3

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

437BL (ENGINE 1)

447BL (ENGINE 2)

FWD

OIL IN

VENT

OIL LEVEL

TRANSMITTER

(OPTIONAL)

ANTI−SIPHON

DEVICE

OIL CAP

AIR PRESSURE

SWITCH NIPPLE

SIGHT WINDOW

PRESSURE NIPPLE

OIL OUT

SELF−SEALING MAGNETIC

DRAIN PLUG

OIL/FUEL HEAT

SERVO FUEL

EXCHANGER

HEATER

N_AC_050408_1_0030101_01_00

Ground Service Connections

Engine Oil Tank -- CFM56 Series Engine

FIGURE-5-4-8-991-003-A01

Page 5

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

1 − PRESSURE FILL VALVE

2 − CASE DRAIN PLUG

3 − DUST CAP

4 − DUST CAP

5 − OVERFLOW DRAIN VALVE

OVER

FULL

ADD

OIL

NOTE: A

IF THE OIL LEVEL IS ABOVE

THE YELLOW BAND, OIL SERVICING

IS REQUIRED.

CFM−56

IF THE OIL LEVEL IS WITHIN

THE GREEN AND YELLOW BANDS,

SIGHT GLASS

OIL SERVICING IS NOT REQUIRED.

IF THE OIL LEVEL IS BELOW

THE GREEN BAND, OIL SERVICING

IS REQUIRED.

N_AC_050408_1_0040101_01_00

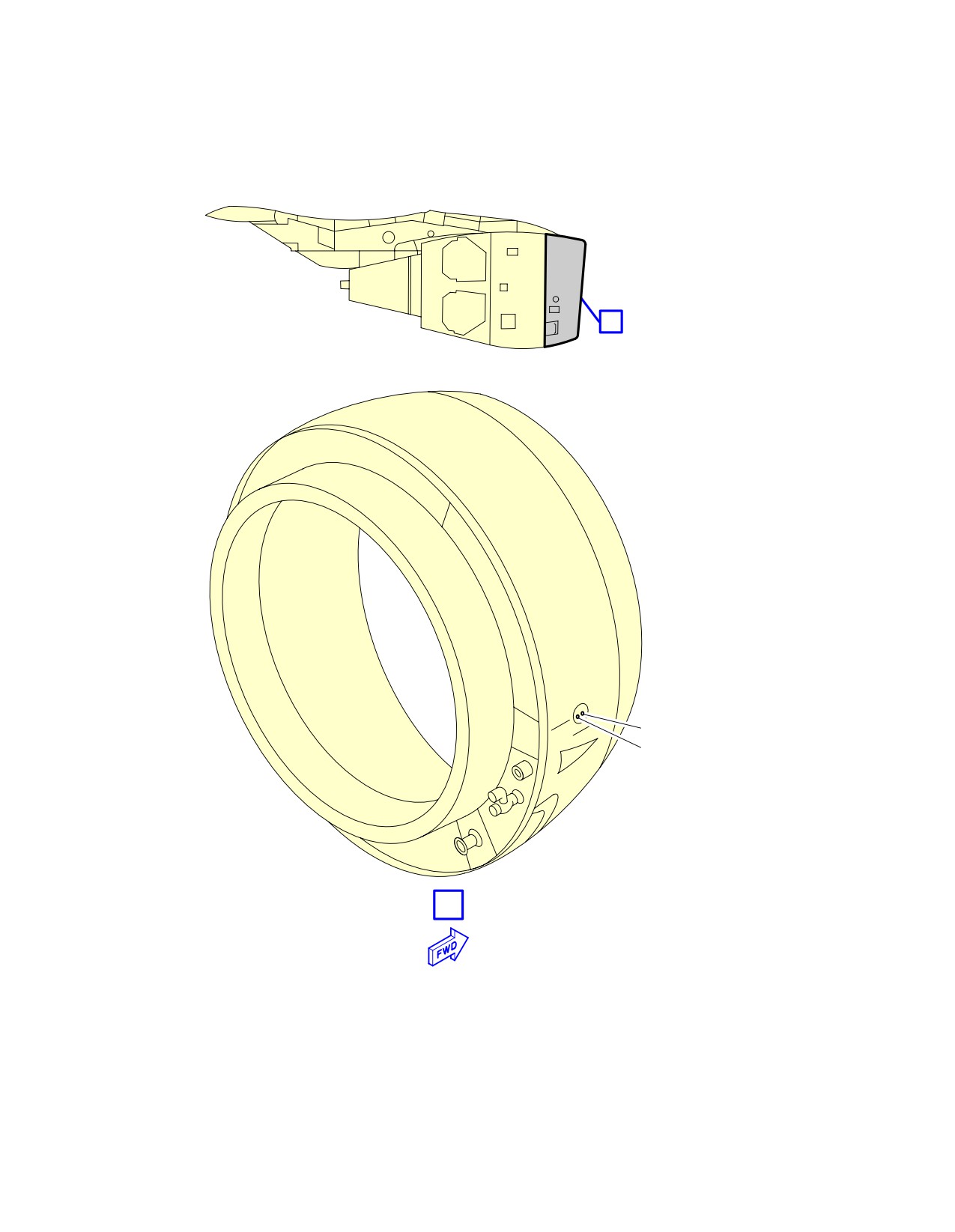

Ground Service Connections

IDG Oil Tank -- CFM56 Series Engine

FIGURE-5-4-8-991-004-A01

Page 6

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

437BL (ENGINE 1)

FCOC

447BL (ENGINE 2)

GRAVITY

FILLER CAP

PRISMALITE

LEVEL INDICATOR

OIL TANK

FWD

’FULL’ LEVEL NOTCH

27.3 LT

29.0 US QTS

6.0 IMP GAL

(WITHIN 60 MIN FROM SHUTDOWN)

NOTCH ’1’

26 LT

27 US QTS

NOTCH ’2’

5.7 IMP GAL

23 LT

24 US QTS

5.1 IMP GAL

NOTCH ’3’

20 LT

22 US QTS

4.5 IMP GAL

N_AC_050408_1_0060201_01_00

Ground Service Connections

Engine Oil Tank -- IAE V2500 Series Engine

FIGURE-5-4-8-991-006-B01

Page 8

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

IDG

PRESSURE

FILL VALVE

OVER FLOW

OIL LEVEL

DRAIN VALVE

INDICATOR

DUST CAP

OVER FLOW

OVER FULL

PRESSURE

OVER FULL

DRAIN HOSE

FILL HOSE

ADD

OIL

CORRECTLY FILLED IDG

V2500

AFTER SERVICING OR

AFTER ENGINE

ENGINE SHUTDOWN

SHUTDOWN

(COLD OIL/IDG)

(HOT OIL/IDG)

OIL LEVEL CAN BE

OIL LEVEL MUST BE AT OR NEAR

IN THE GREEN BAND OR THE

THE LINE BETWEEN THE YELLOW BAND

YELLOW BAND

AND THE GREEN BAND

INCORRECTLY FILLED IDG

OVER FULL

ADD

OIL

V2500

AFTER SERVICING OR

AT ALL TIMES

ENGINE SHUTDOWN

(HOT OR COLD OIL/IDG)

(COLD OIL/IDG)

THE OIL LEVEL MUST NOT BE IN

THE OIL LEVEL MUST NOT BE

THE YELLOW BAND BUT IT CAN

IN THE RED BAND

BE IMMEDIATELY ABOVE THE

LOWER LIMIT OF THE YELLOW

BAND BECAUSE OF THE AIRCRAFT

PERFORM IDG OIL SERVICING

RAMP ANGLE

TO GET THE CORRECT IDG OIL LEVEL.

DO NOT USE THE OVERFLOW DRAIN HOSE

DO THE IDG SERVICING

TO GET THE CORRECT IDG OIL LEVEL.

TO GET THE CORRECT IDG

OIL LEVEL.

N_AC_050408_1_0070201_01_00

Ground Service Connections

IDG Oil Tank -- IAE V2500 Series Engine

FIGURE-5-4-8-991-007-B01

Page 9

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

THE STARTER IS FULL WHEN THE OIL LEVEL

SHOWS NOT LESS THAN 3/4 FULL

ON THE SIGHT GLASS

EXTERNAL GEARBOX

OIL FILLING POINT

ADAPTER

SIGHT GLASS

OIL OVERFLOW

POINT

PNEUMATIC STARTER

N_AC_050408_1_0080201_01_00

Ground Service Connections

Starter Oil Tank -- IAE V2500 Series Engine

FIGURE-5-4-8-991-008-B01

Page 10

Dec 01/20

5-4-8

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-9

Potable Water System

**ON A/C A320-200 A320neo

Potable Water System

Potable Water Ground Service Panels

DISTANCE

POSITION FROM AIRCRAFT

ACCESS

MEAN HEIGHT

AFT OF NOSE

CENTERLINE

FROM GROUND

LH SIDE

RH SIDE

Potable-Water

31.3 m

0.3 m

2.6 m

Service Panel:

(102.69 ft)

(0.98 ft)

(8.53 ft)

Access Door 171AL

Potable-Water

Drain Panel:

11.8 m

0.15 m

1.75 m

Access Door 133AL

(38.71 ft)

(0.49 ft)

(5.74 ft)

(Optional)

Potable-Water

12.5 m

0.51 m

1.75 m

Drain Panel:

(41.01 ft)

(1.67 ft)

(5.74 ft)

Access Door 192NB

NOTE : Distances are approximate.

Technical Specifications

A. Connectors:

(1) On the potable-water service panel (Access Door 171AL)

Fill/Drain Nipple 3/4 in. (ISO 17775).

One ground air-pressure connector.

(2) On the potable-water drain panel (Access Door 133AL and/or 192NB)

Drain Nipple 3/4 in. (ISO 17775).

B. Usable capacity:

Standard configuration - one tank: 200 l (53 US gal).

C. Filling pressure:

3.45 bar (50 psi).

D. Typical flow rate:

50 l/min (13 US gal/min).

Page 1

Dec 01/20

5-4-9

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

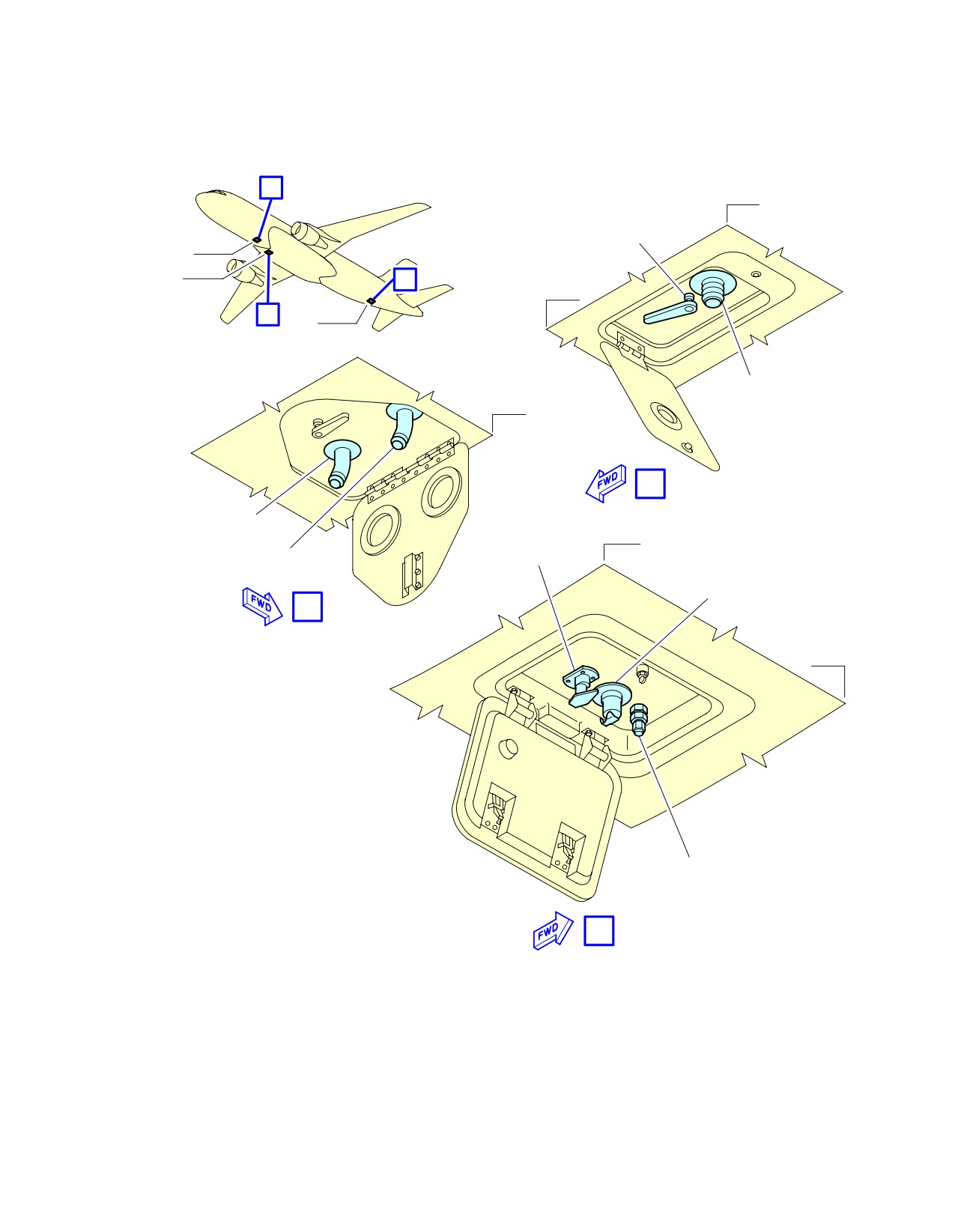

FR29

DRAIN CONTROL

HANDLE

133AL

192NB

FR28

171AL

DRAIN PORT

FR34

POTABLE−WATER DRAIN PANEL (OPTIONAL)

TANK DRAIN

PORT

FILL/DRAIN

FR66

TANK OVERFLOW

CONTROL HANDLE

PORT

FILL/DRAIN PORT

POTABLE−WATER DRAIN PANEL

FR65

GROUND AIR−PRESSURE

CONNECTION

POTABLE−WATER SERVICE PANEL

N_AC_050409_1_0290201_01_00

Ground Service Connections

Potable Water Ground Service Panels

FIGURE-5-4-9-991-029-B01

Page 2

Dec 01/20

5-4-9

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-10

Waste Water System

**ON A/C A320-200 A320neo

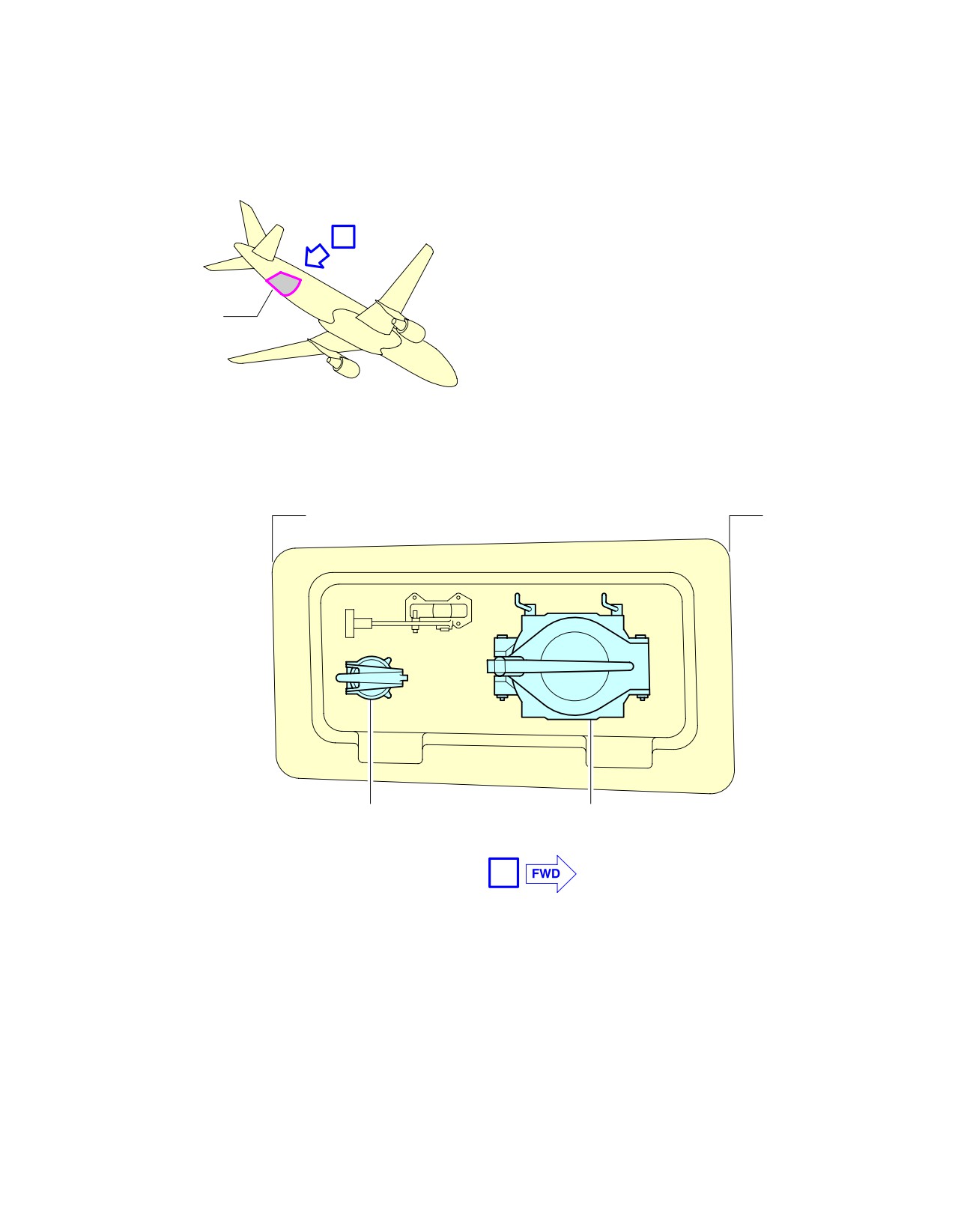

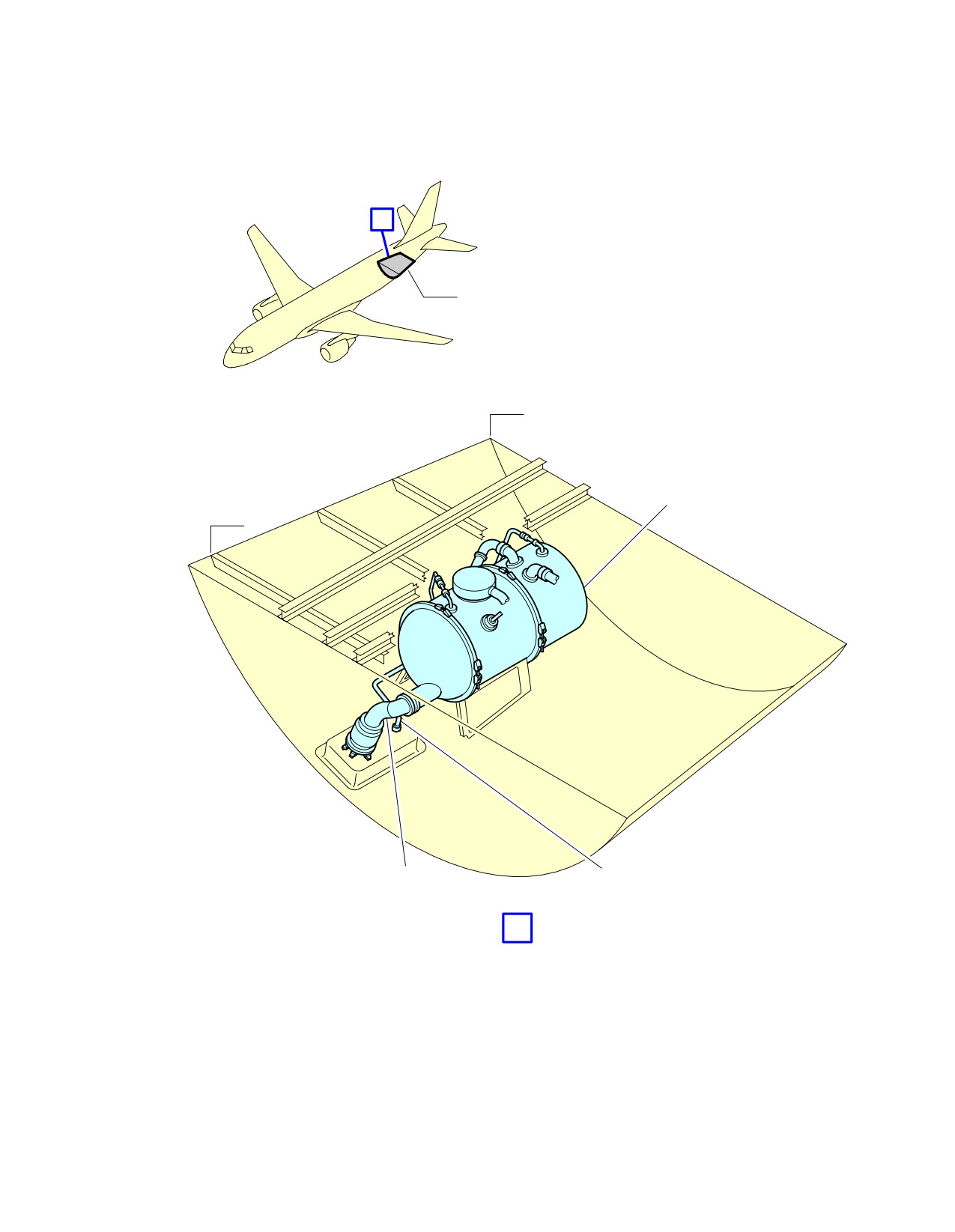

Waste Water System

DISTANCE

POSITION FROM AIRCRAFT

ACCESS

MEAN HEIGHT

AFT OF NOSE

CENTERLINE

FROM GROUND

LH SIDE

RH SIDE

Waste-Water

Ground Service

31.3 m

0.8 m

2.8 m

Panel:

(102.69 ft)

(2.62 ft)

(9.19 ft)

Access door 172AR

NOTE : Distances are approximate.

Technical Specifications

A. Connectors:

Draining: 4 in. (ISO 17775).

Flushing and filling: 1 in. (ISO 17775).

B. Usable waste tank capacity:

Standard configuration - one tank: 177 l (47 US gal).

C. Waste tank - Rinsing:

Operating pressure: 3.45 bar (50 psi).

D. Waste tank - Precharge:

10 l (3 US gal).

Page 1

Dec 01/20

5-4-10

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-5-0

Engine Starting Pneumatic Requirements

**ON A/C A320-200 A320neo

Engine Starting Pneumatic Requirements

The purpose of this section is to provide the minimum air data requirements at the aircraft

connection, needed to start the engine within no more than 60 seconds, at sea level (0 feet), for a set

of Outside Air Temperatures (OAT).

ABBREVIATION

DEFINITION

A/C

Aircraft

ASU

Air Start Unit

HPGC

High Pressure Ground Connection

OAT

Outside Air Temperature

A. Air data (discharge temperature, absolute discharge pressure) are given at the HPGC.

B. For a given OAT the following charts are used to determine an acceptable combination for air

discharge temperature, absolute discharge pressure and mass flow rate.

C. This section addresses requirements for the ASU only, and is not representative of the start

performance of the aircraft using the APU or engine cross bleed procedure.

D. To protect the A/C, the charts feature, if necessary:

The maximum discharge pressure at the HPGC

The maximum discharge temperature at the HPGC.

Page 1

Dec 01/20

5-5-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

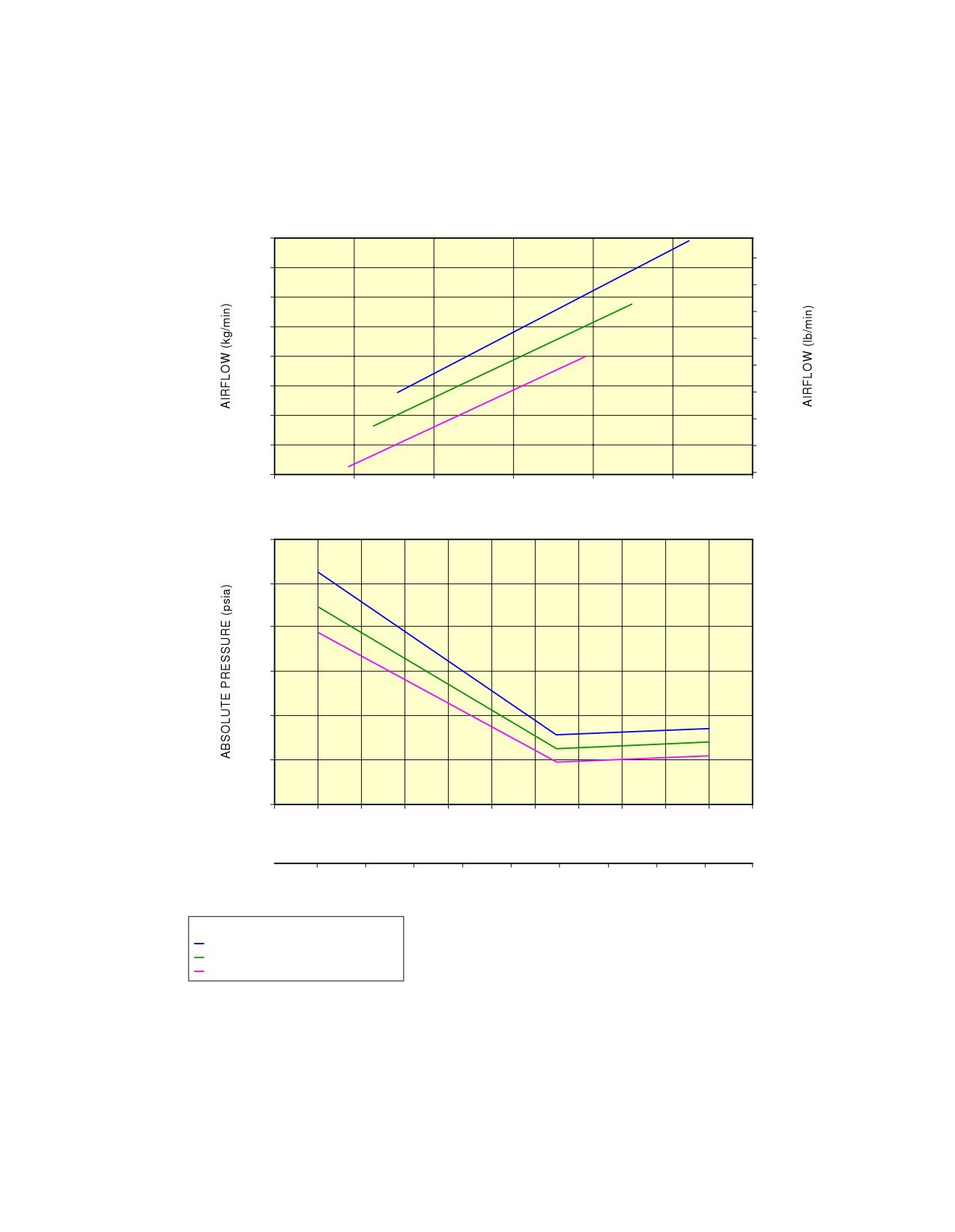

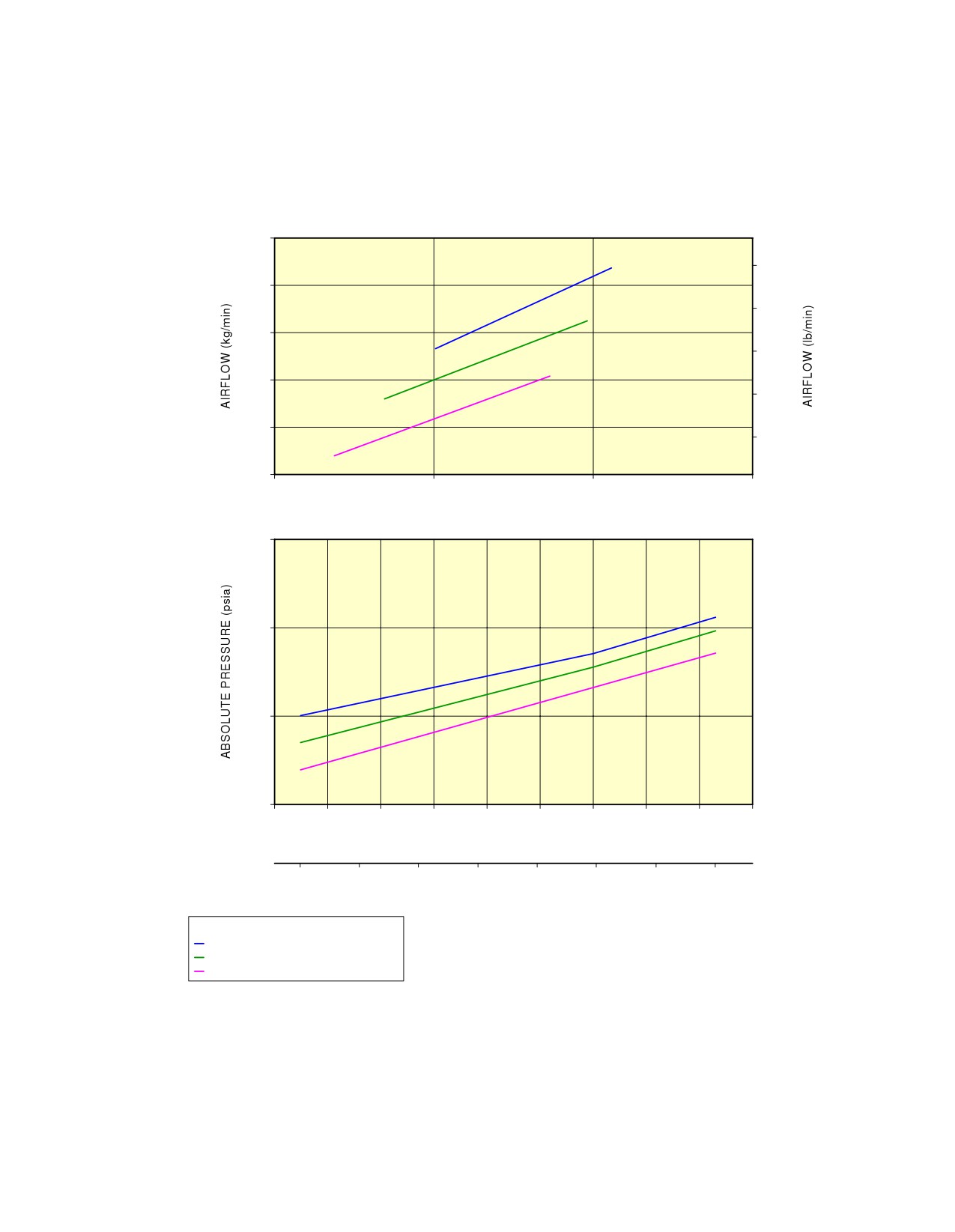

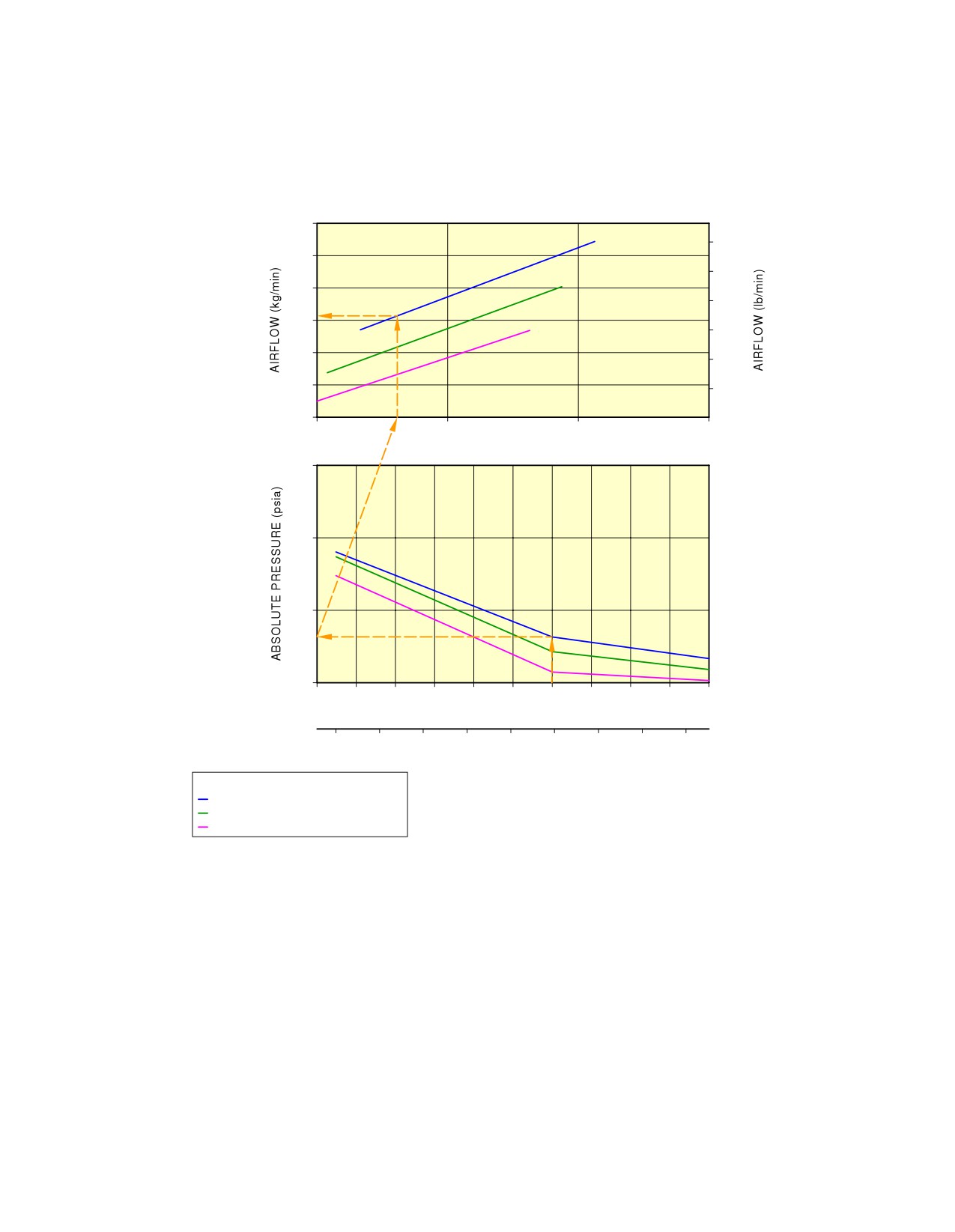

CFM56 SERIES/SEA LEVEL

STARTING TIME: LESS THAN 60 s

AIR DATA AT AIRCRAFT CONNECTION

170

160

150

140

130

120

ABSOLUTE PRESSURE (psia)

−45

−35

−25

−15

−5

OUTSIDE AIR TEMPERATURE OAT (? C)

−40

−20

100

120

OUTSIDE AIR TEMPERATURE OAT (? F)

ASU DISCHARGE TEMPERATURE:

100? C (212? F)

150? C (302? F)

220? C (428? F) MAX.

EXAMPLE:

FOR AN OAT OF 15? C (59? F) AND AN ASU PROVIDING A DISCHARGE TEMPERATURE OF 100? C (212? F)

AT HPGC:

− THE REQUIRED PRESSURE AT HPGC IS 43 psia

− THE REQUIRED AIRFLOW AT A/C CONNECTION IS 66 kg/min.

NOTE:

IN CASE THE ACTUAL DISCHARGE TEMPERATURE OF THE ASU DIFFERS SUBSTANTIALLY FROM THE

ONES GIVEN IN THE CHARTS, A SIMPLE INTERPOLATION (LINEAR) IS SUFFICIENT TO DETERMINE THE

REQUIRED AIR DATA.

N_AC_050500_1_0120101_01_00

Example for Use of the Charts

FIGURE-5-5-0-991-012-A01

Page 2

Dec 01/20

5-5-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

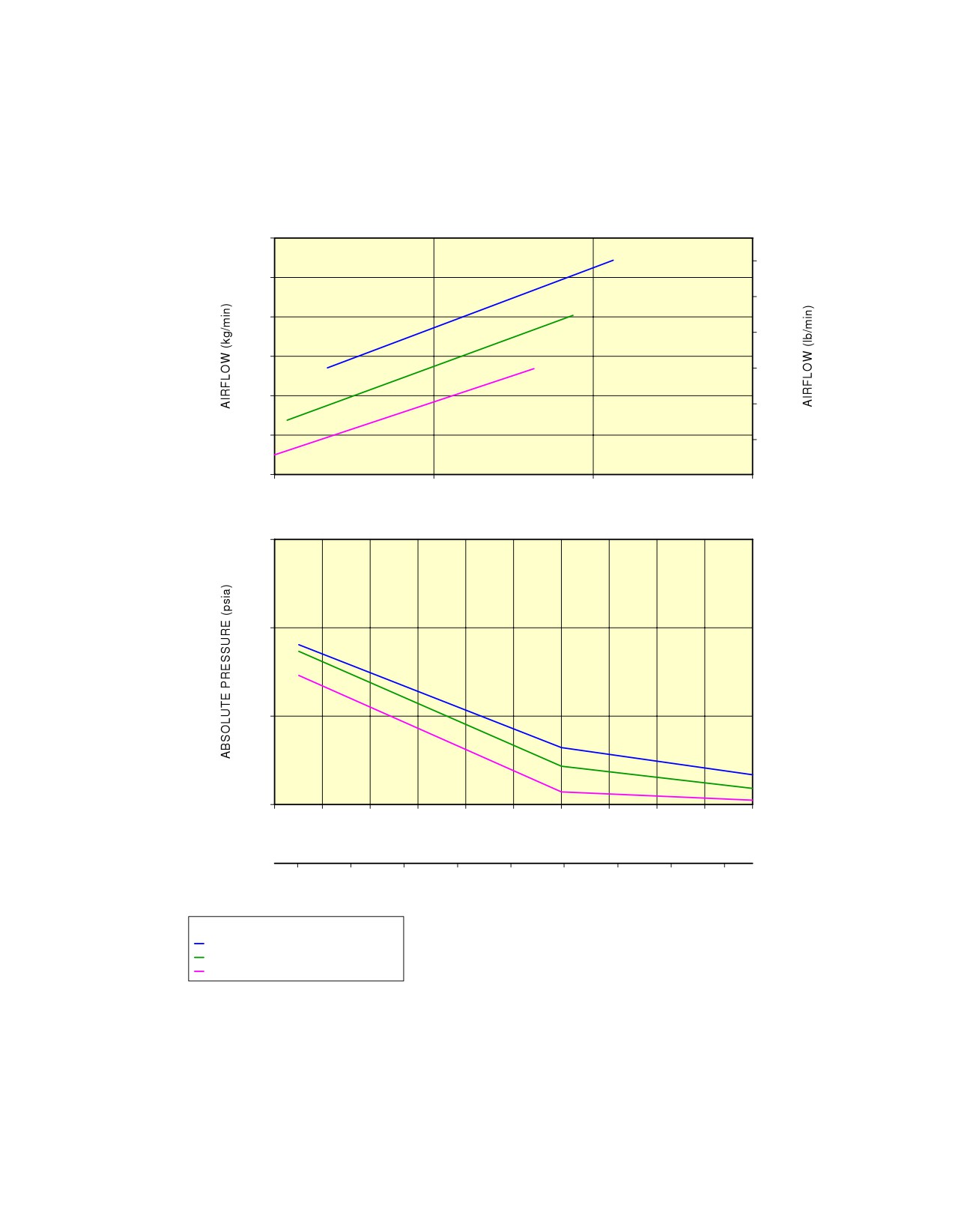

IAE V2500 SERIES/SEA LEVEL

STARTING TIME: LESS THAN 60 s

AIR DATA AT AIRCRAFT CONNECTION

180

170

160

150

140

130

120

110

100

ABSOLUTE PRESSURE (psia)

−50

−40

−30

−20

−10

OUTSIDE AIR TEMPERATURE OAT (? C)

−40

−20

100

120

140

OUTSIDE AIR TEMPERATURE OAT (? F)

ASU DISCHARGE TEMPERATURE:

100? C (212? F)

150? C (302? F)

220? C (428? F) MAX.

N_AC_050500_1_0130101_01_00

Engine Starting Pneumatic Requirements

IAE V2500 Series Engine

FIGURE-5-5-0-991-013-A01

Page 3

Dec 01/20

5-5-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

CFM56 SERIES AND CFM LEAP−1A NEO/SEA LEVEL

STARTING TIME: LESS THAN 60 s

AIR DATA AT AIRCRAFT CONNECTION

170

160

150

140

130

120

ABSOLUTE PRESSURE (psia)

−45

−35

−25

−15

−5

OUTSIDE AIR TEMPERATURE OAT (? C)

−40

−20

100

120

OUTSIDE AIR TEMPERATURE OAT (? F)

ASU DISCHARGE TEMPERATURE:

100? C (212? F)

150? C (302? F)

220? C (428? F) MAX.

N_AC_050500_1_0140101_01_00

Engine Starting Pneumatic Requirements

CFM56 Series and CFM LEAP-1A NEO Engine

FIGURE-5-5-0-991-014-A01

Page 4

Dec 01/20

5-5-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

PW 1100G NEO/SEA LEVEL

STARTING TIME: LESS THAN 60 s

AIR DATA AT AIRCRAFT CONNECTION

170

160

150

140

130

ABSOLUTE PRESSURE (psia)

−45

−35

−25

−15

−5

OUTSIDE AIR TEMPERATURE OAT (? C)

−40

−20

100

OUTSIDE AIR TEMPERATURE OAT (? F)

ASU DISCHARGE TEMPERATURE:

100? C (212? F)

150? C (302? F)

220? C (428? F) MAX.

N_AC_050500_1_0150101_01_00

Engine Starting Pneumatic Requirements

PW 1100G NEO Engine

FIGURE-5-5-0-991-015-A01

Page 5

Dec 01/20

5-5-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-6-0

Ground Pneumatic Power Requirements

**ON A/C A320-200 A320neo

Ground Pneumatic Power Requirements

General

This section describes the required performance for the ground equipment to maintain the cabin

temperature at 27 ˚C (80.6 ˚F) for the cooling or 21 ˚C (69.8 ˚F) for heating cases after boarding

(Section 5.7 - steady state), and provides the time needed to cool down or heat up the aircraft cabin

to the required temperature (Section 5.6 - dynamic cases with aircraft empty).

ABBREVIATION

DEFINITION

A/C

Aircraft

AHM

Aircraft Handling Manual

AMM

Aircraft Maintenance Manual

Ground Connection

GSE

Ground Service Equipment

IFE

In-Flight Entertainment

OAT

Outside Air Temperature

PCA

Pre-Conditioned Air

A. The air flow rates and temperature requirements for the GSE, provided in Sections 5.6 and 5.7,

are given at A/C ground connection.

NOTE : The cooling capacity of the equipment (kW) is only indicative and is not sufficient by

itself to ensure the performance (outlet temperature and flow rate combinations are

the requirements needed for ground power). An example of cooling capacity

calculation is given in Section 5.7.

NOTE : The maximum air flow is driven by pressure limitation at the ground connection.

B. For temperatures at ground connection below 2 ˚C (35.6 ˚F) (Subfreezing), the ground

equipment shall be compliant with the Airbus document ”Subfreezing PCA Carts - Compliance

Document for Suppliers” (contact Airbus to obtain this document) defining all the requirements

with which Subfreezing Pre-Conditioning Air equipment must comply to allow its use on Airbus

aircraft. These requirements are in addition to the functional specifications included in the IATA

AHM997.

Ground Pneumatic Power Requirements

This section provides the ground pneumatic power requirements for:

Heating (pull up) the cabin, initially at OAT, up to 21 ˚C (69.8 ˚F) (see FIGURE

5-6-0-991-001-A)

Cooling (pull down) the cabin, initially at OAT, down to 27 ˚C (80.6 ˚F) (see FIGURE

5-6-0-991-002-A).

Page 1

Dec 01/20

5-6-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

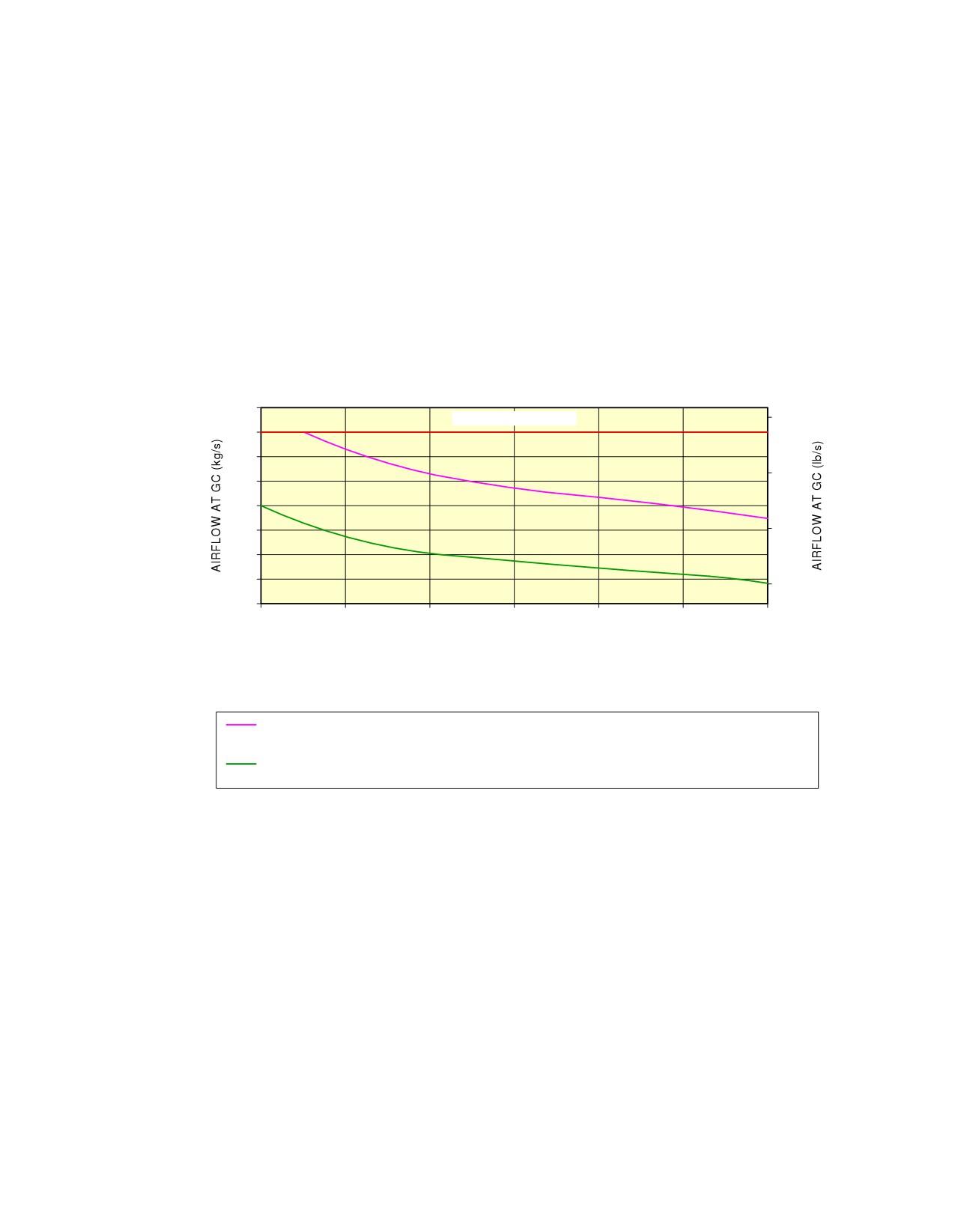

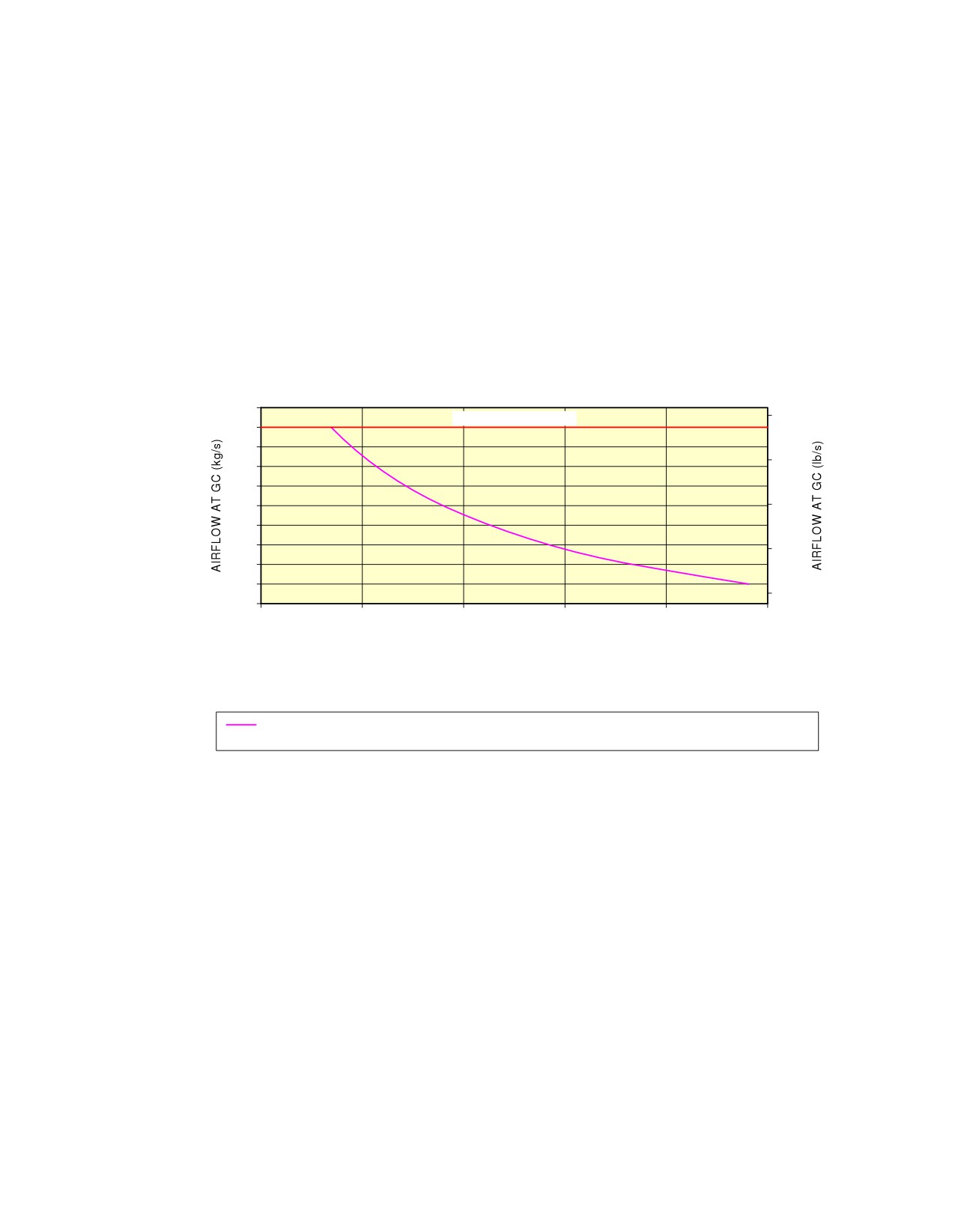

PULL UP PERFORMANCE

1.4

MAXIMUM AIRFLOW

3.0

1.3

1.2

2.5

1.1

1.0

0.9

2.0

0.8

0.7

1.5

0.6

0.5

1.0

0.4

TIME TO HEAT CABIN TO +21? C (+69.8? F) ON GROUND (min)

OAT ISA −38? C (−36.4? F); GC INLET +70? C (+158? F); EMPTY CABIN; IFE OFF; NO SOLAR

LOAD; LIGHTS ON; GALLEYS OFF; RECIRCULATION FANS ON

N_AC_050600_1_0010101_01_00

Ground Pneumatic Power Requirements

Heating

FIGURE-5-6-0-991-001-A01

Page 2

Dec 01/20

5-6-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

PULL DOWN PERFORMANCE

1.4

MAXIMUM AIRFLOW

3.0

1.3

1.2

2.5

1.1

1.0

0.9

2.0

0.8

0.7

1.5

0.6

105

120

TIME TO COOL CABIN TO +27? C (+80.6? F) ON GROUND (min)

OAT ISA +23? C (+73.4? F); GC INLET +2? C (+35.6? F); EMPTY CABIN; IFE OFF; NO SOLAR

LOAD; LIGHTS ON; GALLEYS OFF; RECIRCULATION FANS ON

OAT ISA +23? C (+73.4? F); GC INLET −10? C (+14? F); EMPTY CABIN; IFE OFF; NO SOLAR

LOAD; LIGHTS ON; GALLEYS OFF; RECIRCULATION FANS ON

N_AC_050600_1_0020101_01_00

Ground Pneumatic Power Requirements

Cooling

FIGURE-5-6-0-991-002-A01

Page 3

Dec 01/20

5-6-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-7-0

Preconditioned Airflow Requirements

**ON A/C A320-200 A320neo

Preconditioned Airflow Requirements

This section provides the preconditioned airflow rate and temperature needed to maintain the cabin

temperature at 27 ˚C (80.6 ˚F) for the cooling or 21 ˚C (69.8 ˚F) for the heating cases.

These settings are not intended to be used for operation (they are not a substitute for the settings

given in the AMM). They are based on theoretical simulations and give the picture of a real steady

state.

The purpose of the air conditioning (cooling) operation (described in the AMM) is to maintain the

cabin temperature below 27 ˚C (80.6 ˚F) during boarding (therefore it is not a steady state).

Page 1

Dec 01/20

5-7-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

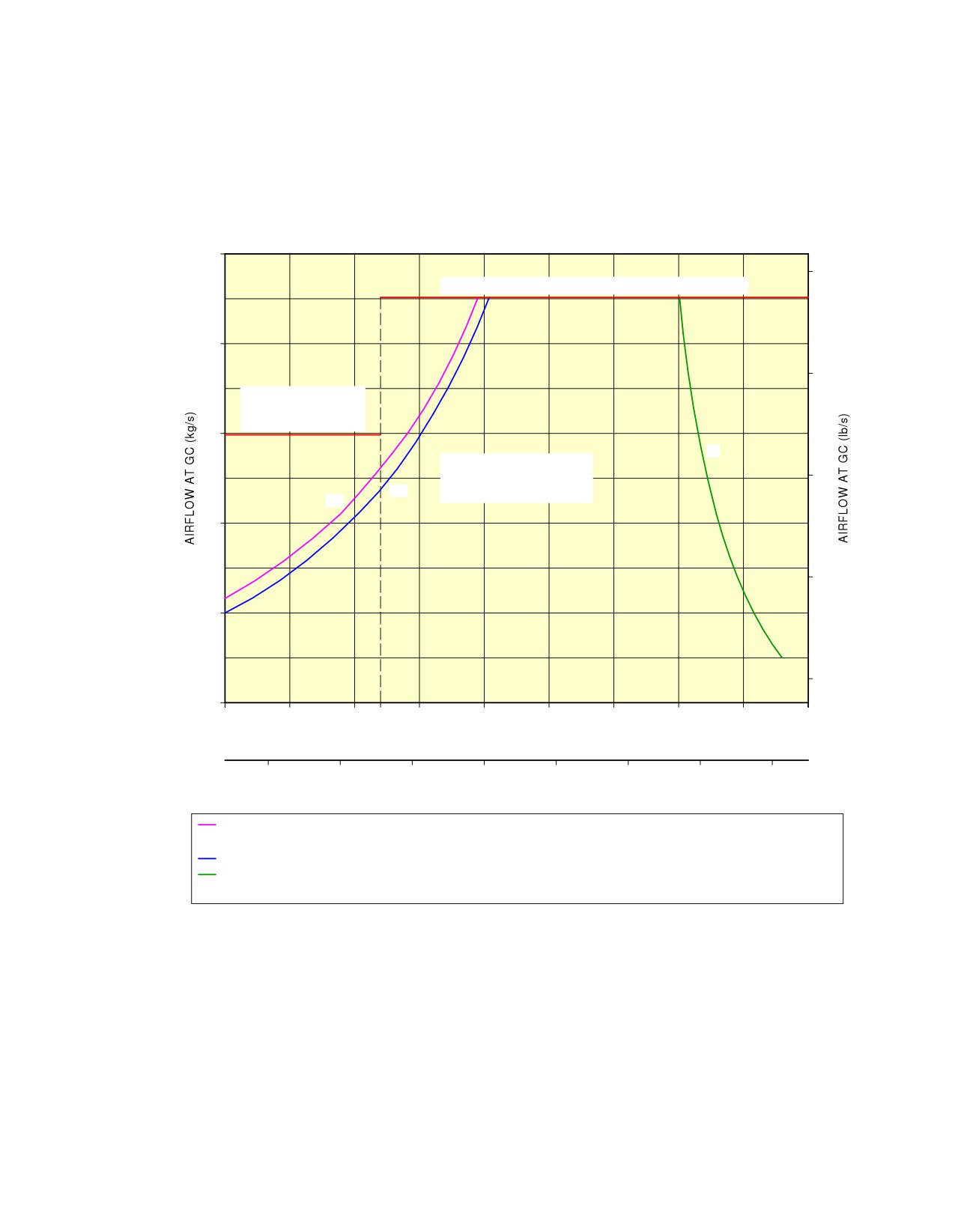

COOLING/HEATING PERFORMANCE

1.4

3.0

MAXIMUM AIRFLOW (RECIRCULATION FANS OFF)

1.2

2.5

MAXIMUM AIRFLOW

(RECIRCULATION

FANS ON)

1.0

SETTINGS NOT

INTENDED TO BE USED

2.0

FOR OPERATION

0.8

1.5

0.6

1.0

0.4

−10

−5

INLET TEMPERATURE AT GC (? C)

INLET TEMPERATURE AT GC (? F)

OAT ISA +23? C (73.4? F); EMPTY CABIN; IFE ON; LIGHTS ON; SOLAR LOAD; RECIRCULATION

FANS ON; GALLEYS ON

OAT ISA; 164 PAX; IFE ON; LIGHTS ON; SOLAR LOAD; RECIRCULATION FANS ON; GALLEYS ON

OAT ISA −38? C (−36.4? F); EMPTY CABIN; IFE OFF; LIGHTS ON; NO SOLAR LOAD; RECIRCULATION

FANS ON; GALLEYS OFF

N_AC_050700_1_0030101_01_04

Preconditioned Airflow Requirements

FIGURE-5-7-0-991-003-A01

Page 2

Dec 01/20

5-7-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-8-0

Ground Towing Requirements

**ON A/C A320-200 A320neo

Ground Towing Requirements

This section provides information on aircraft towing.

This aircraft is designed with means for conventional or towbarless towing. Information/procedures

can be found for both in AMM 09.

Status on towbarless towing equipment qualification can be found in ISI 09.11.00001.

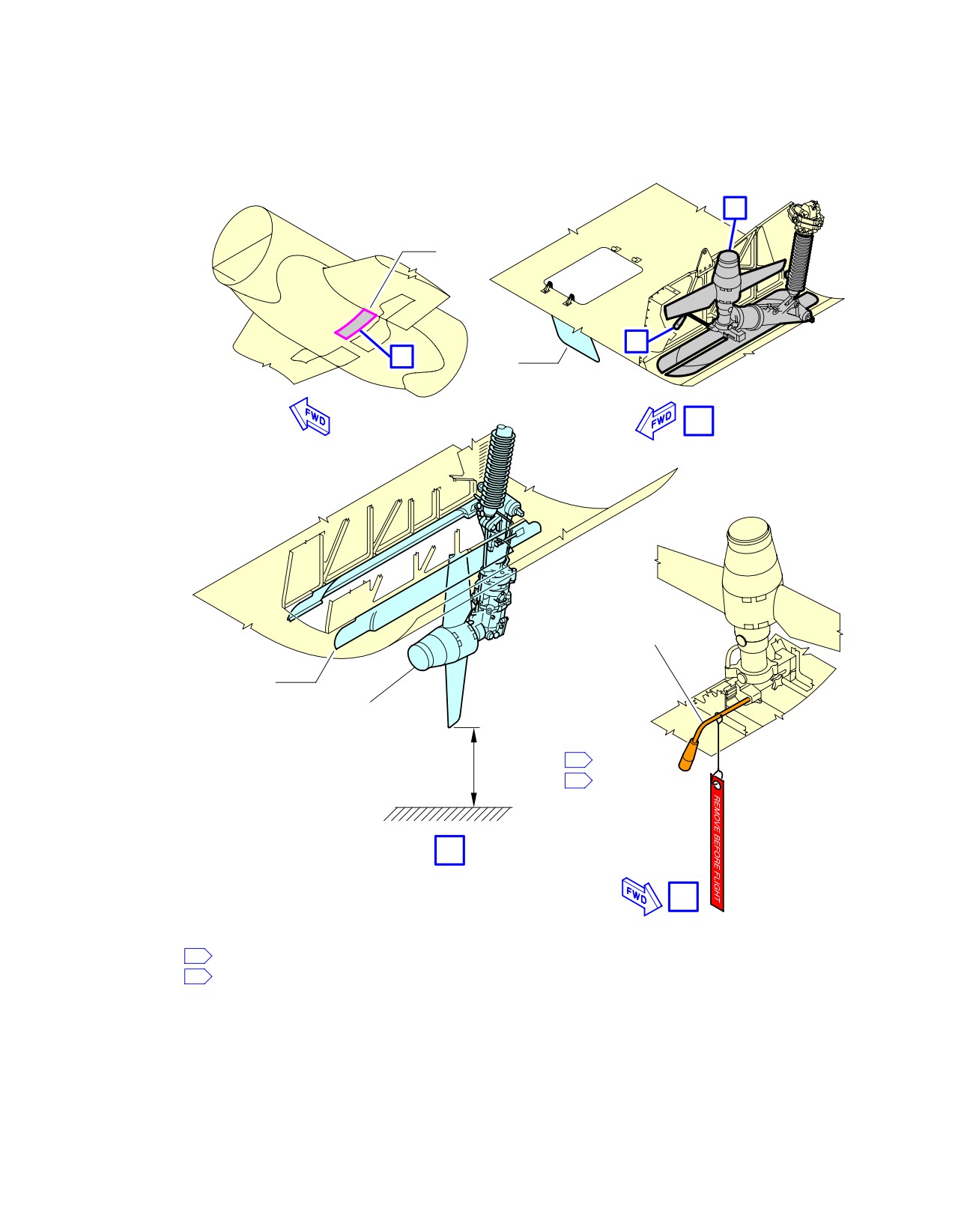

NOTE : The NLG steering deactivation pin has the same design for all Airbus programs.

One towbar fitting is installed at the front of the leg.

The main landing gears have attachment points for towing or debogging (for details, refer ARM 07).

This section shows the chart to determine the drawbar pull and tow tractor mass requirements as a

function of the following physical characteristics:

Aircraft weight,

Number of engines at idle,

Slope.

The chart is based on the engine type with the highest idle thrust level.

Towbar design guidelines

The aircraft towbar shall comply with the following standards:

ISO 8267-1, ”Aircraft - Towbar Attachment Fitting - Interface Requirements - Part 1: Main Line

Aircraft”,

SAE AS 1614, ”Main Line Aircraft Towbar Attach Fitting Interface”,

SAE ARP 1915, ”Aircraft Towbar”,

ISO 9667, ”Aircraft Ground Support Equipment - Towbar - Connection to Aircraft and Tractor”,

EN 12312-7, ”Aircraft Ground Support Equipment - Specific Requirements - Part 7: Aircraft

Movement Equipment”,

IATA Airport Handling Manual AHM 958, ”Functional Specification for an Aircraft Towbar”.

A conventional type towbar is required which should be equipped with a damping system (to protect

the nose gear against jerks) and with towing shear pins:

A traction shear pin calibrated at 9 425 daN (21 188 lbf),

A torsion pin calibrated at 826 m.daN (6 092 lbf.ft).

The towing head is designed according to ISO 8267-1, cat. I.

Page 1

Dec 01/20

5-8-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

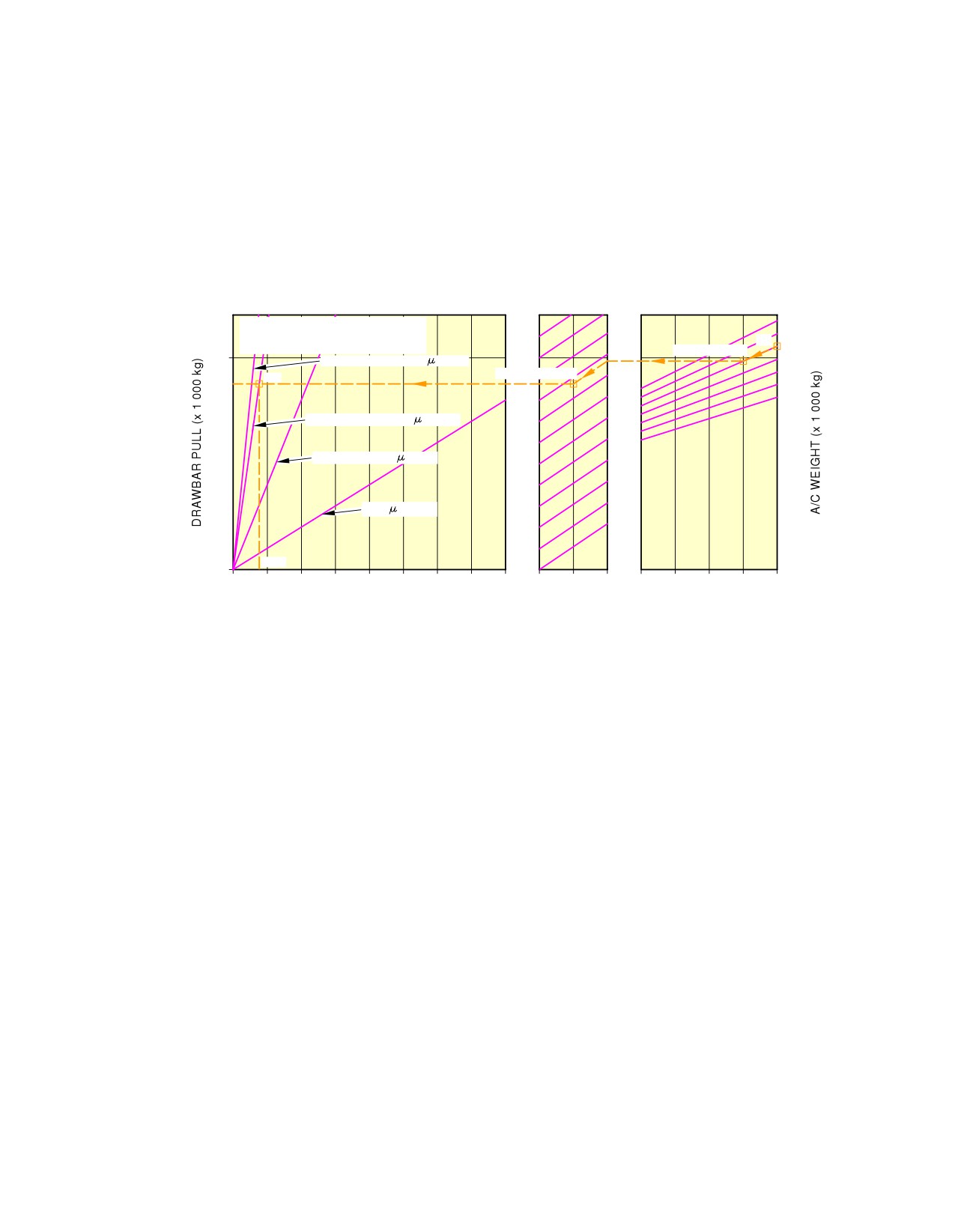

**ON A/C A320-200

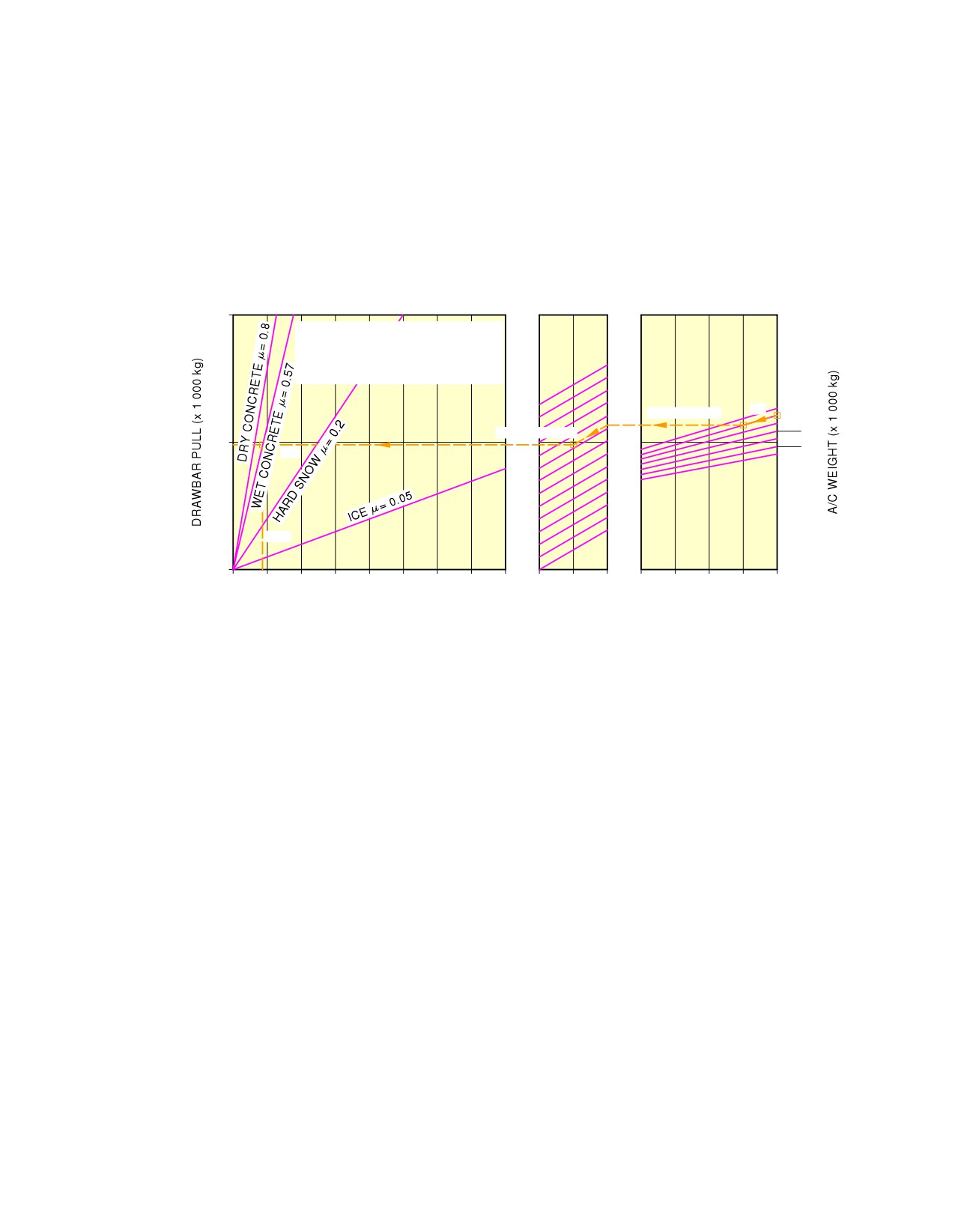

BREAKAWAY RESISTANCE 4%

# OF ENGINES ON FOR PB: 1

ENGINE THRUST 525 daN

1.5% SLOPE

DRY CONCRETE

= 0.8

1 ENGINE ON

4.4

WET CONCRETE

= 0.57

HARD SNOW

= 0.2

ICE

= 0.05

7.69

0.5

1.0

1.5

2.0

TOTAL TRACTION WHEEL LOAD (x 1 000 kg)

No. OF ENGINES

SLOPE ( % )

AT IDLE

EXAMPLE HOW TO DETERMINE THE MASS REQUIREMENT TO TOW A A320 AT 70 000 kg, AT 1.5% SLOPE,

1 ENGINE AT IDLE AND FOR WET TARMAC CONDITIONS:

−

ON THE RIGHT HAND SIDE OF THE GRAPH, CHOOSE THE RELEVANT AIRCRAFT WEIGHT (70 000 kg),

−

FROM THIS POINT DRAW A PARALLEL LINE TO THE REQUIRED SLOPE PERCENTAGE (1.5%),

−

FROM THE POINT OBTAINED DRAW A STRAIGHT HORIZONTAL LINE UNTIL No. OF ENGINES AT IDLE = 2,

−

FROM THIS POINT DRAW A PARALLEL LINE TO THE REQUESTED No. OF ENGINES (1),

−

FROM THIS POINT DRAW A STRAIGHT HORIZONTAL LINE TO THE DRAWBAR PULL AXIS,

−

THE Y−COORDINATE OBTAINED IS THE NECESSARY DRAWBAR PULL FOR THE TRACTOR (4 400 kg),

− SEARCH THE INTERSECTION WITH THE "WET CONCRETE" LINE.

THE OBTAINED X−COORDINATE IS THE TOTAL TRACTION WHEEL LOAD (7 690 kg).

NOTE:

USE A TRACTOR WITH A LIMITED DRAWBAR PULL TO PREVENT LOADS ABOVE THE TOW−BAR SHEAR−PIN

CAPACITY.

N_AC_050800_1_0010301_01_06

Ground Towing Requirements

FIGURE-5-8-0-991-001-C01

Page 2

Dec 01/20

5-8-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

BREAKAWAY RESISTANCE 4%

# OF ENGINES ON FOR PB: 1

ENGINE THRUST 750 daN FOR

ALL TEMPERATURES AND BLEED

OFF (COVERS BLEED ON)

1.5% SLOPE

1 ENGINE ON

4.9

8.58

0.5

1.0

1.5

2.0

TOTAL TRACTION WHEEL LOAD (x 1 000 kg)

No. OF ENGINES

SLOPE ( % )

AT IDLE

EXAMPLE HOW TO DETERMINE THE MASS REQUIREMENT TO TOW A A320 AT 75 000 kg, AT 1.5% SLOPE,

1 ENGINE AT IDLE AND FOR WET TARMAC CONDITIONS:

−

ON THE RIGHT HAND SIDE OF THE GRAPH, CHOOSE THE RELEVANT AIRCRAFT WEIGHT (75 000 kg),

−

FROM THIS POINT DRAW A PARALLEL LINE TO THE REQUIRED SLOPE PERCENTAGE (1.5%),

−

FROM THE POINT OBTAINED DRAW A STRAIGHT HORIZONTAL LINE UNTIL No. OF ENGINES AT IDLE = 2,

−

FROM THIS POINT DRAW A PARALLEL LINE TO THE REQUESTED No. OF ENGINES (1),

−

FROM THIS POINT DRAW A STRAIGHT HORIZONTAL LINE TO THE DRAWBAR PULL AXIS,

−

THE Y−COORDINATE OBTAINED IS THE NECESSARY DRAWBAR PULL FOR THE TRACTOR (4 900 kg),

− SEARCH THE INTERSECTION WITH THE "WET CONCRETE" LINE.

THE OBTAINED X−COORDINATE IS THE TOTAL TRACTION WHEEL LOAD (8 580 kg).

NOTE:

USE A TRACTOR WITH A LIMITED DRAWBAR PULL TO PREVENT LOADS ABOVE THE TOW−BAR SHEAR−PIN

CAPACITY.

N_AC_050800_1_0010501_01_00

Ground Towing Requirements

PW 1100G Engine (Sheet 1 of 2)

FIGURE-5-8-0-991-001-E01

Page 3

Dec 01/20

5-8-0
