Airbus A320. AIRCRAFT CHARACTERISTICS AIRPORT AND MAINTENANCE PLANNING (2016-2023)

@A320

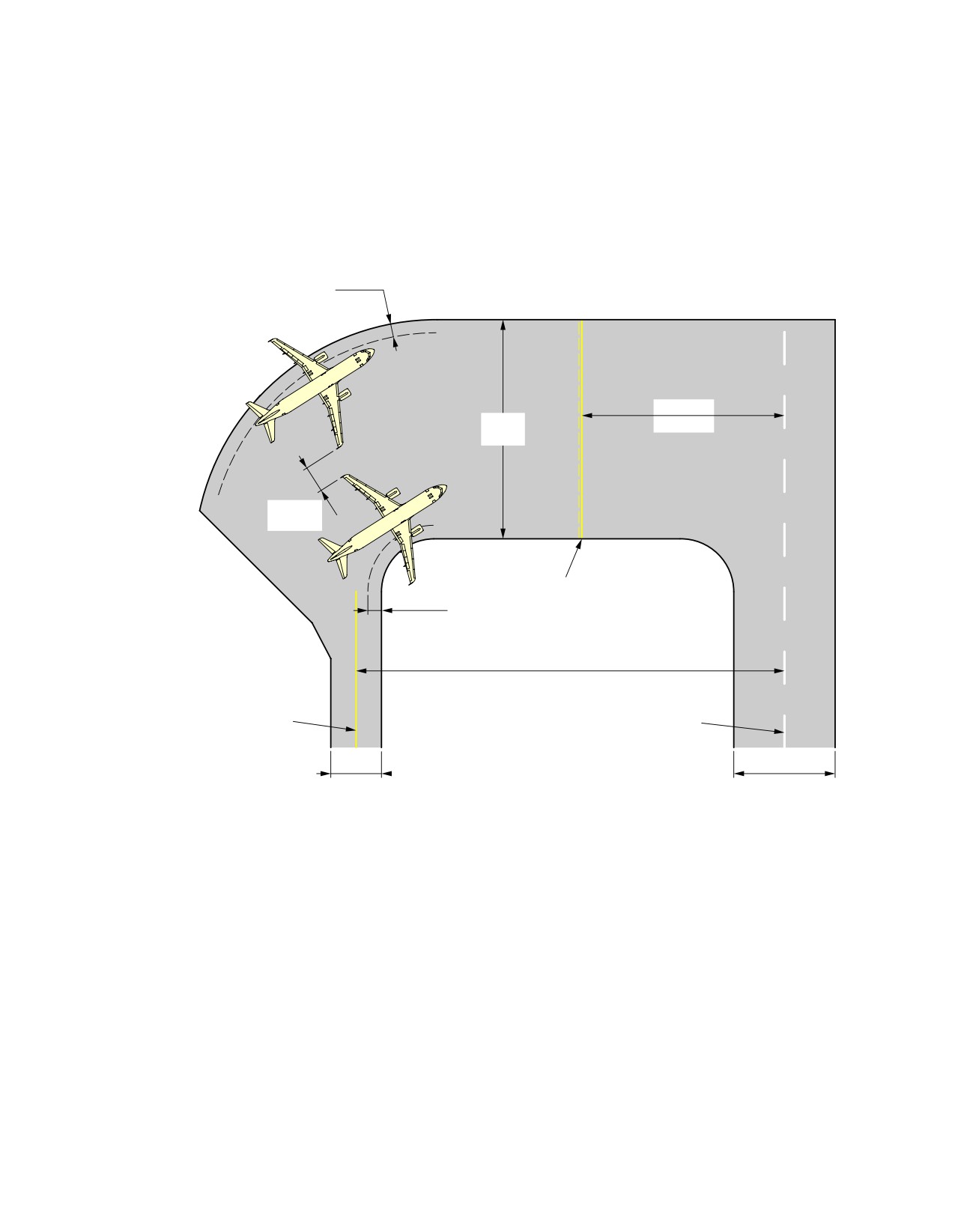

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

12.6 m

(41 ft)

OUTSIDE FACE OF TIRE

EFFECTIVE

TURN

STEERING

ANGLE 75?

MINIMUM

PAVEMENT

WIDTH FOR

180? TURN

NOTE:

THEORETICAL CENTER OF TURN FOR

MINIMUM TURNING RADIUS.

SLOW CONTINUOUS TURNING.

APPROXIMATELY IDLE THRUST

ON ALL ENGINES.

NO DIFFERENTIAL BRAKING.

NOSE GEAR RADII TRACK MEASURED

FROM OUTSIDE FACE OF TIRE.

DUAL LANDING GEAR

TYPE

STEERING

EFFECTIVE

R4 WING

ANGLE

STEERING

WING TIP

NLG

NOSE

THS

TURN

(DEG)

ANGLE

SHARKLET

FENCE

4.1

22.3

13.4

21.6

22.5

18.2

21.6

75 (MAX)

71.9?

4.5

22.8

13.6

22.0

22.9

18.3

21.8

75 (MAX)

70.2?

NOTE:

IT IS POSSIBLE TO GET LOWER VALUES THAN THOSE FROM TYPE 1

BY APPLYING DIFFERENTIAL BRAKING DURING THE WHOLE TURN.

BOGIE LANDING GEAR

STEERING

EFFECTIVE

R4 WING

ANGLE

STEERING

NLG

WING TIP FENCE

NOSE

THS

(DEG)

ANGLE

4.6

22.8

13.8

22.0

18.3

21.9

75 (MAX)

70.0?

N_AC_040300_1_0030101_01_01

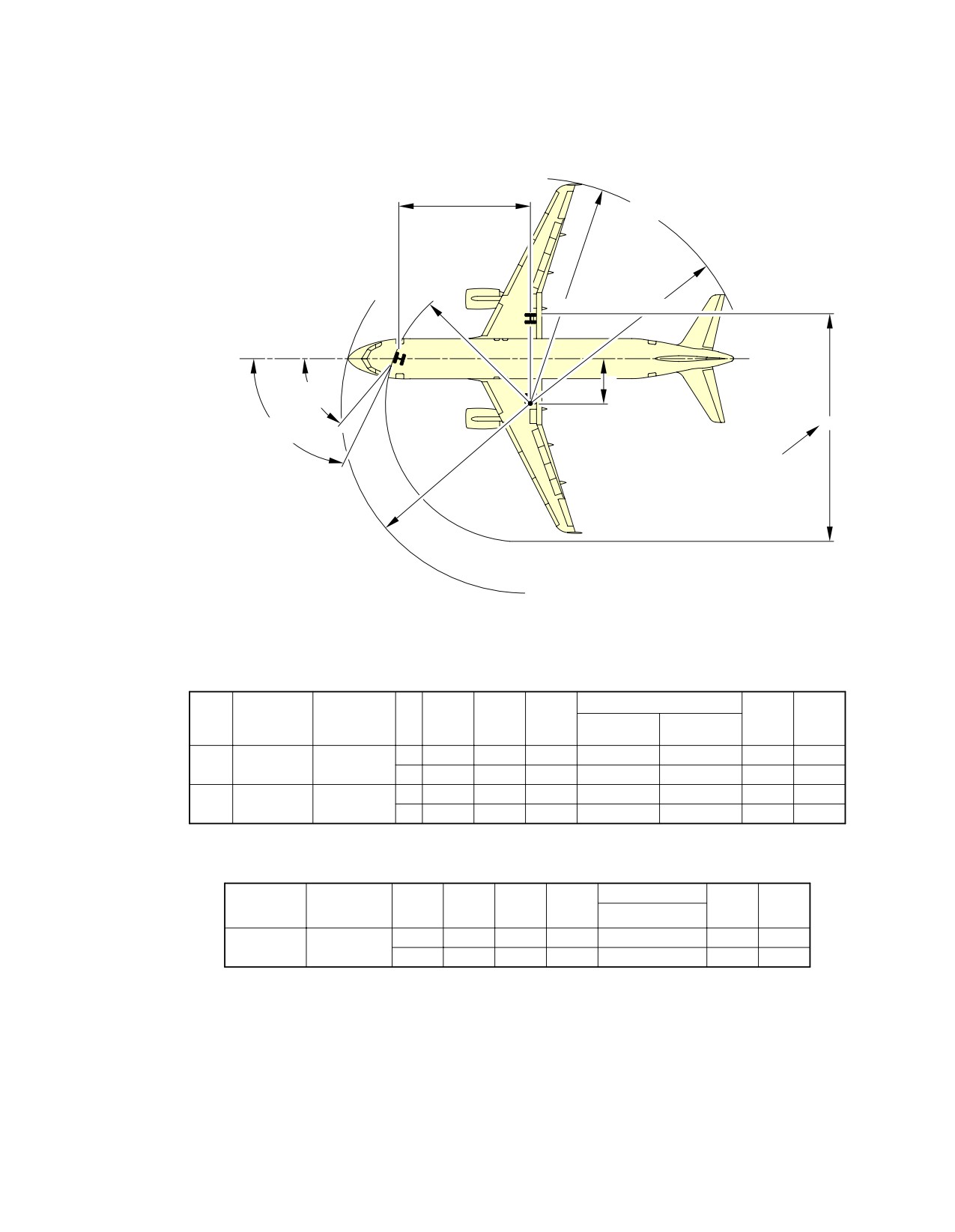

Minimum Turning Radii

FIGURE-4-3-0-991-003-A01

Page 2

Dec 01/20

4-3-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

NOT TO BE USED FOR

LANDING APPROACH VISIBILITY

DIMENSIONS ARE APPROXIMATE

30?

VISUAL ANGLES IN VERTICAL

20?

PLANE THROUGH PILOT

EYE POSITION.

2.41 m

4.56 m

(7 ft 10.92 in)

(14 ft 11.52 in)

5.07 m

10.14 m

(16 ft 7.56 in)

(33 ft 3.24 in)

MAX AFT VISION WITH HEAD TURNED

111?

AROUND SPINAL COLUMN.

WING TIP CAN BE SEEN WHEN HEAD IS MOVED

133?

TO THE SIDE.

FIRST OFFICER

FIELD OF VIEW

VISUAL ANGLES IN HORIZONTAL

PLANE THROUGH PILOT

EYE POSITION.

CAPTAIN FIELD OF VIEW

111?

133?

WITH HEAD MOVED

125 mm (5 in) OUTBOARD

VISUAL ANGLES IN PLANE

0.53 m

PERPENDICULAR TO

(21 in)

LONGITUDINAL AXIS.

46?

33?

25?

FIRST OFFICER

CAPTAIN FIELD

FIELD OF VIEW

32?

OF VIEW

NOTE:

PILOT EYE POSITION WHEN PILOT’S EYES ARE IN LINE WITH THE RED AND WHITE BALLS.

ZONE THAT CANNOT BE SEEN

N_AC_040400_1_0010101_01_04

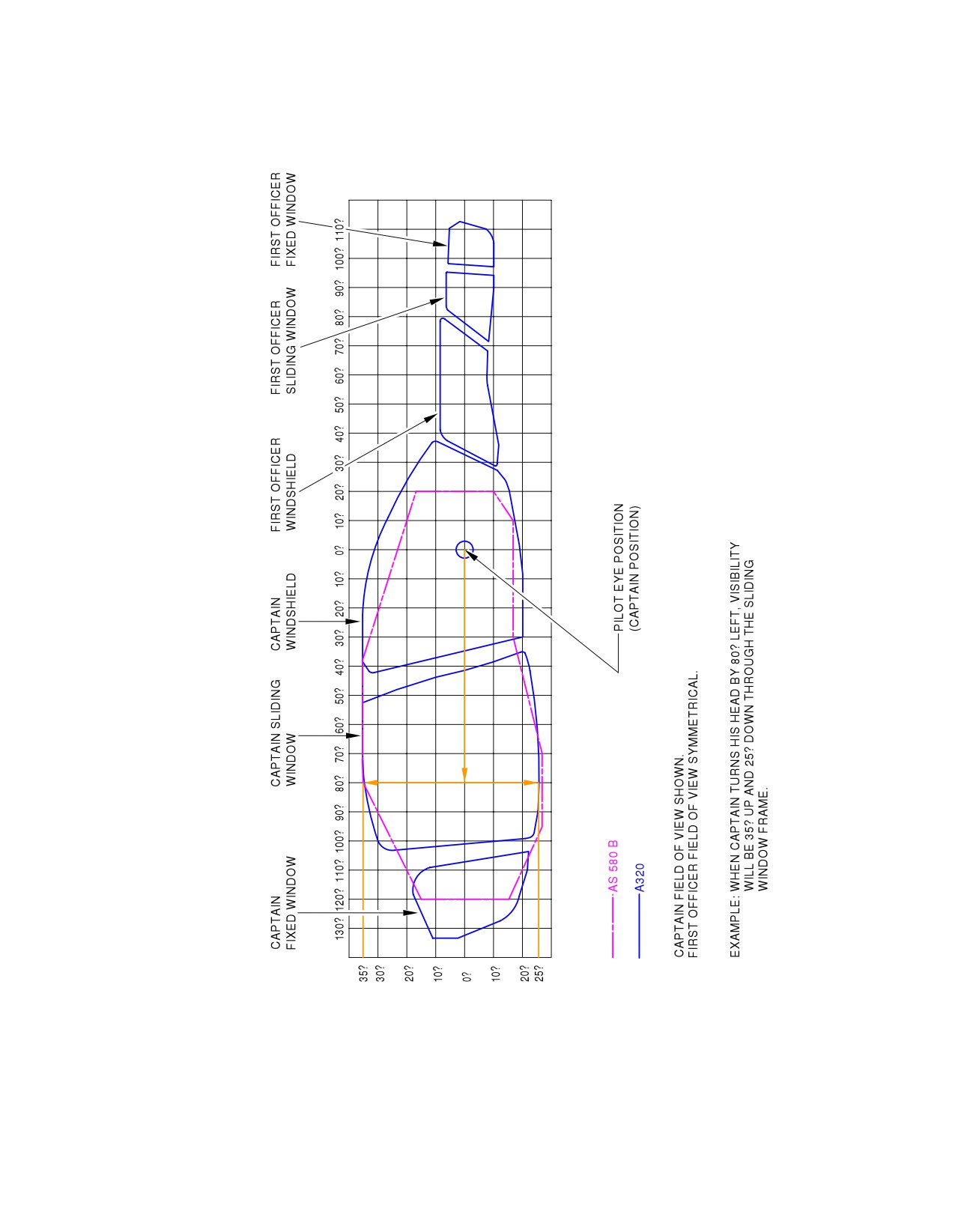

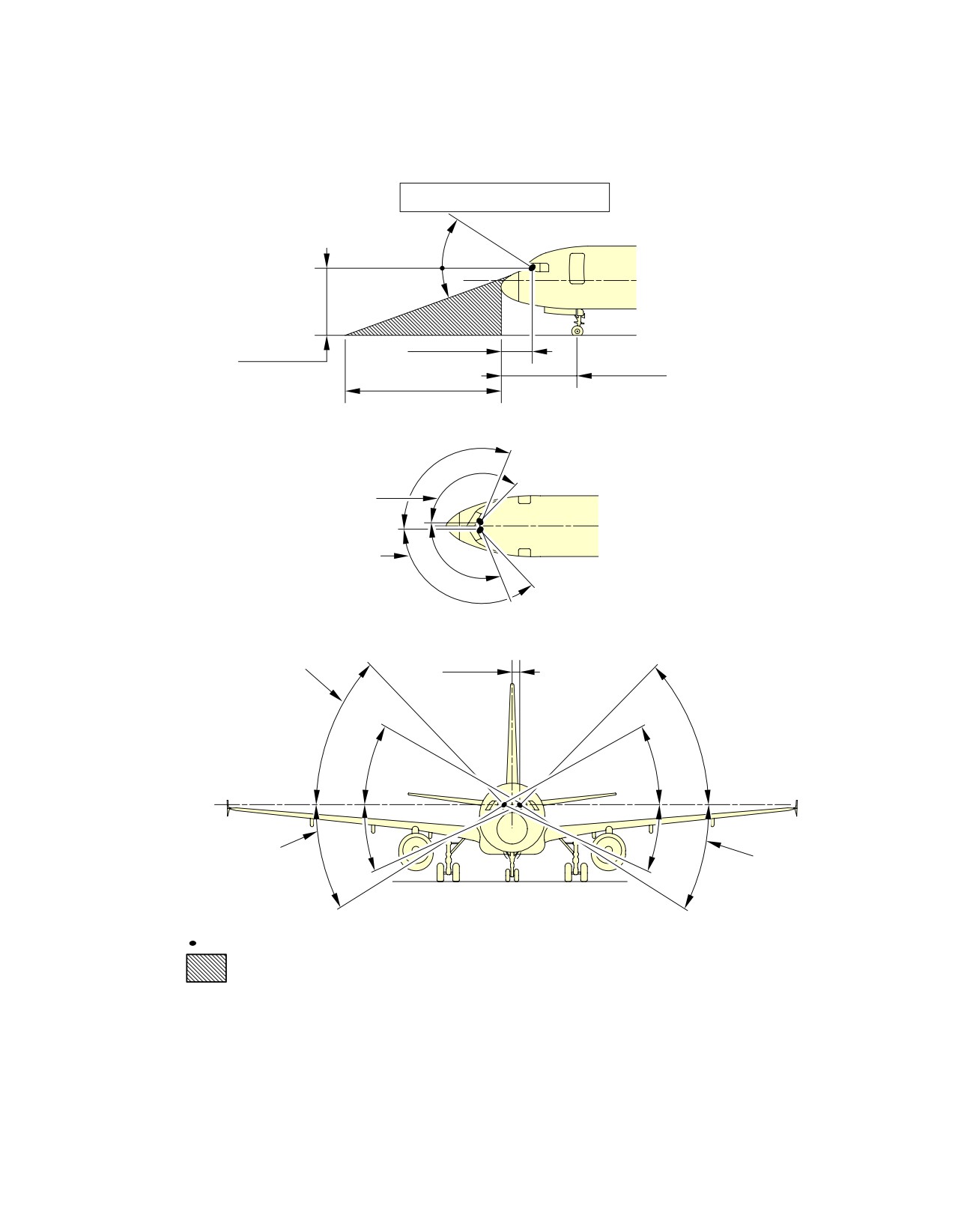

Visibility from Cockpit in Static Position

FIGURE-4-4-0-991-001-A01

Page 2

Dec 01/20

4-4-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

APPROX 4.3 m

(14 ft)

TAXIWAY

FILLET R = 16.5 m

CENTERLINE

(55 ft)

TURN R = 30 m

(100 ft)

RUNWAY CENTERLINE

15 m

(50 ft)

NLG PATH (CENTER)

30 m

MLG PATH (EDGE)

(100 ft)

NOTE:

FAA GROUP III FACILITIES.

N_AC_040501_1_0040101_01_02

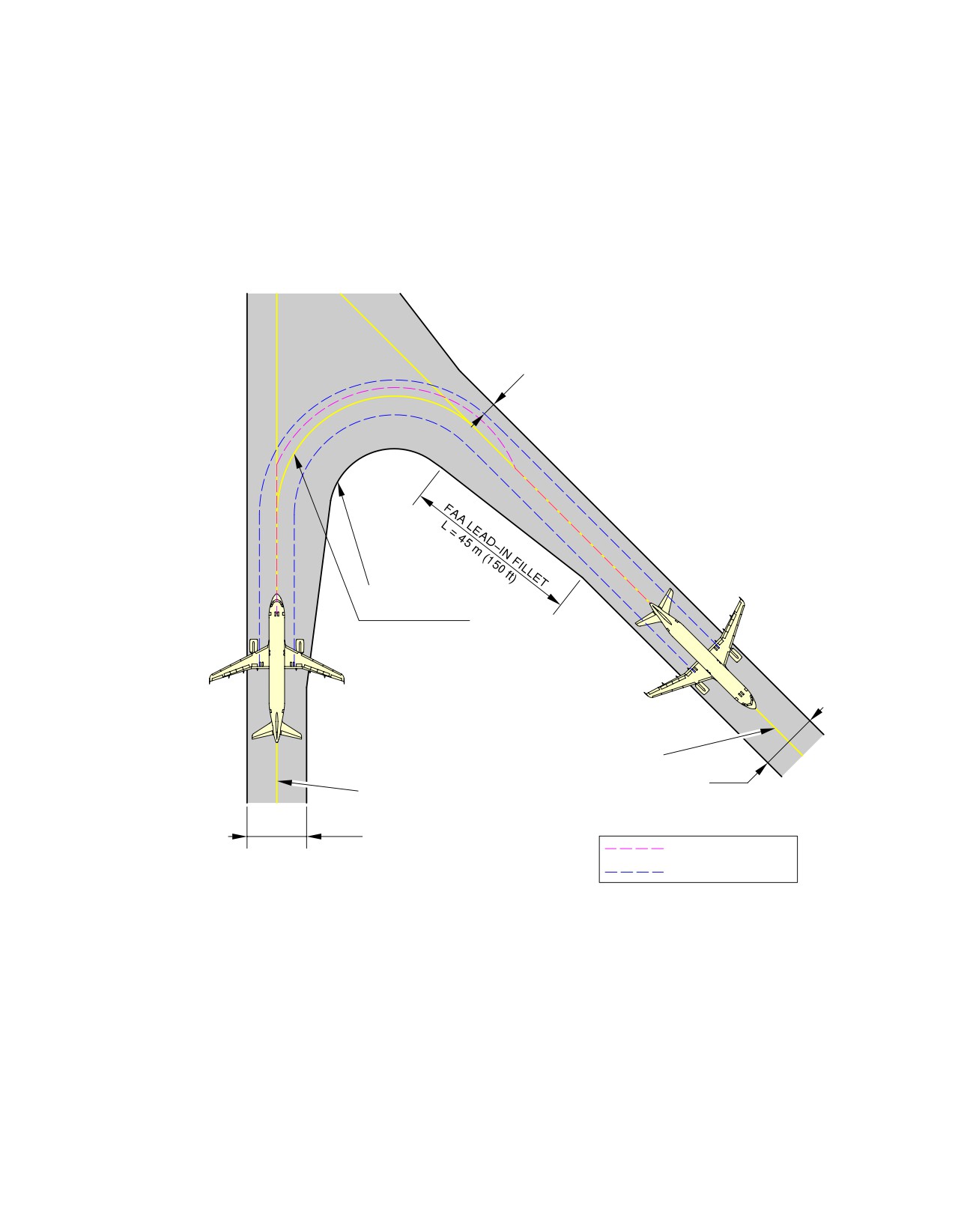

135˚ Turn - Runway to Taxiway

Cockpit Over Centerline Method

FIGURE-4-5-1-991-004-A01

Page 2

Dec 01/20

4-5-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

APPROX 3.2 m

(10 ft)

TAXIWAY

FILLET R = 16.5 m

CENTERLINE

(55 ft)

TURN R = 30 m

(100 ft)

RUNWAY CENTERLINE

15 m

(50 ft)

NLG PATH (CENTER)

30 m

MLG PATH (EDGE)

(100 ft)

NOTE:

FAA GROUP III FACILITIES.

N_AC_040501_1_0120101_01_01

135˚ Turn - Runway to Taxiway

Judgemental Oversteering Method

FIGURE-4-5-1-991-012-A01

Page 3

Dec 01/20

4-5-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

FAA LEAD−IN FILLET

L = 45 m (150 ft)

15 m

(50 ft)

APPROX 5.8 m

(19 ft)

TAXIWAY CENTERLINE

FILLET R = 16.5 m

(55 ft)

TURN R = 30 m

(100 ft)

NLG PATH (CENTER)

RUNWAY CENTERLINE

MLG PATH (EDGE)

30 m

(100 ft)

NOTE:

FAA GROUP III FACILITIES.

N_AC_040502_1_0040101_01_02

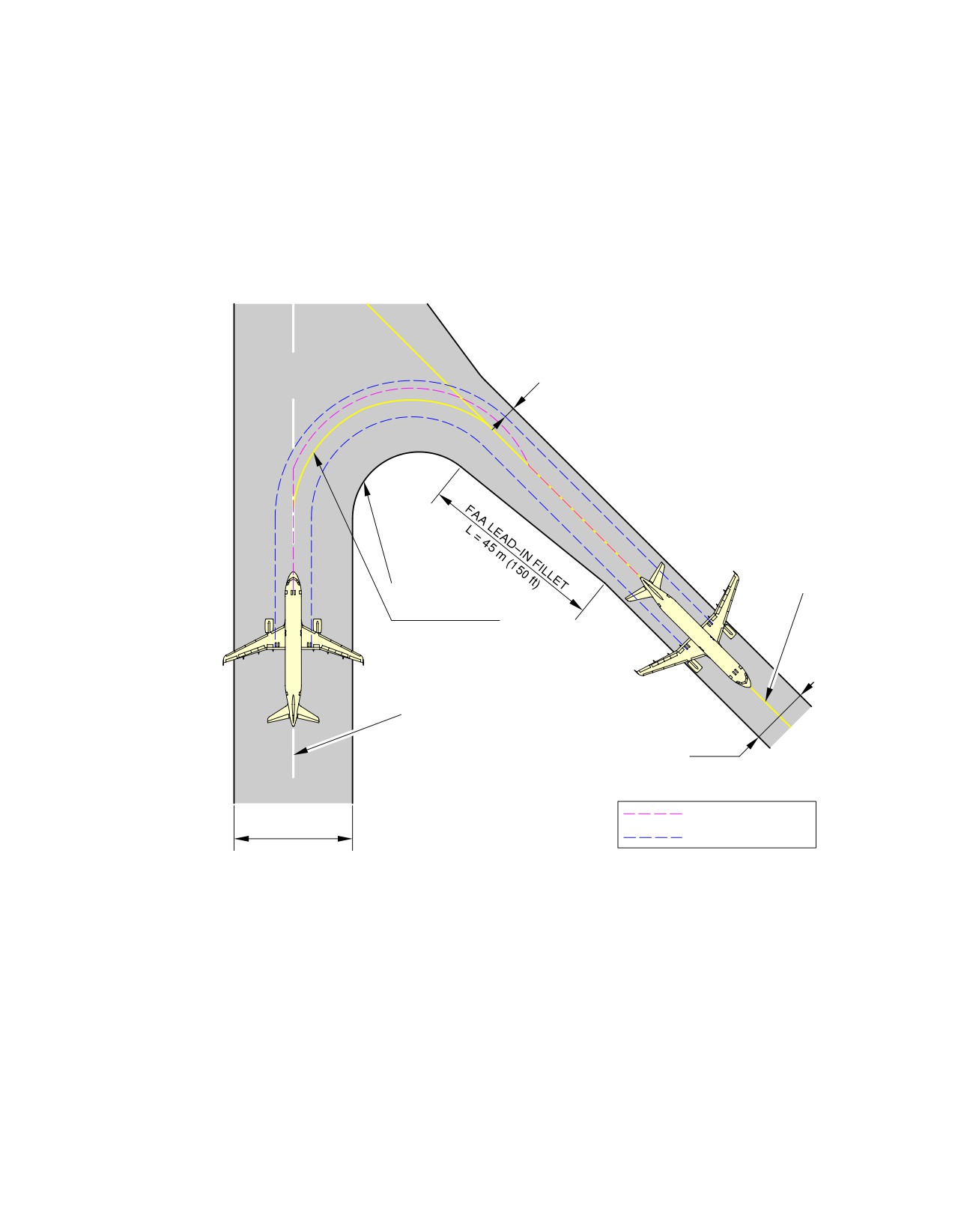

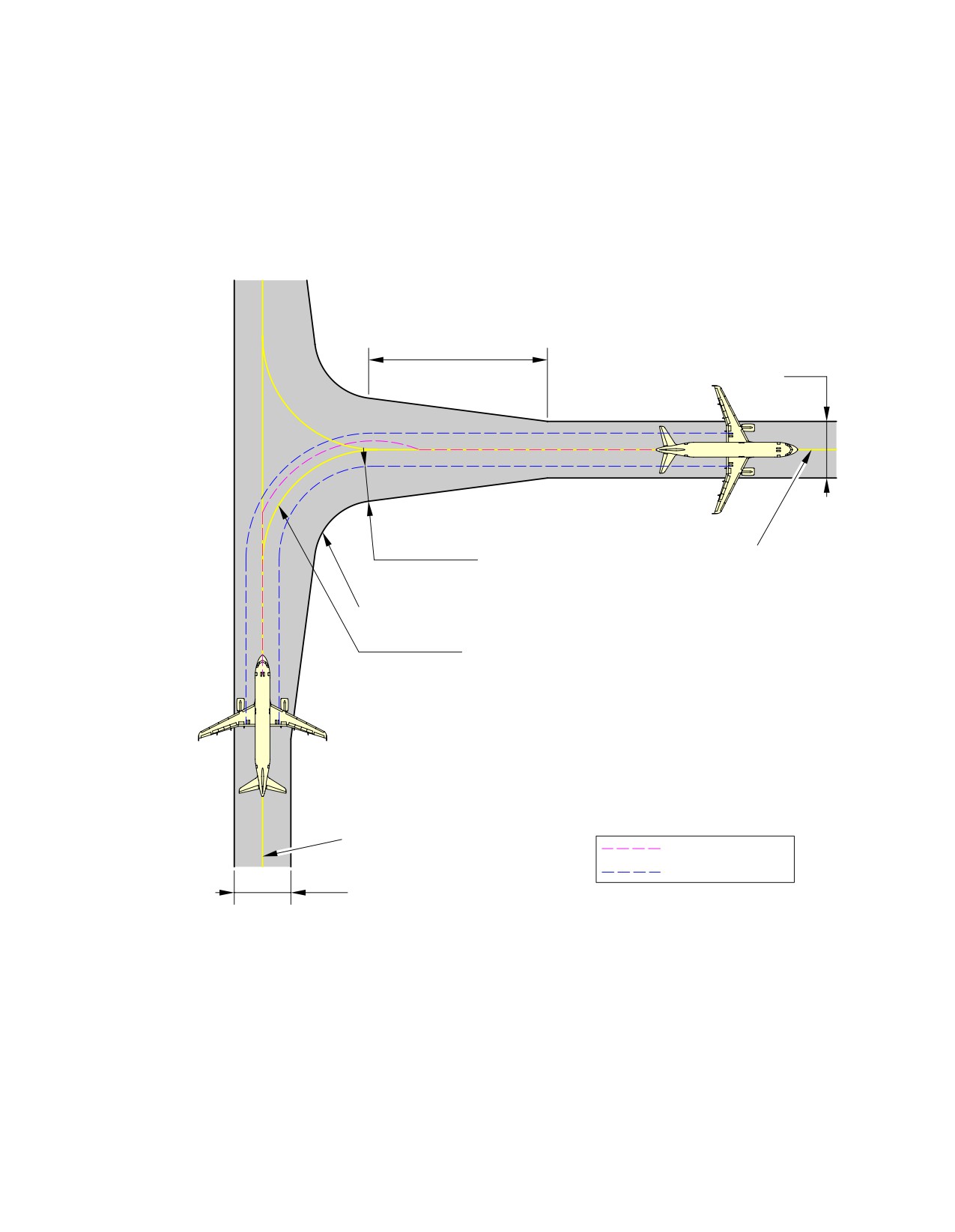

90˚ Turn - Runway to Taxiway

Cockpit Over Centerline Method

FIGURE-4-5-2-991-004-A01

Page 2

Dec 01/20

4-5-2

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

FAA LEAD−IN FILLET

L = 45 m (150 ft)

15 m

(50 ft)

APPROX 9.2 m

(30 ft)

TAXIWAY CENTERLINE

FILLET R = 16.5 m

(55 ft)

TURN R = 30 m

(100 ft)

NLG PATH (CENTER)

RUNWAY CENTERLINE

MLG PATH (EDGE)

30 m

(100 ft)

NOTE:

FAA GROUP III FACILITIES.

N_AC_040502_1_0090101_01_01

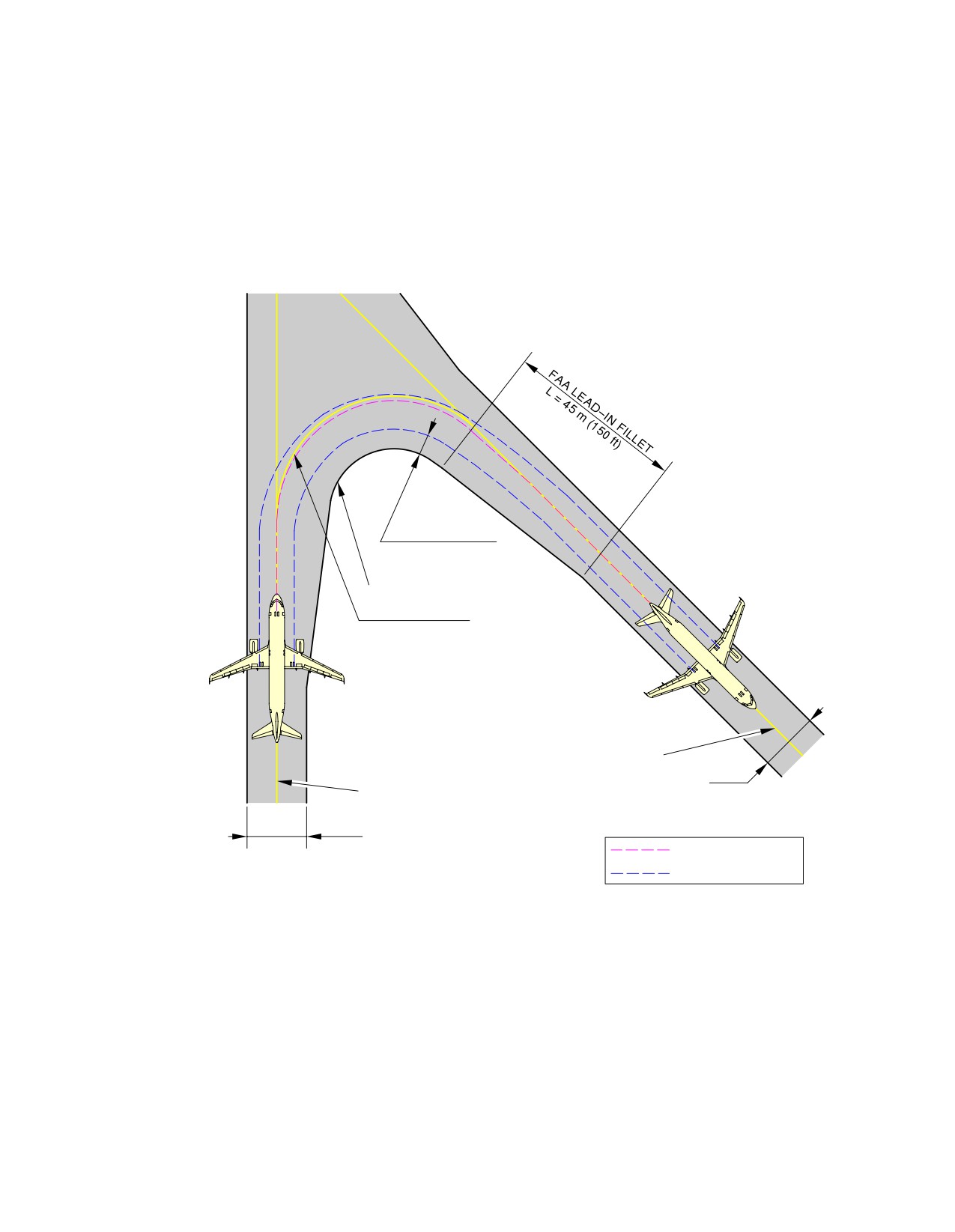

90˚ Turn - Runway to Taxiway

Judgemental Oversteering Method

FIGURE-4-5-2-991-009-A01

Page 3

Dec 01/20

4-5-2

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

RUNWAY CENTERLINE

4.7 m

(15 ft)

3 m

(10 ft)

R3 = 13.4 m

(44 ft)

R5 = 18.2 m

(60 ft)

NLG PATH (EDGE)

NLG PATH (CENTER)

WINGTIP PATH:

WINGTIP FENCES:

R4 = 21.6 m (71 ft)

NOSE PATH

MLG PATH (EDGE)

30 m

(100 ft)

NOTE:

TYPE 1 VALUES.

N_AC_040503_1_0060101_01_02

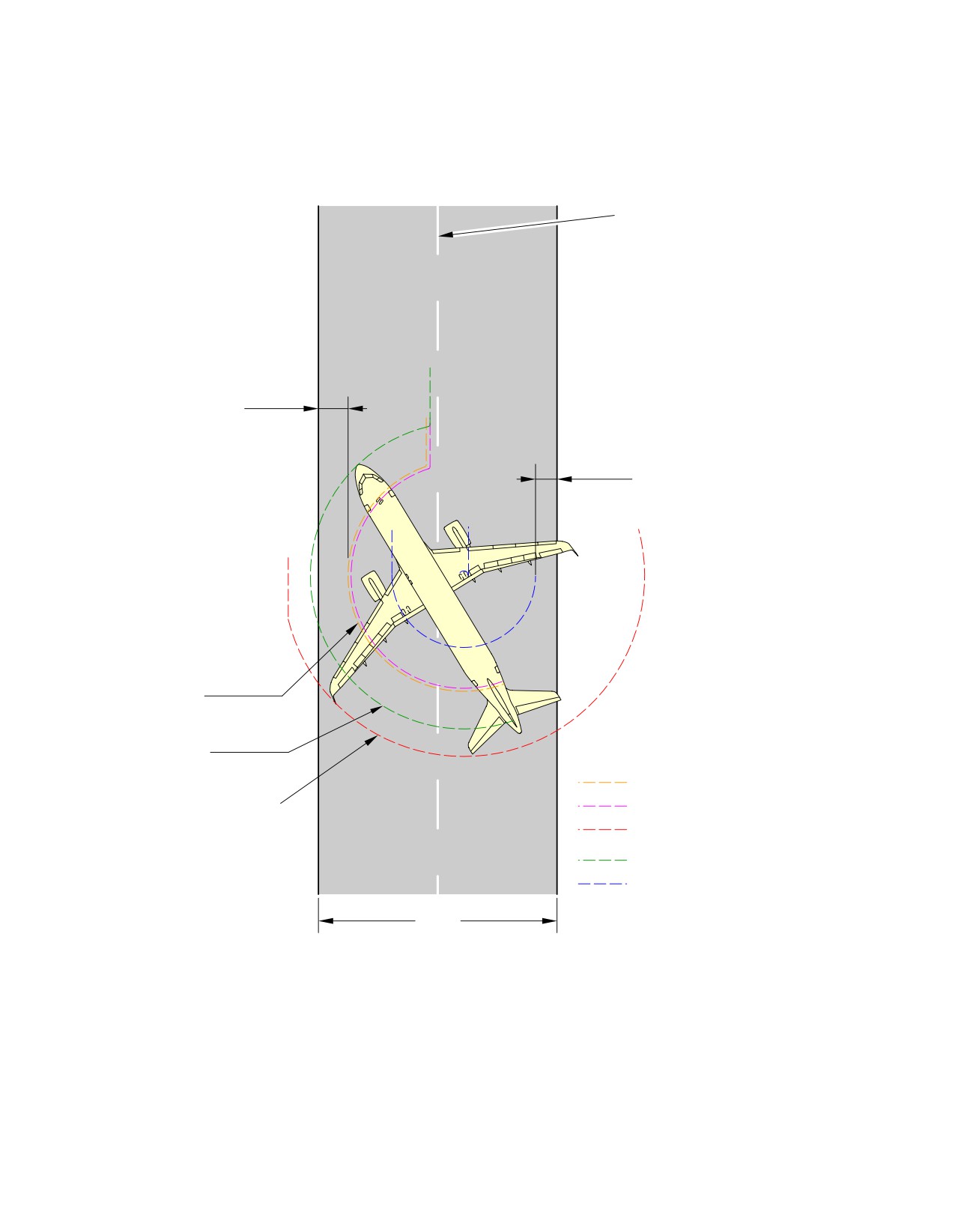

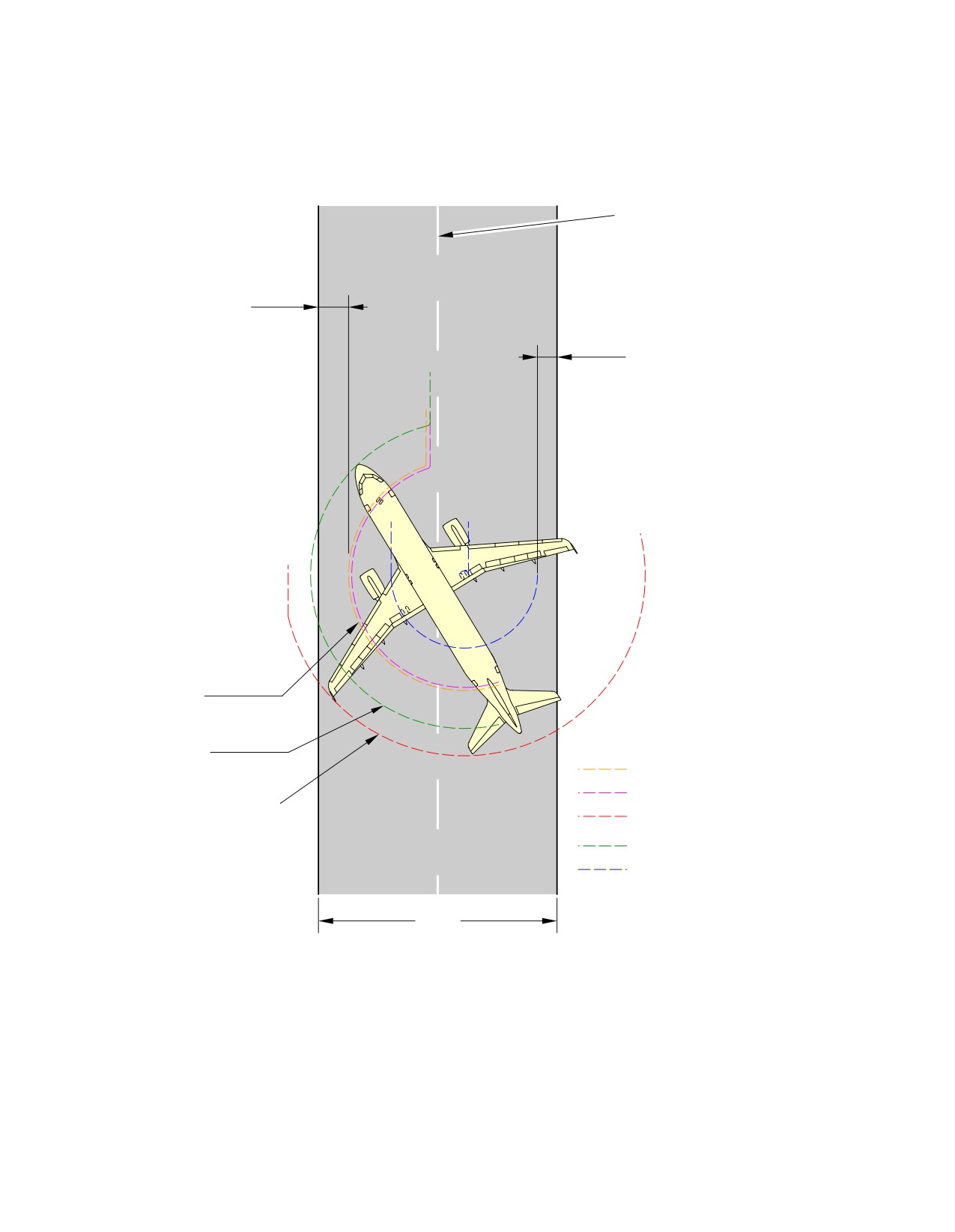

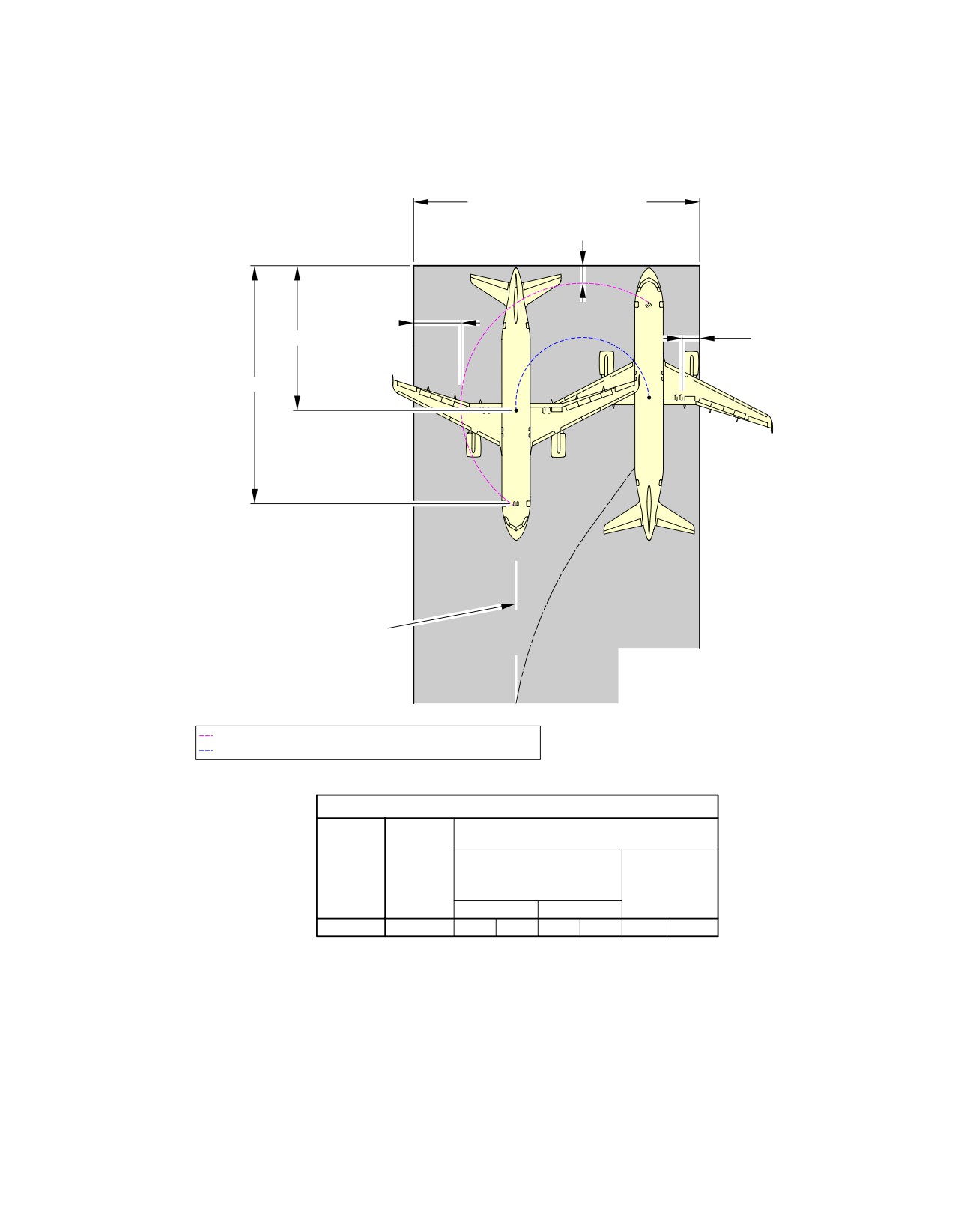

180˚ Turn on a Runway

Edge of Runway Method (Sheet 1 of 2)

FIGURE-4-5-3-991-006-A01

Page 2

Dec 01/20

4-5-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200

RUNWAY CENTERLINE

R5 = 18.2 m

(60 ft)

R3 = 13.4 m

(44 ft)

3 m

(10 ft)

4.1 m

(13 ft)

25?

NLG PATH (EDGE)

NLG PATH (CENTER)

WINGTIP PATH:

WINGTIP FENCES:

R4 = 21.6 m (71 ft)

NOSE PATH

MLG PATH (EDGE)

30 m

(100 ft)

NOTE:

TYPE 1 VALUES.

N_AC_040503_1_0060102_01_02

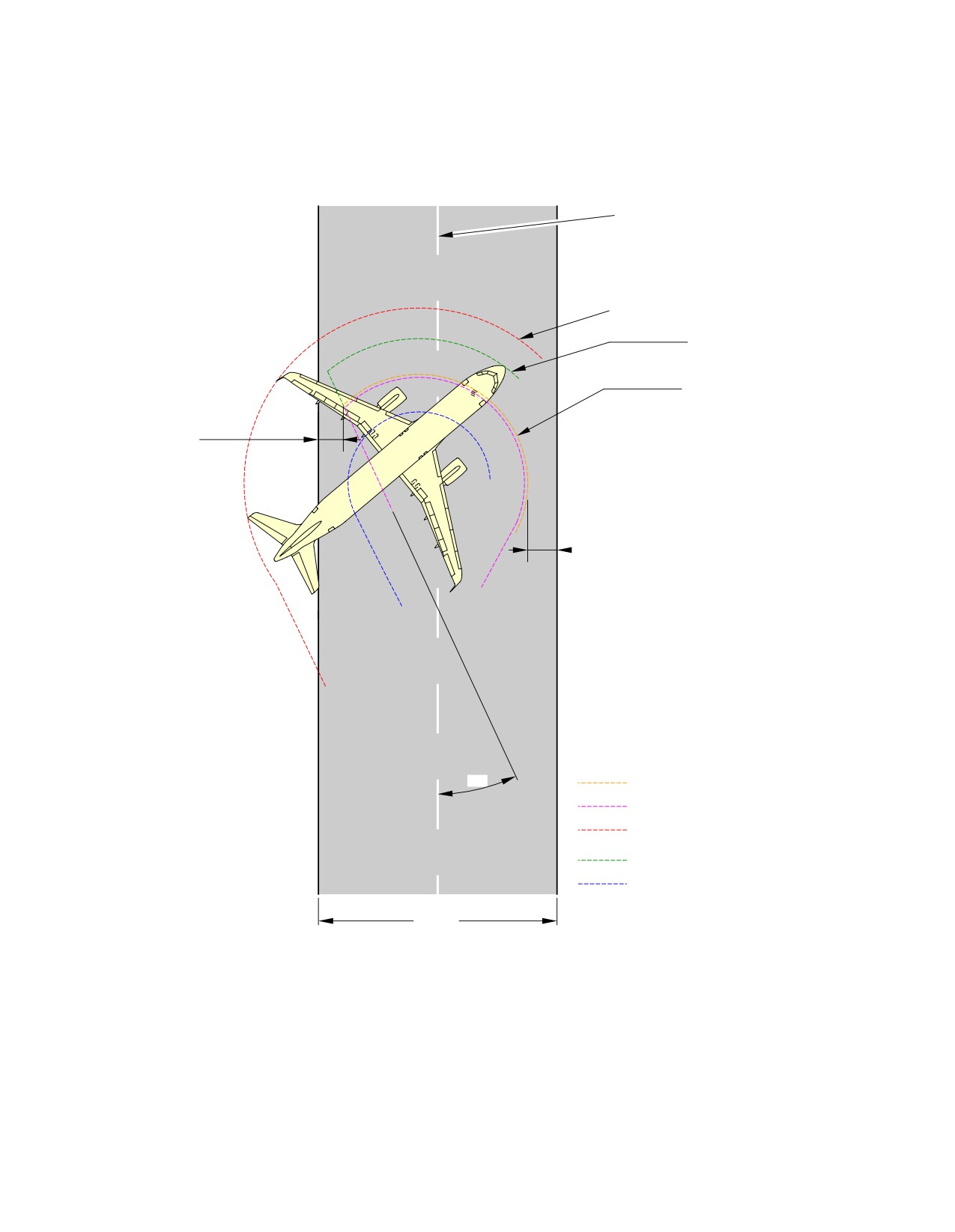

180˚ Turn on a Runway

Center of Runway Method (Sheet 2 of 2)

FIGURE-4-5-3-991-006-A01

Page 3

Dec 01/20

4-5-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

RUNWAY CENTERLINE

4.06 m

(13 ft)

3 m

(10 ft)

R3 = 13.4 m

(44 ft)

R5 = 18.2 m

(60 ft)

NLG PATH (EDGE)

NLG PATH (CENTER)

WINGTIP PATH:

SHARKLETS:

R4 = 22.5 m (74 ft)

NOSE PATH

MLG PATH (EDGE)

30 m

(100 ft)

NOTE:

TYPE 1 VALUES.

N_AC_040503_1_0090101_01_00

180˚ Turn on a Runway

Edge of Runway Method (Sheet 1 of 2)

FIGURE-4-5-3-991-009-A01

Page 4

Dec 01/20

4-5-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320neo

RUNWAY CENTERLINE

R5 = 18.2 m

(60 ft)

R3 = 13.4 m

(44 ft)

3 m

(10 ft)

4.1 m

(13 ft)

25?

NLG PATH (EDGE)

NLG PATH (CENTER)

WINGTIP PATH:

SHARKLETS:

R4 = 22.5 m (74 ft)

NOSE PATH

MLG PATH (EDGE)

30 m

(100 ft)

NOTE:

TYPE 1 VALUES.

N_AC_040503_1_0090102_01_00

180˚ Turn on a Runway

Center of Runway Method (Sheet 2 of 2)

FIGURE-4-5-3-991-009-A01

Page 5

Dec 01/20

4-5-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

APPROX 4.9 m

(16 ft)

FILLET R = 16.5 m

(55 ft)

TURN R = 30 m

(100 ft)

TAXIWAY CENTERLINE

15 m

TAXIWAY CENTERLINE

(50 ft)

15 m

(50 ft)

NLG PATH (CENTER)

MLG PATH (EDGE)

NOTE:

FAA GROUP III FACILITIES.

N_AC_040504_1_0060101_01_01

135˚ Turn - Taxiway to Taxiway

Cockpit Over Centerline Method (Sheet 1 of 2)

FIGURE-4-5-4-991-006-A01

Page 2

Dec 01/20

4-5-4

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

APPROX 3 m

(10 ft)

FILLET R = 16.5 m

(55 ft)

TURN R = 30 m

(100 ft)

TAXIWAY CENTERLINE

15 m

TAXIWAY CENTERLINE

(50 ft)

15 m

(50 ft)

NLG PATH (CENTER)

MLG PATH (EDGE)

NOTE:

FAA GROUP III FACILITIES.

N_AC_040504_1_0060102_01_01

135˚ Turn - Taxiway to Taxiway

Judgemental Oversteering Method (Sheet 2 of 2)

FIGURE-4-5-4-991-006-A01

Page 3

Dec 01/20

4-5-4

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

FAA LEAD−IN FILLET

L = 45 m (150 ft)

15 m

(50 ft)

APPROX 5.2 m

TAXIWAY CENTERLINE

(17 ft)

FILLET R = 16.5 m

(55 ft)

TURN R = 30 m

(100 ft)

TAXIWAY CENTERLINE

NLG PATH (CENTER)

MLG PATH (EDGE)

15 m

(50 ft)

NOTE:

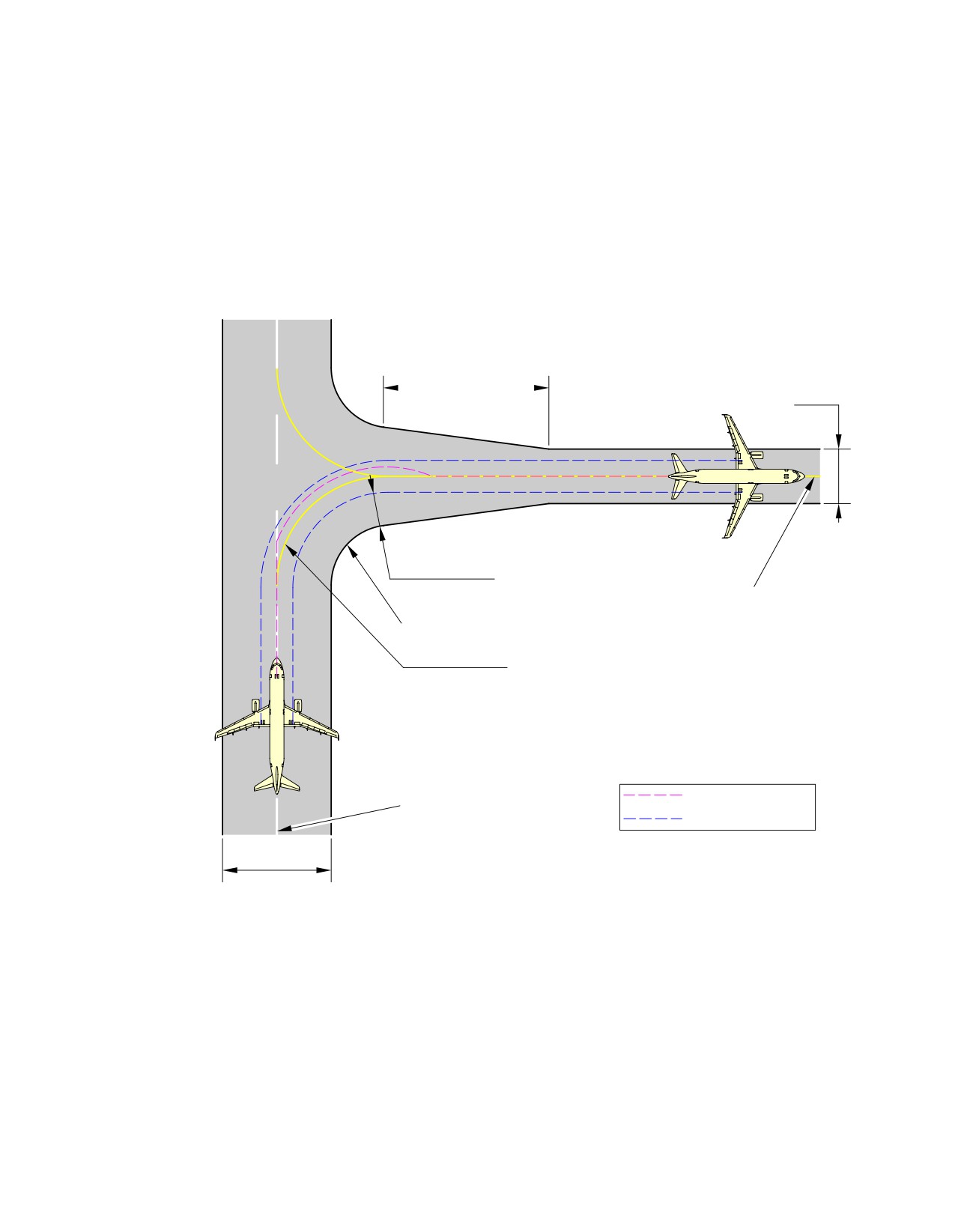

FAA GROUP III FACILITIES.

N_AC_040505_1_0020101_01_02

90˚ Turn - Taxiway to Taxiway

Cockpit Over Centerline Method (Sheet 1 of 2)

FIGURE-4-5-5-991-002-A01

Page 2

Dec 01/20

4-5-5

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

FAA LEAD−IN FILLET

L = 45 m (150 ft)

15 m

(50 ft)

APPROX 9 m

TAXIWAY CENTERLINE

(29 ft)

FILLET R = 16.5 m

(55 ft)

TURN R = 30 m

(100 ft)

TAXIWAY CENTERLINE

NLG PATH (CENTER)

MLG PATH (EDGE)

15 m

(50 ft)

NOTE:

FAA GROUP III FACILITIES.

N_AC_040505_1_0020102_01_01

90˚ Turn - Taxiway to Taxiway

Judgemental Oversteering Method (Sheet 2 of 2)

FIGURE-4-5-5-991-002-A01

Page 3

Dec 01/20

4-5-5

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

6.1 m

(20 ft)

90 m

61 m

(300 ft)

(200 ft)

12.2 m

(40 ft)

HOLDING POINT

6.1 m

(20 ft)

190 m

(625 ft)

TAXIWAY

CENTERLINE

RUNWAY CENTERLINE

23 m

45 m

(75 ft)

(150 ft)

NOTE: COORDINATE WITH USING AIRLINE FOR SPECIFIC PLANNED OPERATING PROCEDURES.

N_AC_040600_1_0030101_01_01

Runway Holding Bay (Apron)

FIGURE-4-6-0-991-003-A01

Page 2

Dec 01/20

4-6-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

4-7-0

Minimum Line-Up Distance Corrections

**ON A/C A320-200 A320neo

Minimum Line-Up Distance Corrections

The ground maneuvers were performed using asymmetric thrust and differential braking only to

initiate the turn.

TODA: Take-Off Distance Available

ASDA: Acceleration-Stop Distance Available

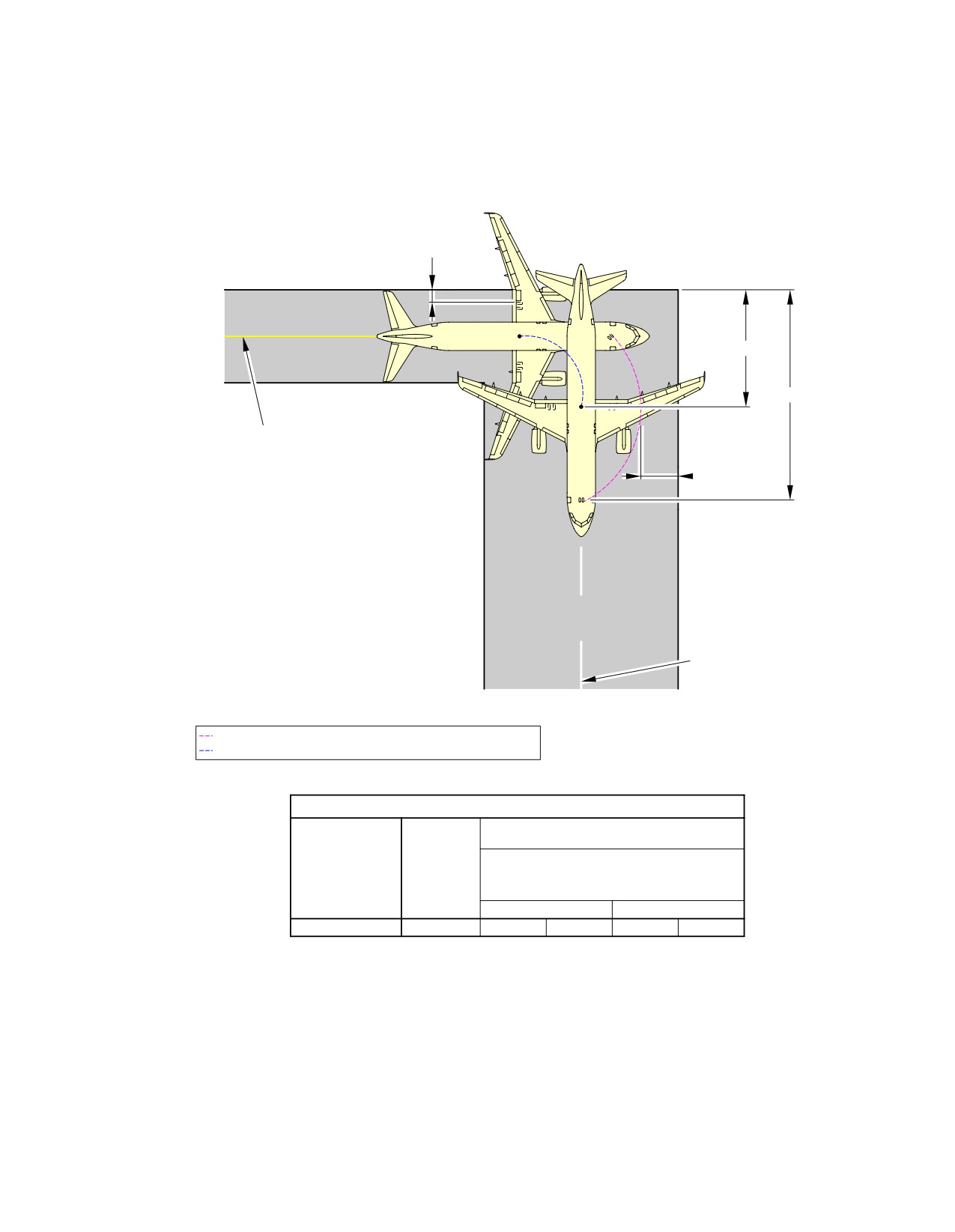

90˚ Turn on Runway Entry

This section gives the minimum line-up distance correction for a 90˚ turn on runway entry.

This maneuver consists in a 90˚ turn at minimum turn radius. It starts with the edge of the MLG at

a distance of 3 m (10 ft) from the taxiway edge, and finishes with the aircraft aligned on the

centerline of the runway, see FIGURE 4-7-0-991-023-A.

During the turn, all the clearances must meet the minimum value of 3 m (10 ft) for this category of

aircraft as recommended in ICAO Annex 14.

180˚ Turn on Runway Turn Pad

This section gives the minimum line-up distance correction for a 180˚ turn on the runway turn pad.

This maneuver consists in a 180˚ turn at minimum turn radius on a runway turn pad with standard

ICAO geometry.

It starts with the edge of the MLG at a distance of 3 m (10 ft) from the pavement edge, and it

finishes with the aircraft aligned on the centerline of the runway, see FIGURE 4-7-0-991-024-A.

During the turn, all the clearances must meet the minimum value of 3 m (10 ft) for this category of

aircraft as recommended in ICAO Annex 14.

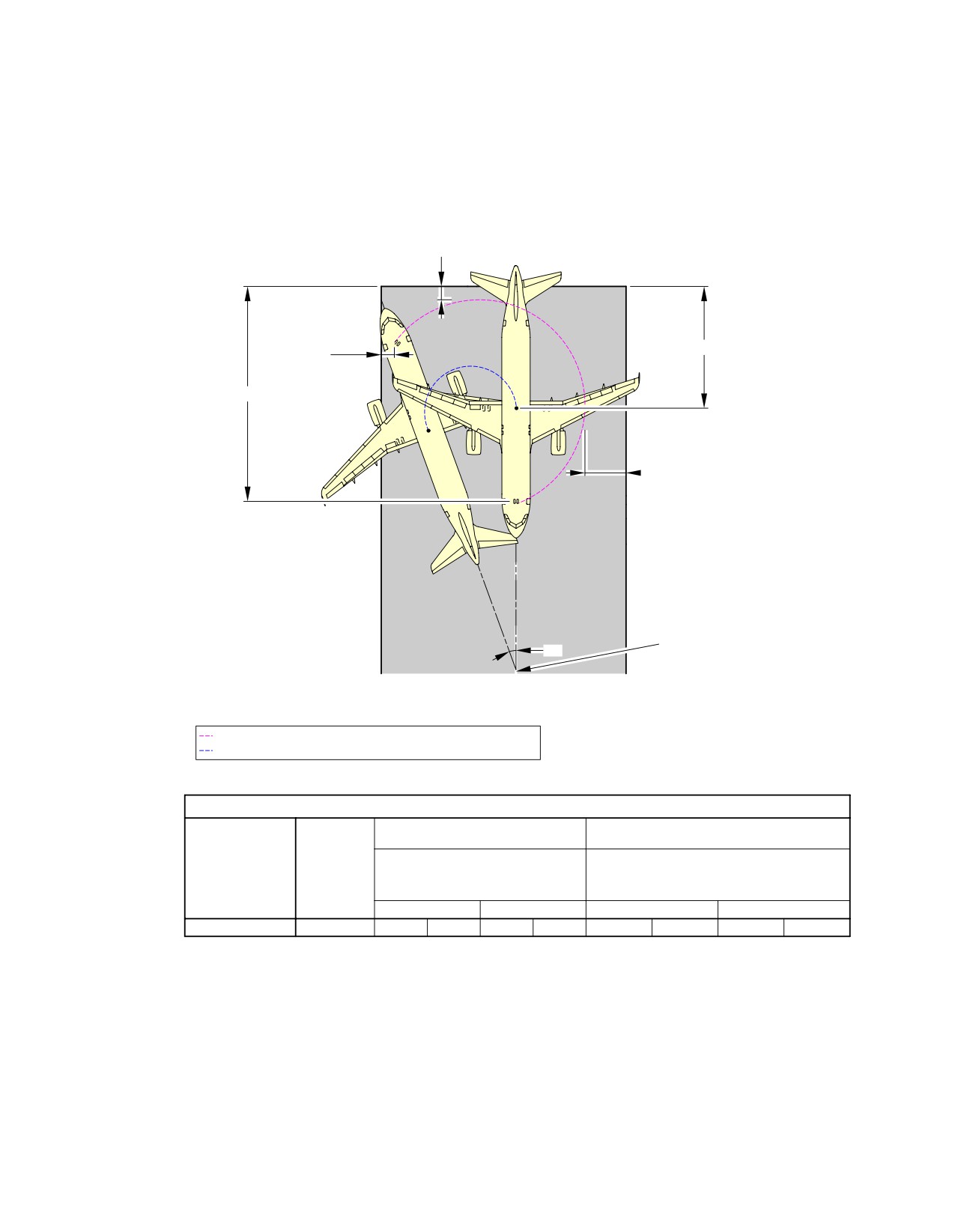

180˚ Turn on Runway Width

This section gives the minimum line-up distance correction for a 180˚ turn on the runway width.

For this maneuver, the pavement width is considered to be the runway width, which is a frozen

parameter (30 m (100 ft), 45 m (150 ft) and 60 m (200 ft)).

As per the standard operating procedures for the ”180˚ turn on runway” (described in the Flight

Crew Operating Manual), the aircraft is initially angled with respect to the runway centerline when

starting the 180˚ turn, see FIGURE 4-7-0-991-025-A.

The value of this angle depends on the aircraft type and is mentioned in the FCOM.

During the turn, all the clearances must meet the minimum value of 3 m (10 ft) for this category of

aircraft as recommended in ICAO Annex 14.

Page 1

Dec 01/20

4-7-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

3 m

(10 ft)

TODA

ASDA

TAXIWAY

CENTERLINE

> 3 m

(10 ft)

RUNWAY

CENTERLINE

ASDA: ACCELERATION−STOP DISTANCE AVAILABLE

TODA: TAKE−OFF DISTANCE AVAILABLE

90? TURN ON RUNWAY ENTRY

30 m (100 ft)/45 m (150 ft)/60 m (200 ft)

WIDE RUNWAY

MAX

AIRCRAFT

STEERING

MINIMUM LINE−UP

TYPE

ANGLE

DISTANCE CORRECTION

ON TODA

ON ASDA

A320

75?

11.7 m

38 ft

24.3 m

80 ft

N_AC_040700_1_0230101_01_00

Minimum Line-Up Distance Corrections

90˚ Turn on Runway Entry

FIGURE-4-7-0-991-023-A01

Page 2

Dec 01/20

4-7-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

MINIMUM PAVEMENT WIDTH

3 m

(10 ft)

> 3 m

(10 ft)

3 m

TODA

(10 ft)

ASDA

RUNWAY CENTERLINE

ASDA: ACCELERATION−STOP DISTANCE AVAILABLE

TODA: TAKE−OFF DISTANCE AVAILABLE

180? TURN ON RUNWAY TURN PAD

30 m (100 ft)/45 m (150 ft)/60 m (200 ft)

WIDE RUNWAY

MAX

AIRCRAFT

MINIMUM LINE−UP

STEERING

REQUIRED

TYPE

DISTANCE

MINIMUM

ANGLE

CORRECTION

PAVEMENT

WIDTH

ON TODA

ON ASDA

A320

75?

16.7 m

55 ft

29.3 m

96 ft

30.8 m

101 ft

N_AC_040700_1_0240101_01_00

Minimum Line-Up Distance Corrections

180˚ Turn on Runway Turn Pad

FIGURE-4-7-0-991-024-A01

Page 3

Dec 01/20

4-7-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

3 m

(10 ft)

3 m

TODA

(10 ft)

ASDA

> 3 m

(10 ft)

RUNWAY CENTERLINE

25?

ASDA: ACCELERATION−STOP DISTANCE AVAILABLE

TODA: TAKE−OFF DISTANCE AVAILABLE

180? TURN ON RUNWAY WIDTH

30 m (100 ft)

45 m (150 ft)/60 m (200 ft)

WIDE RUNWAY

MAX

AIRCRAFT

STEERING

MINIMUM LINE−UP

TYPE

ANGLE

DISTANCE CORRECTION

ON TODA

ON ASDA

ON TODA

ON ASDA

A320

75?

21.3 m

70 ft

33.9 m

111 ft

16.7 m

55 ft

29.3 m

96 ft

N_AC_040700_1_0250101_01_00

Minimum Line-Up Distance Corrections

180˚ Turn on Runway Width

FIGURE-4-7-0-991-025-A01

Page 4

Dec 01/20

4-7-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

TERMINAL SERVICING

5-1-1

Aircraft Servicing Arrangements

**ON A/C A320-200 A320neo

Aircraft Servicing Arrangements

This section provides typical ramp layouts, showing the various GSE items in position during typical

turn-round scenarios.

These ramp layouts show typical arrangements only. Each operator will have its own specific

requirements/regulations for positioning and operation on the ramp.

This table gives the symbols used on servicing diagrams.

Ground Support Equipment

AIR CONDITIONING UNIT

AIR START UNIT

BULK

BULK TRAIN

CAT

CATERING TRUCK

CONVEYOR BELT

CLEAN

CLEANING TRUCK

FUEL

FUEL HYDRANT DISPENSER or TANKER

GPU

GROUND POWER UNIT

LDCL

LOWER DECK CARGO LOADER

LAVATORY VEHICLE

PBB

PASSENGER BOARDING BRIDGE

PASSENGER STAIRS

TOW

TOW TRACTOR

ULD

ULD TRAIN

POTABLE WATER VEHICLE

Page 1

Dec 01/20

5-1-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-1-2

Typical Ramp Layout - Open Apron

**ON A/C A320-200 A320neo

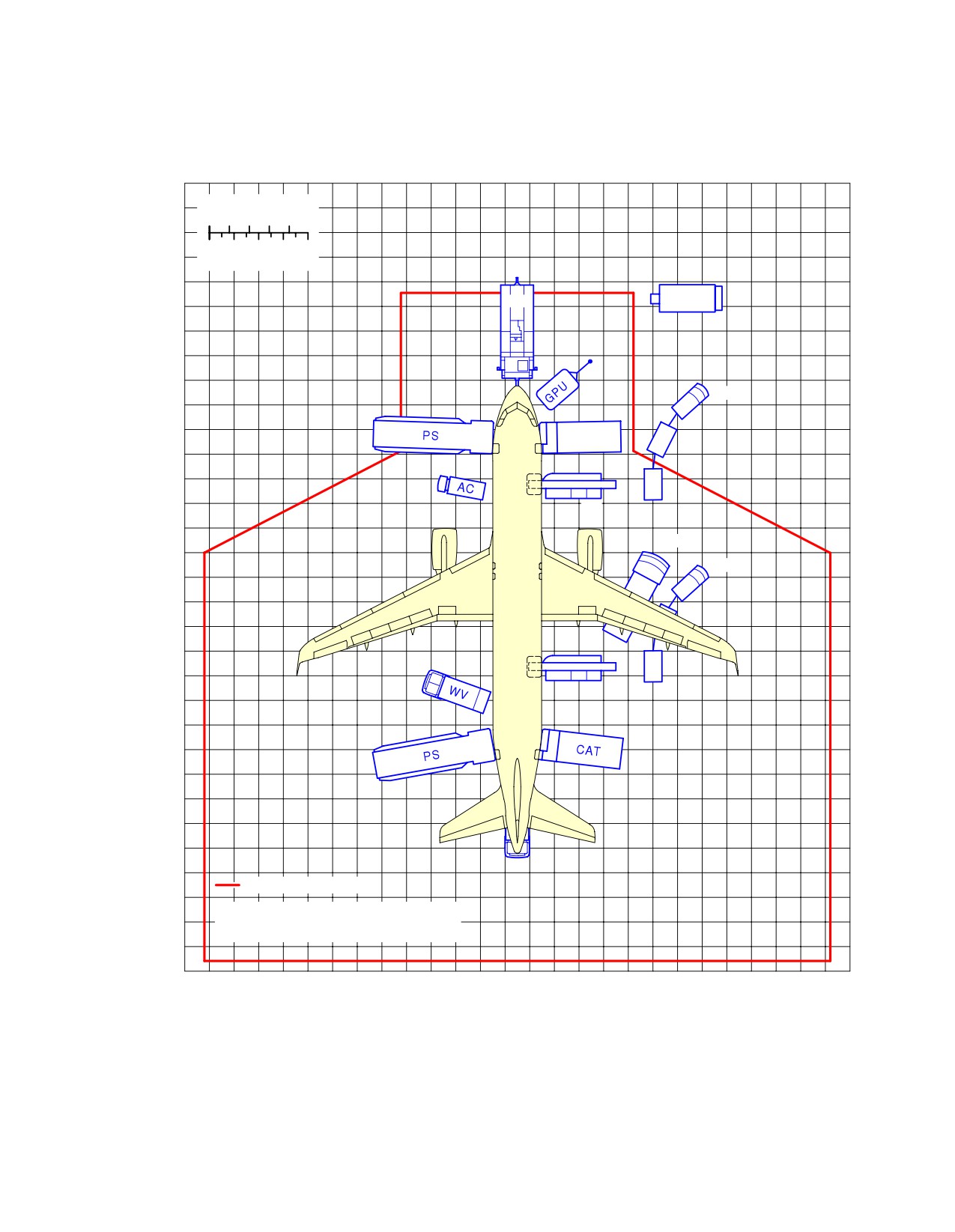

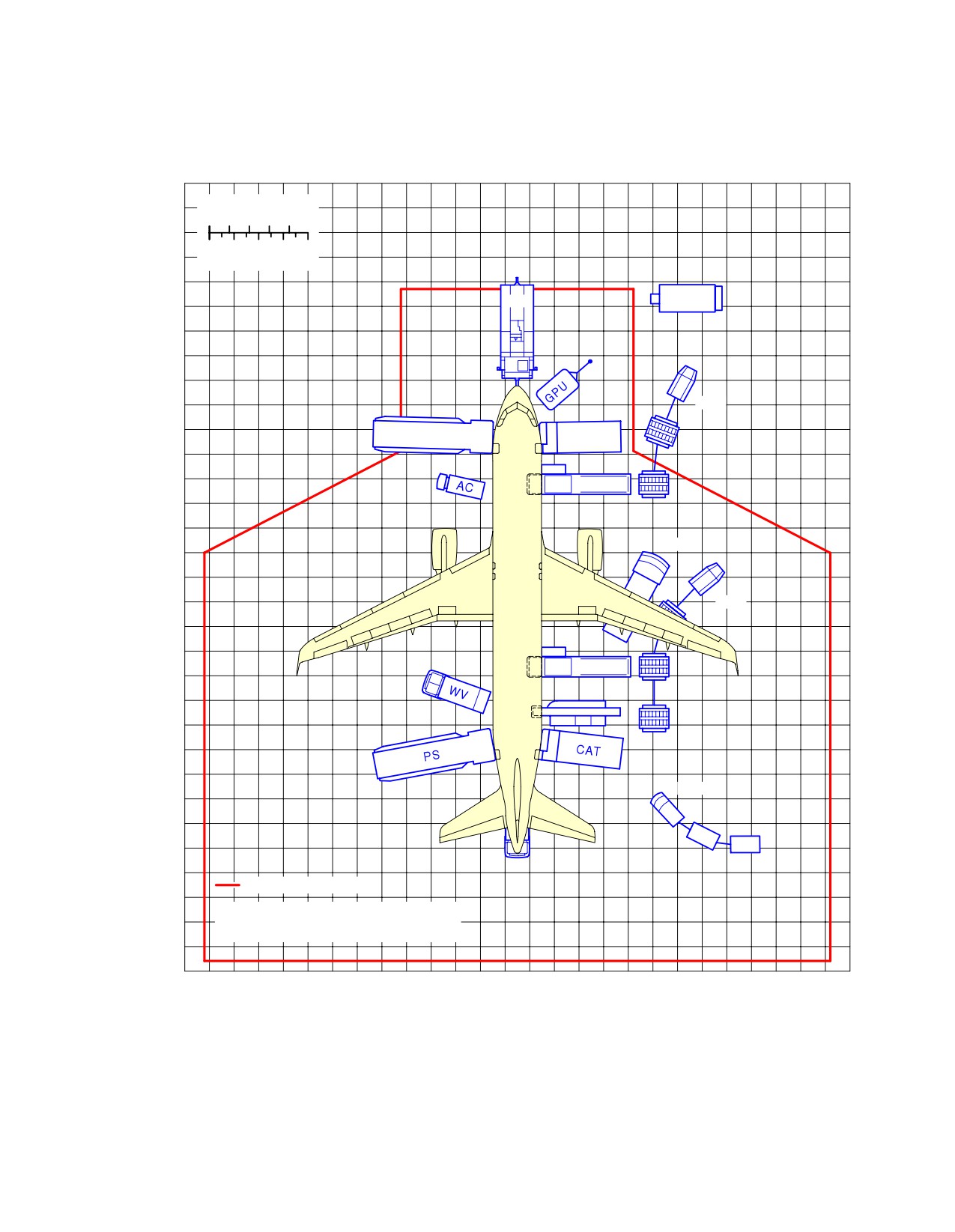

Typical Ramp Layout - Open Apron

This section gives the typical servicing arrangement for pax version (Open Apron).

The Stand Safety Line delimits the Aircraft Safety Area (minimum distance of 7.5 m from the

aircraft). No vehicle must be parked in this area before complete stop of the aircraft (wheel chocks in

position on landing gears).

Page 1

Dec 01/20

5-1-2

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-1-3

Typical Ramp Layout - Gate

**ON A/C A320-200 A320neo

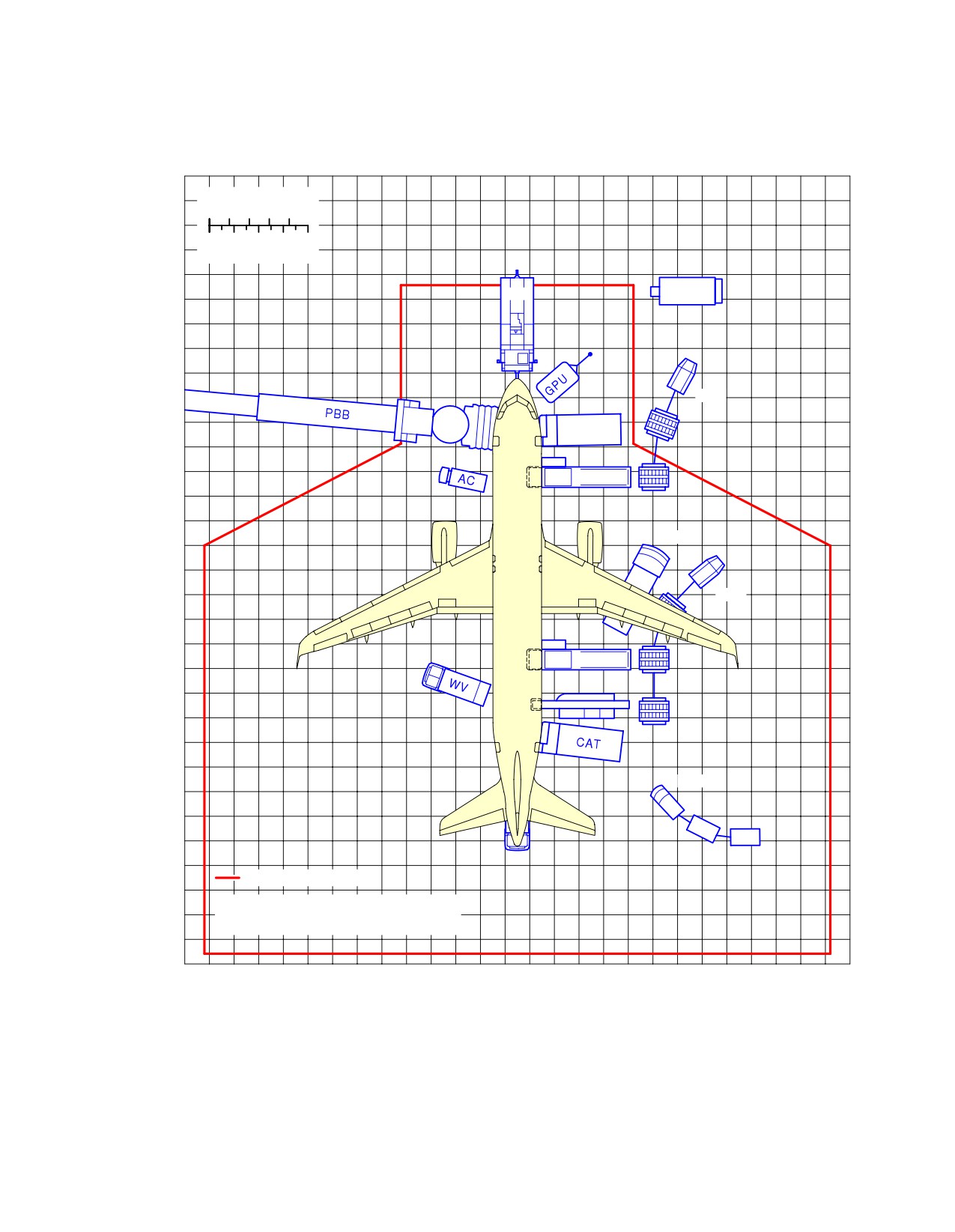

Typical Ramp Layout - Gate

This section gives the typical servicing arrangement for pax version (Passenger Bridge).

The Stand Safety Line delimits the Aircraft Safety Area (minimum distance of 7.5 m from the

aircraft). No vehicle must be parked in this area before complete stop of the aircraft (wheel chocks in

position on landing gears).

Page 1

Dec 01/20

5-1-3

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-2-0

Terminal Operations - Full Servicing Turn Round Time Chart

**ON A/C A320-200 A320neo

Terminal Operations - Full Servicing Turn Round Time

This section provides a typical turn round time chart showing the typical time for ramp activities

during aircraft turn round.

Actual times may vary due to each operator’s specific practices, resources, equipment and operating

conditions.

Assumptions used for full servicing turn round time chart

PASSENGER HANDLING

150 pax: 12 F/C + 138 Y/C.

All passengers deplane and board the aircraft.

1 Passenger Boarding Bridge (PBB) used at door 1L.

Equipment positioning + opening door = +2 min.

Closing door + equipment removal = +1.5 min.

No Passenger with Reduced Mobility (PRM) on board.

Deplaning:

150 pax at door 1L

Deplaning rate = 20 pax/min per door

Priority deplaning for premium passengers.

Boarding:

150 pax at door 1L

Boarding rate = 12 pax/min per door

Last Pax Seating allowance (LPS) + headcounting = +2

min.

CARGO

2 cargo loaders + 1 belt loader.

Opening door + equipment positioning = +2 min.

Equipment removal + closing door = +1.5 min.

100% cargo exchange (baggage only):

FWD cargo compartment: 3 containers

AFT cargo compartment: 4 containers

Bulk compartment: 500 kg (1 102 lb).

Container unloading/loading times:

Unloading = 1.5 min/container

Loading = 1.5 min/container.

Bulk unloading/loading times:

Page 1

Dec 01/20

5-2-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

Unloading = 150 kg/min (331 lb/min)

Loading = 120 kg/min (265 lb/min).

REFUELING

Uplifted quantity: 20 000 l (5 283 US gal) at 50 psig (3.45 bars-rel), one hose (right wing).

Truck positioning/removal + connection/disconnection times = +2.5

min.

No refuel with pax on board

CLEANING

Cleaning is performed in available time.

CATERING

1 catering truck for servicing galleys sequentially at doors 1R and 4R.

Equipment positioning + opening door = +2 min.

Closing door + equipment removal = +1.5 min.

Time to drive from one door to the other = +2 min.

Full Size Trolley Equivalent (FSTE) to unload and load: 11 FSTE

4 FSTE at door 1R

7 FSTE at door 4R.

Time for trolley exchange = 1.2 min per FSTE.

GROUND HANDLING/GENERAL SERVICING

Start of operations:

Bridges/stairs: t0 = 0

Other equipment: t = t0

Ground Power Unit (GPU): up to 90 kVA.

Air conditioning: one hose.

Toilet servicing: draining + rinsing.

Potable water servicing: 100% uplift, 200 l (53 US gal).

Page 2

Dec 01/20

5-2-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

DEPLANING/BOARDING AT DOOR 1L

LPS + HEADCOUNTING

SECURITY/SAFETY CHECKS

CATERING AT DOOR 1R

CATERING AT DOOR 4R

CLEANING

CARGO AFT CC

CARGO BULK CC

CARGO FWD CC

REFUELING

WASTE WATER SERVICING

POTABLE WATER SERVICING

GSE POSITIONING/REMOVAL

ACTIVITY

CRITICAL PATH

N_AC_050200_1_0060101_01_04

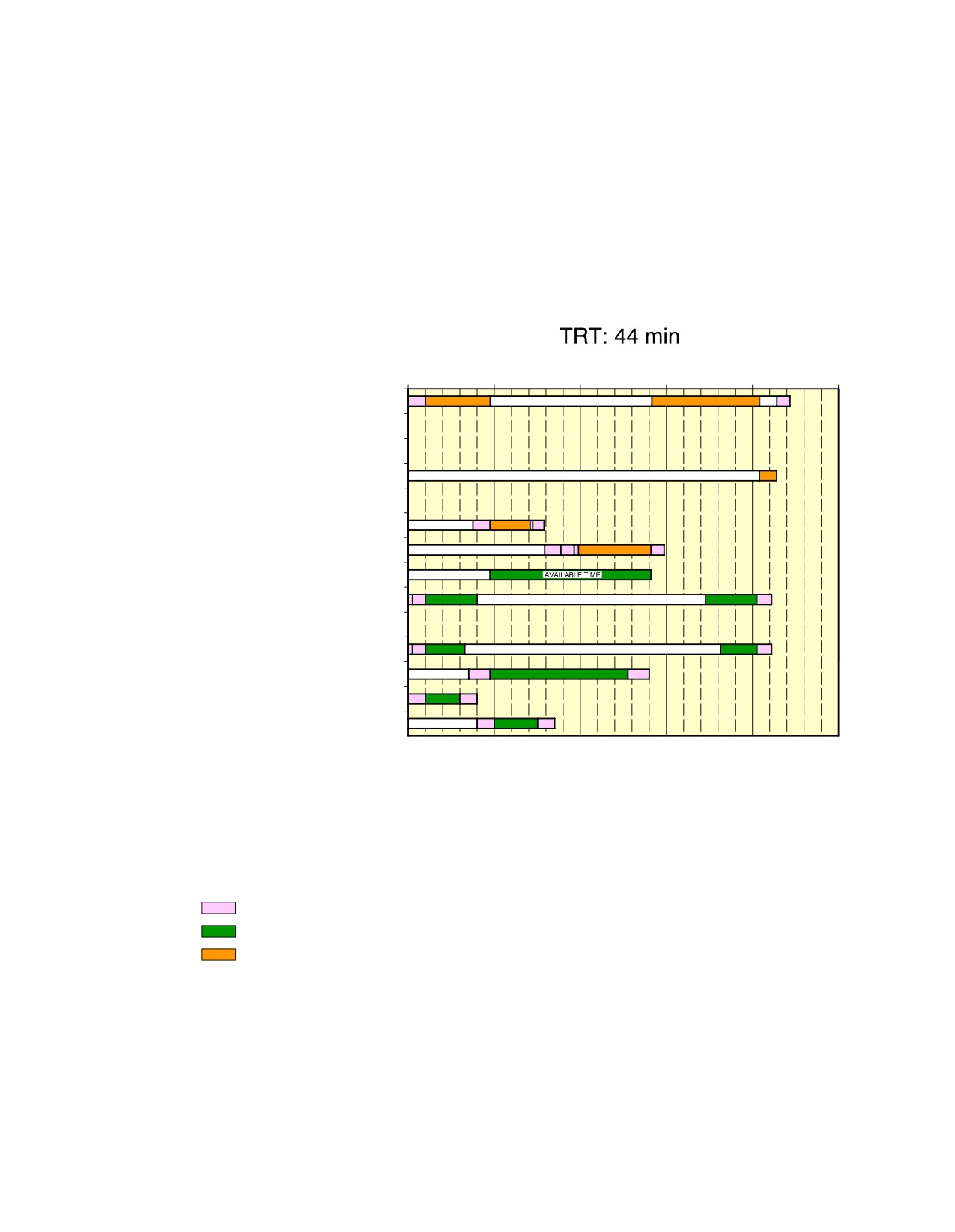

Full Servicing Turn Round Time Chart

FIGURE-5-2-0-991-006-A01

Page 3

Dec 01/20

5-2-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-3-0

Terminal Operation - Outstation Turn Round Time Chart

**ON A/C A320-200 A320neo

Terminal Operations - Outstation Turn Round Time

This section provides a typical turn round time chart showing the typical time for ramp activities

during aircraft turn round.

Actual times may vary due to each operator’s specific practices, resources, equipment and operating

conditions.

Assumptions used for outstation turn round time chart

PASSENGER HANDLING

180 pax (all Y/C).

All passengers deplane and board the aircraft.

2 stairways used at doors 1L and 4L.

Equipment positioning + opening door = +2 min.

Closing door + equipment removal = +1.5 min.

No Passenger with Reduced Mobility (PRM) on board.

Deplaning:

90 pax at door 1L

90 pax at door 4L

Deplaning rate = 18 pax/min per door.

Boarding:

90 pax at door 1L

90 pax at door 4L

Boarding rate = 12 pax/min per door

Last Pax Seating allowance (LPS) + headcounting = +2

min.

CARGO

2 cargo loaders.

Opening door + equipment positioning = +2 min.

Equipment removal + closing door = +1.5 min.

100% cargo exchange:

FWD cargo compartment: 3 containers

AFT cargo compartment: 4 containers.

Container unloading/loading times:

Unloading = 1.5 min/container

Loading = 1.5 min/container.

REFUELING

No refueling.

Page 1

Dec 01/20

5-3-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

D. CLEANING

Cleaning is performed in available time.

E. CATERING

One catering truck for servicing the galleys as required.

F. GROUND HANDLING/GENERAL SERVICING

Start of operations:

Bridges/stairs: t0 = 0

Other equipment: t = t0.

Ground Power Unit (GPU): up to 90 kVA.

Air conditioning: one hose.

No toilet servicing.

No potable water servicing.

Page 2

Dec 01/20

5-3-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

DEPLANING/BOARDING AT DOOR 1L

DEPLANING/BOARDING AT DOOR 4L

LPS + HEADCOUNTING

SECURITY/SAFETY CHECKS

CATERING AT DOOR 1R

CATERING AT DOOR 4R

CLEANING

CARGO AFT CC

CARGO BULK CC

CARGO FWD CC

REFUELING

WASTE WATER SERVICING

POTABLE WATER SERVICING

GSE POSITIONING/REMOVAL

ACTIVITY

CRITICAL PATH

N_AC_050300_1_0030101_01_05

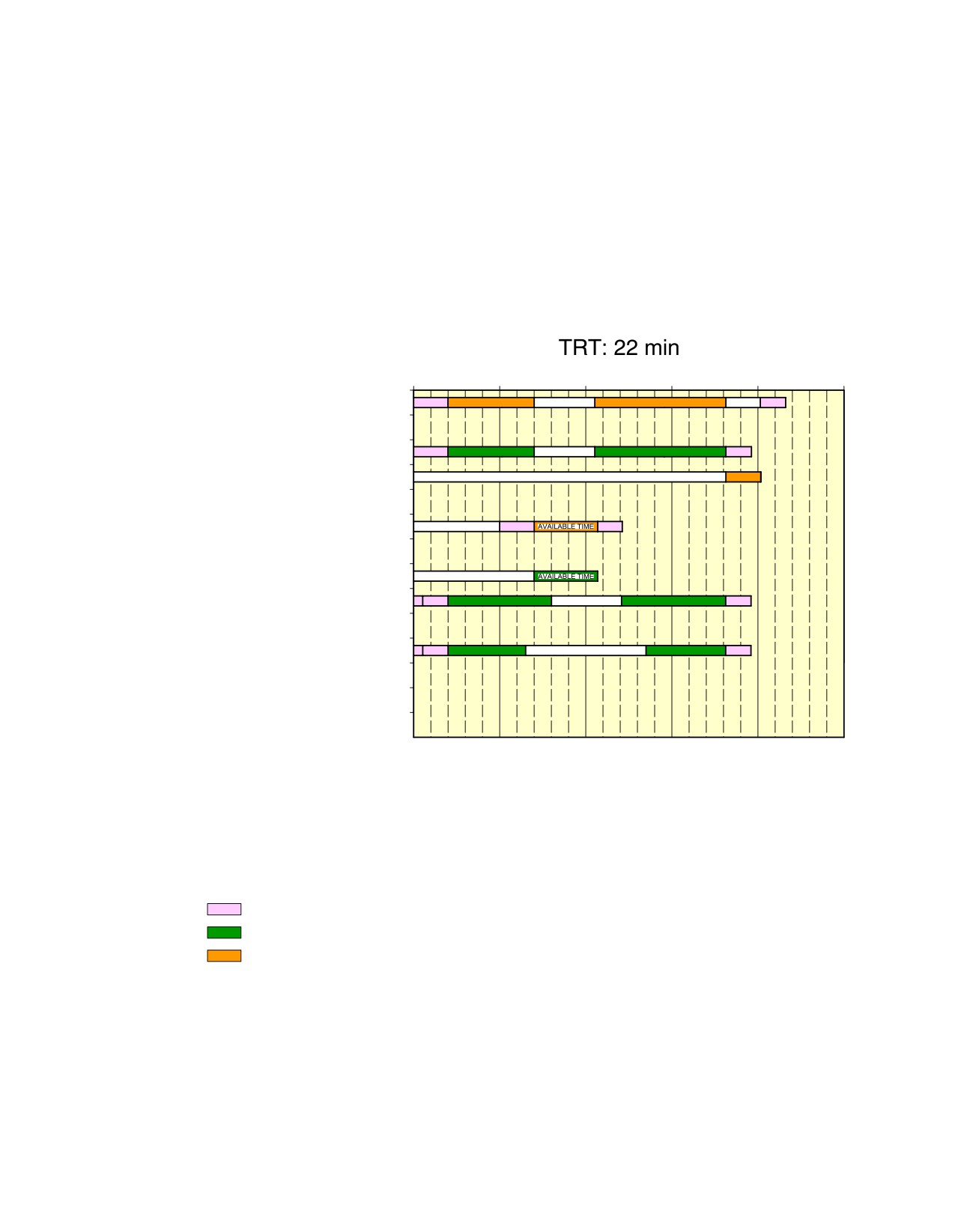

Outstation Turn Round Time Chart

FIGURE-5-3-0-991-003-A01

Page 3

Dec 01/20

5-3-0

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

**ON A/C A320-200 A320neo

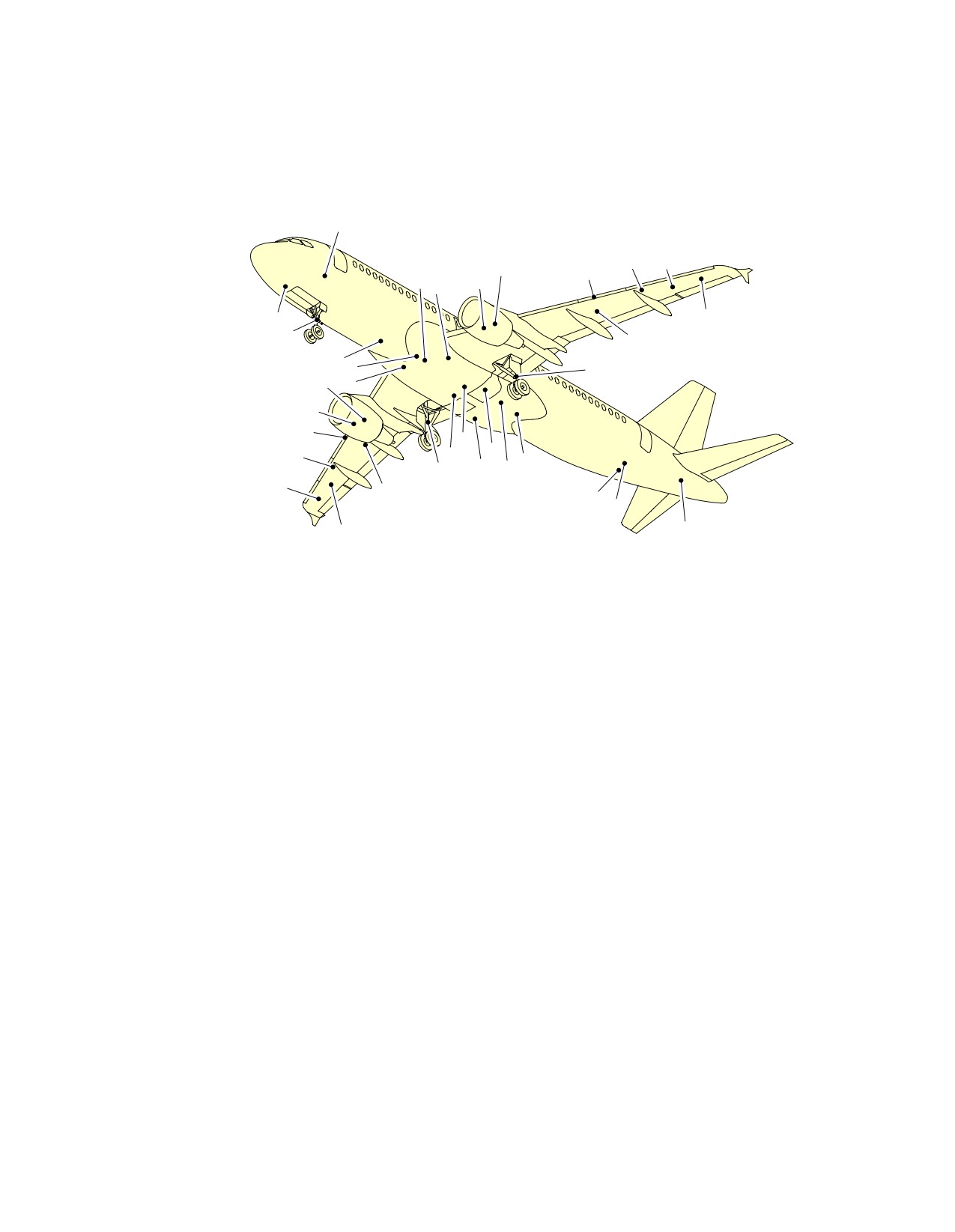

1 − GROUND ELECTRICAL POWER

13 − OVERWING REFUEL (IF INSTALLED)

CONNECTOR

14 − NACA VENT INTAKE

2 − OXYGEN SYSTEM

15 − YELLOW HYDRAULIC−SYSTEM SERVICE PANEL

3 − NLG GROUNDING (EARTHING) POINT

16 − BLUE HYDRAULIC−SYSTEM SERVICE PANEL

4 − POTABLE WATER DRAIN PANEL (OPTIONAL)

17 − ACCUMULATOR CHARGING (GREEN SYSTEM)

AND RESERVOIR DRAIN (GREEN SYSTEM)

5 − POTABLE WATER DRAIN PANEL

6 − LOW PRESSURE AIR PRE−CONDITIONING

18 − GREEN HYDRAULIC−SYSTEM SERVICE PANEL

7 − HIGH PRESSURE AIR PRE−CONDITIONING

19 − MLG GROUNDING (EARTHING) POINT

8 − REFUEL/DEFUEL INTEGRATED PANEL

20 − WASTE WATER SERVICE PANEL

9 − IDG/STARTER OIL SERVICING

21 − POTABLE WATER SERVICE PANEL

10 − ENGINE OIL SERVICING

22 − APU OIL SERVICING

11 − OVERPRESSURE PROTECTOR

12 − REFUEL/DEFUEL COUPLINGS

(OPTIONAL−LH WING)

N_AC_050401_1_0050101_01_02

Ground Service Connections Layout

FIGURE-5-4-1-991-005-A01

Page 2

Dec 01/20

5-4-1

@A320

AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING

5-4-2

Grounding Points

**ON A/C A320-200 A320neo

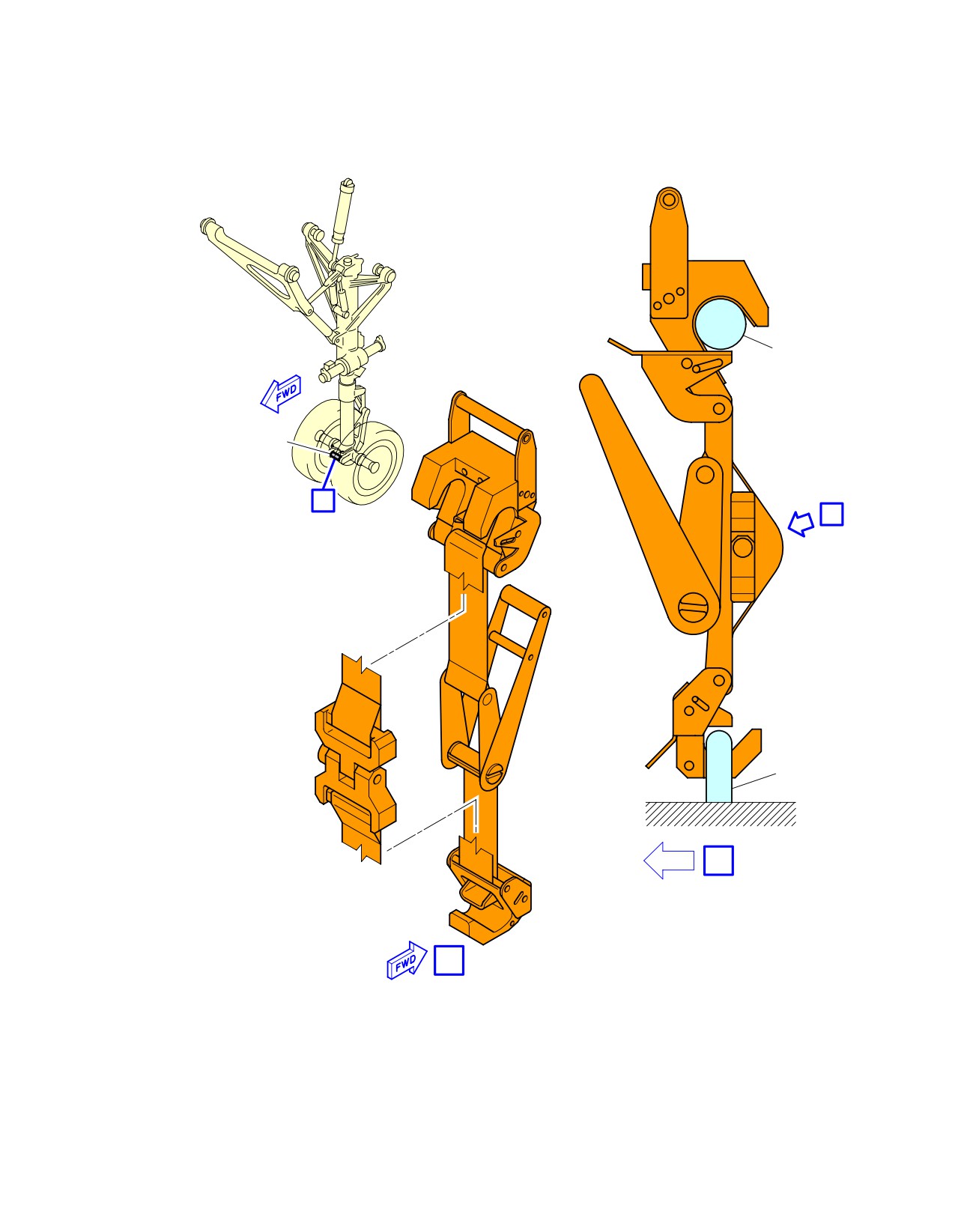

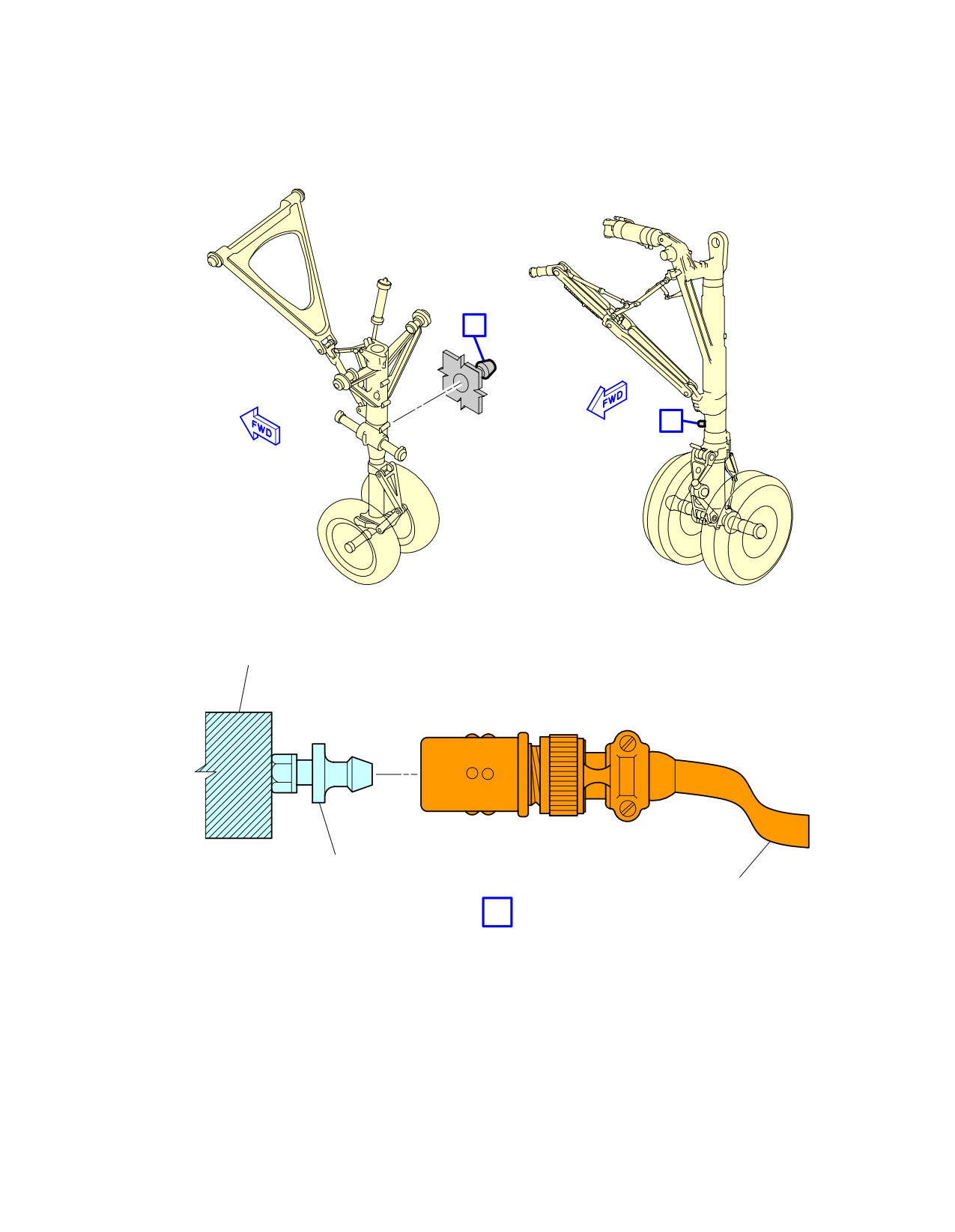

Grounding (Earthing) Points

DISTANCE

FROM AIRCRAFT CENTERLINE MEAN HEIGHT

AFT OF NOSE

FROM

LH SIDE

RH SIDE

GROUND

On Nose Landing Gear

5.07 m

0.94 m

On Centerline

leg:

(16.63 ft)

(3.08 ft)

On left Main Landing

20.25 m

3.79 m

1.07 m

Gear leg:

(66.44 ft)

(12.43 ft)

(3.51 ft)

On right Main Landing

20.25 m

3.79 m

1.07 m

Gear leg:

(66.44 ft)

(12.43 ft)

(3.51 ft)

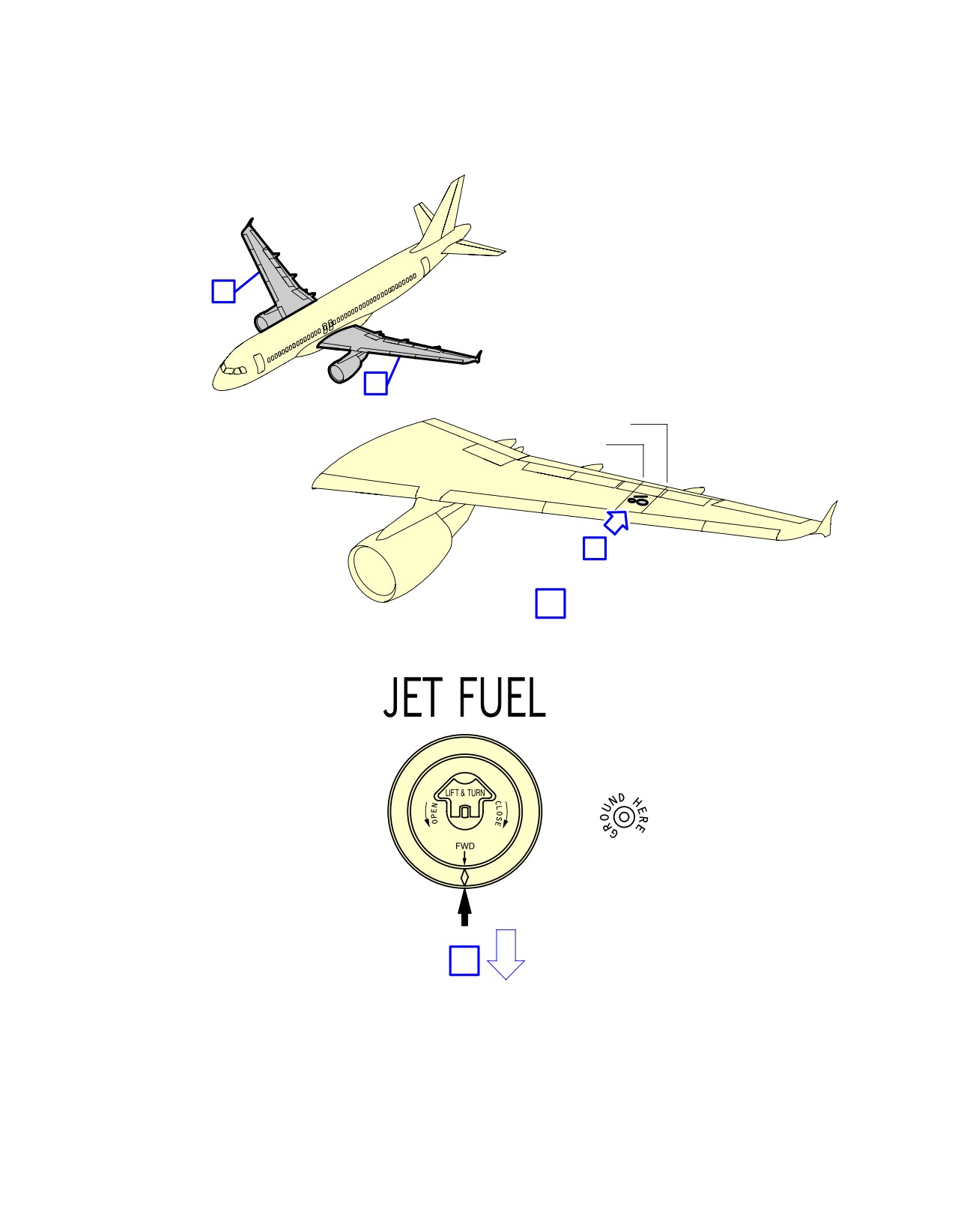

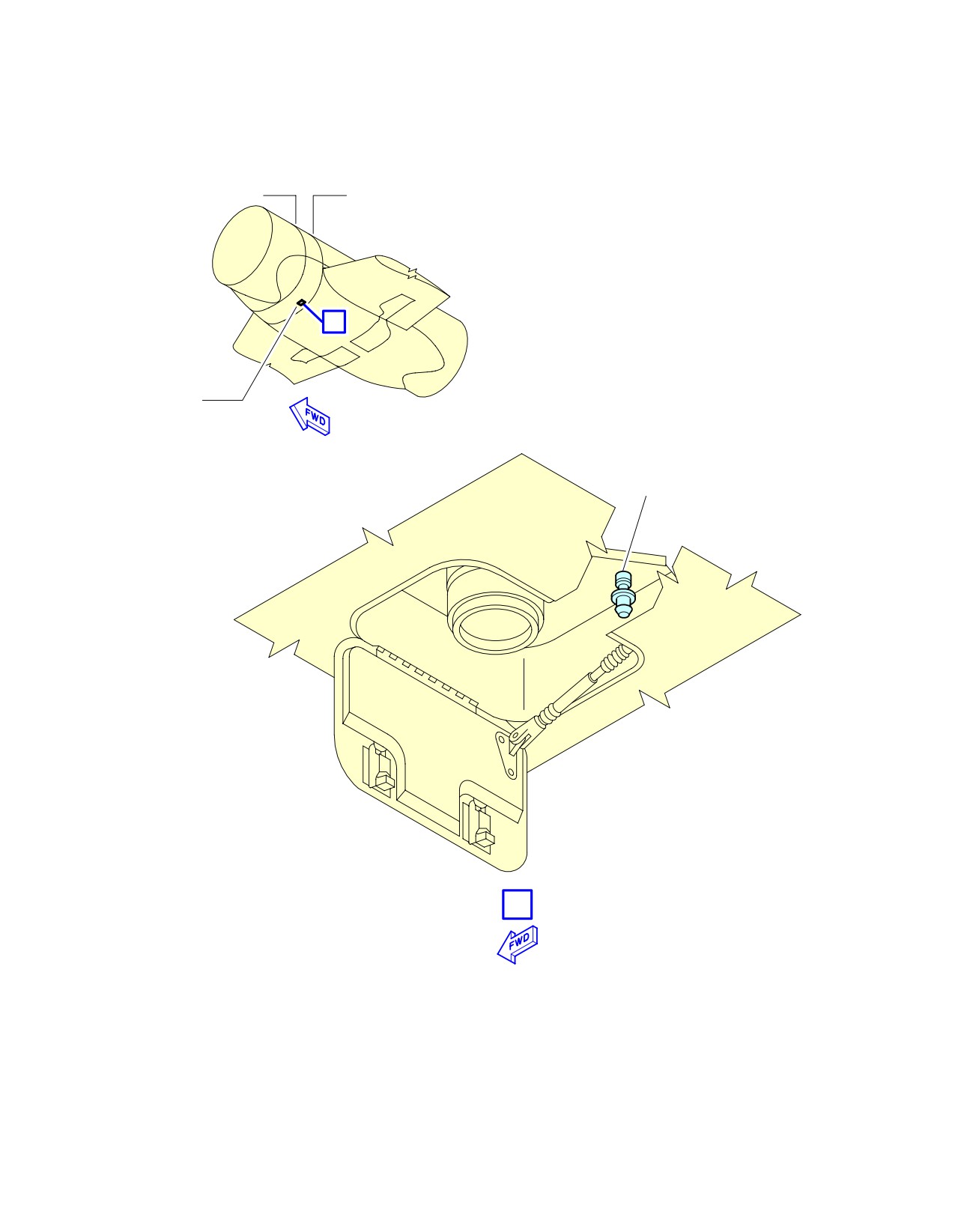

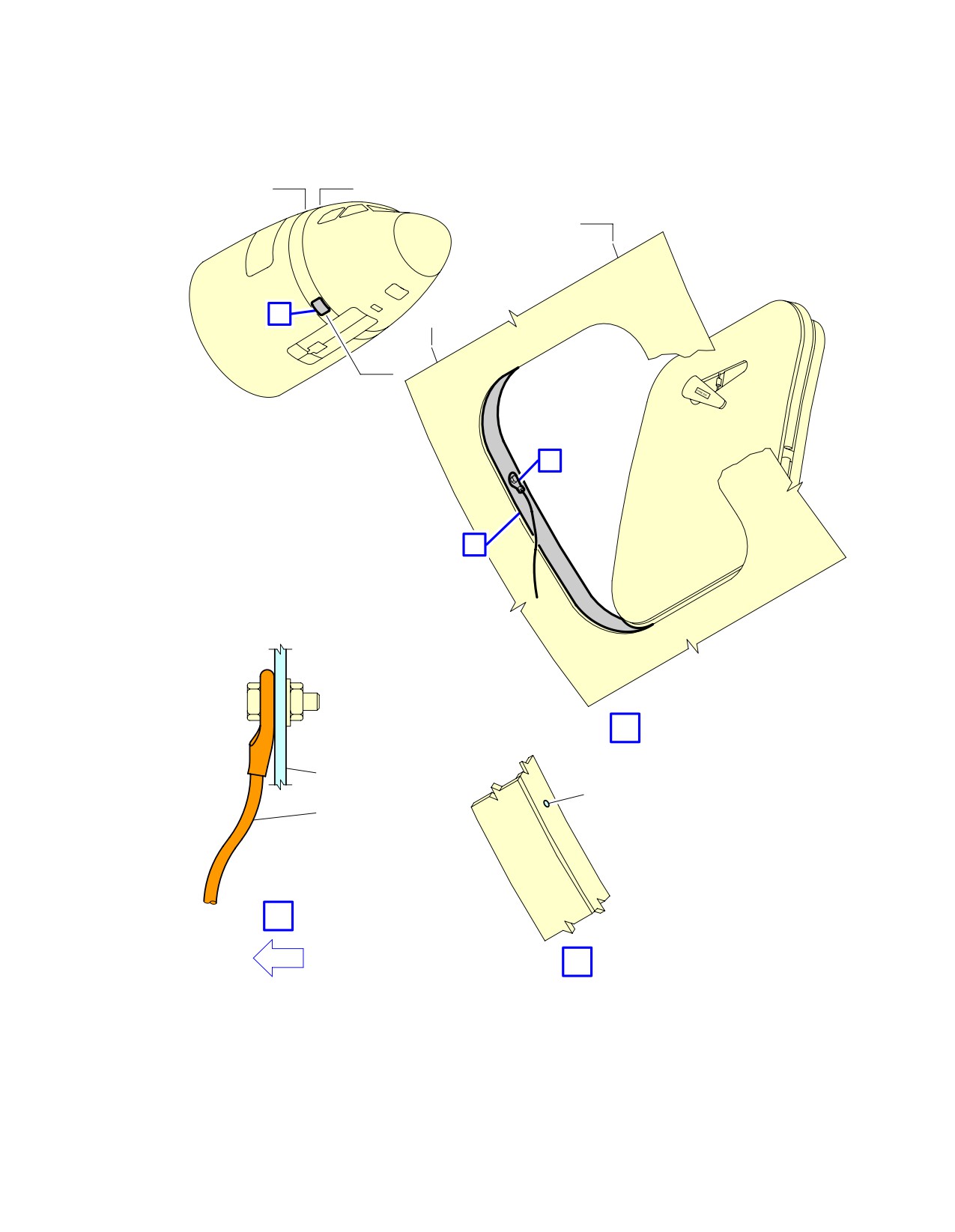

A. The grounding (earthing) stud on each landing gear leg is designed for use with a clip-on

connector (such as Appleton TGR).

B. The grounding (earthing) studs are used to connect the aircraft to an approved ground (earth)

connection on the ramp or in the hangar for:

Refuel/defuel operations,

Maintenance operations,

Bad weather conditions.

NOTE : In all other conditions, the electrostatic discharge through the tire is sufficient.

If the aircraft is on jacks for retraction and extension checks or for the

removal/installation of the landing gear, the grounding (earthing) alternative points (if

installed) are:

In the hole on the avionics-compartment lateral right door-frame (on FR14),

On the engine nacelles,

Adjacent to the high-pressure connector,

On the wing upper surfaces.

Page 1

Dec 01/20

5-4-2

Airbus A320. AIRCRAFT CHARACTERISTICS AIRPORT AND MAINTENANCE PLANNING (2016-2023) - page 12
