Airbus A320. AIRCRAFT CHARACTERISTICS AIRPORT AND MAINTENANCE PLANNING (2016-2023) - page 7
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
R = 4.6 m
1.5 m
(15 ft)
(5 ft)
45°
6.1 m
(20 ft)
30°
TO 55 m (180 ft) INCLUDES CROSS WIND EFFECT
NOTE:
INLET SUCTION
EXHAUST WAKE DANGER AREA
DANGER AREA
65 mph (105 km/h) OR GREATER
EXHAUST WAKE DANGER AREA
ENTRY CORRIDOR
65 mph (105 km/h) OR LESS
N_AC_060301_1_0050101_01_02
Danger Areas of the Engines
CFM56 Series Engine
FIGURE-6-3-1-991-005-A01
Page 2
May 01/16
6-3-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
R = 4.6 m
(15 ft)
0.76 m
(2.5 ft)
30°
TO 235 m (770 ft) AFT OF COMMON NOZZLE ASSEMBLY (CNA)
NOTE:
INTAKE SUCTION DANGER AREA MINIMUM IDLE POWER
ENTRY CORRIDOR
EXHAUST DANGER AREA
N_AC_060301_1_0060101_01_01
Danger Areas of the Engines
IAE V2500 Series Engine
FIGURE-6-3-1-991-006-A01
Page 3
May 01/16
6-3-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
R = 2.9 m
1 m
(9.5 ft)
(3.3 ft)
30°
TO 38.7 m (127 ft) AFT OF COMMON NOZZLE ASSEMBLY (CNA)
NOTE:
INTAKE SUCTION DANGER AREA MINIMUM IDLE POWER
ENTRY CORRIDOR
EXHAUST DANGER AREA
N_AC_060301_1_0130101_01_00
Danger Areas of the Engines
CFM LEAP-1A Engine
FIGURE-6-3-1-991-013-A01
Page 4
May 01/16
6-3-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
R = 2.8 m
1 m
(9ft)
(3.3 ft)
30°
TO 40.3 m (132 ft) AFT OF COMMON NOZZLE ASSEMBLY (CNA)
NOTE:
INTAKE SUCTION DANGER AREA MINIMUM IDLE POWER
ENTRY CORRIDOR
EXHAUST DANGER AREA
N_AC_060301_1_0140101_01_00
Danger Areas of the Engines
PW 1100G Engine
FIGURE-6-3-1-991-014-A01
Page 5
May 01/16
6-3-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
6-3-2
Takeoff Power
**ON A/C A320-200 A320neo
Takeoff Power
1.
This section provides danger areas of the engines at max. takeoff conditions.
Page 1
May 01/16
6-3-2
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
R = 5.9 m
(19.5 ft)
1.8 m
(6 ft)
40°
30°
TO 150 m (500 ft) AFT
OF FAN NOZZLE
EXHAUST WAKE DANGER
INLET SUCTION DANGER AREA
AREA 65 MPH (105 km/h)
OR LESS
EXHAUST WAKE DANGER
AREA 65 MPH (105 km/h)
OR GREATER
N_AC_060302_1_0050101_01_01
Danger Areas of the Engines
CFM56 Series Engine
FIGURE-6-3-2-991-005-A01
Page 2
May 01/16
6-3-2
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
R = 5.18 m
(17 ft)
1.5 m
(5 ft)
30°
TO 348 m (1150 ft) AFT OF COMMON NOZZLE ASSEMBLY (CNA)
NOTE:
INTAKE SUCTION DANGER AREA MAX. TAKEOFF POWER
ENTRY CORRIDOR
EXHAUST DANGER AREA
N_AC_060302_1_0060101_01_01
Danger Areas of the Engines
IAE V2500 Series Engine
FIGURE-6-3-2-991-006-A01
Page 3
May 01/16
6-3-2
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
R = 10 m
(32.8 ft)
1.6 m
(5.2 ft)
30°
TO 220.7 m (724 ft) AFT OF COMMON NOZZLE ASSEMBLY (CNA)
NOTE:
INTAKE SUCTION DANGER AREA MAX. TAKEOFF POWER
EXHAUST DANGER AREA
N_AC_060302_1_0110101_01_00
Danger Areas of the Engines
CFM LEAP-1A Engine
FIGURE-6-3-2-991-011-A01
Page 4
May 01/16
6-3-2
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
R = 6.1 m
(20 ft)
3.1 m
(10 ft)
30°
TO 243 m (797.4 ft) AFT OF COMMON NOZZLE ASSEMBLY (CNA)
NOTE:
INTAKE SUCTION DANGER AREA MAX. TAKEOFF POWER
EXHAUST DANGER AREA
N_AC_060302_1_0120101_01_00
Danger Areas of the Engines
PW 1100G Engine
FIGURE-6-3-2-991-012-A01
Page 5
May 01/16
6-3-2
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
6-4-1
APU
**ON A/C A320-200 A320neo
APU - APIC & GARRETT
1.
This section gives APU exhaust velocities and temperatures.
Page 1
May 01/16
6-4-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
300°C
200°C
150°C
120°C
100°C
80°C
572°F
392°F
302°F
248°F
212°F
176°F
METERS
0
PLAN
5
10
15
20
25
FEET
0
16.404
32.808
49.212
65.616
82.02
HEIGHT
45 m/s
30 m/s
20 m/s
10 m/s
5 m/s
147 ft/s
98 ft/s
m
ft
65 ft/s
32 ft/s
16 ft/s
10
32.808
5
16.404
METERS
0
0
0
5
10
15
20
ELEVATION
FEET
0
16.404
32.808
49.212
65.616
N_AC_060401_1_0030101_01_00
Exhaust Velocities and Temperatures
APU -- APIC & GARRETT
FIGURE-6-4-1-991-003-A01
Page 2
May 01/16
6-4-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
PAVEMENT DATA
7-1-0
General Information
**ON A/C A320-200 A320neo
General Information
1.
A brief description of the pavement charts that follow will help in airport planning.
To aid in the interpolation between the discrete values shown, each aircraft configuration is shown
with a minimum range of five loads on the Main Landing Gear (MLG).
All curves on the charts represent data at a constant specified tire pressure with:
-
The aircraft loaded to the Maximum Ramp Weight (MRW),
-
The CG at its maximum permissible aft position.
Pavement requirements for commercial aircraft are derived from the static analysis of loads imposed
on the MLG struts.
Landing Gear Footprint:
Section 07-02-00 presents basic data on the landing gear footprint configuration, MRW and tire sizes
and pressures.
Maximum Pavement Loads:

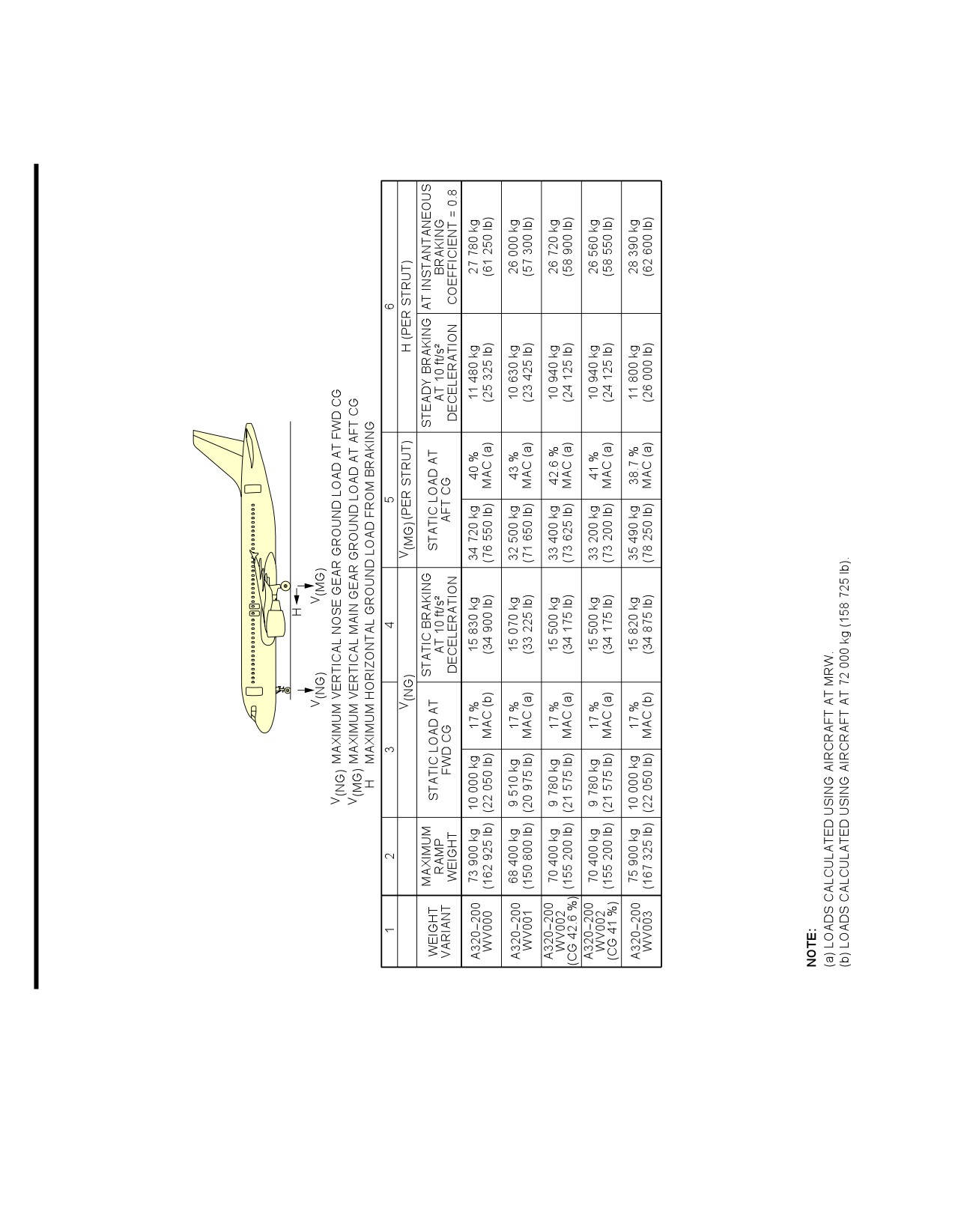

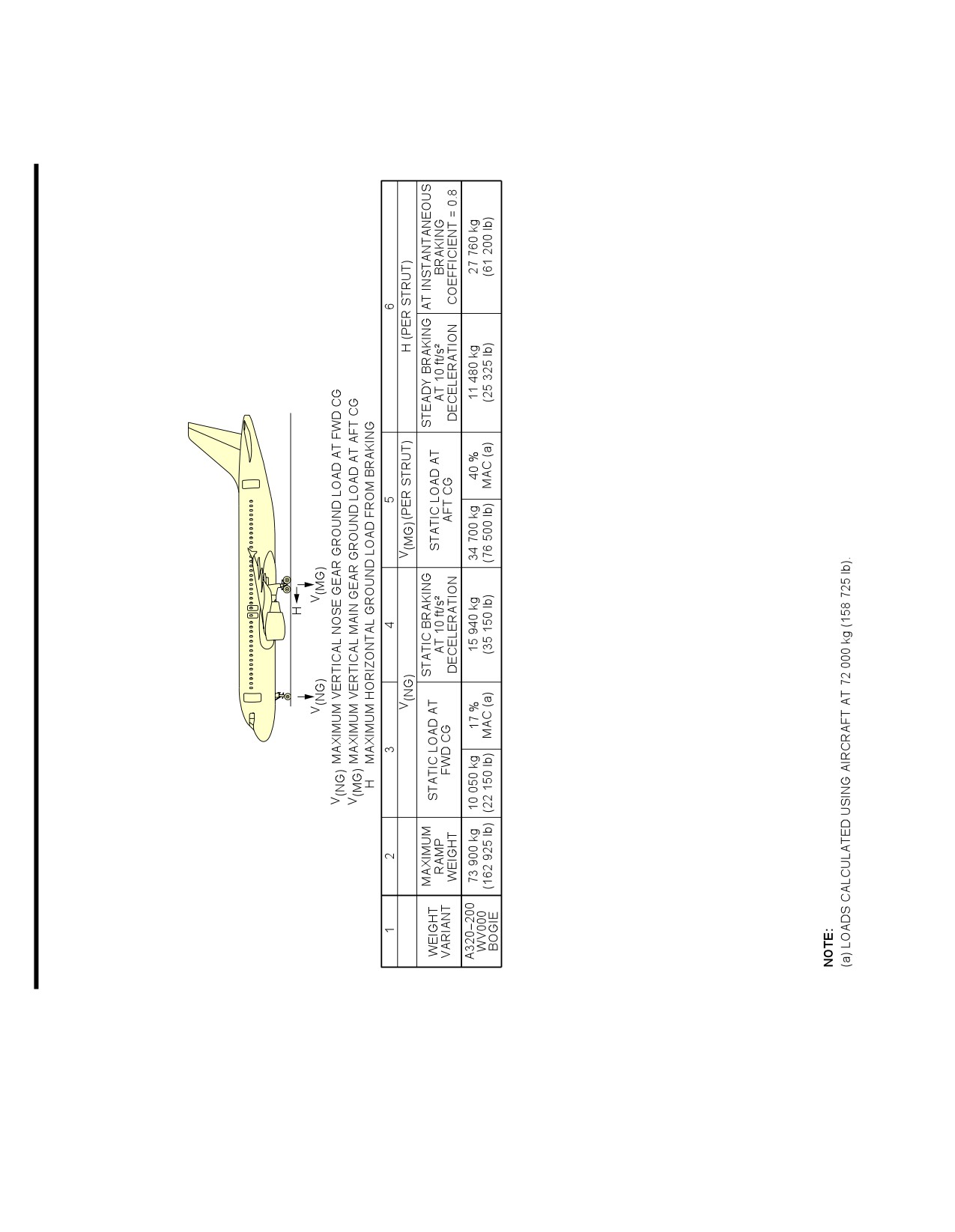

Section 07-03-00 shows maximum vertical and horizontal pavement loads for certain critical
conditions at the tire-ground interfaces.
Landing Gear Loading on Pavement:
Section 07-04-00 contains charts to find these loads throughout the stability limits of the aircraft at
rest on the pavement.
These MLG loads are used as the point of entry to the pavement design charts which follow,
interpolating load values where necessary.
Flexible Pavement Requirements - US Army Corps of Engineers Design Method:
Section 07-05-00 uses procedures in Instruction Report No. S-77-1 ”Procedures for Development of
CBR Design Curves”, dated June 1977 and as modified according to the methods described in ICAO
Aerodrome Design Manual, Part 3. Pavements, 2nd Edition, 1983, Section 1.1 (The ACN-PCN
Method), and utilizing the alpha factors approved by ICAO in October 2007.
The report was prepared by the ”U.S. Army Corps Engineers Waterways Experiment Station, Soils
and Pavement Laboratory, Vicksburg, Mississippi”.
The line showing 10 000 coverages is used to calculate the Aircraft Classification Number (ACN).
Flexible Pavement Requirements - LCN Conversion Method:
Page 1
May 01/16
7-1-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
The Load Classification Number (LCN) curves are no longer provided in section 07-06-00 since the
LCN system for reporting pavement strength is obsolete, having been replaced by the ICAO
recommended ACN/PCN system in 1983.
For questions regarding the LCN system, contact Airbus.
Rigid Pavement Requirements - PCA (Portland Cement Association) Design Method:
Section 07-07-00 gives the rigid pavement design curves that have been prepared with the use of the
Westergaard Equation.
This is in general accordance with the procedures outlined in the Portland Cement Association
publications, ”Design of Concrete Airport Pavement”, 1973 and ”Computer Program for Airport
Pavement Design” (Program PDILB), 1967 both by Robert G. Packard.
Rigid Pavement Requirements - LCN Conversion:
The Load Classification Number (LCN) curves are no longer provided in section 07-08-00 since the
LCN system for reporting pavement strength is obsolete, having been replaced by the ICAO
recommended ACN/PCN system in 1983.
For questions regarding the LCN system, contact Airbus.
ACN/PCN Reporting System:
Section 07-09-00 provides ACN data prepared according to the ACN/PCN system as referenced in
ICAO Annex 14, ”Aerodromes”, Volume 1 ”Aerodrome Design and Operations” Fourth Edition, July
2004, incorporating Amendments 1 to 6.
The ACN/PCN system provides a standardized international aircraft/pavement rating system
replacing the various S, T, TT, LCN, AUW, ISWL, etc., rating systems used throughout the world.
ACN is the Aircraft Classification Number and PCN is the corresponding Pavement Classification
Number.
An aircraft having an ACN less than or equal to the PCN can operate without restriction on the
pavement.
Numerically the ACN is two times the derived single wheel load expressed in thousands of kilograms.
The derived single wheel load is defined as the load on a single tire inflated to 1.25 MPa (181 psi)
that would have the same pavement requirements as the aircraft.
Computationally the ACN/PCN system uses PCA program PDILB for rigid pavements and S-77-1 for
flexible pavements to calculate ACN values.
The Airport Authority must decide on the method of pavement analysis and the results of their
evaluation shown as follows:
PCN
PAVEMENT
SUBGRADE
EVALUATION
TIRE PRESSURE CATEGORY
TYPE
CATEGORY
METHOD
R -- Rigid
A -- High
W -- No pressure limit
T -- Technical
X -- High pressure limited to 1.75
F -- Flexible
B -- Medium
U -- Using Aircraft
MPa (254 psi)
Page 2
May 01/16
7-1-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
PCN
PAVEMENT
SUBGRADE
EVALUATION
TIRE PRESSURE CATEGORY
TYPE
CATEGORY
METHOD
Y -- Medium pressure limited to 1.25
C -- Low
MPa (181 psi)
Z -- Low pressure limited to 0.5 MPa
D -- Ultra Low
(73 psi)
For flexible pavements, the four subgrade categories (CBR) are:
- A. High Strength
CBR 15
- B. Medium Strength
CBR 10
- C. Low Strength
CBR 6
- D. Ultra Low Strength
CBR 3
For rigid pavements, the four subgrade categories (k) are:
- A. High Strength
k = 150 MN/m3 (550 pci)
- B. Medium Strength
k = 80 MN/m3 (300 pci)
- C. Low Strength
k = 40 MN/m3 (150 pci)
- D. Ultra Low Strength
k = 20 MN/m3 (75 pci)
Page 3
May 01/16
7-1-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-2-0
Landing Gear Footprint
**ON A/C A320-200 A320neo
Landing Gear Footprint
1.
This section provides data about the landing gear footprint in relation to the aircraft MRW and tire
sizes and pressures.
The landing-gear footprint information is given for all the operational weight variants of the aircraft.
Page 1
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
12.640 m
(41.469 ft)
7.590 m
(24.901 ft)
0.500 m
(1.640 ft)
0.927 m
(3.041 ft)
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
OF WEIGHT
NOSE GEAR
MAIN GEAR
WEIGHT VARIANT
RAMP
TIRE
TIRE
ON MAIN
TIRE SIZE
TIRE SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
73 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.0%
WV000
(162 925 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
12.8 bar
(46x16−20)
(186 psi)
10.6 bar
49x17−20
A320−200
68 400 kg
30x8.8R15
11.4 bar
(154 psi)
95.0%
WV001
(150 800 lb)
(30x8.8−15)
(165 psi)
1 270x455R22
10.9 bar
(49x18−22)
(158 psi)
9.6 bar
49x19−20
(139 psi)
N_AC_070200_1_0100101_01_02
Landing Gear Footprint
(Sheet 1 of 5)
FIGURE-7-2-0-991-010-A01
Page 2
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
WEIGHT
OF WEIGHT
NOSE GEAR TIRE
MAIN GEAR TIRE
RAMP
TIRE
TIRE
VARIANT
ON MAIN
SIZE
SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
46x17R20
12.8 bar
(46x16−20)
(186 psi)
10.6 bar
49x17−20
A320−200
70 400 kg
30x8.8R15
11.4 bar
(154 psi)
94.9%
WV002 (CG 42.6%)
(155 200 lb)
(30x8.8−15)
(165 psi)
1 270x455R22
10.9 bar
(49x18−22)
(158 psi)
9.6 bar
49x19−20
(139 psi)
46x17R20
12.8 bar
(46x16−20)
(186 psi)
10.6 bar
49x17−20
A320−200
70 400 kg
30x8.8R15
11.4 bar
(154 psi)
94.3%
WV002 (CG 41%)
(155 200 lb)
(30x8.8−15)
(165 psi)
1 270x455R22
10.9 bar
(49x18−22)
(158 psi)
9.6 bar
49x19−20
(139 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
75 900 kg
30x8.8R15
12.3 bar
(165 psi)
93.5%
WV003
(167 325 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
71 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.5%
WV004
(158 500 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
12.8 bar
(46x16−20)
(186 psi)
10.6 bar
49x17−20
A320−200
67 400 kg
30x8.8R15
11.4 bar
(154 psi)
95.0%
WV005
(148 600 lb)
(30x8.8−15)
(165 psi)
1 270x455R22
10.9 bar
(49x18−22)
(158 psi)
9.6 bar
49x19−20
(139 psi)
46x17R20
12.3 bar
(46x16−20)
(178 psi)
A320−200
66 400 kg
30x8.8R15
11 bar
10.2 bar
95.0%
49x17−20
WV006
(146 375 lb)
(30x8.8−15)
(160 psi)
(148 psi)
9.2 bar
49x19−20
(133 psi)
N_AC_070200_1_0100102_01_00
Landing Gear Footprint
(Sheet 2 of 5)
FIGURE-7-2-0-991-010-A01
Page 3
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
WEIGHT
OF WEIGHT
NOSE GEAR TIRE
MAIN GEAR TIRE
RAMP
TIRE
TIRE
VARIANT
ON MAIN
SIZE
SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
46x17R20
14.4 bar
(46x16−20)
(209 psi)
12 bar
49x17−20
A320−200
77 400 kg
30x8.8R15
12.3 bar
(174 psi)
93.1%
WV007 (CG 37.5%)
(170 650 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
12.3 bar
(49x18−22)
(178 psi)
10.7 bar
49x19−20
(155 psi)
46x17R20
14.4 bar
(46x16−20)
(209 psi)
12 bar
49x17−20
A320−200
77 400 kg
30x8.8R15
12.3 bar
(174 psi)
91.6%
WV007 (CG 33%)
(170 650 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
12.3 bar
(49x18−22)
(178 psi)
10.7 bar
49x19−20
(155 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
73 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.0%
WV008
(162 925 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
75 900 kg
30x8.8R15
12.3 bar
(165 psi)
93.5%
WV009
(167 325 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
14.4 bar
(46x16−20)
(209 psi)
12 bar
49x17−20
A320−200
77 400 kg
30x8.8R15
12.3 bar
(174 psi)
93.1%
WV010 (CG 37.5%)
(170 650 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
12.3 bar
(49x18−22)
(178 psi)
10.7 bar
49x19−20
(155 psi)
46x17R20
14.4 bar
(46x16−20)
(209 psi)
12 bar
49x17−20
A320−200
77 400 kg
30x8.8R15
12.3 bar
(174 psi)
91.6%
WV010 (CG 33%)
(170 650 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
12.3 bar
(49x18−22)
(178 psi)
10.7 bar
49x19−20
(155 psi)
N_AC_070200_1_0100103_01_00
Landing Gear Footprint
(Sheet 3 of 5)
FIGURE-7-2-0-991-010-A01
Page 4
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
OF WEIGHT
NOSE GEAR
MAIN GEAR
WEIGHT VARIANT
RAMP
TIRE
TIRE
ON MAIN
TIRE SIZE
TIRE SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
75 900 kg
30x8.8R15
12.3 bar
(165 psi)
93.5%
WV011
(167 325 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
14.4 bar
(46x16−20)
(209 psi)
12 bar
49x17−20
A320−200
77 400 kg
30x8.8R15
12.3 bar
(174 psi)
93.1%
WV012
(170 650 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
12.3 bar
(49x18−22)
(178 psi)
10.7 bar
49x19−20
(155 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
71 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.5%
WV013 (CG 41.42%)
(158 500 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
71 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.3%
WV013 (CG 41%)
(158 500 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
73 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.0%
WV014
(162 925 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
A320−200
78 400 kg
30x8.8R15
12.3 bar
46x17R20
14.4 bar
92.9%
WV015
(172 850 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(209 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
73 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.0%
WV016
(162 925 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
N_AC_070200_1_0100104_01_00
Landing Gear Footprint
(Sheet 4 of 5)
FIGURE-7-2-0-991-010-A01
Page 5
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
OF WEIGHT
NOSE GEAR
MAIN GEAR
WEIGHT VARIANT
RAMP
TIRE
TIRE
ON MAIN
TIRE SIZE
TIRE SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
A320−200
78 400 kg
30x8.8R15
12.3 bar
46x17R20
14.4 bar
92.9%
WV017
(172 850 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(209 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
71 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.5%
WV018 (CG 41.46%)
(158 500 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
71 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.5%
WV018 (CG 41.42%)
(158 500 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
46x17R20
13.8 bar
(46x16−20)
(200 psi)
11.4 bar
49x17−20
A320−200
71 900 kg
30x8.8R15
12.3 bar
(165 psi)
94.3%
WV018 (CG 41%)
(158 500 lb)
(30x8.8−15)
(178 psi)
1 270x455R22
11.8 bar
(49x18−22)
(171 psi)
10.3 bar
49x19−20
(149 psi)
N_AC_070200_1_0100105_01_00
Landing Gear Footprint
(Sheet 5 of 5)
FIGURE-7-2-0-991-010-A01
Page 6
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
12.640 m
(41.469 ft)
7.590 m
(24.901 ft)
0.500 m
(1.640 ft)
0.927 m
(3.041 ft)
1.005 m
(3.297 ft)
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
OF WEIGHT
NOSE GEAR
MAIN GEAR
WEIGHT VARIANT
RAMP
TIRE
TIRE
ON MAIN
TIRE SIZE
TIRE SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
A320−200
73 900 kg
30x8.8R15
12.3 bar
915x300R16
12.2 bar
93.9%
WV000 BOGIE
(162 925 lb)
(30x8.8−15)
(178 psi)
(36x11−16)
(177 psi)
N_AC_070200_1_0330101_01_00
Landing Gear Footprint
FIGURE-7-2-0-991-033-A01
Page 7
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
12.640 m
(41.469 ft)
7.590 m
(24.901 ft)
0.500 m
(1.640 ft)
0.927 m
(3.041 ft)
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
WEIGHT
OF WEIGHT
NOSE GEAR TIRE
MAIN GEAR TIRE
RAMP
TIRE
TIRE
VARIANT
ON MAIN
SIZE
SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
A320NEO
73 900 kg
30x8.8R15
12.3 bar
46x17R20
13.8 bar
94.0%
WV050
(162 925 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(200 psi)
A320NEO
73 900 kg
30x8.8R15
12.3 bar
11.4 bar
94.0%
49x17−20
WV050
(162 925 lb)
(30x8.8−15)
(178 psi)
(165 psi)
A320NEO
73 900 kg
30x8.8R15
12.3 bar
1 270x455R22
11.8 bar
94.0%
WV050
(162 925 lb)
(30x8.8−15)
(178 psi)
(49x18−22)
(171 psi)
A320NEO
73 900 kg
30x8.8R15
12.3 bar
10.3 bar
94.0%
49x19−20
WV050
(162 925 lb)
(30x8.8−15)
(178 psi)
(149 psi)
A320NEO
73 900 kg
30x8.8R15
12.3 bar
46x17R20
13.8 bar
94.0%
WV051
(162 925 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(200 psi)
A320NEO
73 900 kg
30x8.8R15
12.3 bar
11.4 bar
94.0%
49x17−20
WV051
(162 925 lb)
(30x8.8−15)
(178 psi)
(165 psi)
A320NEO
73 900 kg
30x8.8R15
12.3 bar
1 270x455R22
11.8 bar
94.0%
WV051
(162 925 lb)
(30x8.8−15)
(178 psi)
(49x18−22)
(171 psi)
A320NEO
73 900 kg
30x8.8R15
12.3 bar
10.3 bar
94.0%
49x19−20
WV051
(162 925 lb)
(30x8.8−15)
(178 psi)
(149 psi)
N_AC_070200_1_0360101_01_01
Landing Gear Footprint
(Sheet 1 of 2)
FIGURE-7-2-0-991-036-A01
Page 8
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
PERCENTAGE
MAXIMUM
NOSE GEAR
MAIN GEAR
WEIGHT
OF WEIGHT
NOSE GEAR TIRE
MAIN GEAR TIRE
RAMP
TIRE
TIRE
VARIANT
ON MAIN
SIZE
SIZE
WEIGHT
PRESSURE
PRESSURE
GEAR GROUP
A320NEO
77 400 kg
30x8.8R15
12.3 bar
46x17R20
14.4 bar
93.1%
WV052
(170 650 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(209 psi)
A320NEO
77 400 kg
30x8.8R15
12.3 bar
12 bar
93.1%
49x17−20
WV052
(170 650 lb)
(30x8.8−15)
(178 psi)
(174 psi)
A320NEO
77 400 kg
30x8.8R15
12.3 bar
1 270x455R22
12.3 bar
93.1%
WV052
(170 650 lb)
(30x8.8−15)
(178 psi)
(49x18−22)
(178 psi)
A320NEO
77 400 kg
30x8.8R15
12.3 bar
10.7 bar
93.1%
49x19−20
WV052
(170 650 lb)
(30x8.8−15)
(178 psi)
(155 psi)
A320NEO
77 400 kg
30x8.8R15
12.3 bar
46x17R20
14.4 bar
93.1%
WV053
(170 650 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(209 psi)
A320NEO
77 400 kg
30x8.8R15
12.3 bar
12 bar
93.1%
49x17−20
WV053
(170 650 lb)
(30x8.8−15)
(178 psi)
(174 psi)
A320NEO
77 400 kg
30x8.8R15
12.3 bar
1 270x455R22
12.3 bar
93.1%
WV053
(170 650 lb)
(30x8.8−15)
(178 psi)
(49x18−22)
(178 psi)
A320NEO
77 400 kg
30x8.8R15
12.3 bar
10.7 bar
93.1%
49x19−20
WV053
(170 650 lb)
(30x8.8−15)
(178 psi)
(155 psi)
A320NEO
79 400 kg
30x8.8R15
12.3 bar
46x17R20
14.4 bar
92.9%
WV054
(175 050 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(209 psi)
A320NEO
79 400 kg
30x8.8R15
12.3 bar
46x17R20
14.4 bar
92.9%
WV055
(175 050 lb)
(30x8.8−15)
(178 psi)
(46x16−20)
(209 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
46x17R20
12.8 bar
94.3%
WV056
(155 200 lb)
(30x8.8−15)
(165 psi)
(46x16−20)
(186 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
10.6 bar
94.3%
49x17−20
WV056
(155 200 lb)
(30x8.8−15)
(165 psi)
(154 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
1 270x455R22
10.9 bar
94.3%
WV056
(155 200 lb)
(30x8.8−15)
(165 psi)
(49x18−22)
(158 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
9.6 bar
94.3%
49x19−20
WV056
(155 200 lb)
(30x8.8−15)
(165 psi)
(139 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
46x17R20
12.8 bar
94.3%
WV057
(155 200 lb)
(30x8.8−15)
(165 psi)
(46x16−20)
(186 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
10.6 bar
94.3%
49x17−20
WV057
(155 200 lb)
(30x8.8−15)
(165 psi)
(154 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
1 270x455R22
10.9 bar
94.3%
WV057
(155 200 lb)
(30x8.8−15)
(165 psi)
(49x18−22)
(158 psi)
A320NEO
70 400 kg
30x8.8R15
11.4 bar
9.6 bar
94.3%
49x19−20
WV057
(155 200 lb)
(30x8.8−15)
(165 psi)
(139 psi)
N_AC_070200_1_0360102_01_01
Landing Gear Footprint
(Sheet 2 of 2)
FIGURE-7-2-0-991-036-A01
Page 9
May 01/16
7-2-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-3-0
Maximum Pavement Loads
**ON A/C A320-200 A320neo
Maximum Pavement Loads
1.
This section provides maximum vertical and horizontal pavement loads for some critical conditions at
the tire-ground interfaces.
The maximum pavement loads are given for all the operational weight variants of the aircraft.
Page 1
May 01/16
7-3-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
N_AC_070300_1_0100101_01_03
Maximum Pavement Loads
(Sheet 1 of 3)
FIGURE-7-3-0-991-010-A01
Page 2
May 01/16
7-3-0
1
2
3
4
5
6
V(NG)
V(MG)(PER STRUT)
H (PER STRUT)
MAXIMUM
STATIC BRAKING
STEADY BRAKING
AT INSTANTANEOUS
WEIGHT
STATIC LOAD AT
STATIC LOAD AT
RAMP
AT 10 ft/s²
AT 10 ft/s²
BRAKING
VARIANT
FWD CG
AFT CG
WEIGHT
DECELERATION
DECELERATION
COEFFICIENT = 0.8
A320−200
71 900 kg
9 990 kg
17 %
15 820 kg
33 970 kg
41.5 %
11 170 kg
27 180 kg
WV004
(158 500 lb)
(22 025 lb)
MAC (a)
(34 875 lb)
(74 900 lb)
MAC (a)
(24 625 lb)
(59 925 lb)
A320−200
67 400 kg
9 380 kg
17 %
14 860 kg
32 020 kg
43 %
10 470 kg
25 620 kg
WV005
(148 600 lb)
(20 675 lb)
MAC (a)
(32 750 lb)
(70 600 lb)
MAC (a)
(23 100 lb)
(56 475 lb)
A320−200
66 400 kg
9 240 kg
17 %
14 650 kg
31 540 kg
43 %
10 320 kg
25 230 kg
WV006
(146 375 lb)
(20 375 lb)
MAC (a)
(32 300 lb)
(69 550 lb)
MAC (a)
(22 750 lb)
(55 625 lb)
A320−200
77 400 kg
10 000 kg
17 %
15 820 kg
36 030 kg
37.5 %
12 030 kg
28 830 kg
WV007
(170 650 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(79 450 lb)
MAC (a)
(26 525 lb)
(63 550 lb)
(CG 37.5 %)
A320−200
77 400 kg
10 000 kg
17 %
15 820 kg
35 440 kg
33 %
12 030 kg
28 350 kg
WV007
(170 650 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(78 125 lb)
MAC (a)
(26 525 lb)
(62 500 lb)
(CG 33 %)
A320−200
73 900 kg
10 000 kg
17 %
15 830 kg
34 720 kg
40 %
11 480 kg
27 780 kg
WV008
(162 925 lb)
(22 050 lb)
MAC (b)
(34 900 lb)
(76 550 lb)
MAC (a)
(25 325 lb)
(61 250 lb)
A320−200
75 900 kg
10 000 kg
17 %
15 820 kg
35 490 kg
38.7 %
11 800 kg
28 390 kg
WV009
(167 325 lb)
(22 050 lb)
MAC (b)
(34 900 lb)
(78 250 lb)
MAC (a)
(26 000 lb)
(62 600 lb)
A320−200
77 400 kg
10 000 kg
17 %
15 820 kg
36 030 kg
37.5 %
12 030 kg
28 830 kg
WV010
(170 650 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(79 450 lb)
MAC (a)
(26 525 lb)
(63 550 lb)
(CG 37.5 %)
A320−200
77 400 kg
10 000 kg
17 %
15 820 kg
35 440 kg
33 %
12 030 kg
28 350 kg
WV010
(170 650 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(78 125 lb)
MAC (a)
(26 525 lb)
(62 500 lb)
(CG 33 %)
A320−200
75 900 kg
10 000 kg
17 %
15 820 kg
35 490 kg
38.7 %
11 800 kg
28 390 kg
WV011
(167 325 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(78 250 lb)
MAC (a)
(26 000 lb)
(62 600 lb)
NOTE:
(a) LOADS CALCULATED USING AIRCRAFT AT MRW.
(b) LOADS CALCULATED USING AIRCRAFT AT 72 000 kg (158 725 lb).
1
2
3
4
5
6
V(NG)
V(MG)(PER STRUT)
H (PER STRUT)
MAXIMUM
STATIC BRAKING
STEADY BRAKING
AT INSTANTANEOUS
WEIGHT
STATIC LOAD AT
STATIC LOAD AT
RAMP
AT 10 ft/s²
AT 10 ft/s²
BRAKING
VARIANT
FWD CG
AFT CG
WEIGHT
DECELERATION
DECELERATION
COEFFICIENT = 0.8
A320−200
77 400 kg
10 000 kg
17 %
15 820 kg
36 030 kg
37.5 %
12 030 kg
28 830 kg
WV012
(170 650 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(79 450 lb)
MAC (a)
(26 525 lb)
(63 550 lb)
A320−200
71 900 kg
9 990 kg
17 %
15 820 kg
33 960 kg
41.42 %
11 170 kg
27 170 kg
WV013
(158 500 lb)
(22 025 lb)
MAC (a)
(34 875 lb)
(74 875 lb)
MAC (a)
(24 625 lb)
(59 900 lb)
(CG 41.42 %)
A320−200
71 900 kg
9 990 kg
17 %
15 820 kg
33 910 kg
41 %
11 170 kg
27 130 kg
WV013
(158 500 lb)
(22 025 lb)
MAC (a)
(34 875 lb)
(74 750 lb)
MAC (a)
(24 625 lb)
(59 800 lb)
(CG 41 %)
A320−200
73 900 kg
10 000 kg
17 %
15 830 kg
34 720 kg
40 %
11 480 kg
27 780 kg
WV014
(162 925 lb)
(22 050 lb)
MAC (b)
(34 900 lb)
(76 550 lb)
MAC (a)
(25 325 lb)
(61 250 lb)
A320−200
78 400 kg
10 000 kg
17 %
15 820 kg
36 410 kg
36.8 %
12 180 kg
29 120 kg
WV015
(172 850 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(80 250 lb)
MAC (a)
(26 850 lb)
(64 200 lb)
A320−200
73 900 kg
10 000 kg
17 %
15 830 kg
34 720 kg
40 %
11 480 kg
27 780 kg
WV016
(162 925 lb)
(22 050 lb)
MAC (b)
(34 900 lb)
(76 550 lb)
MAC (a)
(25 325 lb)
(61 250 lb)
A320−200
78 400 kg
10 000 kg
17 %
15 820 kg
36 410 kg
36.8 %
12 180 kg
29 120 kg
WV017
(172 850 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(80 250 lb)
MAC (a)
(26 850 lb)
(64 200 lb)
A320−200
71 900 kg
9 990 kg
17 %
15 820 kg
33 970 kg
41.46 %
11 170 kg
27 170 kg
WV018
(158 500 lb)
(22 025 lb)
MAC (a)
(34 875 lb)
(74 875 lb)
MAC (a)
(24 625 lb)
(59 900 lb)
(CG 41.46 %)
A320−200
71 900 kg
9 990 kg
17 %
15 820 kg
33 960 kg
41.42 %
11 170 kg
27 170 kg
WV018
(158 500 lb)
(22 025 lb)
MAC (a)
(34 875 lb)
(74 875 lb)
MAC (a)
(24 625 lb)
(59 900 lb)
(CG 41.42 %)
A320−200
71 900 kg
9 990 kg
17 %
15 820 kg
33 910 kg
41 %
11 170 kg
27 130 kg
WV018
(158 500 lb)
(22 025 lb)
MAC (a)
(34 875 lb)
(74 750 lb)
MAC (a)
(24 625 lb)
(59 800 lb)
(CG 41 %)
NOTE:
(a) LOADS CALCULATED USING AIRCRAFT AT MRW.
(b) LOADS CALCULATED USING AIRCRAFT AT 72 000 kg (158 725 lb).
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
N_AC_070300_1_0140101_01_03
Maximum Pavement Loads
FIGURE-7-3-0-991-014-A01
Page 5
May 01/16
7-3-0
H
V
(NG)
V(MG)
V
MAXIMUM VERTICAL NOSE GEAR GROUND LOAD AT FWD CG
(NG)
V(MG)MAXIMUM VERTICAL MAIN GEAR GROUND LOAD AT AFT CG
H MAXIMUM HORIZONTAL GROUND LOAD FROM BRAKING
1
2
3
4
5
6
V(NG)
V(MG)(PER STRUT)
H (PER STRUT)
MAXIMUM
STATIC BRAKING
STEADY BRAKING
AT INSTANTANEOUS
WEIGHT
STATIC LOAD AT
STATIC LOAD AT
RAMP
AT 10 ft/s²
AT 10 ft/s²
BRAKING
VARIANT
FWD CG
AFT CG
WEIGHT
DECELERATION
DECELERATION
COEFFICIENT = 0.8
A320NEO
73 900 kg
10 000 kg
17 %
15 830 kg
34 720 kg
40 %
11 480 kg
27 780 kg
WV050
(162 925 lb)
(22 050 lb)
MAC (b)
(34 900 lb)
(76 550 lb)
MAC (a)
(25 325 lb)
(61 250 lb)
A320NEO
73 900 kg
10 000 kg
17 %
15 830 kg
34 720 kg
40 %
11 480 kg
27 780 kg
WV051
(162 925 lb)
(22 050 lb)
MAC (b)
(34 900 lb)
(76 550 lb)
MAC (a)
(25 325 lb)
(61 250 lb)
A320NEO
77 400 kg
10 000 kg
17 %
15 820 kg
36 020 kg
37.4 %
12 030 kg
28 820 kg
WV052
(170 650 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(79 400 lb)
MAC (a)
(26 525 lb)
(63 525 lb)
A320NEO
77 400 kg
10 000 kg
17 %
15 820 kg
36 020 kg
37.4 %
12 030 kg
28 820 kg
WV053
(170 650 lb)
(22 050 lb)
MAC (b)
(34 875 lb)
(79 400 lb)
MAC (a)
(26 525 lb)
(63 525 lb)
A320NEO
79 400 kg
9 900 kg
17 %
15 710 kg
36 760 kg
36.1 %
12 340 kg
29 410 kg
WV054
(175 050 lb)
(21 825 lb)
MAC (b)
(34 625 lb)
(81 025 lb)
MAC (a)
(27 200 lb)
(64 825 lb)
A320NEO
79 400 kg
9 900 kg
17 %
15 710 kg
36 760 kg
36.1 %
12 340 kg
29 410 kg
WV055
(175 050 lb)
(21 825 lb)
MAC (b)
(34 625 lb)
(81 025 lb)
MAC (a)
(27 200 lb)
(64 825 lb)
A320NEO
70 400 kg
9 780 kg
17 %
15 500 kg
33 200 kg
41 %
10 940 kg
26 560 kg
WV056
(155 200 lb)
(21 575 lb)
MAC (a)
(34 175 lb)
(73 200 lb)
MAC (a)
(24 125 lb)
(58 550 lb)
A320NEO
70 400 kg
9 780 kg
17 %
15 500 kg
33 200 kg
41 %
10 940 kg
26 560 kg
WV057
(155 200 lb)
(21 575 lb)
MAC (a)
(34 175 lb)
(73 200 lb)
MAC (a)
(24 125 lb)
(58 550 lb)
NOTE:
(a) LOADS CALCULATED USING AIRCRAFT AT MRW.
(b) LOADS CALCULATED USING AIRCRAFT AT 72 000 kg (158 725 lb).
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-4-0
Landing Gear Loading on Pavement
**ON A/C A320-200 A320neo
Landing Gear Loading on Pavement
1.
Landing Gear Loading on Pavement
This section provides data about the landing gear loading on pavement.
The MLG loading on pavement graphs are given for the weight variants that produce (at the MRW
and maximum aft CG) the lowest MLG load and the highest MLG load for each type of aircraft.
Example, see FIGURE 7-4-0-991-009-A, calculation of the total weight on the MLG for:
-
An aircraft with a MRW of 66 400 kg (146 375 lb),
-
The aircraft gross weight is 49 000 kg (108 025 lb),
-
A percentage of weight on the MLG of 95.0% (percentage of weight on the MLG at MRW and
maximum aft CG).
The total weight on the MLG group is 46 550 kg (102 625 lb).
NOTE : The CG in the figure title is the CG used for ACN/LCN calculation.
Page 1
May 01/16
7-4-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
80
80
170
75
75
160
70
70
CG FOR ACN
150
CALCULATION
43% MAC
65
65
140
MTOW − 66 000 kg
MLW
60
17% MAC
60
130
55
55
120
MZFW
50
50
110
100
45
45
LANDING
90
40
40
TAKE OFF
80
35
35
82
84
86
88
90
92
94
96
98
100
PERCENTAGE OF WEIGHT ON MAIN GEAR
N_AC_070400_1_0090101_01_00
Landing Gear Loading on Pavement
WV006, MRW 66 400 kg, CG 43%
FIGURE-7-4-0-991-009-A01
Page 2
May 01/16
7-4-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
80
80
MTOW − 78 000 kg
170
75
75
32% MAC
160
CG FOR ACN
CALCULATION
70
36.8% MAC
70
150
65
65
140
MLW
60
60
130
55
55
120
MZFW
50
50
110
100
45
45
LANDING
90
40
40
TAKE OFF
80
35
35
82
84
86
88
90
92
94
96
98
100
PERCENTAGE OF WEIGHT ON MAIN GEAR
N_AC_070400_1_0100101_01_00
Landing Gear Loading on Pavement
WV015, MRW 78 400 kg, CG 36.8%
FIGURE-7-4-0-991-010-A01
Page 3
May 01/16
7-4-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
80
80
170
75
75
160
CG FOR ACN
70
CALCULATION
70
41% MAC
150
MTOW − 70 000 kg
65
65
MLW
140
17% MAC
60
60
130
55
MZFW
55
120
50
50
110
LANDING
100
45
45
TAKE OFF
90
40
40
82
84
86
88
90
92
94
96
98
100
PERCENTAGE OF WEIGHT ON MAIN GEAR
N_AC_070400_1_0110101_01_00
Landing Gear Loading on Pavement
WV056, MRW 70 400 kg, CG 41%
FIGURE-7-4-0-991-011-A01
Page 4
May 01/16
7-4-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
80
80
CG FOR ACN
CALCULATION
36.1% MAC
170
MTOW − 79 000 kg
75
75
27% MAC
160
70
70
150
65
65
140
MLW
60
60
130
55
55
120
MZFW
50
50
110
100
45
45
LANDING
TAKE OFF
90
40
40
82
84
86
88
90
92
94
96
98
100
PERCENTAGE OF WEIGHT ON MAIN GEAR
N_AC_070400_1_0120101_01_00
Landing Gear Loading on Pavement
WV054, MRW 79 400 kg, CG 36.1%
FIGURE-7-4-0-991-012-A01
Page 5
May 01/16
7-4-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
80
80
170
CG FOR ACN
75
75
CALCULATION
40% MAC
160
MTOW − 73 500 kg
70
70
150
19% MAC
65
65
140
MLW
60
60
130
55
55
120
MZFW
50
50
110
100
45
45
LANDING
90
40
40
TAKE OFF
80
35
35
82
84
86
88
90
92
94
96
98
100
PERCENTAGE OF WEIGHT ON MAIN GEAR
N_AC_070400_1_0130101_01_00
Landing Gear Loading on Pavement
WV000 (Bogie), MRW 73 900 kg, CG 40%
FIGURE-7-4-0-991-013-A01
Page 6
May 01/16
7-4-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-5-0
Flexible Pavement Requirements - U.S. Army Corps of Engineers Design Method
**ON A/C A320-200 A320neo
Flexible Pavement Requirements - US Army Corps of Engineers Design Method
1.
This section provides data about the flexible pavement requirements.
The flexible pavement requirement graphs are given at standard tire pressure for the weight variants
producing (at the MRW and maximum aft CG) the lowest MLG load and the highest MLG load for
each type of aircraft.
They are calculated with the US Army Corps of Engineers Design Method.
To find a flexible pavement thickness, you must know the Subgrade Strength (CBR), the annual
departure level and the weight on one MLG.
The line that shows 10 000 coverages is used to calculate the Aircraft Classification Number (ACN).
The procedure that follows is used to develop flexible pavement design curves:
-
With the scale for pavement thickness at the bottom and the scale for CBR at the top, a random
line is made to show 10 000 coverages,
-
A plot is then made of the incremental values of the weight on the MLG,
-
Annual departure lines are made based on the load lines of the weight on the MLG that is shown
on the graph.
Example, see FIGURE 7-5-0-991-009-A, calculation of the thickness of the flexible pavement for
MLG:
-
An aircraft with a MRW of 66 400 kg (146 375 lb),
-
A ”CBR” value of 10,
-
An annual departure level of 15 000,
-
The load on one MLG of 20 000 kg (44 100 lb).
The required flexible pavement thickness is 44.4 cm (17 in).
NOTE : The CG in the figure title is the CG used for ACN calculation.
Page 1
May 01/16
7-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
SUBGRADE STRENGTH − CBR
3
6
10
15
20
30
40
60
80
WEIGHT ON ONE MAIN LANDING GEAR
31 540 kg (69 525 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
15 000 kg (33 075 lb)
10 000 kg (22 050 lb)
MAXIMUM POSSIBLE
MAIN GEAR LOAD
AT MAXIMUM RAMP
WEIGHT AND AFT CG
10 000 COVERAGES USED
FOR ACN CALCULATIONS
ALPHA FACTOR = 0.9
ANNUAL DEPARTURES*
1 200
3 000
6 000
15 000
25 000
*20 YEAR PAVEMENT LIFE
3
6
10
15
20
30
40
60
80
(in)
10
15
20
30
40
60
80
100
120
150 180
(cm)
FLEXIBLE PAVEMENT THICKNESS
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 12.3 bar (178 psi)
N_AC_070500_1_0090101_01_00
Flexible Pavement Requirements
WV006, MRW 66 400 kg, CG 43 %
FIGURE-7-5-0-991-009-A01
Page 2
May 01/16
7-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
SUBGRADE STRENGTH − CBR
3
6
10
15
20
30
40
60
80
WEIGHT ON ONE MAIN LANDING GEAR
36 410 kg (80 275 lb)
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
15 000 kg (33 075 lb)
MAXIMUM POSSIBLE
MAIN GEAR LOAD
AT MAXIMUM RAMP
WEIGHT AND AFT CG
10 000 COVERAGES USED
FOR ACN CALCULATIONS
ALPHA FACTOR = 0.9
ANNUAL DEPARTURES*
1 200
3 000
6 000
15 000
25 000
*20 YEAR PAVEMENT LIFE
3
6
10
15
20
30
40
60
80
(in)
10
15
20
30
40
60
80
100
120
150 180
(cm)
FLEXIBLE PAVEMENT THICKNESS
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 14.4 bar (209 psi)
N_AC_070500_1_0100101_01_00
Flexible Pavement Requirements
WV015, MRW 78 400 kg, CG 36.8 %
FIGURE-7-5-0-991-010-A01
Page 3
May 01/16
7-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
SUBGRADE STRENGTH − CBR
3
6
10
15
20
30
40
60
80
WEIGHT ON ONE MAIN LANDING GEAR
33 200 kg (73 200 lb)
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
15 000 kg (33 075 lb)
MAXIMUM POSSIBLE
MAIN GEAR LOAD
AT MAXIMUM RAMP
WEIGHT AND AFT CG
10 000 COVERAGES USED
FOR ACN CALCULATIONS
ALPHA FACTOR = 0.9
ANNUAL DEPARTURES*
1 200
3 000
6 000
15 000
25 000
*20 YEAR PAVEMENT LIFE
3
6
10
15
20
30
40
60
80
(in)
10
15
20
30
40
60
80
100
120
150 180
(cm)
FLEXIBLE PAVEMENT THICKNESS
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 12.8 bar (186 psi)
N_AC_070500_1_0110101_01_00
Flexible Pavement Requirements
WV056, MRW 70 400 kg, CG 41 %
FIGURE-7-5-0-991-011-A01
Page 4
May 01/16
7-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
SUBGRADE STRENGTH − CBR
3
6
10
15
20
30
40
60
80
WEIGHT ON ONE MAIN LANDING GEAR
36 760 kg (81 050 lb)
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
15 000 kg (33 075 lb)
MAXIMUM POSSIBLE
MAIN GEAR LOAD
AT MAXIMUM RAMP
WEIGHT AND AFT CG
10 000 COVERAGES USED
FOR ACN CALCULATIONS
ALPHA FACTOR = 0.9
ANNUAL DEPARTURES*
1 200
3 000
6 000
15 000
25 000
*20 YEAR PAVEMENT LIFE
3
6
10
15
20
30
40
60
80
(in)
10
15
20
30
40
60
80
100
120
150 180
(cm)
FLEXIBLE PAVEMENT THICKNESS
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 14.4 bar (209 psi)
N_AC_070500_1_0120101_01_01
Flexible Pavement Requirements
WV054, MRW 79 400 kg, CG 36.1 %
FIGURE-7-5-0-991-012-A01
Page 5
May 01/16
7-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
SUBGRADE STRENGTH − CBR
3
6
10
15
20
30
40
60
80
WEIGHT ON ONE MAIN LANDING GEAR
34 700 kg (76 500 lb)
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
15 000 kg (33 075 lb)
10 000 COVERAGES USED
MAXIMUM POSSIBLE
FOR ACN CALCULATIONS
MAIN GEAR LOAD
ALPHA FACTOR = 0.8
AT MAXIMUM RAMP
WEIGHT AND AFT CG
ANNUAL DEPARTURES*
1 200
3 000
6 000
15 000
25 000
*20 YEAR PAVEMENT LIFE
3
6
10
15
20
30
40
60
80
(in)
10
15
20
30
40
60
80
100
120
150 180
(cm)
FLEXIBLE PAVEMENT THICKNESS
915x300R16 (36x11−16) TIRES
TIRE PRESSURE CONSTANT AT 12.2 bar (177 psi)
N_AC_070500_1_0130101_01_00
Flexible Pavement Requirements
WV000 (Bogie), MRW 73 900 kg, CG 40 %
FIGURE-7-5-0-991-013-A01
Page 6
May 01/16
7-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-6-0
Flexible Pavement Requirements - LCN Conversion
**ON A/C A320-200 A320neo
Flexible Pavement Requirements - LCN Conversion
1.
The Load Classification Number (LCN) curves are no longer provided in section 07-06-00 since the
LCN system for reporting pavement strength is obsolete, having been replaced by the ICAO
recommended ACN/PCN system in 1983.
For questions regarding the LCN system, contact Airbus.
Page 1
May 01/16
7-6-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-7-0
Rigid Pavement Requirements - Portland Cement Association Design Method
**ON A/C A320-200 A320neo
Rigid Pavement Requirements - Portland Cement Association Design Method
1.
This section provides data about the rigid pavement requirements for the PCA (Portland Cement
Association) design method.
The rigid pavement requirement graphs are given at standard tire pressure for the weight variants
producing (at the MRW and maximum aft CG) the lowest MLG load and the highest MLG load for
each A/C type.
They are calculated with the PCA design method.
To find a rigid pavement thickness, you must know the Subgrade Modulus (k), the permitted working
stress and the weight on one MLG.
The procedure that follows is used to develop rigid pavement design curves:
-
With the scale for pavement thickness on the left and the scale for permitted working stress on
the right, a random load line is made. This represents the MLG maximum weight to be shown,
-
A plot is then made of all values of the subgrade modulus (k values),
-
More load lines for the incremental values of the weight on the MLG are made based on the
curve for k = 150 MN/m3, which is already shown on the graph.
Example, see FIGURE 7-7-0-991-011-A, calculation of the thickness of the rigid pavement for the
MLG:
-
An aircraft with a MRW of 66 400 kg (146 375 lb),
-
A k value of 80 MN/m3 (300 lbf/in3),
-
A permitted working stress of 31.64 kg/cm2 (450 lb/in2),
-
The load on one MLG is 25 000 kg (55 125 lb).
The required rigid pavement thickness is 230 mm (9 in).
NOTE : The CG in the figure title is the CG used for ACN calculation.
Page 1
May 01/16
7-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 12.3 bar (178 psi)
14
900
60
34
k = 20 MN/m³
13
k = 40 MN/m³
800
k = 80 MN/m³
32
k = 150 MN/m³
50
12
700
MAXIMUM POSSIBLE MAIN
30
GEAR LOAD AT MAXIMUM
RAMP WEIGHT AND AFT CG
28
11
600
40
26
10
500
24
30
9
400
22
8
300
20
20
WEIGHT ON ONE
MAIN LANDING GEAR
18
31 540 kg (69 550 lb)
7
200
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
15 000 kg (33 075 lb)
16
10
6
100
NOTE:
REFERENCE:
THE VALUES OBTAINED BY USING
"DESIGN OF CONCRETE AIRPORT
THE MAXIMUM LOAD REFERENCE
PAVEMENTS" AND "COMPUTER
LINE AND ANY VALUES FOR k ARE
PROGRAM FOR AIRPORT
EXACT.
PAVEMENT DESIGN − PROGRAM
FOR LOADS LESS THAN MAXIMUM,
PDILB" PORTLAND CEMENT
THE CURVES ARE EXACT FOR k =
ASSOCIATION.
80 MN/m³ BUT DEVIATE SLIGHTLY
FOR ANY OTHER VALUES OF k.
N_AC_070700_1_0110101_01_00
Rigid Pavement Requirements
WV006, MRW 66 400 kg, CG 43 %
FIGURE-7-7-0-991-011-A01
Page 2
May 01/16
7-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 14.4 bar (209 psi)
14
900
60
34
k = 20 MN/m³
13
k = 40 MN/m³
800
k = 80 MN/m³
32
k = 150 MN/m³
MAXIMUM POSSIBLE MAIN
GEAR LOAD AT MAXIMUM
50
12
RAMP WEIGHT AND AFT CG
700
30
28
11
600
40
26
10
500
24
30
9
400
22
8
300
20
20
WEIGHT ON ONE
MAIN LANDING GEAR
18
36 400 kg (80 250 lb)
7
200
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
16
15 000 kg (33 075 lb)
10
6
100
NOTE:
REFERENCE:
THE VALUES OBTAINED BY USING
"DESIGN OF CONCRETE AIRPORT
THE MAXIMUM LOAD REFERENCE
PAVEMENTS" AND "COMPUTER
LINE AND ANY VALUES FOR k ARE
PROGRAM FOR AIRPORT
EXACT.
PAVEMENT DESIGN − PROGRAM
FOR LOADS LESS THAN MAXIMUM,
PDILB" PORTLAND CEMENT
THE CURVES ARE EXACT FOR k =
ASSOCIATION.
80 MN/m³ BUT DEVIATE SLIGHTLY
FOR ANY OTHER VALUES OF k.
N_AC_070700_1_0120101_01_00
Rigid Pavement Requirements
WV015, MRW 78 400 kg, CG 36.8 %
FIGURE-7-7-0-991-012-A01
Page 3
May 01/16
7-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 12.8 bar (186 psi)
14
900
60
34
k = 20 MN/m³
13
k = 40 MN/m³
800
k = 80 MN/m³
32
k = 150 MN/m³
MAXIMUM POSSIBLE MAIN
50
12
GEAR LOAD AT MAXIMUM
700
30
RAMP WEIGHT AND AFT CG
28
11
600
40
26
10
500
24
30
9
400
22
8
300
20
20
WEIGHT ON ONE
MAIN LANDING GEAR
18
33 200 kg (73 200 lb)
7
200
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
16
15 000 kg (33 075 lb)
10
6
100
NOTE:
REFERENCE:
THE VALUES OBTAINED BY USING
"DESIGN OF CONCRETE AIRPORT
THE MAXIMUM LOAD REFERENCE
PAVEMENTS" AND "COMPUTER
LINE AND ANY VALUES FOR k ARE
PROGRAM FOR AIRPORT
EXACT.
PAVEMENT DESIGN − PROGRAM
FOR LOADS LESS THAN MAXIMUM,
PDILB" PORTLAND CEMENT
THE CURVES ARE EXACT FOR k =
ASSOCIATION.
80 MN/m³ BUT DEVIATE SLIGHTLY
FOR ANY OTHER VALUES OF k.
N_AC_070700_1_0130101_01_00
Rigid Pavement Requirements
WV056, MRW 70 400 kg, CG 41 %
FIGURE-7-7-0-991-013-A01
Page 4
May 01/16
7-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
46x17R20 (46x16−20) TIRES
TIRE PRESSURE CONSTANT AT 14.4 bar (209 psi)
38
15
900
60
36
k = 20 MN/m³
14
k = 40 MN/m³
800
k = 80 MN/m³
k = 150 MN/m³
34
MAXIMUM POSSIBLE MAIN
GEAR LOAD AT MAXIMUM
50
13
RAMP WEIGHT AND AFT CG
700
32
12
600
30
40
28
11
500
26
30
10
400
24
9
300
20
22
WEIGHT ON ONE
MAIN LANDING GEAR
8
200
36 760 kg (81 050 lb)
20
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
10
15 000 kg (33 075 lb)
18
7
100
NOTE:
REFERENCE:
THE VALUES OBTAINED BY USING
"DESIGN OF CONCRETE AIRPORT
THE MAXIMUM LOAD REFERENCE
PAVEMENTS" AND "COMPUTER
LINE AND ANY VALUES FOR k ARE
PROGRAM FOR AIRPORT
EXACT.
PAVEMENT DESIGN − PROGRAM
FOR LOADS LESS THAN MAXIMUM,
PDILB" PORTLAND CEMENT
THE CURVES ARE EXACT FOR k =
ASSOCIATION.
80 MN/m³ BUT DEVIATE SLIGHTLY
FOR ANY OTHER VALUES OF k.
N_AC_070700_1_0140101_01_01
Rigid Pavement Requirements
WV054, MRW 79 400 kg, CG 36.1 %
FIGURE-7-7-0-991-014-A01
Page 5
May 01/16
7-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
915x300R16 (36x11−16) TIRES
TIRE PRESSURE CONSTANT AT 12.2 bar (177 psi)
15
1 000
70
38
36
14
900
60
34
MAXIMUM POSSIBLE
k = 20 MN/m³
MAIN GEAR LOAD AT
13
800
k = 40 MN/m³
MAXIMUM RAMP
k = 80 MN/m³
WEIGHT AND AFT CG
32
k = 150 MN/m³
50
12
WEIGHT ON ONE
700
30
MAIN LANDING GEAR
34 700 kg (76 500 lb)
30 000 kg (66 150 lb)
25 000 kg (55 125 lb)
20 000 kg (44 100 lb)
11
600
28
15 000 kg (33 075 lb)
40
26
10
500
24
30
9
400
22
8
300
20
20
18
7
200
NOTE:
REFERENCE:
THE VALUES OBTAINED BY USING
"DESIGN OF CONCRETE AIRPORT
THE MAXIMUM LOAD REFERENCE
PAVEMENTS" AND "COMPUTER
LINE AND ANY VALUES FOR k ARE
PROGRAM FOR AIRPORT
EXACT.
PAVEMENT DESIGN − PROGRAM
FOR LOADS LESS THAN MAXIMUM,
PDILB" PORTLAND CEMENT
THE CURVES ARE EXACT FOR k =
ASSOCIATION.
80 MN/m³ BUT DEVIATE SLIGHTLY
FOR ANY OTHER VALUES OF k.
N_AC_070700_1_0150101_01_00
Rigid Pavement Requirements
WV000 (Bogie), MRW 73 900 kg, CG 40 %
FIGURE-7-7-0-991-015-A01
Page 6
May 01/16
7-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-8-0
Rigid Pavement Requirements - LCN Conversion
**ON A/C A320-200 A320neo
Rigid Pavement Requirements - LCN Conversion
1.
The Load Classification Number (LCN) curves are no longer provided in section 07-08-00 since the
LCN system for reporting pavement strength is obsolete, having been replaced by the ICAO
recommended ACN/PCN system in 1983.
For questions regarding the LCN system, contact Airbus.
Page 1
May 01/16
7-8-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
7-9-0
ACN/PCN Reporting System - Flexible and Rigid Pavements
**ON A/C A320-200 A320neo
Aircraft Classification Number - Flexible and Rigid Pavements
1.
This section provides data about the Aircraft Classification Number (ACN) for an aircraft gross
weight in relation to a subgrade strength value for flexible and rigid pavement.
The flexible and rigid pavement requirement graphs are given at standard tire pressure for the weight
variants producing (at the MRW and maximum aft CG) the lowest MLG load and the highest MLG
load for each type of aircraft.
To find the ACN of an aircraft on flexible and rigid pavement, you must know the aircraft gross
weight and the subgrade strength.
NOTE : An aircraft with an ACN equal to or less than the reported PCN can operate on that
pavement, subject to any limitation on the tire pressure.
(Ref: ICAO Aerodrome Design Manual, Part 3, Chapter 1, Second Edition 1983).
Example, see FIGURE 7-9-0-991-013-A (sheet 1), calculation of the ACN for flexible pavement for:
-
An aircraft with a MRW of 66 400 kg (146 375 lb),
-
An aircraft gross weight of 55 000 kg (121 250 lb),
-
A medium subgrade strength (code B).
The ACN for flexible pavement is 28.
Example, see FIGURE 7-9-0-991-013-A (sheet 2), calculation of the ACN for rigid pavement for:
-
An aircraft with a MRW of 66 400 kg (146 375 lb),
-
An aircraft gross weight of 55 000 kg (121 250 lb),
-
A medium subgrade strength (code B).
The ACN for rigid pavement is 32.
2.
Aircraft Classification Number - ACN table
The tables in FIGURE 7-9-0-991-012-A and FIGURE 7-9-0-991-016-A provide ACN data in tabular
format similar to the one used by ICAO in the ”Aerodrome Design Manual Part 3, Pavements -
Edition 1983” for all the operational weight variants of the aircraft.
As an approximation, use a linear interpolation in order to get the ACN at the required operating
weight using the following equation:
-
ACN = ACN min + (ACN max - ACN min) x (Operating weight - 42 000 kg)/(MRW - 42 000
kg)
As an approximation, also use a linear interpolation in order to get the aircraft weight at the
pavement PCN using the following equation:
-
Operating weight = 42 000 kg + (MRW - 42 000 kg) x (PCN - ACN min)/(ACN max - ACN
min)
With ACN max: ACN calculated at the MRW in the table and with ACN min: ACN calculated at 42
000 kg.
Page 1
May 01/16
7-9-0
