Operation, Maintenance Manual, and Logbook for Propeller Systems HM-5V1-B1000-A, HM-6V1-A1000-A (2018)

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

REVISION 4 HIGHLIGHTS

1. Introduction

A. General

(1) This is a list of current revisions that have been issued against this manual.

Please compare it to the RECORD OF REVISIONS page to ensure that all

revisions have been added to the manual.

B. Components

(1)  Revision No. indicates the revisions incorporated in this manual.
(2)  Issue Date is the date of the revision.
(3)  Comments indicates the level of the revision.

(a) New Issue is a new manual distribution. The manual is distributed in its

entirety. All the page revision dates are the same and no change bars

are used.

(b) Reissue is a revision to an existing manual that includes major content

and/or major format changes. The manual is distributed in its entirety. All

the page revision dates are the same and no change bars are used.

content or minor content changes over a large portion of the manual. The

manual is distributed in its entirety. All the page revision dates are the

same, but change bars are used to indicate the changes incorporated in

the latest revision of the manual.

(d) Minor Revision is a revision to an existing manual that includes minor

content changes to the manual. Only the revised pages of the manual are

distributed. Each page retains the date and the change bars associated

with the last revision to that page.

Revision No.

Issue Date

Comments

Original Feb/09 New

Issue

Revision

Sep/13 Reissue

Revision

Apr/16

Minor

Revision

Apr/17

Minor

Revision

Revision 4

Nov/18

Minor Revision

Page 2

Rev. 4 Nov/18

REVISION HIGHLIGHTS

Page 7

Rev. 3 Apr/17

SERVICE DOCUMENT LIST

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

SERVICE DOCUMENT LIST

CAUTION 1: DO NOT USE OBSOLETE OR OUTDATED INFORMATION. PERFORM ALL INSPECTIONS

OR WORK IN ACCORDANCE WITH THE MOST RECENT REVISION OF A SERVICE

DOCUMENT. INFORMATION CONTAINED IN A SERVICE DOCUMENT MAY BE

SIGNIFICANTLY CHANGED FROM EARLIER REVISIONS. FAILURE TO COMPLY WITH

INFORMATION CONTAINED IN A SERVICE DOCUMENT OR THE USE OF OBSOLETE

INFORMATION MAY CREATE AN UNSAFE CONDITION THAT MAY RESULT IN DEATH,

SERIOUS BODILY INJURY, AND/OR SUBSTANTIAL PROPERTY DAMAGE.

CAUTION 2: THE INFORMATION FOR THE DOCUMENTS LISTED INDICATES THE REVISION LEVEL

AND DATE AT THE TIME THAT THE DOCUMENT WAS INITIALLY INCORPORATED

INTO THIS MANUAL. INFORMATION CONTAINED IN A SERVICE DOCUMENT MAY BE

SIGNIFICANTLY CHANGED FROM EARLIER REVISIONS. REFER TO THE APPLICABLE

SERVICE DOCUMENT INDEX FOR THE MOST RECENT REVISION LEVEL OF THE

SERVICE DOCUMENT.

Service Document

Number

Incorporation

Rev./Date

HM-SL-003

Rev. 3, Apr/17

Service Document

Number

Incorporation

Rev./Date

LIST OF EFFECTIVE PAGES

Chapter

Page

Rev. Level

Date

LIST OF EFFECTIVE PAGES

Page 9

Rev. 4 Nov/18

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Cover/Inside Cover

Cover and Inside Cover

Rev. 4

Nov/18

Revision Highlights

1 and 2

Rev. 4

Nov/18

Record of Revisions

3 and 4

Rev. 2

Apr/16

Record of Temporary Revisions

5 and 6

Rev. 2

Apr/16

Service Document List

7 and 8

Rev. 3

Apr/17

List of Effective Pages

9 and 10

Rev. 4

Nov/18

Table of Contents

11 and 12

Rev. 2

Apr/16

Introduction

1-1 thru 1-14

Rev. 4

Nov/18

Description and Operation

2-1 thru 2-8

Rev. 1

Sep/13

Installation and Removal

3-1 and 3-2

Rev. 1

Sep/13

Installation and Removal

3-3

Rev. 2

Apr/16

Installation and Removal

3-4

Rev. 3

Apr/17

Installation and Removal

3-5 thru 3-7

Rev. 1

Sep/13

Installation and Removal

3-8

Rev. 3

Apr/17

Installation and Removal

3-9 thru 3-28

Rev. 1

Sep/13

Installation and Removal

3-29 and 3-30

Rev. 2

Apr/16

Installation and Removal

3-31 thru 3-34

Rev. 1

Sep/13

Testing and Troubleshooting

4-1 and 4-2

Rev. 3

Apr/17

Testing and Troubleshooting

4-3

Rev. 1

Sep/13

Testing and Troubleshooting

4-4 and 4-5

Rev. 3

Apr/17

Testing and Troubleshooting

4-6 thru 4-8

Rev. 1

Sep/13

Inspection and Check

5-1

Rev. 3

Apr/17

Inspection and Check

5-2 thru 5-6

Rev. 2

Apr/16

Inspection and Check

5-7 thru 5-10

Rev. 1

Sep/13

Inspection and Check

5-11

Rev. 3

Apr/17

Inspection and Check

5-12 thru 5-18

Rev. 2

Apr/16

Maintenance Practices

6-1

Rev. 3

Apr/17

Maintenance Practices

6-2 thru 6-8

Rev. 1

Sep/13

Maintenance Practices

6-9

Rev. 2

Apr/16

Maintenance Practices

6-10 thru 6-21

Rev. 1

Sep/13

Maintenance Practices

6-22 thru 6-26

Rev. 3

Apr/17

Records

7-1 thru 7-26

Rev. 1

Sep/13

Page 1-3

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

1. Statement of Purpose

CAUTION:

KEEP THIS MANUAL WITH THE PROPELLER OR WITH THE

HOVERCRAFT ON WHICH IT IS INSTALLED, AT ALL TIMES. THE

LOGBOOK RECORD WITHIN THIS MANUAL MUST BE MAINTAINED,

RETAINED CONCURRENTLY, AND BECOME A PART OF THE

HOVERCRAFT AND ENGINE SERVICE RECORDS.

A. This manual supports Hartzell Propeller Inc. aluminum hub Hovercraft propellers

with composite blades. The 5 blade propeller model number HM-5V1-B1000-A

was previously identified as propeller model number 103245. Refer to Table 2-1,

Propeller Model Designation.

B. The purpose of this manual is to enable qualified personnel to install, operate, and

maintain Hartzell Propeller Inc. aluminum hub Hovercraft propellers.

C. This manual covers several design types.

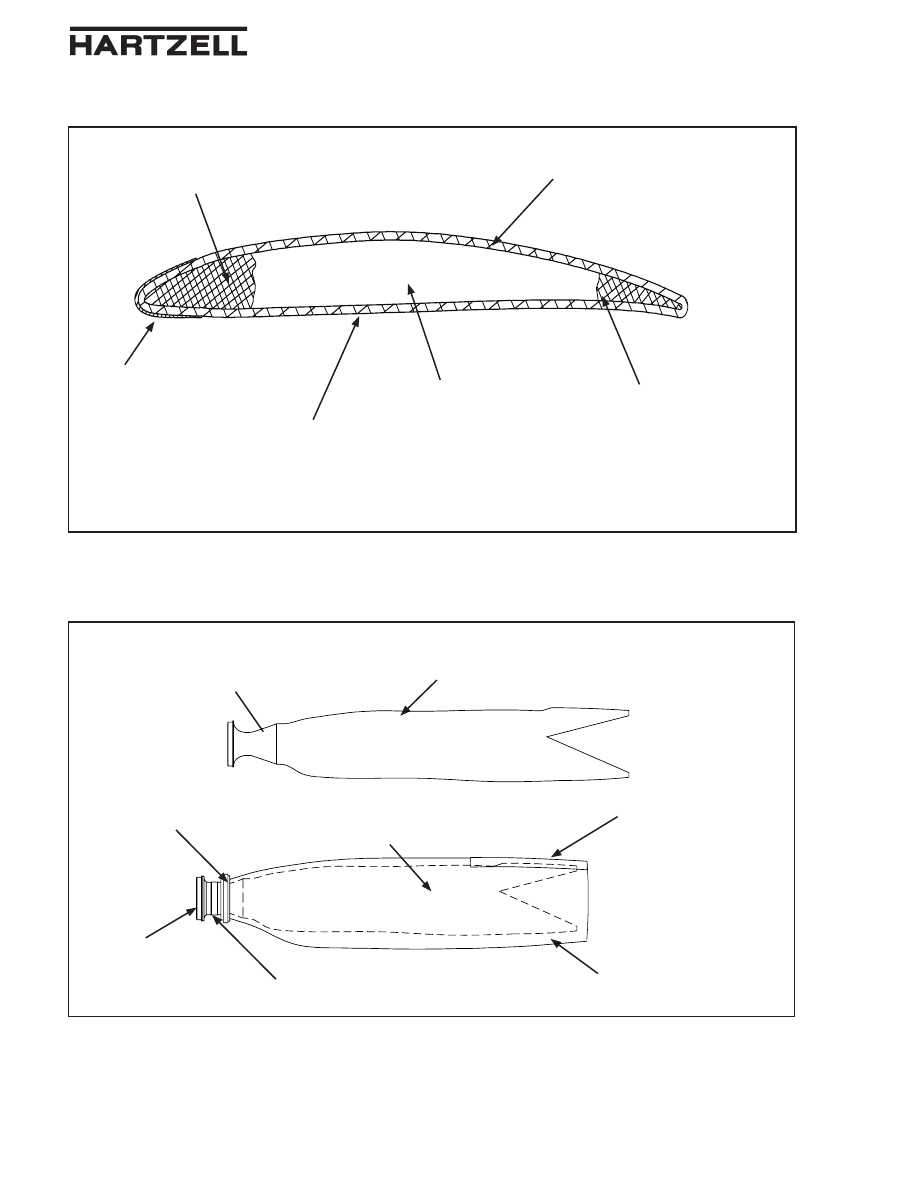

NOTE: All propeller models covered by this manual use composite propeller

blades.

D. General

(1) Contact the Hartzell Propeller Inc. Product Support Department concerning any

maintenance problems or to request information not included in this manual.
(a) Hartzell Propeller Inc. Product Support may be reached during business

hours (8:00 a.m. through 5:00 p.m., United States Eastern Time)

at (937) 778-4379 or at (800) 942-7767, toll free from the United States

and Canada.

(b) After business hours, you may leave a message on our 24 hour

product support line at (937) 778-4376. A technical representative will

contact you during normal business hours. Urgent COG (Craft on Ground)

support is also available 24 hours per day, seven days per week via this

message service.

www.hartzellprop.com.

NOTE: When calling from outside the United States, dial (001) before

dialing the above telephone numbers.

(2) This manual is to be used by personnel who are trained and experienced with

Hartzell Propeller Inc. products.

(3) This manual provides operation, installation, and line maintenance information

for the Hartzell Propeller Inc. propeller Hovercraft system with composite

blades.

(4) Installation, removal, operation, and troubleshooting data is included in this

publication; however, the Hovercraft manufacturer’s manuals should be used in

addition to this information.

Page 1-4

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

2. General

A. Personnel Requirements

(1) Inspection, Repair, and Overhaul

(a) Compliance to the applicable regulatory requirements established by

the Maritime and Coastguard Agency (MCA) or foreign equivalent is

mandatory for anyone performing or accepting responsibility for any

inspection and/or repair and/or overhaul of any Hartzell Propeller Inc.

Hovercraft product.

(b) Personnel performing maintenance on propellers are expected to have

sufficient training and certifications (when required by the applicable

authority) to accomplish the work required in a safe manner.

B. Maintenance Practices

(1) The propeller and its components are highly vulnerable to damage while they

are removed from the engine. Properly protect all components until they are

reinstalled on the engine.

(2) Use only the approved consumables, e.g., cleaning agents, lubricants, etc.
(3) Safe Handling of Paints and Chemicals

(a) Always use caution when handling or being exposed to paints and/or

chemicals during propeller overhaul and maintenance procedures.

(b) Before using paint or chemicals, always read the manufacturer’s label on

the container and follow specified instructions and procedures for storage,

preparation, mixing, and application.

information about physical properties, health, and physical hazards of any

chemical.

(4) Observe applicable torque values during maintenance.
(5) Before installing the propeller on the engine, the propeller must be statically

balanced. New propellers are statically balanced at Hartzell Propeller Inc.

Overhauled propellers must be statically balanced by the overhaul facility

before return to service.
(a) Dynamic balance is recommended, but may be accomplished at the

discretion of the operator, unless specifically required by the Hovercraft or

engine manufacturer.
1

Perform dynamic balancing in accordance with the Maintenance

Practices chapter of this manual.

Additional procedures may be found in the Hovercraft Propeller

Maintenance Manual 301.

Page 1-5

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

(6) As necessary, use a soft, non-graphite pencil or crayon to make identifying

marks on components.

(7) As applicable, follow military standard NASMS33540 for safety wire and cotter

pin general practices. Use 0.020 inch (0.50 mm) or 0.032 inch (0.82 mm)

diameter stainless steel safety wire unless otherwise indicated.

CAUTION:

DO NOT USE OBSOLETE OR OUTDATED INFORMATION.

PERFORM ALL INSPECTIONS OR WORK IN ACCORDANCE WITH

THE MOST RECENT REVISION OF THIS MANUAL. INFORMATION

CONTAINED IN THIS MANUAL MAY BE SIGNIFICANTLY

CHANGED FROM EARLIER REVISIONS. FAILURE TO COMPLY

WITH THIS MANUAL OR THE USE OF OBSOLETE INFORMATION

MAY CREATE AN UNSAFE CONDITION THAT MAY RESULT

IN DEATH, SERIOUS BODILY INJURY, AND/OR SUBSTANTIAL

PROPERTY DAMAGE. FOR THE MOST RECENT REVISION LEVEL

OF THIS MANUAL, REFER TO THE HARTZELL PROPELLER INC.

WEBSITE AT WWW.HARTZELLPROP.COM.

(8) The information in this manual revision supersedes data in all previously

published revisions of this manual.

(9) The Hovercraft manufacturer’s manuals should be used in addition to the

information in this manual due to possible special requirements for specific

Hovercraft applications.

(10) Approved paint must be applied to all composite blades. For information

concerning the application of paint, refer to the Maintenance Practices chapter

of this manual. Operation of blades without the specified coatings and finishes

is not permitted.

Page 1-6

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

3. Component Life and Service

A. Overhaul (Major Periodic Inspection)

(1) Overhaul (Major Periodic Inspection) is the periodic disassembly, cleaning,

inspection, repairing as necessary, reassembly, and testing of a component.

NOTE: Throughout the text of this publication the terms Major Periodic

Inspection and Overhaul are considered interchangeable.

(2) The overhaul interval is based on hours of service (operating time) or on

calendar time.

(a) At such specified periods, the propeller hub assembly and the blade

assemblies should be completely disassembled and inspected for cracks,

wear, corrosion, and other unusual or abnormal conditions. As specified,

certain parts should be refinished, and certain other parts should be

replaced.

(3) Contact the Hartzell Propeller Inc. Product Support Department for specific

information concerning overhaul (major periodic inspection).

B. Rework

(1) Rework is correction of major damage caused by physical mishap or failure.
(2) Rework is done on an irregular basis as necessary and required. The propeller

may have to be re-balanced after rework procedures.

(3) Certain rework procedures, such as shot peening, must be performed at the

Hartzell Propeller Inc. factory or in a facility that has been approved by Hartzell

Propeller Inc.

(4) The amount, degree, and extent of major damage determine whether or not a

component can be reworked without overhaul.

C. Repair

(1) Repair is correction of minor damage caused during normal operation. It is

done on an irregular basis, as required.

(2) The amount, degree, and extent of damage determine whether or not a

component can be repaired without overhaul.

Page 1-7

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

D. Component Life

(1) Component Life is expressed in terms of total hours of service (Time Since

New, TSN) and in terms of hours of service since overhaul (Time Since

Overhaul, TSO).

(2) Both references are necessary in defining the life of the component.

Occasionally a part may be “life limited,” which means that it must be replaced

after a specified period of use.

(3) Overhaul returns the component or assembly to zero hours TSO (Time Since

Overhaul), but not to zero hours TT (Total Time).

(4) Rework or repair without overhaul does not affect TSO or TT.

E. Propeller Critical Parts

(1) Procedures in this manual may involve Propeller Critical Parts. These

procedures have been substantiated based on Engineering analysis that

expects this product will be operated and maintained using the procedures and

inspections provided in the ICS for this product. Refer to the Illustrated Parts

List chapter for the applicable propeller model for the identification of Propeller

Critical Parts.

(2) Numerous propeller system parts can produce an aircraft Major or Hazardous

effect, even though those parts may not be considered as Propeller Critical

Parts. The operating and maintenance procedures and inspections provided

in the ICS for this product are, therefore, expected to be accomplished for all

propeller system parts.

Page 1-8

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

4. Reference Publications

A. Hartzell Propeller Inc. Publications

Active Hartzell Propeller Inc. Service Bulletins, Service Letters, Service Instructions,

and Service Advisories.
Hartzell Propeller Inc. Manual 135F (61-13-35) - Composite Propeller Blade

Maintenance Manual
Hartzell Propeller Inc. Manual 165A (61-00-65) - Illustrated Tool and Equipment

Manual - Available on the Hartzell Propeller Inc. website at www.hartzellprop.com
Hartzell Propeller Inc. Manual 202A (61-01-02) - Standard Practices Manual,

Volumes 1 through 11 - Volume 7, Consumable Materials and Packaging and

Storage is available on the Hartzell Propeller Inc. website at www.hartzellprop.com
Hartzell Propeller Inc. Manual 301 - Hovercraft Propeller Maintenance and

Overhaul Manual

B. References to Hartzell Propeller Inc. Publications

(1) Special tooling is required for procedures throughout this manual.

For further tooling information, refer to Table 3-1, Special Tools and Equipment

in the Installation and Removal chapter of this manual and Hartzell Propeller

Inc. Illustrated Tool and Equipment Manual 165A (61-00-65).
(a)

Tooling references appear with the prefix “TE” directly following the

tool name to which they apply. For example, a template which is reference

number 133 will appear as: template TE133.

(2) Consumable materials are referenced in certain sections throughout this

manual. Specific approved materials are listed in Table 3-2, "Consumable

Materials List" in the Installation and Removal chapter of this manual and in

the Consumable Materials chapter of Hartzell Propeller Inc. Standard Practices

Manual 202A (61-00-02).
(a) The reference number for a consumable material will appear with the

prefix “CM” directly following the material to which it applies. For

example, an approved adhesive which is reference number 23 will

appear as: approved adhesive CM23.

Only those items specified may

be used.

Page 1-9

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Definitions

A basic understanding of the following terms will assist in maintaining and operating

Hartzell Propeller Inc. propeller systems.

Term

Definition

Annealed ............................. Softening of material due to overexposure to heat

Blade Angle ......................... Measurement of blade airfoil location described as the

angle between the blade airfoil and the surface described

by propeller rotation

Brinelling .............................. A depression caused by failure of the material in

compression

Chord ................................... A straight line distance between the leading and trailing

edge of an airfoil

Cold Rolling ......................... Compressive rolling process for the retention area of

single shoulder blades that provides improved strength

and resistance to fatigue

Composite Material .............. Kevlar

(yellow) or graphite (black) fibers bound together

with or encapsulated within an epoxy resin

Constant Force .................... A force that is always present in some degree when the

propeller is operating

Constant Speed ................... A propeller system that employs a governing device to

maintain a selected engine RPM

Corrosion ............................. Gradual material removal or deterioration due to chemical

action

Crack ................................... Irregularly shaped separation within a material, sometimes

visible as a narrow opening at the surface

Debond ................................ Separation of two materials that were originally bonded

together in a separate operation

Delamination ........................ Internal separation of the layers of composite material

Depression .......................... Surface area where the material has been compressed

but not removed

Distortion ............................. Alteration of the original shape or size of a component

Page 1-10

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Term

Definition

Erosion.................................. Gradual wearing away or deterioration due to action of the

elements

Exposure............................... Leaving material open to action of the elements

Feathering............................. The capability of blades to be rotated parallel to the

relative wind, thus reducing aerodynamic drag

Gouge ................................... Surface area where material has been removed

Hazardous Propeller Effect ...

The hazardous propeller effects are defined in

Title 14 CFR section 35.15(g)(1)

Horizontal Balance................ Balance between the blade tip and the center of the hub

Impact Damage ................... Damage that occurs when the propeller blade or hub

assembly strikes, or is struck by, an object

Major Propeller Effect ...........

The major propeller effects are defined in

Title 14 CFR section 35.15(g)(2)

Nick ......................................Removal of paint and possibly a small amount of material

Non-Aviation Certified

...........Intended for non-aircraft application, such as Hovercraft or

Wing-In-Ground effect (WIG) applications. These products

are certificated by an authority other than FAA. The hub

and blades will be stamped with an identification different

from, but comparable to TC and PC.

Non-Aviation Experimental ...Intended for non-aircraft application, such as Hovercraft

or Wing-In-Ground-effect (WIG) applications. These

products are not certificated by any authority. There is no

identification stamp comparable to TC and PC on the hubs

and blades. Experimental parts are normally stamped with

an “X” at or near the end of the part number.

Onspeed ...............................Condition in which the RPM selected by the pilot through

the propeller control lever and the actual engine (propeller)

RPM are equal

Overhaul ...............................

The periodic disassembly, inspection, repair, refinish,

and reassembly of a propeller assembly to maintain

seaworthiness

Page 1-11

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Term

Definition

Overspeed ............................Condition in which the RPM of the propeller or engine

exceeds predetermined maximum limits; the condition in

which the engine (propeller) RPM is higher than the RPM

selected by the pilot through the propeller control lever

Overspeed Damage ..............Damage that occurs when the propeller hub assembly

rotates at a speed greater than the maximum limit for

which it is designed

Pitch ......................................Same as “Blade Angle”

Pitting ....................................Formation of a number of small, irregularly shaped cavities

in surface material caused by corrosion or wear

Porosity .................................

An aggregation of microvoids. See "Voids"

Propeller Critical Parts ..........A part on the propeller whose primary failure can result in

a hazardous propeller effect, as determined by the safety

analysis required by Title 14 CFR section 35.15

Reversing ..............................The capability of rotating blades to a position to generate

reverse thrust to slow the Hovercraft or back up

Scratch ..................................Same as “Nick”

Single Acting .........................Hydraulically actuated propeller that utilizes a single oil

supply for pitch control

Split .......................................Delamination of blade extending to the blade surface,

normally found near the trailing edge or tip

Superseded ...........................Parts that are considered seaworthy for continued

operation but may no longer be available

Synchronizing .......................Adjusting the RPM of all the propellers of a multi-engine

craft to the same RPM

Synchrophasing ....................A form of propeller sychronization in which not only the

RPM of the engines (propellers) are held constant, but also

the position of the propellers in relation to each other

Track .....................................In an assembled propeller, a measurement of the location

of the blade tip with respect to the plane of rotation, used to

verify face alignment and to compare blade tip location with

respect to the locations of the other blades in the assembly

Page 1-12

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Term

Definition

Underspeed ..........................The condition in which the actual engine (propeller) RPM

is lower than the RPM selected by the pilot through the

propeller control lever

Variable Force .......................A force that may be applied or removed during propeller

operation

Vertical Balance ....................Balance between the leading and trailing edges of a two-

blade propeller with the blades positioned vertically

Voids .....................................Air or gas that has been trapped and cured into a laminate

Windmilling ............................

The rotation of a Hovercraft propeller caused by air flowing

through it while the engine is not producing power

Page 1-13

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

6. Abbreviations

Abbreviation

Term

AN .........................................Air Force-Navy (or Army-Navy)

CMM .....................................Craft Maintenance Manual

COG ......................................Craft on Ground

Ft-Lb ......................................Foot-Pound

ICS ........................................Instructions for Continued Seaworthiness

ID ..........................................Inside Diameter

In-Lb ......................................Inch-Pound

IPS ........................................Inches Per Second

kPa ........................................Kilopascals

Lbs ........................................Pounds

MCA ......................................Maritime and Coastguard Agency

MIL-X-XXX ............................

Military Specification

MPI ........................................Major Periodic Inspection (Overhaul)

MS .........................................Military Standard

MSDS ....................................Material Safety Data Sheet

N•m .......................................Newton-Meters

OD .........................................Outside Diameter

POH ......................................Pilot’s Operating Handbook

PSI ........................................Pounds per Square Inch

RPM ......................................Revolutions per Minute

TBO .......................................Time Between Overhaul

TC .........................................

Type Certificate

TSN .......................................Time Since New

TSO .......................................Time Since Overhaul

UID ........................................

Unique Identification

Page 1-14

Rev. 4 Nov/18

INTRODUCTION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

7. Hartzell Propeller Inc. Product Support

A. Hartzell Propeller Inc. is ready to assist you with questions about your propeller

system. Hartzell Propeller Inc. Product Support may be reached during business

hours (8:00 a.m. through 5:00 p.m., United States Eastern Time) at

(937) 778-4379 or at (800) 942-7767, toll free from the United States and Canada.

Hartzell Product Support can also be reached by fax at (937) 778-4215, and by

email at techsupport@hartzellprop.com.

B. After business hours, you may leave a message on our 24 hour product support line

at (937) 778-4376 or at (800) 942-7767, toll free from the United States and Canada.

A technical representative will contact you during normal business hours. Urgent

AOG support is available 24 hours per day, seven days per week via this message

service.

C. Additional information is available on the Hartzell Propeller Inc. website at www.

hartzellprop.com.

NOTE: When calling from outside the United States, dial (001) before dialing the

above telephone numbers.

8. Warranty Service

A. If you believe you have a warranty claim, it is necessary to contact the Warranty

Administrator at Hartzell Propeller Inc. Hartzell Propeller’s Warranty Administrator

will provide a blank

Warranty Application

form. It is necessary to complete this form

and return it to the Warranty Administrator for evaluation

before proceeding with

repair or inspection work

. Upon receipt of this form, the Warranty Administrator

will provide instructions on how to proceed. The Hartzell Propeller Inc. Warranty

may be reached during business hours (8:00 a.m. through 5:00 p.m., United States

Eastern Time) at (937) 778-4379, or toll free at (800) 942-7767. Hartzell Propeller

Inc. Warranty Administration can also be reached by fax at

(937) 778-4215 or by email at warranty@hartzellprop.com.

NOTE: When calling from outside the United States, dial (001) before dialing the

above telephone numbers.

9. Hartzell Propeller Inc. Recommended Facilities

A. Hartzell Propeller Inc. recommends using Hartzell Propeller Inc. approved

distributors and repair facilities for the purchase, repair, and overhaul of Hartzell

propeller assemblies or components.

B. Information about the Hartzell Propeller Inc. worldwide network of aftermarket

distributors and approved repair facilities is available on the Hartzell website at

www.hartzellprop.com.

Page 2-2

Rev. 1 Sep/13

DESCRIPTION AND OPERATION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

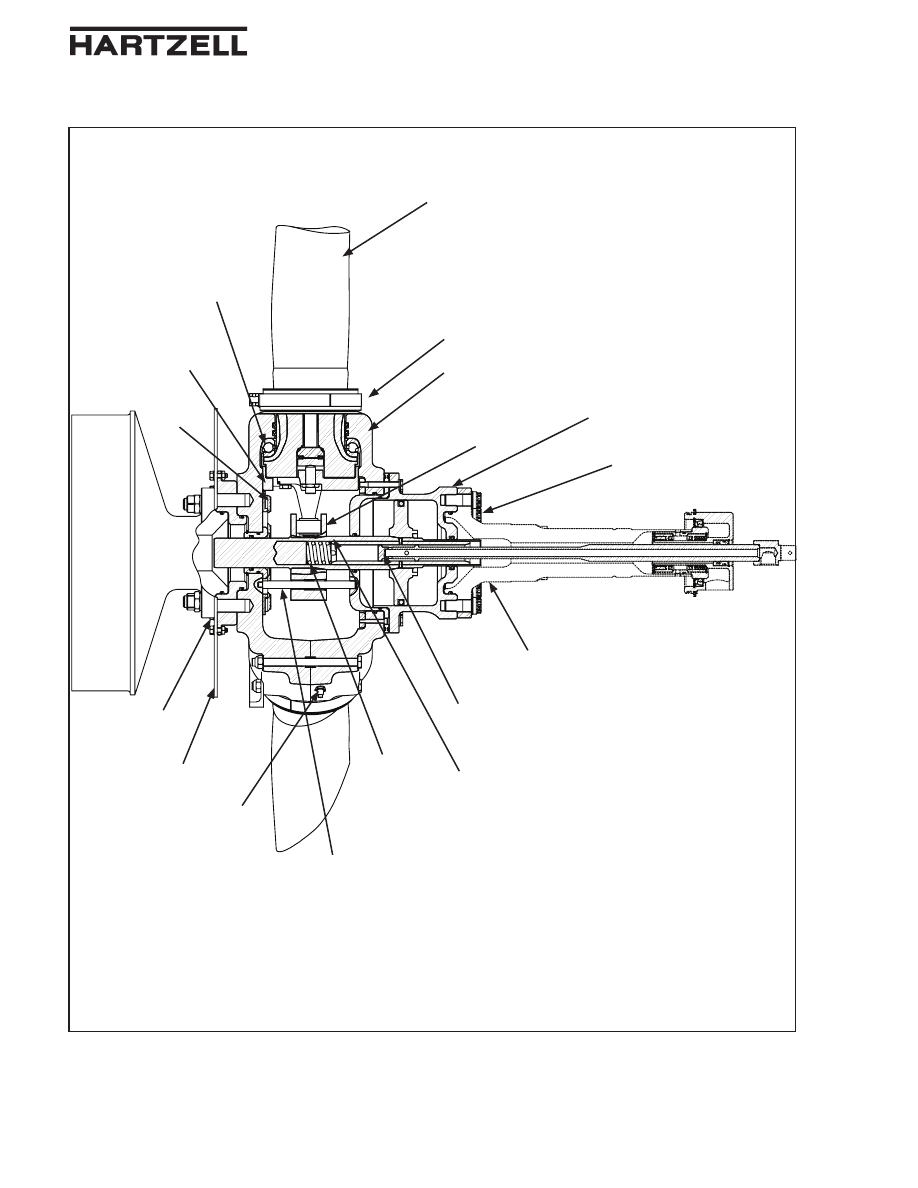

Propeller System Components

Figure 2-1

Blade

Hub

Blade

Retention

Bearing

Preload Plate

Lubrication

Fitting -

5 Blade Only

Fork

Stub Shaft Flange

- 5 Blade Installation

Beta Tube

Assembly

Pitch Change

Rod

Mounting

Bolt

Engine

Flange

Mounting

Stud

Pitch

Change

Rod

Spring

Balance

Ring

Cylinder

Pitch Lock

Bracket

TI-300-001

Anti-rotation Rod

5 Blade Propeller shown for reference

Page 2-3

Rev. 1 Sep/13

DESCRIPTION AND OPERATION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Functional Description and Operation of Propeller System

A. The Hartzell Propeller Inc. Hovercraft propellers consists of the a variable pitch

propeller assembly, a beta tube assembly, and a beta manifold. The propeller

assembly is a dual acting system.

The propeller assembly may be a single acting

or a dual acting system. Refer to Table 2-1 and Table 2-2 for propeller model

definitions.

The beta tube assembly is connected to a high pressure oil source and fitted to the

propeller through the beta manifold assembly. When commanded to change blade

pitch, the beta tube assembly is moved to the corresponding position and directs

high pressure oil to the propeller assembly.

. The beta manifold assembly is connected to the hydraulic oil drain port and drains

the oil from the propeller when the propeller is changing blade pitch.

. The propeller assembly is constructed of a two piece aluminum hub and composite

blades.

A cover plate and cylinder create a cylinder cavity to house the piston.

The piston is connected to the fork through a pitch change rod.

The direction of oil pressure to one side of the piston corresponds to a movement in

the fork, which in turn, changes the blade angle of the composite propeller blades.

. The propeller assembly incorporates a pin to permit the blades to be manually set at

a pre-determined angle. This permits the propeller to provide thrust in the event of a

propeller oil system failure.

Page 2-4

Rev. 1 Sep/13

DESCRIPTION AND OPERATION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Section of Typical Composite Blade

Figure 2-2

Solid Unidirectional

Composite Material

Solid Unidirectional

Composite Material

Low-Density

Foam Core

Laminated Layers

of Composite

Material

Basic Components of the Composite Blade

Figure 2-3

Low-Density

Foam Core

Low-Density

Foam Core

Composite

Material

Retention Laminates

Shank of

Metal Blade

Plug

Blade

Retention

Windings

Metal Blade Plug

Paint

Erosion Shield

Nickel Leading

Edge

TI-300-020

TI-300-007

TI-300-008

Page 2-5

Rev. 1 Sep/13

DESCRIPTION AND OPERATION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Description of Composite Blade

. The Hartzell

Propeller Inc.

composite blade is composed of a metal blade shank

retention section. A low-density foam core is molded into the metal blade shank and

supports built-up layers of composite laminate (

Figure 2-2)

. An erosion shield of electroformed nickel is bonded to the blade to protect the blade

leading edge from erosion and impact damage.

. Filament windings of composite material provide blade retention of the blade

material to the internal metal blade plug (

Figure 2-3)

. The composite laminates

that

are a structural component of the blade,

also provide a retention load path directly

under the bearing for blade retention.

. Some designs use a filament winding on the inboard end of the erosion shield to

aid the retention of the erosion shield. This winding is sometimes referred to as an

erosion shield winding and should not be confused with the blade retention winding

used to secure the blade material to the internal metal plug.

. The composite blade is balanced in the horizontal plane during production by adding

lead wool to a centrally located balance tube in the metal blade shank

that

may

protrude into the blade’s foam

core.

. The blades are painted with a finish covering of paint to protect the entire blade from

erosion and damage.

Page 2-6

Rev. 1 Sep/13

DESCRIPTION AND OPERATION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Propeller Model Designations

Table 2-1

M - 6

1 - A

1000

X( )

X - Experimental

X( ) - X with numeric character indicates minor

change not affecting eligibility

L - Left hand rotation

ny alpha character not listed here denotes a minor

change not affecting eligibility

4 Digit number defines unique configuration for installation

A -

Mounting flange

type

B - Mounting flange type

Operating Mode

Numeric character used in this position only if preceded by "V"

1 - Dual acting hydraulic pitch control uses oil to decrease pitch and/or increase pitch

2 - Single acting hydraulic pitch control uses oil to decrease pitch

3 - Single acting hydraulic pitch control uses oil to decrease pitch

4 - Single acting hydraulic pitch control uses oil to increase pitch

Pitch Type

F - Fixed Pitch

G - Ground Adjustable

V - Variable Pitch (manually controllable or constant speed)

Number of blades

M - Maritime (non-aviation) propeller series

Hartzell Propeller Inc.

Page 2-7

Rev. 1 Sep/13

DESCRIPTION AND OPERATION

OPERATION, MAINTENANCE MANUAL, AND LOGBOOK

300

Blade Model Designations

Table 2-2

138

B - 2

X( )

X - Experimental

X( ) - X with numeric character indicates minor change not

affecting eligibility

Blank - Original design, no changes

Number when used indicates diameter reduction in inches (or added

to if preceeded by "+") from basic diameter

B - Blade ice protection

Any other character indicates a dimensional variation of the basic blade model

Design number

Blank - Right hand rotation tractor

H - Right hand rotation pusher

J - Left hand tractor

L - Left hand rotation pusher

C - Counterweighted blades

M - Maritime (non-aviation) blade series

Diameter in inches for the basic blade model

Page 3-3

Rev. 2 Apr/16

INSTALLATION AND REMOVAL

OPERATION, MAINTENANCE MANUAL AND LOGBOOK

300

1. Tools, Consumables, and Expendables

A. The following tools, consumables, and expendables will be required for propeller

removal and installation:
(1) Tools

(a) Certain instructions throughout this manual refer to tools that will be

required for propeller removal and installation. Specific tools are listed in

Table 3-1, Special Tools and Equipment.

(b) Tooling references appear with the prefix “TE” directly following the tool

name to which they apply. For example, "Blade Stands TE126".

(2) Consumable Materials

(a) Certain instructions throughout this manual refer to consumable materials.

Specific approved materials are listed Table 3-2, Consumable Materials.

(b) The reference numbers for consumable materials appear with the prefix

“CM” directly following the material to which they apply. For example,

"Solvent CM23".

(3) Expendables

(a) 0.020 inch (0.50 mm) or 0.032 inch (0.82 mm) diameter stainless steel

safety wire

(b) O-ring - propeller to engine seal - Refer to Table 3-4, O-ring and Propeller

Mounting Hardware Identification.

Page 3-4

Rev. 3 Apr/17

INSTALLATION AND REMOVAL

OPERATION, MAINTENANCE MANUAL AND LOGBOOK

300

Special Tools and Equipment

Table 3-1

Reference

No.

Hartzell Propeller Inc.

Part Number

Description

TE5

AST-2877

Torque Wrench Adapter

TE97

BST-2960-1

Digital Protractor

TE126

BST-3024

Blade Stands

TE155

AST-2877-1

Torque Wrench Adapter

TE159

BST-10007

Threadless Headless Pin

TE262

EN1901

Propeller Sling

TE495

104287

Torque Wrench

TE506

104507

Leak Check Manifold - 6 Blade

TE507

104504

Adapter

TE509

105167

Check Cylinder - 6 Blade

TE519

BST-2912-20

Flange Adapter - 6 Blade

TE520

BST-2912-21

Flange Adapter - 5 Blade

N/A

103155

Pitch Lock Pin

Page 3-5

Rev. 1 Sep/13

INSTALLATION AND REMOVAL

OPERATION, MAINTENANCE MANUAL AND LOGBOOK

300

Consumable Materials List

Table 3-2

Reference No.

Hartzell Propeller Inc.

Part Number

Description

CM8

A-6741-8

Sealant

3M Scoth Seal, EC800

CM9

A-6741-9

Sealant

3M Scoth Seal, EC801

CM12

A-6741-12-( )

Lubricant - Aeroshell 5, 6, 7, 22;

Royco 22CF

CM21

A-6741-21

Loctite 222

CM23

N/A

Kwik Dry Stoddard Solvent

CM46

A-6741-46

Henkel/Loctite, #1, P/N 30512

CM108

A-6741-108

Lubricant, Starrett, M1

CM109

N/A

Spray Clean

CM118

A-3338-7

MIL-PRF-83483 Anti-Sieze

Compound

CM161

A-6741-161

Sealant,

PRC-Desota International

PR1422A-1/1 or PR1440A-1/2

CM210

A-6741-210

Innospec, Oil Dye Red B4 Liquid

CM257

A-6741-257

Sealant, Silicone, 430 gm,

ThreeBond, 1216E430G

CM302

A-6741-302(-1)

Shell Rotella T65W-40

Operation, Maintenance Manual, and Logbook for Propeller Systems HM-5V1-B1000-A, HM-6V1-A1000-A (2018) - page 1
