Holmatro Catalogue (0614.06 980.000.160) - page 1

About Holmatro Rescue Equipment

6

We develop, manufacture, sell and service high pressure hydraulic, pneumatic and mechanical rescue equipment.

We supply our products and services to fire and rescue organizations worldwide through a comprehensive dealer network

covering all continents.

Mastering power

Mastering power is at the heart of Holmatro’s vision. Common

to all our products is the basic premise that only harnessed

power can be used effectively. Holmatro rescue tools allow

rescuers to apply the high forces generated by the equipment

in a practical, controlled and safe way.

Core values in the Holmatro philosophy

Quality

More than any other equipment, rescue tools must be reliable

and perform well under all circumstances. That is why both

our company and our products meet the highest quality and

performance standards:

- ISO 9001 company accreditation since 1992

- only UL-listed rescue tool brand in USA as of 1993

- complies with the European EN 13204 norms and the

American NFPA 1936 where applicable.

- our pneumatic lifting bags systems comply with EN 13731

Innovation

Throughout the years Holmatro has been at the forefront of

technological developments. Continuous market research

and in-house research & development have led to many

revolutionary innovations.

Success

By developing innovative, reliable and high-quality rescue

equipment we contribute to the daily successes of rescuers in

performing their critical, live-saving tasks.

The power of innovation

14

Throughout decades Holmatro is investing over 4% of its turnover in Research & Development. That is why from the

beginning Holmatro has been at the forefront of technological developments in the field of hydraulic rescue equipment.

You can be assured that we will continue this policy and that our future developments will enable you as a rescuer to do

your demanding job in an even quicker, safer and easier way.

1985

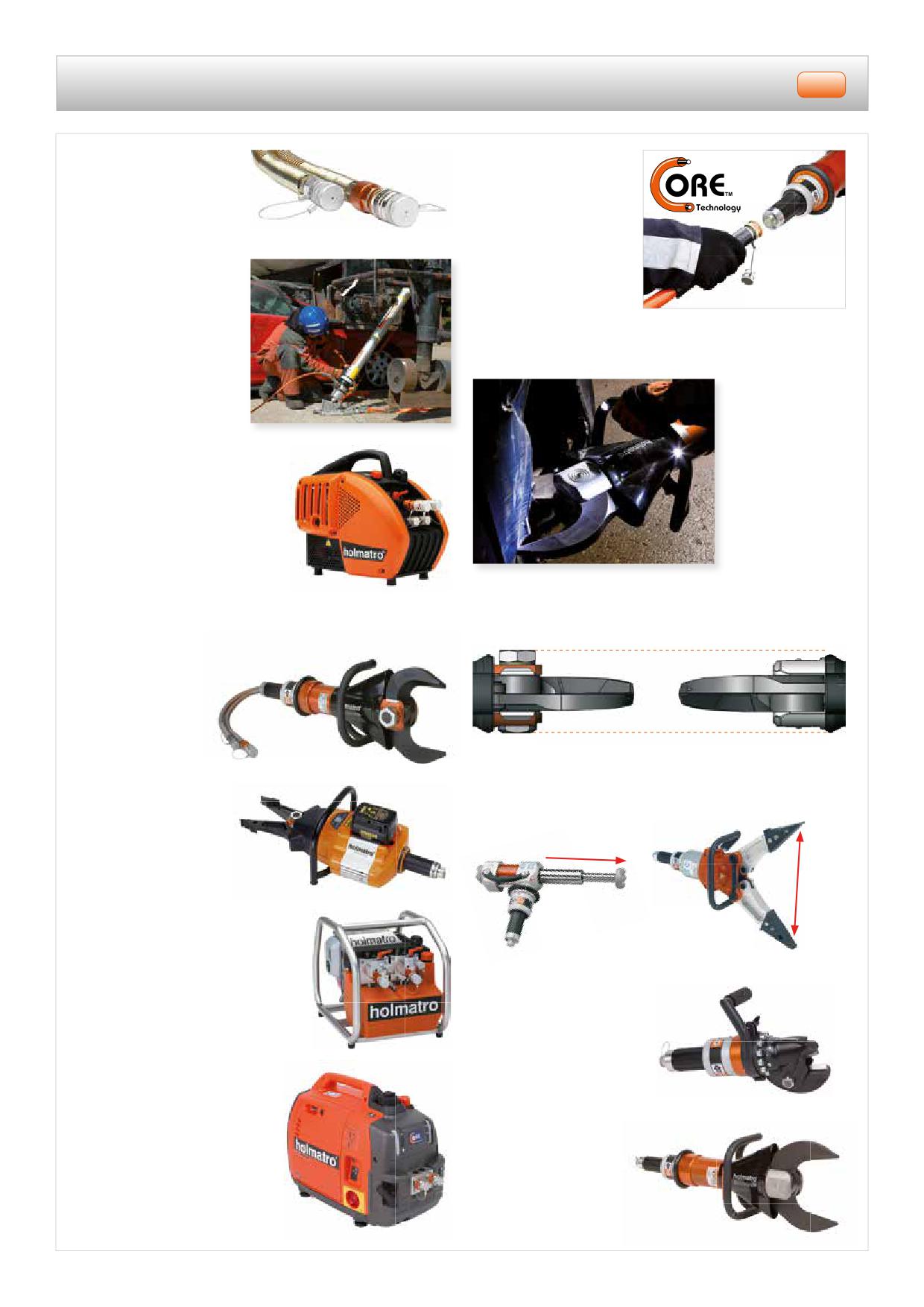

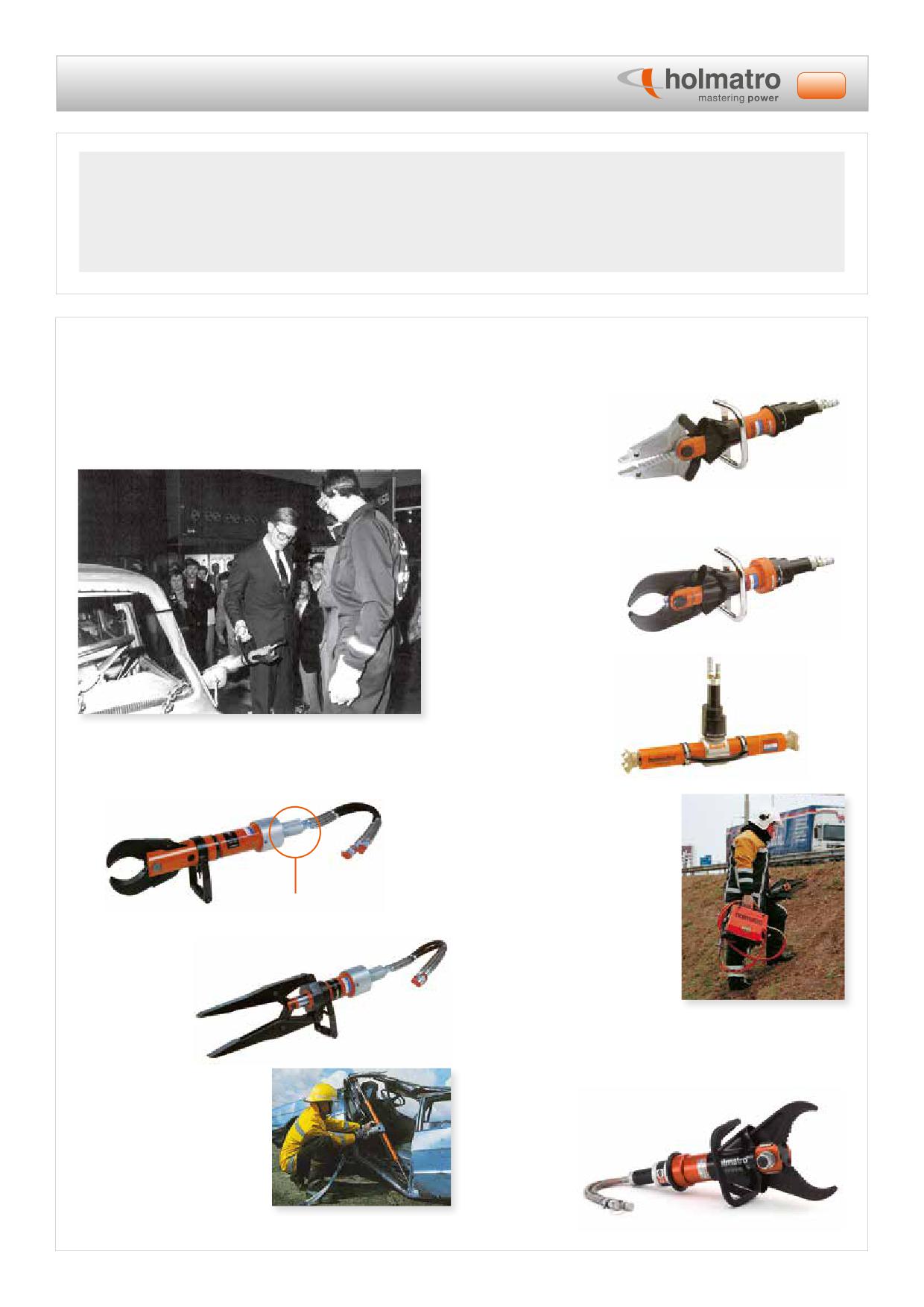

Some of Holmatro’s innovations

First lightweight combi tool. For easier handling and carrying.

1975

First manufacturer to introduce hydraulic rescue tools operating

on a pressure higher than 500 bar. The birth of more compact

and lightweight hydraulic rescue tools.

1986

First lightweight (<13 kg) cutter with a relatively large blade

opening (125 mm) and more cutting power.

1990

First twin-plunger 16 tons ram.

1977

Introduction of the dead man’s handle. From this time on a

uniform, ergonomic and controllable operation was possible.

1993

Introduction of the Holmatro

Personal Power concept for

improved ergonomics: one

man, one pump, one tool.

dead man's handle

1983

First lightweight spreader, less than 19 kg.

For easier handling and carrying.

1998

First hydraulic cutter in the high-performance H-category (EN

1984

13204), in anticipation of new developments in the automotive

First ram with twin plungers.

industry.

Creation of a double

spreading length without risk

of bending a long plunger.

The power of innovation

15

1999

2005

First automatic locking

Holmatro introduces its

hydraulic coupler for safer

revolutionary single hose

working conditions.

CORE Technology. A

turning point in rescue

1999

tool

technology for

Introduction of hydraulic

safer, easier and quicker

shoring struts allowing a

working.

combination of shoring

2005

and lifting: Holmatro

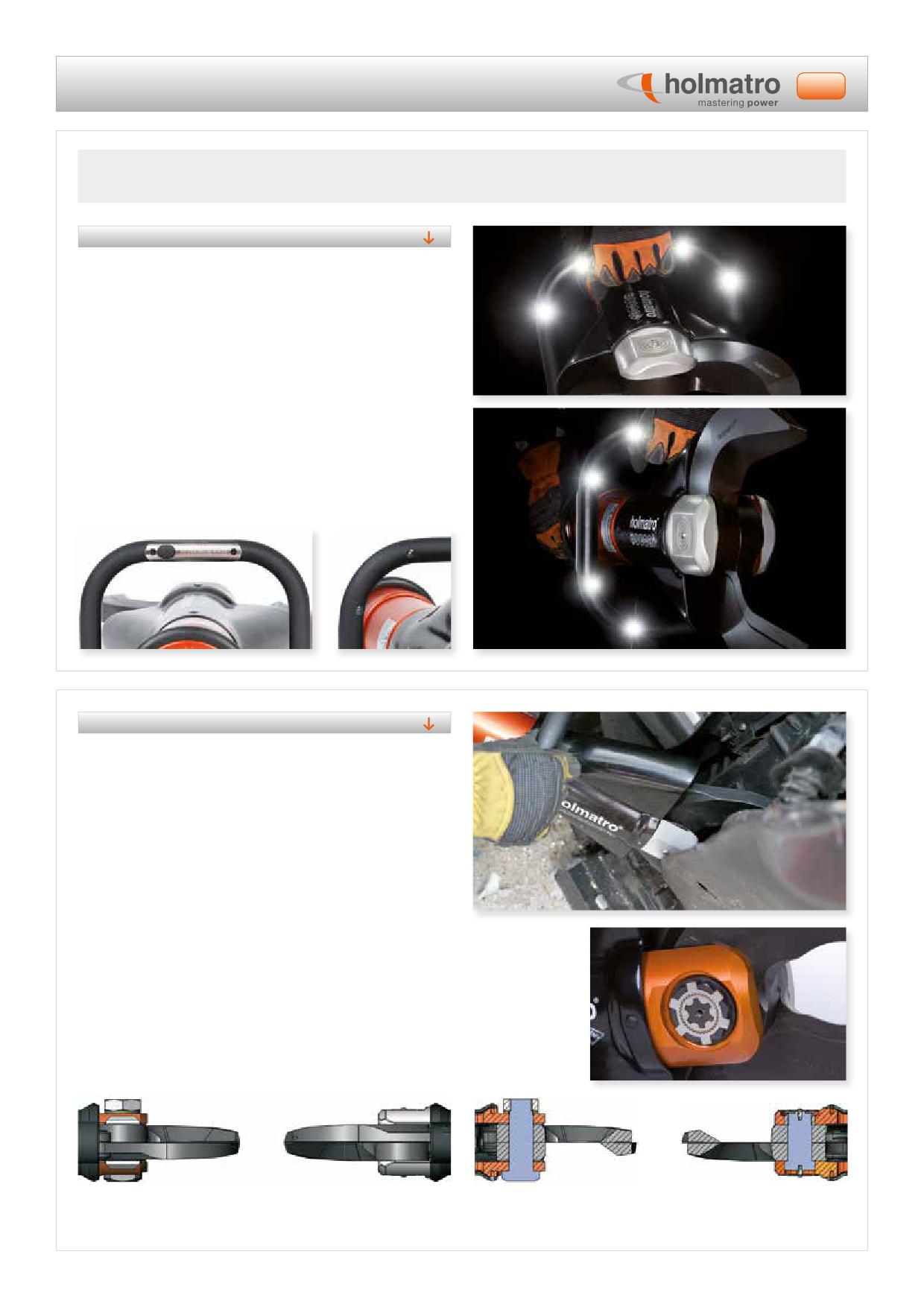

First rescue tools with integrated lighting

PowerShore™.

2000

Introduction of the first low-

weight (15.5 kg) pump based on

the Personal Power concept.

2002

2005

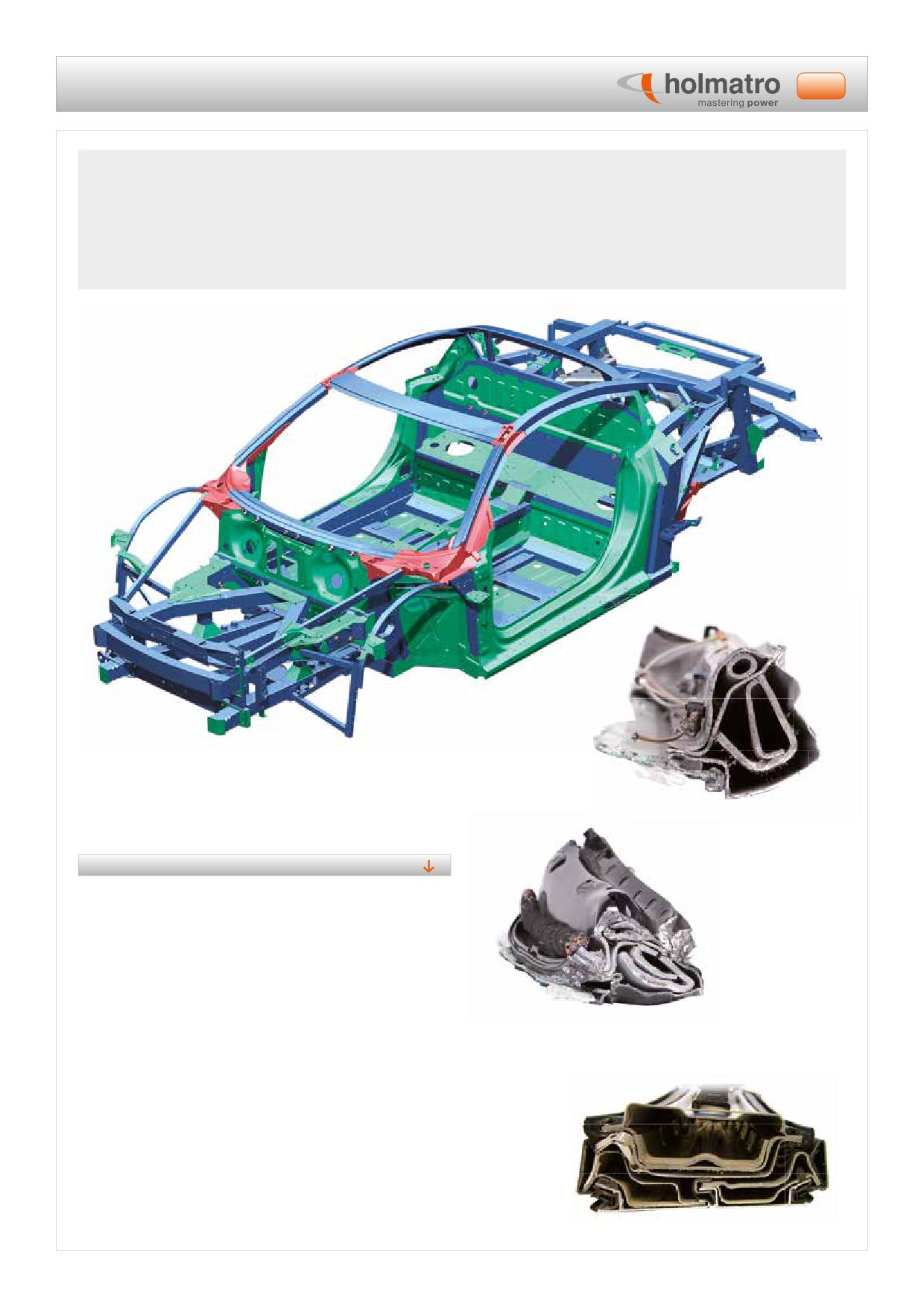

First cutters with NCT (New Car Technology) blades. Especially

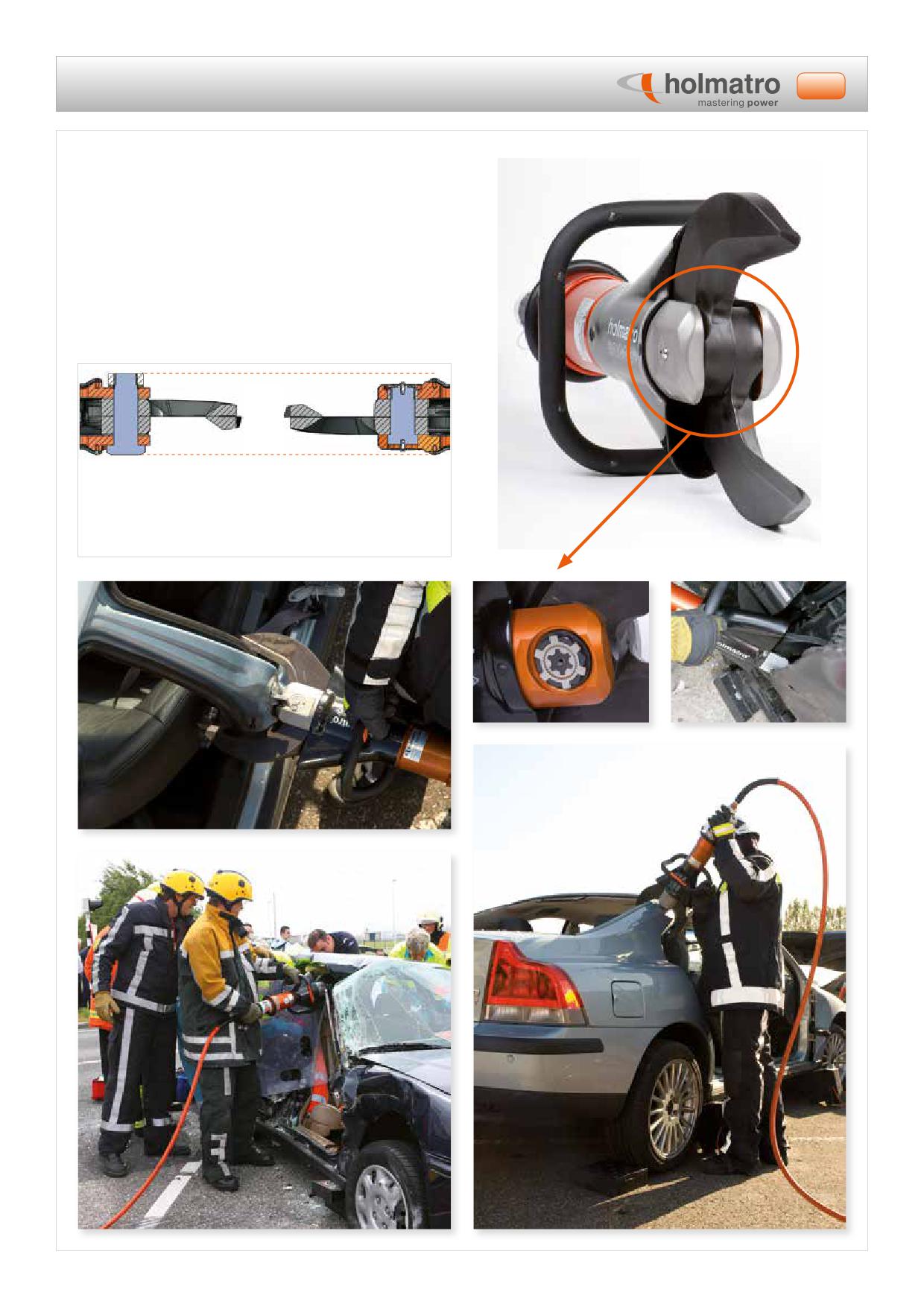

Introduction of i-Bolt Technology on cutters and combi tools for

designed to cut hard materials and reinforced constructions of

a more efficient cutting process and flatter design

modern cars.

traditional bolt construction

i-Bolt construction

2002

2005

First high-performance

Introduction of Speed Valve on spreaders and rams for faster

cordless, compact, low-

opening of tools

weight battery-operated

rescue tools (< 15 kg incl.

battery).

2003

First duo pump with a ready-for-

use weight under 25 kg. Portable

by one man.

2008

Introduction of a cutter for

various special, extra hard

materials: SMC 4006 (C)

2005

The world’s first pump with

2009

ECO-switch.

First NCT cutter with blade opening >

Environmentally friendly.

200 mm and cutting

force > 100 tons.

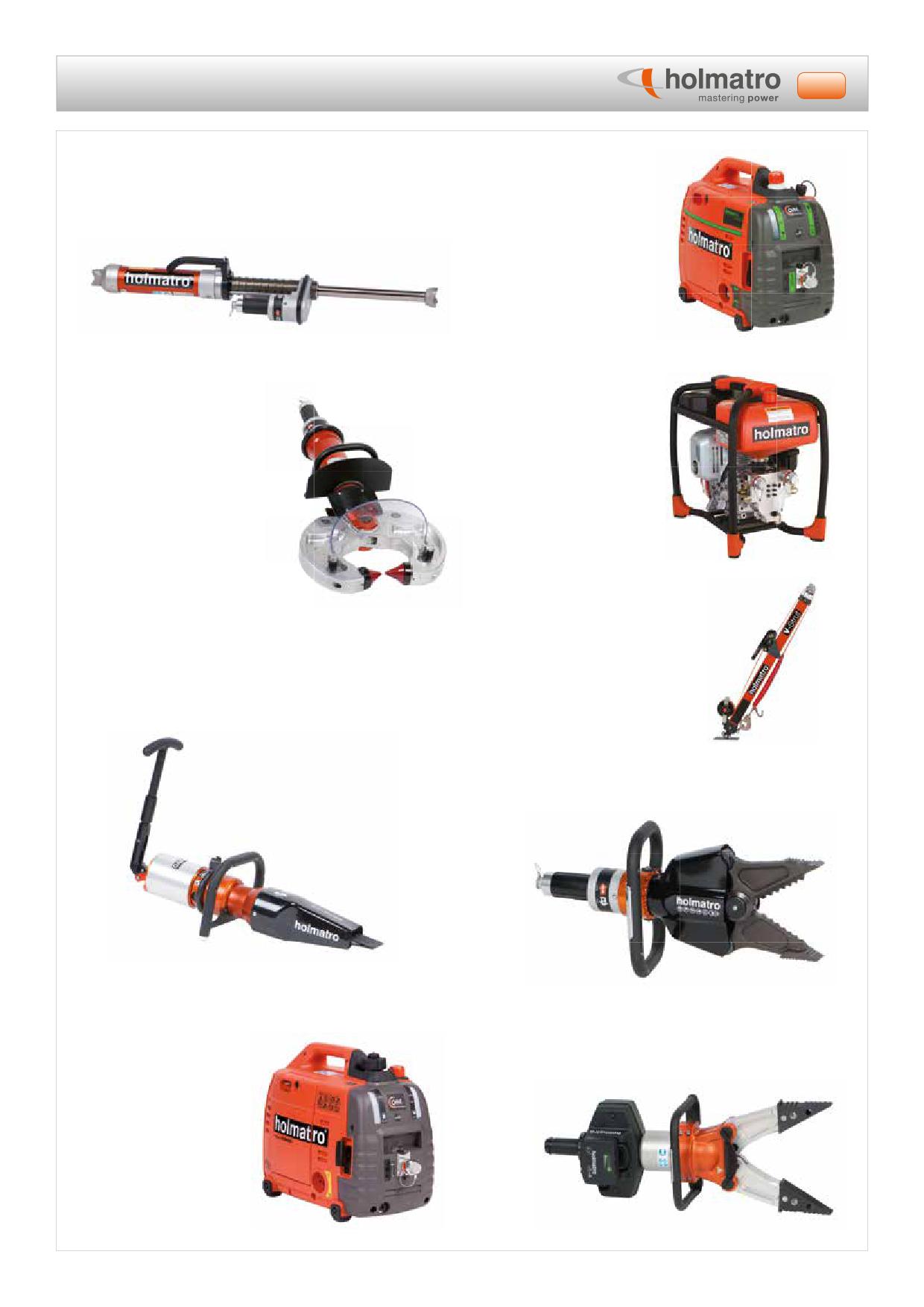

The power of innovation

16

2010

2013

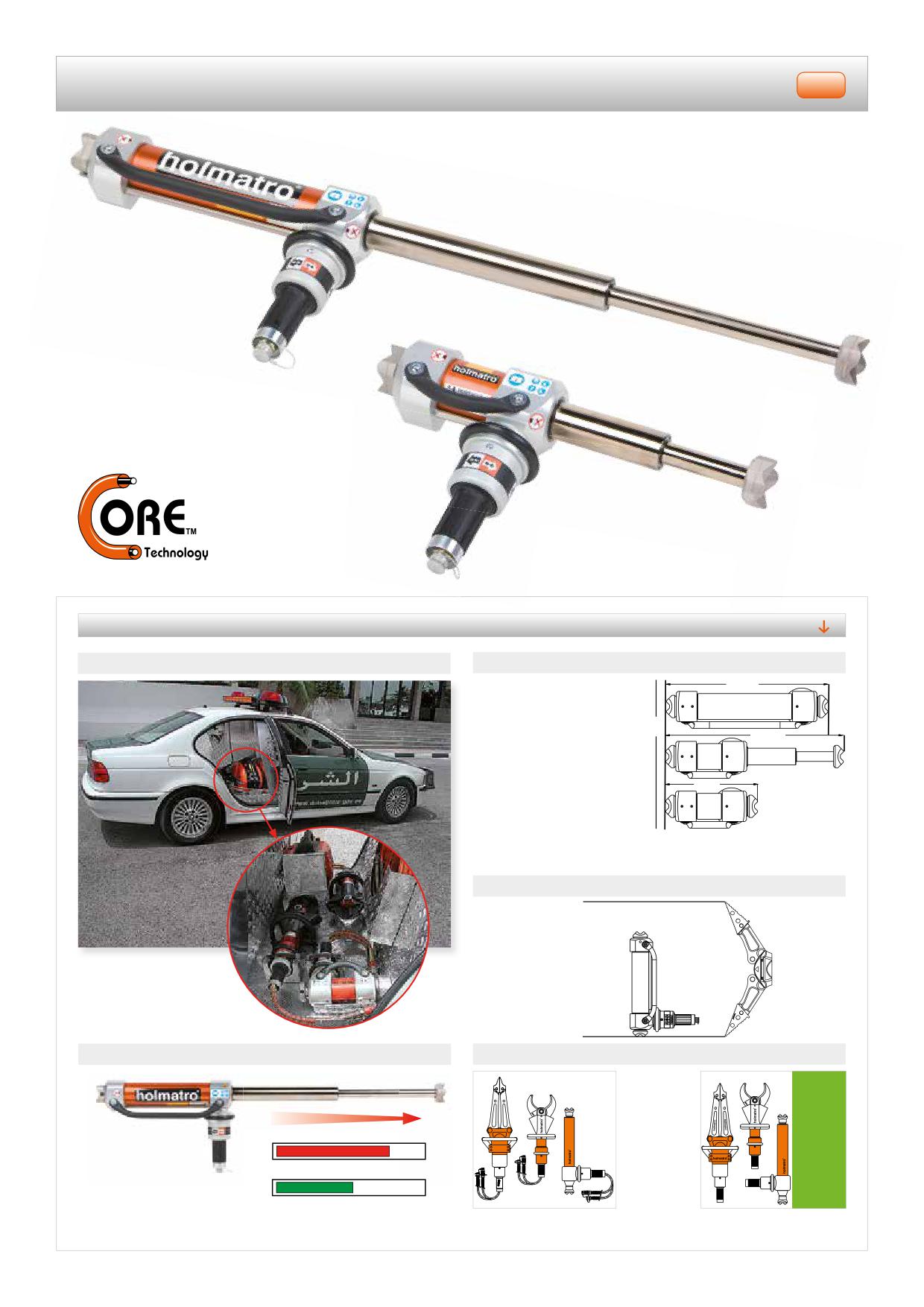

Holmatro introduces a brand new concept for rams combining

Greenline battery pump.

manual and hydraulic extension. To bridge gaps quicker and

First emission-free pump for

with more precision.

use anywhere in any rescue

operation.

2013

2010

Spider

range

pumps.

Concrete breaker that breaks

Complete range of petrol,

up large, thick pieces of

electric and diesel driven

concrete to provide access

3-stage pumps.

into collapsed structures.

2013

Unique auto-lock stabilization system

2010

First hand operated power wedge. Extremely portable and

ready for immediate use.

2014

Ultra-light weight and extreme compact yet high performance

combi tools.

2014

2010

Complete line of Greenline battery driven cutters, spreaders,

Personal Power pump with

combi tools and rams.

3-stage pump technology.

Reliability

17

Reliable performance

Trying to save human lives means working under extreme

stress. Rescue tools, more than any other type of equipment,

must perform well under all circumstances. Both the rescue

tools and the working environment they create must be 100%

reliable.

40 years of experience

Our over 40 years of experience in high pressure hydraulics,

our in-house Research & Development, the international norms

Holmatro rescue tools meet, our ISO 9001 certification and

our general quality concept give you the confirmation of the

reliability of Holmatro rescue tools.

Training and training materials

20

Power alone is not enough. Holmatro knows it takes more than the world's best rescue tools to save lives. Rescue in

general is a very challenging discipline requiring ongoing training and skills development. To support rescuers faced with

this continuous challenge we have developed various training materials in a variety of languages. Holmatro and its dealers

also regularly organise training sessions for end users.

VEHICLE EXTRICATION TECHNIQUES

This richly illustrated 256-page hard cover training book, written

Subjects in the book include:

by Holmatro Rescue Consultant Ian Dunbar, promotes a safe,

• Safety

methodical and casualty centred approach to the extrication of

• The Vehicle

persons following a road traffic collision. Not only does it cover

• Tools and Equipment

rescue tools and techniques, it also highlights key medical

• The Team Approach

considerations and guides the rescuer through the process of

• At the Scene

efficient extrication planning.

Other topics are: Rescue at Night, Extrication near Water,

All vehicle extrication techniques described in the book are

Training, Multi Agency Working and more.

illustrated by pictures and have QR codes referring to videos

on YouTube showing how to perform these procedures.

Training book with links to instruction videos

App

This book has been written for rescuers of all levels of

The interactive Holmatro Vehicle Extrication app is based on

experience, to be used as a resource and a basis for training

the training material in the book. It promotes a safe, methodical

and development. Containing the most relevant and up to date

and casualty centred approach to the extrication of persons

information available, the aims of the book are to:

following road traffic accidents. The app explains in detail the

most common technical rescue techniques, illustrated by 60

• Promote a safe and systematic approach to the rescue of

videos showing you how to perform the procedures. In addition,

persons who are trapped following a road traffic collision

the app highlights key medical considerations and guides the

• Explain the concept of extrication planning

rescuer through the process of efficient extrication planning.

• Explain techniques that may be used during the extrication

process

• Introduce the rescuer to some key basic medical

Posters

considerations

A new poster series explaining and illustrating various vehicle

extrication techniques is available as well.

All vehicle extrication techniques in the book are illustrated by

pictures and have QR codes referring to videos on YouTube,

showing you how to perform these procedures.

Training and training materials

21

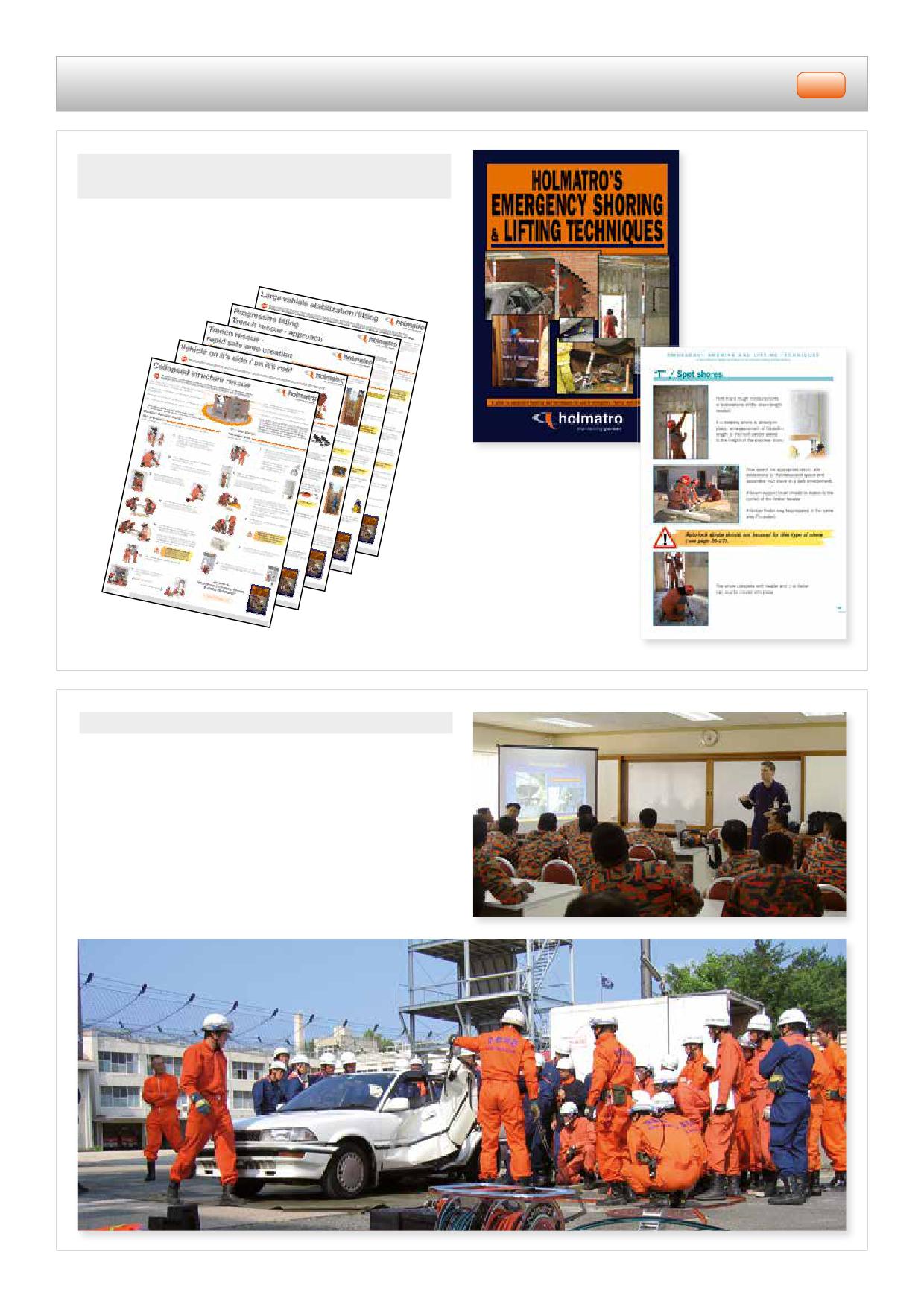

Holmatro's Emergency Shoring & Lifting

Techniques

A richly illustrated training book and series of 5 posters on

equipment handling and techniques for use in emergency

shoring & lifting operations.

100-page training book.

Poster series,

dimensions 70 x 50 cm.

Training

Holmatro can provide product, application and basic tool

handling training tailored to your requirements. Usually

these trainings are a mix of theory (classroom sessions) and

practice (hands-on sessions). We are often able to help you

with this training ourselves and if not we can always provide

you with information about training institutes. Holmatro shares

information and works together with various professional

training institutes around the world.

CORE T

echnology

22

CORE Technology, the next major step forward

1965 - 1975 introduction of hydraulics in the field of

1985 - 2005

shift to a more patient-orientated

extrication

rescue

1975 - 1985 technical shift towards high pressure

2005

introduction of CORE Technology

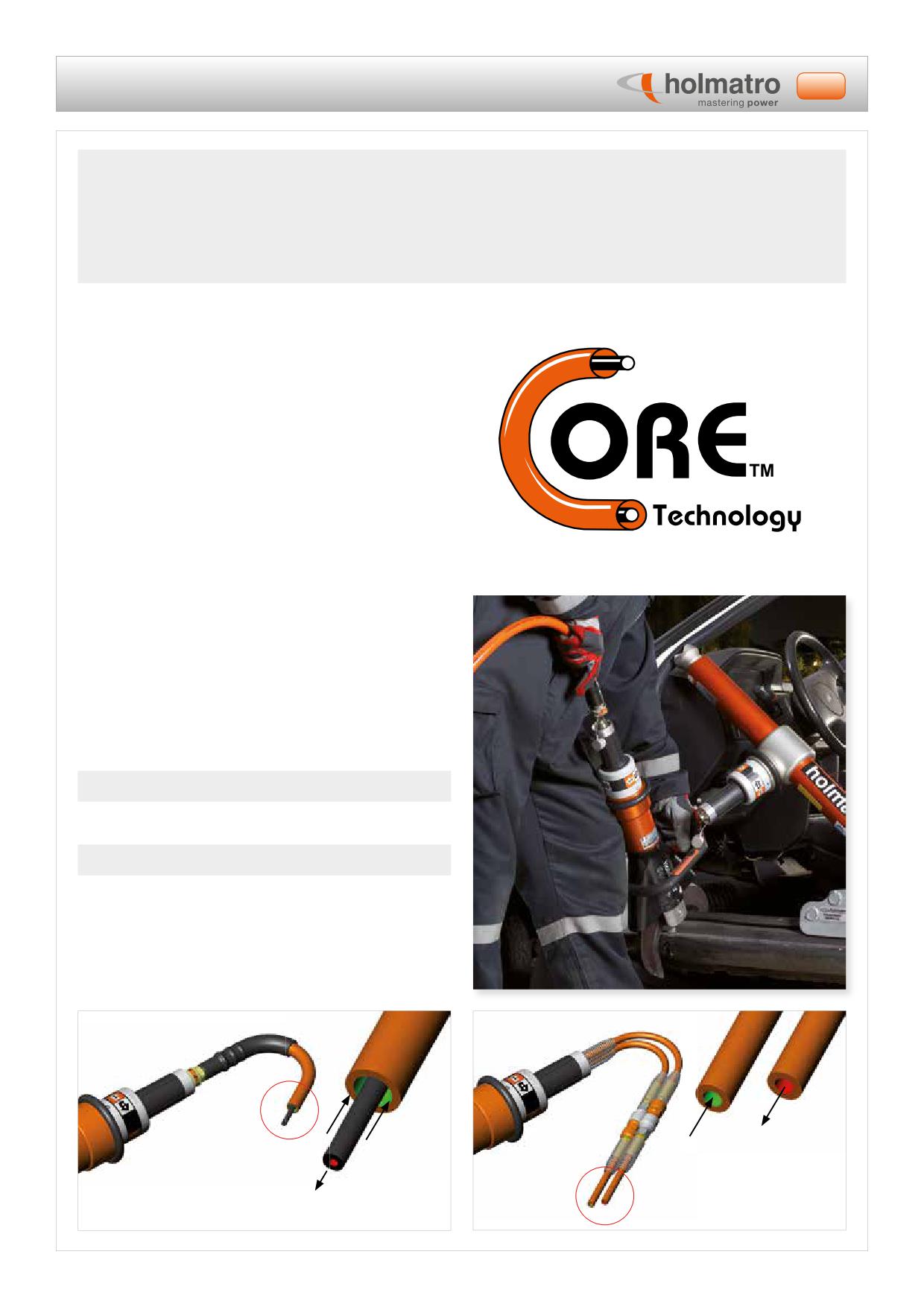

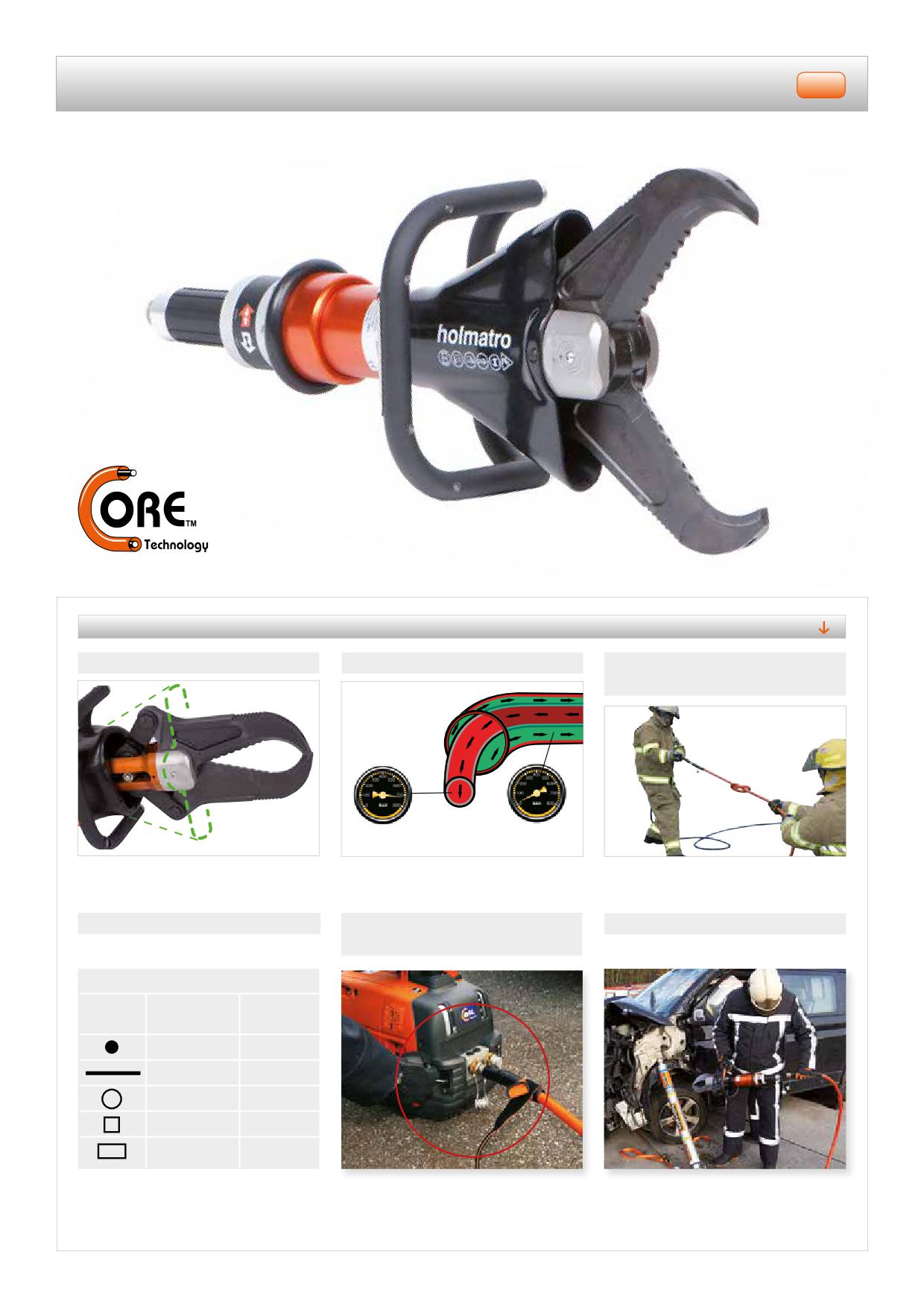

What is CORE Technology?

CORE Technology (Coaxial Rescue Equipment Technology)

refers to the hoses, couplers and valves of a rescue system. In

other words the way hydraulic oil is directed from the pump to

the tool and vice versa. A traditional dual hose system consists

of a separate pressure and return hose connecting pump and

rescue tool. A CORE system consists of a high pressure inner

hose inside a low pressure outer hose. The hydraulic principle

and tool performance of CORE Technology and traditional

technology are of course identical.

Why CORE Technology?

CORE Technology is a revolutionary turning point in rescue tool

technology and definitely more than a new piece of equipment.

It allows you, as a rescuer, to rethink and simplify your extrication

techniques and your standard operating procedures. Once

working with CORE, you will discover the unprecedented benefits

CORE offers. Compared to working with a traditional system,

working with CORE is:

Safer

Easier & Quicker

- saves time, is more user-friendly and allows

more efficient use of manpower

CORE Technology

Traditional

dual hose

CORE Technology

23

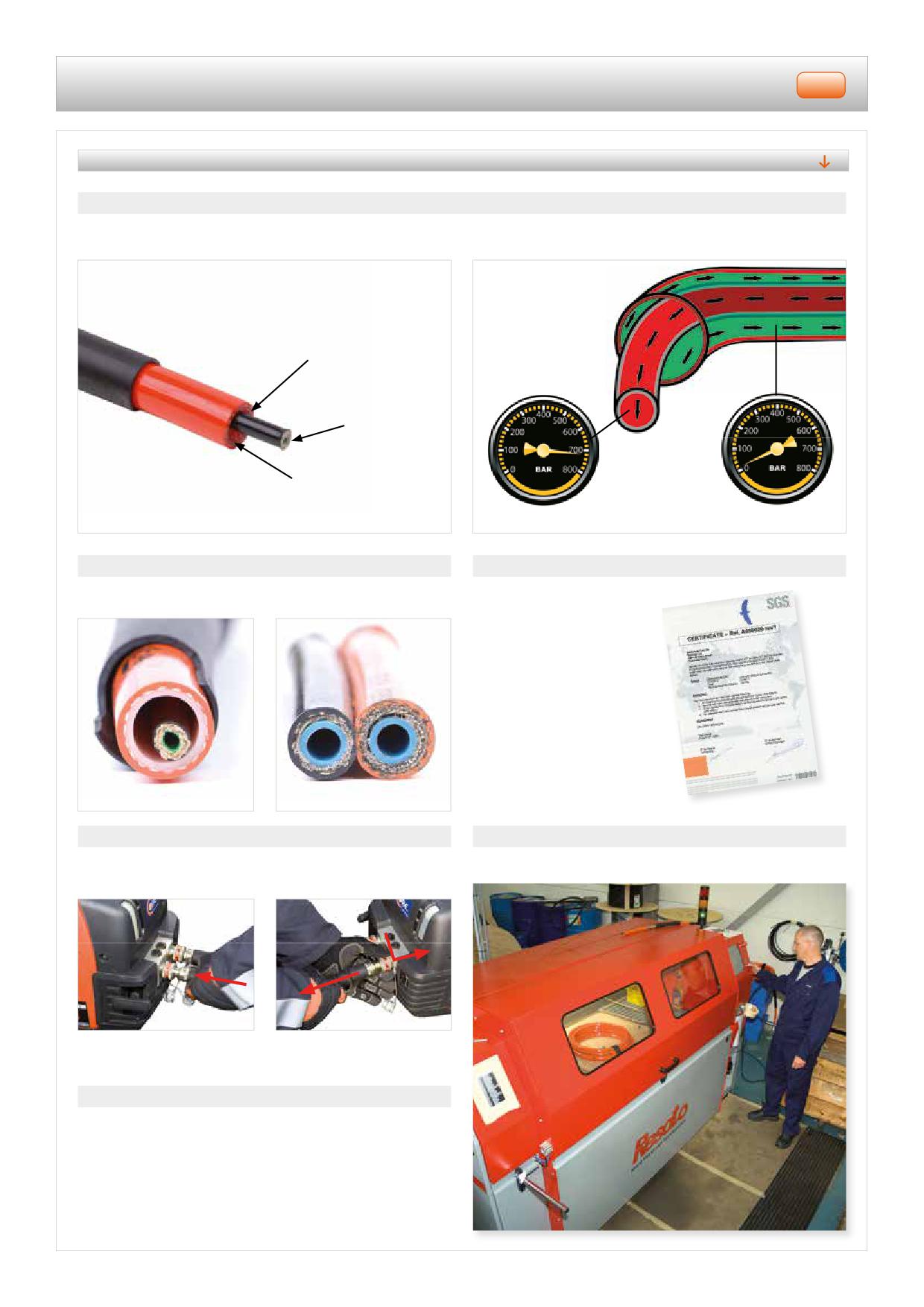

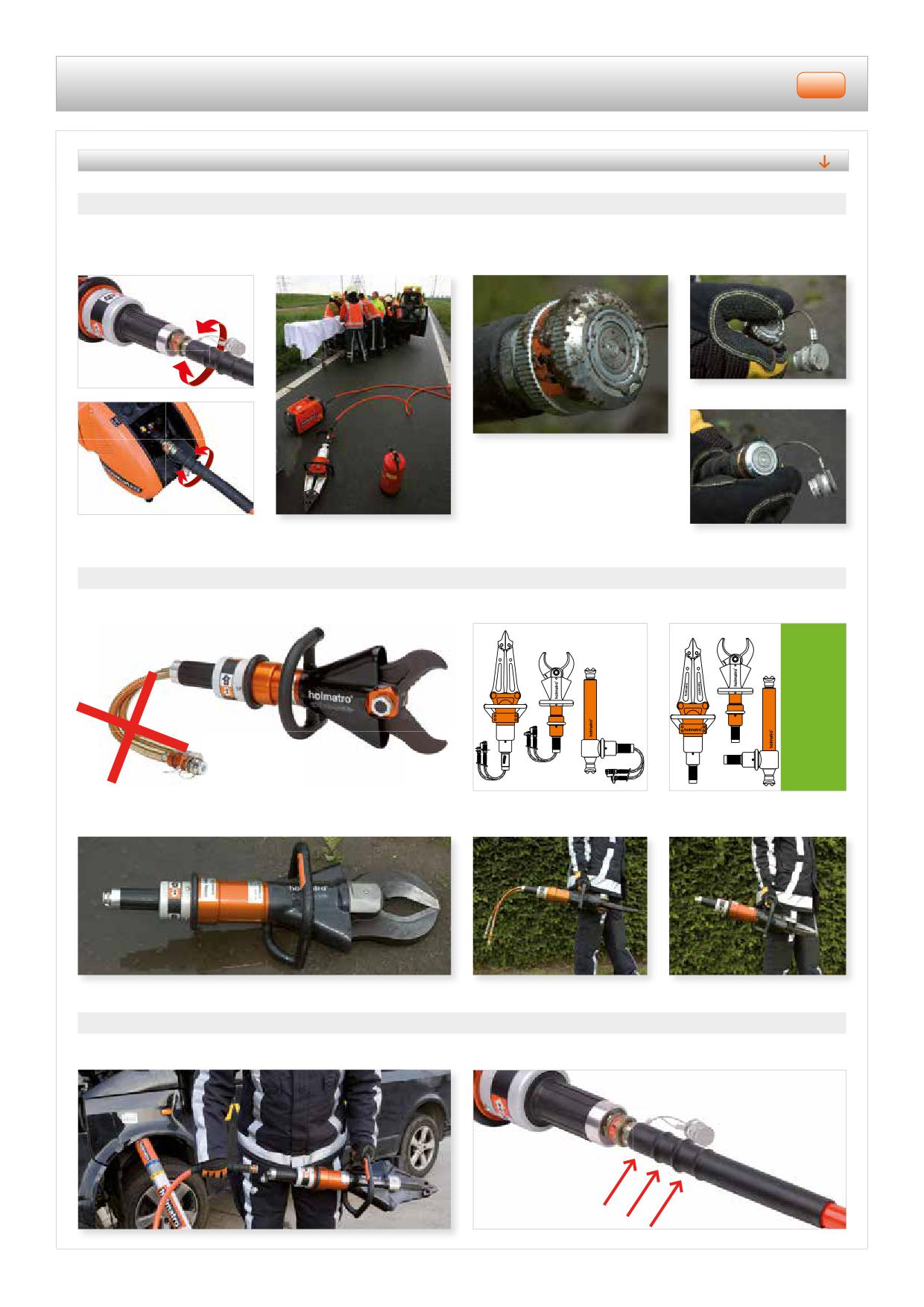

Safer

One hose system (hose in hose) - protected power

- increased safety for the rescuer; high pressure hose protected by low pressure hose

low pressure return hose

high pressure hose

return oil

max. 720 bar

max. 25 bar

Para-aramid fiber reinforced hoses (no steel)

According to all international safety norms

- no risk of kinking or pinholes

- 4:1 safety ratio for both

pressure and return lines

- according to EN 13204

and NFPA 1936

CORE

Dual - steel reinforced

Safety couplers

Hose testing

- one step auto-lock coupler

- all testing according to every appropriate safety norm

- two step uncoupling system

- couples and locks in just

- accidental uncoupling

one push

impossible during operation

Maintenance friendly

- less couplers

- less hoses

- no pigtail hoses on tools

- no valves on pumps

CORE Technology

24

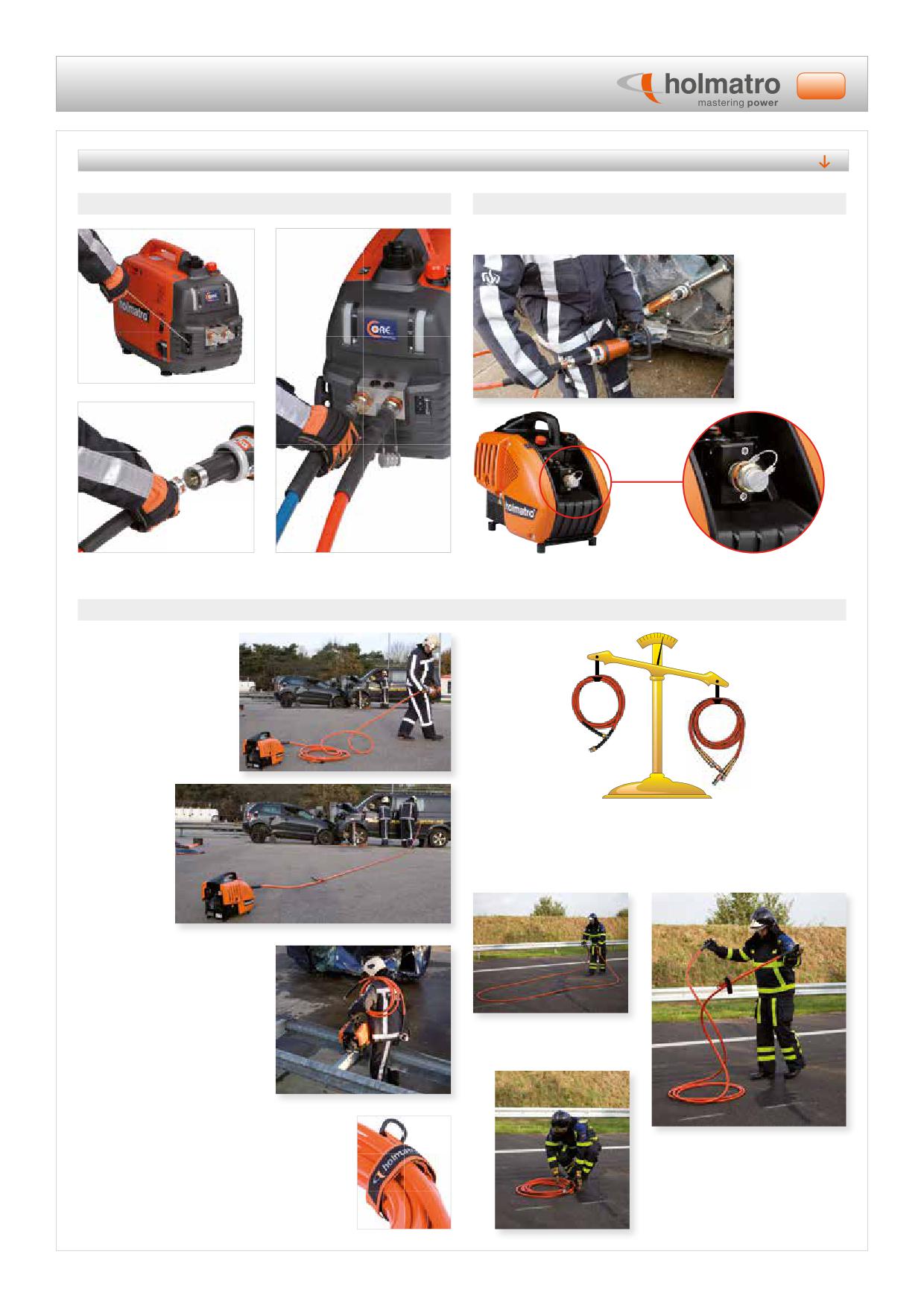

Easier & Quicker

Simple set up

Changing tools under flow during use

- saving precious manpower

- connect CORE hose to pump or tool with or without pump running

- changing of tools at any time without the need for release valve on pump

Para-aramid reinforced hoses

- no kinking

- lightweight

CORE Technology hose: about

traditional steel

40% weight reduction

reinforced hoses

- easy to roll and unroll

- easy to handle / manoeuvre

- all hoses with standard hose binders for

easy storing

CORE Technology

25

Easier & Quicker

Unique CORE couplers

- 360° rotating couplers on tool and on pump; no hose

- maintenance friendly flat face couplers

entanglement

360 º

- easy to clean

360 º

- no dirt inside couplers

Coupler mounted directly on the tools

- no pigtail hoses necessary

- compact so space saving in rescue vehicle

space

saved

- tool couplers not lying in the dirt

- no swinging pigtail hoses

Dual hoses

CORE Technology

One hand coupling

- (dis-)connecting tool with one hand while standing

- end of hose grips at both hose ends

Features / Benefits

26

The following innovative features are standard on almost all Holmatro rescue tools, both with CORE Technology and with

traditional dual hoses.

Carrying handles with integrated lighting

- standard on almost all Holmatro cutters, combi tools and

spreaders

- never work in your own shadow again, neither at night or

during daytime when bright sunshine can cause dark shady

areas

- the 4 integrated LED lights also provide illumination in those

cases where rescue scene lighting is absent (e.g. certain

rapid interventions situations)

- on one standard AA battery, the LED's work 12 hours

continuously

- the battery can be replaced in less than 60 seconds

i-Bolt Technology

The new revolutionary central bolt construction

- standard on all Holmatro cutters and combi tools

- the i-Bolt is sunk into the blade holder; this results in a

much flatter design which provides better access in narrow

spaces

- the blades are squeezed together directly. This as opposed to

conventional bolt constructions where the bolt sits on top of

the blade holder and squeezes the (‘softer’) aluminium blade

holder together, with the blades in between. i-Bolt Technology

therefore results in less blade separation and a more efficient

cutting process. A cutter with i-Bolt Technology outperforms

an identical cutter with a conventional bolt construction.

- the bolt and blade holder are protected by a stainless steel

cover. Direct damage of bolt and blade holder during an

extrication process is therefore no longer possible.

traditional bolt construction

new i-Bolt construction

Squeezes (“softer” aluminium)

Squeezes blades directly for a

blade holder. Blades are squeezed

superior cutting performance.

indirectly only.

Features / Benefits

27

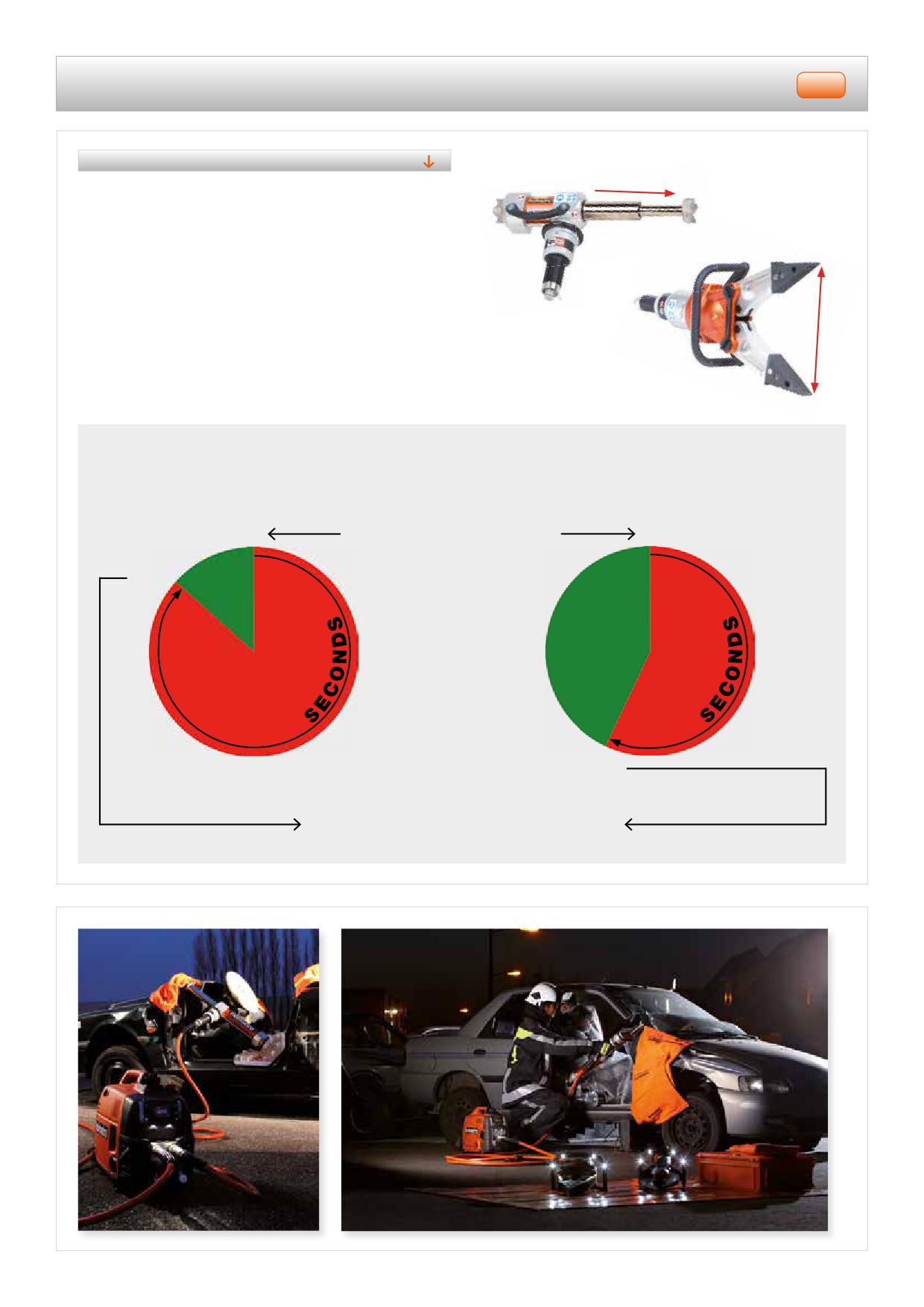

Speed Valve

-standard on all Holmatro spreaders and rams

-with the Speed Valve tools open up significantly faster at

pressures below 150 bar. This allows for faster more efficient

tool placement, thus shortening the duration of the extrication

time required. At

150 bar working pressure the valve

automatically reduces the opening speed back to ‘normal’ to

ensure a controlled and safe extrication process. The control

handle of course allows for accurate and proportional opening

and closing at both high and low speeds.

Opening times spreaders and rams at working pressures below 150 bar

without Speed Valve

with Speed Valve

0

start of operation at 0 bar

0

150

bar

150

bar

start of spreading, pulling, squeezing,

lifting, pushing at 150 bar

NCT - New Car Technology

28

The conflict between safety and accessibility

Newer and safer construction methods, improved design and the use of high strength materials are found in today's

vehicles. The new technology in these cars often causes a paradox of safety versus accessibility. In other words, the car

construction that makes it possible for a driver to survive an accident could be the same reason why it is impossible for

rescuers to free him out of his car. To help rescuers face this challenge, Holmatro continuously innovates and improves its

rescue equipment.

The ultimate hydraulic rescue equipment for

modern cars:

Cross section of the A-pillar of

a new convertible before and

after cutting.

Holmatro NCT (New Car Technology)

As extrication equipment has to be designed with the newest

developments in mind, Holmatro stays in frequent contact

with vehicle manufacturers. Extensive tests on the latest car

models and prototypes tell us that power alone is not enough.

The much harder, tougher materials and more intelligent car

constructions ask for extrication equipment that faces up to

these challenges: Holmatro’s NCT cutters.

Typical B-pillar cross section.

New Car Technology (NCT) focuses on better cutting

performance.

This is achieved by a combination of three basic principles:

1.

Advanced blade design

2.

Flat central i-Bolt construction

3.

More hydraulic cutting force

NCT - New Car Technology

29

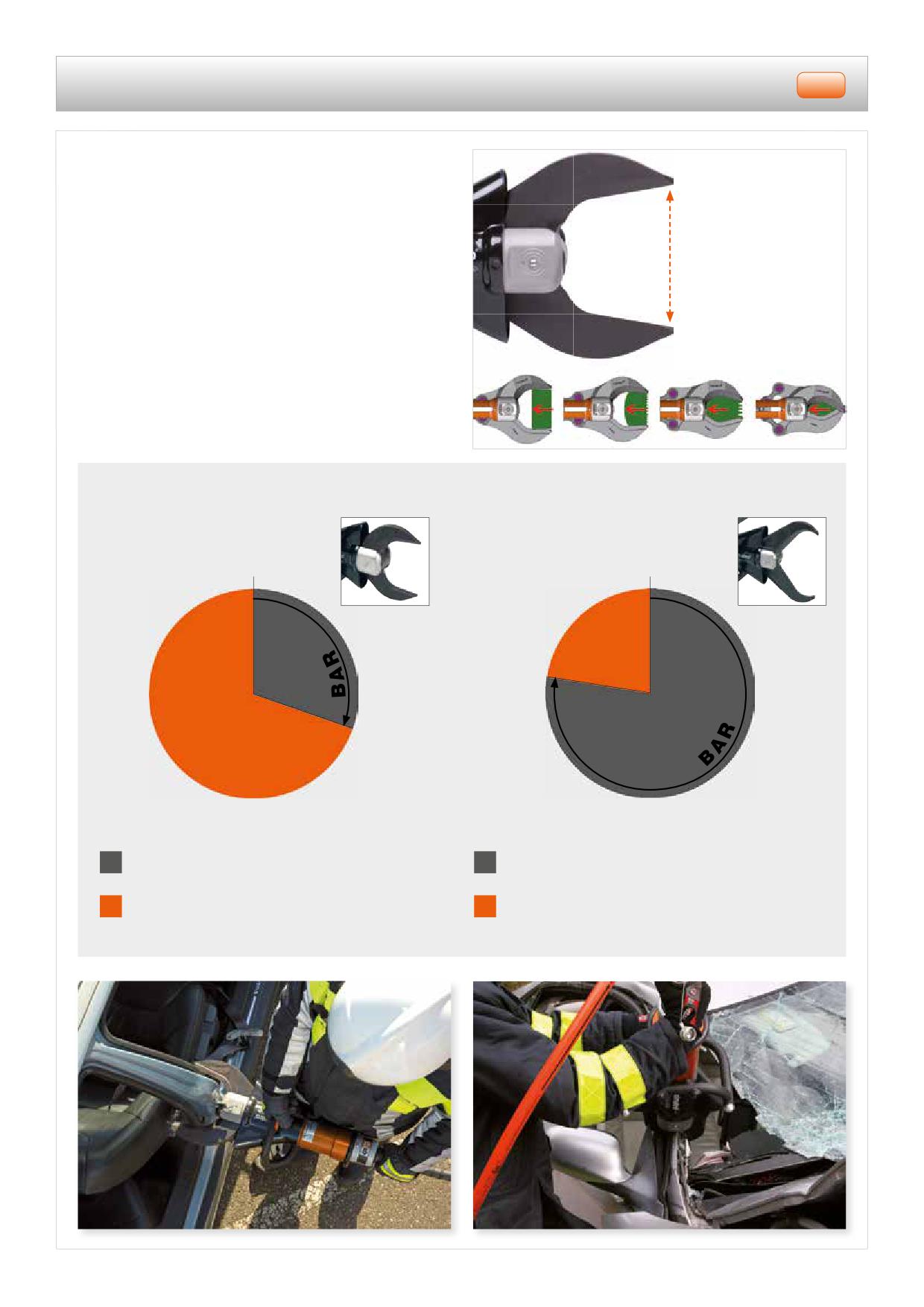

1. Advanced blade design

To be able to cut modern constructions, blade design is an important

part of the solution. In the event of an accident, precisely those

parts in a vehicle are strengthened where strategic cutting normally

- U-shaped blades pull

material into the cutting

has to be performed. The revolutionary Holmatro NCT blades, with

recess.

202 mm

their characteristic 90˚ blade angle, have a huge opening at the

- Allows wide material to be

cut at the strongest point of

tips. They easily surround the wide pillars of modern cars. This

the cutter.

U-shape of the NCT blades automatically pulls the material to the

recess which is the point with the highest cutting force. The result:

a superior cutting performance. Modern vehicle constructions and

new hard materials are cut with far more efficiency and at a much

lower working pressure than is possible with general purpose (GP)

blades. The NCT cutter has proven to be the ideal tool for rescue

organizations whose principal task is vehicle extrication.

Reserve for the future

NCT blades

GP blades

720 bar

0 bar

720 bar

0 bar

18%

590 bar

70%

210 bar

Indicative pressure needed to cut a B-pillar of a 2013

Indicative pressure needed to cut a B-pillar of a 2013

prototype car with Holmatro NCT blades.

prototype car with a conventional GP blade cutter.

Excess capacity with a cutter with Holmatro NCT

Excess capacity with a cutter with GP blades (18%).

blades (70%).

NCT - New Car Technology

30

2. Central i-Bolt construction for superior cutting

performance

The construction of a tool is essential for achieving the optimum

cutting performance. For this reason, Holmatro developed

the i-Bolt. The i-Bolt squeezes the blades together more

tightly, resulting in less blade separation and improved cutting

performance. The much flatter design of the revolutionary i-Bolt

also provides better access in narrow spaces. Its stainless steel

cover protects the bolt and blade holder against damage and

dirt.

Traditional bolt construction

i-Bolt construction

Squeezes (“softer” aluminium)

Squeezes blades directly for a

blade holder. Blades are squeezed

superior cutting performance

indirectly only.

and also results in a flatter

design.

NCT - New Car Technology

31

3. More hydraulic cutting force

In rescue operations one needs power to cut the hardened

materials in (new) vehicles. Besides this, rescue scenes ask

for speed and ease of use. In the NCT cutter range Holmatro

created more power with the same maximum working pressure

(720 bar). By using newer lighter materials the stronger tools

103.8 t

kept their lighter weight without losing their necessary strength.

How does Holmatro stay at the forefront of advances

in materials and vehicle construction?

Holmatro acquires its knowledge of new car technology from a

number of sources. First and foremost we stay in close contact

with numerous leading manufacturers of passenger vehicles

and heavy goods vehicles. We would like to express our

gratitude to all of these manufacturers for helping us staying up

to date on the latest construction and design developments.

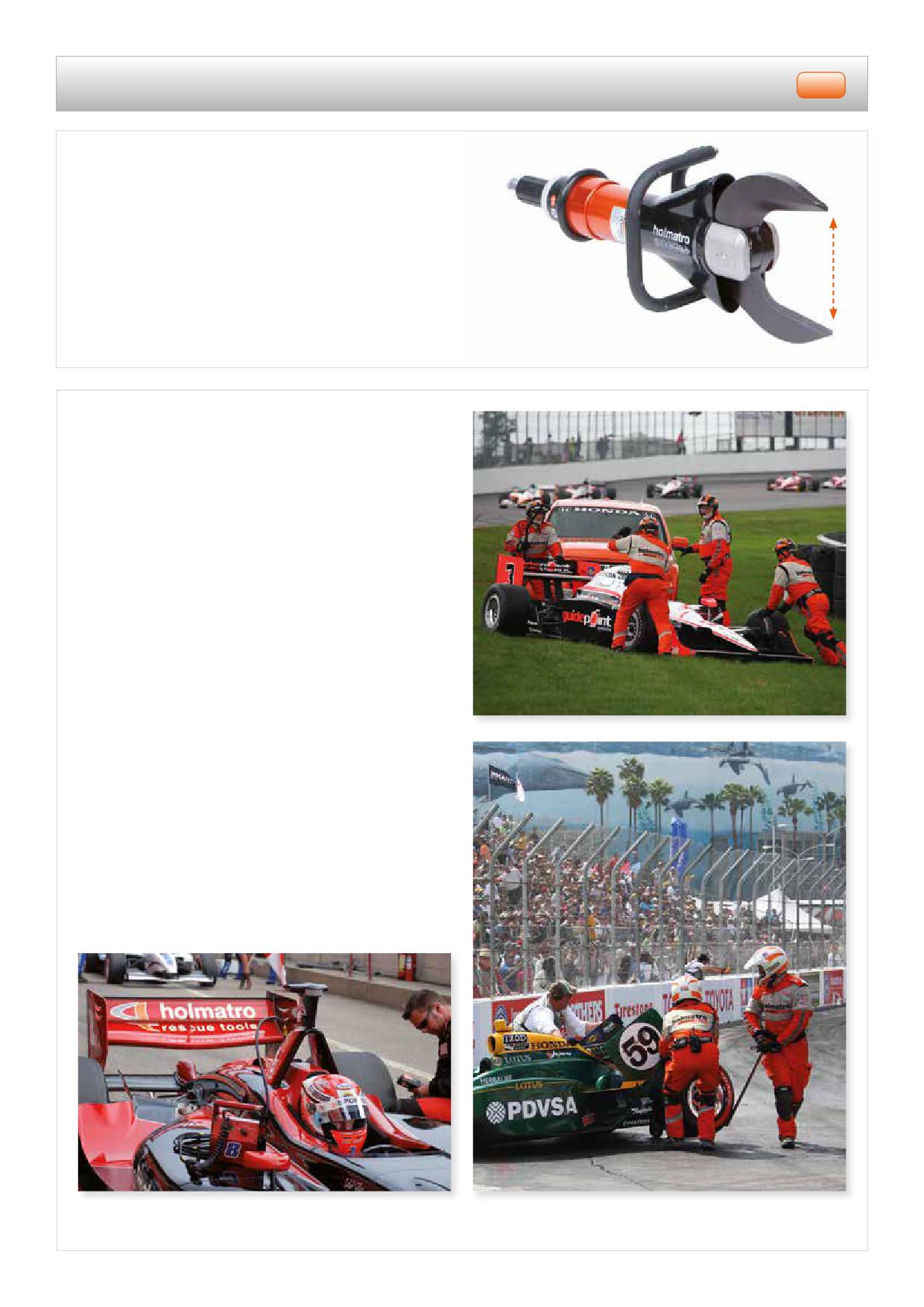

Another valuable source of information is the racing world.

Holmatro is the Official Rescue Tool of the Indy Racing League.

New materials and construction methods to make cars lighter

and safer are often used first in racing cars before ending up in

production vehicles some years later.

Last but not least we receive a lot of input from training institutes

and rescuers worldwide about their practical experiences.

Combined with our in-house engineering knowledge, these

sources help us develop rescue tools that are more than able

to face the tasks of everyday reality.

See the NCT cutter range on the following pages.

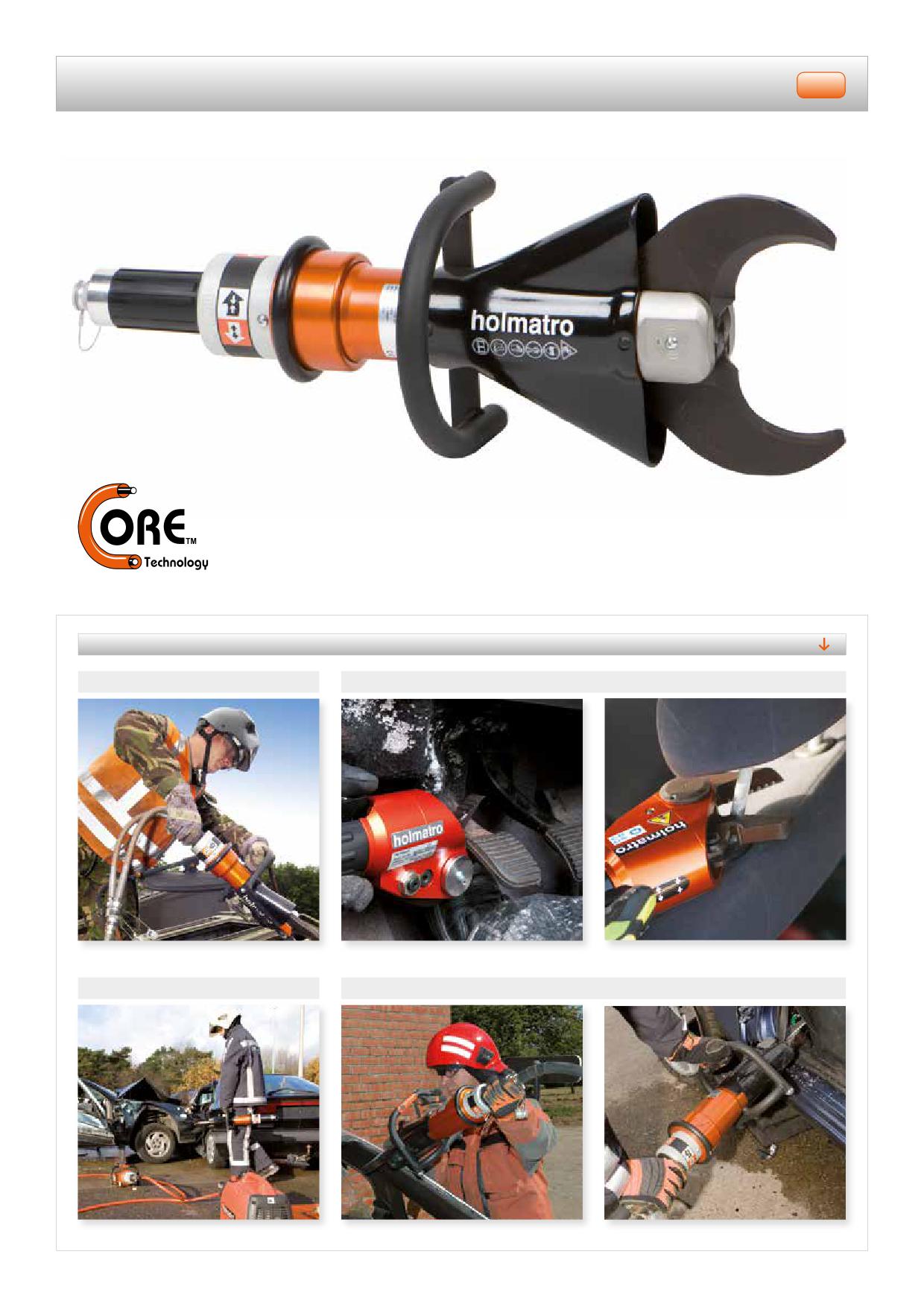

1.1 Cutters - New Car Technology

32

NCT II Cutters - New Car Technology

specifications

CU 4035 C NCT II

CU 4050 C NCT II

CU 4055 C NCT II

equipped with

CORE

CORE

CORE

article number

150.012.095

150.012.094

150.012.166

EN 13204 classification

AC145E-13.8

BC165H-18.0

CC202H-19.9

max. working pressure

bar / MPa

720 / 72

720 / 72

720 / 72

blade opening

mm

159

181

202

cutting force

kN / t

355 / 36.2

927 / 94.5

1018 / 103.8

round bar (acc. to EN 13204)

mm

32

41

41

weight, ready for use

kg

13.8

18.0

19.9

dimensions (L x W x H)

mm

714 x 270 x 202

775 x 270 x 218

805 x 270 x 218

required oil content (effective)

cc

82

163

163

i-Bolt technology

√

√

√

carrying handle with integrated lighting

√

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of biting in material that cannot be cut

endurance test dead man's handle

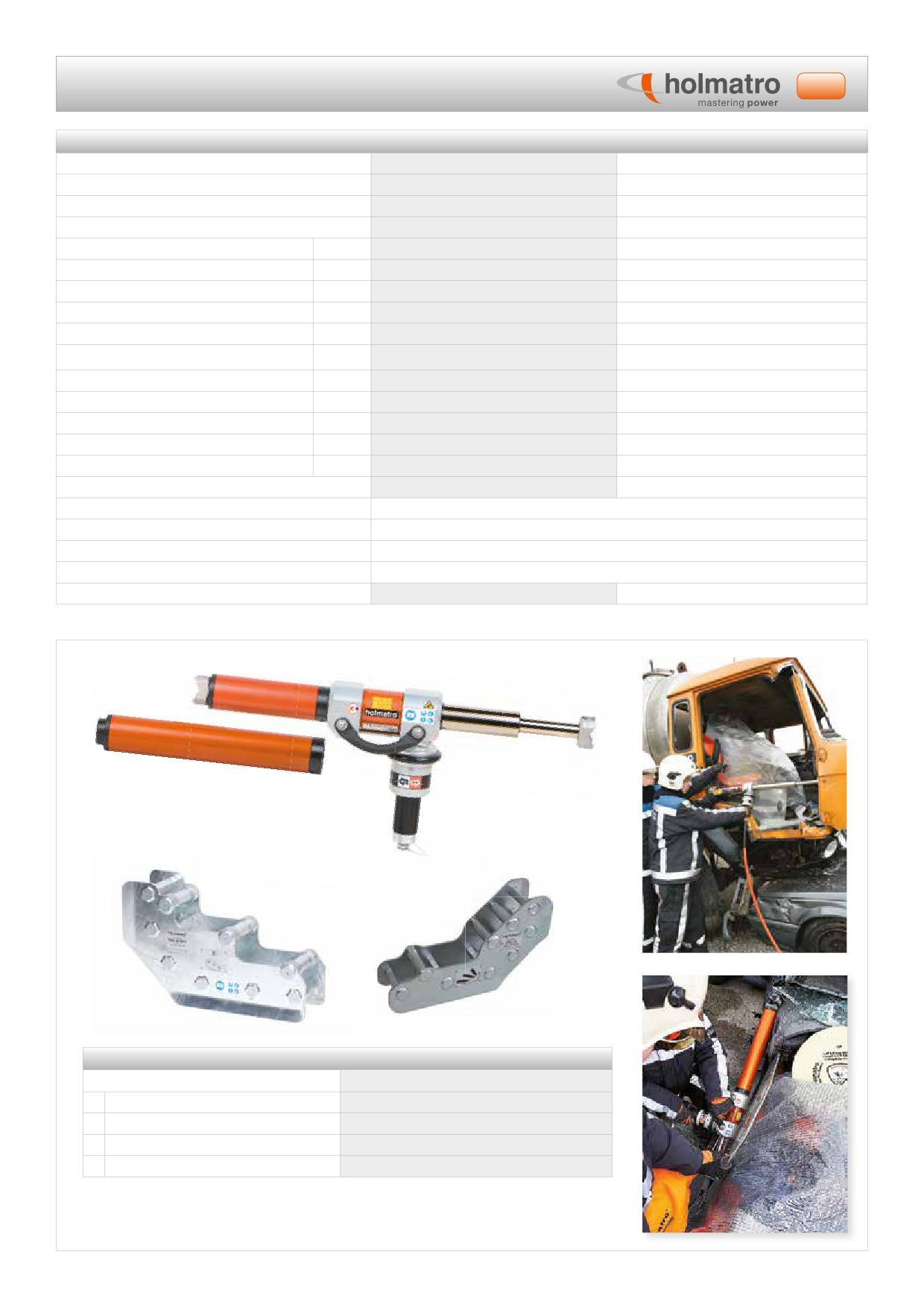

6000 cycles

also available in dual hose version

√

√

√

Tested according to EN 13204 and NFPA 1936.

CU 4050 C NCT II

CU 4035 NCT II

1.1 Cutters - New Car Technology

33

CU 4055 C NCT II

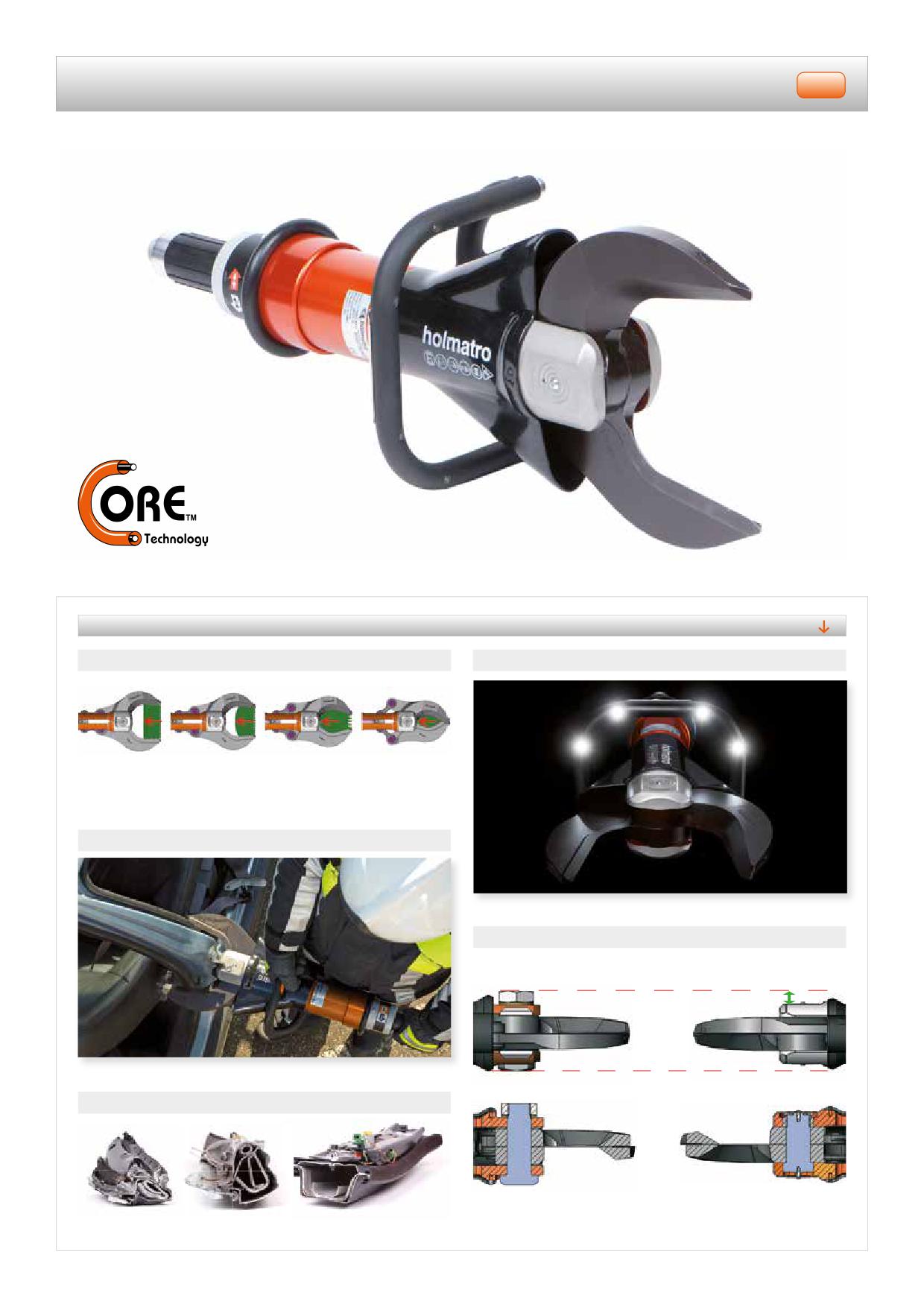

Features / Benefits

Improved blade design - NCT II

Integrated lighting in handle

- pulls material towards the strongest point of the cutter

- superior cutting performances, tested on the latest car models

- 41 mm round bar (CU 4050 / 4055)

Time saving New Car Technology

- clear view under all circumstances

New i-Bolt technology

Traditional bolt construction

New i-Bolt construction

- one cut for even the widest and deepest B-post

- flatter design for better access in tight places

New Car Technology - unmatched performance

Squeezes (“softer” aluminium)

Squeezes blades directly for a

blade holder. Blades are squeezed

superior cutting performance.

- cuts all modern, strong and complex posts

indirectly only.

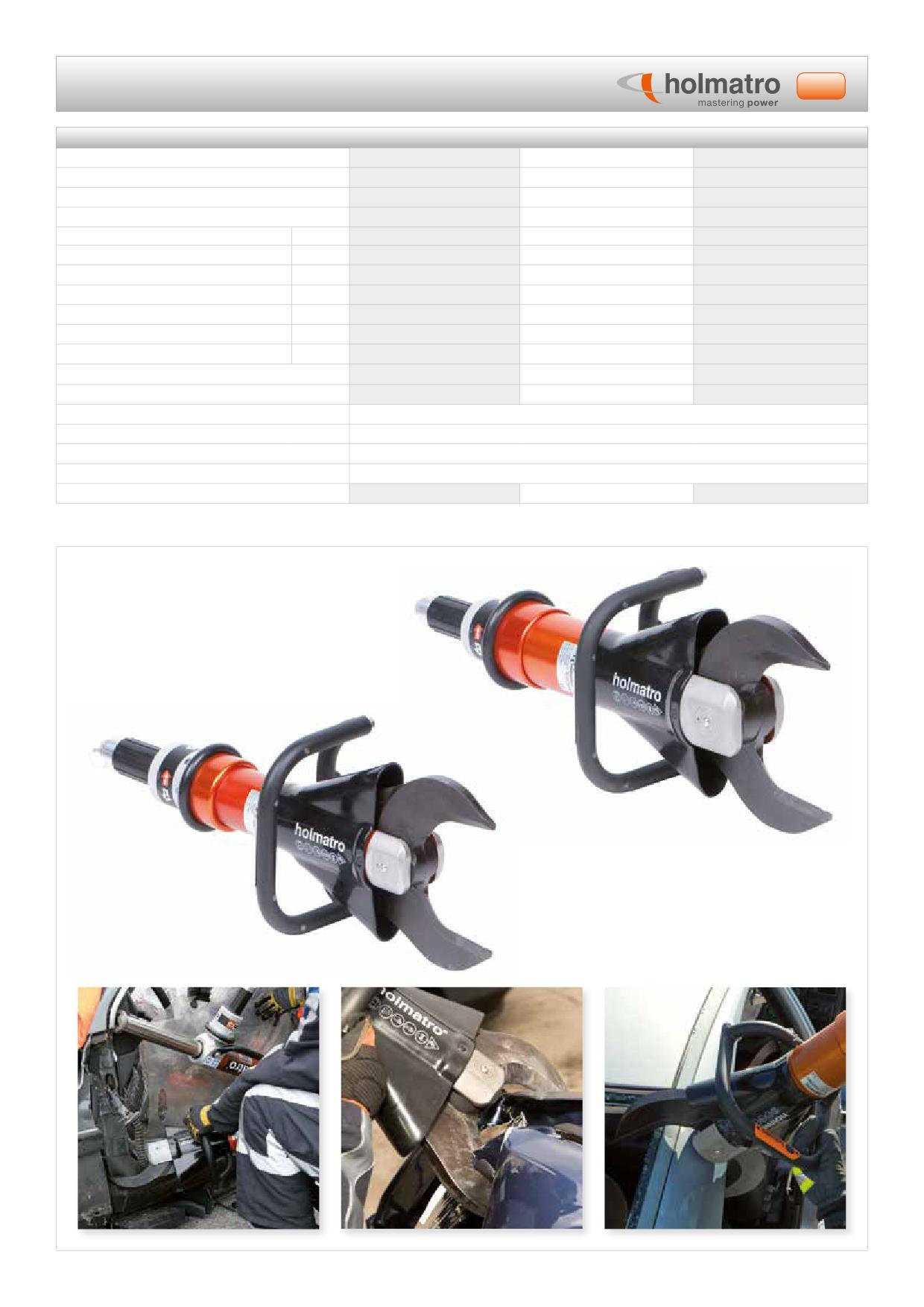

1.2 Cutters - General Purpose

34

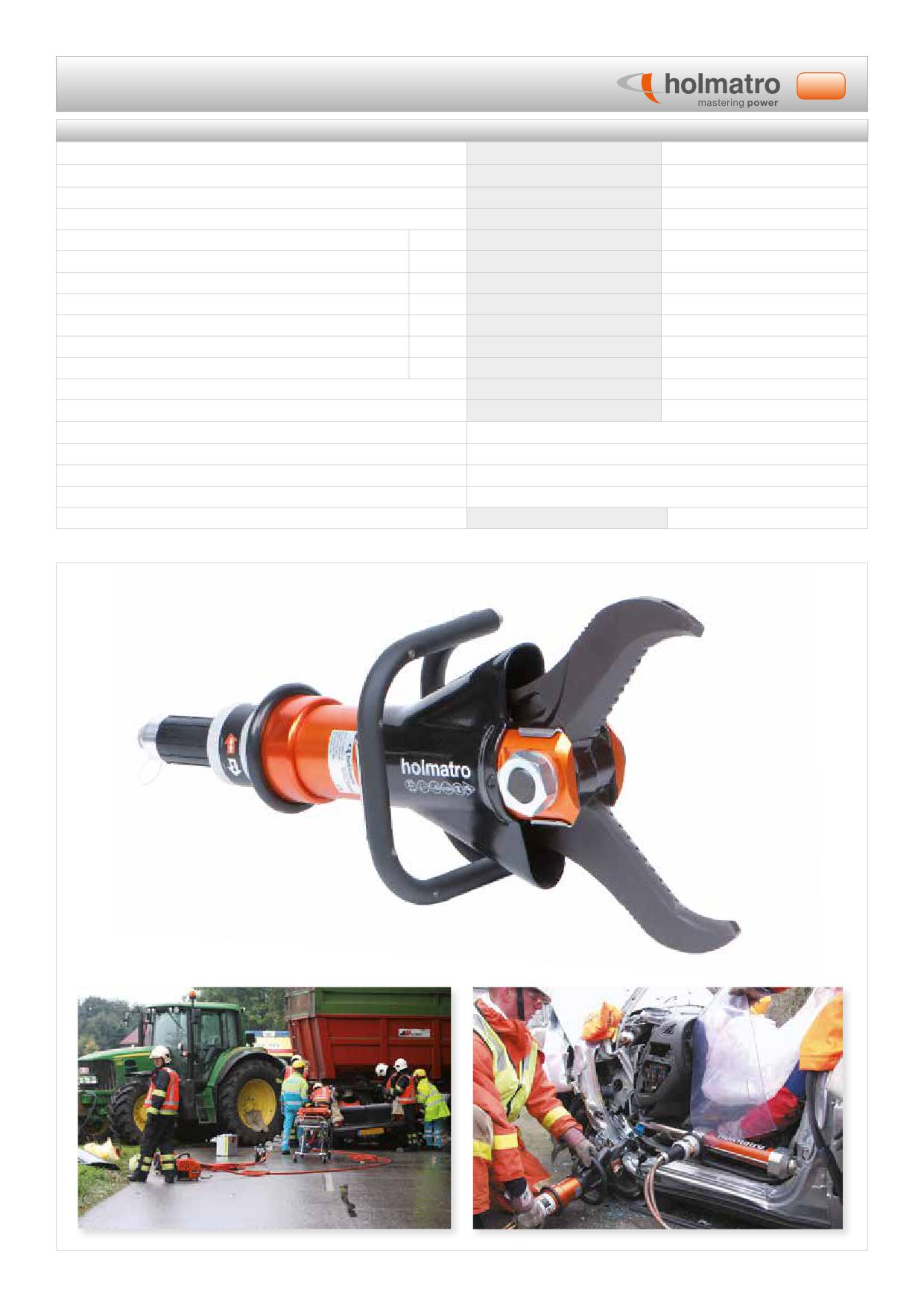

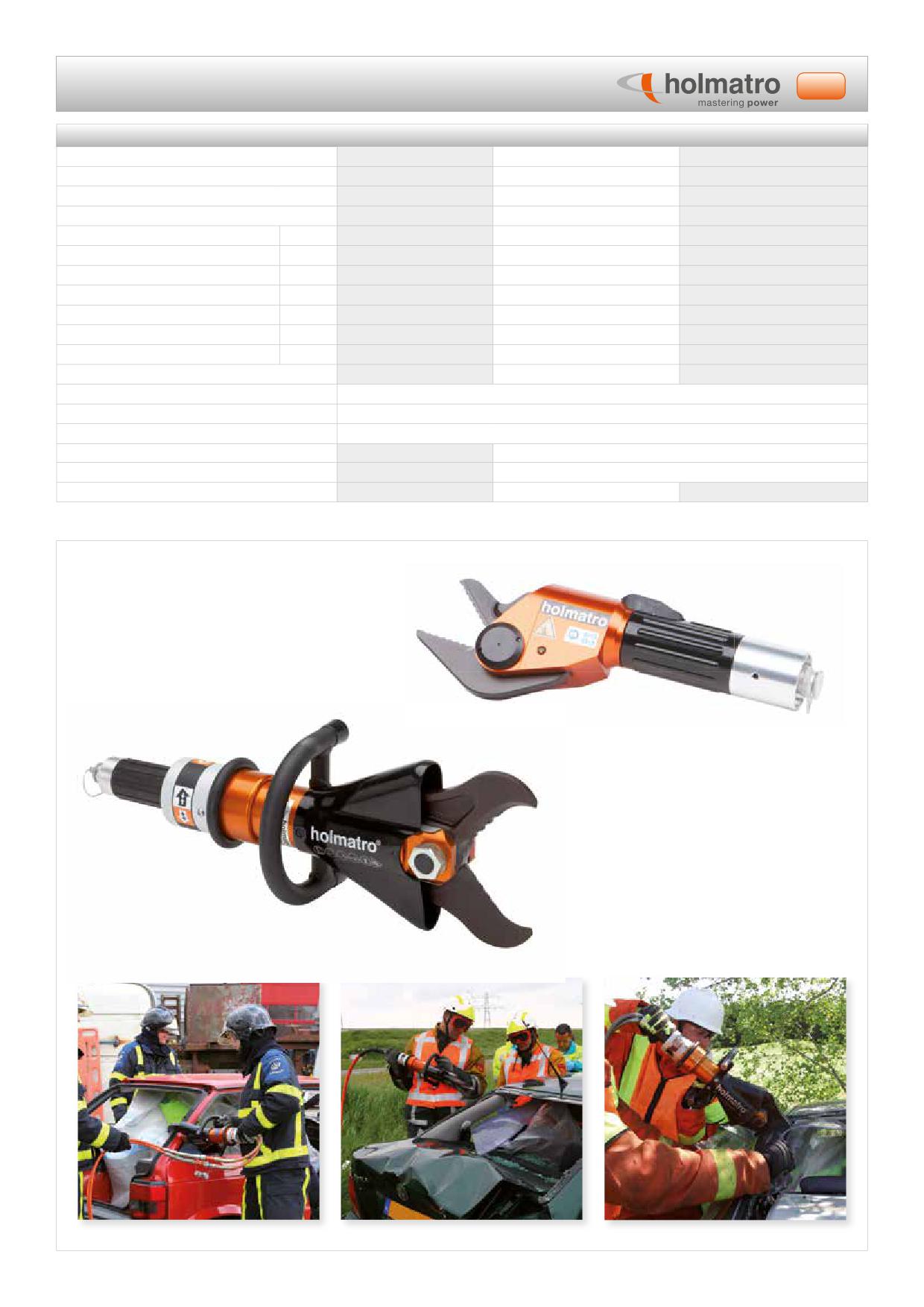

GP Cutters - General Purpose

specifications

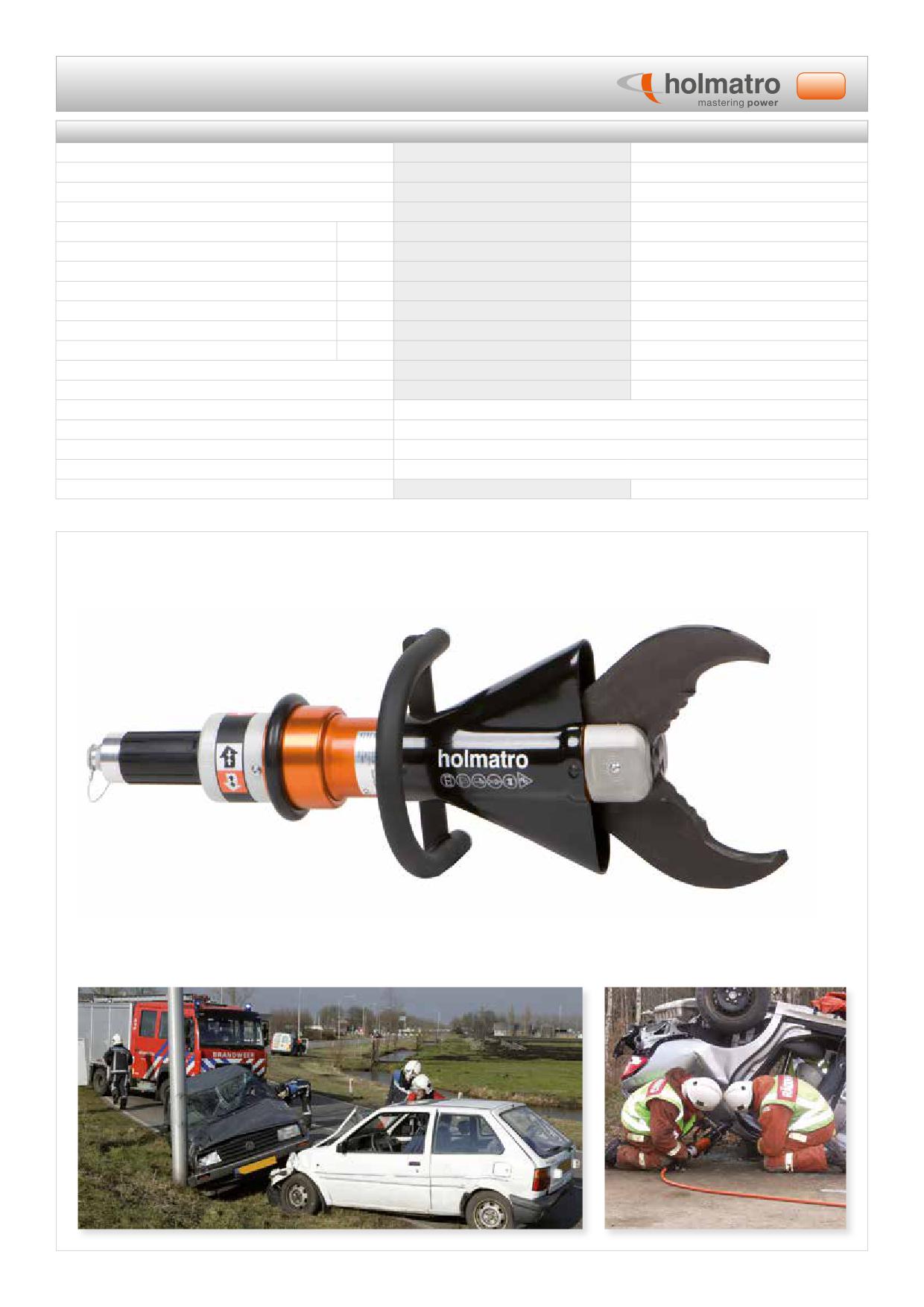

CU 4007 C

CU 4010 C GP

CU 4020 C GP

equipped with

CORE

CORE

CORE

article number

150.012.232

150.012.139

150.012.164

EN 13204 classification

AC59B-3.8

AC116D-7.8

AC133E-10.7

max. working pressure

bar / MPa

720 / 72

720 / 72

720 / 72

blade opening

mm

59

142

152

cutting force

kN / t

220 / 22.4

254 / 25.9

394 / 40.2

round bar (acc. to EN 13204)

mm

20

24

26

weight, ready for use

kg

3.8

7.8

10.7

dimensions (L x W x H)

mm

377 x 72 x 131

622 x 210 x 170

690 x 230 x 187

required oil content (effective)

cc

24

37

107

i-Bolt technology

√

- -

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of biting in material that cannot be cut

endurance test dead man’s control button

6000 operations

--

endurance test dead man’s handle

--

6000 cycles

also available in dual hose version

√

√

√

Tested according to EN 13204 and NFPA 1936.

CU 4007 C

CU 4010 C GP

1.2 Cutters - General Purpose

35

CU 4020 C GP

Features / Benefits

Anti

slip carrying handle on all tools

CU 4007 C - versatile

- always a perfect grip

Perfect balance

For both left- and right-handed operators

- easy to pick up and to carry

- usable by every rescuer in any position

1.2 Cutters - General Purpose

36

GP Cutters - General Purpose

specifications

CU 4030 C GP

CU 4031 C GP

equipped with

CORE

CORE

article number

150.012.162

150.012.125

EN 13204 classification

BC160F-10.9

BC190H-13.8

max. working pressure

bar / MPa

720 / 72

720 / 72

blade opening

mm

181

300

cutting force

kN / t

394 / 40.2

380 / 38.7

round bar (acc. to EN 13204)

mm

26

32

weight, ready for use

kg

10.9

13.8

dimensions (L x W x H)

mm

711 x 230 x 187

759 x 270 x 202

required oil content (effective)

cc

107

82

i-Bolt technology

√

√

carrying handle with integrated lighting

- -

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of biting in material that cannot be cut

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

Tested according to EN 13204 and NFPA 1936.

CU 4030 C GP

1.2 Cutters - General Purpose

37

CU 4031 C GP

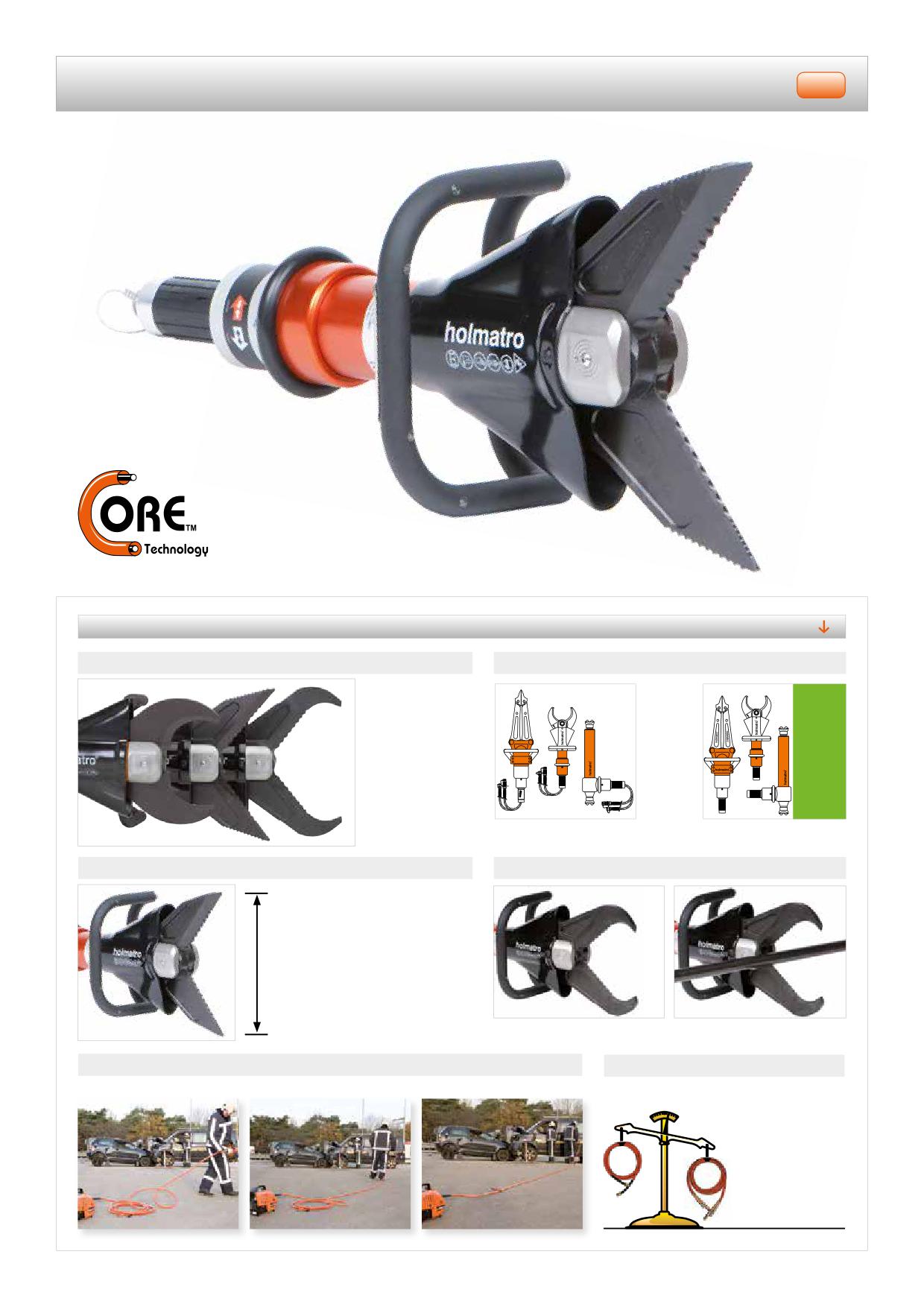

Features / Benefits

Various extra hardened and regrindable shapes of blades

CORE - reduced dimensions of tools

- longer life span

space

saved

- saves space due to the absence of pigtail hoses

Straight blades with huge blade opening (CU 4031)

Special recess in blades

- cuts wide material

300 mm

- for cutting heavy duty round bar

CORE - no hose kinking

CORE - weight reduction

- extremely easy to roll and unroll

- hoses weigh about

40% less than

traditional dual

hoses

- easier handling

1.2 Cutters - General Purpose

38

GP Cutters - General Purpose

specifications

CU 4035 C GP

CU 4040 C GP

equipped with

CORE

CORE

article number

150.012.123

150.012.183

EN 13204 classification

CC205H-14.2

CC220H-17.6

max. working pressure

bar / MPa

720 / 72

720 / 72

blade opening

mm

237

282

cutting force

kN / t

380 / 38.7

470 / 47.9

round bar (acc. to EN 13204)

mm

32

35

weight, ready for use

kg

14.2

17.6

dimensions (L x W x H)

mm

771 x 270 x 202

804 x 270 x 218

required oil content (effective)

cc

82

140

i-Bolt technology

√

--

carrying handle with integrated lighting

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of biting in material that cannot be cut

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

Tested according to EN 13204 and NFPA 1936.

CU 4040 C GP

1.2 Cutters - General Purpose

39

CU 4035 C GP

Features / Benefits

Moving parts covered

CORE - safe

CORE - para-aramid reinforced

hoses only

Do not repeat!

Holmatro test situation only.

max 720 bar

max 25 bar

- pressure in outer hose will never exceed 25

- safe for the operator

- no hose kinking

bar so operator will never be exposed to more

- far more flexible than steel wire reinforced

than 25 bar

hoses

Highest cutting category EN-norm

CORE - coupling under flow

Hose binder and bend restrictor

at both ends of the hose

CUTTING PERFORMANCE

Requirement

CU 4040 C GP

EN category H

28 mm

35 mm

110 x 10 mm

110 x 15 mm

76.1 x 4.0 mm

88.9 x 3.2 mm

60 x 60 x 4 mm

80 x 80 x 4 mm

80 x 40 x 4 mm

80 x 50 x 4 mm

- cuts material according to class H or higher

- maximum grip during coupling and

- time saving

(EN 13204)

uncoupling

- each profile to be cut 12 times with 1 set

- easy to store

of blades

2.1 Spreaders

40

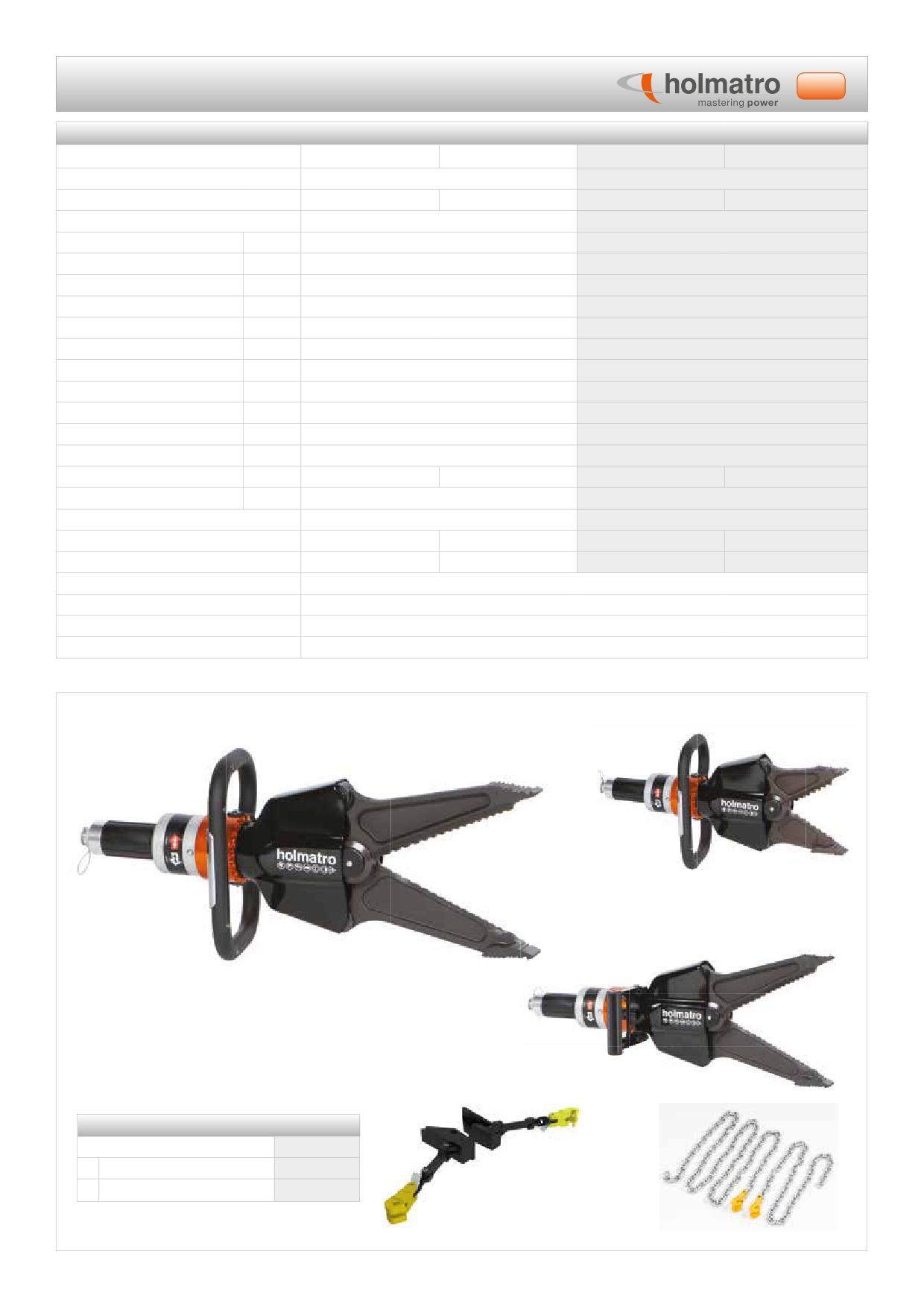

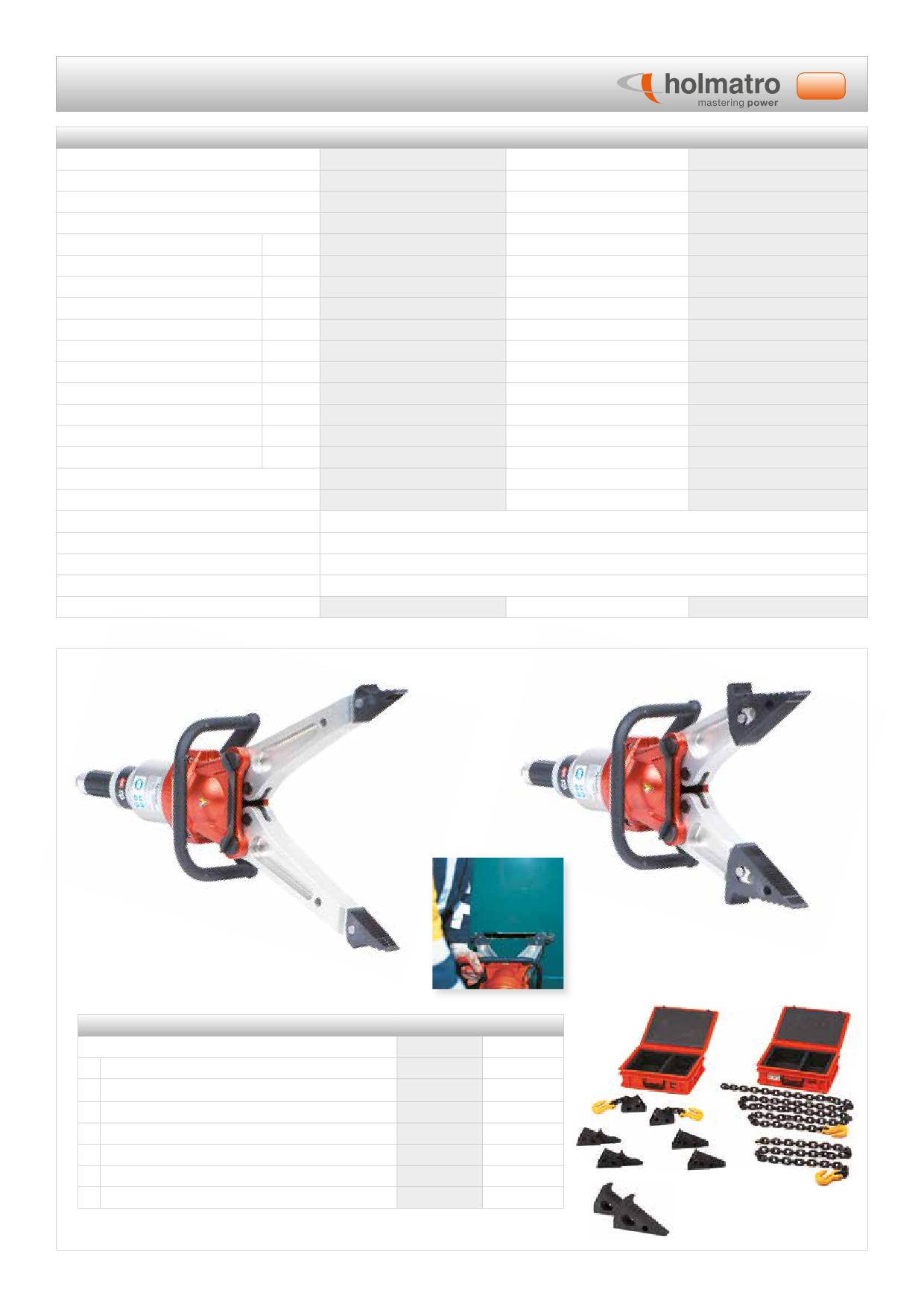

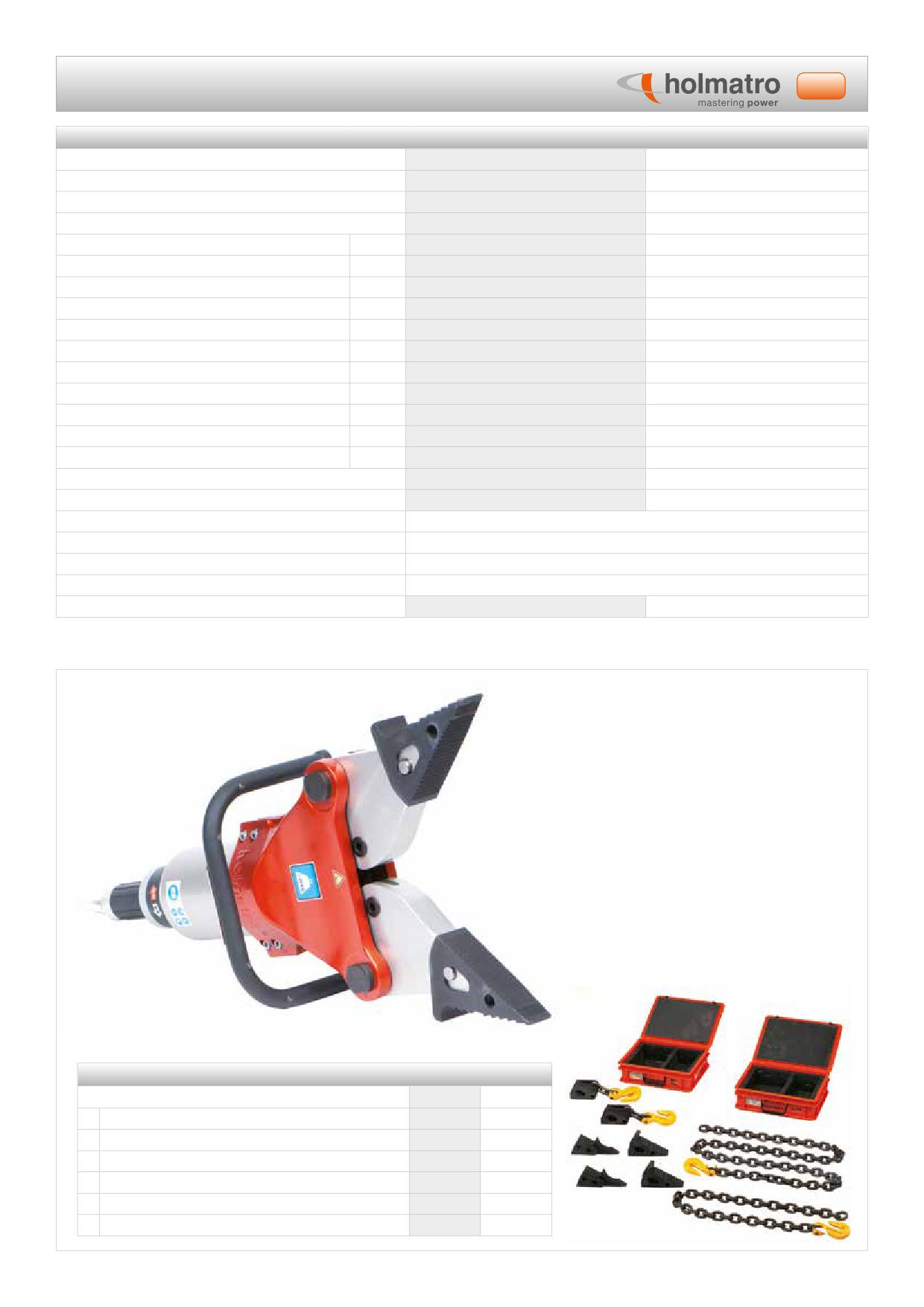

Spreaders

specifications

SP 4230 C

SP 4240 C

SP 4241 C

equipped with

CORE

CORE

CORE

article number

150.012.113

150.012.105

150.012.174

EN 13204 classification

AS33/835 - 17.2

AS43/686 - 18.1

AS43/686 - 18.8

max. working pressure

bar / MPa

720 / 72

720 / 72

720 / 72

spreading

mm

835

686

686

max. spreading force ¹⁾

kN / t

86 / 8.8

206 / 21.0

331 / 33.8

max. spreading force ²⁾

kN / t

59 / 6.0

73 / 7.4

77 / 7.8

min. spreading force ³⁾

kN / t

33 / 3.4

43 / 4.4

43 / 4.4

squeezing force

kN / t

47 / 4.8

65 / 6.6

66 / 6.7

pulling distance

mm

737

466

466

pulling force

kN / t

53 / 5.4

90 / 9.2

90 / 9.2

weight, ready for use

kg

17.2

18.1

18.8

dimensions (L x W x H)

mm

855 x 316 x 206

771 x 316 x 206

769 x 316 x 206

required oil content (effective)

cc

143

143

143

built-in Speed Valve

√

√

√

carrying handle with integrated lighting

√

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading and pulling while the tool is loaded

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

√

¹⁾ measured at steel tips | ²⁾ 25 mm from the tips | ³⁾ according to EN 13204: 25 mm from tips over full spreading range | tested according to EN 13204 and NFPA 1936

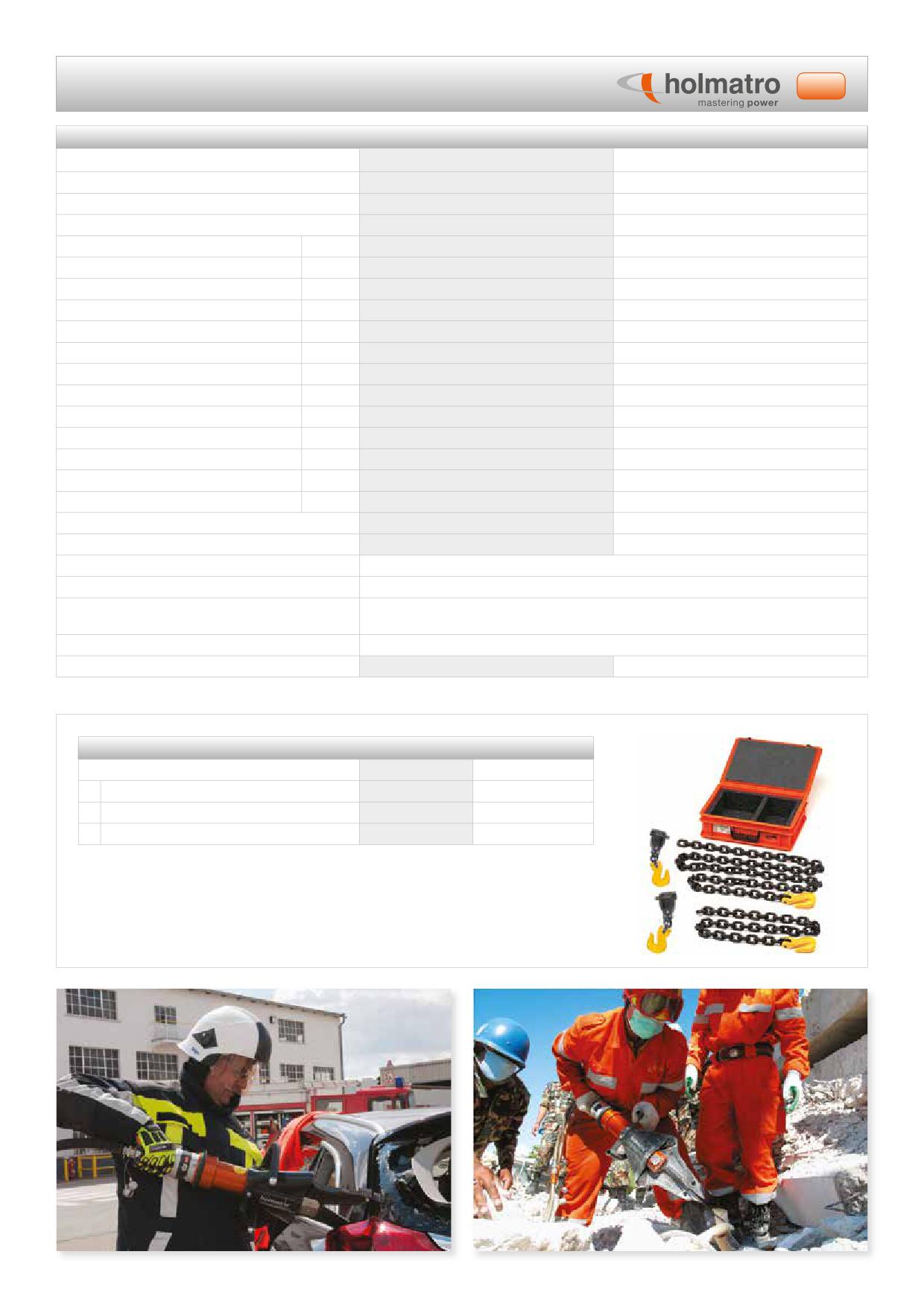

SP 4241 C

SP 4230 C

Spreaders - accessories

for models

4230

4240/4241

1

1 x spare tip

150.013.602

150.013.702

2

1 x cutting tip (see picture above)

150.013.616

150.013.703

3

3

set pulling attachments

150.582.155

150.582.006

4

set pulling chains 3 m + 1.5 m

150.582.152

150.582.152

5

1 x spare tip with extra long tooth ¹⁾

- -

150.183.189

2

1

4

case with all tips (2 each) and set pulling attachments

150.582.017

150.582.014

case with set pulling chains

150.582.021

150.582.021

¹⁾ for SP 4241, not in case 150.582.014

5

2.1 Spreaders

41

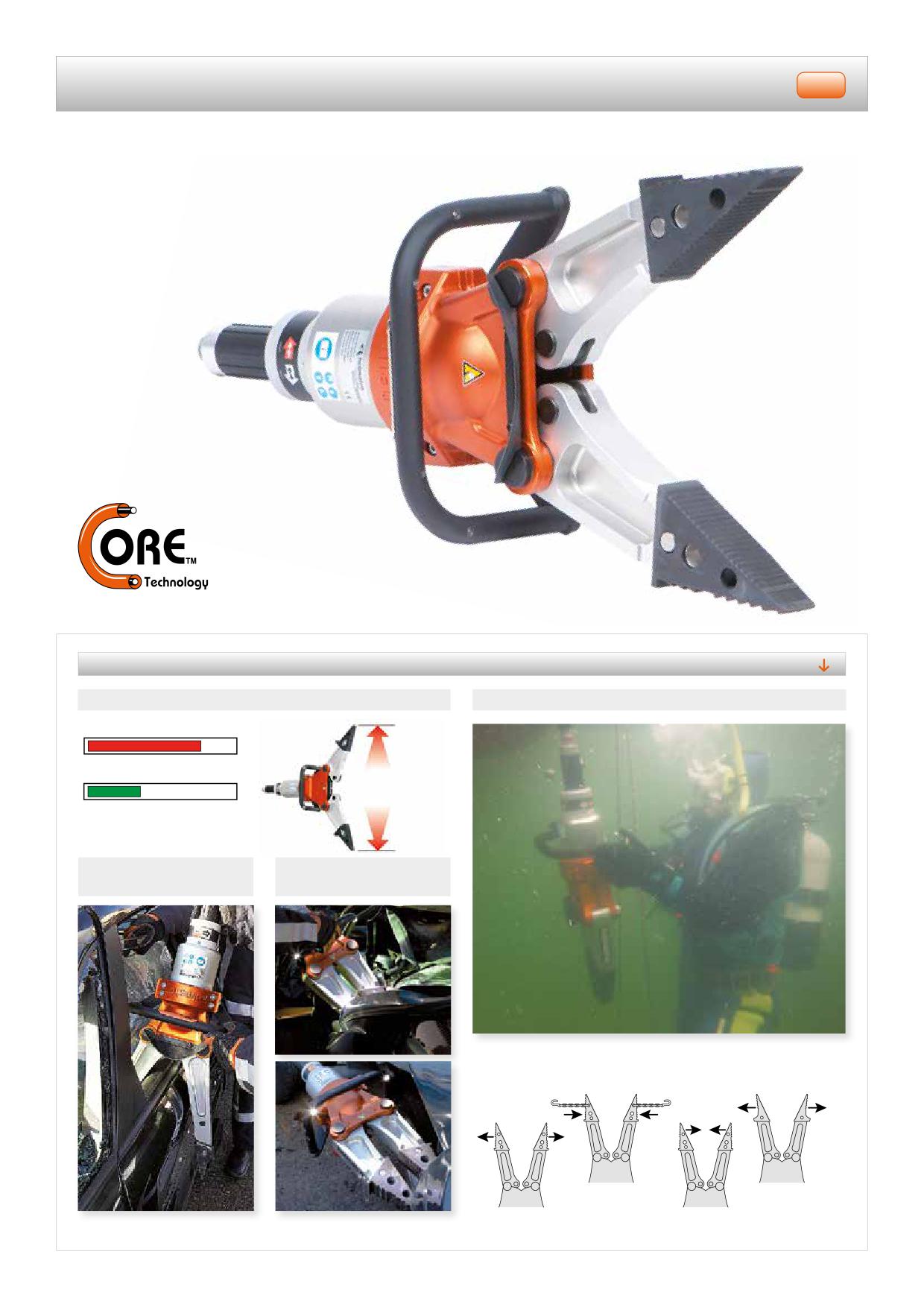

SP 4240 C

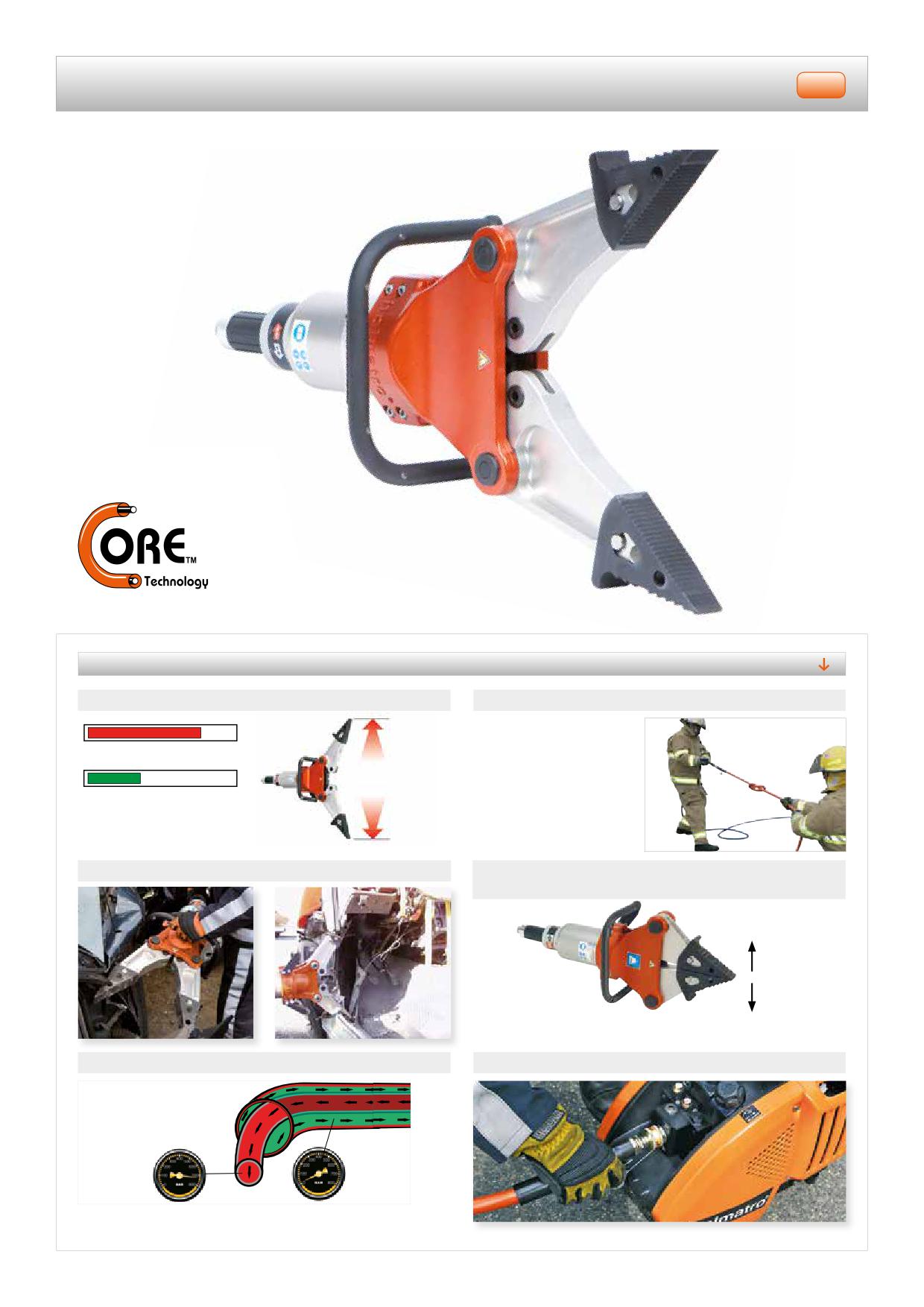

Features / Benefits

Unique Speed Valve

Versatile

sec.

at working

Without Speed Valve

pressures below

150 bar, the tools

sec.

open up

With Speed Valve

significantly

quicker

- significantly faster tool opening

for quicker reactions

Low weight and

Integrated lighting in

compact design

handle

- also for use under water

-

maximum handling comfort

- always a well-lit working area

spreading

pulling

squeezing

cutting

- easy to operate in all positions

2.1 Spreaders

42

Spreaders

specifications

SP 4260 C

SP 4280 C

equipped with

CORE

CORE

article number

150.012.110

150.012.116

EN 13204 classification

BS60/833-23.9

CS85/677-26.9

max. working pressure

bar / MPa

720 / 72

720 / 72

spreading

mm

833

677

spreading force ¹⁾

kN / t

269 / 27.4

397 / 40.5

spreading force ²⁾

kN / t

108 / 11.0

132 / 13.5

min. spreading force ³⁾

kN / t

60 / 6.1

85 / 8.7

squeezing force

kN / t

83 / 8.5

177 / 18.0

pulling distance

mm

638

476

pulling force

kN / t

107 / 10.9

143 / 14.6

weight, ready for use

kg

23.9

26.9

dimensions (L x W x H)

mm

883 x 316 x 224

803 x 316 x 224

required oil content (effective)

cc

245

245

built-in Speed Valve

√

√

carrying handle with integrated lighting

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading and pulling while the tool is loaded

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

¹⁾ measured at steel tips | ²⁾ 25 mm from the tips | ³⁾ according to EN 13204: 25 mm from tips over full spreading range | tested according to EN 13204 and NFPA 1936

SP 4280 C

Spreaders - accessories

for models

4260

4280

3

1

1 x spare tip

150.183.188

150.183.187

2

1 x cutting tip

150.013.166

--

3

set pulling attachments

150.182.021

150.182.022

2

1

4

set pulling chains 3 m + 1.5 m

150.582.261

150.182.019

case with all tips (2 each) and set pulling attachments

150.582.013

--

case with set pulling chains

150.582.020

--

4

2.1 Spreaders

43

SP 4260 C

Features / Benefits

Unique Speed Valve

CORE - para-aramid reinforced hoses only

sec.

Do not repeat!

Without Speed Valve

at working

Holmatro test situation only.

pressures below

150 bar, the tools

sec.

open up

- no hose kinking

With Speed Valve

significantly

- far more flexible than steel

quicker

- significantly faster tool

wire reinforced hoses

opening for quicker reactions

Huge spreading distance and spreading force

Optimal balance between opening force and

spreading width

85 kN - 132 kN

model 4280

- power available where you need it: with the arms closed

CORE - safe

CORE - just one connection on tool and pump

max 720 bar

max 25 bar

- pressure in outer hose will never exceed 25 bar so operator will

never be exposed to more than 25 bar

- time saving

3.1 Combi tools

44

Combi tools

specifications

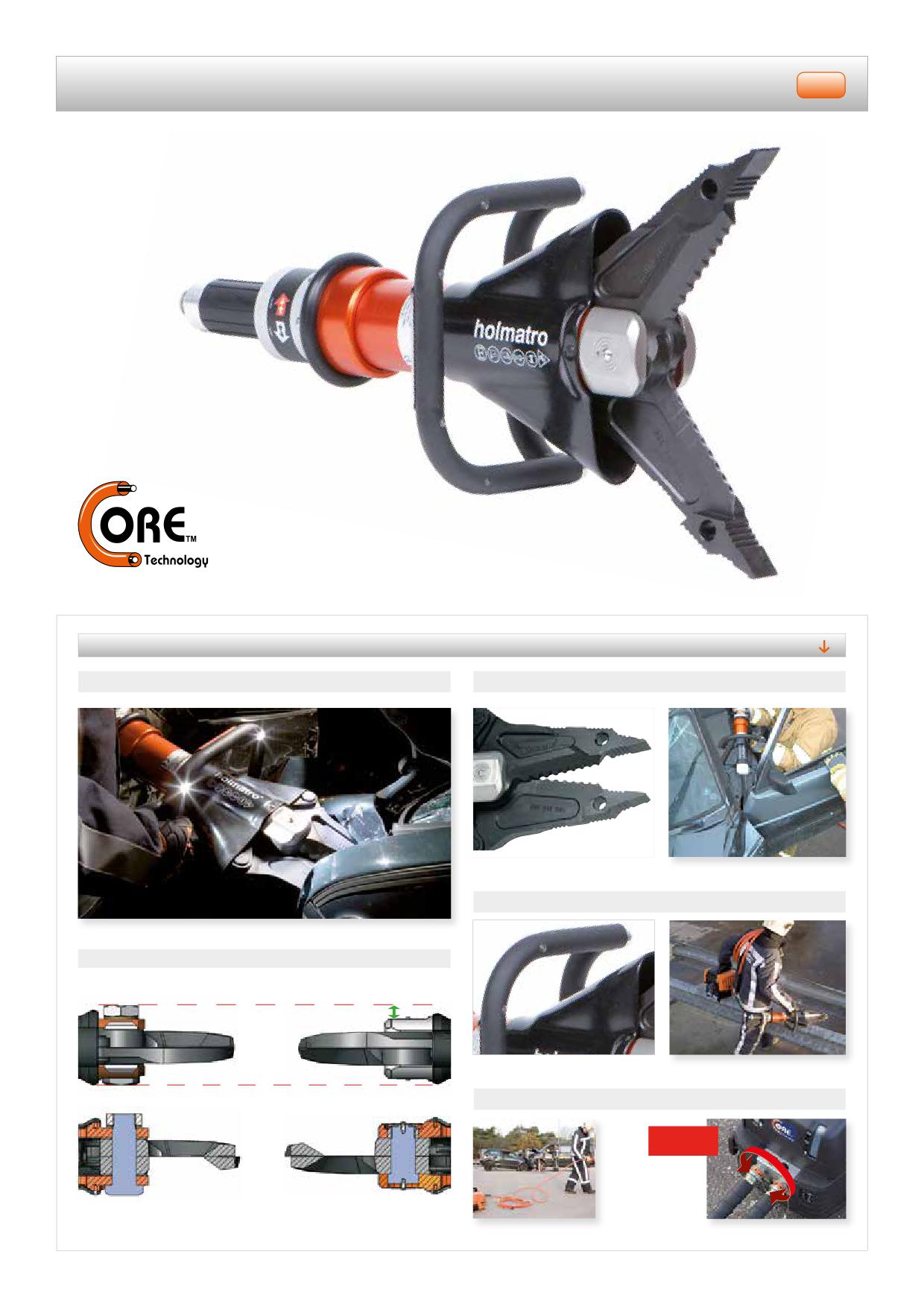

CT 4120 C

CT 4150 C

equipped with

CORE

CORE

article number

150.012.141

150.012.099

EN 13204 classification

BK26/268-E-8.7

CK35/360-H-14.2

max. working pressure

bar / MPa

720 / 72

720 / 72

spreading

mm

268

360

max. spreading force

kN / t

220 / 22.4

211 / 21.5

min. spreading force ¹⁾

kN / t

26 / 2.7

35 / 3.6

cutting opening

mm

191

229

cutting force

kN / t

247 / 25.2

380 / 38.7

round bar (acc. to EN 13204)

mm

24

32

squeezing force

kN / t

46 / 4.7

76 / 7.7

pulling distance

mm

181

416

pulling force

kN / t

61 / 6.2

51 / 5.2

weight, ready for use

kg

8.7

14.2

dimensions (L x W x H)

mm

675 x 210 x 170

787 x 270 x 202

required oil content (effective)

cc

37

83

i-Bolt technology

- -

√

carrying handle with integrated lighting

- -

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading and pulling while the tool is loaded

1000 cycles of biting in material that cannot be cut

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

¹⁾ according to EN 13204: 25 mm from tips over full spreading range | tested according to EN 13204 and NFPA 1936

Combi tools - accessories

for models

4120

4150

1

set pulling attachments

150.582.551

150.582.026

2

set pulling chains 3 m + 1.5 m

150.582.152

150.582.152

case with set pulling attachments and pulling chains

150.582.028

150.582.018

1

2

3.1 Combi tools

45

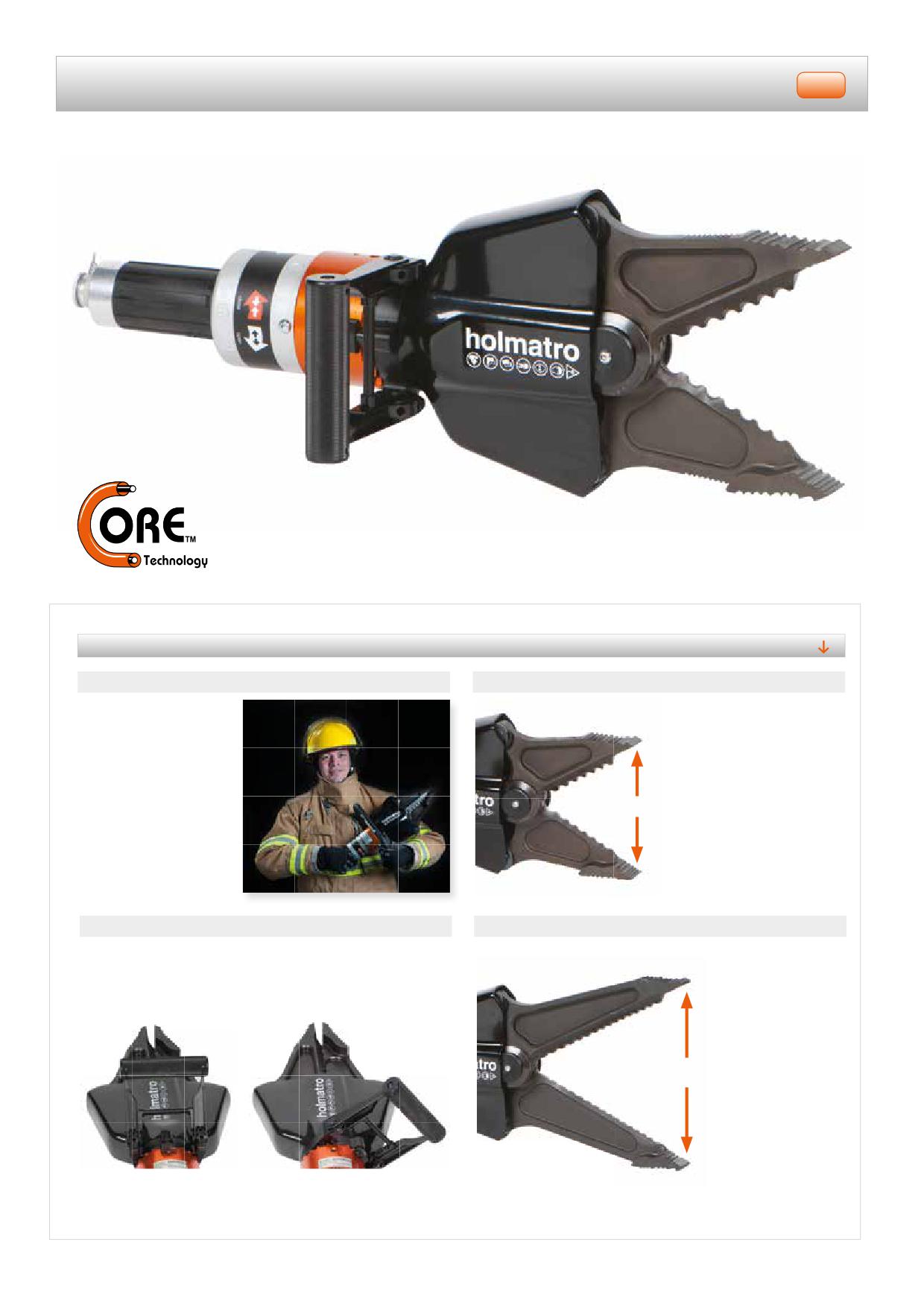

CT 4150 C

Features / Benefits

Integrated lighting in handle

Serrated spreading / squeezing tips

- perfect grip and no changing of tips necessary

Non-slip carrying handle and perfect balance

- clear view under all circumstances

New i-Bolt technology

Traditional bolt construction

New i-Bolt construction

- always a perfect grip

- easy to pick up and carry

- flatter design for better access in tight places

CORE - hose rotates 360°

360°

Squeezes (“softer” aluminium)

Squeezes blades directly for a

blade holder. Blades are squeezed

superior cutting performance.

- hose can rotate freely (360°) so impossible to get twisted

indirectly only.

3.2 Combi tools

46

Combi tools

specifications

CT 5111

CT 5111 RH

CT 5117

CT 5117 RH

equipped with

CORE

CORE

article number

150.012.264

150.012.260

150.012.265

150.012.261

EN 13204 classification

BK48/281-E-8.2

BK28/431-E-8.9

max. working pressure

bar / Mpa

720 / 72

720 / 72

spreading

mm

281

431

max. spreading force

kN / t

457 / 46.6

54 / 5.5

min. spreading force ¹⁾

kN / t

48 / 4.9

28 / 2.9

cutting opening

mm

196

352

cutting force

kN / t

206 / 21

204 / 20.8

round bar (acc. to EN 13204)

mm

24

24

squeezing force

kN / t

44 / 4.5

27 / 2,8

pulling distance

mm

--

426

pulling force

kN / t

--

30 / 3.1

weight ready for use

kg

8.2

8.9

dimensions (LxWxH)

mm

566 x 287 x 193

566x223x112

664x287x193

664x223x112

required oil content (effective)

cc

55

55

i-Bolt technology

√

√

carrying handle with integrated lighting

√

--

√

--

360° rotatable & fold flat carrying handle

--

√

--

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading while the tool is loaded and 1000 cycles of biting in material that cannot be cut

endurance test dead man's handle

6000 cycles

¹⁾ according to EN 13204: 25 mm from tips over full spreading range

CT 5111

CT 5117

CT 5117 RH

Combi tools - accessories for model 5117

description

art. nr.

1

set pulling attachments

150.182.241

2

set pulling chains, 1.5 m + 3.0 m

150.582.548

1

2

3.2 Combi tools

47

CT 5111 RH

Features / Benefits

Ultra compact and extreme lightweight

High spreading force (5111 models)

- all models weigh far

under 9 kg and are very

compact

46.6 t

360° rotatable aluminium carrying handle (RH models)

High spreading distance (5117 models)

- continuous swivel with 11 locking positions

- for use of the tool in almost any position

431 mm

4.1 Rams - single plunger

48

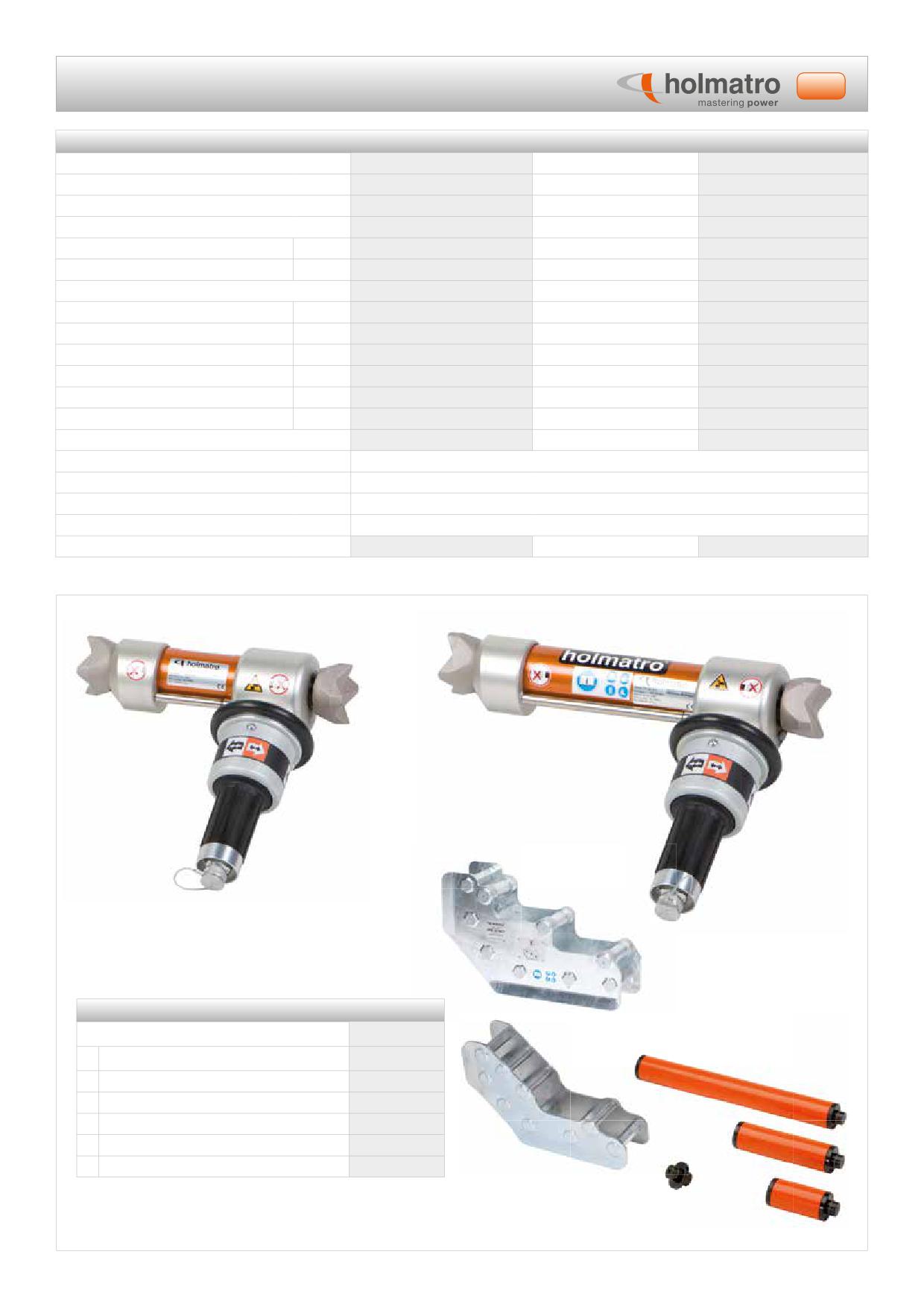

Rams - single plunger

specifications

RA 4311 C

RA 4313 C

RA 4315 C

equipped with

CORE

CORE

CORE

article number

150.032.042

150.032.043

150.032.044

EN 13204 classification

R100/150-7.6

R100/250-9.0

R100/400-10.9

max. working pressure

bar / MPa

720 / 72

720 / 72

720 / 72

spreading force over full stroke

kN / t

100 / 10.2

100 / 10.2

100 / 10.2

number of plungers

1

1

1

spreading stroke

mm

150

250

400

retracted length

mm

315

415

565

extended length

mm

465

665

965

weight, ready for use

kg

7.6

9.0

10.9

dimensions (L x W x H)

mm

315 x 122 x 325

415 x 122 x 325

565 x 122 x 325

required oil content (effective)

cc

144

241

385

built-in Speed Valve

√

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading while the tool is loaded

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

√

Tested according to EN 13204 and NFPA 1936.

RA 4311 C

RA 4313 C

2

Rams - single plunger - accessories

description

art. nr.

1

ram support HRS 22 ¹⁾

150.181.011

5

2

ram support HRS 22 NCT ²⁾

150.003.105

3

extension pipe 125 mm ³⁾

150.181.570

4

extension pipe 225 mm ³⁾

150.181.571

1

4

5

extension pipe 500 mm ³⁾

150.181.572

6

connection piece

150.181.573

6

3

¹⁾ see also page 114 | ²⁾ see also page 113 | ³⁾ only connectable to the fixed base of

the ram

4.1 Rams - single plunger

49

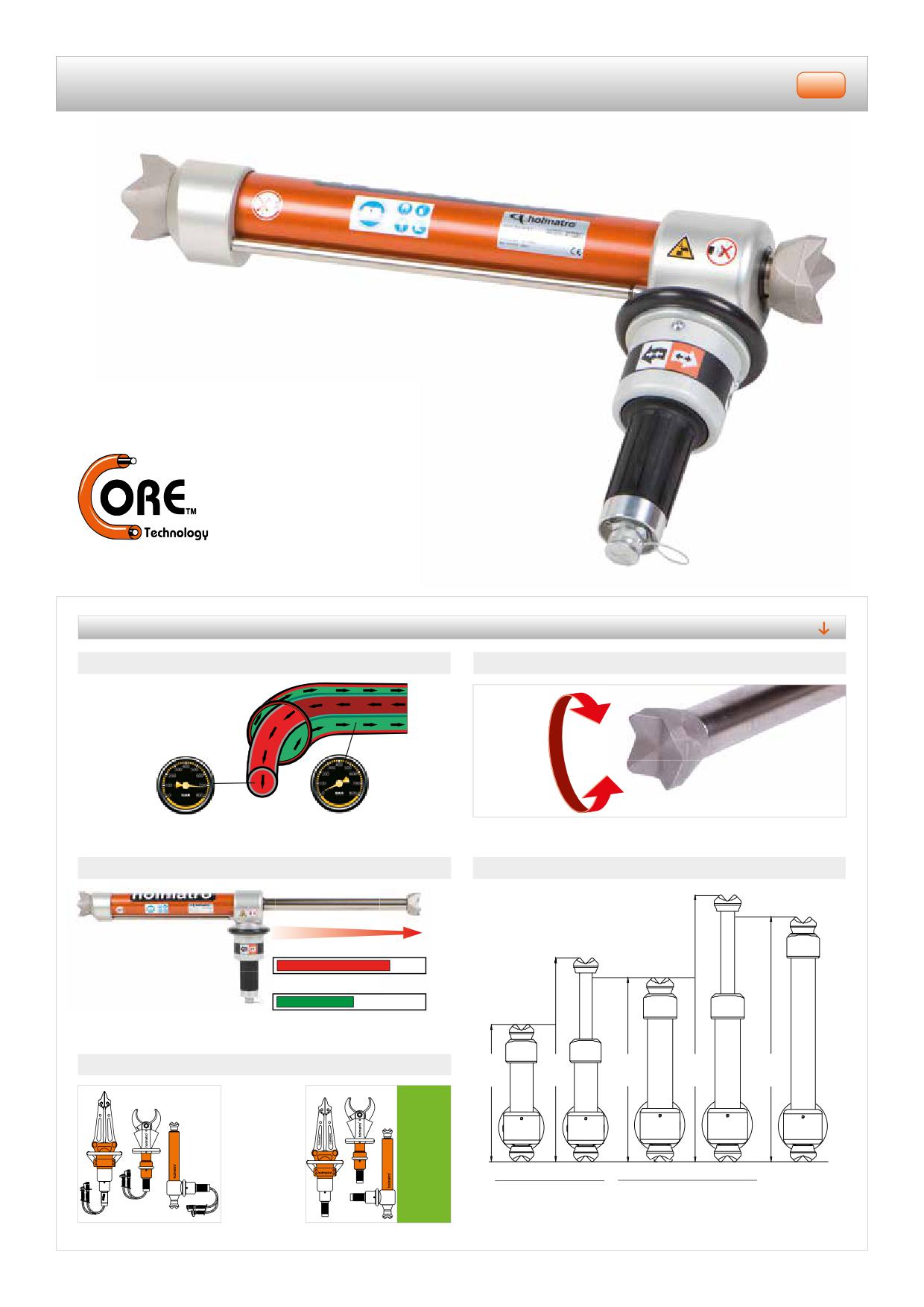

RA 4315 C

Features / Benefits

CORE - safe

Rotating cross heads

max 720 bar

max 25 bar

- pressure in outer hose will never exceed 25 bar so operator will

- easy positioning and perfect grip in every situation

never be exposed to more than 25 bar

Unique Speed Valve

Working as a team

sec.

At working pressures

below 150 bar, the tools

Without Speed Valve

open up significantly

sec.

quicker.

With Speed Valve

- faster tool opening for quicker reactions

CORE - reduced dimensions of tools

315

465

415

665

565

space

saved

RA 4311 C

RA 4313 C

RA 4315 C

- larger model can be placed in the opening created by a smaller

- saves space due to the absence of pigtail hoses

model or by a spreader (for both CORE and dual hose version)

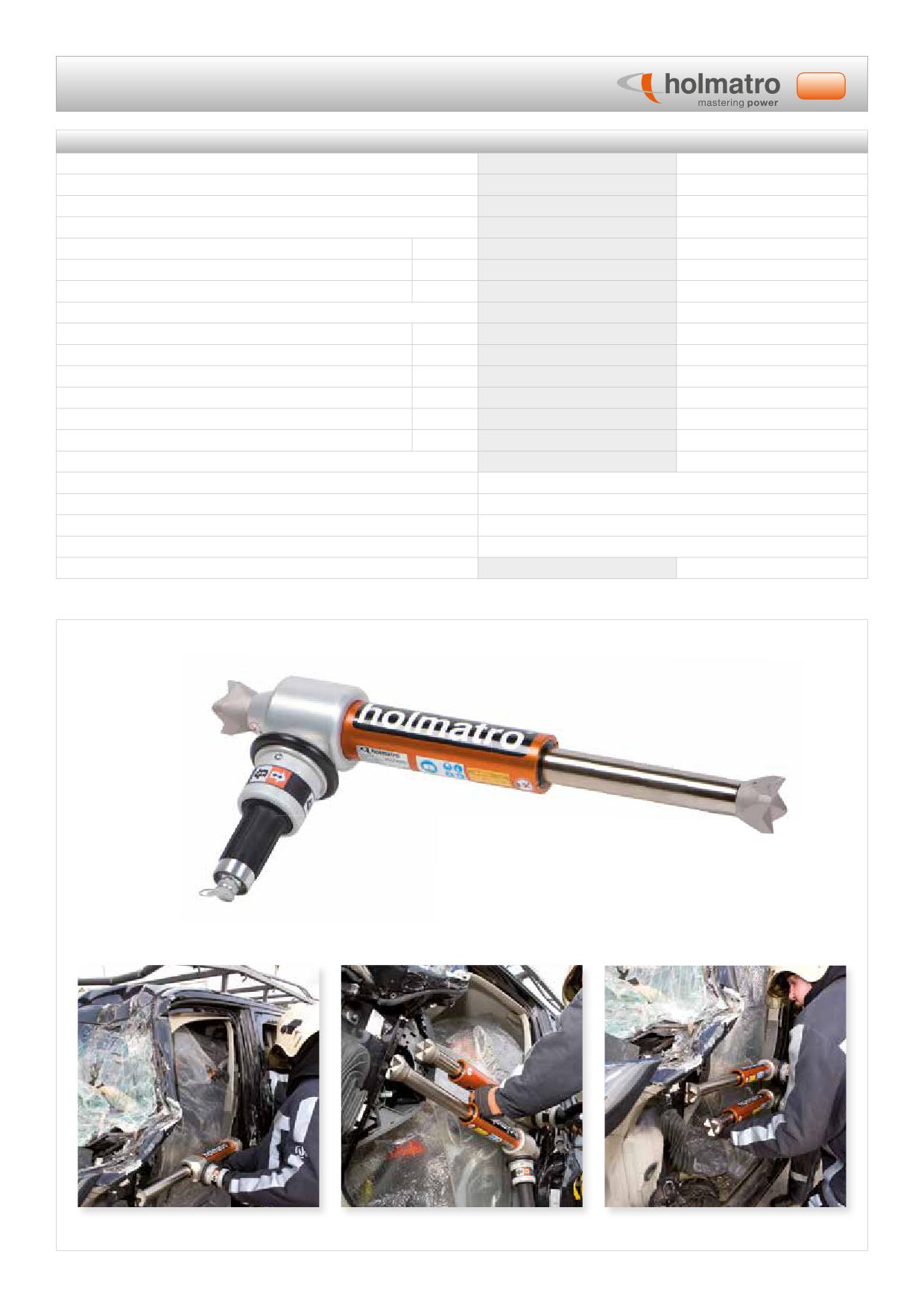

4.2 Rams - single plunger

50

Rams - single plunger

specifications

RA 4321 C

RA 4331 C

equipped with

CORE

CORE

article number

150.032.045

150.032.046

EN 13204 classification

R161/250-11.1

R161/350-12.6

max. working pressure

bar / MPa

720 / 72

720 / 72

spreading force over full stroke

kN / t

161 / 16.4

161 / 16.4

pulling force over full stroke

kN / t

50 / 5.1

50 / 5.1

number of plungers

1

1

spreading / pulling stroke

mm

250

350

retracted length

mm

512

612

extended length

mm

762

962

weight, ready for use

kg

11.1

12.6

dimensions (L x W x H)

mm

512 x 122 x 338

612 x 122 x 338

required oil content (effective)

cc

389

544

built-in Speed Valve

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading and pulling while the tool is loaded

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

for accessories see page 54 | tested according to EN 13204 and NFPA 1936

RA 4321 C

Larger model can be placed in the opening created by a smaller model.

4.2 Rams - single plunger

51

RA 4331 C

Features / Benefits

Snap-lock system for accessories

Extension pipes

- 3 different sizes to bridge large lengths

- changing of accessories without the use of tools within seconds

- only connectable to the fixed side of the rams model 4321 / 4331

Full range of accessories

Proportional operation handle

22°

- provides multifunctional applications - see page 54

- allows for precise and accurate spreading action

Unique Speed Valve

CORE - flexible hose

At working pres-

sures below 150

bar, the tools

sec.

open up

Without Speed Valve

significantly

sec.

quicker.

With Speed Valve

- faster tool opening for quicker reactions

- far easier to roll and unroll than traditional double hoses

4.3 Rams - double plunger

52

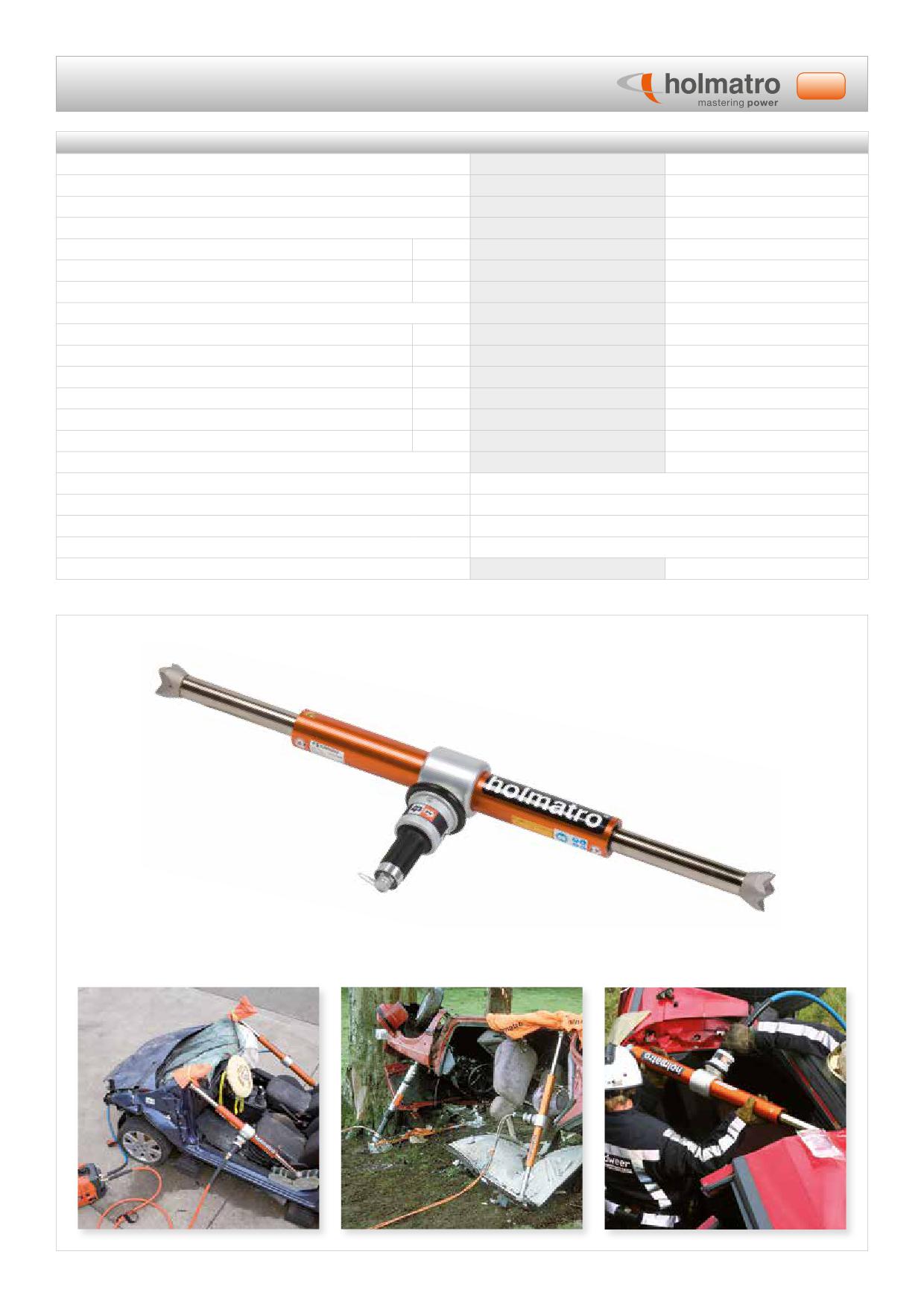

Rams - double plunger

specifications

RA 4322 C

RA 4332 C

equipped with

CORE

CORE

article number

150.032.041

150.032.047

EN 13204 classification

R161/480-15.4

R161/680-18.3

max. working pressure

bar / MPa

720 / 72

720 / 72

spreading force over full stroke

kN / t

161 / 16.4

161 / 16.4

pulling force over full stroke

kN / t

50 / 5.1

50 / 5.1

number of plungers

2

2

spreading / pulling stroke

mm

2 x 240

2 x 340

retracted length

mm

745

945

extended length

mm

1225

1625

weight, ready for use

kg

15.4

18.3

dimensions (L x B x H)

mm

745 x 122 x 338

945 x 122 x 338

required oil content (effective)

cc

747

1058

built-in Speed Valve

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading and pulling while the tool is loaded

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

for accessories see page 54 | tested according to EN 13204 and NFPA 1936

RA 4322 C

4.3 Rams - double plunger

53

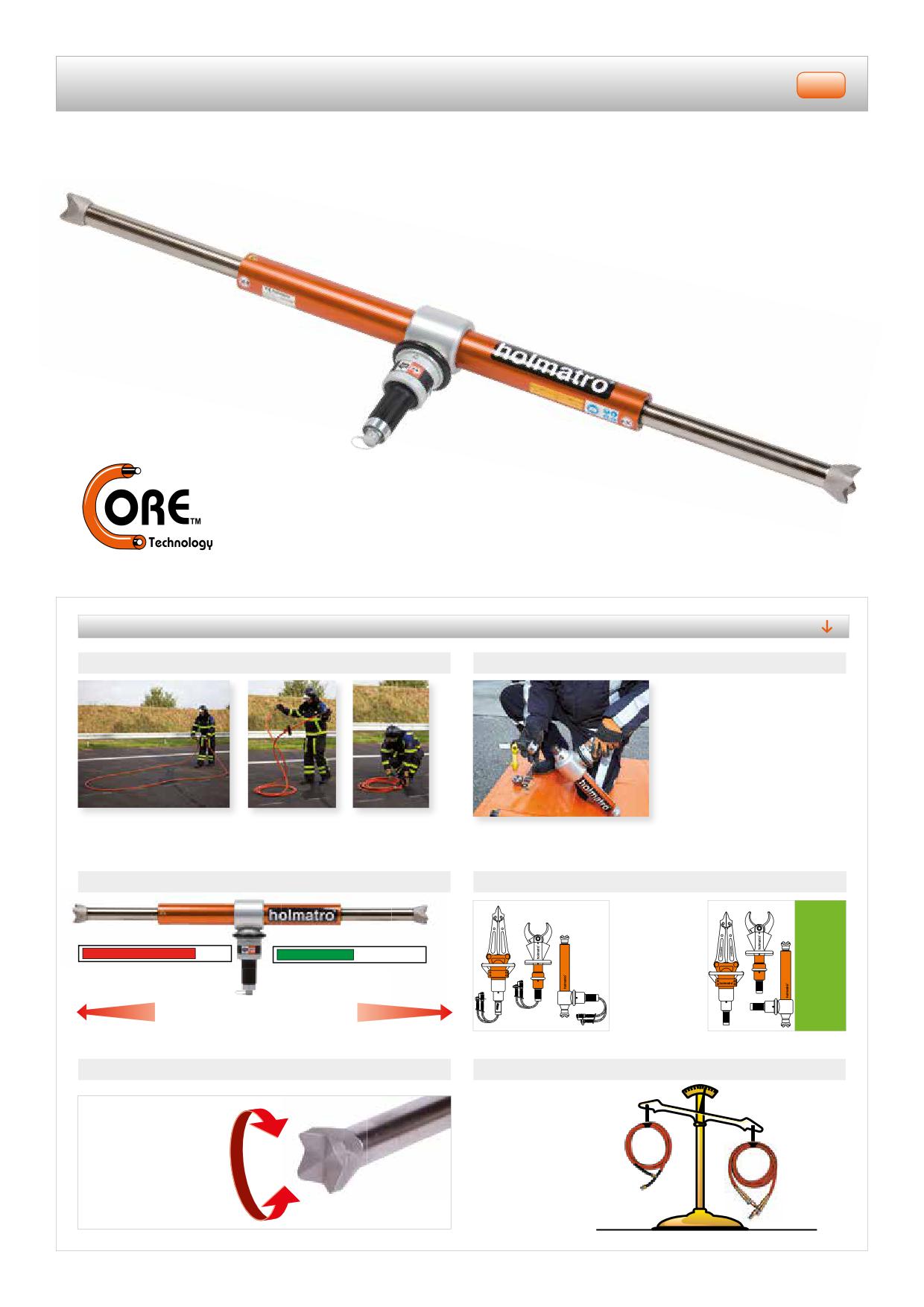

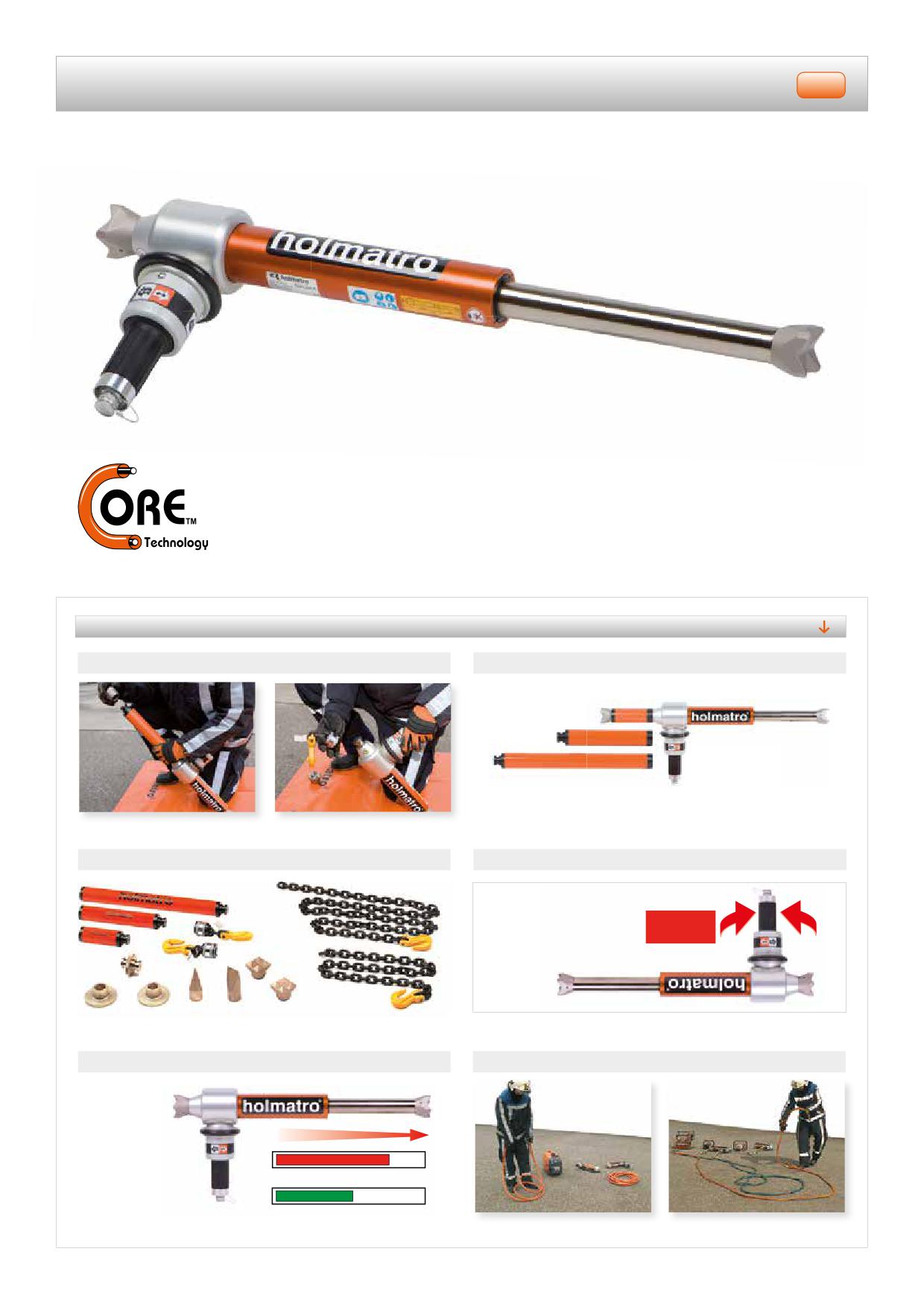

RA 4332 C

Features / Benefits

CORE - reinforced hoses only

Snap-lock system for accessories

- reinforced with multilayered para-aramid yarn so far more flexible

- changing of accessories without the use of tools within seconds

than steel wire reinforced hoses

- no hose kinking

Unique Speed Valve

CORE - reduced dimensions

space

Without Speed Valve

sec.

With Speed Valve

sec.

saved

at working pressures below 150 bar,

the tools open up significantly quicker

- faster tool opening for quicker reactions

- saves space due to the absence of pigtail hoses

Rotating cross heads

CORE - lightweight hoses

traditional dual

hose system

- easy positioning and

perfect grip in every

CORE Technology system:

situation

about 40% weight reduction

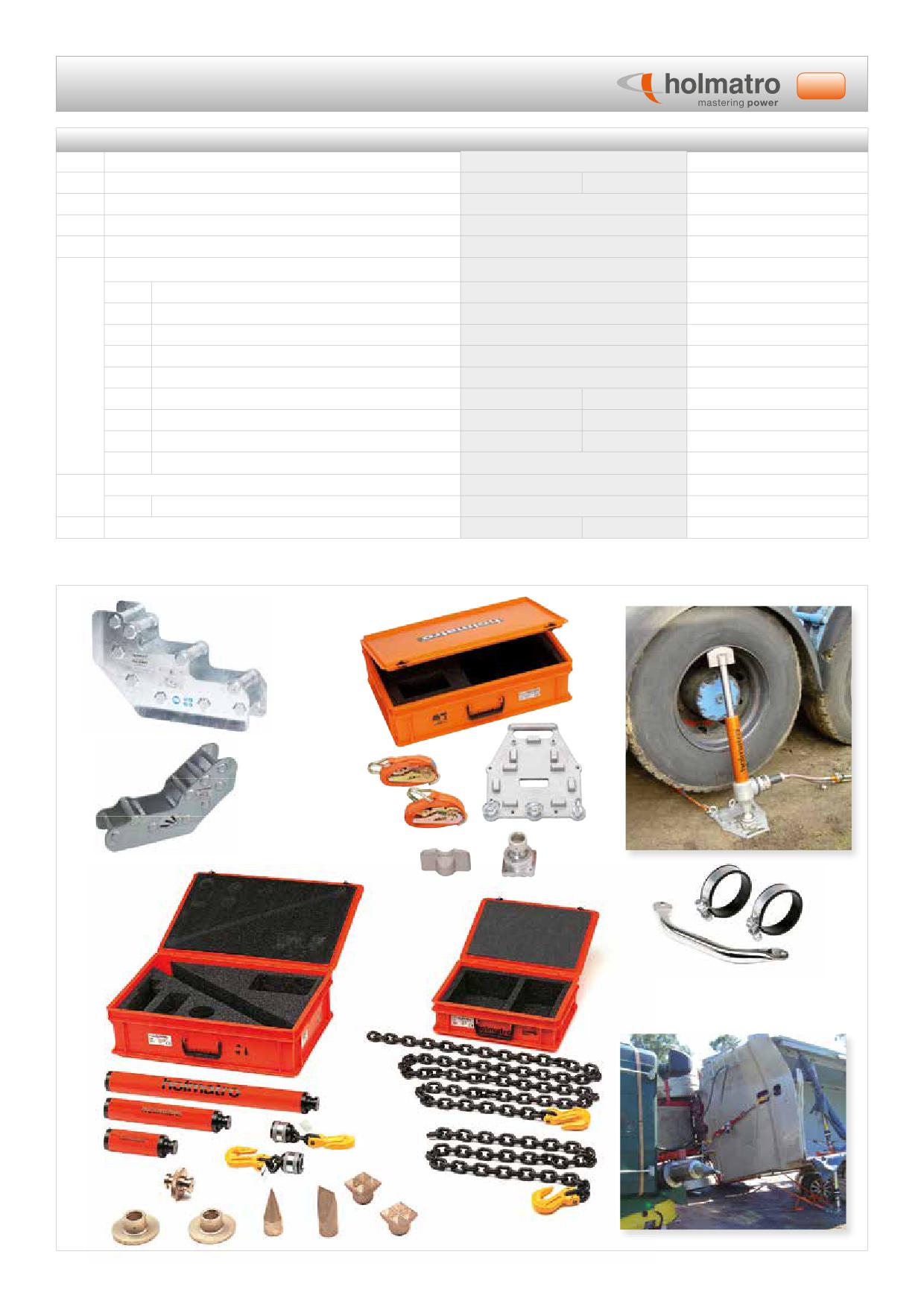

4.4 Rams - accessories

54

Rams - accessories

item

description

art. nr.

quantity

for models

4321 / 4331

4322 / 4332

- -

1

ram support HRS 22 NCT ¹⁾

150.003.105

- -

2

ram support HRS 22 ²⁾

150.181.011

3

rim adapter set, in carrying / storage box ³⁾

150.182.580

- -

4

set accessories in carrying / storage box

150.582.008

- -

4a

cross head, set of 2

150.014.062

1

4b

wedge piece

150.181.324

1

4c

conical tip

150.181.325

1

4d

base plate

150.181.326

2

4e

connection piece (for fixed strut) ⁴⁾

150.181.327

1

4f

extension pipe 165 mm ⁴⁾

150.181.321

- -

1

4g

extension pipe 330 mm ⁴⁾

150.181.322

- -

1

4h

extension pipe 600 mm ⁴⁾

150.181.323

- -

1

4i

set pulling attachments

150.582.281

1

5

set pulling chains in carrying / storage box

150.582.021

- -

5a

pulling chains

150.582.152

- -

6

carrying handle

- -

150.013.163

1) see also page 113 | ²⁾ see also page 114 | ³⁾ see also page 115 | ⁴⁾ extension pipes can ONLY be mounted on the fixed base of the single plunger ram jacks models 4321 / 4331 or can

be used as a fixed strut

1

3

2

6

5

4

4h

4g

5a

4f

4i

4e

4d

4c

4b

4a

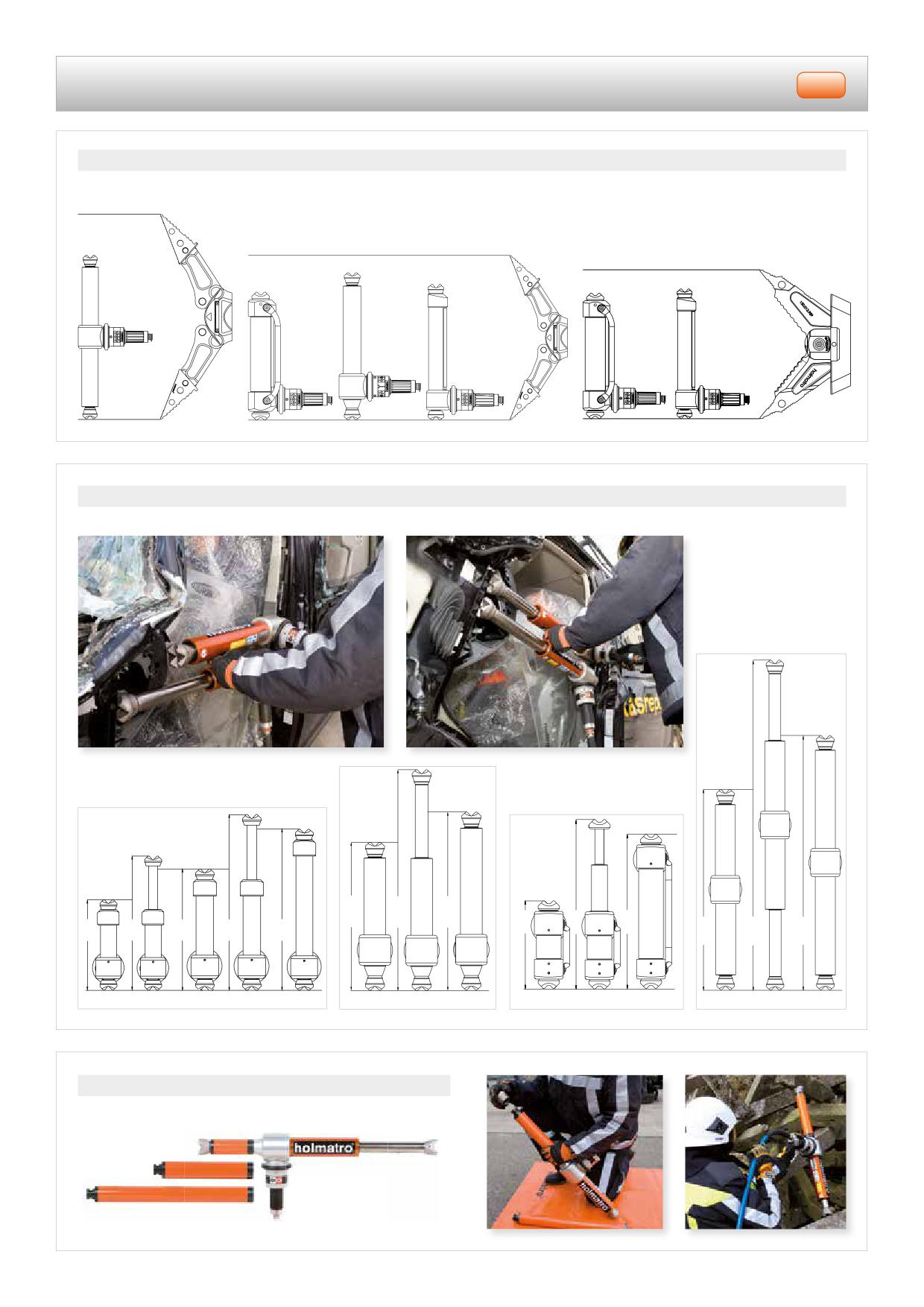

4.4 Rams - accessories

55

Teamwork

Rams fitting in the opening created by a spreader or a combi tool (for both CORE and dual hoses).

RA 4322 C

RA 4321 C

RA 4311 C

RA 4331 C

RA 4313 C

RA 4311 C

TR 4340 C

TR 4340 C

RA 4315 C

TR 4350 C

SP 4230 C

SP 4230 C

SP 4260 C

SP 4240 C

SP 4260 C

CT 4150 C

SP 4280 C

Teamwork

The larger model ram fits in the opening created by a smaller one (for both CORE and dual hose version).

512

762

612

303

585

533

315

465

415

665

565

745

1225

945

RA 4311 C

RA 4313 C

RA 4315 C

RA 4321 C

RA 4331 C

TR 4340 C

TR 4350 C

RA 4322 C

RA 4332 C

Extension pipes

Extension pipes ONLY on fixed base of single plunger rams.

4.5 Rams - telescopic plunger

56

Rams - telescopic plunger

specifications

TR 4340 C

TR 4350 C

equipped with

CORE

CORE

article number

150.032.039

150.032.040

EN 13204 classification

TR217/158-81/124-10.8

TR217/388-81/354-16.3

max. working pressure

bar / MPa

720 / 72

720 / 72

spreading force 1st plunger

kN / t

217 / 22.1

217 / 22.1

spreading force 2nd plunger

kN / t

81 / 8.3

81 / 8.3

spreading stroke 1st plunger

mm

158

388

spreading stroke 2nd plunger

mm

124

354

total spreading stroke

mm

282

742

retracted length

mm

303

533

max. length

mm

585

1275

weight, ready for use

kg

10.8

16.3

dimensions (L x B x H)

mm

303 x 133 x 350

533 x 133 x 350

required oil content (effective)

cc

475

1207

built-in Speed Valve

√

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading while the tool is loaded

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

√

Tested according to EN 13204 and NFPA 1936.

3

4

Extension pipes to create an even larger opening

1

2

Rams - telescopic - accessories

description

art. nr.

1

ram support HRS 22 NCT ¹⁾

150.003.105

2

ram support HRS 22 ²⁾

150.181.011

3

extension pipe 250 mm ³⁾

150.181.330

4

extension pipe 450 mm ³⁾

150.181.331

¹⁾ see also page 113 |

²⁾ see also page 114

³⁾ can only be mounted on the fixed base of models 4340

4.5 Rams - telescopic plunger

57

TR 4350 C

TR 4340 C

Features / Benefits

Extremely compact

Working as a team

533

TR 4350 C

585

TR 4340 C

303

- the larger model can be placed

in the opening created by the

smaller one and continue

the spreading job

Teamwork with all spreaders

TR 4340 C

TR 4350 C

SP 4230 C

SP 4240 C

- fit in the opening made

SP 4260 C

with any spreader

SP 4280 C

(for both CORE and dual

hoses)

Unique Speed Valve

CORE - reduced dimensions

space

At working pressures

sec.

saved

below 150 bar, the

Without Speed Valve

tools open up

significantly quicker.

sec.

With Speed Valve

- faster tool opening for quicker reactions

- storage of a traditional dual

- storage of a CORE

hose rescue set

rescue set

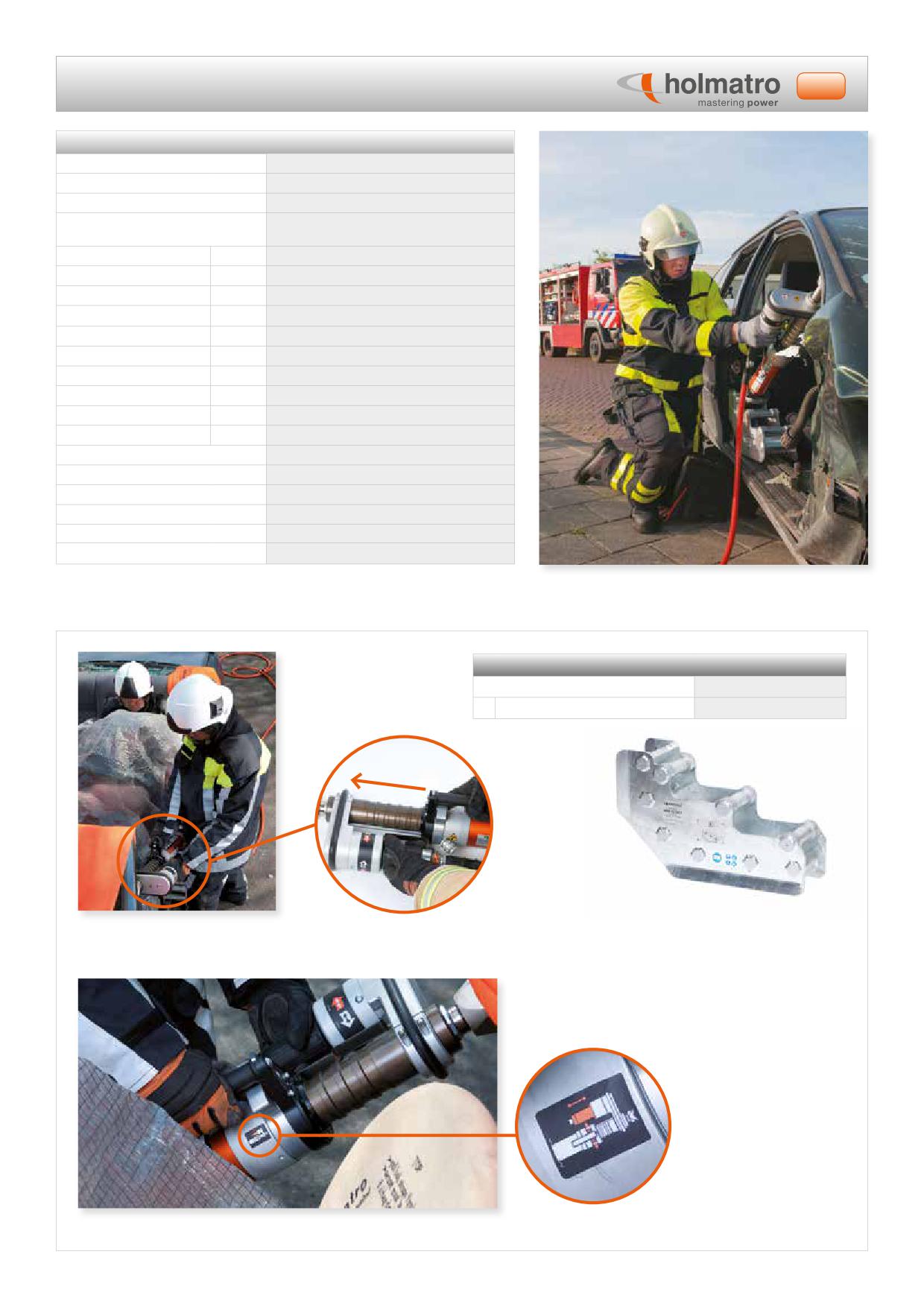

4.6 Rams - Extendo

58

Rams - Extendo

specifications

XR 4360 C

equipped with

CORE

article number

150.032.094

R100/650-13.6

EN 13204 classification

TR100/300-100/350-13.6

max. working pressure

bar / MPa

720 / 72

spreading force ¹⁾

kN / t

100 / 10.2

mechanical spreading stroke

mm

300

hydraulic spreading stroke

mm

350

total spreading stroke

mm

650

retracted length

mm

625

extended length

mm

1275

weight ready for use

kg

13.6

dimensions (L x W x H)

mm

625 x 209 x 168

required oil content (effective)

cc

356

built-in Speed Valve

√

temperature range

-20°C - +55°C

hydraulic safety factor

2 x max. working pressure of 720 bar = 1440 bar

endurance test tool

1000 cycles of spreading while the tool is loaded

endurance test dead man’s handle

6000 cycles

also available in dual hose version

√

¹⁾ over full stroke | tested according to EN 13204 and NFPA 1936

Rams - Extendo - accessories

description

art. nr.

1

ram support HRS 22 NCT ¹⁾

150.003.105

¹⁾ see also page 113

1

Quick positioning: place in ram

support and extend manually.

Unlocking

step 1: press button to left or right

step 2: push ram in upward direction

before pulling it down

Safe & easy auto-lock system: locks automatically when extended manually, unlocks in 2 steps.

4.6 Rams - Extendo

59

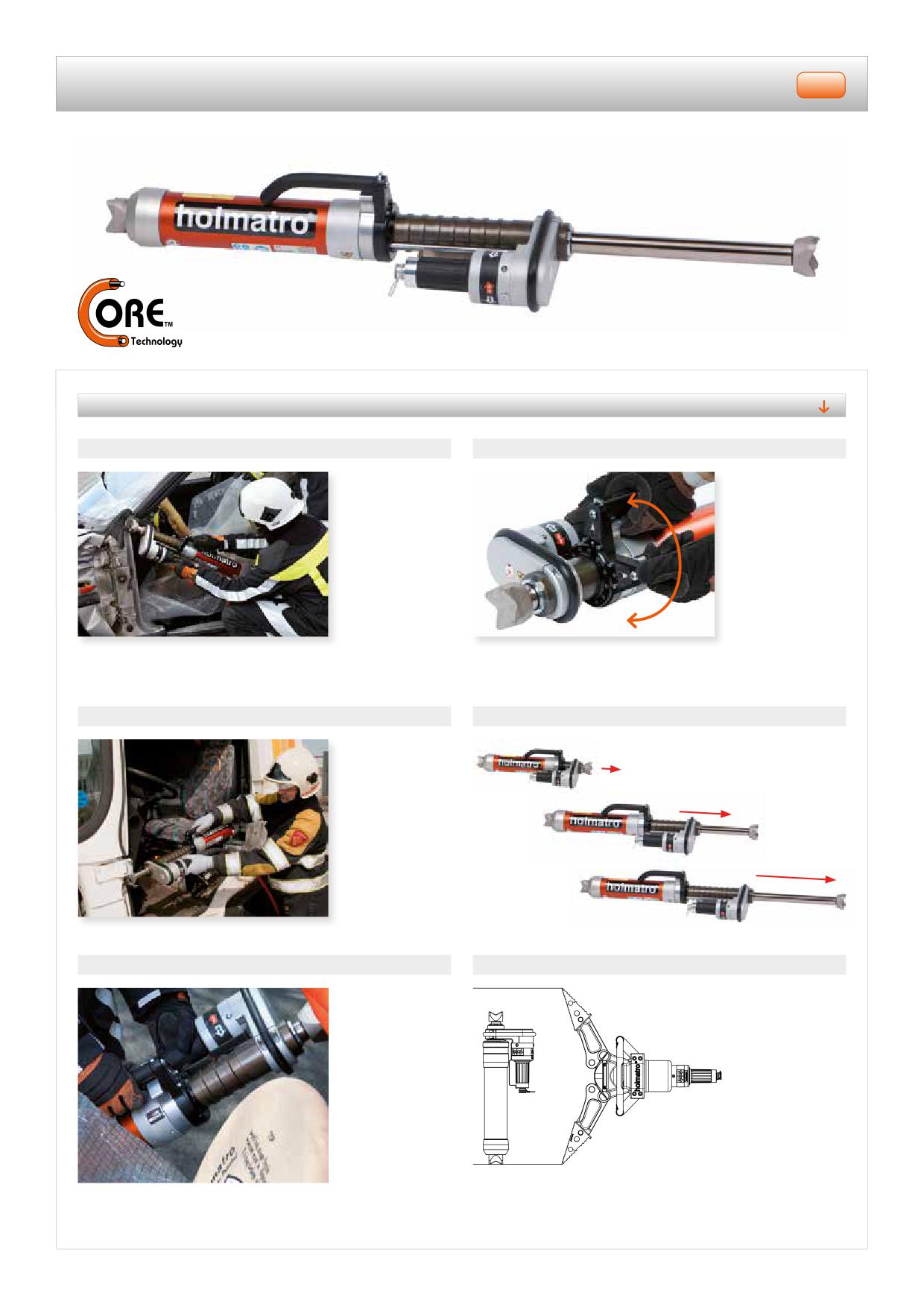

Features / Benefits

Manually extendable

Unique adjustable carrying handle

- for quicker positioning

- enables more precise positioning

easy use of ram on all sides of the car

- allows you to start spreading almost immediately

Large manual stroke

10 t pushing force at every length

10 t

10 t

10 t

- also quickly positioned in large door openings

- no loss of power over full stroke

Manual extension with auto-lock system

Compact dimensions with large stroke

SP 4230 C

SP 4240 C

SP 4260 C

SP 4280 C

- suitable for situations where little space is available and a large

- easy: no need to lock manually

stroke required

- safe: no accidental unlocking possible thanks 2-step unlocking

- easy to store

system (see page 58)

- fits in the opening created by any Holmatro spreader

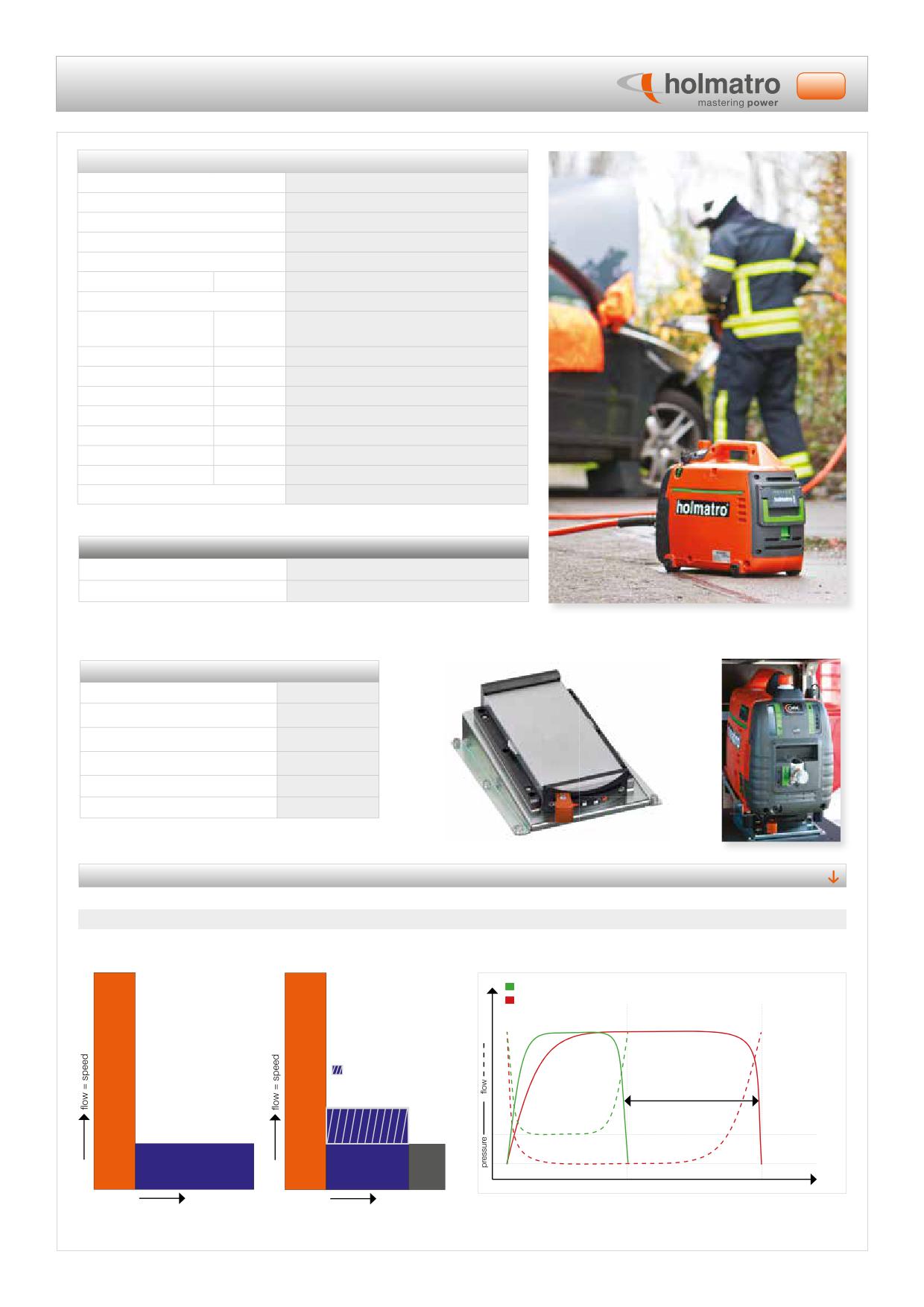

5.1 Motor pumps - Battery driven Greenline

60

Motor pump - Battery driven Greenline

specifications

SPU 16 BC

equipped with

CORE

article number (excl. battery)

150.152.689

EN 13204 classification ¹⁾

STO

number of tool connections

1

working pressure

bar / Mpa

720 / 72

pump type

3-stage axial

90 minutes during common vehicle extrications

continuous operation

hours

180 minutes unloaded (idle)

capacity oil tank

cc

1700

output 1st stage 0-130 bar

cc/min

2700

output 2nd stage 130-280 bar

cc/min

1200

output 3rd stage 280-720 bar

cc/min

450

weight ready for use ²⁾

kg

17.7

dimensions (L x W x H)

mm

530x252x388

sound emission

dB(A)

67

temperature range

-20°C - +55°C

¹⁾ EN 13204: STO = Single Tool Operation | ²⁾ inclusive batttery, hydraulic oil and coupler

Required articles

Battery SPU 16 BC

150.004.313

Charger SPU 16 BC

150.004.048

SPU 16 BC - accessories

description

art. nr.

Docking Station SPU 16

150.004.623

Inverter 12VDC

150.004.586

Mounting plate pump side SPU 16 BC ¹⁾

150.062.192

Quick Fix & Release Bracket ¹⁾

150.062.188

Angled mounting plate truck side ¹⁾

150.062.193

See also page 66.

Features / Benefits

3-stage pump technology

- enables faster tool operation when possible and more control when you need it

3-stage pump

2-stage pump

2-stage pump

3-stage pump

action

action

complete

complete

technology

technology

extra flow / speed

compared to

2-stage pumps

time saving!

1st

2nd

1st

2nd

3rd

stage

stage

stage

stage

stage

time

pressure

pressure

Time required to cut a typical B-pillar using a Holmatro NCT cutter

connected to a 2-stage or a 3-stage pump.

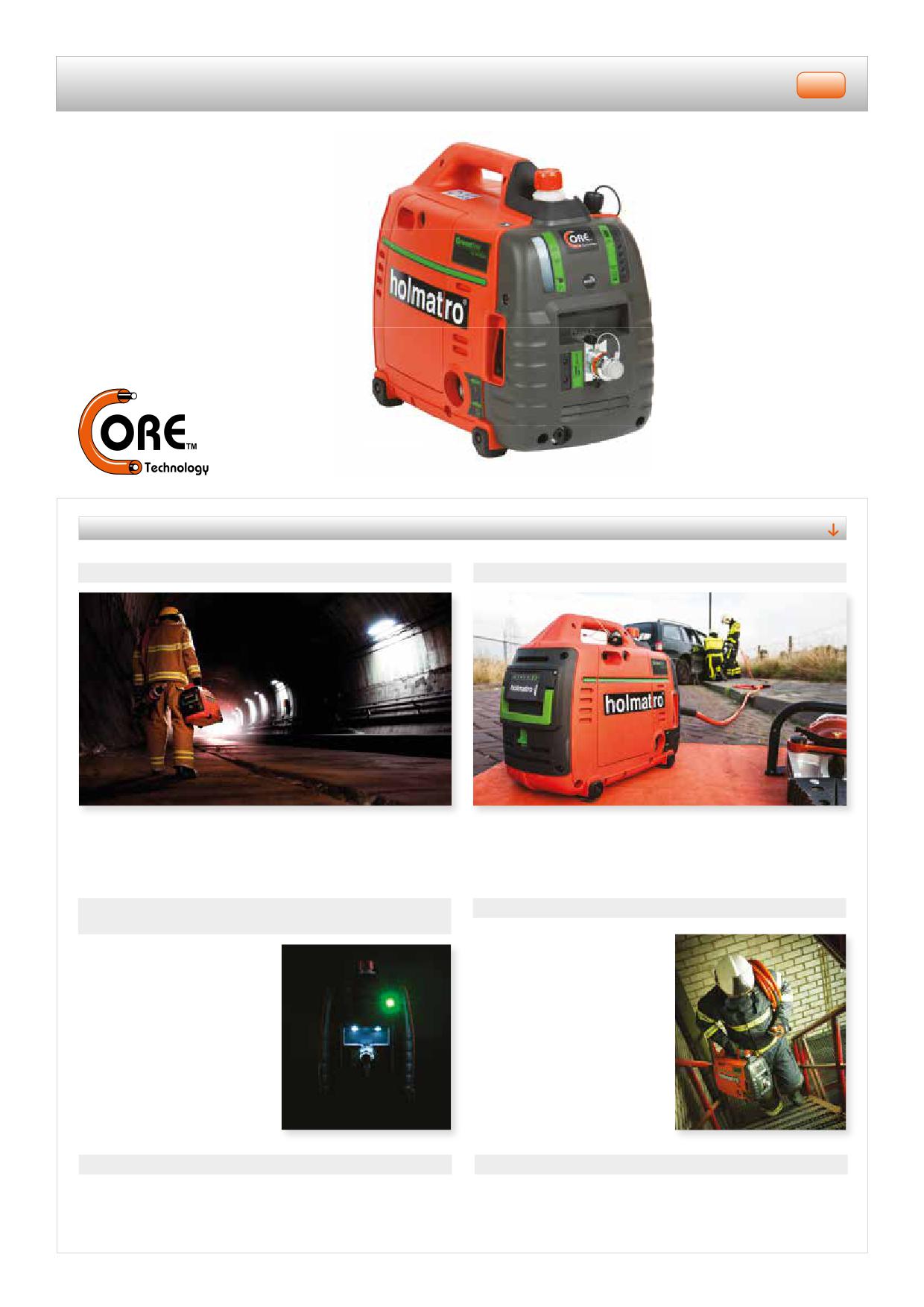

5.1 Motor pumps - Battery driven Greenline

61

SPU 16 BC

Features / Benefits

Zero emission - no fumes

Long running time

- ideal for powering rescue equipment in confined spaces like tunnels,

- 90 minutes during common vehicle extrications, even with the use of

trains and collapsed buildings

heavy-duty rescue tools

- healthier for rescuers and victims

- 45 minutes continuous spread/cut tool use

- environmentally friendly

LED lights above the valve block and LED battery

Unlimited usability

indicator

- suitable for air transportation

- easy to locate pump in the dark

- suitable for use at high altitudes

- facilitates coupling and uncou-

without loss of performance

pling of hose in the dark

- easy to carry by one person to

- indicates battery capacity while

any rescue situation

pump is in use

- when pump is not in use, the bat-

tery capacity can be checked by

pressing a button

ECO whisper mode

All weather proof

- power saving and extremely low noise level when tool is not in use

- suitable for use at below zero temperatures, up to -20⁰ C

- suitable for use in wet weather conditions

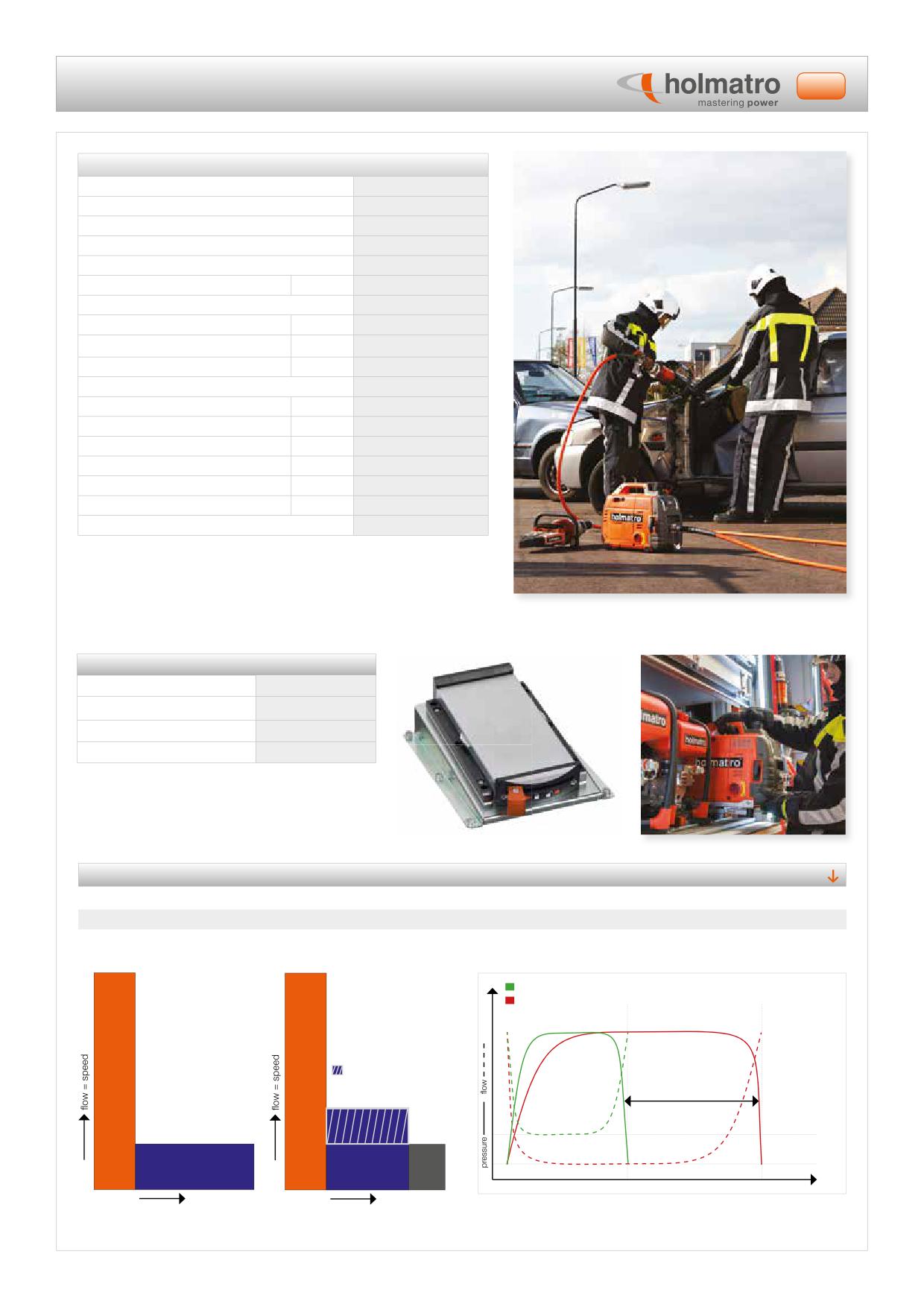

5.2 Motor pumps - Personal Power

62

Motor pump - Personal Power

Petrol

specifications

SPU 16 PC

equipped with

CORE

article number

150.152.671

EN 13204 classification ¹⁾

STO

number of tool connections

1

working pressure

bar / MPa

720 / 72

4-stroke petrol engine

2.1 HP - 1.6 kW

capacity fuel tank

cc

1000

continuous operation

hours

3

capacity oil tank

cc

1700

pump type

three-stage axial

output 1st stage 0-150 bar

cc/min

3450

output 2nd stage 150-450 bar

cc/min

1050

output 3rd stage 450-720 bar

cc/min

700

weight, ready for use ²⁾

kg

16.7

dimensions (L x W x H)

mm

510 x 250 x 380

sound emission

dB(A)

72

temperature range

-20°C - +55°C

¹⁾ STO = Single Tool Operation | 2) inclusive hydraulic and engine oil, fuel and

coupler

SPU 16 BC - accessories

description

art. nr.

Mounting plate pump side SPU 16 BC

150.062.192

Quick Fix & Release Bracket

150.062.188

Angled mounting plate truck side

150.062.193

See also page 66.

Features / Benefits

3-stage pump technology

- enables faster tool operation when possible and more control when you need it

3-stage pump

2-stage pump

2-stage pump

3-stage pump

action

action

complete

complete

technology

technology

extra flow / speed

compared to

2-stage pumps

time saving!

1st

2nd

1st

2nd

3rd

stage

stage

stage

stage

stage

time

pressure

pressure

Time required to cut a typical B-pillar using a Holmatro NCT cutter

connected to a 2-stage or a 3-stage pump.

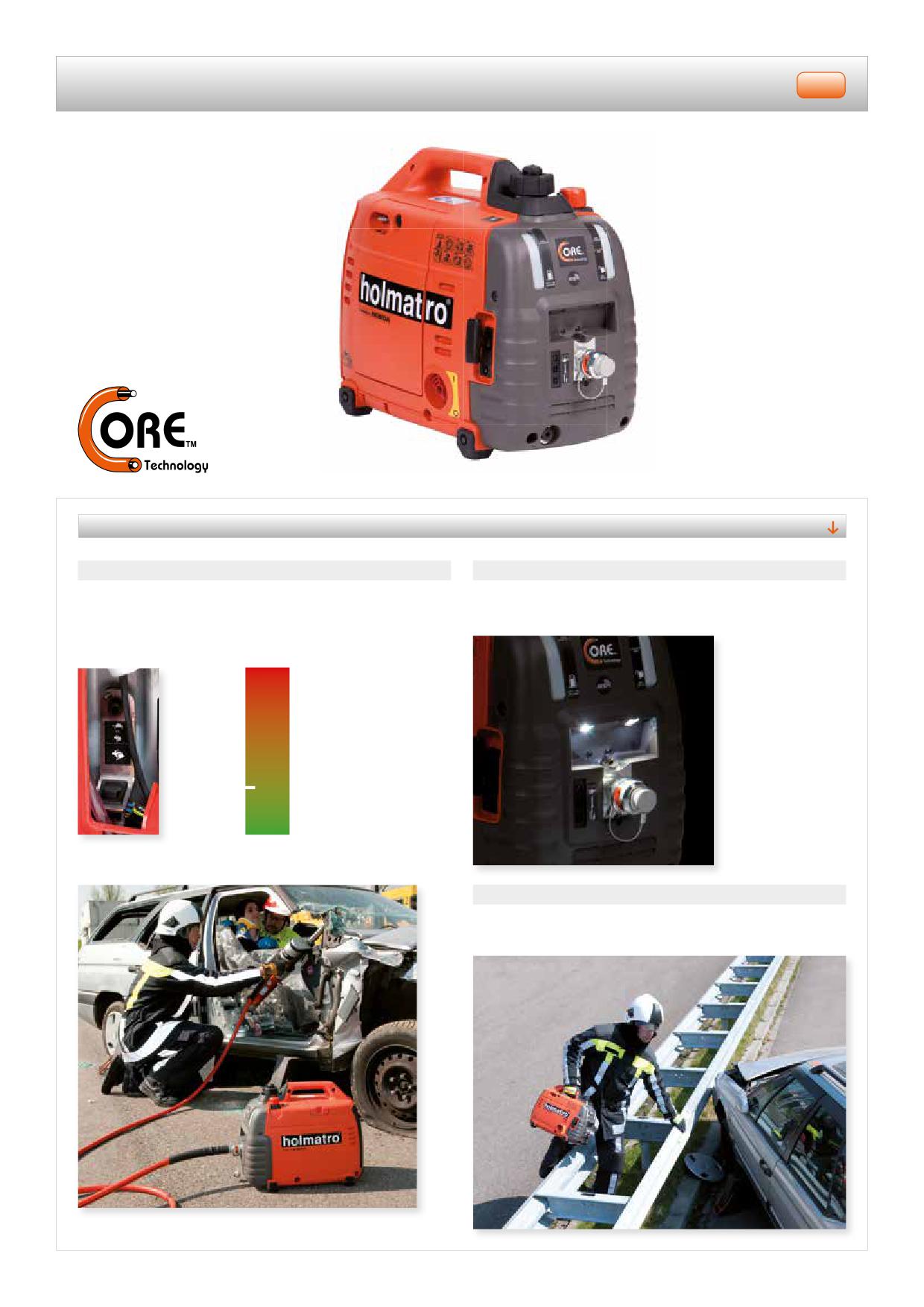

5.2 Motor pumps - Personal Power

63

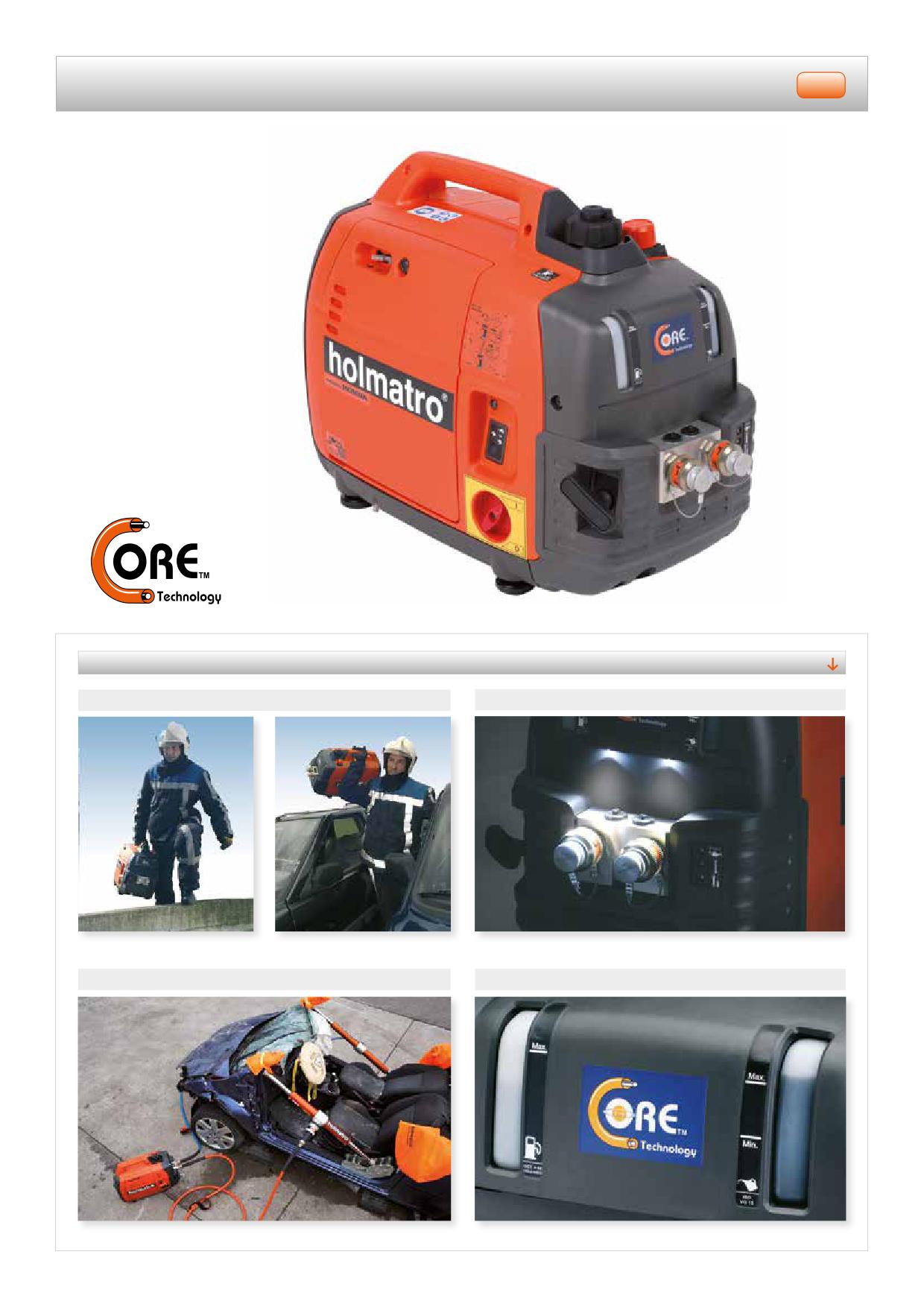

Features / Benefits

Standard in ECO mode: Electronic engine speed control

Lighting above valve block

Engine speed increases automatically to maximum when tool is used.

- easy identification of pump location in the dark

When tool is not used, engine reverts to idle speed.

- facilitates (un)coupling of hose in the dark

- minimizes noise level at the rescue scene

- minimizes fuel consumption

noise

High noise level

level (dB)

-negative effect on

victim

-difficult to communicate

at rescue scene

Low noise level

SPU 16 PC

-decreased burden on

72 dB

victim

-easy to communicate

at rescue scene

Switch inside pump

Lightweight and ergonomic

Slim design to carry close to body, carrying handle centrally positioned.

- easy to carry by one person to accident location

Easy communication with victim, no need to switch off the pump.

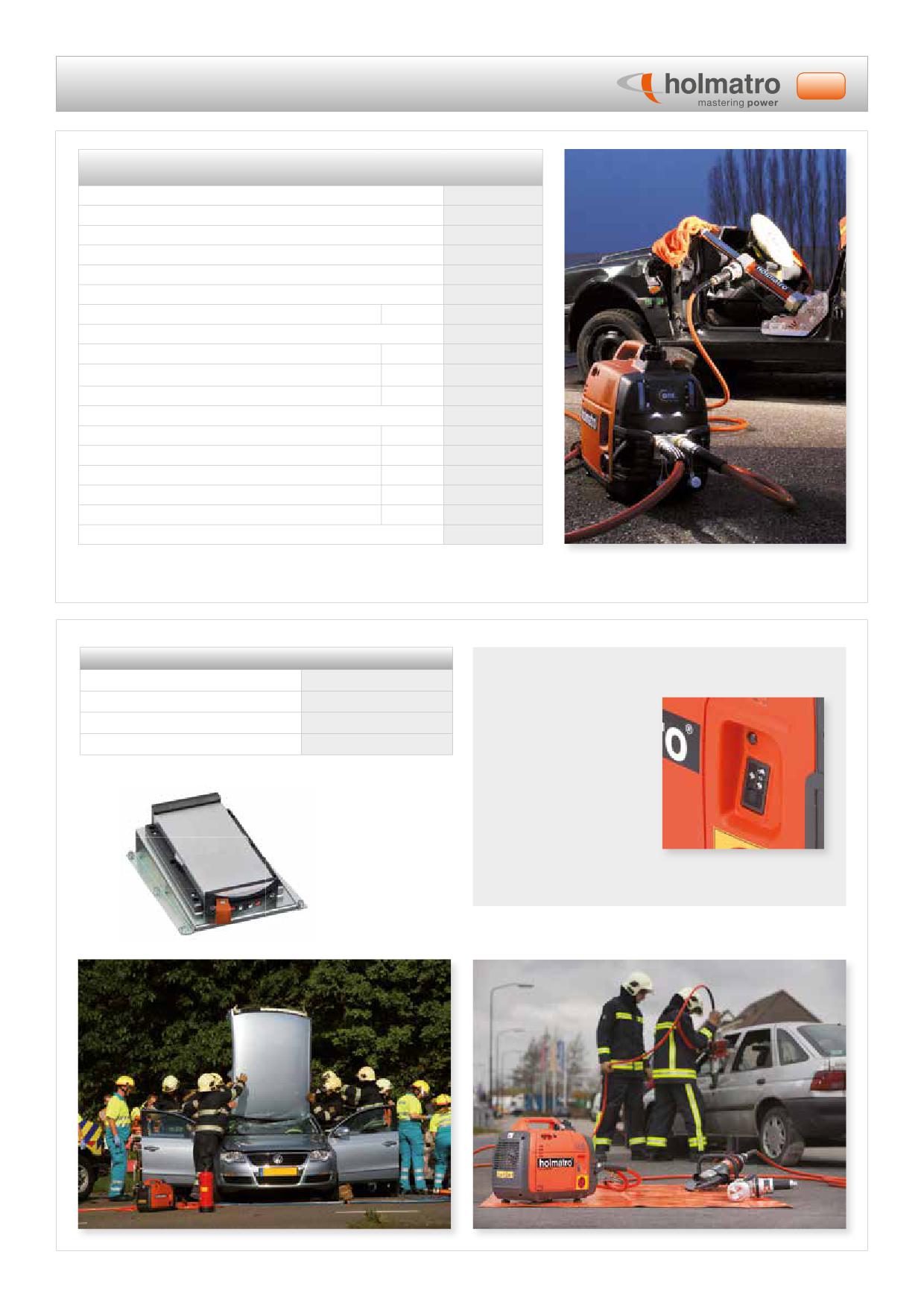

5.2 Motor pumps - Personal Power - Duo

64

Motor pumps - Personal Power - Duo - 2 connections

Petrol

- 2 tools working simultaneously

specifications

DPU 31 PC

equipped with

CORE

article number

150.152.180

EN 13204 classification ¹⁾

MTO

number of tool connections

2

number of tools working simultaneously

2

working pressure

bar / MPa

720 / 72

4-stroke petrol engine

3.5 HP - 2.6 kW

capacity fuel tank

cc

1250

continuous operation

hours

4

capacity oil tank

cc

2490

pump type

2 x two-stage axial

output 1st stage 0-190 bar

cc/min

2 x 2900

output 2nd stage 190-720 bar

cc/min

2 x 575

weight, ready for use ²⁾

kg

24.9

dimensions (L x W x H)

mm

600 x 290 x 425

sound emission

dB(A)

68

temperature range

-20°C - +55°C

¹⁾ EN 13204: MTO = Multiple Tool Operation | 2) inclusive hydraulic and engine oil, fuel and couplers

DPU 31 PC - accessories

ECO Switch

description

art. nr.

Mounting plate pump side DPU 31 PC

150.062.191

Electronic engine speed

control. In ECO setting,

Quick Fix & Release Bracket

150.062.188

engine speed increases

Angled mounting plate truck side

150.062.193

automatically to maximum

See also page 66.

speed when tool is used.

When tool is not used,

engine speed reverts to

nominal speed.

Minimises noise and fuel

consumption.

5.2 Motor pumps - Personal Power - Duo

65

Features / Benefits

Duo Personal Power pump - low weight of < 25 kg

Lighting above valve block

- can easily be carried by one person; according to EN 13204

- easy identification in the dark and facilitates coupling and uncoupling

of hoses

Hydraulic oil content of 2490 cc

Large and clear gauges on front side

- sufficient to operate any two rescue tools at the same time

- quick and easy checking of hydraulic oil and petrol levels

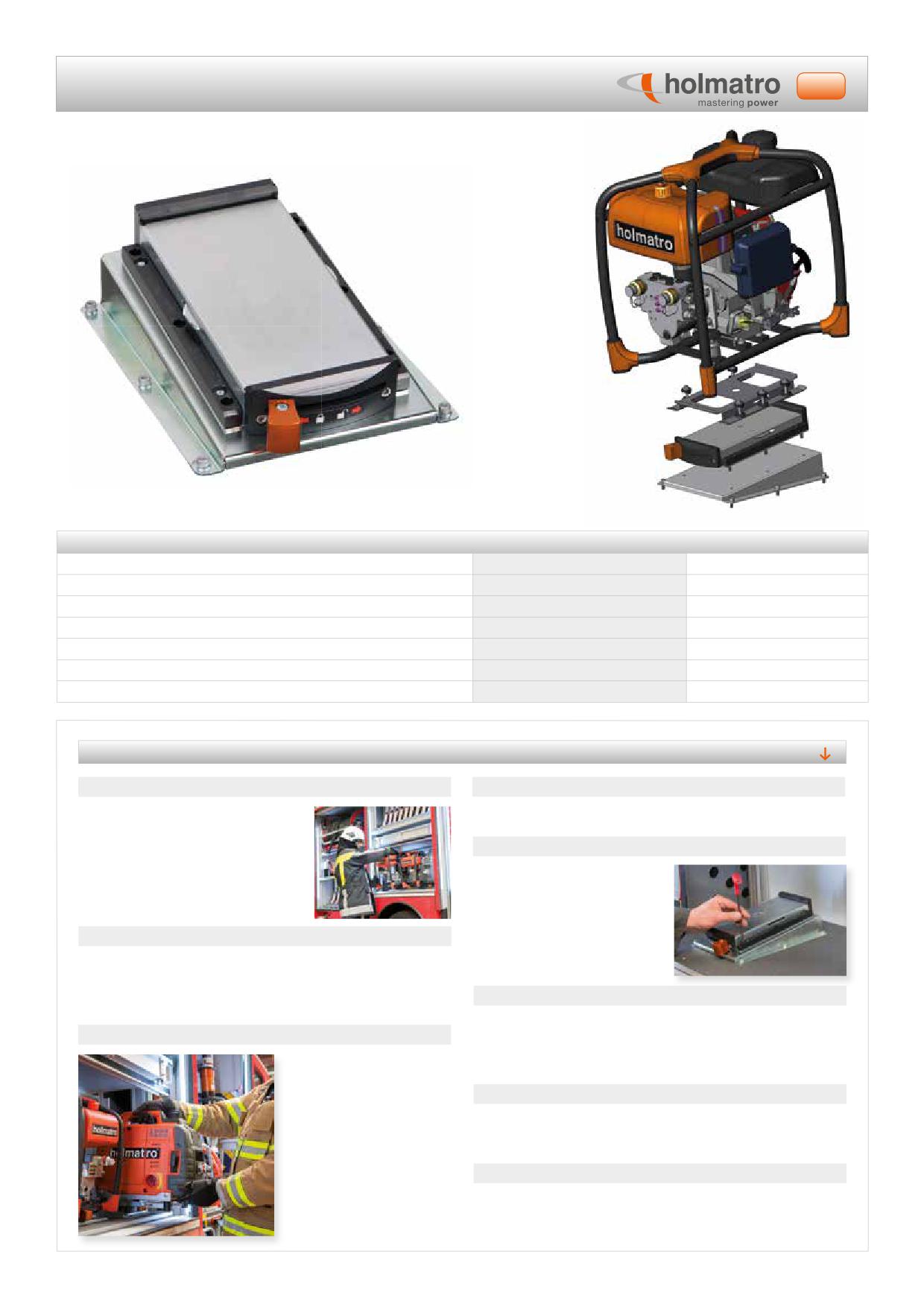

5.3 Quick Fix & Release Brackets

66

Quick Fix & Release Brackets

description

for pump type

art.nr.

mounting plate pump side to mount pump on bracket

SR 10

150.062.189

mounting plate pump side to mount pump on bracket

SR 20

150.062.190

mounting plate pump side to mount pump on bracket

DPU 31 PC

150.062.191

mounting plate pump side to mount pump on bracket

SPU 16 BC / PC

150.062.192

Quick Fix & Release Bracket

all

150.062.188

angle mounting plate truck side

all

150.062.193

Features / Benefits

For quick release of the pump

Safe

- simply press the handle and slide it to

- 2-step unlocking system helps prevent accidental realease of the pump

the side to unlock the pump, then slide

the pump from the bracket

Universal mounting

- saves precious time during a rescue

operation, when every second counts

- suitable for use in most vehicles

- quick and easy mounting

For quick securing of the pump

- simply put the pump on the bracket and push the handle back to

the locked position

- saves time and effort when packing up your vehicle after the rescue

Saves space

operation

- takes up less space in the rescue vehicle than traditional pump

Ergonomic

securing systems

- no additional space required to release the pump

- slide mechanism reduces

strain on rescuers when

removing and stowing the

Protects the pump from damage

pump

- pump is secured and locked to the base with locking handle

- no movement of pump, even when the ride is bumpy

2 configurations available

- with angle mounting plate for easier removal and stowage of the

pump in higher truck compartments

- flat version for use in lower compartments

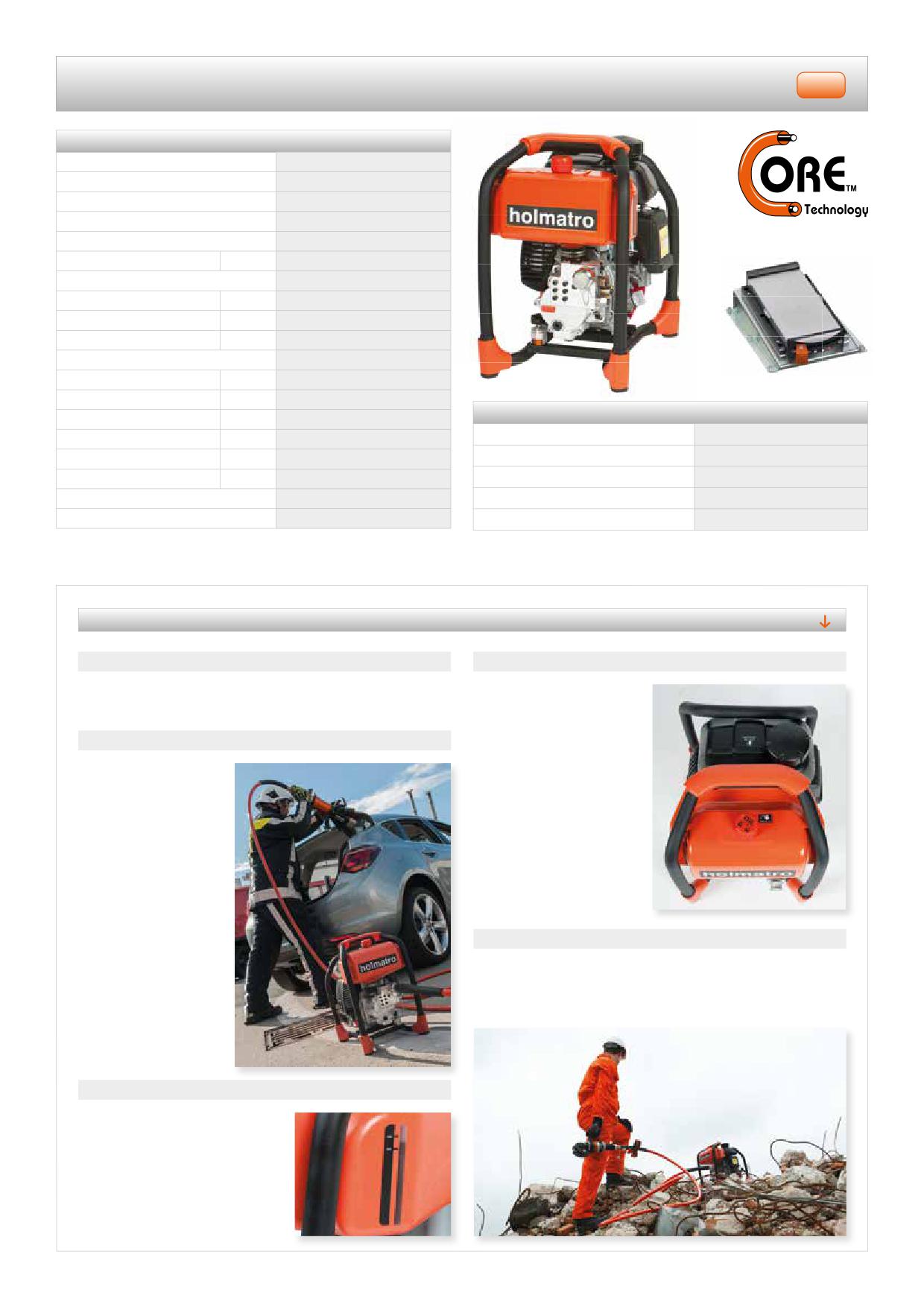

5.4 Motor pumps - Spider Range - SR 10-series

67

Motor pumps - Spider Range

Petrol

specifications

SR 10 PC 1

equipped with

CORE

article number

150.152.690

EN 13204 classification ¹⁾

STO

number of tool connections

1

working pressure

bar / Mpa

720 / 72

4-stroke petrol engine

2.1 HP - 1.6 Kw

capacity fuel tank

cc

770

continuous operation

hours

3

capacity oil tank

cc

2840

pump type

3-stage axial

output 1st stage 0-150 bar

cc/min

2900

output 2nd stage 150-280 bar

cc/min

1300

SR 10 - accessories

output 3rd stage 280-720 bar

cc/min

550

description

art. nr.

weight ready for use ²⁾

kg

14.5

dimensions (L x W x H)

mm

360x290x423

Mounting plate pump side SR 10 ¹⁾

150.062.189

sound emission

dB(A)

79

Quick Fix & Release Bracket ¹⁾

150.062.188

temperature range

-20°C - +55°C

Angled mounting plate truck side ¹⁾

150.062.193

also available in dual hose version

√

LED light Spider range

590.000.343

¹⁾ EN 13204: STO = Single Tool Operation | ²⁾ inclusive hydraulic and engine oil, fuel and

¹⁾ see also page 66.

coupler

Features / Benefits

3-stage pump technology

Soft-grip carrying handle

- much higher flow/speed in 2nd stage for quicker rescue operations

- better grip

- lower flow/speed in 3rd stage for more tool control

- ergonomic design for

improved carrying balance

- pump easier to carry

Large hydraulic oil capacity

- pump can be used with

any tool including the

biggest rams

Compact and lightweight

- weight only 14.5 kg ready for use

- ergonomic, compact design

- easy to carry

- easy to store

Oil level indicator / sensor

- for quick and easy monitoring of oil

level from the outside of the pump

- engine oil level sensor secures

motor from running without oil

5.5 Motor pumps - Spider Range - SR 20-series

68

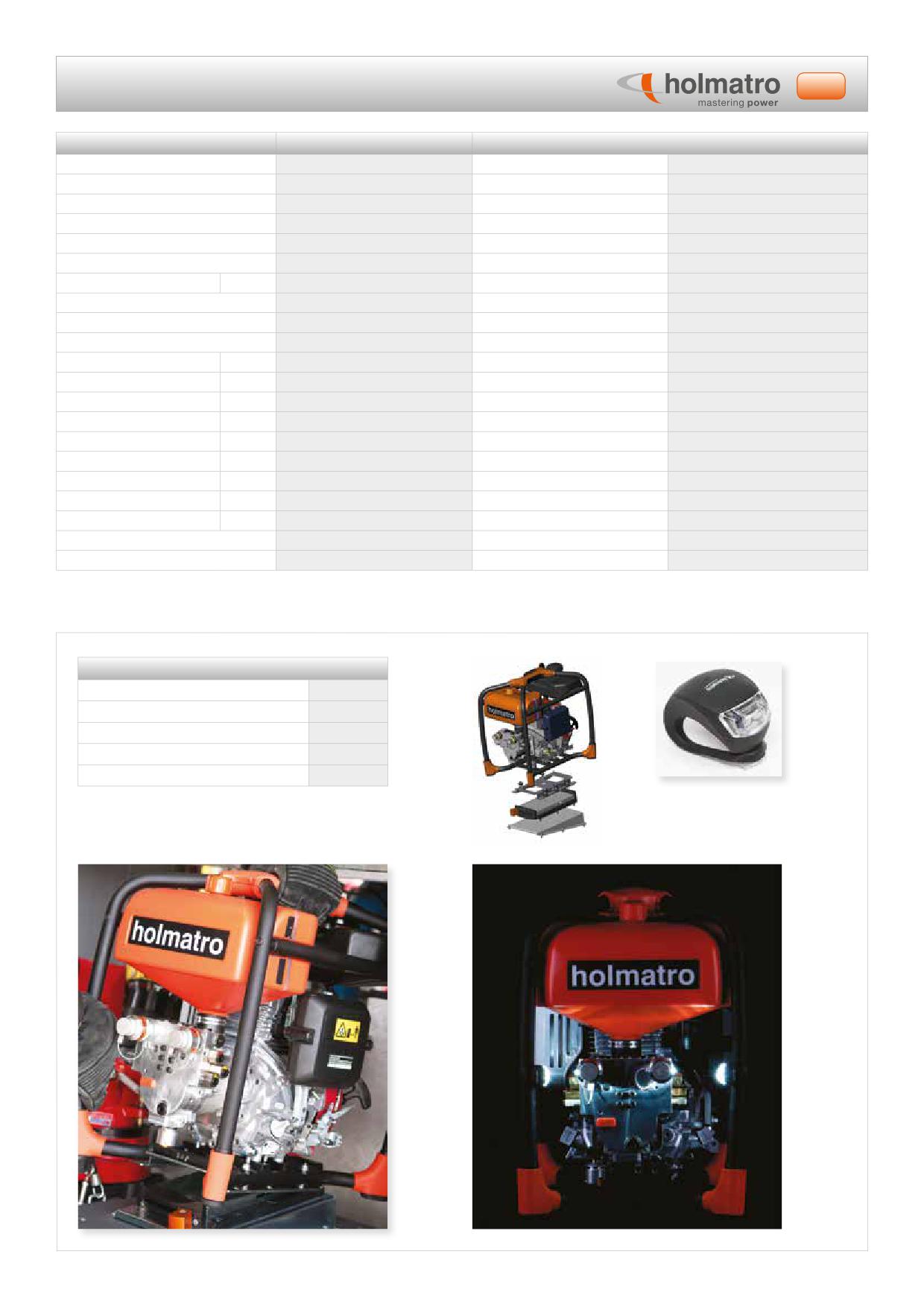

Motor pumps - Spider Range

Petrol

Electric

specifications

SR 20 PC 2

SR 20 DC 1

SR 20 DC 2

equipped with

CORE

CORE

CORE

article number

150.152.696

150.152.699

150.152.730

EN 13204 classification ¹⁾

MTO

STO

MTO

number of tool connections

2

1

2

number of tools working simultaneously

2

--

2

working pressure

bar / Mpa

720 / 72

720 / 72

720 / 72

4-stroke petrol engine⁾

3.0 HP - 2.2 kW

--

--

electric engine

230 VAC - 1.1 kW - 50 Hz - 1 Ph

230 VAC - 1.8 kW - 50 Hz - 1 Ph

pump type

2 x 3-stage axial

3-stage axial

2 x 3-stage axial

capacity fuel tank

cc

1700

--

--

continuous operation

hours

4

no limitation

no limitation

capacity oil tank

cc

4340

4340

4340

output 1st stage 0-150 bar

cc/min

2 x 2900

3000

2 x 3000

output 2nd stage 150-280 bar

cc/min

2 x 1300

1350

2 x 1350

output 3rd stage 280-720 bar

cc/min

2 x 550

575

2 x 575

weight ready for use ²⁾

kg

22.7

24.9

34.0

dimensions (L x W x H)

mm

455x315x460

455x315x460

455x315x460

sound emission

dB(A)

81

73

73

temperature range

-20°C - +55°C

-20°C - +55°C

-20°C - +55°C

also available in dual hose version

√

√

√

¹⁾ EN 13204: STO = Single Tool Operation MTO = Multiple Tool Operation | ²⁾ inclusive hydraulic and engine oil, fuel and coupler(s)

SR 20 - accessories

description

art. nr.

mounting plate pump side SR 20 ¹⁾

150.062.190

Quick Fix & Release Bracket ¹⁾

150.062.188

angled mounting plate truck side ¹⁾

150.062.193

LED light Spider range

150.000.343

¹⁾ see also page 66

5.5 Motor pumps - Spider Range - SR 20-series

69

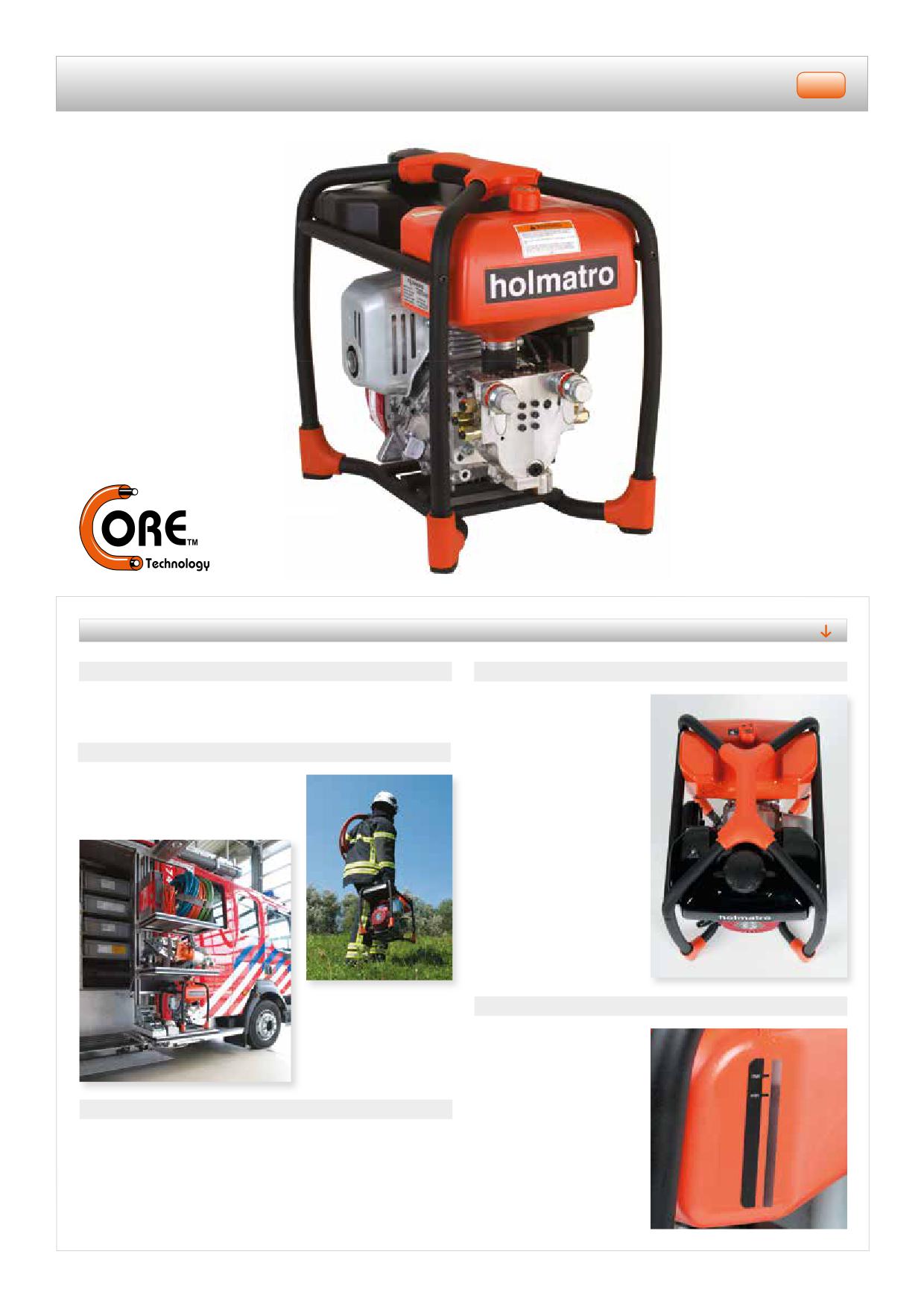

SR 20 PC 2

Features / Benefits

3-stage pump technology

Soft-grip carrying handle

- much higher flow/speed in 2nd stage for quicker rescue operations

- better grip

- lower flow/speed in 3rd stage for more tool control

- ergonomic design for

improved carrying balance

- pump easier to carry

Compact and lightweight

- standard version weighs only 22.7 kg

- ergonomic, compact design

- easy to carry

- easy to store

Hydraulic oil level indicator

- for quick and easy

monitoring of oil level from

the outside of the pump

Large hydraulic oil capacity

- pump can be used with any tool including the biggest rams

(STO models)

- enough oil to operate any two rescue tools at the same time

(MTO models)

5.6 Motor pumps - Spider Range - SR 30-series

70

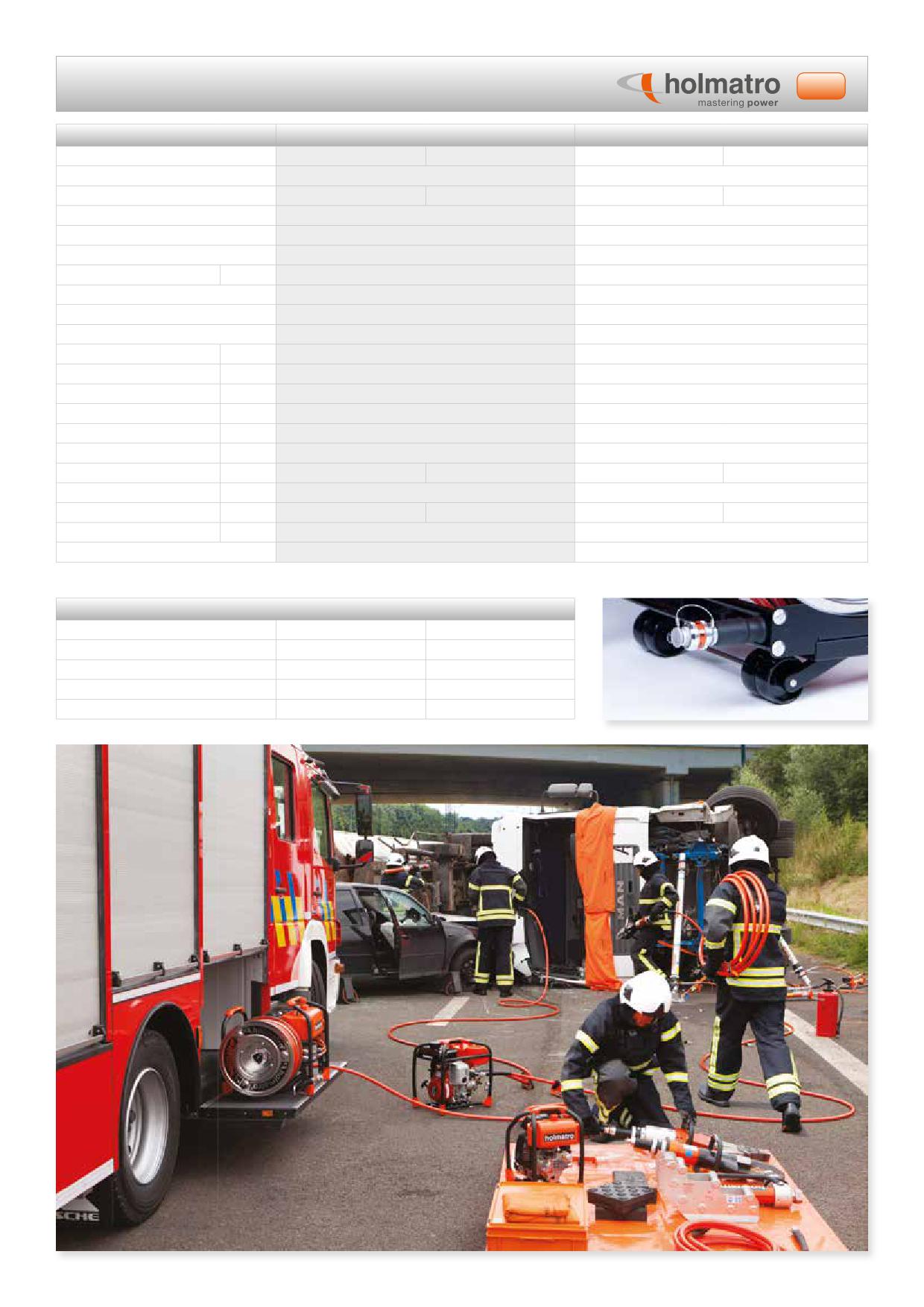

Motor pumps - Spider Range

Petrol

Electric

specifications

SR 31 PC 2

SR 32 PC 2

SR 31 DC 2

SR 32 DC 2

equipped with

CORE

CORE

article number

150.152.703

150.152.707

150.152.711

150.152.713

EN 13204 classification ¹⁾

MTO

MTO

number of tool connections

2

2

number of tools working simultaneously

2

2

working pressure

bar / Mpa

720 / 72

720 / 72

4-stroke petrol engine

3.0 HP - 2.2 kW

--

electric engine

--

230 VAC - 1.8 kW - 50 Hz - 1 Ph

pump type

2 x 3-stage axial

2 x 3-stage axial

capacity fuel tank

cc

1700

--

continuous operation

hours

4

no limitation

capacity oil tank

cc

4340

4340

output 1st stage 0-150 bar

cc/min

2 x 2900

2 x 3000

output 2nd stage 150-280 bar

cc/min

2 x 1300

2 x 1350

output 3rd stage 280-720 bar

cc/min

2 x 550

2 x 575

weight ready for use ²⁾

kg

64.5

69.4

72.7

77.6

dimensions (L x W x H)

mm

742x517x555

742x517x555

length of hoses

m

15

20

15

20

sound emission

dB(A)

81

73

temperature range

-20°C - +55°C

-20°C - +55°C

¹⁾ EN 13204: MTO = Multiple Tool Operation | ²⁾ inclusive hydraulic and engine oil, fuel, hoses and coupler(s)

Motor pumps - Spider Range - with foldable wheel set

model

art. nr.

weight (kg)

SR 31 PC 2 W

150.152.705

66.1

SR 32 PC 2 W

150.152.709

71.0

SR 31 DC 2 W

150.152.711

74.3

SR 32 DC 2 W

150.152.714

79.2

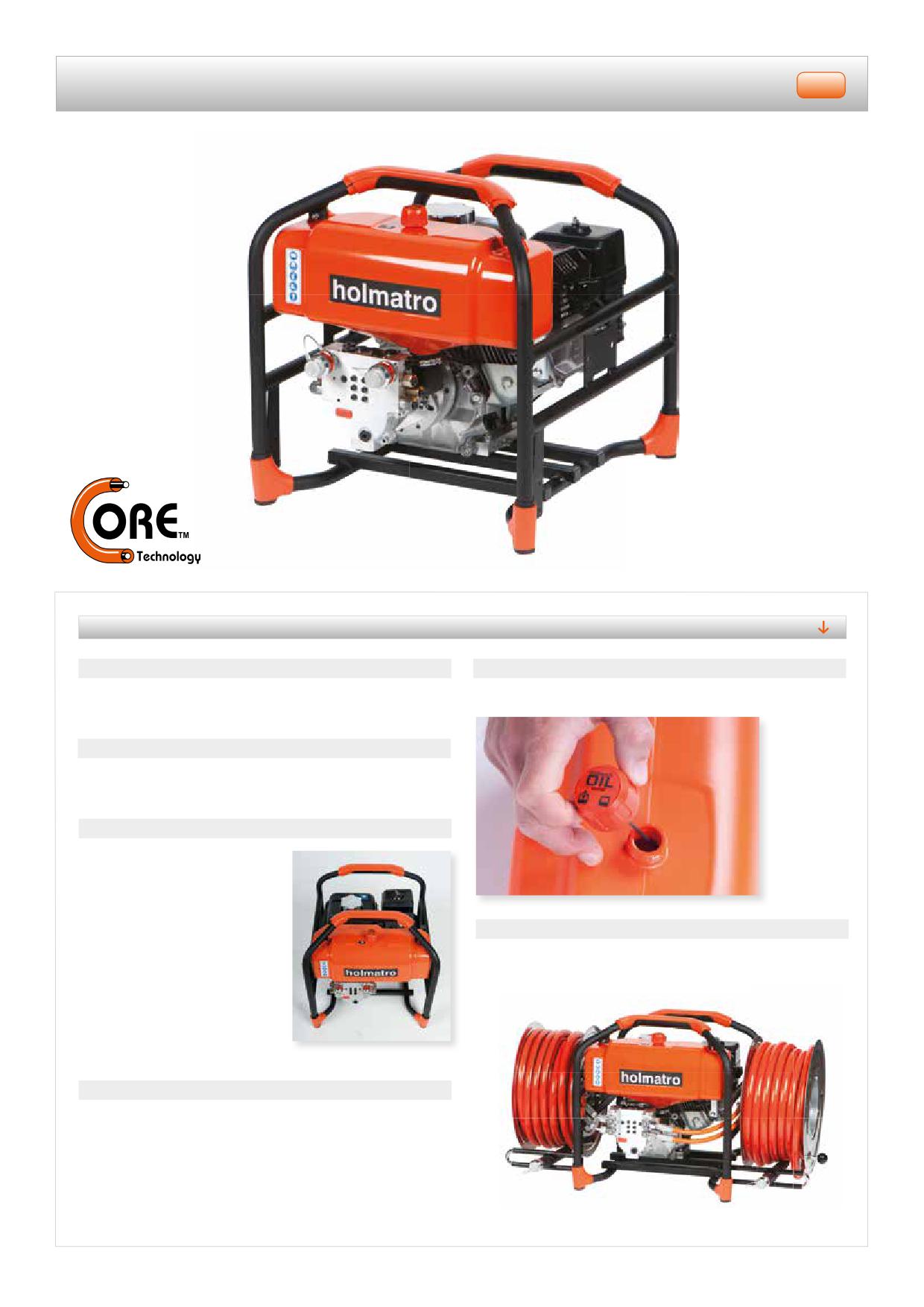

5.6 Motor pumps - Spider Range - SR 30-series

71

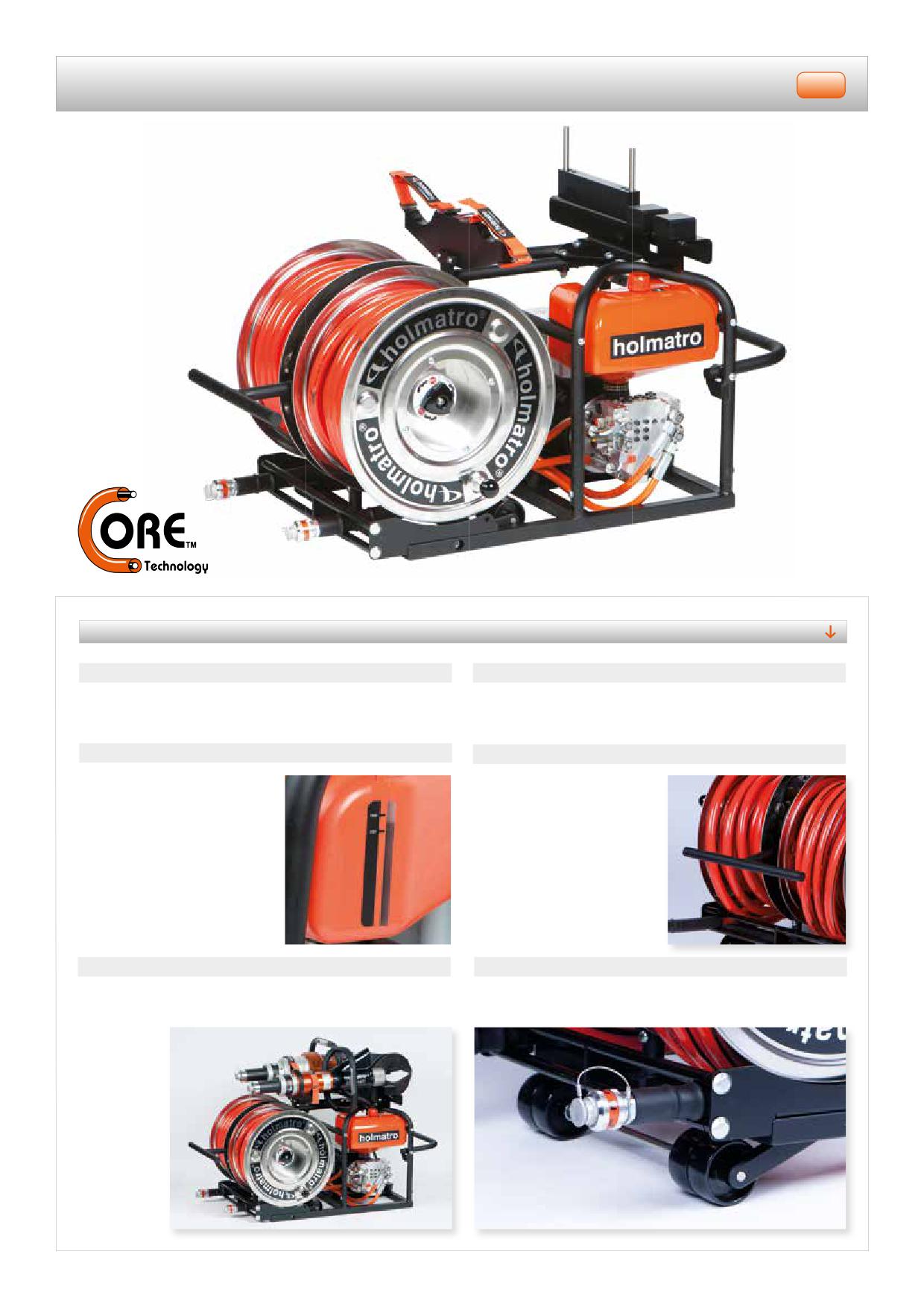

SR 31 PC 2 W

Features / Benefits

3-stage pump technology

Large hydraulic oil capacity

- much higher flow/speed in 2nd stage for quicker rescue operations

- enough oil to operate any two tools at the same time, including the

- lower flow/speed in 3rd stage for more tool control

biggest rams

Hydraulic oil level indicator

Foldable carrying handles

- for quick and easy monitoring of

- for easy carrying

oil level from the outside of the

- foldable for easy storage

pump

Complete with hose reels and tool support

Foldable wheels set (optional)

- with 15 m or 20 m hose reels

- for fast and easy transportation

- with universal support for cutters, spreaders and combi tools

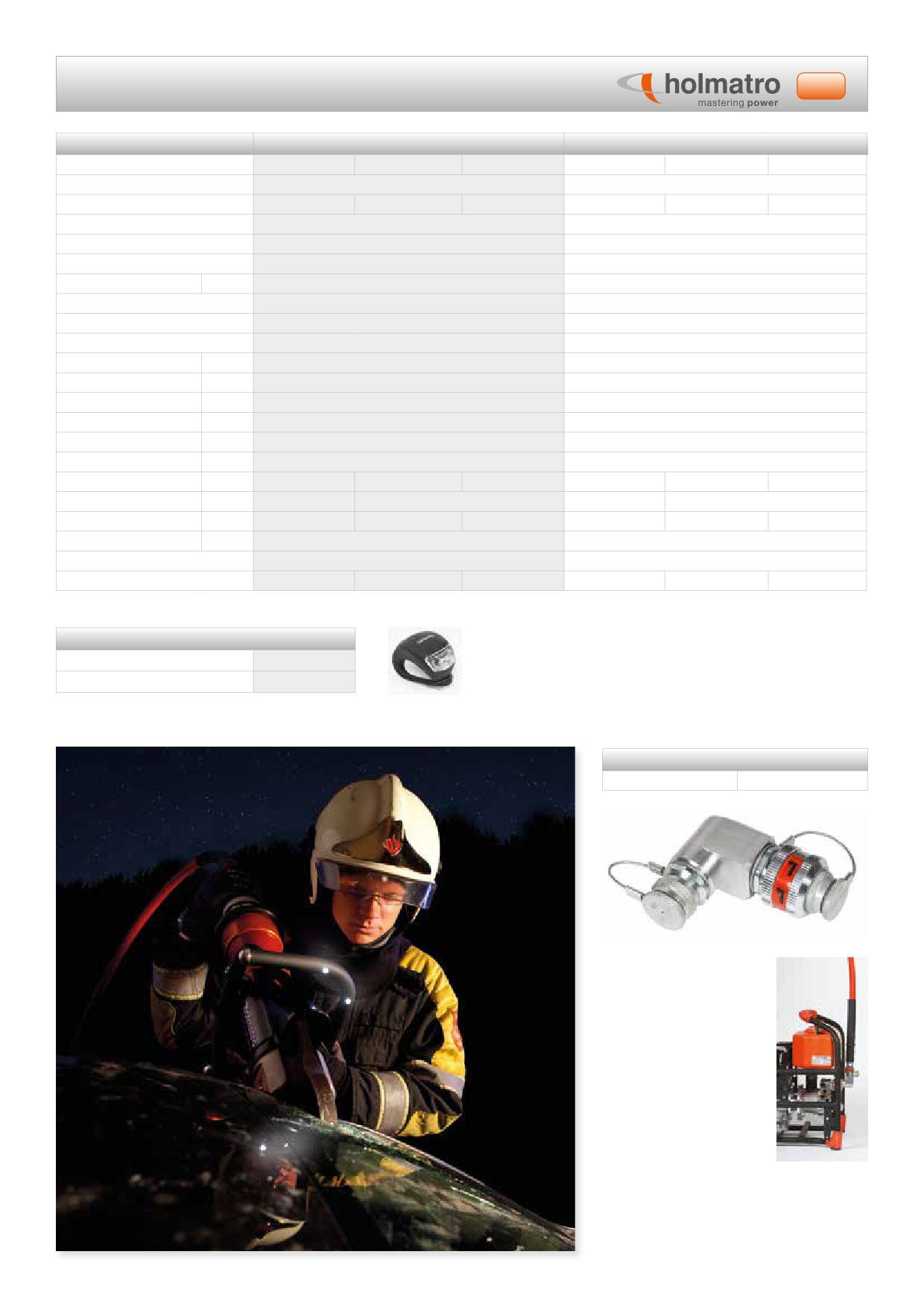

5.7 Motor pumps - Spider Range - SR 40-series

72

Motor pumps - Spider Range

Petrol

Electric

specifications

SR 40 PC 2

SR 41 PC 2

SR 42 PC 2

SR 40 DC 2

SR 41 DC 2

SR 42 DC 2

equipped with

CORE

CORE

article number

150.152.715

150.152.718

150.152.721

150.152.724

150.152.726

150.152.728

EN 13204 classification ¹⁾

MTO

MTO

number of tool connections

2

2

number of tools working simultaneously

2

2

working pressure

bar / Mpa

720 / 72

720 / 72

4-stroke petrol engine

5.5 HP - 4.1 kW

--

electric engine

--

230 VAC - 1.8 kW - 50 Hz - 1 Ph

pump type

2 x 3-stage axial

2 x 3-stage axial

capacity fuel tank

cc

3100

--

continuous operation

hours

4

no limitation

capacity oil tank

cc

6340

6340

output 1st stage 0-150 bar

cc/min

2 x 2900

2 x 3000

output 2nd stage 150-280 bar

cc/min

2 x 1300

2 x 1350

output 3rd stage 280-720 bar

cc/min

2 x 550

2 x 575

weight ready for use ²⁾

kg

37.3

64.0

68.9

41.0

67.7

72.6

dimensions (L x W x H)

mm

497x467x492

497x950x492

497x467x492

497x950x492

length of hoses

m

---

15

20

---

15

20

sound emission

dB(A)

84

73

temperature range

-20°C - +55°C

-20°C - +55°C

also available in dual hose version

√

√

√

√

√

√

¹⁾ EN 13204: MTO = Multiple Tool Operation | ²⁾ inclusive hydraulic and engine oil, fuel, (hoses) and couplers

SR 40 - accessories

description

art. nr.

LED light Spider range

150.000.343

Motor pumps - accessories

CORE elbow connector

150.182.176

This elbow connector is

particularly

useful

when

there is little space in a

compartment of a truck

with a built-in pump and

the CORE hoses permanent

connected. Without this

elbow

connector,

the

connected hoses ‘point

forward’ before they can bend

sideways and consequently

ask for much space in a truck

compartment. By use of the

CORE elbow connector a 90

degree angle is achieved and

therefore valuable space in a

truck is saved.

5.7 Motor pumps - Spider Range - SR 40-series

73

SR 40 PC 2

Features / Benefits

3-stage pump technology

Hydraulic oil level indicator on pump

- much higher flow/speed in 2nd stage for quicker rescue operations

- integrated dip stick for quick and easy monitoring of oil level

- lower flow/speed in 3rd stage for more tool control

Optimal weight / performance ratio

- lighter than comparable heavy duty pumps

Soft-grip carrying handle

- better grip

- ergonomic design for improved

carrying balance

- pump easier to carry

Other options

- 15 m or 20 m hose reels

- dual hose connection for traditional dual hose systems;with pivoting

couplers for easy storage (no couplers sticking out)

Large hydraulic oil capacity

- enough oil to operate any two tools at the same time and multiple

tools successively, including the biggest rams

SR 41 PC 2

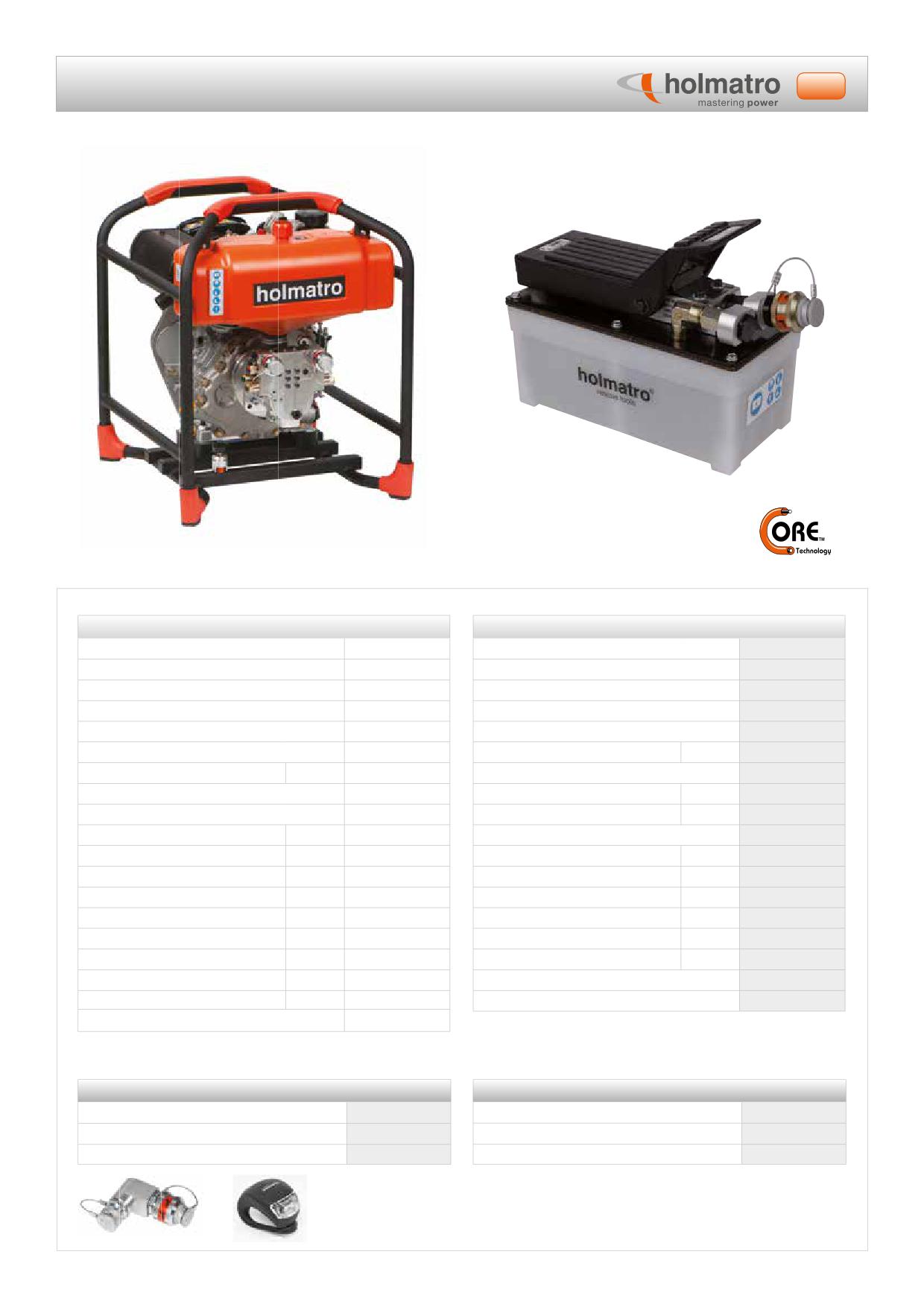

5.8 Pumps - diesel / air driven

74

SR 40 YC 2

AHS 1400 FDUC

Pumps - diesel

Pumps - air driven

specifications

SR 40 YC 2

specifications

AHS 1400 FDUC

equipped with

CORE

equipped with

CORE

article number

150.152.737

article number

150.152.584

EN 13204 classification *

MTO

EN 13204 classification *

STO

number of tool connections

2

number of tool connections

1

number of tools simultaneously usable

2

working pressure

bar / MPa

720 / 72

working pressure

bar / MPa

720 / 72

source of energy

air driven

4-stroke diesel engine

4.2 HP - 3.1 kW

max. air pressure

bar / MPa

8 / 0.8

pump type

2 x 3 stage axial

capacity oil tank

cc

1400

capacity fuel tank

cc

2400

pump type

radial piston

continuous operation

hrs

4

output unloaded

cc/min

960

capacity oil tank

cc

6340

output loaded

cc/min

410

output 1st stage 0 - 150 bar

cc / min

3000

air-consumption unloaded

l/min

700

output 2nd stage 150 - 280 bar

cc / min

1350

air-consumption loaded

l/min

580

output 3rd stage 280 - 720 bar

cc / min

575

weight, ready for use

kg

6.9

weight, ready for use

kg

47.0

dimensions (L x W x H)

mm

333 x 125 x 200

dimensions (L x W x H)

mm

497 x 467 x 572

temperature range

-20°C - +55°C

sound emission (unloaded)

dB(A)

84

also available in dual hose version

√

temperature range

-20°C - +55°C

* EN 13204 : STO = Single Tool Operation

* EN 13204 : MTO = Multiple Tool Operation

Diesel Pump - accessories

Air Driven Pumps - accessories

description

art. nr.

description

art. nr.

LED light Spider range

150.000.343

oil lubricator

510.511.105

CORE elbow connector

150.182.176

air filter with water separator

510.502.033

Content      ..      1       2         ..

//////////////////////////
