Toshiba AIR-CONDITIONER RAV-SM567CTP-E (TR). SERVICE MANUAL (2014)

FILE NO. SVM-13050

[1] Setting data read out from EEPROM

The setting data modified on the site, other than factory-set value, stored in the EEPROM shall be read out.

Step 1

Push^SET ,^CL and ^TEST button on the remote controller simultaneously for more than 4 seconds.

∗ When the group operation control is performed, the unit No. displayed for the first time is the header unit No.

At this time, the CODE No. (DN) shows “

”. Also, the fan of the indoor unit selected starts its operation

and the swing operation also starts if it has the louvers.

Step 2

Every time when the ^{UNIT LOUVER} (left side button) button is pushed, the indoor unit No. under the group control

is displayed in order. Specify the indoor unit No. to be replaced.

1. Change the CODE No. (DN) to

→ by pushing

buttons for the temperature

setting. (this is the setting for the filter sign lighting time.)

At this time, be sure to write down the setting data displayed.

2. Change the CODE No. (DN) by pushing

buttons for the temperature setting.

Similarly, be sure to write down the setting data displayed.

3. Repeat the step 2-2 to set the other settings in the same way and write down the setting data as shown

in the table 1 (example).

∗ The CODE No. (DN) are ranged from “

” to “

”. The CODE No. (DN) may skip.

Step 3

After writing down all setting data, push ^TEST button to return to the normal stop status.

(It takes approx. 1 min until the remote controller operation is available again.)

CODE No. required at least

1. The CODE No. for the Indoor unit type and Indoor unit capacity are

Contents

required to set the rotation number setting of the fan.

Type

2. If the system/indoor/group addresses are different from those before

Indoor unit capacity

replacement, the auto-address setting mode starts and the manual

resetting may be required again.

System address

(when the multiple units group operation including twin system.)

Indoor unit address

Group address

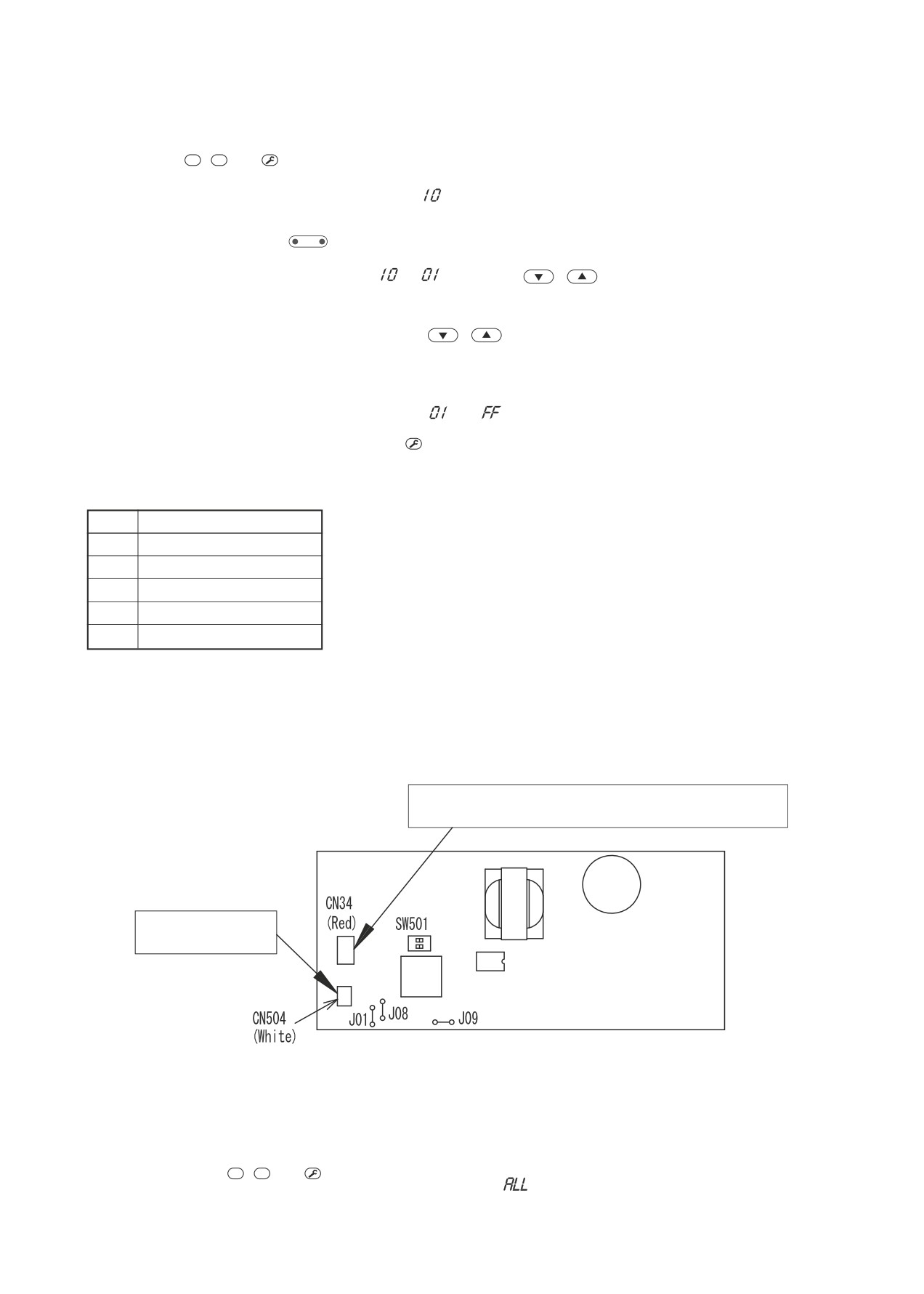

[2] P.C. Board for indoor unit servicing replacement procedures

Step 1

Replace the P.C. board to the P.C. board for indoor unit servicing.

At this time, perform the same setting of the jumper wire (J01, J08, J09) setting (cut), switch SW501,

(short-circuit) connector CN34 as the setting of the P.C. board before replacement.

If the plug for short-circuit is attached on the P.C. board

before replacement, attach it on the P.C. board replaced.

Connector (CN504)

for drain pump

Step 2

According to the system configuration, turn on the indoor unit following to the either methods shown below.

a) Single operation (Indoor unit is used as standalone.)

Turn on the indoor unit.

1. After completion of the auto-address setting mode (required time: approx. 5 min.), proceed to [3].

(System address = 1, Indoor unit address = 1, Group address = 0 (standalone) are automatically set.)

2. Push ^SET ,^CL and ^TEST buttons simultaneously for more than 4 seconds to interrupt the auto-address

setting mode, and proceed to [3]. (The unit No. “

” is displayed.)

- 60 -

FILE NO. SVM-13050

b) Group operation (including twin triple and double twin system)

Turn on the indoor unit(s) with its P.C. board replaced to the P.C. board for indoor unit servicing, accord-

ing to either methods 1 or 2 shown below.

1. Turn on only the indoor unit with its P.C. board replaced. (Be sure to confirm the remote controller is

surely connected. If not, the operation [3] cannot be performed.)

Perform either methods 1 or 2 described in item a) above.

2. Turn on the multiple indoor units including the indoor unit with its P.C. board replaced.

• Twin or triple or double twin 1 system only

• All group connections

After completion of the auto-address setting mode (required time: approx. 5 min.), proceed to [3].

∗ The header unit of the group may be changed by performing the auto-address setting.

Also, the system address/Indoor unit address of the indoor unit with its P.C. board replaced may be

assigned to the addresses (not used) other than those of the indoor units without its P.C. board replaced.

It is recommended to keep the information in advance, which cooling system the indoor unit belongs to

or whether the indoor unit works as the header unit or the follower unit in the group control operation.

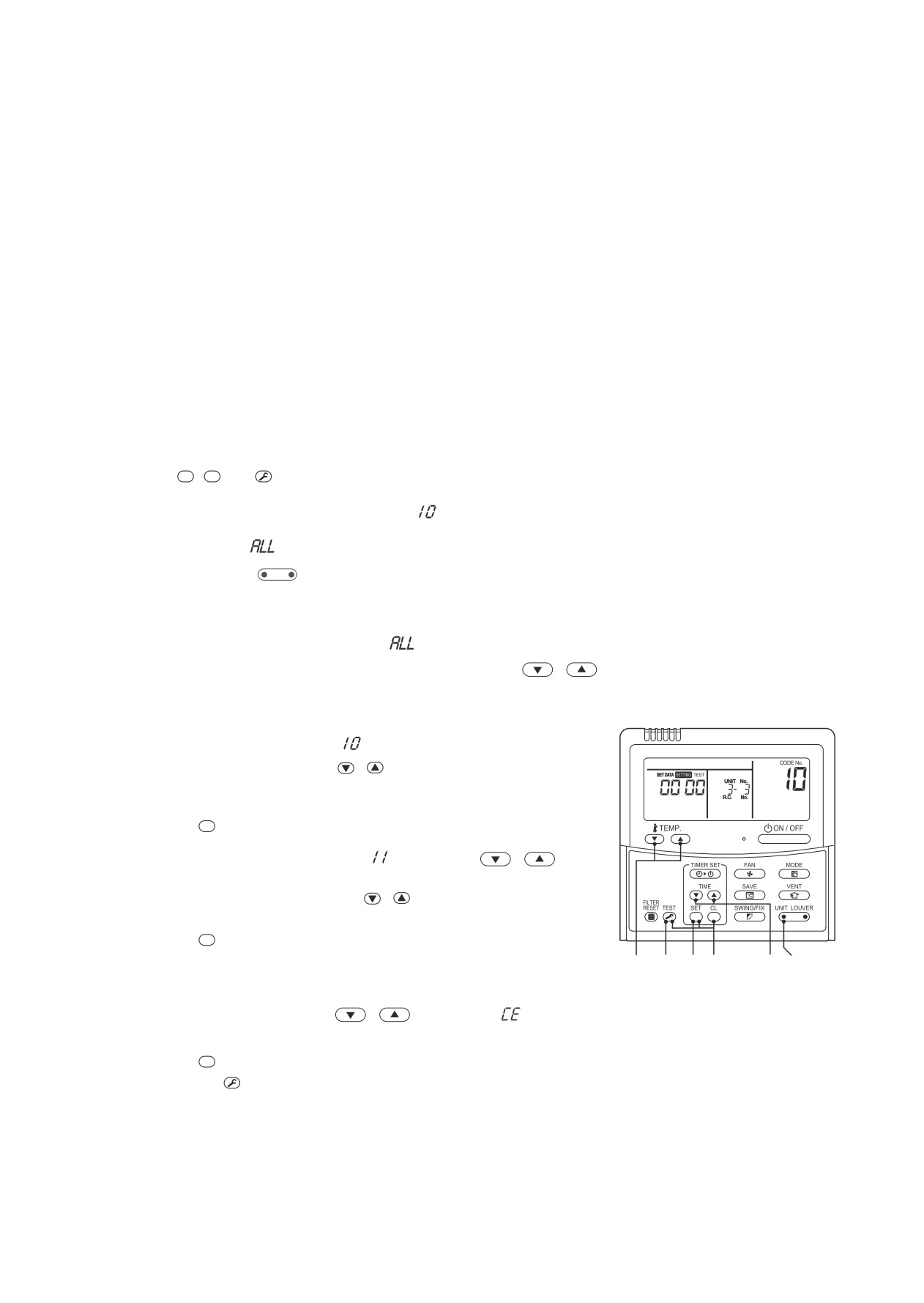

[3] Writing the setting data to EEPROM

The settings stored in the EEPROM of the P.C. board for indoor unit servicing are the factory-set values.

Step 1

Push^SET ,^CL and ^TEST buttons on the remote controller simultaneously for more than 4 seconds.

∗ In the group control operation, the unit No. displayed for the first time is the header unit No.

At this time, the CODE No. (DN) shows “

”. Also, the fan of the indoor unit selected starts its operation

and the swing operation starts if it has the louvers.

(The unit No. “

” is displayed if the auto-address setting mode is interrupted in [2] step 2 a))

Step 2

Every time when ^{UNIT LOUVER} (left side button) button is pushed, the indoor unit No. in the group control operation

are displayed in order.

(The settings stored in the EEPROM of the P.C. board for indoor unit servicing are the factory-set values.)

Specify the indoor unit No. with its P.C. board replaced to the P.C. board for indoor unit servicing.

(You cannot perform this operation if “

” is displayed.)

Step 3

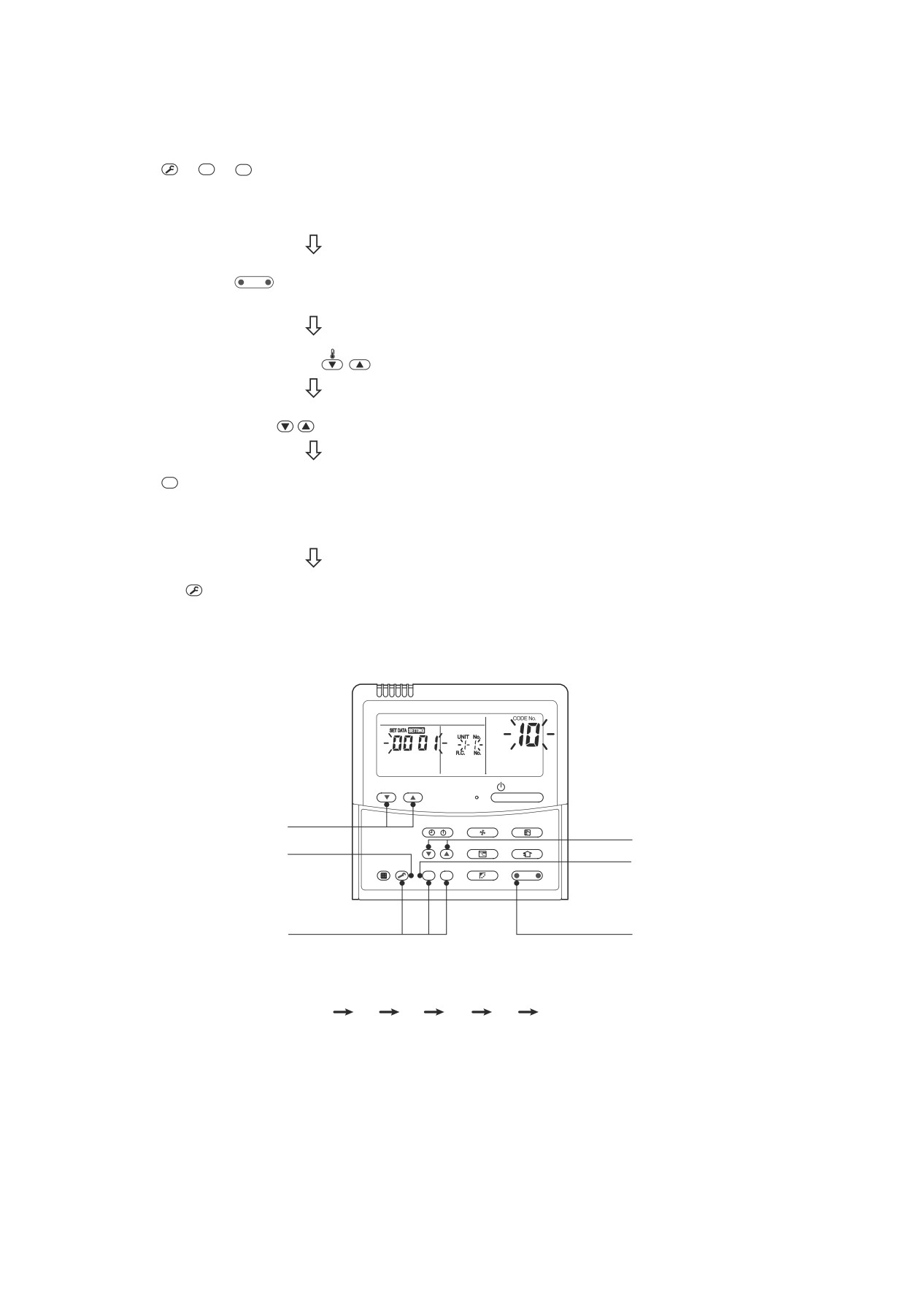

Select the CODE No. (DN) can be selected by pushing the

button for the temperature setting.

• Set the indoor unit type and capacity.

The factory-set values shall be written to the EEPROM by changing

<Fig. 1 RBC-AMT32E>

the type and capacity.

1. Set the CODE No. (DN) to “

”. (without change)

2. Select the type by pushing

buttons for the timer setting.

(For example, 4-way Cassette Type is set to “0001”.

Refer to table 2)

3. Push ^SET

button.

(The operation completes if the setting data is displayed.)

4. Change the CODE No. (DN) to “

” by pushing

buttons for the temperature setting.

5. Select the capacity by pushing

buttons for the timer setting.

(For example, 80 Type is set to “0012”. Refer to table 3)

6. Push ^SET button.

(The setting completes if the setting data are displayed.)

3 651

Setting Ceiling indoor unit model only

7. Using the set temperature

buttons, set “

” to the CODE No. (DN).

8. Using the timer time / buttons, set the dat. (0001)

SET

9. Push

button (The setting completes if the setting data are displayed.)

TEST

10.Push the

button to return to the normal stop status

(It takes approx. 1 min until the remote control operation is available again.)

- 61 -

FILE NO. SVM-13050

Step 4

Write the on-site setting data to the EEPROM, such as address setting, etc. Perform the steps 1 and 2

above again.

Step 5

Change the CODE No. (DN) to “

” by pushing

buttons for the temperature setting.

(this is the setting for the filter sign lighting time.)

Step 6

Check the setting data displayed at this time with the setting data put down in [1].

1. If the setting data is different, modify the setting data by pushing

buttons for the timer setting to

the data put down in [1].

The operation completes if the setting data is displayed.

2. If the data is the same, proceed to next step.

Step 7

Change the CODE No. (DN) by pushing

buttons for the temperature setting.

As described above, check the setting data and modify to the data put down in [1].

Step 8

Repeat the steps 6 and 7.

Step 9

After the setting completes, push ^TEST button to return to the normal stop status.

(It takes approx. 1 min until the remote control operation is available again.)

∗ The CODE No. (DN) are ranged from “

” to “

”. The CODE No. (DN) is not limited to be serial No.

Even after modifying the data wrongly and pushing ^SET button, it is possible to return to the data before

modification by pushing ^CL button if the CODE No. (DN) is not changed.

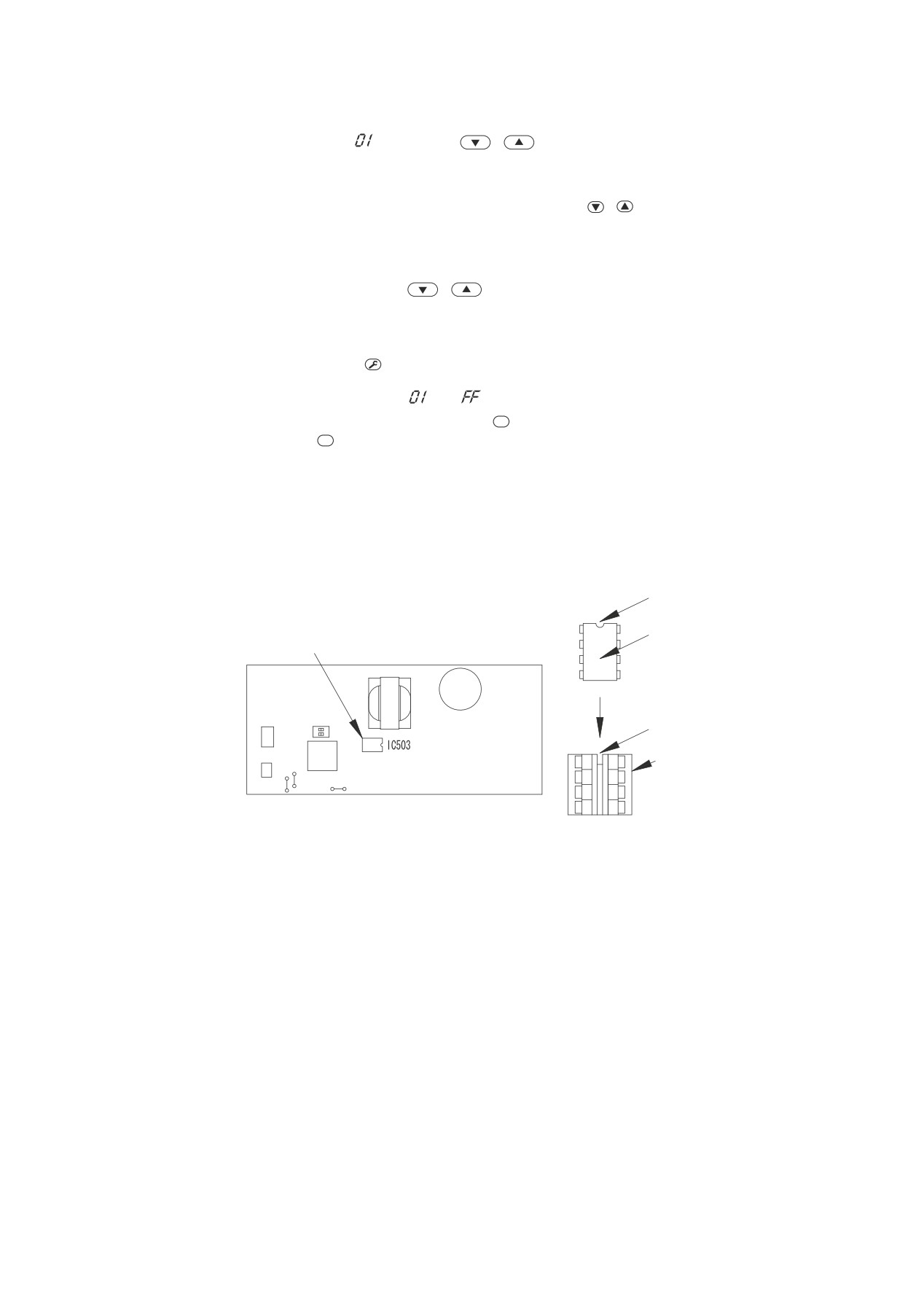

<Fig. 2 EEPROM layout diagram>

The EEPROM (IC503) is attached to the IC socket. When detaching the EEPROM, use a tweezers, etc.

Be sure to attach the EEPROM by fitting its direction as shown in the figure.

∗ Do not bend the IC lead when replacing.

Cut out

EEPROM

Cut out

IC socket

- 62 -

FILE NO. SVM-13050

Table 1. Setting data (CODE No. table (example))

Item

Setting data

Factory-set value

Filter sign lighting time

Depending on Type

Filter pollution leve

0000: standard

Central control address

0099: Not determined

0002: +2°C

Heating suction temperature shift

(flooring installation type: 0)

Cooling only

0000: Heat pump

Type

Depending on model type

Indoor unit capacity

Depending on capacity type

System address

0099: Not determined

Indoor unit address

0099: Not determined

Group address

0099: Not determined

Louver type (wind direction adjustment)

Depending on Type.

Temperature range of cooling/heating

0003: 3 deg (Ts±1.5)

automatic SW control point

Power failure automatic recovery

0000: None

Thermo output SW (T10

)

0000: Thermo ON

Ventilation fan (standalone)

0000: Not available

Sensor SW (Selection of static pressure)

0000: Body sensor

High ceiling SW

0000: Standard

Timer setting (wired remote controller)

0000: Available

Demand setting

0075: 75 %

(outdoor unit current demand)

Remote controller operation save function

0001: Enable

Rotation number of the self-clean operation

0000: None

Frost protection function

0000: None

Presence of Application control kit

0000: None

Table 3.

Table 2. Type: CODE No. 10

Indoor unit capacity: CODE No. 11

Setting data

Type

Type name abb.

Setting data

Type

0001∗1

4-way Cassette Type

RAV-SM∗∗∗UT∗

0000∗

Disable

0007∗2

Ceiling Type

RAV-SM∗∗∗CTP∗

0009

0012

∗1 EEPROM initial value on the P.C. board for

0015

110

indoor unit servicing.

0017

140

∗2 CAUTION

0018

160

For above models, set the CODE No. to “

” and the setting data

“0000” (initial) to “0001”.

∗ EEPROM initial value on the P.C. board

for indoor unit servicing.

- 63 -

FILE NO. SVM-13050

8. SETUP AT LOCAL SITE AND OTHERS

8-1. Indoor Unit

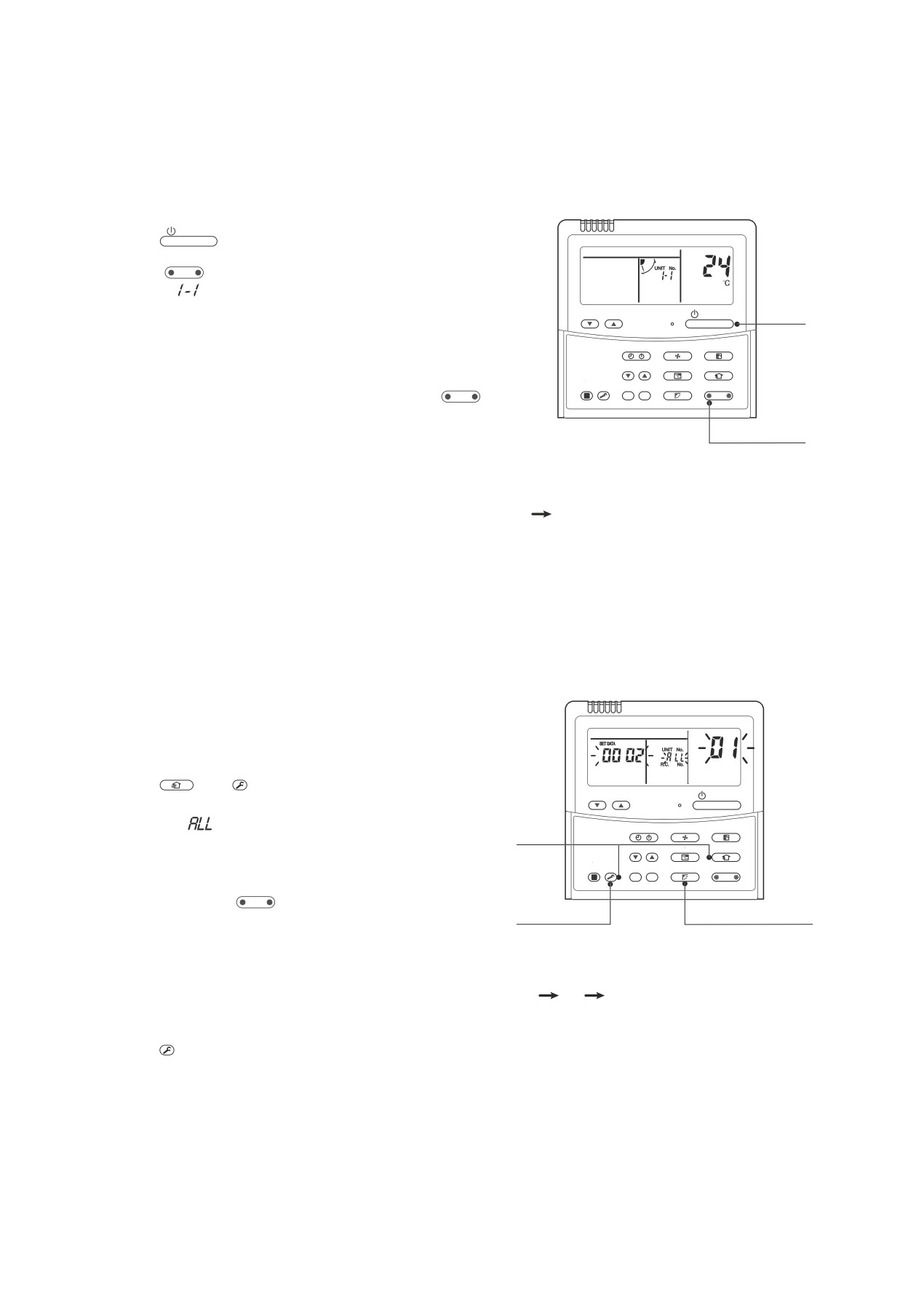

8-1-1. Test Run Setup on Remote Controller

1. When pushing ^TEST button on the remote controller for 4 seconds or more, “TEST” is displayed on LC display.

Then push ^{ON / OFF} button.

•

“TEST” is displayed on LC display during operation of Test Run.

• During Test Run, temperature cannot be adjusted but air volume can be selected.

• In heating and cooling operation, a command to fix the Test Run frequency is output.

• Detection of error is performed as usual. However, do not use this function except case of Test Run

because it applies load on the unit.

2. Use either heating or cooling operation mode for [TEST].

NOTE : The outdoor unit does not operate after power has been turned on or for approx. 3 minutes after

operation has stopped.

3. After a Test Run has finished, push ^TEST button again and check that [TEST] on LC display has gone off.

(To prevent a continuous test run operation, 60-minutes timer release function is provided to this remote

controller.)

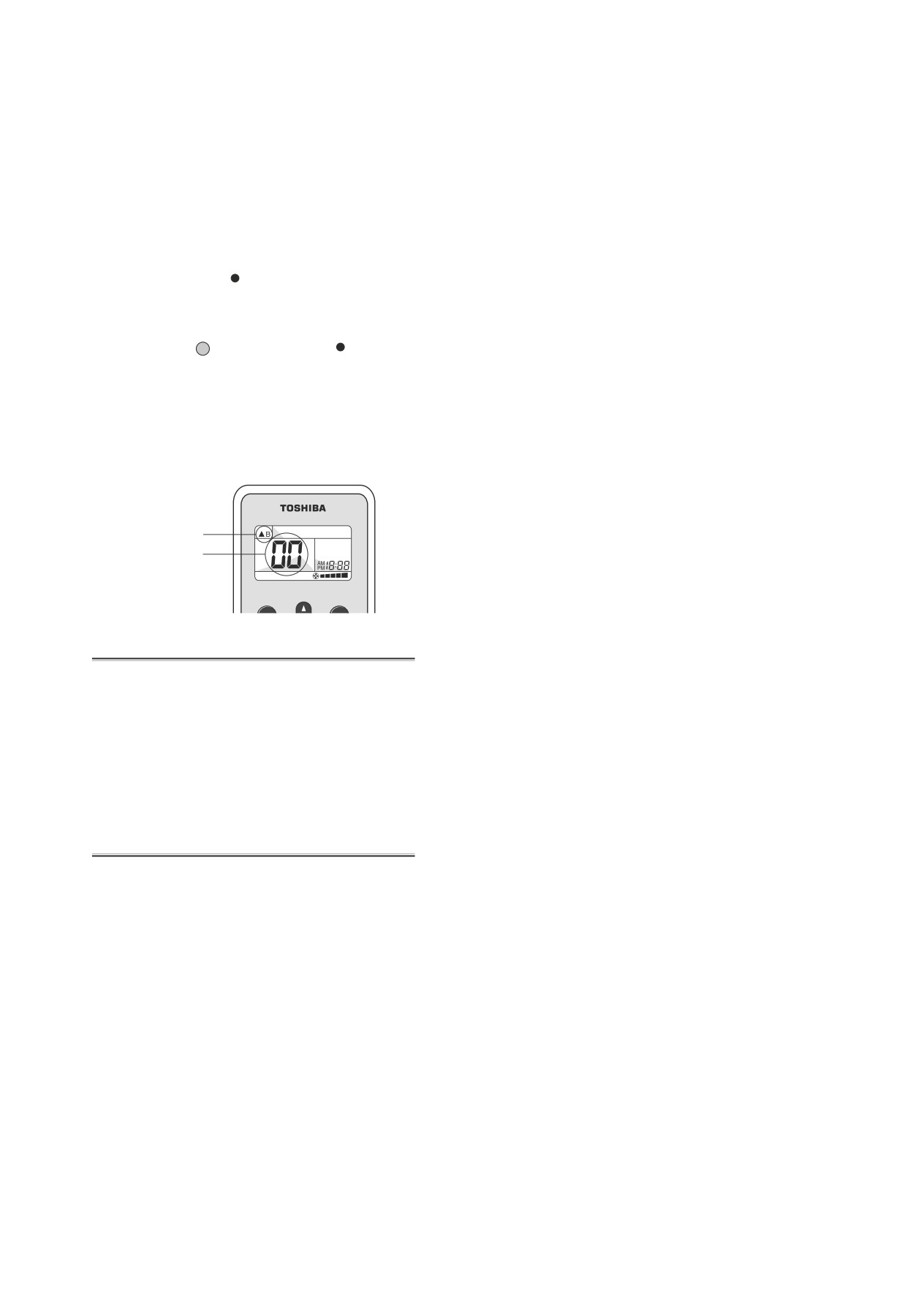

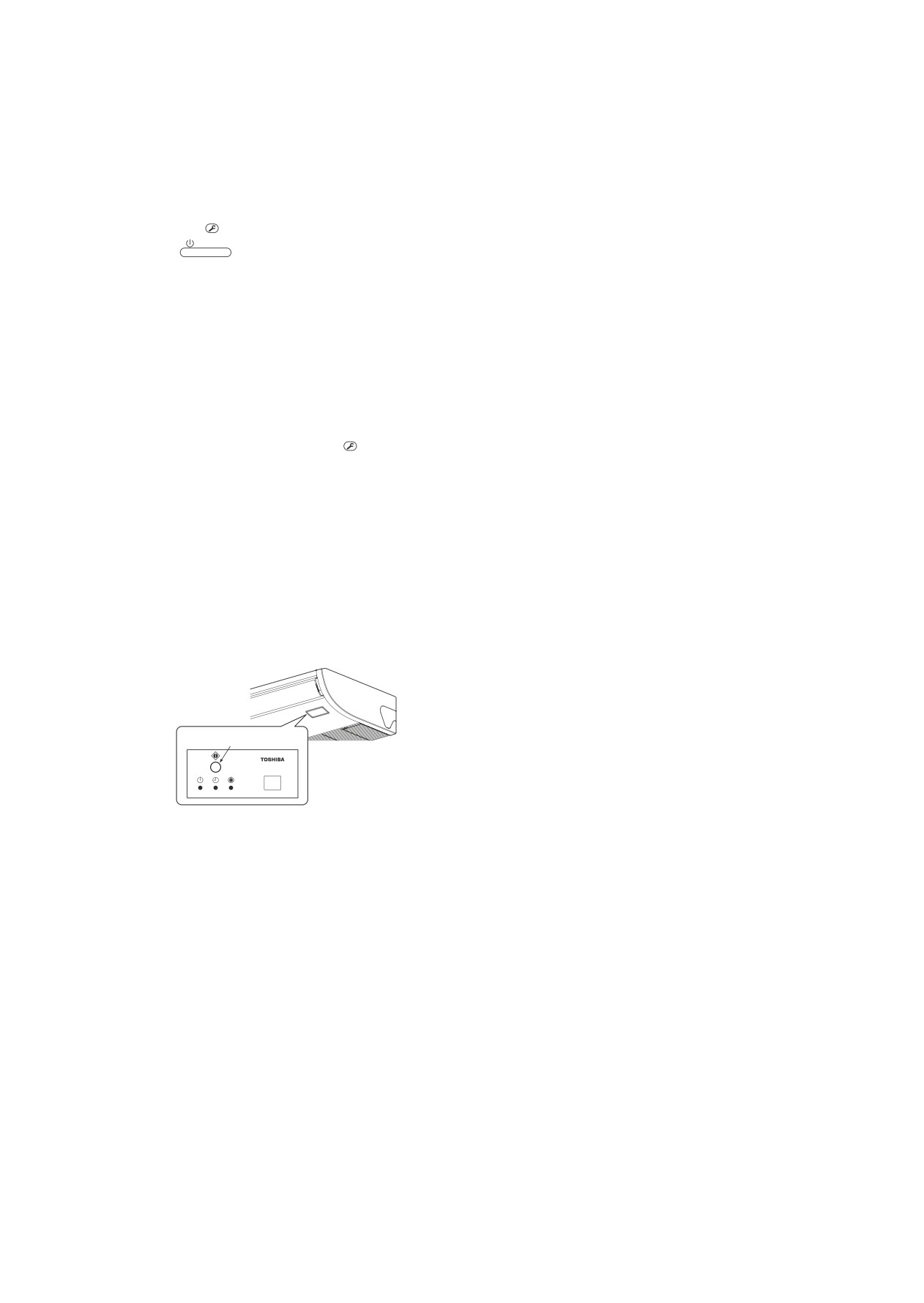

1. When TEMPORARY button is pushed for 10 seconds or more, “Pi!” sound is heard and the operation changes

to test run. After approx. 3 minutes, a cooling operation starts forcedly.

Check cool air starts blowing. If the operation does not start, check wiring again.

2.To stop a test operation, push TEMPORARY button once again (Approx. 1 second).

Check wiring / piping of the indoor and outdoor units in test run.

TEMPORARY button

- 64 -

FILE NO. SVM-13050

8-1-2. Forced Defrost Setup of Remote Controller (For wired remote controller only)

(Preparation in advance)

1 Push^TEST + ^SET + ^CL buttons simultaneously for 4 seconds or more on the remote controller.

(Push buttons while the air conditioner stops.)

The first displayed unit No. is the master indoor unit address in the group control.

2 Every pushing ^UNIT button, the indoor unit No. in the group control is displayed one after the

other.

Select a main indoor unit (outdoor unit is connected) which is to be defrosted. In this time, fan and louver of

the selected indoor unit operate.

3 Using the set temperature ^TEMP. buttons, specify the CODE No. (DN) 8C.

4 Using the timer time ^TIME buttons, set time to data 0001. (0000 at shipment)

5 Push^SET button. (OK if indication lights)

6 Pushing^TEST button returns the status to the normal stop status.

(Practical operation)

• Push ON/OFF ^{ON / OFF} button.

• Select the HEAT mode.

• After while, the forced defrost signal is sent to the outdoor unit and then the outdoor unit starts defrost operation.

(The forced defrost operation is performed for Max. 12 minutes.)

• After defrost operation finished, the operation returns to the heating operation.

To execute the defrost operation again, start procedure from above item 1 .

(If the forced defrost operation was executed once, setting of the above forced defrost operation is cleared.)

8-1-3. LED Display on P.C. Board

1. D501 (Red)

• It goes on (Goes on by operation of the main microcomputer) at the same time when the power supply is

turned on.

• It flashes with 1-second interval (every 0.5 second): When there is no EEPROM or writing-in operation fails.

• It flashes with 10-seconds interval (every 5 second): During DISP mode

• It flashes with 2-seconds interval (every 1 second): While setting of function select (EEPROM)

2. D403 (Red)

• It goes on when power supply of the remote controller is turned on. (Lights on hardware)

3. D503 (Yellow): Main bus communication

• It goes on for 5 seconds in the first half of communication with the central controller.

4. D504 (Green): Sub bus communication

• It flashes for 5 seconds in the first half of communication with the remote controller. (Group master unit)

• It flashes with 0.2-second interval (for 0.1 second) for 5 second in the latter half of communication between

master and follower in the Gr indoor unit.

5. D14 (Orange)

• It flashes while receiving the serial signal from the outdoor unit. (Hardware)

6. D15 (Green)

• It flashes while sending the serial signal to the outdoor unit. (Hardware)

- 65 -

FILE NO. SVM-13050

8-1-4. Function Selection Setup

<Procedure> Perform setting while the air conditioner stops.

1 Push^TEST + ^SET + ^CL buttons simultaneously for 4 seconds or more.

The first displayed unit No. is the master indoor unit address in the group control.

In this time, fan and louver of the selected indoor unit operate.

2 Every pushing ^{UNIT LOUVER} button (button at left side), the indoor unit No. in the group control is

displayed one after the other. In this time, fan and louver of the selected indoor unit only operate.

3 Using the set temperature ^TEMP. buttons, specify the CODE No. (DN).

4 Using the timer time ^TIME buttons, select the set data.

5 Push^SET button. (OK if indication lights)

• To change the selected indoor unit, proceed to Procedure 2 .

• To change item to be set up, proceed to Procedure 3 .

6 Pushing^TEST button returns the status to the normal stop status.

TEMP.

ON / OFF

TIMER SET

FAN

MODE

TIME

SAVE

VENT

FILTER

RESET

TEST

SET

SWING/FIX UNIT LOUVER

6 END

- 66 -

FILE NO. SVM-13050

Function selection CODE No. (DN) list

Item

Contents

At shipment from factory

0000: None

0001: 150H

Filter sign lighting time

0002: 2500H

0003: 5000H

According to type

0004: 10000H

0005: Clogging sensor used

0000: Standard

Filter stain level

0000: Standard

0001: Heavy stain (Half of standard time)

0001: No.1 unit

0064: No.64 unit

Central control address

0099: Undecided

0000: No shift

0001: +1°C

0002: +2°C

Heating suction temp. shift

0002: +2°C

0010: +10°C

(Floor type 0000: 0°C)

(Up to +6 is recommended.)

0000: Heat pump

Cooling-only

0000: Heat pump

0001: Cooling only (No display for [AUTO] [HEAT] )

Type

0007: Ceiling

According to model type

Indoor unit capacity

0000: Undecided

0001 to 0034

According to capacity type

Line address

0001: No.1 unit

0030: No.30 unit

0099: Undecided

Indoor unit address

0001: No.1 unit

0064: No.64 unit

0099: Undecided

0000: Individual

0001: Master unit in group

Group address

0099: Undecided

0002: Follower unit in group

Louver type

0000: No louver model

0001: Swing only

According to model type

(Adjustment of air direction)

0002: 1-way

0003: 2-way

0004: 4-way

In automatic cooling/heating, temp.

0000: 0 deg

0010: 10 deg

0003: 3 deg

width of cool → heat, heat →

(Cool/heat are reversed with ± (Data value) /

(Ts±1.5)

cool mode selection control point

2 against the set temperature)

Automatic reset of power failure

0000: None

0001: Provided

0000: None

Selection of option / error input

0000: Filter input

0001: Alarm input

0002: Humidifier

(TCB-PCUC1E)

0002: Humidifier input

(Air cleaner, etc.)

Selection of thermostat output

0000: Indoor thermostat ON

0000: Thermostat ON

(TCB-PCUC1E)

0001: ON receiving output of outdoor compressor

0000: Normal (JEMA)

0001: Card input

0000: Normal

Selection of HA (T10) terminal

0002: Fire alarm input

(Forgotten to be off)

(HA terminal)

Vent fan (Single operation)

0000: Impossible

0001: Possible

0000: Impossible

Sensor selection

0000: Body TA sensor

0001: Remote controller sensor

0000: Body sensor

SM110,

SM56,

SET

Model RAV-

SM140,

SM80

DATA

SM160

High ceiling selection

0000: Standard

(Air volume selection)

Standard

Up to 3.5 m

0000

(Factory default)

High ceiling (1)

Up to 4.0 m

Up to 4.3 m

0003

Timer setting (Wired remote controller)

0000: Operable

0001: Operation prohibited

0000: Operable

- 67 -

FILE NO. SVM-13050

Item

Contents

At shipment from factory

0000: None

0001: 0.5 h ~ 0012: 6.0 h

Set when compressor-ON time is 10 to 60 minutes.

Self-clean operation time

0002: 1.0 h

When ON-time is 60 minutes or more,

the double of this operation time setting is set.

Current demand X% to outdoor unit

0050: 50%

0100: 100%

0075: 75%

0000: None

• Clean operation is performed in case of stop by HA input.

• HA operation output OFF during clean operation in case of

stop by remote controller

Setting of self-clean operation forced stop

0000: None

0001: Stop

• Clean operation is not performed in case of stop by HA input.

• HA operation output ON during clean operation in case of stop

by remote controller

The air conditioner stops (including fire alarm such as remote

monitor system) while setup of [ON/OFF] operation prohibited

Self-clean operation stop function when

(Central 1, 2) is performed from the central controller side.

0000: Valid

[ON/OFF] operation is prohibited.

0000: Valid (Clean operation)

0001: Invalid (No clean operation)

Existence of remote controller save function

0000: Invalid (Impossible)

0001: Valid (Possible)

Existence of 8°C heating operation function

0000: Invalid (Impossible)

0001: Valid (Possible)

0000: Invalid (Impossible)

0000: Invalid (Self clean operation is not carried out.)

Rotational speed of self clean operation

0000: Invalid

0015: Valid (Self clean operation is practiced with 350 rpm.)

Display / No display of

0000: Display

0001: No display

0000: Display

[Dry operation] during self clean operation

0000: None

Presence of Application control kit

0000: None

0001: Exist

∗ Restriction ratio setting for save operation (DN code No. [C2]) can be set/changed from the normal DN setup

(Detail DN setup).

- 68 -

FILE NO. SVM-13050

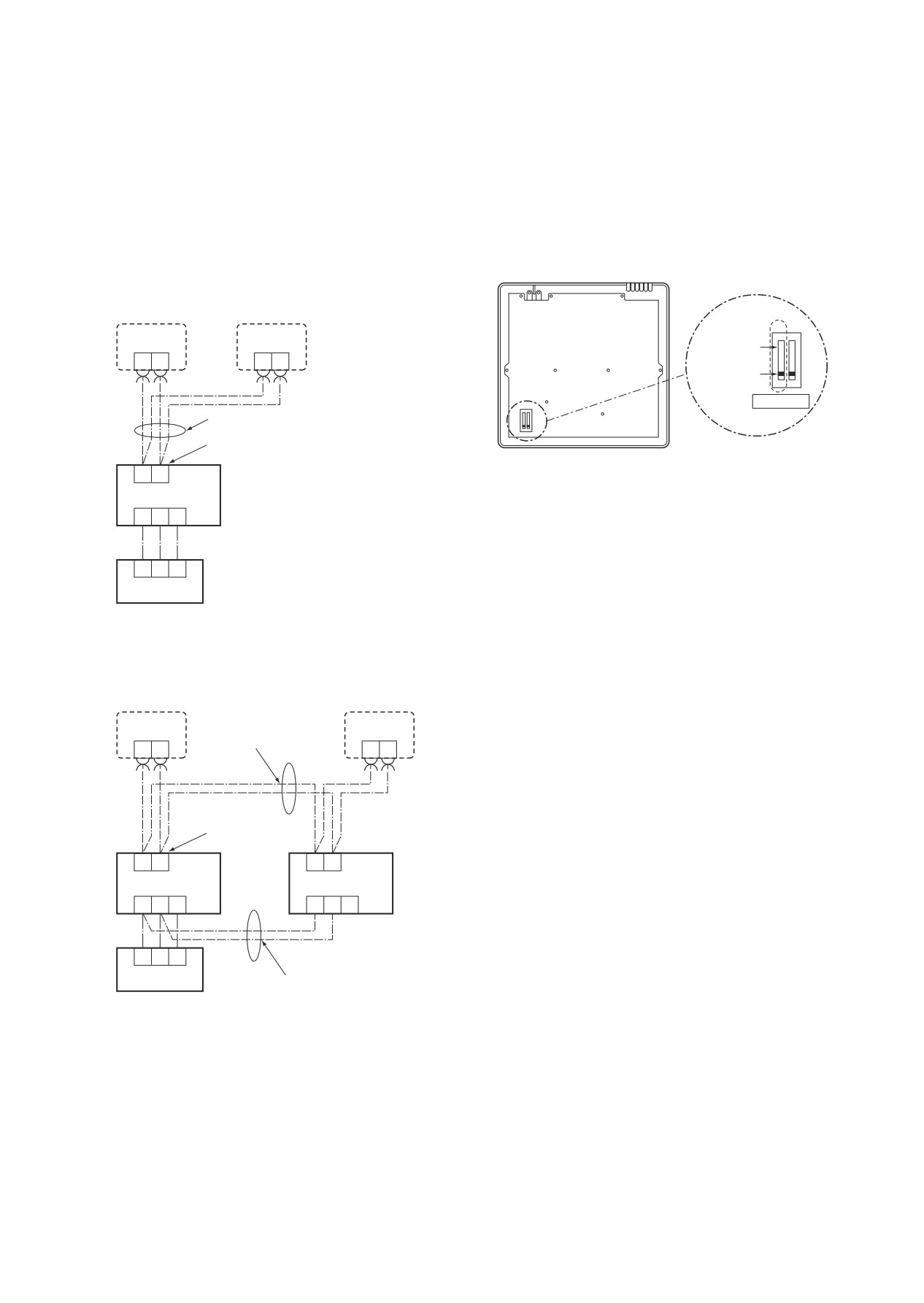

8-1-5. Wiring and Setting of Remote Controller Control

2-remote controller control

(Controlled by 2 remote controllers)

How to set wired remote controller

This control is to operate 1 or multiple indoor units

as sub remote controller

are operated by 2 remote controllers.

Change DIP switch inside of the rear side of the

(Max. 2 remote controllers are connectable.)

remote controller switch from remote controller master

to sub. (In case of RBC-AMT32E)

•

When connected 2 remote controllers

operate an indoor unit

Remote controller (Inside of the rear side)

Remote controller

switch (Master)

switch (Sub)

Sold

separately

Sub remote

controller

Master remote

controller

DIP switch

Remote controller

cables (Procured locally)

1 2

Terminal block for

remote controller cables

Indoor unit

Outdoor unit

•

When connected 2 remote controllers

operate the twin

Remote controller

switch (Master)

switch (Sub)

Remote controller

Sold

inter-unit wire

separately

(Procured locally)

Terminal block for

remote controller cables

Indoor unit 1

Indoor unit 2

Inter-unit wiring

between indoor units

Outdoor unit

(Procured locally)

(Setup method)

One or multiple indoor units are controlled by

2 remote controllers.

(Max. 2 remote controllers are connectable.)

[Operation]

1. The operation contents can be changed by Last-push-priority.

2. Use a timer on either Master remote controller or Sub remote controller.

- 69 -

FILE NO. SVM-13050

Remote controller address (A-B selection) setting

• When two or more signal receiving units are installed in a room, a unique address

can be set for each signal receiving unit to prevent interference.

• Address (A-B selection) must be changed on both signal receiving unit and wireless

remote controller.

• For the details of address change (A-B selection) on wireless remote controller, refer

to the owner's manual.

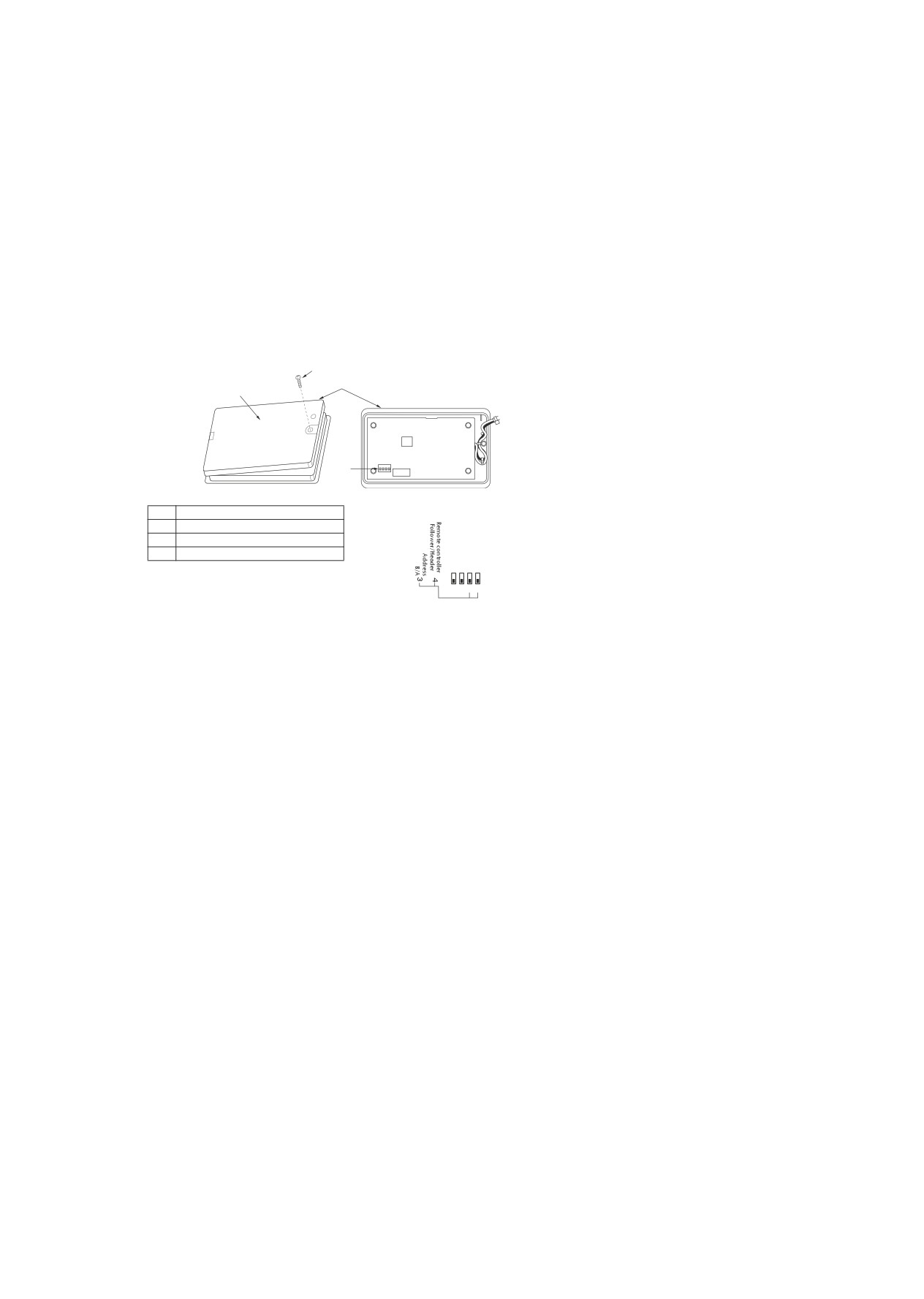

Turn off the indoor unit power supply. Turn on the bit 3 of DIP switch SW30 on the

signal receiving unit P.C. board.

The setting change is shown below.

Screw

Signal receiving unit

Lower cace

SW30

DIP switch [SW30]

ON=follower OFF=header

ON=B

OFF=A

Not used

SW30

- 70 -

FILE NO. SVM-13050

Wireless remote controller (A-B selection)

Using 2 wireless remote controllers for the respec-

tive air conditioners, when the 2 air conditioners

are closely installed.

Wireless remote controller B setup

1. Start the air conditioner.

2. Point the wireless remote controller at the

indoor unit.

3. Push and hold _CHK button on the wireless

remote controller by the tip of the pencil.

“00” will be shown on the display.

4. Push MODE ^MODE button during _CHK pushing .

“B” will be shown on the display and “00” will be

disappear and the air conditioner will turn OFF.

The wireless remote controller B is memorized.

"B" Display

"00" Display

PRESET

FAN

NOTE

• Repeat above step to reset wireless remote

controller to be A.

• The wireless remote controllers do not

display “A”.

• The factory default of the wireless remote

controllers is “A”.

• A-B selection can be set with signal receiving

unit.

For the further details, refer to the installation

manual.

- 71 -

FILE NO. SVM-13050

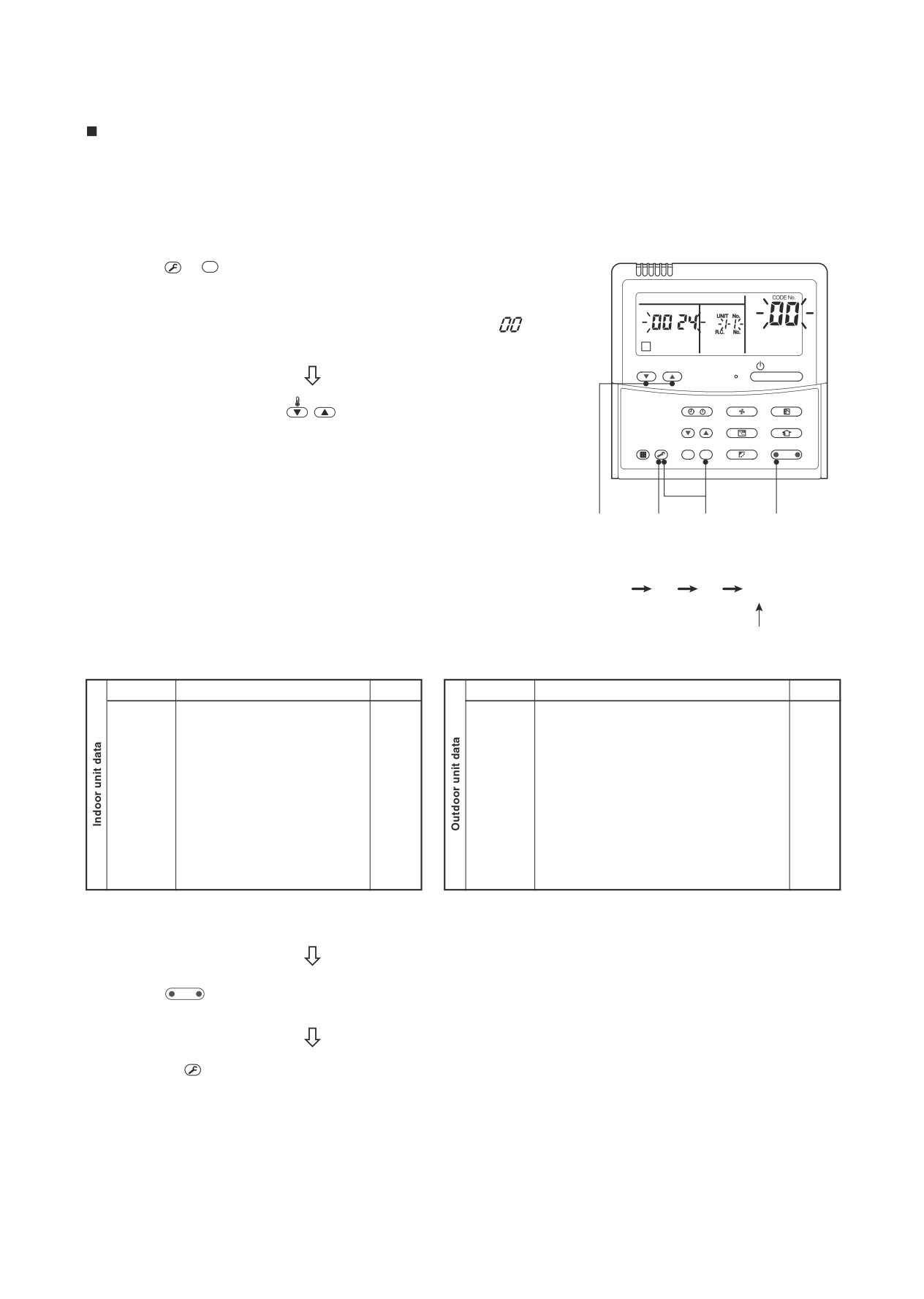

8-1-6. Monitor Function of Remote Controller Switch

Calling of sensor temperature display

Each data of the remote controller, indoor unit and outdoor unit can be understood by calling the service monitor

mode from the remote controller.

1 Push^TEST + ^CL buttons simultaneously for 4 seconds to

call the service monitor mode.

The service monitor goes on, the master indoor unit No. is

displayed at first and then the temperature of CODE No.

displayed.

TEMP.

ON / OFF

TIMER SET

FAN

MODE

2 Push temperature set ^TEMP. buttons and then change

TIME

SAVE

VENT

the CODE No. of data to be monitored.

FILTER

RESET

TEST

SET

SWING/FIX UNIT LOUVER

The CODE No. list is shown below.

Returned to usual display

CODE No.

Data name

Unit

CODE No.

Data name

Unit

Room temperature

°C

Outdoor heat exchanger (Coil) temperature (TE)

°C

(Remote controller)

Outside temperature (TO)

°C

Indoor suction temperature (TA)

°C

Compressor discharge temperature (TD)

°C

Indoor heat exchanger (Coil)

°C

Compressor suction temperature (TS)

°C

temperature (TCJ)

Heat sink temperature (THS)

°C

Indoor heat exchanger (Coil)

°C

Operation current (× 1/10)

temperature (TC)

Indoor fan revolution frequency

rpm

Outdoor heat exchanger (Coil) temperature (TL)

°C

Indoor fan calculated operation time

×100h

Compressor operation frequency

rps

Filter sign time

×1h

Outdoor fan revolution frequency (Lower)

rpm

Outdoor fan revolution frequency (Upper)

rpm

Compressor calculated operation time

×100h

3 Push^{UNIT LOUVER} (left side button) button to select the indoor unit to be monitored.

Each data of the indoor unit and its outdoor units can be monitored.

4 Pushing^TEST button returns the status to the usual display.

∗1 The indoor discharge temperature of CODE No. [F8] is the estimated value from TC or TCJ sensor.

Use this value to check discharge temperature at test run.

(A discharge temperature sensor is not provided to this model.)

• The data value of each item is not the real time, but value delayed by a few seconds to ten-odd seconds.

• If the combined outdoor unit is one before 2 or 3 series, the outdoor unit data [6D], [70], [72] and [73]

are not displayed.

- 72 -

FILE NO. SVM-13050

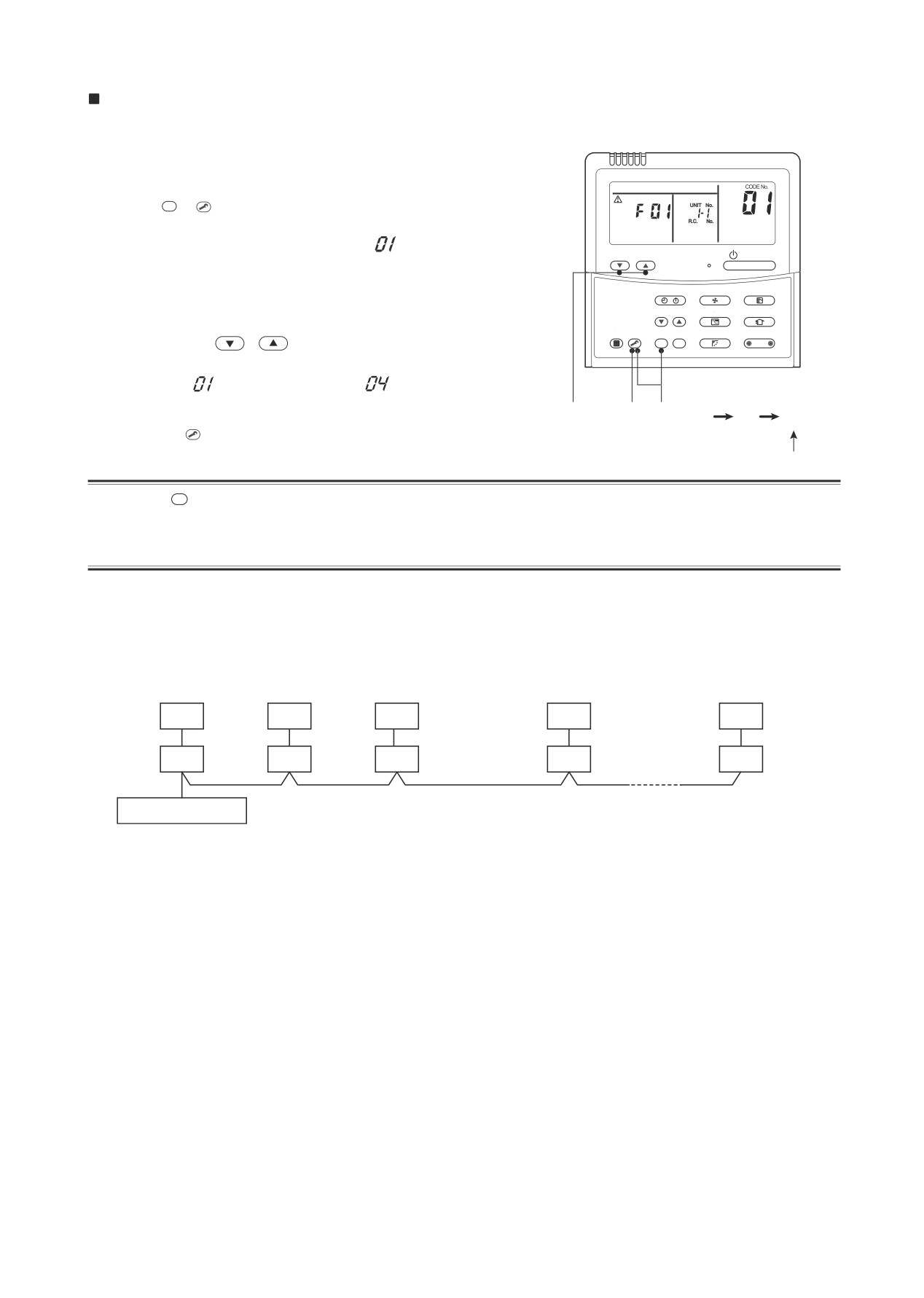

Calling of error history

The error contents in the past can be called.

1 Push ^SET + ^TEST buttons simultaneously for 4 seconds or

more to call the service check mode.

Service Check goes on, the CODE No.

is displayed, and

TEMP.

ON / OFF

then the content of the latest alarm is displayed.

The number and error contents of the indoor unit in which an

TIMER SET

FAN

MODE

error occurred are displayed.

TIME

SAVE

VENT

2 In order to monitor another error history, push the set

FILTER

RESET

TEST

SET

SWING/FIX UNIT LOUVER

temperature

buttons to change the error

history No. (CODE No.)

CODE No.

(Latest) → CODE No.

(Old)

NOTE : 4 error histories are stored in memory.

3 1

3 Pushing ^TEST button returns the display to usual display.

Returned to usual display

REQUIREMENT

Do not push ^CL button, otherwise all the error histories of the indoor unit are deleted. If the error histories are

deleted by pushing CL button, turn off the power supply once and then turn on the power supply again.

When the error which is same as one occurred at the last before deletion continuously occurs again, it may not be

stored in memory.

(Group control operation)

In a group control, operation of maximum 8 indoor units can be controlled by a remote controller.

Twin, triple or double twin of an outdoor unit is one of the group controls.

The indoor unit connected with outdoor unit (Individual/Header of twin) controls room temperature according to

setting on the remote controller.

OUT

Header

1-1

2-1

3-1

4-1

Max. 8 units

Remote controller

Display range on remote controller

The setup range (Operation mode/Air volume select/Setup temp) of the indoor unit which was set to the header

unit is reflected on the remote controller.

1) Concealed duct high static pressure type is not set up on the header unit.

• If the Concealed duct high static pressure type is the header unit:

Operation mode: [Cooling/Heating AUTO] [HEAT] [COOL] [FAN] and no [DRY]

Air volume select: [HIGH]

• When the operation mode is [DRY], [FAN] stops in concealed duct high static pressure models.

Address setup

If there is no serial communication between indoor and outdoor when the power is turned on, it is judged as

follower unit of the twin. (Every time when the power is turned on)

• The judgment of header (wired) / follower (simple) of twin is carried out every time. It is not stored in non-

volatile memory.

Turn on power of the indoor unit to be controlled in a group within 3 minutes after setting of automatic address.

If power of the indoor unit is not turned on within 3 minutes (completion of automatic address setting), the system

is rebooted and the automatic address setting will be judged again.

1) Connect indoor/outdoor connecting wire surely.

2) Check line address/indoor address/group address of the unit one by one.

Especially in case of twin, triple, double twin, check whether they are identical system address or not.

3) The unit No. (line/indoor gout address) which have been set once keep the present status as a rule if the unit

No. is not duplicated with one of another unit.

- 73 -

FILE NO. SVM-13050

Indoor unit power-ON sequence

• The unit without power feed waits entirely

→ Waiting status is released by system start

Power ON

• Reboot when power is fed on the way

<By indoor unit

which receives power feed from outdoor unit>

<Automatic

address judgment>

Not normal

Gr construction check

3 minutes elapse

Normal

YES

∗ Gr normal

1) There is no duplicated indoor unit address.

2) There is no invalid indoor unit address.

3) Individual unit and header / follower units

are not intermingled.

4) Only a unit for individual.

5) Header indoor unit and 1 or more

follower units for Gr.

System start

Automatic address starts.

(Approx. 1 minute up to finish)

Outdoor model distinction (10 seconds) (Indoor unit)

Twin header/follower distinction (Indoor unit)

• Power supply/Indoor/Outdoor serial and Gr wiring: OK

Gr construction, louver information (Remote controller)

• Powers of all indoor units are turned on within 3 minutes.

• Reception time for remote controller operation

(After power supply was turned on)

1) When address is OK : Approx. 50 seconds

2) In AUTO address

: Approx. 4 to 5 minutes

Remote controller operation is available.

(Approx. 50 seconds after power-ON)

<Usual regular

communication>

Regular communication between indoor units (Every 30 seconds) (Header / Follower)

Regular communication of the identical piping system (Every 30 seconds)

(Repetition)

(Twin header / follower) (When the above status changes, immediately communicates.)

• In a group operation, if the indoor unit which was fed power after judgment of automatic address cannot

receive regular communication from the header unit and regular communication on identical pipe within

120 seconds after power was turned on, it reboots (system reset).

→ The operation starts from judgment of automatic address (Gr construction check) again.

(If the address of the header unit was determined in the previous time, the power fed to the header unit

and reboot works, the header unit may change though the indoor unit line address is not changed.)

- 74 -

FILE NO. SVM-13050

8-2. Setup at Local Site / Others

Model name: TCB-PCNT30TLE2

8-2-1. 1:1 Model Connection Interface (TCC-LINK adapter)

Function

This model is an optional P.C. board to connect the indoor unit to 1:1 model connection interface.

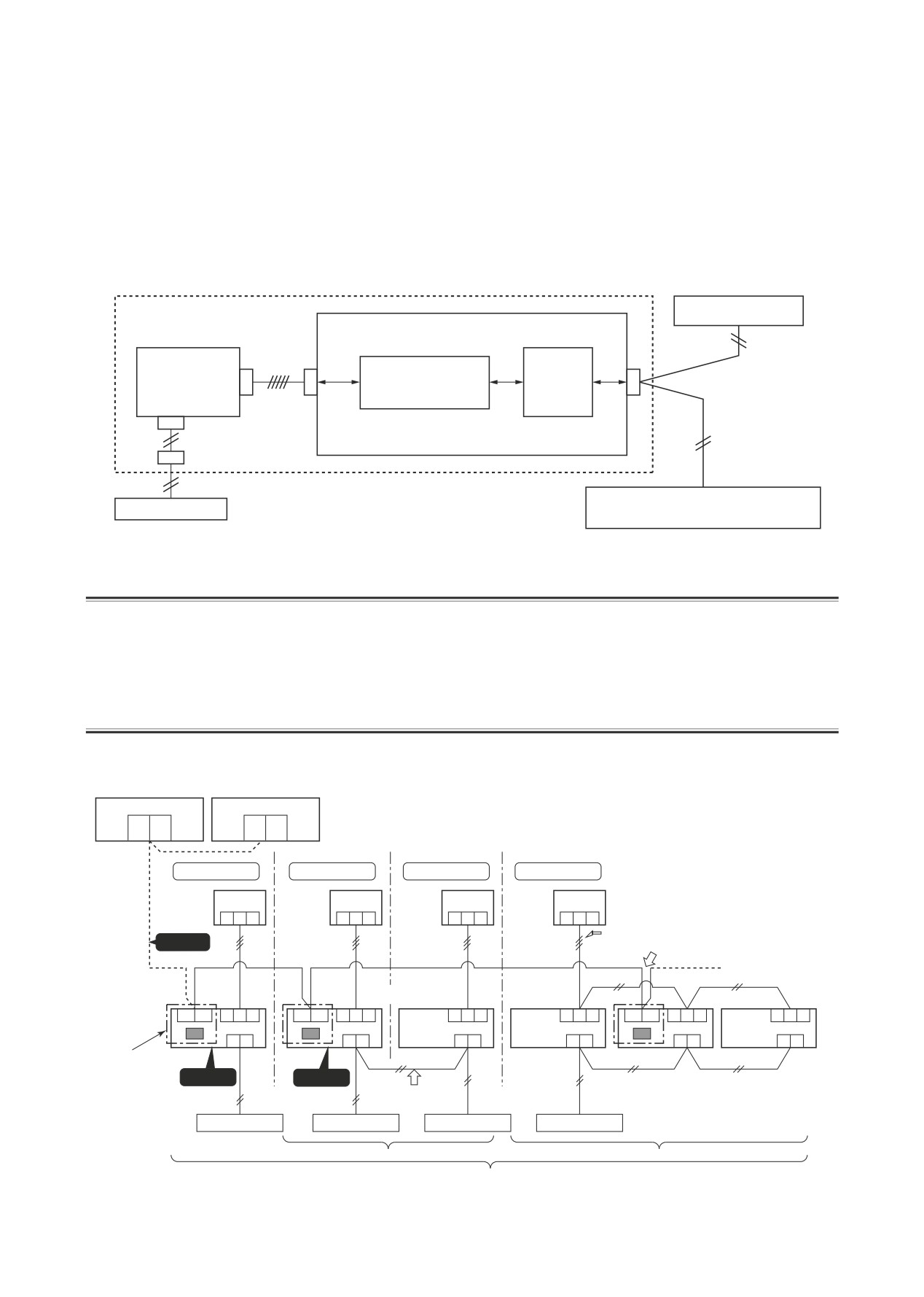

Microprocessor block diagram

Indoor unit

Central controller

1:1 model connection interface

P.C. board

CN50

CN40

CN51

1:1 model

Indoor control

Terminal

connection interface

P.C. board

resistance

communication circuit

CN41

SW01

Terminal block

MCC-1440

(A, B)

1:1 model

connection interface

Communication units

: Total 64 units

Remote controller

Communication distance : 2000 m

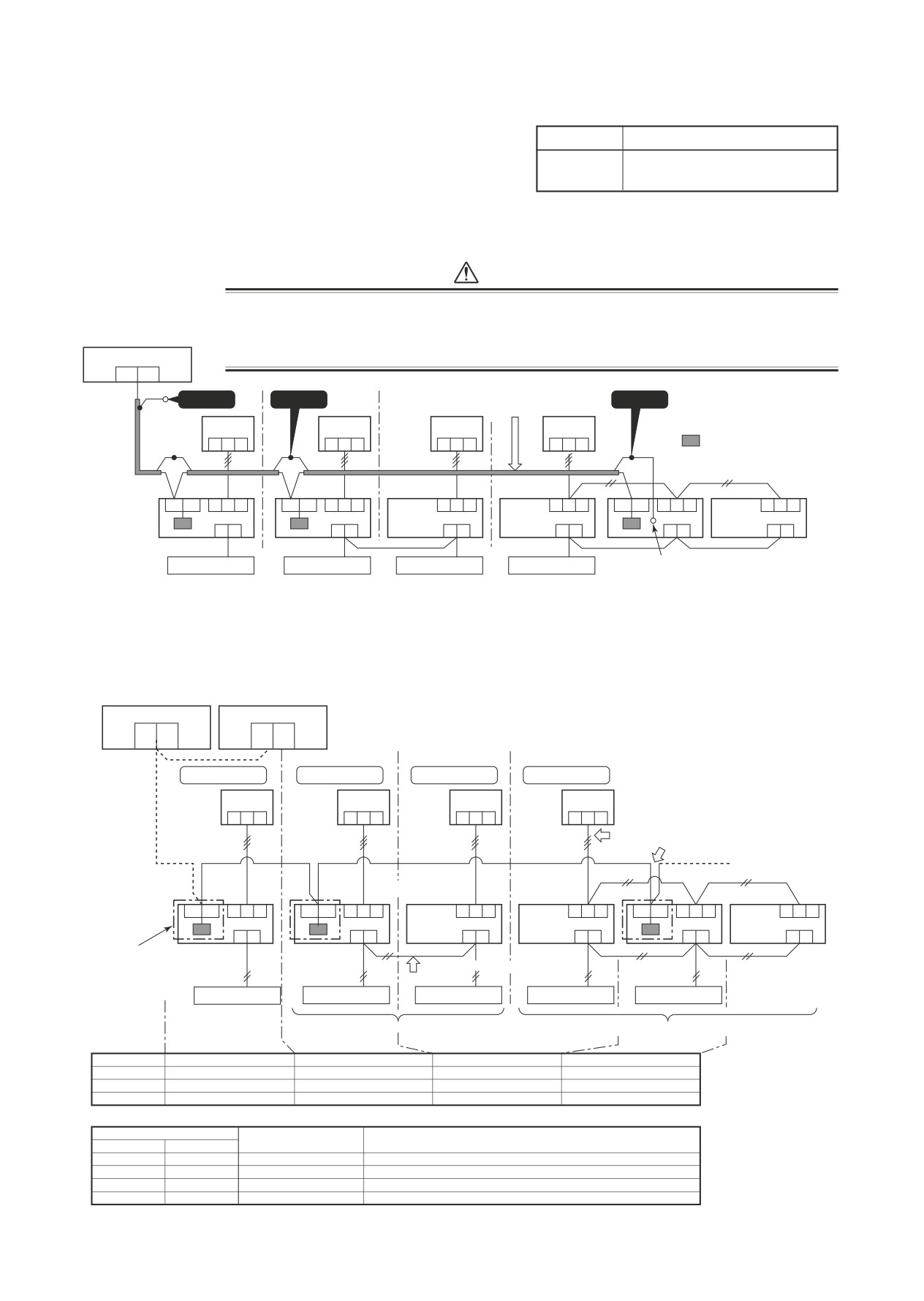

1:1 model connection interface wiring connection

CAUTION

When controlling DI, SDI series collectively, 1:1 model connection interface (This option) is required.

In case of group operation, twin-triple operation, the 1:1 model connection interface is necessary to be con-

nected to the header unit.

Connect the central control devices to the central control system wiring.

When controlling DI, SDI series only, turn on only Bit 1 of SW01 of the least line of the system address No. (OFF

when shipped from the factory)

∗ In case of DI, SDI series, the address is necessary to be set up again from the wired remote

controller after automatic addressing.

Central control device

Central control devices: Max. 10 units

Refrigerant line 1

Refrigerant line 2

Refrigerant line 3

Refrigerant line 4

Outdoor unit

1 2 3

Indoor/outdoor inter-unit wire (AC230V serial)

Caution 3

Central control system wiring

* Wiring for No.1 and 2 only

Header

Follower

unit

Header unit

unit

Indoor unit

1 2 3

A B

1:1 model connection

interface

This product

Caution 1

Caution 2

(

)

sold separately

Remote controller

wiring

Remote controller

Group operation (Max. 8 units)

win/Triple operation (Example of triple)

Indoor units in all refrigerant lines: Max. 64 units

[If mixed with SMMS (Link wiring), multi indoor units are included.]

* However group follower units of SDI, DI series are not included in number of the units.

- 75 -

FILE NO. SVM-13050

4. Wiring Specifications

• Use 2-core with no polar wire.

No. of wires

Size

• Match the length of wire to wire length of the central control

system. If mixed in the SMMS system, the wire length is

Up to 1000m: twisted wire 1.25mm²

Up to 2000m: twisted wire 2.0mm²

lengthened with all indoor/outdoor inter-unit wire length at side.

• To prevent noise trouble, use 2-core shield wire.

• Connect the shield wire by closed-end connection and apply open process (insulating process) to the last

terminal. Ground the earth wire to 1 point at indoor unit side. (In case of central controlling of digital inverter

(DI, SDI) unit setup)

CAUTION

1) Closed-end connection of shield wire (Connect all the connecting parts of each indoor unit)

2) Apply open process to the last terminal (insulating process).

3) Ground earth wire to 1 point at indoor unit side.

Central control device

Caution 2

Caution 1

Caution 3

Central control system wiring

Outdoor unit

1:1 model connection

1 2 3

interface

(TCC-LINK adapter)

(This option)

Header

unit

Follower unit

Header unit

Follower unit

Indoor unit

1 2 3

A B

Earth screw

Remote controller

(Group operation)

(Triple operation

)

P.C. Board Switch (SW01) Setup

When performing collective control by customized setup only, the setup of terminator is necessary.

• Using SW01, set up the terminator.

• Set up the terminator to only the interface connected to the indoor unit of least line address No.

Central control device

Central control devices: Max. 10 units

Refrigerant line 1

Refrigerant line 2

Refrigerant line 3

Refrigerant line 4

Outdoor unit

1 2 3

Indoor/outdoor inter-unit wire (AC230V serial)

Central control system wiring

* Wiring for No.1 and 2 only

Header

Follower

unit

Follower unit

Header unit

unit

Indoor unit

1 2 3

A B

1:1 model connection interface

(TCC-LINK adapter)

Remote controller wiring

This product

(

sold separately

)

Remote controller

Group operation (Max.8 units)

win/Triple operation (Example of triple)

Line address

SW01 Bit 1

OFF

(OFF at shipment from factory)

SW01 Bit 2

OFF

(OFF at shipment from factory)

Remarks

Turn SW01 Bit 1 to ON.

As status shipped from factory

(Reference) Setup contents of switch

SW01

Terminator

Remarks

Bit 1

OFF

None

Mixed with SMMS (Link wiring) at shipment from factory

OFF

100Ω

Central control by digital inverter only

OFF

75Ω

Spare

43Ω

Spare

- 76 -

FILE NO. SVM-13050

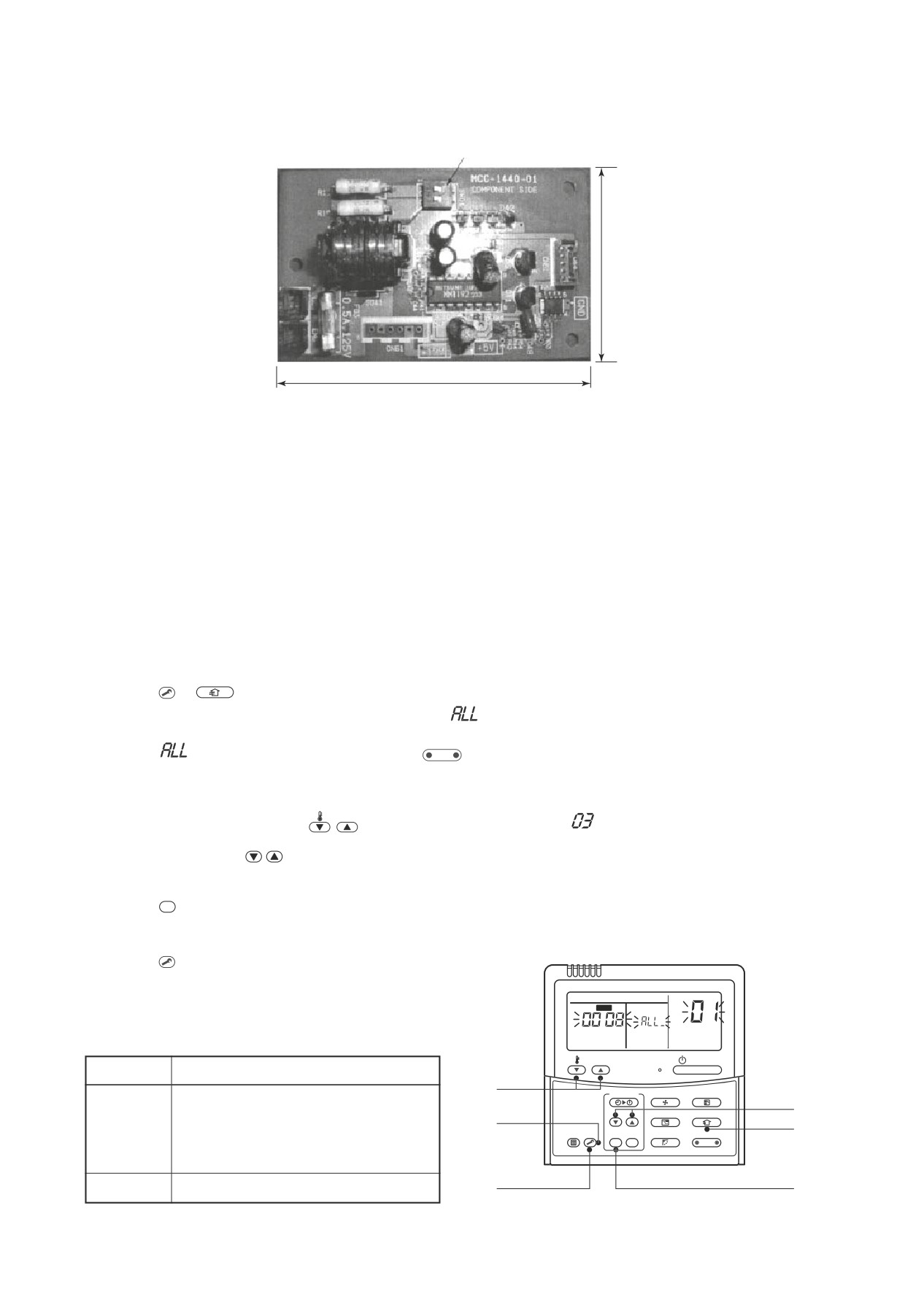

6. External view of P.C. board assembly

Terminator (SW01)

7. Address setup

In addition to set up the central control address, it is necessary to change the indoor unit number.

(Line/Indoor/Group address). For details, refer to 1:1 model connection interface Installation Manual.

8-3. How to Set up Central Control Address Number

When connecting the indoor unit to the central control remote controller using 1:1 model connection interface,

it is necessary to set up the central control address number.

• The central control address number is displayed as the line No. of the central control remote controller.

How to set up from indoor unit side by remote controller

<Procedure> Perform setup while the unit stops.

1 Push ^TEST + ^VENT buttons for 4 seconds or more.

When group control is executed, first the unit No.

is displayed and all the indoor units in the group

control are selected. In this time, fans of all the selected indoor units are turned on. (Fig. 1)

(Keep

displayed status without pushing ^{UNIT LOUVER} button.)

In case of individual remote controller which is not group-controlled, Line address and Indoor unit address

are displayed.

2 Using temperature setup ^TEMP. buttons, specify CODE No.

3 Using timer time ^TIME buttons, select the SET DATA.

The setup data is shown in the table below (Table 1).

4 Push ^SET button. (OK if display goes on.)

• To change the item to be set up, return to Procedure 2.

(Fig.1)

5 Push ^TEST button.

The status returns to usual stop status.

CODE No.

SET DATA SETTING

UNIT No.

R.C. No.

(Table 1)

TEMP.

ON / OFF

SET DATA

Central control address No.

TIMER SET

FAN

MODE

0001

0002

TIME

SAVE

VENT

0003

FILTER

RESET

TEST

SET

SWING/FIX UNIT LOUVER

0064

0099

Unset (Setup at shipment from factory)

– 77 -

FILE NO. SVM-13050

9. ADDRESS SETUP

9-1. Address Setup

When an outdoor unit and an indoor unit are connected and they are twin-triple, or when an outdoor unit is

connected to each indoor unit respectively in the group operation even if multiple refrigerant lines are provided,

the automatic address setup completes with power-ON of the outdoor unit. The operation of the remote

controller is not accepted while automatic address works. (Approx. 4 to 5 minutes)

Setup of line address of outdoor unit,

indoor unit address, and group address

Completion of wiring work

YES

Do you arbitrarily set the

Is refrigerant line 1 line?

indoor unit address?

YES

(MANUAL)

Is group control performed?

YES

(To AUTO address mode)

Are there multiple units

of twin-triple connections?

YES

Do you change setting after

automatic setting at the first time?

YES

Connect one remote controller with

one indoor unit (1 : 1) tentatively with

communication wiring.

Turn on power of outdoor unit.

After completion of address

setup, change is to arbitral

Set to all indoor units one by one.

(

)

Setup of automatic

address/group manually.

address finishes within

(

)

4 to 5 minutes.

END

• When the following addresses are not stored in the neutral memory (IC10) on the indoor P.C. board, a test

run operation cannot be performed. (Unfixed data at shipment from factory)

CODE No.

Data at shipment

SET DATA range

Line address

0099

0001 (No. 1 unit) to 0030 (No. 30 unit)

Indoor unit

0001 (No. 1 unit) to 0064 (No. 64 unit)

0099

address

Max. value of indoor units in the identical refrigerant line (Double twin = 4)

0000 : Individual (Indoor units which are not controlled in a group)

Group

0099

0001 : Header unit (1 indoor unit in group control)

address

0002 : Follower unit (Indoor units other than header unit in group control)

- 78 -

FILE NO. SVM-13050

9-2. Address Setup & Group Control

Indoor unit No.

:N - n = Outdoor unit line address N (Max. 30) - Indoor unit address n (Max. 64)

Group address

:0 = Single (Not group control)

1 = Header unit in group control

2 = Follower unit in group control

Header unit (= 1)

:The representative of multiple indoor units in group operation sends/receives signals to/

from the remote controllers and follower indoor units.

(*It has no relation with an indoor unit which communicates serially with the outdoor units.)

The operation mode and setup temperature range are displayed on the remote controller

LCD. (Except air direction adjustment of louver)

Follower unit (= 2) : Indoor units other than header unit in group operation

Basically, follower units do not send/receive signals to/from the remote controllers.

(Except errors and response to demand of service data)

Master unit

:This unit communicates with the indoor unit (sub) which serial-communicates with the

(Representative unit) outdoor units and sends/receives signal (Command from compressor) to/from the outdoor

(Header Twin)

units as the representative of the cycle control in the indoor units of the identical line

address within the minimum unit which configures one of the refrigerating cycles of Twin,

Triple, Double twin.

Sub unit

:Indoor units excluding the header unit in Twin, Triple, Double twin

(Subordinate unit) This unit communicates with (Master) indoor unit in the identical line address and per-

forms

(Follower Twin)

control synchronized with (Master) indoor unit.

This unit does not perform the signal send/receive operation with the outdoor units.:

N judgment for serial signal error.

9-2-1. System configuration

1. Single

2. Single group operation

Outdoor

1-1

1-2

Indoor

(Header/Master)

Individual

Header/Master

Follower/Sub

Remote controller

3. Triple

1-1

1-2

1-3

Header/Master

Follower/Sub

- 79 -

FILE NO. SVM-13050

4. Single group operation

• Each indoor unit controls the outdoor unit individually.

2-1

1-1

4-1

3-1

8-1

Header/Sub

Header/Master

Header/Sub

5. Multiple groups operation (Manual address setting)

2-1

1-1

1-2

3-1

3-2

3-3

Header/Sub

Follower/Sub

Header/Master

Follower/Sub

• Master unit: The master unit receives the indoor unit data (thermo status) of the sub

(Without identical line address & indoor/outdoor serial) and then finally controls the outdoor

compressor matching with its own thermo status.

The master unit sends this command information to the sub unit.

• Sub unit:

The sub unit receives the indoor unit data from the master (With identical line address &

indoor/outdoor serial) and then performs the thermo operation synchronized with the master

unit.

The sub unit sends own thermo ON/OFF demand to the master unit.

(Example)

No. 1-1 master unit sends/receives signal to/from No. 1-2 and No. 1-3 sub units.

(It is not influenced by the line 2 or 3 address indoor unit.)

- 80 -

FILE NO. SVM-13050

9-2-2. Automatic Address Example from Unset Address (No miswiring)

1. Standard (One outdoor unit)

(1-1)

(1-2)

(1-1)

(1-2)

(1-3)

1-1

1-2

1-1

1-2

1-3

1-1

Individual

Header/Master

Follower/Sub

Header/Sub

Follower/Master

Follower/Sub

(Header/Master)

Only turning on source power supply (Automatic completion)

2. Group operation

(Multiple outdoor units = Multiple indoor units with serial communication only, without twin)

2-1

1-1

3-1

8-1

Header/Sub

Header/Master

Header/Sub

(Max. : 8 units)

Only turning on source power supply (Automatic completion)

3. Multiple groups operation

Single

Twin

Triple

2-1

1-1

2-3

3-1

3-3

1-2

Header/Sub

Follower/Master

Header/Sub

Follower/Sub

Change is necessary

Manually change addresses of the multiple sub units

simultaneously from the remote controller.

2-1

1-1

1-2

3-1

3-2

3-3

- 81 -

FILE NO. SVM-13050

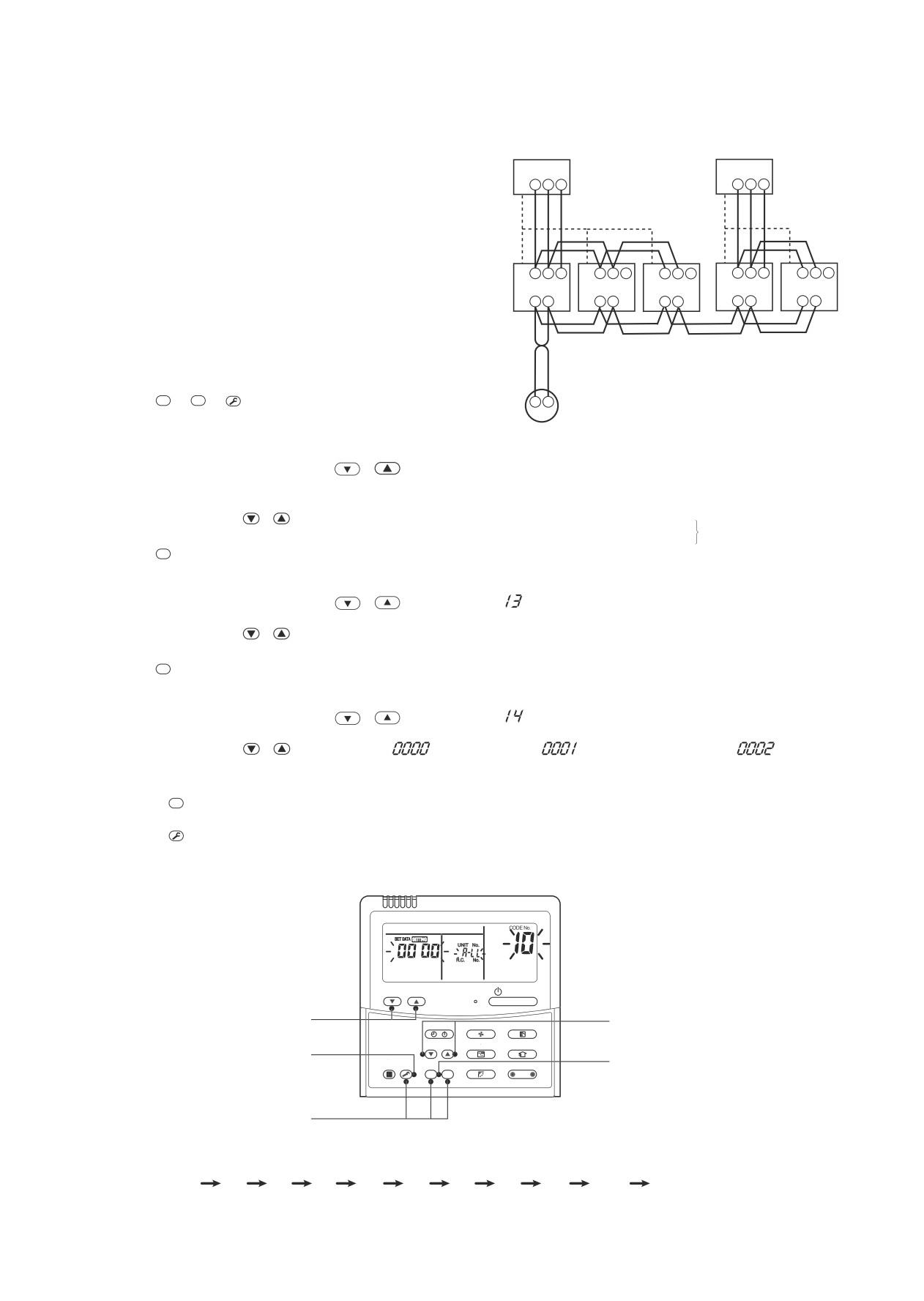

9-3. Address Setup (Manual Setting from Remote Controller)

In case that addresses of the indoor units will be

(Example of 2-lines wiring)

(Real line: Wiring, Broken line: Refrigerant pipe)

determined prior to piping work after wiring work

Outdoor

• Set an indoor unit per a remote controller.

• Turn on power supply.

Indoor

A B

Line address → 1

Indoor unit address → 1

Group address → 1

Push ^SET + ^CL + ^TEST buttons

A B

simultaneously for 4 seconds or more.

Remote controller

(Line address)

For the above example, perform setting by

connecting singly the wired remote controller

Using the temperature setup

buttons,

without remote controller inter-unit wire.

set 12 to the CODE No.

Group address

Individual

: 0000

Using timer time

buttons, set the line address.

Header unit

: 0001

In case of group control

Follower unit : 0002

Push ^SET button. (OK when display goes on.)

(Indoor unit address)

Using the temperature setup

buttons, set

to the CODE No.

Using timer time

buttons, set 1 to the line address.

Push ^SET button. (OK when display goes on.)

(Group address)

Using the temperature setup

buttons, set

to the CODE No.

Using timer time

buttons, set

to Individual,

to Header unit, and

Folloer unit.

10 Push ^SET button. (OK when display goes on.)

11 Push ^TEST button.

Setup completes. (The status returns to the usual stop status.)

TEMP.

ON / OFF

2, 5, 8

TIMER SET

FAN

MODE

3, 6, 9

TIME

SAVE

VENT

END 11

FILTER

RESET

TEST

SET

SWING/FIX UNIT LOUVER

4, 7, 10

11 END

- 82 -

FILE NO. SVM-13050

9-4. Confirmation of Indoor Unit No. Position

1. To know the indoor unit addresses though position of the indoor unit body is recognized

• In case of individual operation (Wired remote controller : indoor unit = 1 : 1)

(Follow to the procedure during operation)

1 Push ^{ON / OFF} button if the unit stops.

2 Push ^{UNIT LOUVER} button.

Unit No.

is displayed on LCD.

(It disappears after several seconds.)

TEMP.

ON / OFF

The displayed unit No. indicate line address and indoor

TIMER SET

FAN

MODE

Operation

unit address. (When other indoor units are connected to

TIME

SAVE

VENT

the identical remote controller (Group control unit), other

FILTER

RESET

TEST

SET

SWING/FIX UNIT LOUVER

unit numbers are also displayed every pushing ^{UNIT LOUVER}

button.

2 END

2. To know the position of indoor unit body by address

• To confirm the unit No. in the group control

(Follow to the procedure during operation) (in this procedure, the indoor units in group control stop.)

The indoor unit numbers in the group control are

successively displayed, and fan, louver, and drain

pump of the corresponding indoor unit are turned on.

(Follow to the procedure during operation)

1 Push ^VENT and ^TEST buttons simultaneously

TEMP.

ON / OFF

for 4 seconds or more.

• Unit No.

is displayed.

TIMER SET

FAN

MODE

• Fans and louvers of all the indoor units in the

TIME

SAVE

VENT

FILTER

group control operate.

RESET

TEST

SET

SWING/FIX UNIT LOUVER

2 Every pushing ^{UNIT LOUVER} button, the unit

numbers in the group control are

successively displayed.

• The unit No. displayed at the first time indicates

the header unit address.

• Fan and louver of the selected indoor unit only

3 END

operate.

3 Push ^TEST button to finish the procedure.

All the indoor units in the group control stop.

- 83 -

FILE NO. SVM-13050

Aiming in environmental preservation, it is strictly recommended to clean and maintain the indoor/outdoor units

of the operating air conditioning system regularly to secure effective operation of the air conditioner.

It is also recommended to maintain the units once a year regularly when operating the air conditioner for a long

time.

Check periodically signs of rust or scratches, etc. on coating of the outdoor units.

Repair the defective position or apply the rust resisting paint if necessary.

If an indoor unit operates for approx. 8 hours or more per day, usually it is necessary to clean the indoor/outdoor

units once three months at least.

These cleaning and maintenance should be carried out by a qualified dealer.

Although the customer has to pay the charge for the maintenance, the life of the unit can be prolonged.

Failure to clean the indoor/outdoor units regularly will cause shortage of capacity, freezing, water leakage or

trouble on the compressor.

Object

Part name

Contents of check

Contents of maintenance

Indoor

Outdoor

Heat exchanger

• Blocking with dust, damage check

• Clean it when blocking is found.

Fan motor

• Audibility for sound

• When abnormal sound is heard

• Clean with water if dirty

Filter

—

• Visual check for dirt and breakage

• Replace if any breakage

• Visual check for swing and balance

• Replace fan when swinging or

• Check adhesion of dust and external

balance is remarkably poor.

Fan

appearance.

• If a large dust adheres, clean it with

brush or water.

Suction/

• Repair or replace it if deformation or

—

• Visual check for dirt and scratch

Discharge grille

damage is found.

• Check blocking by dust and dirt of drain

Drain pan

—

• Clean drain pan, Inclination check

water.

Face panel, Louver

—

• Check dirt and scratch.

• Cleaning/Coating with repair painting

• Check rust and pealing of insulator

External appearance

—

• Coating with repair painting

• Check pealing and floating of coating film

- 84 -

FILE NO. SVM-13050-2

10. DETACHMENTS

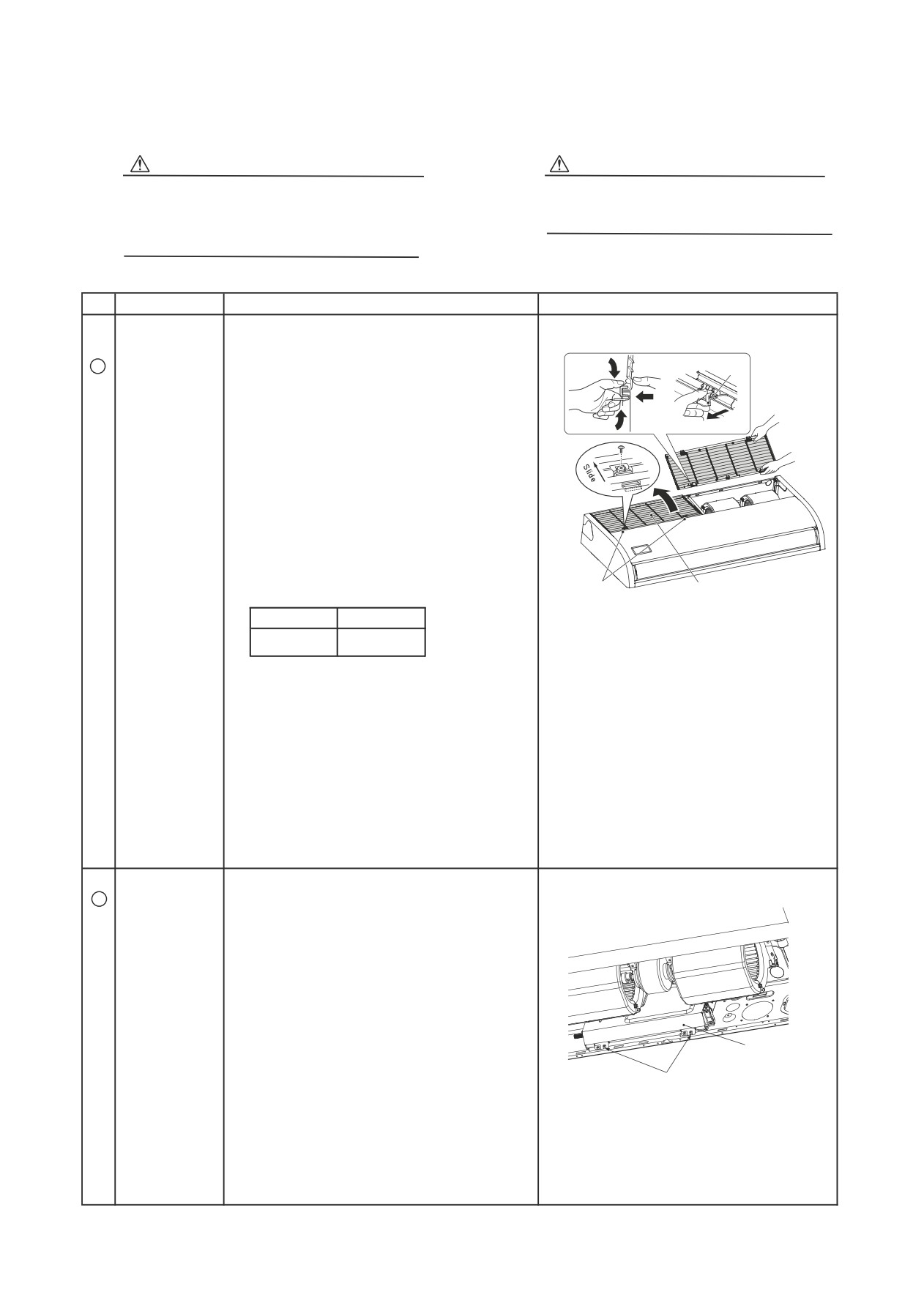

10-1. Ceiling Type

DANGER

CAUTION

Before carrying out the repair or removal

Be sure to put on the gloves at

work, be sure to set the circuit breaker to

disassembling work; otherwise an injury

the OFF position.

will be caused by a part, etc.

Otherwise, electric shocks may result.

No.

Part name

Procedure

Remarks

1. Detachment

Air intake

1) Remove the screws of air intake grille

Hinge

grille

fixing knob on a side of each filter.

2) Slide the air intake grille fixing knobs

(two positions) toward the arrow

direction (OPEN), and then open the

air intake grille.

3) With the air intake grille open, hold the

hinge from above and below with one

hand and take out the air intake grille

with the other hand while gently

pushing it. (There are two air intake

grilles.)

Air intake grille

fixing knob

Fixing knob

Hinge

2. Attachment

1) Attach the hinge of air intake grille in

square hole of body.

2) Close the air intake grille, and then

fix it securely while sliding knob

closed side (CLOSE).

3) Fix the screws of air intake grille

fixing knob on a side of each filter.

Electric parts

1. Detachment

box cover

1) Loosen the screw of the electric parts

box cover. (Ø4 x 10, 2 pcs.)

2) The electric parts box cover is moved

to fan motor side and it removes.

The electric parts box cover screw

fixation part is U character structure.

Electric parts box cover

2. Attachment

1) Shut while inserting the electric parts

Fixing screws (2 pcs.)

box cover in the interior side of the

electric parts box.

2) Fix the electric parts box cover by

tightening with screws.

(Ø4 x 10, 2 pcs.)

- 85 -

FILE NO. SVM-13050-2

No.

Part name

Procedure

Remarks

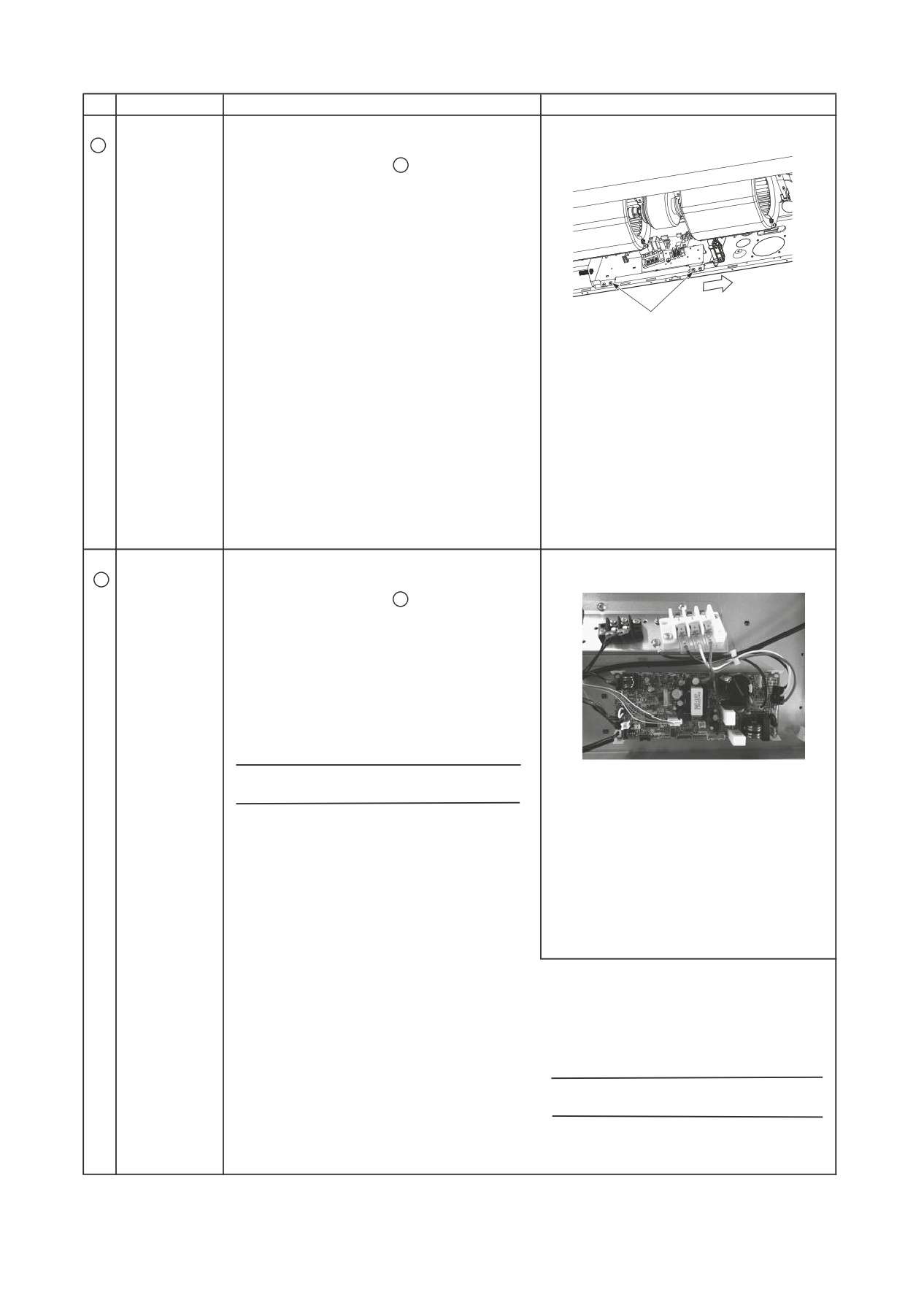

Electric parts

1. Detachment

box

1) Perform works of 1 of

2) Remove the screws of electric parts

box.

3) Draws out forward after the electric

box is moved in the direction of the

arrow, and the back of the part electric

part boxis hung on the edge of the

main body.

Screws

2. Attachment

1) It moves in the direction opposite to

time when the electric parts box is

removed and the claw part in the

interior of the electric part box is

inserted in the hanging part of the

main body.

2) Fix the electric parts box by tightening

with screws. (Ø4 x 10, 2 pcs.)

Control P.C.

1. Detachment

board

1) Perform works of 1 of 3 .

2) Remove the indoor/outdoor connecting

wire and remote controller wire from

each terminal block.

3) Remove the connectors which

connected from the control P.C. board

to other parts.

NOTE

First unlock the housing and then

remove the connectors.

CN510 : Louver motor (20P, White)

CN41 : Remote controller terminal block

(2P, Blue)

CN67 : Power supply terminal block

(3P: Black)

CN101 : TC sensor (2P: Black)

CN102 : TCJ sensor (2P, Red)

CN104 : Room temperature

(2P, Yellow)

2. Attachment

CN210 : Fan motor (7P, White)

1) Attach the electric parts box and

then perform wiring as original.

4) Unlock the card edge spacers

(4 positions) in the electric parts box

NOTE

to remove the control P.C. board.

Check there is no missing or contact

failure on the connectors.

– 86 -

FILE NO. SVM-13050-2

No.

Part name

Procedure

Remarks

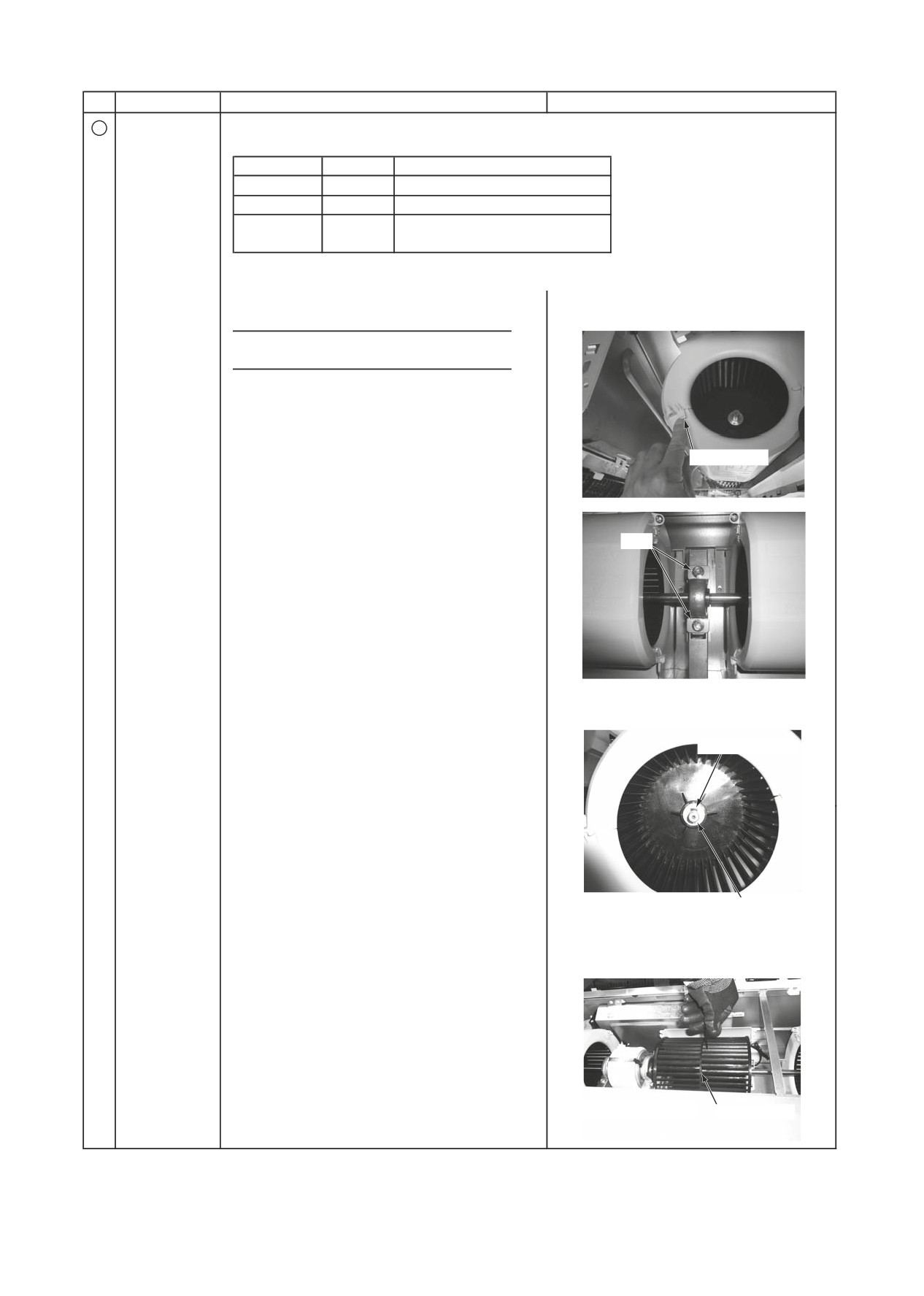

Fan,

Quantity of fan

Fan case,

Shaft,

Model

QTY

Installation

Bearing

Fan motor both sides

One of shafts is bearing.

The shaft middle part is

110 ʙ 160

supported in the bearing.

1. Detachment

NOTE

It explains the following content by

110 to 160 type.

1) The hanging claw on both sides of fan

case (under) is removed.

2) Fan case (under) is pulled out from

the partition plate, and fan case (under)

Hanging claw

is removed.

3) The bolt (2 pcs.) that is the fixing of

the bearing is removed, and the bearing

is removed from the main body.

Bolt

(Ø8 x 15, 2 pcs.)

4) The screw with the hexagonal screw

hole to of the coupling is loosened,

and the shaft is removed with the fan.

5) The screw with the hexagonal screw

hole of the fan is loosened, and the fan

is detached from the shaft.

Groove of the fan

2. Attachment

1) The fan is installed in the shaft so that

the tightening screw may come at the

right of the fan toward the heat

Shaft

exchanger.

2) Insert the fan in the shaft while adjusting

to match the installation mark to the

groove of the fan.

The fan and the screw tightening of the

shaft are the last work.

Refer to the photograph for the direction

of the installation of the fan.

Heat exchanger side

Partition plate

– 87 -

FILE NO. SVM-13050-2

No.

Part name

Procedure

Remarks

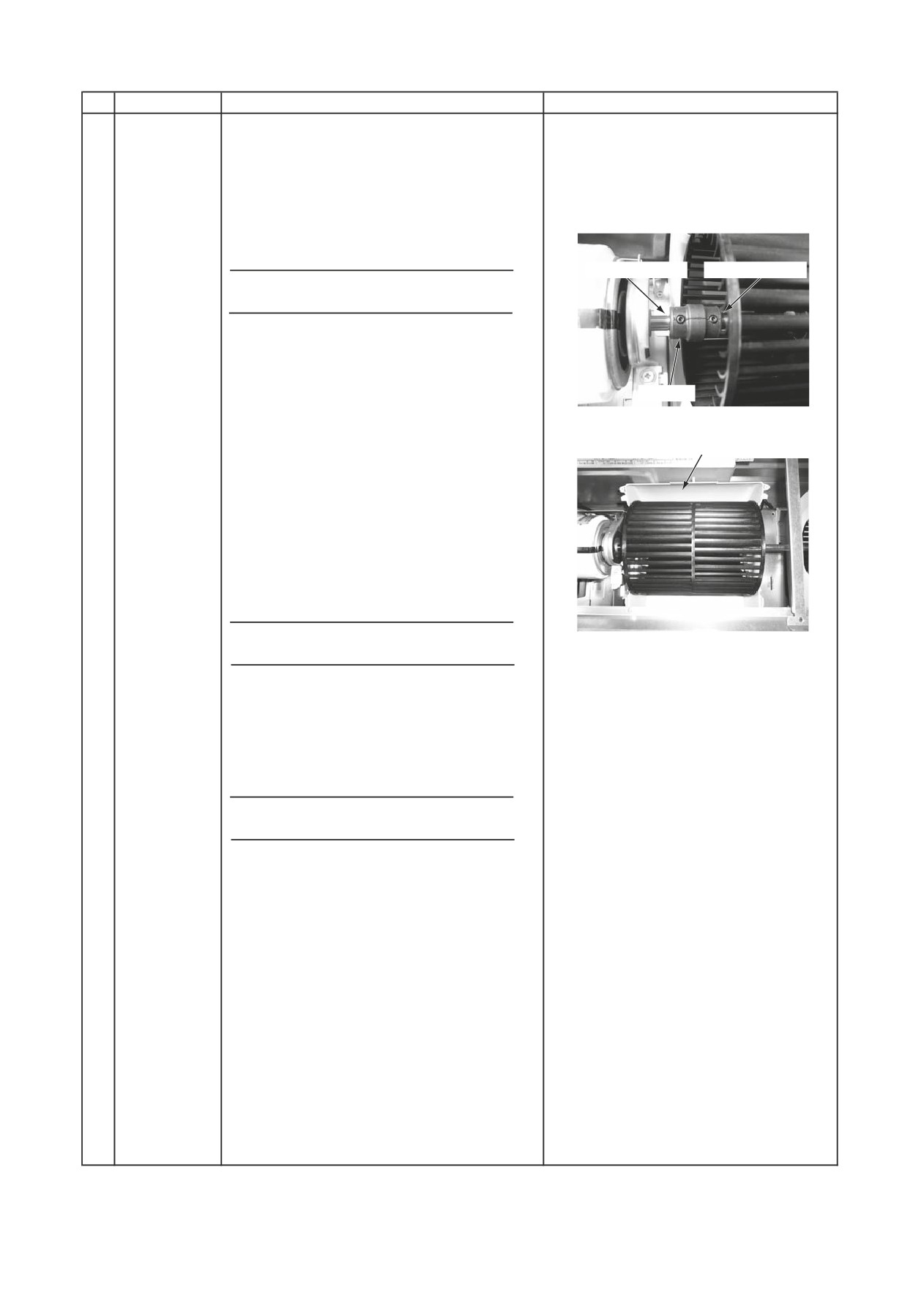

3) When the bearing is installed in the

shaft, perform work of 1) .

The coupling side is set to the ditch

and the fan is fixed with the hexagonal

screw hole.

NOTE

The ditch of shaft

Be sure to use a torque wrench for

fixing and tighten with 2.5 to 3.4N.m.

4) The shaft that inserts the fan is inserted

in the coupling.

After the bearing is installed, it tightens.

Coupling

5) Attach the bearing in the main body

as original.

Fan case (upper)

After the bearing spacer is inserted

during the base and the cover, it fixes

with the bolt.

(Ø8 x 15, 2 pcs.)

6) The coupling inserted by the work of 4)

is set to the ditch of the shaft and it

fixes with hexagonal screw hole.

NOTE

Be sure to use a torque wrench for

fixing and tighten with 4.9N•m or more.

Be sure to confirm that the fan is at

the center of the fan case.

7) The fan is positioned so that the fan

may become a center for fan case

(upper), and it fixes with the hexagonal

screw hole.

NOTE

Be sure to use a torque wrench for

fixing and tighten with 4.9N•m or more.

8) Attach the fan case (under) as original

and check the fan turns smoothly without

coming to contact with the fan case.

– 88 -

FILE NO. SVM-13050-2

No.

Part name

Procedure

Remarks

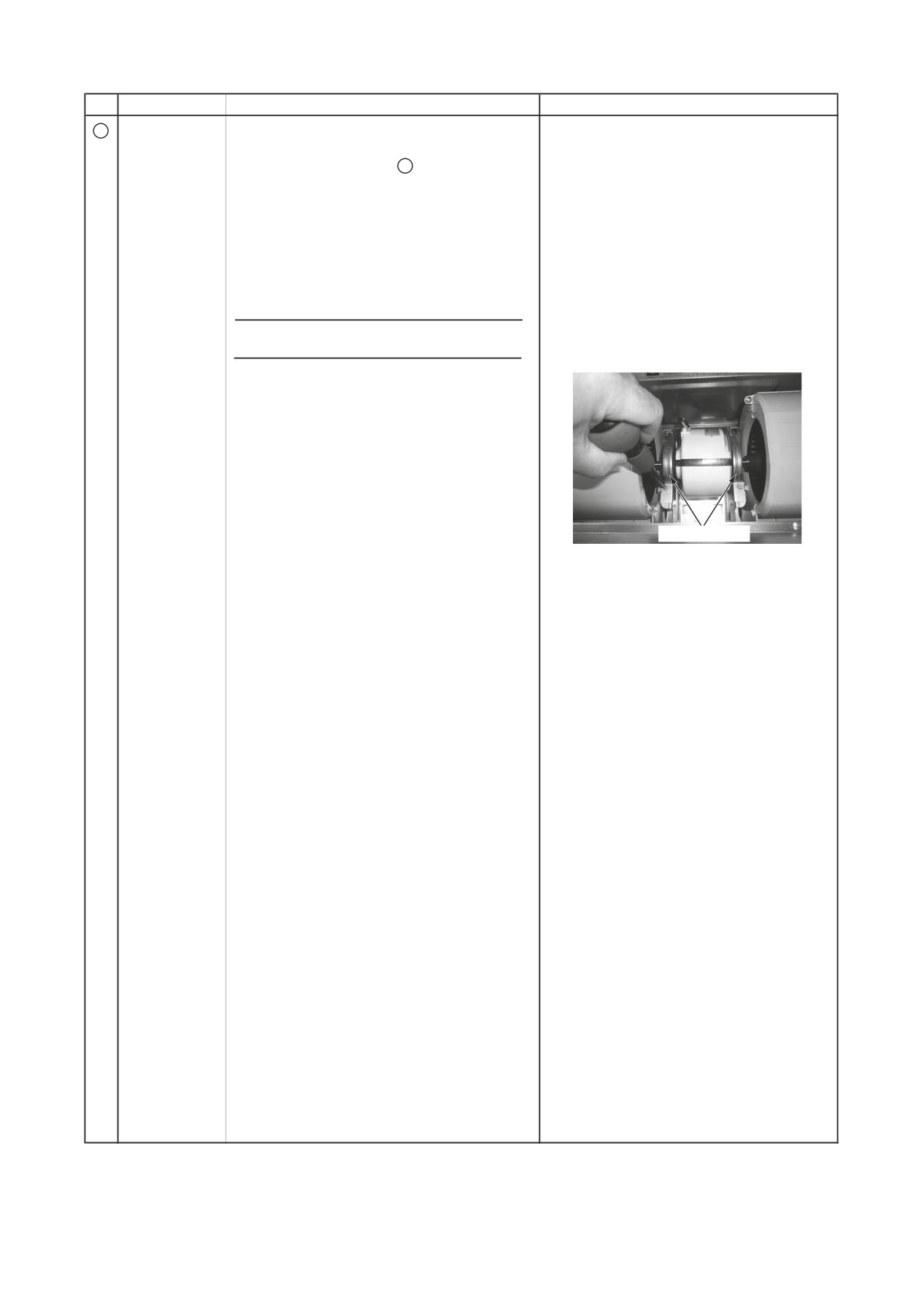

Fan motor

1. Detachment

1) Perform works of 1 of 5 .

2) Remove connectors for fan motor

wiring from control P.C. board.

CN210 : Fan motor (7P, White)

NOTE

First unlock the housing and then

remove the connectors.

3) Remove the fixing screws of the

fixing plate (2 pcs.) at the side of the

fan motor. (Ø5 x 10, 2 pcs.)

The earth screw is tightening together

with motor fixing screw.

4) While supporting the fan motor by

hands, remove the the fan motor.

The fixing plate

2. Attachment

1) Attach as before in fan motor 䊻㻌

motor fixing plate 䊻 electric part box

cover order.

Attach the connector and earth wire,

then perform wiring as original.

– 89 -

FILE NO. SVM-13050-2

No.

Part name

Procedure

Remarks

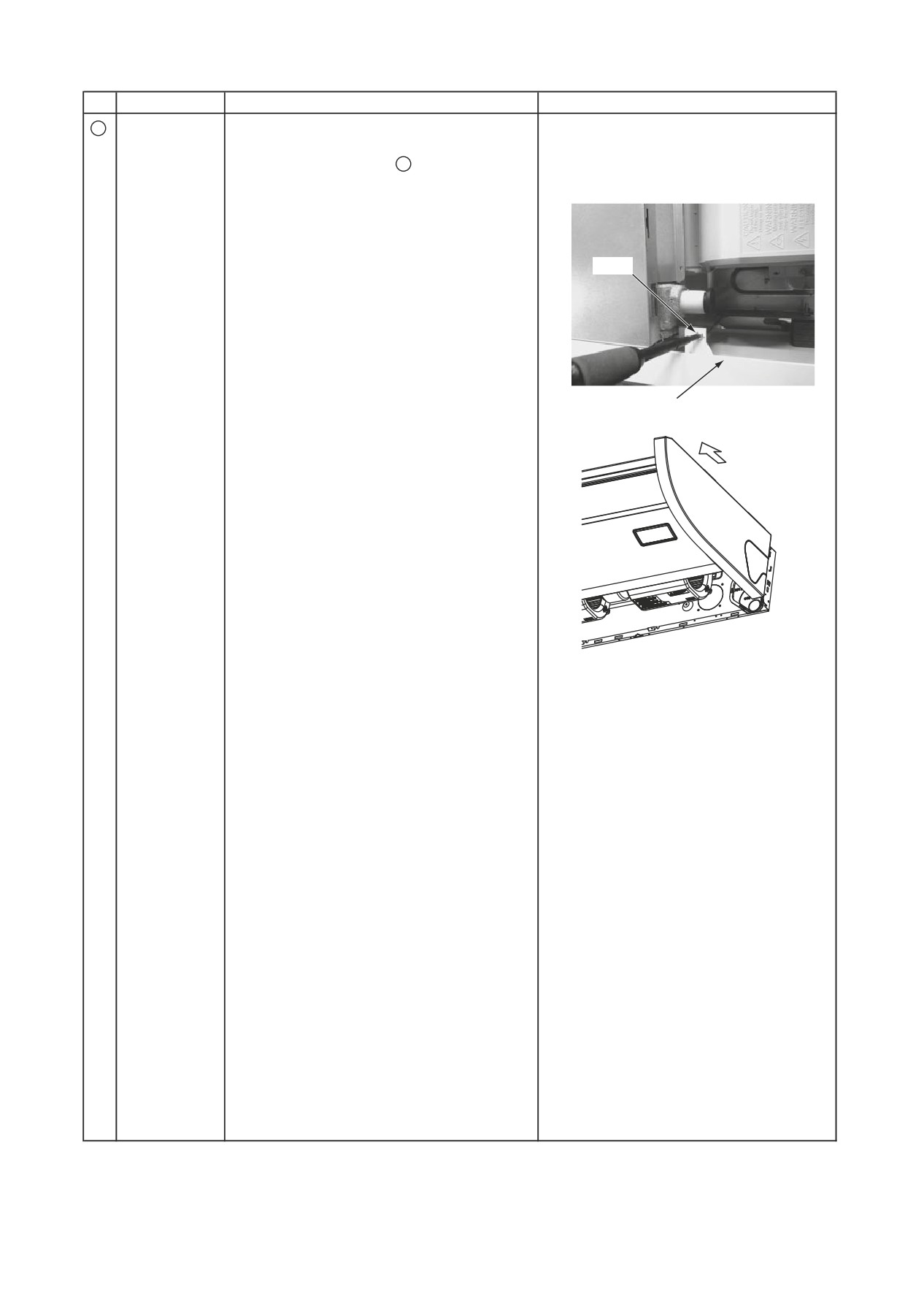

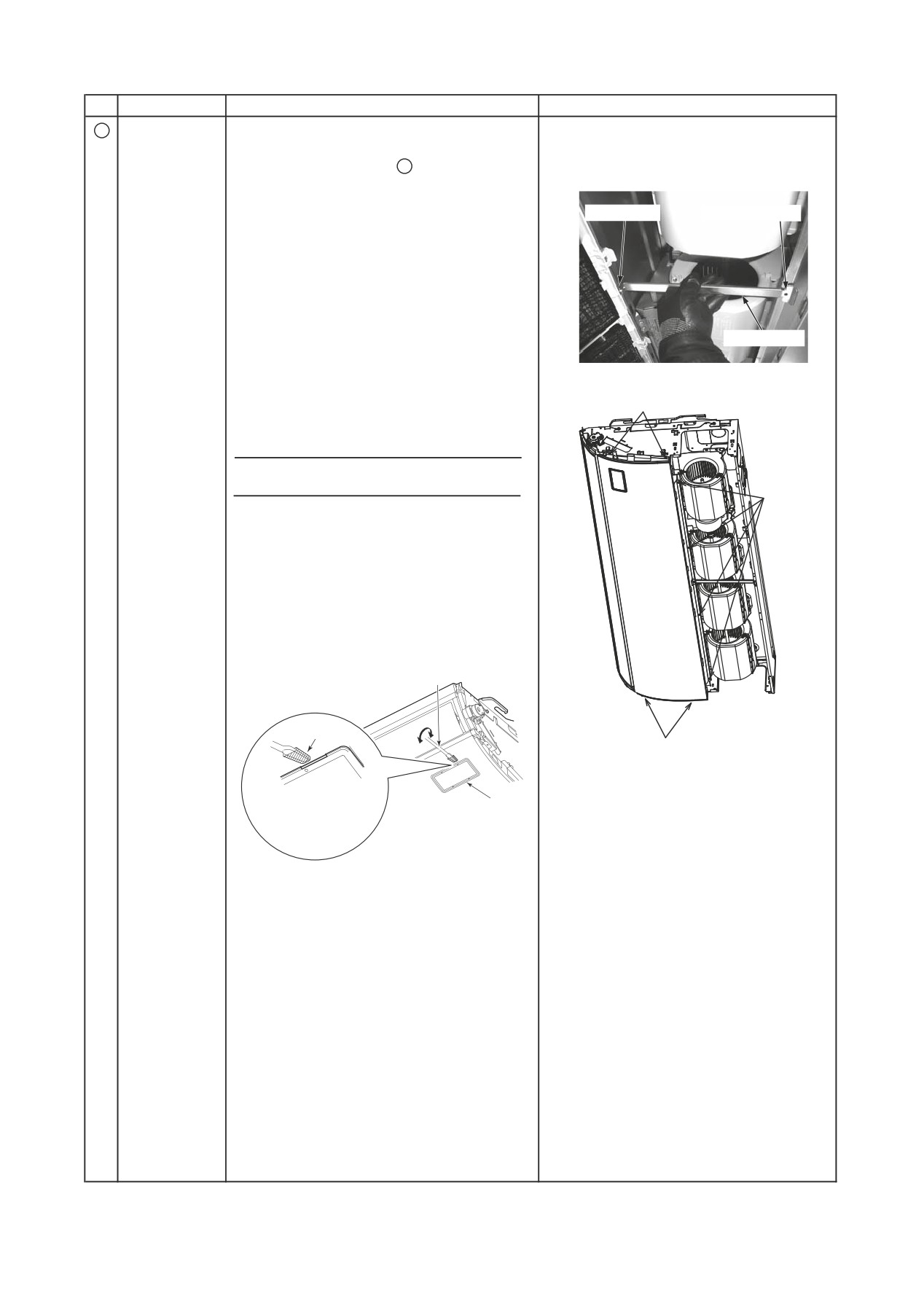

Under panel

1. Detachment

1) Perform works of 1 of 7 .

2) Remove the support plate.

(80-160 type only) (Ø4 x 10, 1 pcs.)

Square hole

Front side screw

The screw on a front side is removed,

and it detaches it from the square

hole on the back side.

3) The screw on both sides is removed.

(Ø4 x 10, 2 pcs.)

4) The screw on fan side is removed.

Support plate

56-80 type : (Ø4 x 10, 3 pcs.)

110-160 type : (Ø4 x 10, 4 pcs.)

5) Slide to the air discharge side and

Screws

remove the under panel.

NOTE

When you remove forcibly which

may result in the product breaks.

Screws

6) When you remove the signal receiving

unit, lap the end of flat head screw

driver with vinyl tape, and forcedly

insert it into the groove at the side

under circle mark on the cover.

Flat blade screwdriver

(Lap it with vinyl tape.)

Vinyl tape

Screws

Insert it into groove at

the side under circle

Cover

mark on the cover.

2. Attachment

1) Attach the under panel from air

discharge side according to drain pan.

2) Attach the screws as original position.

80-160 type attach the support plate as

original position.

– 91 -

FILE NO. SVM-13050-2

No.

Part name

Procedure

Remarks

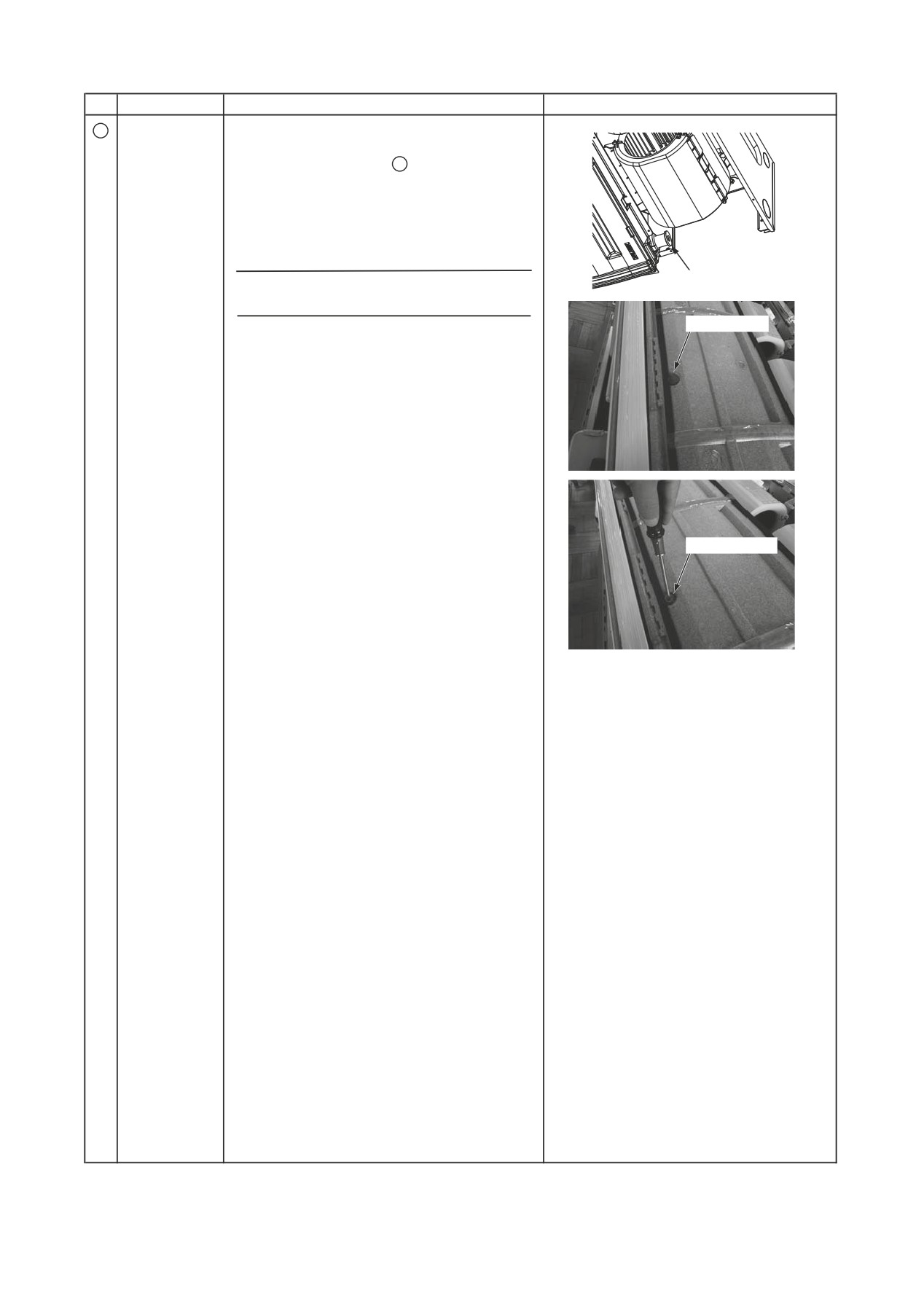

Drain pan

1. Detachment

1) Perform works of 1 of 8 .

2) Remove the drain cap and then extract

the drain water accumulated in the

drain pan.

NOTE

Drain cap

When removing the drain cap, be sure to

receive drain water using a bucket, etc.

Heat insulator

3) The drain hose is removed from the

drain pan joint while picking up the

hose band.

4) The heat insulator stuck on air discharge

side of the drain pan is peeled off and

an inside shoulder screw is removed.

56 type : (1 pcs.)

80-160 type : (2 pcs.)

ɹ* When installing, the heat insulator

peeled off is used.

5) Slide to the air discharge side, remove

Shoulder screw

the drain pan.

2. Attachment

1) The drain cap is surely inserted up to

the drain pan root.

2) Slide to the air discharge side, hooking

surely the frame on fan side.

3) Attach the shoulder screws as original

position, the heat insulator is stuck on.

4) The hose band is used and the drain

hose is installed.

– 92 -

FILE NO. SVM-13050-2

No.

Part name

Procedure

Remarks

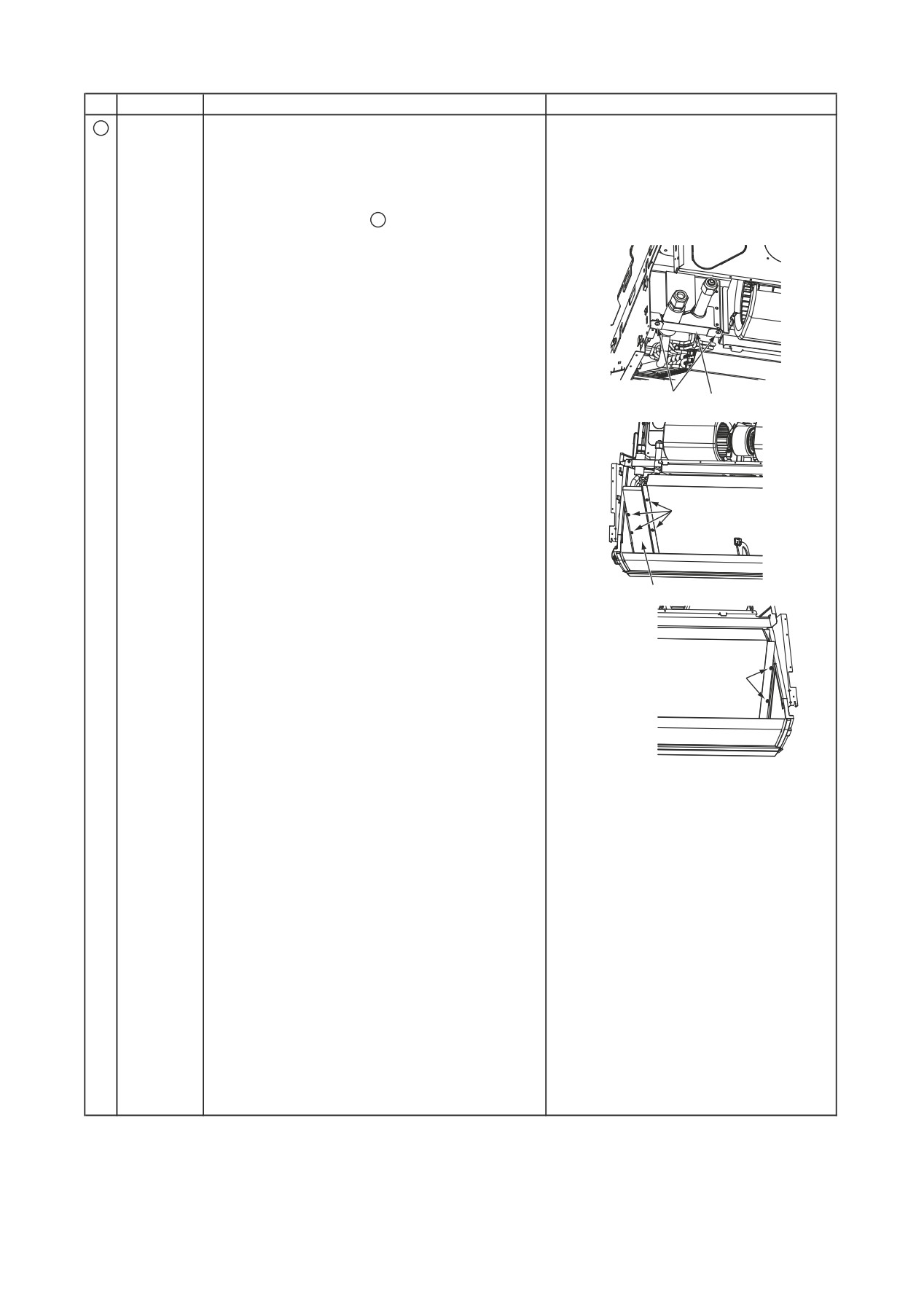

Heat

exchanger

1. Detachment

1) Recover the refrigerant gas and then

remove the refrigerant pipe of the

indoor unit.

2) Perform works of 1 of 9 .

Pull out sensor wires from the holder.

3) The screw that is the fixing of the piping

support is removed, and the piping

support is removed. (Ø4 x 10, 2 pcs.)

4) The screw of the partition plate is

removed while holding the heat

exchanger, the partition plate is removed.

(Ø4 x 10, 4 pcs.)

5) The screw of the heat exchanger on the

Screw

Piping support

partition plate and the other side is

removed while holding the heat exchanger,

and the heat exchanger is removed.

2. Attachment

Screws

1) Attach as before in heat exchanger 䊻㻌

sensor 䊻 piping support 䊻 drain pan

䊻 under panel order.

2) Connect the refrigerant pipe as original, and

Partition plate

then perform vacuuming.

Screw

- 93 -

FILE NO. SVM-13050-5

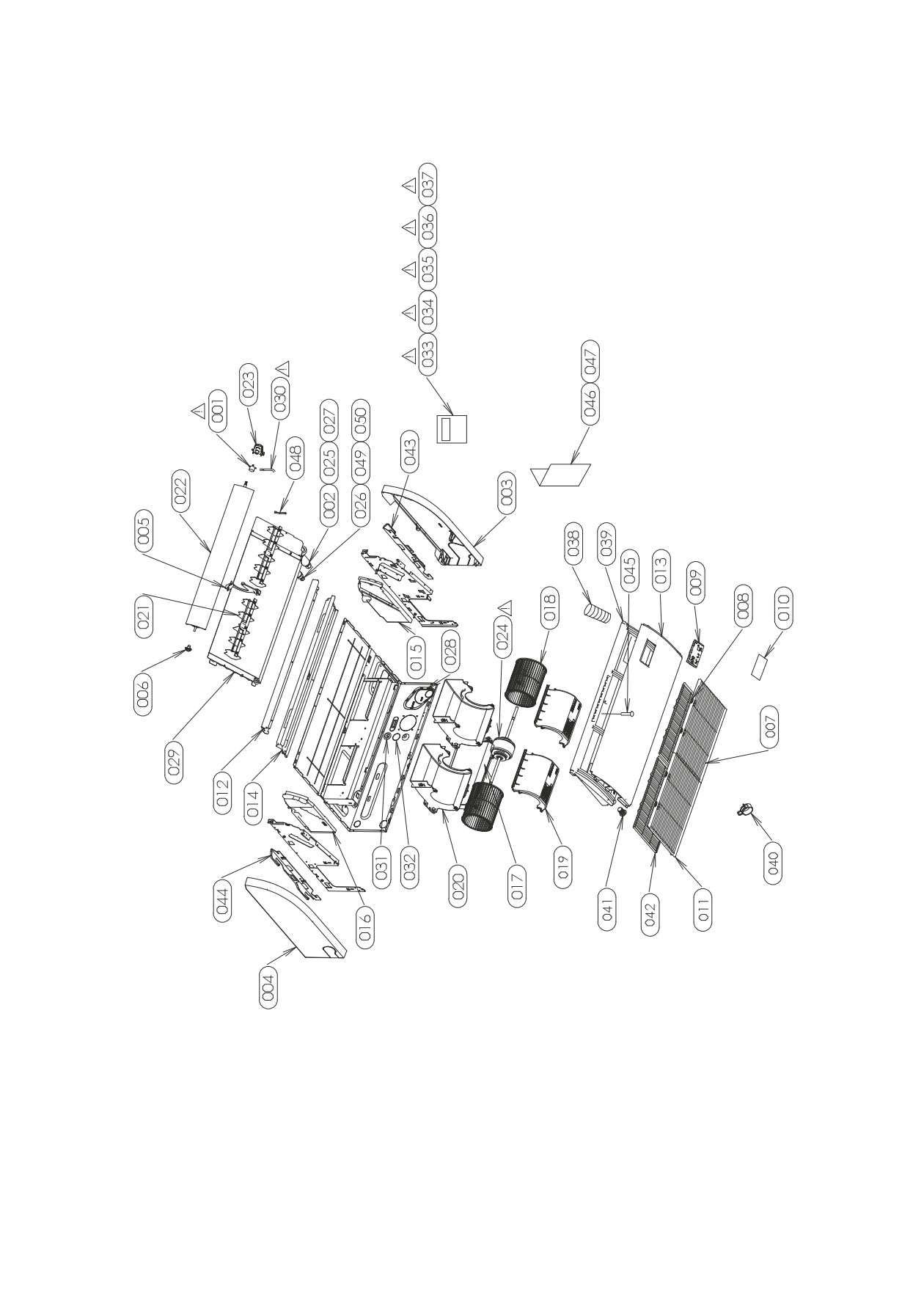

Location

Parts No.

Description

RAV-SM567CTP-E

RAV-SM567CTP-TR

No.

43T21397

STEPPING-MOTOR

43T97317

NUT, FLARE, 1/2 IN

43T02301

ASM-P-SIDE-R

43T02302

ASM-P-SIDE-L

43T07313

ASM-SUP-FLAP

43T07314

SUP-SHAFT

43T07315

HINGE-GRILLE

43T07316

HOOK-GRILLE

43T08420

LED-BASE

43T08421

PANEL-LED

43T09493

SUCTION-GRILLE

43T00638

ASM-COAT-P-UP

43T00641

ASM-COAT-P-UD

43T11326

ASM-FORM-UP

43T11329

ASM-FORM

43T11330

ASM-FORM

43T20338

ASM-FAN-MLB

43T22327

ASM-FAN-CASE-D

43T22328

ASM-FAN-CASE-U

43T22329

ASM-S-V-LOUVER

43T22330

ASM-FLAP

43T22333

ASM-GEAR-FLAP

43T21443

MOTOR-FAN

43T47333

BONNET, 12.70 DIA

43T97311

NUT, FLARE, 1/4 IN

43T82320

SOCKET

43T49364

COV-FRAME-MAIN

43T44516

ASM-REF

43T60446

LEAD-MOT

43T62349

GROMMET

43T62350

GROMMET

43T70317

ASM-HOSE

43T72314

ASM-SUB-PAN-DR

43T83313

HOSE-BAND

43T79320

CAP-DRAIN

43T80338

AIR FILTER

43T81304

HANGER-R

43T81305

HANGER-L

43T97318

SCREW-DR

43T85544

COPY-INSTR

43T85545

COPY-INSTR

43T85546

COPY-MANUAL

43T85547

COPY-MANUAL

43T19333

HOLDER, SENSOR

43T47331

BONNET, 6.35 DIA

43T82319

SOCKET

- 95 -

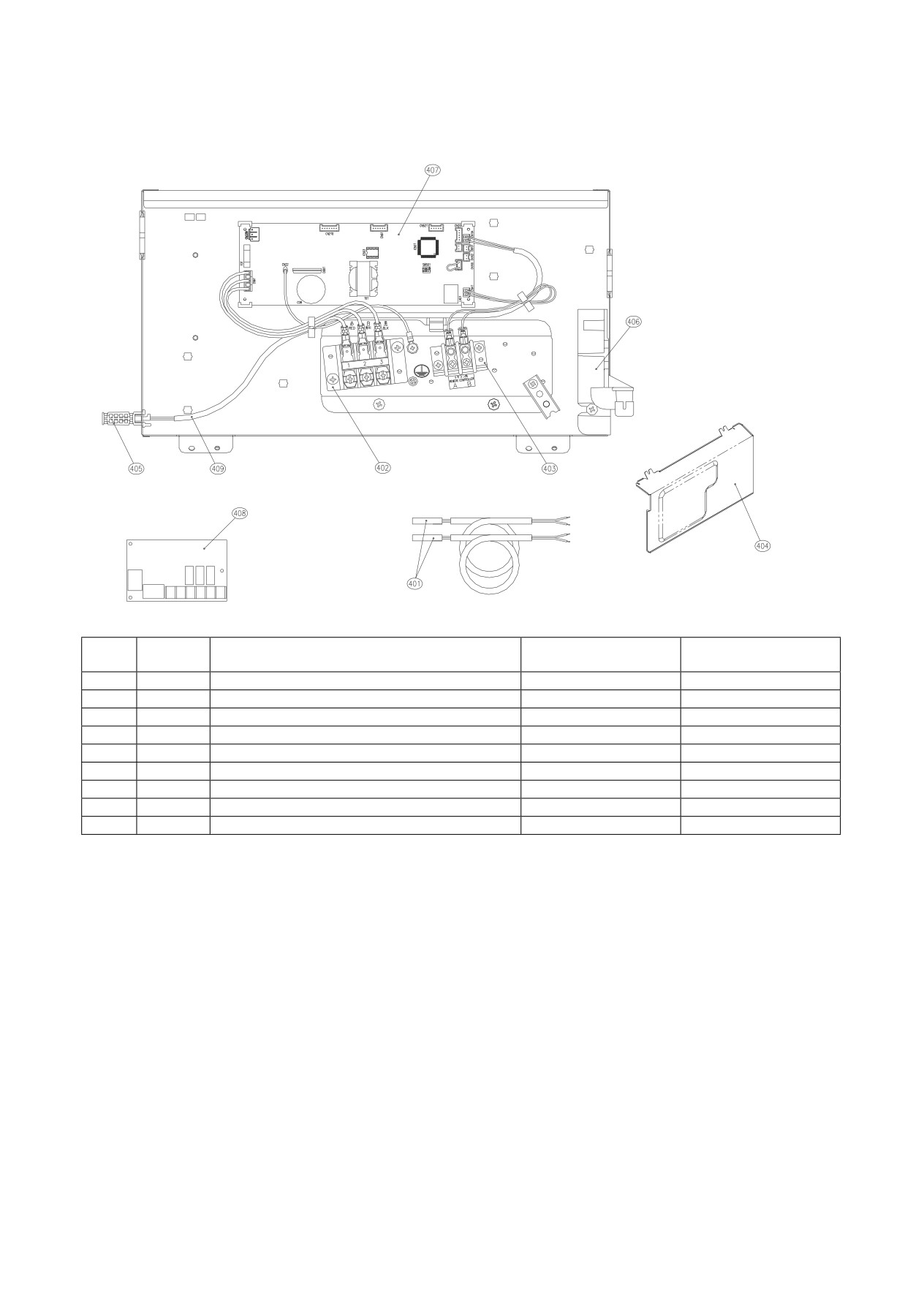

FILE NO. SVM-13050-5

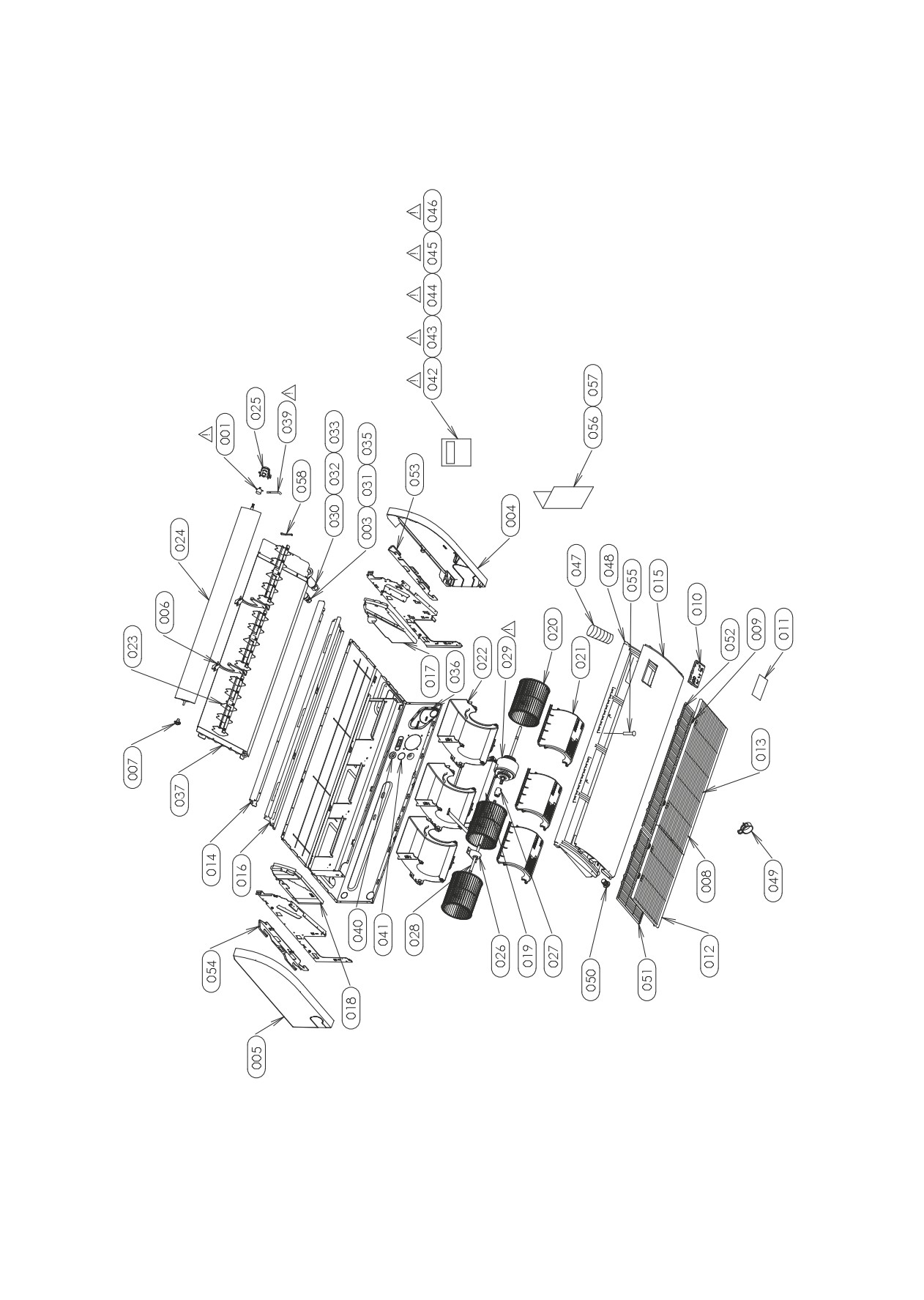

Location

Parts No.

Description

RAV-SM807CTP-E

RAV-SM807CTP-TR

No.

43T21397

STEPPING-MOTOR

43T97312

NUT, FLARE, 3/8 IN

43T02301

ASM-P-SIDE-R

43T02302

ASM-P-SIDE-L

43T07313

ASM-SUP-FLAP

43T07314

SUP-SHAFT

43T07315

HINGE-GRILLE

43T07316

HOOK-GRILLE

43T08420

LED-BASE

43T08421

PANEL-LED

43T09493

SUCTION-GRILLE

43T09494

SUCTION-GRILLE

43T00639

ASM-COAT-P-UP

43T00642

ASM-COAT-P-UD

43T11327

ASM-FORM-UP

43T11329

ASM-FORM

43T11330

ASM-FORM

43T20338

ASM-FAN-MLB

43T22327

ASM-FAN-CASE-D

43T22328

ASM-FAN-CASE-U

43T22329

ASM-S-V-LOUVER

43T22331

ASM-FLAP

43T22333

ASM-GEAR-FLAP

43T22323

BEARING

43T22324

COUPLING

43T22325

SHAFT

43T21444

MOTOR-FAN

43T97314

NUT, FLARE, 5/8 IN

43T47332

BONNET, 9.52 DIA

43T47334

BONNET; 15.88 DIA.

43T82321

SOCKET

43T82318

SOCKET

43T49364

COV-FRAME-MAIN

43T44517

ASM-REF

43T60446

LEAD-MOT

43T62349

GROMMET

43T62350

GROMMET

43T70317

ASM-HOSE

43T72315

ASM-SUB-PAN-DR

43T83313

HOSE-BAND

43T79320

CAP-DRAIN

43T80338

AIR FILTER

43T80339

AIR FILTER

43T81304

HANGER-R

43T81305

HANGER-L

43T97318

SCREW-DR

43T85544

COPY-INSTR

43T85545

COPY-INSTR

43T85546

COPY-MANUAL

43T85547

COPY-MANUAL

43T19333

HOLDER, SENSOR

- 98 -

FILE NO. SVM-13050-5

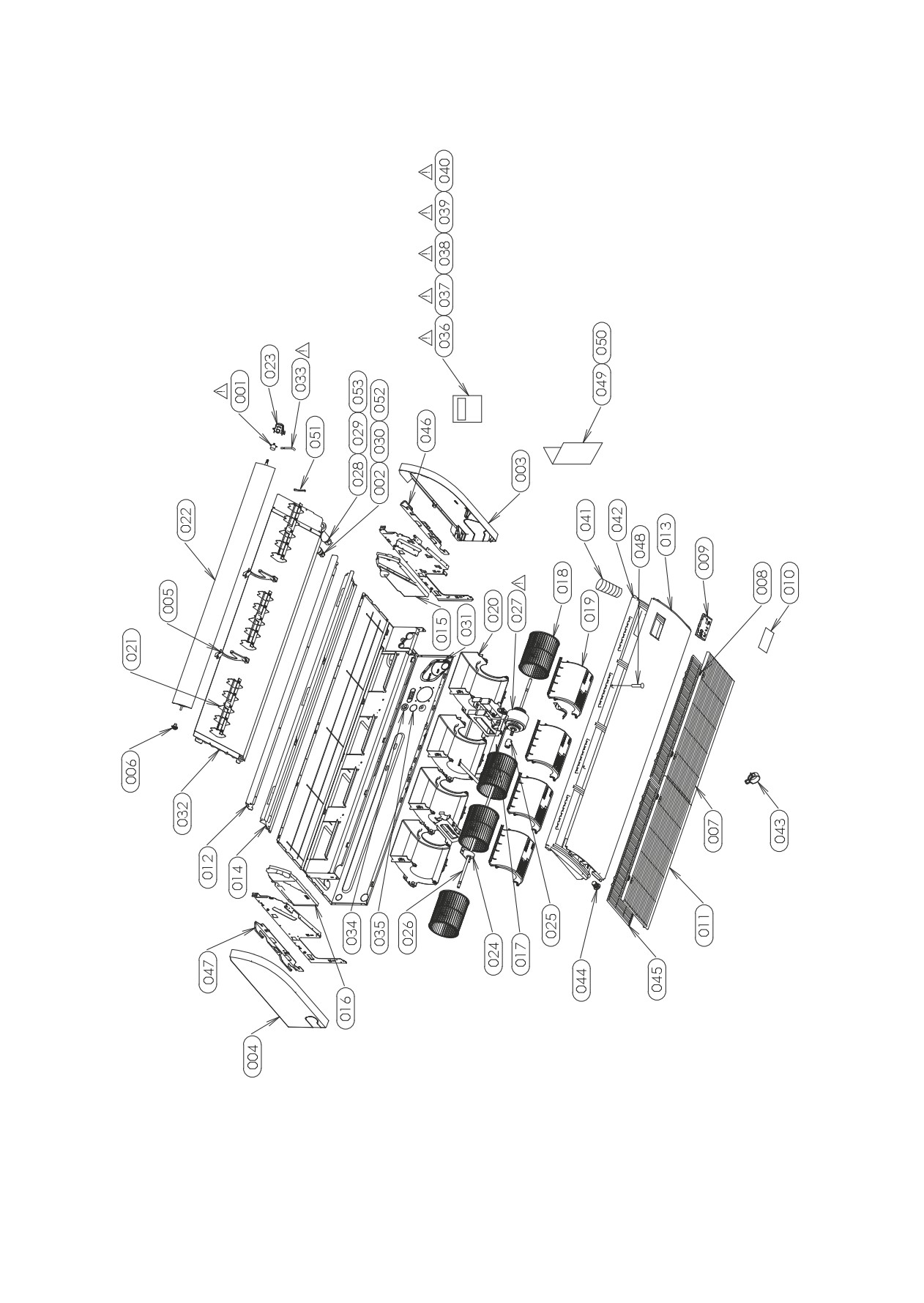

Location

RAV-SM

Parts No.

Description

No.

1107CTP-E

1407CTP-E

1607CTP-E

1107CTP-TR

1407CTP-TR

1607CTP-TR

43T21397

STEPPING-MOTOR

43T97312

NUT, FLARE, 3/8 IN

43T02301

ASM-P-SIDE-R

43T02302

ASM-P-SIDE-L

43T07313

ASM-SUP-FLAP

43T07314

SUP-SHAFT

43T07315

HINGE-GRILLE

43T07316

HOOK-GRILLE

43T08420

LED-BASE

43T08421

PANEL-LED

43T09494

SUCTION-GRILLE

43T00640

ASM-COAT-P-UP

43T00643

ASM-COAT-P-UD

43T11328

ASM-FORM-UP

43T11329

ASM-FORM

43T11330

ASM-FORM

43T20338

ASM-FAN-MLB

43T22327

ASM-FAN-CASE-D

43T22328

ASM-FAN-CASE-U

43T22329

ASM-S-V-LOUVER

43T22332

ASM-FLAP

43T22333

ASM-GEAR-FLAP

43T22323

BEARING

43T22324

COUPLING

43T22326

SHAFT

43T21445

MOTOR-FAN

43T97314

NUT, FLARE, 5/8 IN

43T47334

BONNET; 15.88 DIA.

43T47332

BONNET, 9.52 DIA

43T49364

COV-FRAME-MAIN

43T44518

ASM-REF

43T60446

LEAD-MOT

43T62349

GROMMET

43T62350

GROMMET

43T70317

ASM-HOSE

43T72316

ASM-SUB-PAN-DR

43T83313

HOSE-BAND

43T79320

CAP-DRAIN

43T80339

AIR FILTER

43T81304

HANGER-R

43T81305

HANGER-L

43T97318

SCREW-DR

43T85544

COPY-INSTR

43T85545

COPY-INSTR

43T85546

COPY-MANUAL

43T85547

COPY-MANUAL

43T19333

HOLDER, SENSOR

43T82318

SOCKET

43T82321

SOCKET

- 101 -

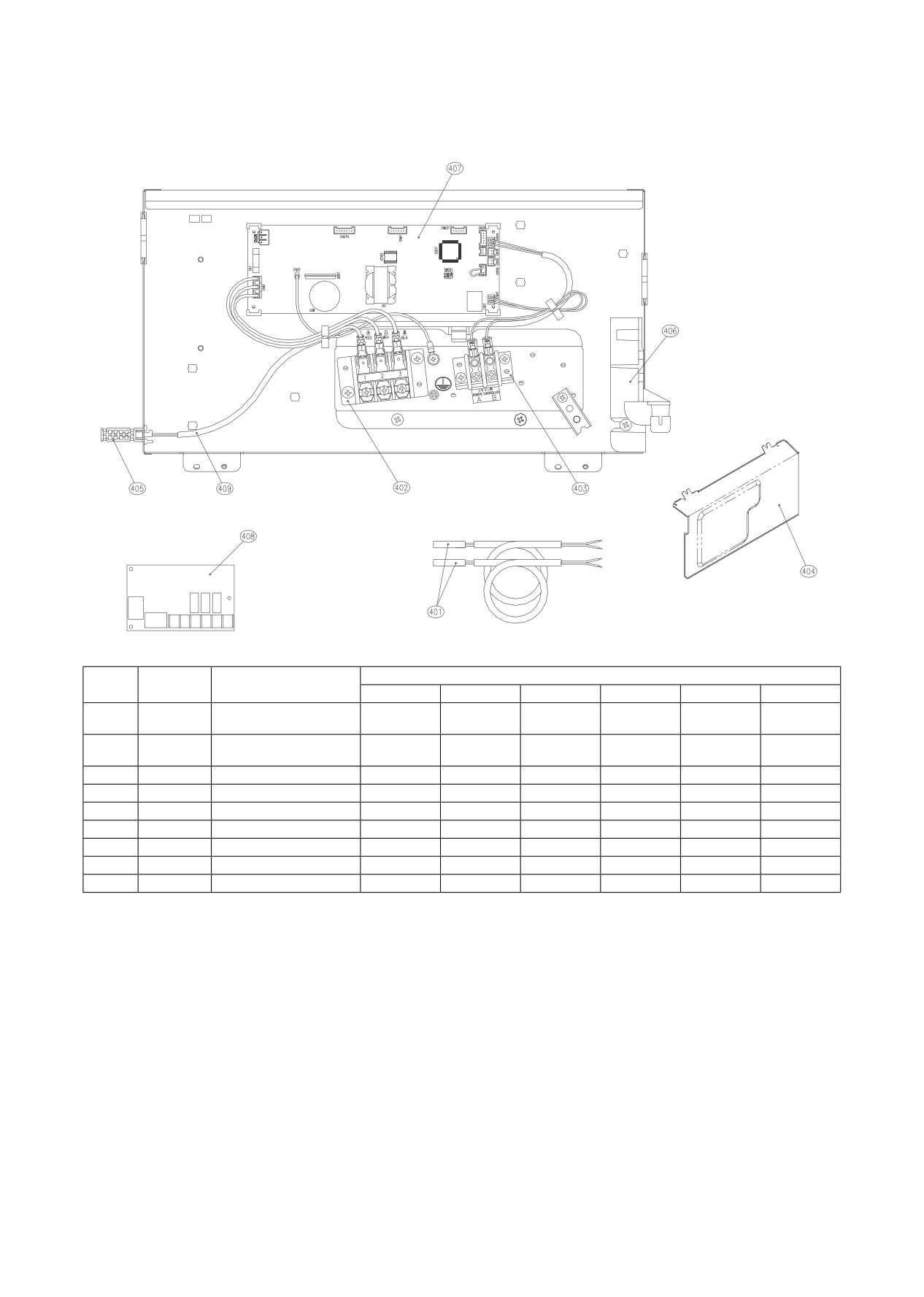

FILE NO. SVM-13050

WARNINGS ON REFRIGERANT LEAKAGE

Check of Concentration Limit

The room in which the air conditioner is to be installed requires a design that in the event of refrigerant

gas leaking out, its concentration will not exceed a set limit.

The refrigerant R410A which is used in the air conditioner is safe, without the toxicity or combustibility of

ammonia, and is not restricted by laws to be imposed which protect the ozone layer. However, since it contains

more than air, it poses the risk of suffocation if its concentration should rise excessively. Suffocation from

leakage of R410A is almost non-existent.

If a conditioner system is to be installed in a small room, select a suitable model and installation procedure so

that if the refrigerant accidentally leaks out, its concentration does not reach the limit (and in the event of an

emergency, measures can be made before injury can occur).

In a room where the concentration may exceed the limit, create an opening with adjacent rooms, or install

mechanical ventilation combined with a gas leak detection device.

The concentration is as given below.

Total amount of refrigerant (kg)

≤ Concentration limit (kg/m³)

Min. volume of the indoor unit installed room (m³)

The concentration limit of R410A which is used in air conditioners is 0.3 kg/m³.

NOTE

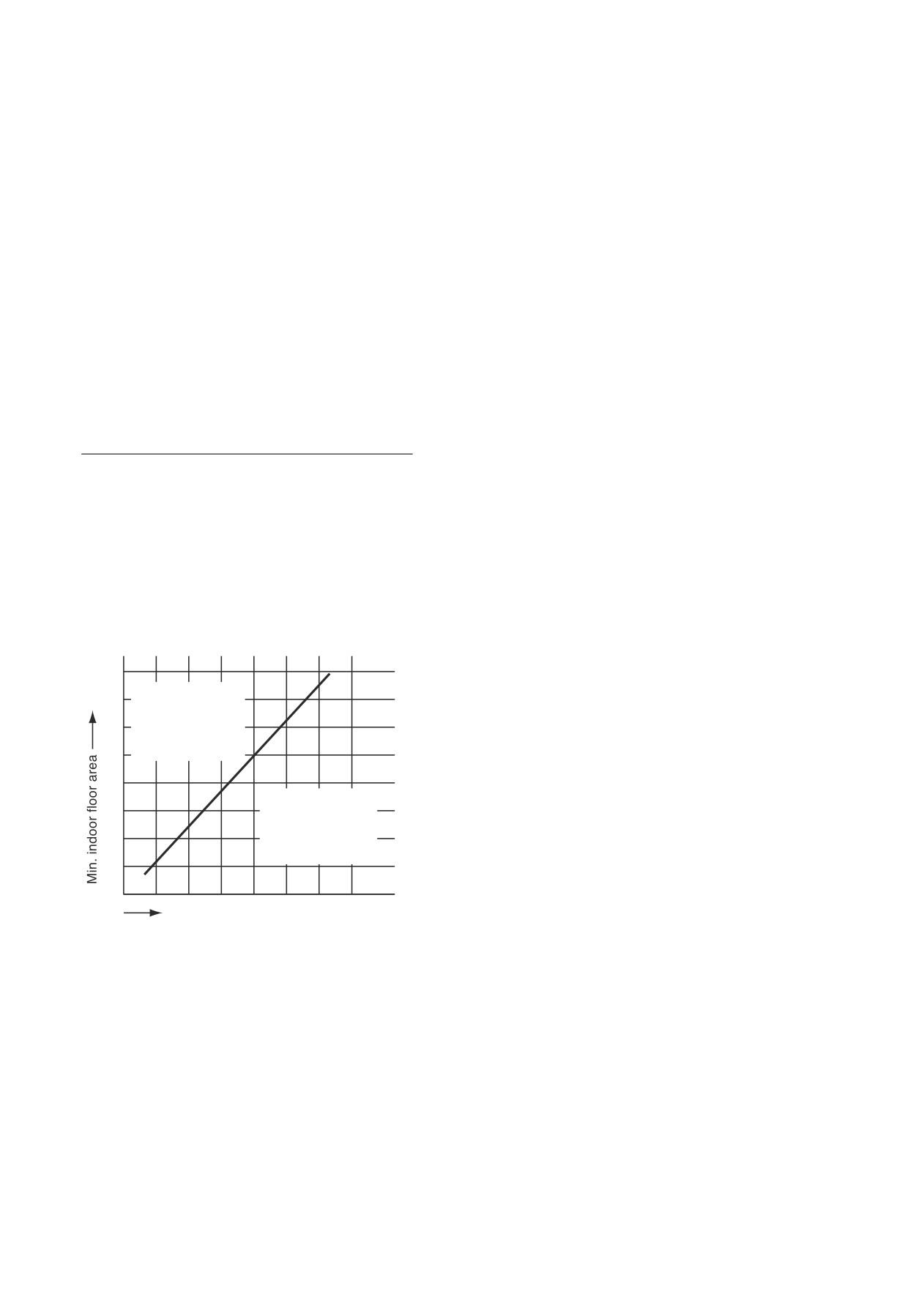

The minimum indoor floor area compared with the amount of refrigerant is roughly as follows:

(When the ceiling is 2.7m high)

Range below the

m235

density limit of

0.3 kg/m³

(countermeasures

not needed)

Range above the

density limit of

0.3 kg/m³

(countermeasures

needed)

Total amount of refrigerant

- 103 -

Toshiba AIR-CONDITIONER RAV-SM567CTP-E (TR). SERVICE MANUAL (2014) - page 2
