ENTERING AND LEAVING THE CAB

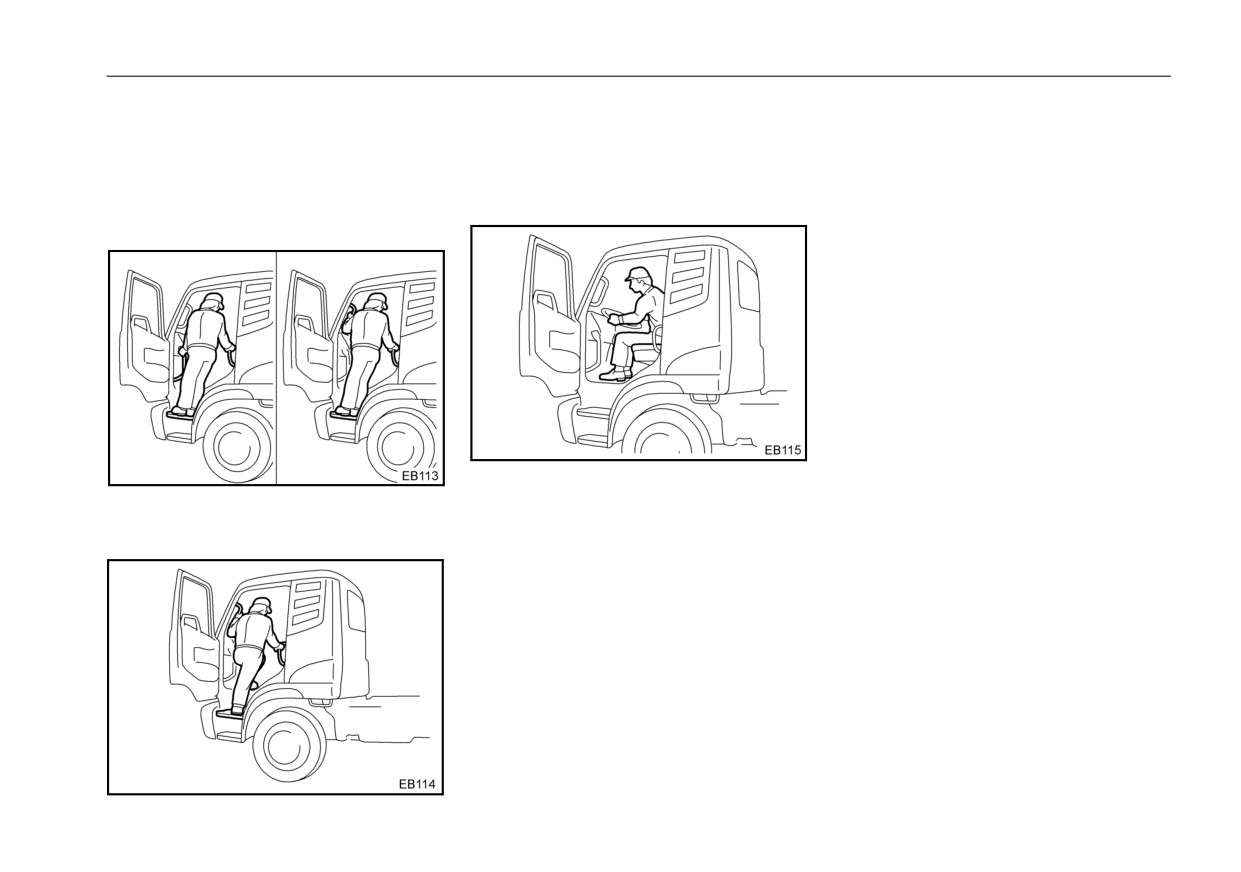

4. Bring your left foot up to the 2nd
6. Bring your right foot to the cab
step next to your right foot.
floor.
If you grasped the lower handle
7. Position yourself in the driver’s
with your left hand then move
seat and release your left hand
your left hand to the upper han-
from the front upper handle.
dle.
8. Close door.
5. Step to the cab floor with your left
9. To leave the cab, open the door
foot.
and reverse the procedure for
entering the cab, using both
hands on the handles.
10.For passenger side, use opposite
hand and foot positions.
4 - 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DOORS AND WINDOWS
Using seat belts and keeping the
DOOR
DOORS AND
doors closed and locked provides
greater safety in the event of an acci-
Operation from outside of vehicle
WINDOWS
dent. It will also help keep children
Opening door
and other from unintentionally open-
ing the doors and will help keep out
When opening the door from the
intruders.
outside, pull the outside handle
WARNING
while pressing the push button.
z
Before starting to drive, be
NOTE:
sure cab doors are securely
z
Lock the door from the inside by
closed and locked.
pushing the door lock knob in.
z
Before opening cab door, look
To lock the door from the out-
for bystanders and approach-
side, use the ignition key or
ing vehicles.
push the inside lock knob in and
close the door while pushing in
the outside handle push button.
You may want to consider carry-
ing a duplicate ignition key in
your billfold in the event you
Locking and unlocking
lock your ignition key in the cab.
<Power door lock >
The power door lock system allows
you to lock or unlock all doors simul-
taneously.
Turning the driver side door key will
lock or unlock both doors.
5 - 1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DOORS AND WINDOWS
Locking and unlocking
KEYLESS ENTRY SYSTEM
The power door lock system allows
The keyless entry system enables
you to lock or unlock all doors simul-
you to lock/unlock all doors away
taneously.
from the vehicle (approximately 3.3
Pushing the driver side lock knob will
to 9.9 ft [1 to 3 m]) using the remote
lock both doors. Pulling the lock
control.
knob will unlock both doors.
Operation from inside of vehicle
Opening door
When opening the door from the
inside, pull the inside handle
toward you while pushing the door
outward
5 - 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DOORS AND WINDOWS
z The battery of the remote control is
UD Trucks dealer for battery
NOTE:
completely discharged.
replacement. (The battery used
z As many as 4 remote controls
z The ignition key is in the ON or
is a CR1620 lithium battery.)
can be used. Contact an autho-
rized UD Trucks dealer for pur-
ACC position.
chasing or how to start using
NOTE:
additional remote controls.
z
The operating range of the
remote control depends upon

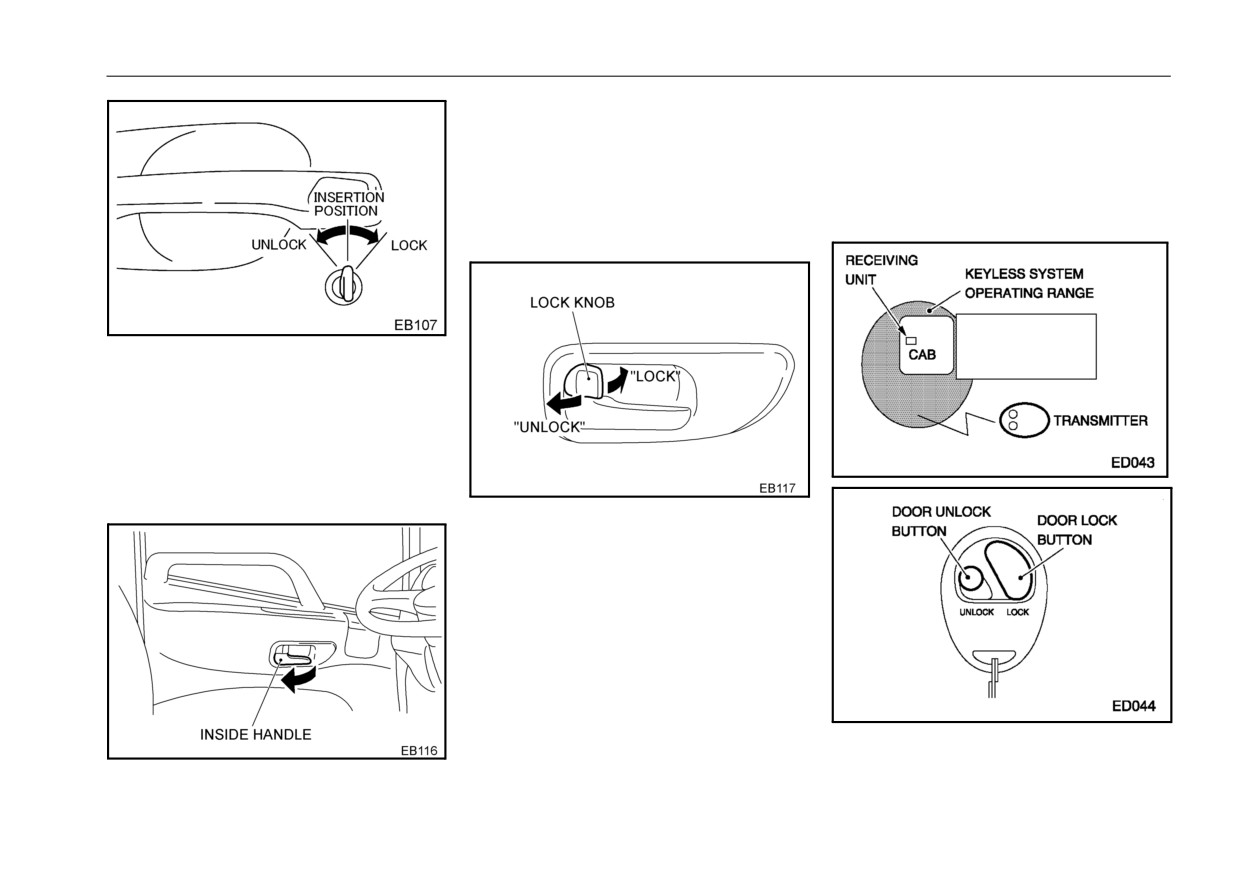

How to use remote control
the conditions around the vehi-
Door lock button (LOCK):
cle. Make sure that the remote
All doors will be locked by pushing
control is within 9.9 ft (3 m) from
the button, and the hazard lights will
the door to make it surely func-
blink once.
tion.
After locking the doors using the
z
Though the remote control is
remote control, operate the door
waterproof, it can be damaged
handle to confirm the door has been
when it gets wet. If the remote
securely locked.
control gets wet, immediately
wipe it off.
Door unlock button (UNLOCK):
Contact an authorized UD
All doors will be unlocked by pushing
Trucks
dealer if the remote
the button, and the hazard lights will
control was washed in a wash-
blink twice. All doors will be locked
ing machine or if it was soaked
automatically unless any door is
in water for a long time.
opened within approximately 30 sec-
z
Do not drop or strike the remote
onds after pressing the UNLOCK
control.
button.
z
Do not leave the remote control
The remote control will not function
for a long time in a hot area.
under the following conditions.
z
In case the remote control does
z Any door is not completely closed.
not function when pushing a
z The remote control is too far away
button, the battery may be dis-
from the vehicle.
charged. Contact an authorized
5 - 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DOORS AND WINDOWS
DOOR WINDOW (POWER
z When children are riding in the
WINDOW)
vehicle, for safety reasons, use
the power window lock switch
Open/Close switch
to lock the windows.

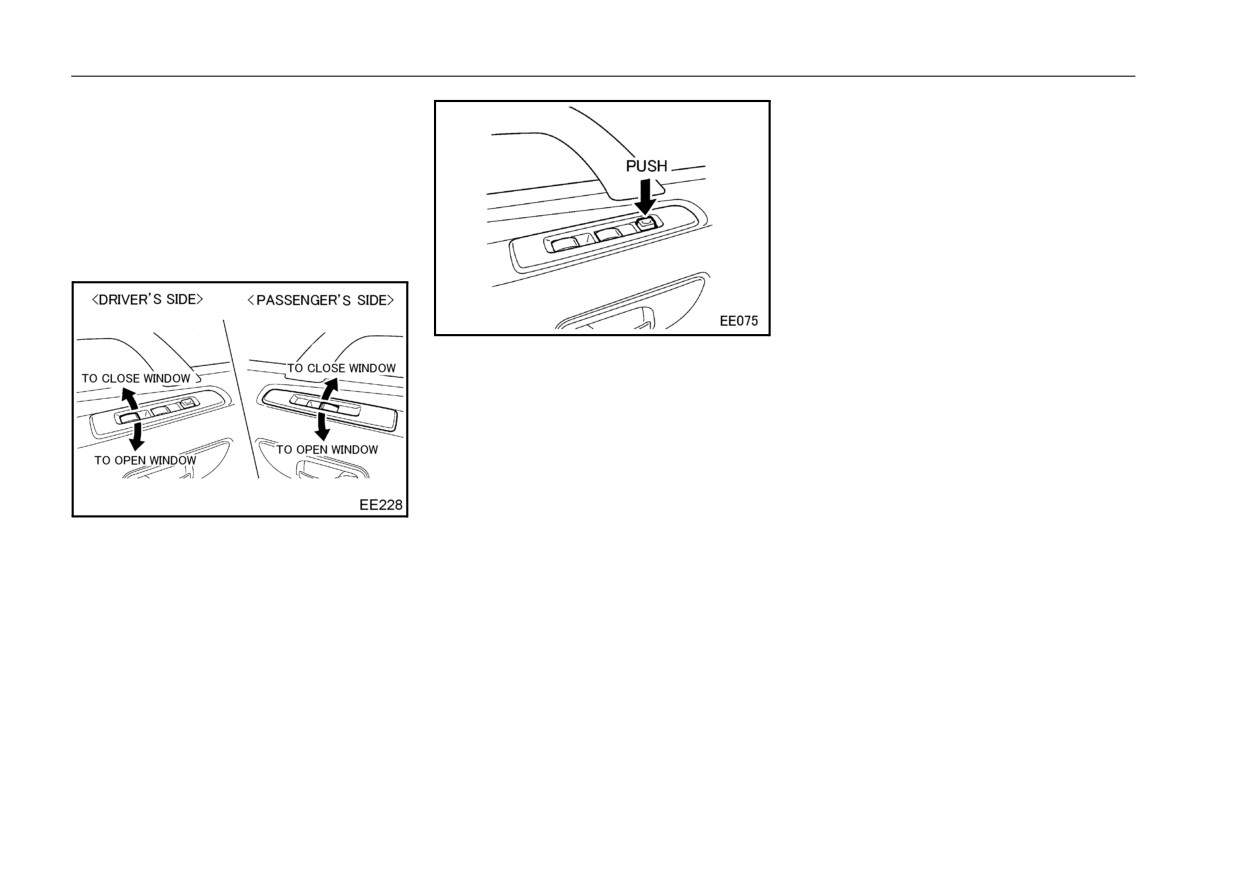

This switch is used to open and
<Opening and closing the driver’s
close the door windows on the driver
side>
and passenger’s side. It can be
The driver’s side door window switch
operated when the ignition key
is used to open or close the window
switch is in the ON position.
manually when pushed or pulled.
Passenger’s side
The window stops in its current posi-
tion when the switch is released.
WARNING
z When closing the windows,
make sure that no one has
their head or hands extended
outside the window before
operating the switch. Not
doing so could result in some-
Driver’s side
one being pinched and injured
by the windows.
z Do not leave children alone in
the vehicle. If children must be
left in the vehicle, be sure to
remove the ignition key.
5 - 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DOORS AND WINDOWS
<Opening and closing the
passenger’s side>
A passenger’s side door window
switch is provided in both the driver
and passenger’s side doors. The
window moves while the switch is
being pushed and stops when it is
released.
Window lock switch
When this switch is pushed, the pas-
senger’s side door window cannot
be opened or closed even when the
open/close switch is operated. To
open or close the window, release
the window lock.
5 - 5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING POSITION
SEATS
Front seat base adjustment
DRIVING
Fore and aft adjustment
POSITION
WARNING
z To prevent loss of vehicle con-
trol, never adjust the driver’s
seat while driving.
The front of the driver’s seat can be
raised by pulling up the lever at the
The driver’s seat can be adjusted
left side of the seat base.
forward and backward by pulling up
To lower the seat downward, pull the
on the slide lever located on the front
lever and push down on the seat.
of the seat base and sliding the seat
to the desired position. Lock the seat
Rear seat base adjustment
in place by releasing the lever. To
assure that the seat is properly
locked in place, attempt to slide the
seat fore and aft with the slide lever
released.
6 - 1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING POSITION
The rear of the driver’s seat can be
Riding comfort adjustment
Reclining adjustment
raised by pulling up the lever at the
<Up-down air suspension>
left side of the seat base.
This improves riding comfort by
To lower the seat downward, pull the
automatically adjusting the up-down
lever and push down on the seat.
movements of the vehicle body.
Lumbar support adjustment
<Seat with fore-aft suspension>
Driver’s seat

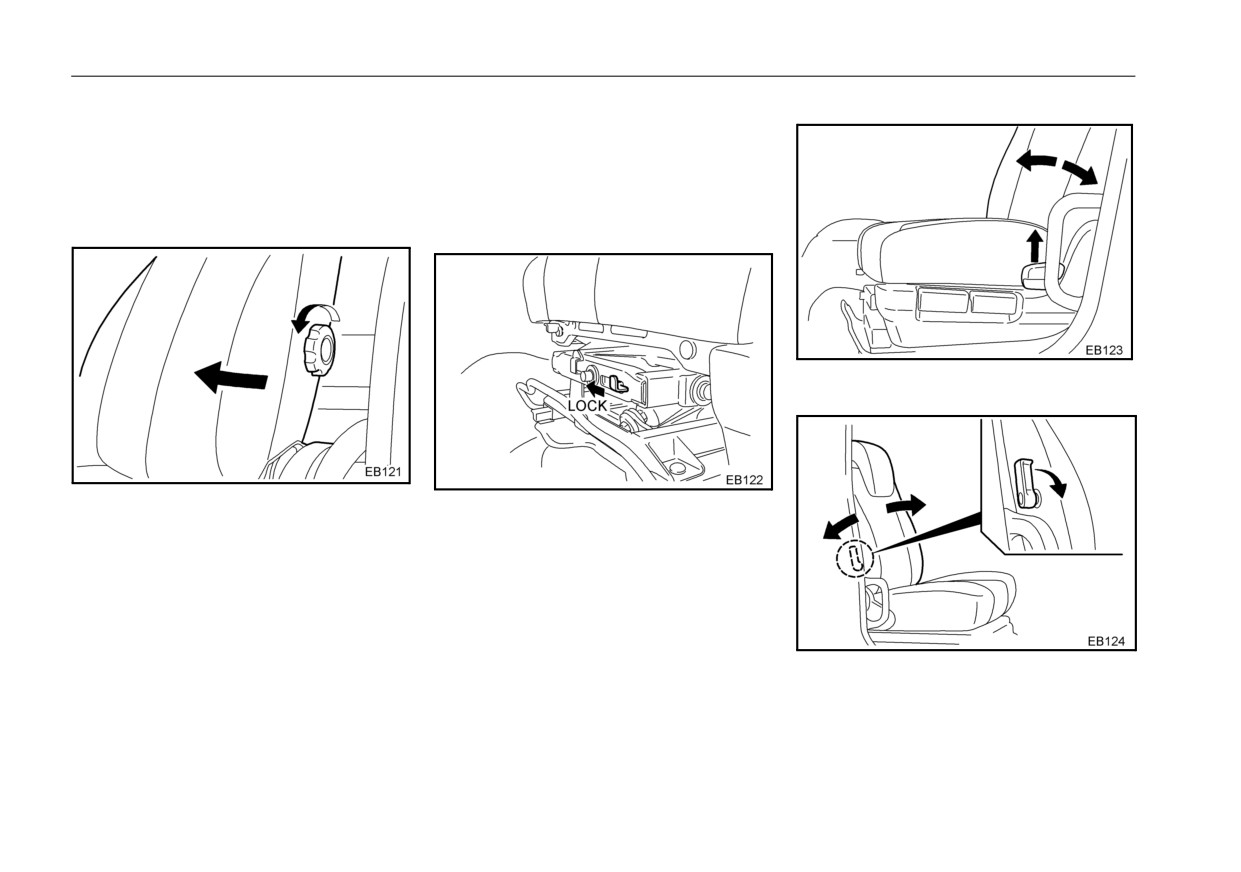

Turn the knob on the outside of the
z Riding comfort in the fore-and-aft
seat toward the front so that the cen-
direction is automatically adjusted.
ter portion of the seatback will come
z Operate the lever on the front side
out slightly to support the lumbar
of the seat to lock the fore-aft sus-
portion of the body. This may be use-
pension of the seat.
ful in reducing fatigue during long
distance driving. The support is
Passenger seat
adjustable continuously within the
adjusting range.
To tilt the seatback rearward, pull up
the lever located on the left side of
the driver’s seat base (right side for
passenger seat) and apply a slight
6 - 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING POSITION
force to the seatback. To return the
Forward and backward
Headrest adjustment (Passenger
seatback to the upright position lift
adjustment of cushion
seat)
up the lever while leaning forward.
WARNING
z Seat belts are less effective
with the seatback reclined. To
reduce the risk of sliding
under the seat belt during an
accident or sudden stop, do
not recline the seatback any
more than necessary for com-
fort.
Adjust the cushion to the desired
The height of the headrest can be
position while pushing the lever to
adjusted manually. Adjust the head-
the right. It is possible to adjust in
rest height while pressing the lock
two stages in the forward direction
knob.
from the standard position.
6 - 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING POSITION
To make fully flat / lift up the seat
lock to keep the cushion in the
z
Do not rest on or put your
cushion
down position.
weight on the headrest or head
z
In addition to being used as a reg-
z The cushion is locked when the
of the seatback when the seat-
ular assistant seat, the seatback
seatback is folded forward. Pull the
back is folded forward. Doing
can be folded forward (made fully
reclining lever and lift up the seat-
so could result in an injury or it
flat) to form part of the bed. The
back. Trying to forcefully pull up
could damage the seat.
seat cushion can also be lifted up
the seatback could result in an
z
When lowering the seat cover
to form a work space for changing
with items placed in the space
injury or it could damage the seat.
clothes, etc., or space for storage.
made by lifting the seat cover,
carefully lower the seat to
CAUTION
make sure that it does not
strike any of the stored items.
z
Make sure that the seat cush-
ion is locked in place when it is
raised. It is dangerous if the
cushion is not locked when
raised because it could fall
down. This could also damage
the seat.
z
Do not use it as a seat when
the seat cushion is raised.
z
To lift up the seat cushion, hold the
Doing so could result in an
front edge of the cushion and raise
injury or it could damage the
it until the lock engages.
seat.
z
To release the cushion to lower it,
pull up the cushion lock release
lever to release the lock and then
support the cushion by the front
edge while lowering it. There is no
6 - 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING POSITION
SEAT BELTS
z
Never use the same belt for
<Driver and passenger seat belts>
more than one person.
The driver and passenger seat belts
z
Replace damaged or inopera-
are equipped with an ELR (Emer-
WARNING
tive belts.
gency Locking Retractor). These
z
Replace belts which were in
belts are flexible under normal condi-
z
Seat belts should be worn at
use during an accident unless
tions; however, they automatically
all times. Before fastening a
the accident was minor.
lock in an emergency. Belt length
front seat belt, always adjust
z
Do not modify the seat belts.
adjustment is not necessary.
the driver’s seat to the position
NOTE:
in which you will drive. Seat
z Slowly pull out the seat belt. If
belts should be worn across
pulled abruptly, it may lock.
the hips and adjusted snugly.
z Slowly rewind the belt while
Never adjust a seat belt across
holding the tongue.
the abdomen.
z
Never attempt to fasten seat
If the driver tries to drive without
belts while the vehicle is in
wearing the seat belt, the warning
motion.
light will illuminate to warn the driver.
z
Never let a passenger hold a
If the tongue of the driver’s side seat
child on his or her lap while
belt is not completely locked into the
the vehicle is moving.
buckle, the warning light will illumi-
The passenger cannot protect
nate when the ignition switch is
the child from injury in a colli-
To fasten the belt, position the seat
turned to ON or START.
sion. Children should be
and fit the seat belt snugly without
seated in appropriate child
twisting. Insert the open end of the
restraints.
tongue into the buckle until it snaps
z
Do not wear a twisted or loose
and engages.
belt.
To unfasten the seat belt, push the
release button and disengage the
belt tongue from the buckle.
6 - 5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING POSITION

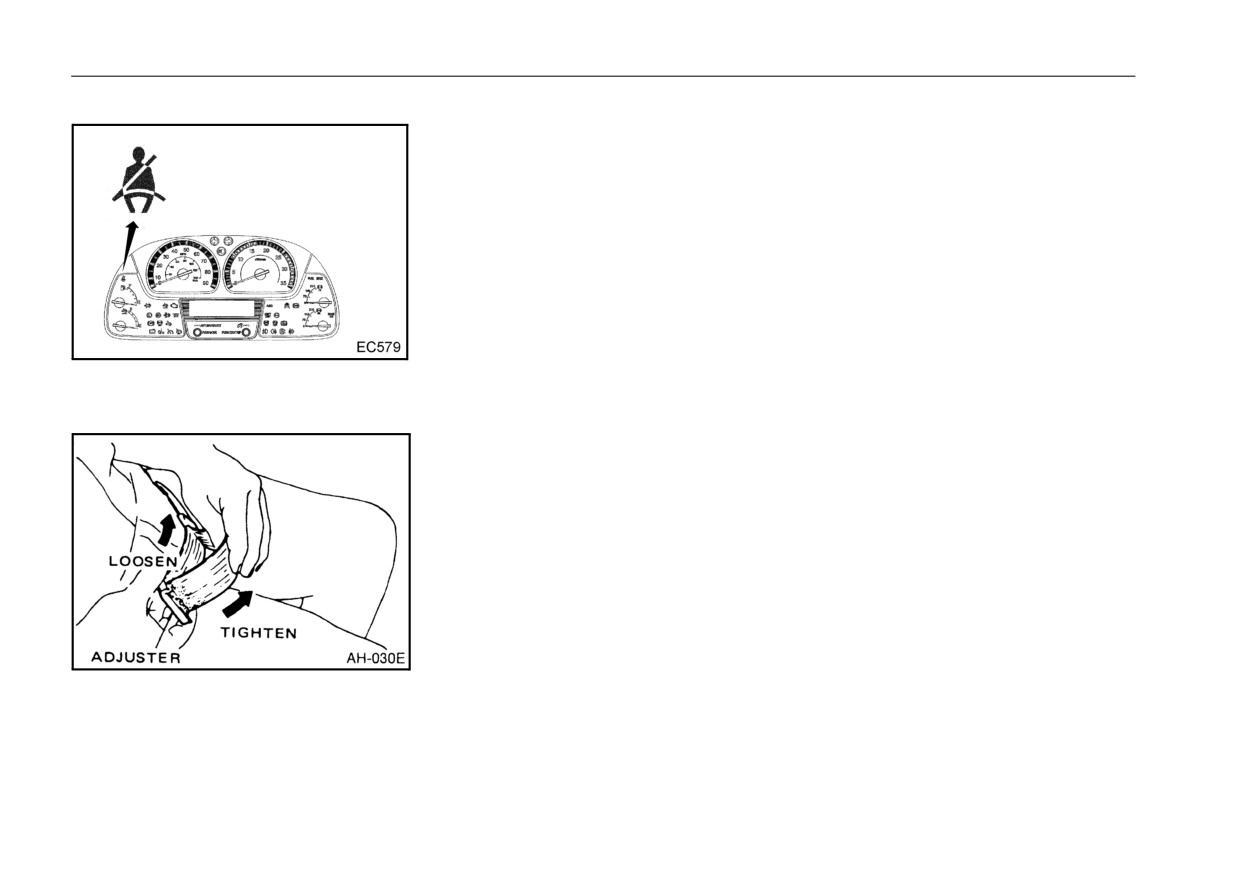

Seat belt warning light
To loosen the seat belt, raise the
and restrained by the seat belts
front end of the adjuster and pull the
provided.
belt.
NOTE:
<Pregnant woman restraint>
z When the seat belt is not in use,
z
Pregnant women should check
insert the tongue into the
with their doctors before using seat
buckle.
belts. In you are in an accident and
wearing a seat belt, significant
<Important child restraint
pressure can be exerted on the
precautions>
abdominal area.
z
U.S. law requires you to use safety
z
Pregnant woman should place the
restraints for children who are rid-
lap belt as low as possible, over
ing in this vehicle. Many states
<Center seat belt (Optional)>
the hips and not over the waist.
require that children use a child
restraint system that complies with
the Federal Motor Vehicle Safety
Standards. Check your local and
state laws for specific require-
ments regarding the safety of chil-
dren in your vehicle.
z
Choose a child restraint system
that complies with federal stan-
dards and fits your vehicle. Install
and use it in accordance with the
To tighten the seat belt, pull
the
manufacturer's instructions.
loose end toward the belt anchorage
z
Children who are too large for child
until it fits snugly.
restraint systems should be seated
6 - 6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING POSITION
Seat belt maintenance
STEERING WHEEL
1.Clean the seat belt webbing only
with mild soap or detergent. Avoid
direct sunlight when wiping and
drying the webbing.
2.Do not bleach or dye the seat belts
that may significantly weaken the
webbing.
3.Periodically check the seat belts,
metal parts, buckles, tongues and
anchors for damage and proper
function. Replace the belt assem-
The steering wheel telescopes 2.95
bly if damaged or not functional.
inches (75 mm) and tilt angle 9.5°.
Position the driver’s seat before
adjusting the steering wheel. Loosen
WARNING
the lock lever and adjust the steering
z If foreign material gets into the
wheel to the desired position. After
buckle or it becomes dirty, the
adjustment, securely tighten the lock
seat belt might not fasten or
lever.
unfasten smoothly.
Protect the buckles from for-
WARNING
eign material or dirt.
To prevent loss of vehicle con-
trol, Do not adjust steering
wheel while driving. Tighten lock
lever securely after adjustment.
6 - 7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS
INSTRUMENTS AND CONTROLS
7 - 1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

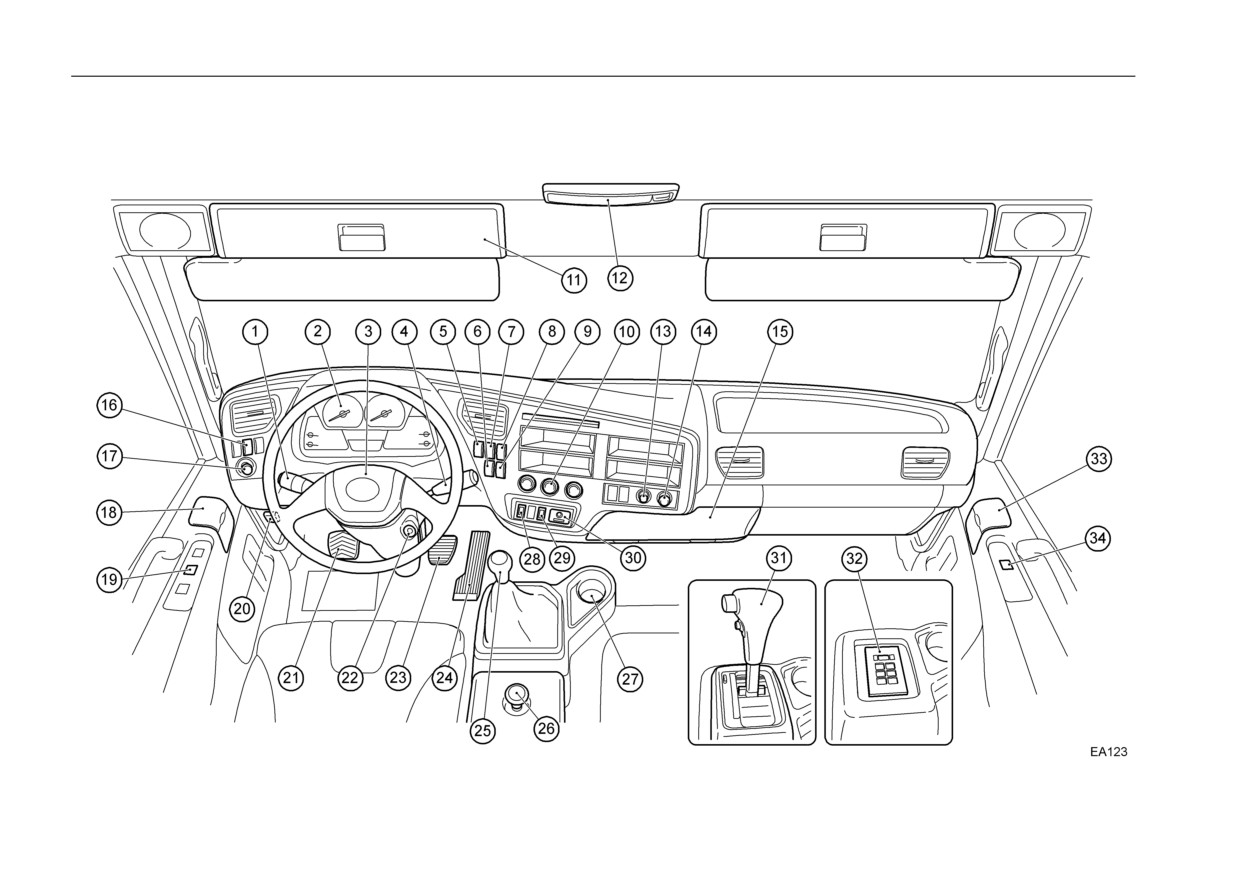

1.
Lighting, Dimmer, Passing, Turn sig-
11. Overhead box
24.
Accelerator pedal
nal, Accelerate and resume switch,
12. Room light
25.
Transmission gear shift lever
Set and coast button
13. Cigarette lighter
26.
Parking brake valve
2.
Combination meter with multi-display
14. Power socket
27.
Cup holder
function
15. Fuse lid
28.
Engine warm-up switch
3.
Horn
16. Transmission PTO switch
29.
Manual forced regeneration switch
4.
Windshield wiper, Washer,
(Optional)
30.
Power mirror switch (Optional)
Hazard warning flasher and
17. Engine throttle control knob
31.
Automatic transmission
Exhaust brake switch
18. Ashtray
selector lever (Allison 1000, 2000
5.
Multi-display select switch
19. Power window switch
and 2500 series)
6.
Air suspension dump switch (UD2600
20. Front lid knob
32.
Automatic transmission
and UD3300 equipped with air
21. Clutch pedal
selector switch (Allison 3000 series)
suspension)
22. Ignition key switch
33.
Ashtray
7.
Power mode switch (Allison 1000,
23. Brake pedal
34.
Power window switch
2000 and 2500 series)
8.
Cruise Control main switch
9.
Mirror heater switch (Optional)
10.
Heater or Air conditioner control
7 - 2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS
IGNITION KEY SWITCH
to the radio, etc., when
parked, etc., while the engine
WARNING
is stopped.
z
Absolutely do not move the
ON: This is the position used when
vehicle with the ignition key
the engine is running. Abso-
switch removed or with it in
lutely do not turn the ignition
the LOCK position. The steer-
key to any other position while
ing wheel could lock and pre-
driving.
vent steering.
In addition, if the ambient air
z
Do not turn the ignition key to
temperature is low when start-
any position other than the ON
ing the engine, it provides
position while driving.
power to the intake air heater
If turned to the ACC position,
The ignition key switch, located on
and air dryer heater.
the engine will stop, which will
the right side of the steering column,
START: This is the position used to
make it very difficult to turn the
has four positions:
start the engine. The ignition
steering wheel and operate the
key automatically returns to
clutch pedal, and the brakes
LOCK (OFF): This is the position
the ON position when
will not work as well as normal.
that turns off the power to the
released.
And if turned to the LOCK
engine. It is also the position
Absolutely do not turn the igni-
position, the steering wheel
in which the key can be
tion key to the START position
could lock and prevent steer-
inserted and removed and in
after the engine has started.
ing, which is dangerous.
which the steering wheel can
be locked. Turning the steer-
ing wheel after removing the
key will automatically lock the
steering wheel in the fixed
position to prevent theft.
ACC: This is the position used to
stop the engine. It is also the
position that is used to listen
7 - 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS
Engine stop
CAUTION
z
To avoid damage to the start-
ing system, do not turn the
ignition key to the START posi-
tion during engine operation.
z
If the engine should turn over
in the reverse direction, oper-
ate the ignition key to stop the
engine. When the engine has
turned over in the reverse
direction, the engine sound
will change and exhaust
Stop the engine using the ignition
smoke will be emitted from the
key switch. When it is turned from
air intake pipe.
ON to LOCK (OFF), the engine will
stop.
NOTE:
Also when the ignition key is turned
z If the ignition key is difficult to
from ON to ACC, the engine will
turn when inserting it and turn-
stop.
ing it to the ON position, jiggle
the steering wheel back and
forth while turning the ignition
key to release the steering
wheel lock and allow the key to
turn smoothly.
7 - 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

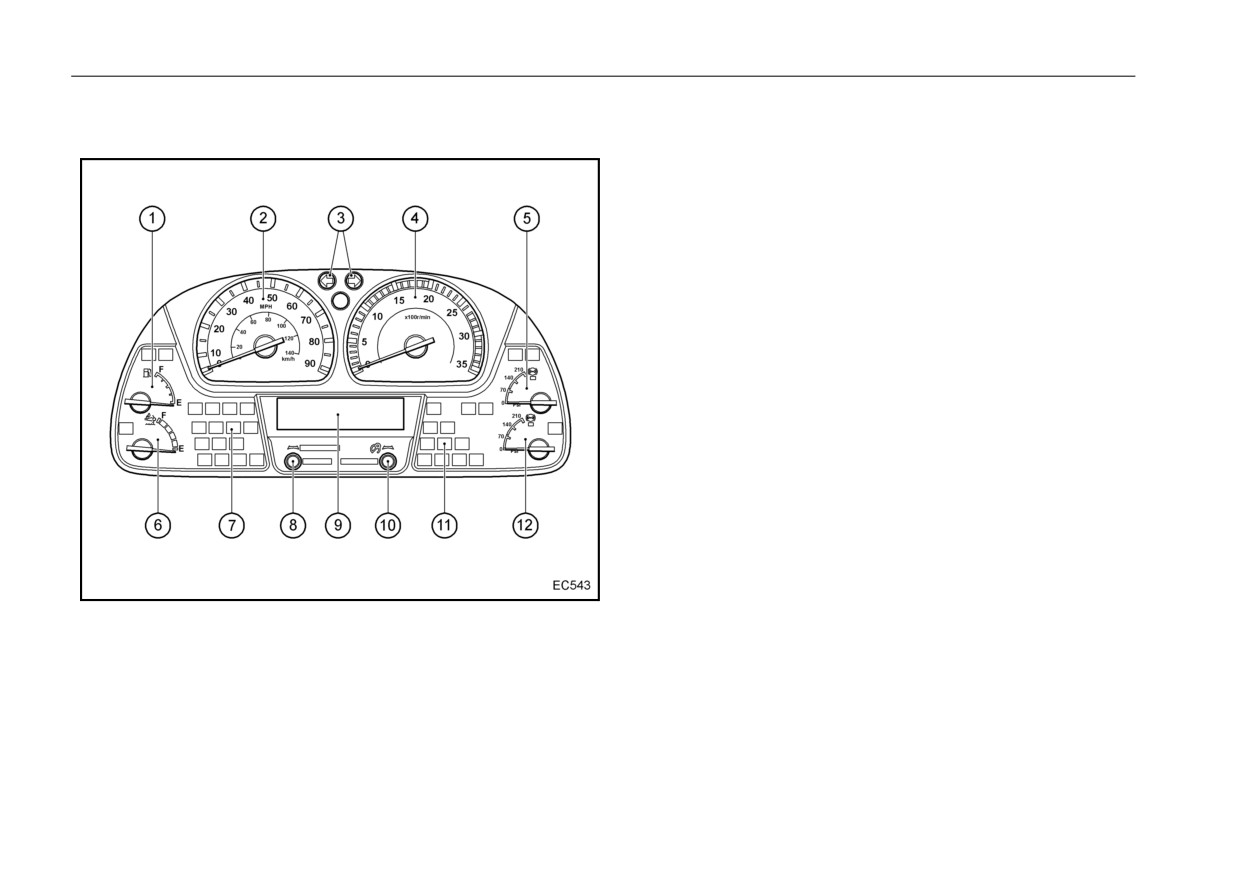

METERS AND GAUGES
NOTE:
z The meter indicators might move slightly when the
ignition key is turned to ON position. This is done
to detect the zero position of the meter indicators
and this is not a malfunction.
1.
Fuel gauge
9.
Multi-display monitor
2.
Speedometer
10.
Illumination control rheo-
3.
Turn signal indicator lights
stat and odo/trip change-
4.
Tachometer
over switch
5.
Air pressure gauge (Front)
11.
Indicator and warning
6.
DEF gauge
lights
7.
Indicator and warning
12. Air pressure gauge
lights
(Rear)
8. Mode select switch
7 - 5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

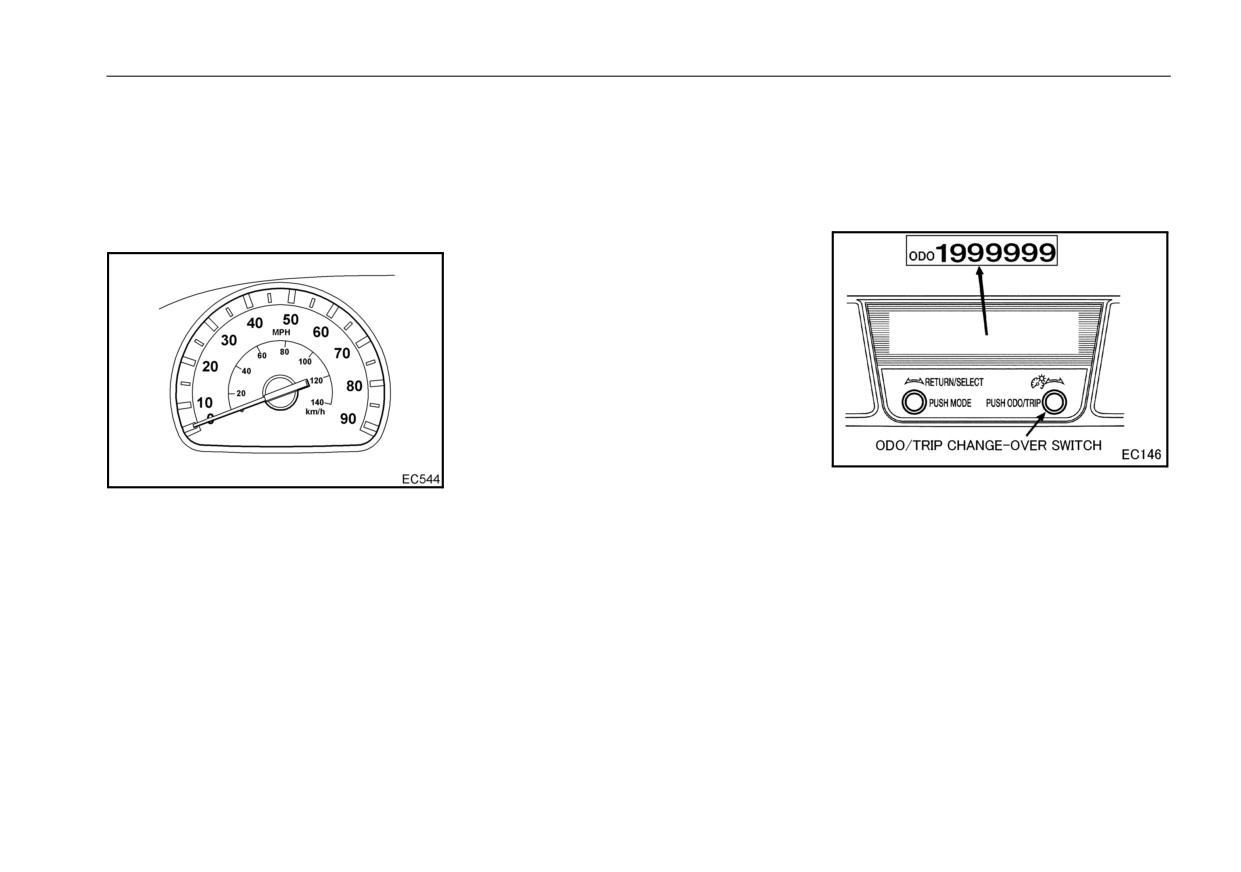

Speedometer
TRIP A is displayed, this will be
Odometer
reset.)
(Integrating distance meter)
The needle indicates the vehicle
NOTE:
speed in miles and kilometers per
The odometer indicates in mile the
z The distance after refueling the
hour on the speedometer. Observe
total distance the vehicle has been
vehicle also can be measured in
the speed limit and make an effort to
driven.
TRIP B while measuring the dis-
drive safely.
tance from the vehicle start
point in TRIP A.
z This switch is combined with
the illumination control rheo-
stat.
It adjusts the brightness of the
instrument cluster. It can be
used when the lighting switch is
set to the 1st or 2nd position.
NOTE:

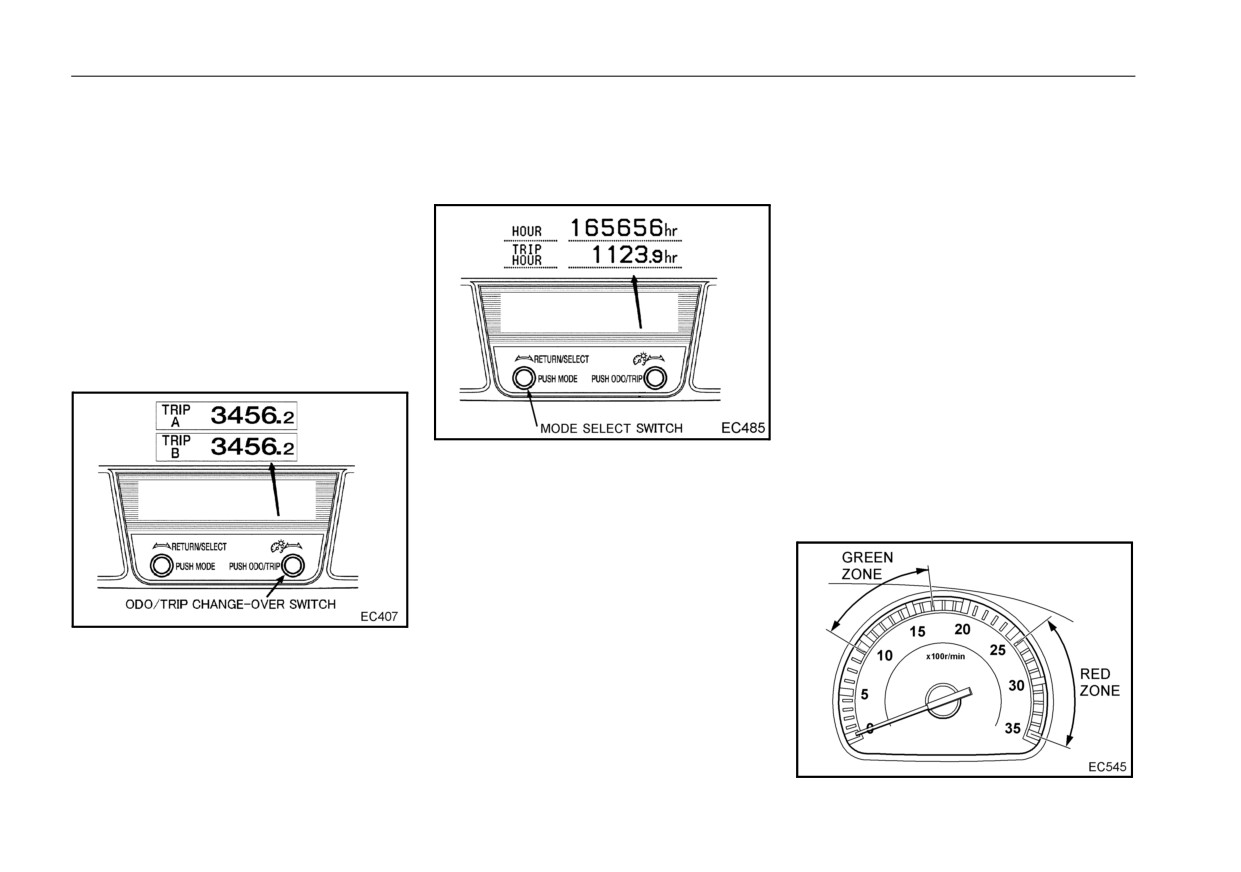

Odo/trip change-over switch
z The maximum display is
1,999,999 miles.
Pushing the reset knob (less than 1
z Pushing the odo/trip switch
second) changes the odometer and
when the ignition key is in OFF
trip meter displays as follows:
position, odometer and TRIP A/
ODO  TRIP A  TRIP B  ODO
B are displayed for about
45
 ...
seconds.
If the reset knob is pushed for more
than
1 second in the trip meter
mode, only the displayed mode
meter will be reset. (For example, if
7 - 6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS
Trip meter
and another trip meter continue
Tachometer
(Individual trip distance meter)
measuring.
The needle of the tachometer indi-
The trip meter indicates the distance
Hour/Trip hour meter
cates the engine speed in revolu-
of individual trips in miles. (The fig-
tions per minute.
ure shown at right is in 0.1 mile unit.)
z
The green zone is a guide for eco-
The trip meter can register two differ-
nomical driving. Drive in the green
ent trip distances; TRIP A and TRIP
zone as much as possible to con-
B.
serve fuel.
The trip meter A and B displays up to
z
The red zone shows the overrun
9999.9 miles. When the distance
surpasses this amount, it returns to
operation zone. Be careful that the
“0”.
indicator does not enter the red
zone.
Red zone is more than 2,600 rpm.
z
When the engine rpm exceeds the
allowable maximum rpm, a warn-
z
Indicates the operating time of the
ing message will be displayed to
engine.
warn the driver.
z
The trip hour meter will be reset to
0 when the mode select switch is
pressed more than 1 second.
NOTE:
z To reset the trip meter, keep
pushing the reset knob until the
meter displays
“000.0”. After
resetting, release the knob to
start measuring. The odometer
7 - 7

















Content      ..     1      2      3      4      ..
